Oracle® Retail Merchandising System
Operations Guide, Volume 3 - Back End Configuration and Operations
Release
16.0
E905566-01
December 2016
Oracle®
Retail Merchandising System Operations Guide, Volume 3 - Back End Configuration
and Operations, Release 16.0
E905566-01
Copyright © 2016, Oracle. All rights reserved.
Primary Author: Maria Andrew
This software and related documentation are provided
under a license agreement containing restrictions on use and disclosure and are
protected by intellectual property laws. Except as expressly permitted in your
license agreement or allowed by law, you may not use, copy, reproduce,
translate, broadcast, modify, license, transmit, distribute, exhibit, perform,
publish, or display any part, in any form, or by any means. Reverse
engineering, disassembly, or decompilation of this software, unless required by
law for interoperability, is prohibited.
The information contained herein is subject to change
without notice and is not warranted to be error-free. If you find any errors,
please report them to us in writing.
If this is software or related documentation that is
delivered to the U.S. Government or anyone licensing it on behalf of the U.S.
Government, then the following notice is applicable:
U.S. GOVERNMENT END USERS: Oracle programs, including
any operating system, integrated software, any programs installed on the
hardware, and/or documentation, delivered to U.S. Government end users are
"commercial computer software" pursuant to the applicable Federal
Acquisition Regulation and agency-specific supplemental regulations. As such,
use, duplication, disclosure, modification, and adaptation of the programs,
including any operating system, integrated software, any programs installed on
the hardware, and/or documentation, shall be subject to license terms and
license restrictions applicable to the programs. No other rights are granted to
the U.S. Government.
This software or hardware is developed for general use
in a variety of information management applications. It is not developed or
intended for use in any inherently dangerous applications, including
applications that may create a risk of personal injury. If you use this
software or hardware in dangerous applications, then you shall be responsible
to take all appropriate fail-safe, backup, redundancy, and other measures to
ensure its safe use. Oracle Corporation and its affiliates disclaim any
liability for any damages caused by use of this software or hardware in
dangerous applications.
Oracle and Java are registered trademarks of Oracle
and/or its affiliates. Other names may be trademarks of their respective
owners.
Intel and Intel Xeon are trademarks or registered
trademarks of Intel Corporation. All SPARC trademarks are used under license
and are trademarks or registered trademarks of SPARC International, Inc. AMD,
Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered
trademarks of Advanced Micro Devices. UNIX is a registered trademark of The
Open Group.
This software or hardware and documentation may provide
access to or information about content, products, and services from third
parties. Oracle Corporation and its affiliates are not responsible for and
expressly disclaim all warranties of any kind with respect to third-party
content, products, and services unless otherwise set forth in an applicable
agreement between you and Oracle. Oracle Corporation and its affiliates will
not be responsible for any loss, costs, or damages incurred due to your access
to or use of third-party content, products, or services, except as set forth in
an applicable agreement between you and Oracle.
Value-Added Reseller (VAR) Language
Oracle
Retail VAR Applications
The following restrictions and provisions only apply to
the programs referred to in this section and licensed to you. You acknowledge
that the programs may contain third party software (VAR applications) licensed
to Oracle. Depending upon your product and its version number, the VAR
applications may include:
(i) the MicroStrategy Components developed and
licensed by MicroStrategy Services Corporation (MicroStrategy) of McLean,
Virginia to Oracle and imbedded in the MicroStrategy for Oracle Retail Data
Warehouse and MicroStrategy for Oracle Retail Planning & Optimization applications.
(ii) the Wavelink component developed and
licensed by Wavelink Corporation (Wavelink) of Kirkland, Washington, to Oracle
and imbedded in Oracle Retail Mobile Store Inventory Management.
(iii) the software component known as Access Via™
licensed by Access Via of Seattle, Washington, and imbedded in Oracle Retail
Signs and Oracle Retail Labels and Tags.
(iv) the software component known as Adobe Flex™ licensed
by Adobe Systems Incorporated of San Jose, California, and imbedded in Oracle
Retail Promotion Planning & Optimization application.
You acknowledge and confirm that Oracle grants you use
of only the object code of the VAR Applications. Oracle will not deliver source
code to the VAR Applications to you. Notwithstanding any other term or condition
of the agreement and this ordering document, you shall not cause or permit
alteration of any VAR Applications. For purposes of this section,
"alteration" refers to all alterations, translations, upgrades,
enhancements, customizations or modifications of all or any portion of the VAR
Applications including all reconfigurations, reassembly or reverse assembly,
re-engineering or reverse engineering and recompilations or reverse
compilations of the VAR Applications or any derivatives of the VAR Applications.
You acknowledge that it shall be a breach of the agreement to utilize the
relationship, and/or confidential information of the VAR Applications for
purposes of competitive discovery.
The VAR Applications contain trade secrets of Oracle and
Oracle's licensors and Customer shall not attempt, cause, or permit the
alteration, decompilation, reverse engineering, disassembly or other reduction
of the VAR Applications to a human perceivable form. Oracle reserves the right
to replace, with functional equivalent software, any of the VAR Applications in
future releases of the applicable program.
ContentsContents...................................................................................................... v
Send Us Your Comments......................................................................................... xi
Preface................................................................................................................... xiii
Audience.............................................................................................................................................. xiii
Documentation Accessibility......................................................................................................... xiii
Related Documents........................................................................................................................... xiii
Customer Support............................................................................................................................. xiv
Review Patch Documentation....................................................................................................... xiv
Improved Process for Oracle Retail Documentation Corrections........................................ xiv
Oracle Retail Documentation on the Oracle Technology Network...................................... xv
Conventions......................................................................................................................................... xv
1 Introduction.......................................................................................................... 1
Contents Covered in this Volume..................................................................................................... 1
2 Technical Architecture.......................................................................................... 3
Overview.................................................................................................................................................. 3
Oracle Application Development Framework (ADF)......................................................... 3
Retail Fusion Platform................................................................................................................. 5
RMS Legacy Services.................................................................................................................... 5
Data Access Patterns.................................................................................................................... 6
Data Storage.................................................................................................................................... 6
3 Backend System Administration and Configuration.............................................. 7
Managing the Notifications Feature................................................................................................ 7
Overview of Notifications in Retail Applications............................................................... 7
Purging the Notifications Table................................................................................................ 8
Notification ReST Services......................................................................................................... 9
Enabling Mobile Push Notifications....................................................................................... 9
Managing Application Navigator................................................................................................. 10
Managing Functional Security....................................................................................................... 10
Introduction to Retail Roles..................................................................................................... 10
Retail Role Hierarchy................................................................................................................ 12
Default Security Reference Implementation........................................................................ 13
Extend the Default Security Reference Implementation.................................................. 61
Disabling Content............................................................................................................................... 62
Safe Mode...................................................................................................................................... 62
Disabling Links in the Sidebar Menu................................................................................... 62
Managing Oracle Metadata Services (MDS)............................................................................... 62
Overview of Oracle Metadata Services (MDS).................................................................... 63

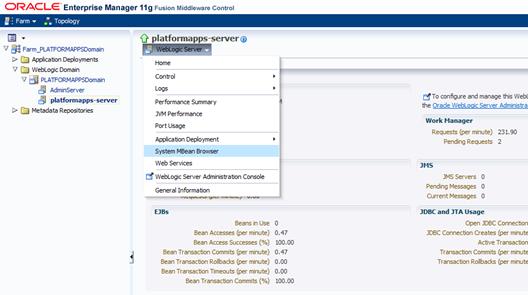

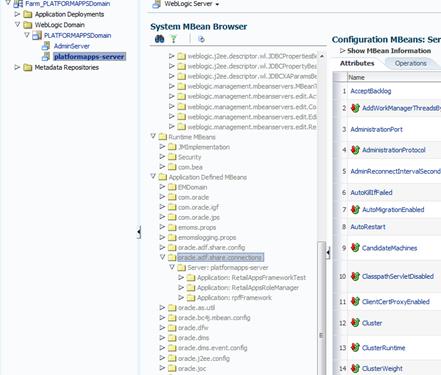

Using the System MBean Browser and the MDSAAppRuntime MBean................... 63
Exporting All MDS Customizations..................................................................................... 66
Exporting MDS Customization for a Specific User........................................................... 67
Deleting All MDS Customizations for a User..................................................................... 68
Deleting a Customization for a Specific Page for All the Users.................................... 68
Deleting a Customization for a Specific Page for a Particular
User............................. 69
Importing all MDS Customizations...................................................................................... 70
Importing a Specific Page Customization for a User........................................................ 71
Creating Metadata Labels........................................................................................................ 72
Promoting Metadata Labels..................................................................................................... 72
Listing Metadata Labels........................................................................................................... 72
Deleting Metadata Labels......................................................................................................... 72
4 Security in Retail Applications............................................................................ 73
SSO Setup for RAF Applications.................................................................................................... 73
Displaying External Application Contents in Non-SSO
Environments............................ 73
5 Web Services in Retail Applications.................................................................... 75
Common Characteristics of Retail Application ReSTful Web
Services.............................. 75
Deployment.................................................................................................................................. 75
Security.......................................................................................................................................... 75
Standard Request and Response Headers.......................................................................... 76
Standard Error Response......................................................................................................... 76
List of ReSTful Web Services........................................................................................................... 76
Platform ReSTful Web Services............................................................................................... 76
6 Customization of Retail Applications.................................................................. 83
Prerequisite Concepts........................................................................................................................ 83
Understanding the Deployment of Retail Applications................................................. 83
Understanding the Retail application User Interface...................................................... 84
Supported Customization Scenarios............................................................................................ 86
Adding a Custom Shared Library.......................................................................................... 86
Creating New ADF Contents................................................................................................... 96
Adding or Modifying an Item in the Reports Menu......................................................... 97
Dashboard Customization Scenarios................................................................................... 98
Adding Contextual Reports.................................................................................................. 122
Enabling Dynamic Task Items in the Retail Application............................................. 162
In-Context Launchable Task Flows............................................................................................ 183
Limitations of In-Context Launch via URLs.................................................................... 183
List of In-Context Launchable Task Flows....................................................................... 183

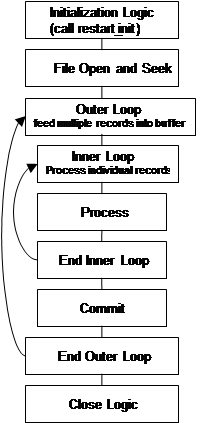

7 Pro*C Restart and Recovery.............................................................................. 185
Table of Description and Definition........................................................................................... 185

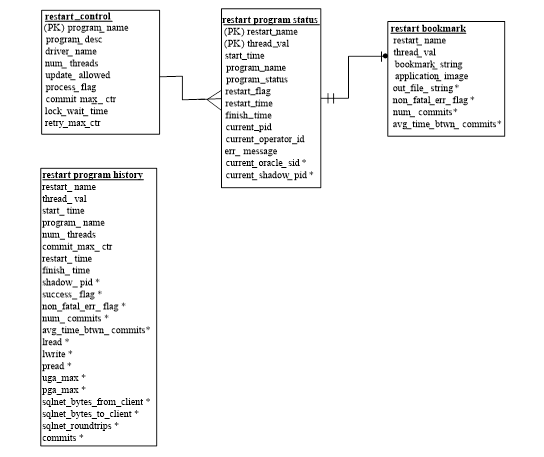

RESTART_CONTROL............................................................................................................ 186
RESTART_PROGRAM_STATUS........................................................................................ 187
RESTART_PROGRAM_HISTORY..................................................................................... 188
RESTART_BOOKMARK........................................................................................................ 189
V_RESTART_<x>.................................................................................................................... 190
Restart and Recovery Data Model Design................................................................................ 190
Physical Set-Up................................................................................................................................. 190
Table and File-Based Restart/Recovery.................................................................................... 191
API Functional Descriptions......................................................................................................... 193
RESTART_INIT......................................................................................................................... 193
RESTART_FILE_INIT............................................................................................................. 193
RESTART_COMMIT............................................................................................................... 194
RESTART_FILE_COMMIT.................................................................................................... 194
RESTART_CLOSE.................................................................................................................... 194
PARSE_ARRAY_ARGS......................................................................................................... 195
RESTART_FILE_WRITE........................................................................................................ 195
RESTART_CAT......................................................................................................................... 195
Restart Headers and Libraries.............................................................................................. 195
RESTART.H............................................................................................................................... 195
STD_REST.H.............................................................................................................................. 195
Updating Restart Headers and Libraries.......................................................................... 196
Query-Based Commit Thresholds............................................................................................... 199
8 Pro*C Multi-Threading....................................................................................... 201
Threading Description.................................................................................................................... 201
Threading Function for Query-Based......................................................................................... 201
Restarting View for Query-Based................................................................................................ 202
Thread Scheme Maintenance........................................................................................................ 203
File-Based.................................................................................................................................... 203
Query-Based............................................................................................................................... 204
Batch Maintenance.......................................................................................................................... 204
Scheduling and Initialization of Restart Batch....................................................................... 204
Pre-Processing and Post-Processing........................................................................................... 205
ksh Driven Batch Programs........................................................................................................... 205
9 Pro*C Array Processing.................................................................................... 207
10 Pro*C Input and Output Formats....................................................................... 209
General Interface Discussion........................................................................................................ 209
Standard File Layouts............................................................................................................. 209
Detail-Only Files............................................................................................................................... 209
Master and Detail Files........................................................................................................... 210
11 RETL Program Overview for the RMS-RPAS Interface....................................... 213
Oracle Retail ETL Architecture..................................................................................................... 213
RETL Program Overview............................................................................................................... 214
Configuration............................................................................................................................ 214
Program Return Code...................................................................................................................... 217
Program Status Control Files........................................................................................................ 217
File Naming Conventions...................................................................................................... 217
Restart and Recovery............................................................................................................... 217
Message Logging.............................................................................................................................. 218
Daily Log File............................................................................................................................. 218
Format.......................................................................................................................................... 218
Program Error File.................................................................................................................... 218
RMSE Reject Files............................................................................................................................. 219
Schema Files Overview................................................................................................................... 219
Command Line Parameters........................................................................................................... 219
rmse_rpas_config.env............................................................................................................. 220
RMSE I/O File Names............................................................................................................. 221
Typical Run and Debugging Situations.................................................................................... 222
RPAS/AIP Configuration.............................................................................................................. 222
RETL Program Overview for the RMS-Time-Phased Inventory
Planning Tool Interface 223
Configuration............................................................................................................................ 223
Program Return Code.............................................................................................................. 224
Program Status Control Files................................................................................................ 224
Message Logging...................................................................................................................... 226
RMSE and Transformation Reject Files............................................................................. 227
Schema Files Overview........................................................................................................... 227
Command Line Parameters................................................................................................... 227
Typical Run and Debugging Situations............................................................................ 228
12 Internationalization........................................................................................... 231
Translation......................................................................................................................................... 231
Translation Support for Multiple Entities................................................................................. 232
RMS User Interface Language Display Settings...................................................................... 232
Maintenance of Translation Values through the User Interface........................................ 232
Maintenance of Translation Values through Spreadsheet Uploads................................. 233
13 Integrating RMS with Store Inventory Management........................................... 235
Supplier............................................................................................................................................... 236
Merchandise Hierarchy.................................................................................................................. 236
Warehouse.......................................................................................................................................... 236
SIM Store............................................................................................................................................. 236
Inventory Adjustment Reason...................................................................................................... 236
Adding Inventory Adjustment Reason in SIM................................................................ 237
Mapping Inventory Adjustment Reason in RMS............................................................ 237
Diff ID................................................................................................................................................... 237
Item With/Without UIN and Item Locations........................................................................... 237
SIM GUI Item Look up............................................................................................................. 238
Transactions...................................................................................................................................... 238
Purchase Order......................................................................................................................... 238
Transfers..................................................................................................................................... 239
Return to Warehouse............................................................................................................... 241
Return to Vendor...................................................................................................................... 243
Store Orders................................................................................................................................ 244
Inventory Adjustment............................................................................................................. 244
Stock Count................................................................................................................................ 245
Price Change.............................................................................................................................. 246
14 Integrating RMS with Oracle E-Business Suite Financials
Using Oracle Retail Financial Integration 249
Participating Applications............................................................................................................ 249
Assumptions and Dependencies................................................................................................. 249
Data Setup.......................................................................................................................................... 250
RMS Data Set up and Configuration.................................................................................. 250
ReIM Data Setup and Configuration.................................................................................. 254
ReIM Transactional Maintenance............................................................................................... 257
Calculation of TRANS_AMOUNT...................................................................................... 257
Generation of Outgoing Data................................................................................................ 258
Validation of Accounts When Posting Financial Entries............................................. 258
Validation of Accounts When Prepaying a Merchandise Invoice............................. 259
Maintenance of Valid Accounts........................................................................................... 260
15 Integrating RMS with PeopleSoft Financials Using Oracle
Retail Financial Integration 261
Participating Applications............................................................................................................ 261
Assumptions and Dependencies................................................................................................. 261
Data Constraints............................................................................................................................... 262
Data Setup.......................................................................................................................................... 262
RMS Data Setup and Configuration................................................................................... 262
Configuring Drill Back and Forward Web Services....................................................... 266
ReIM Data Setup and Configuration.................................................................................. 267
CURRENCY_PRECISION..................................................................................................... 267
Chart of Accounts Setup......................................................................................................... 267
ReIM Transactional Maintenance............................................................................................... 271
Calculation of TRANS_AMOUNT...................................................................................... 271
Generation of Outgoing Data................................................................................................ 271
Validation of Accounts When Posting Financial Entries............................................. 272
Maintenance of Valid Accounts........................................................................................... 272
Building and Posting Reference IDs................................................................................... 273
Drilling Back.............................................................................................................................. 273
Drilling Back to RMS and ReSA from PeopleSoft Enterprise
Financials................. 273
Drilling Back to ReIM from PeopleSoft Enterprise Financials.................................... 274
Drilling Forward............................................................................................................................... 275
Drilling Forward From RMS/ReSA to PeopleSoft Enterprise
Financials................ 275
Drilling Forward From ReIM to PeopleSoft Enterprise Financials............................ 275
16 Understanding Data Access Schema................................................................. 277
DAS Views.......................................................................................................................................... 278
17 Using Oracle Wallet........................................................................................... 279
Oracle Retail Merchandising System Operations Guide, Volume 3 -
Back End Configuration and Operations, Release 16.0
Oracle welcomes customers' comments and suggestions on the
quality and usefulness of this document.
Your feedback is important, and helps us to best meet your needs
as a user of our products. For example:
§
Are the implementation steps correct and complete?
§
Did you understand the context of the procedures?
§
Did you find any errors in the information?
§
Does the structure of the information help you with your tasks?
§
Do you need different information or graphics? If so, where, and
in what format?
§
Are the examples correct? Do you need more examples?
If you find any errors or have any other suggestions for
improvement, then please tell us your name, the name of the company who has
licensed our products, the title and part number of the documentation and the
chapter, section, and page number (if available).
Note:
Before sending us your comments, you might like to check that you have the
latest version of the document and if any concerns are already addressed. To do
this, access the new Applications Release Online Documentation CD available on
My Oracle Support and www.oracle.com. It
contains the most current Documentation Library plus all documents revised or
released recently.
Send your comments to us using the electronic mail address: retail-doc_us@oracle.com
Please give your name, address, electronic mail address, and
telephone number (optional).
If you need assistance with Oracle software, then please contact
your support representative or Oracle Support Services.
If you require training or instruction in using Oracle software,
then please contact your Oracle local office and inquire about our Oracle
University offerings. A list of Oracle offices is available on our Web site at www.oracle.com.
This Retail Merchandising System Operations Guide,
Volume 3 - Back End Configuration and Operations provides critical
information about the processing and operating details of Oracle Retail
Merchandising System (RMS), including the following:
§
System configuration settings
§
Technical architecture
§
Functional integration dataflow across the enterprise
§
Batch processing
This guide is for:
§
Systems administration and operations personnel
§
Systems analysts
§
Integrators and implementers
§
Business analysts who need information about Merchandising System
processes and interfaces
For information about Oracle's commitment to accessibility, visit
the Oracle Accessibility Program website at
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.
Access to Oracle Support
Oracle customers that have purchased support have access to
electronic support through My Oracle Support. For information, visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info
or visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs
if you are hearing impaired.
For more information, see the following documents:
§
Oracle Retail Merchandising System Installation Guide
§
Oracle Retail Merchandising System User Guide and Online Help
§
Oracle Retail Merchandising System Release Notes
§
Oracle Retail Merchandising System Custom Flex Attribute
Solution Implementation Guide
§
Oracle Retail Merchandising System Data Model
§
Oracle Retail Merchandising System Data Access Schema Data
Model
§
Oracle Retail Merchandising Security Guide
§
Oracle Retail Merchandising Implementation Guide
§
Oracle Retail Merchandising Data Conversion Operations Guide
§
Oracle Retail Merchandising Batch Schedule
§
Oracle Retail Xstore Suite/Merchandising Implementation Guide
§
Oracle Retail Sales Audit documentation
§
Oracle Retail Trade Management documentation
To contact Oracle
Customer Support, access My Oracle Support at the following URL:
https://support.oracle.com
When contacting
Customer Support, please provide the following:
§
Product version and program/module name
§
Functional and technical description of the problem (include
business impact)
§
Detailed step-by-step instructions to re-create
§
Exact error message received
§
Screen shots of each step you take
When you install the application for the first time, you install
either a base release (for example, 16.0) or a later patch release (for
example, 16.0.1). If you are installing the base release or additional patch
releases, read the documentation for all releases that have occurred since the
base release before you begin installation. Documentation for patch releases
can contain critical information related to the base release, as well as
information about code changes since the base release.
To more quickly address critical corrections to Oracle Retail
documentation content, Oracle Retail documentation may be republished whenever
a critical correction is needed. For critical corrections, the republication of
an Oracle Retail document may at times not be attached to a numbered software
release; instead, the Oracle Retail document will simply be replaced on the
Oracle Technology Network Web site, or, in the case of Data Models, to the
applicable My Oracle Support Documentation container where they reside.
This process will prevent delays in making critical corrections
available to customers. For the customer, it means that before you begin
installation, you must verify that you have the most recent version of the
Oracle Retail documentation set. Oracle Retail documentation is available on
the Oracle Technology Network at the following URL:
http://www.oracle.com/technetwork/documentation/oracle-retail-100266.html
An updated version of the applicable Oracle Retail document is
indicated by Oracle part number, as well as print date (month and year). An
updated version uses the same part number, with a higher-numbered suffix. For
example, part number E123456-02 is
an updated version of a document with part number E123456-01.
If a more recent version of a document is available, that version
supersedes all previous versions.
Oracle Retail product documentation is available on the following
web site:
http://www.oracle.com/technetwork/documentation/oracle-retail-100266.html
(Data Model documents are not available through Oracle Technology
Network. You can obtain them through My Oracle Support.)
Navigate:
This is a navigate statement. It tells you how to get to the start of the
procedure and ends with a screen shot of the starting point and the statement
“the Window Name window opens”.
This is a code sample
It is used to display examples of code
1
Welcome to the Oracle Retail Merchandising System Operations
Guide, Volume 3 - Back End Configuration and Operations. The guide is designed
to inform you about the ‘backend’ of RMS: data inputs, processes, and outputs.
As a member of the Oracle Retail family, RMS provides many benefits of Enterprise
Application Integration (EAI).
This volume describes the important features that are necessary
to run the Pro*C programs and the RETL programs associated with RMS. Additional
RMS configuration, RMS Integration, Operations, and Customization information
is also included in this volume.
Note:
For setting up Business Intelligence Publisher, see Oracle Retail
Merchandising System Installation Guide.
2
Retail Applications are based on the Oracle Application
Development Framework (ADF). The following diagram shows the key components
that make up the architecture of Retail Applications.

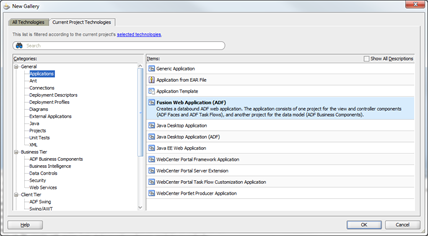

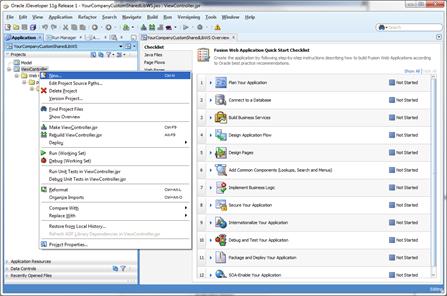

Navigate:

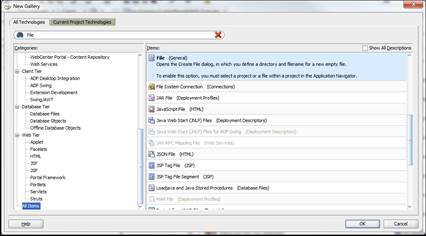

File – New. The New Document pane opens.
The Oracle Application Development Framework (ADF) supports
organizations in building cutting-edge rich enterprise business applications
that can be customized and personalized in all dimensions. Customizations are
global changes, visible to all users that are performed by an administrator.
Personalization is user-made changes that are only visible to the person making
the change. ADF is based on the Java Enterprise Edition platform.
Model View Controller (MVC) Architectural Pattern
Applications built using ADF follow a Model-View-Controller (MVC)
architectural pattern. The goal of the MVC pattern is to clearly separate the
application’s functionality into a set of cooperating components.
ADF provide a set of components that realize the goals of each
part of MVC pattern.
§
Model is realized by the ADF Bindings Layer
§
Controller is realized by the ADF Controller Layer
§
View is realized by the ADF Faces Layer
§
ADF Business components and other backend components that sit
below the model layer are called Business Services.
ADF Security
§
Standards-based (Oracle Platform Security Services (OPSS))
security framework with default roles and permissions.
§
Tools to generate the file-based identity store (for both Oracle
Internet Directory and AD) based on the framework.
§
Tools to migrate the file-based security store in to the database
for QA and production environments.
§
Reference implementation for clients to manage the security based
on their business needs.
§
OPSS-based batch security framework (RAF).
§
Tools/documentation to implement centralized logout in SSO
(Oracle Access Management (OAM)) environments.
ADF View (ADFv)
The View layer provides the user interface to the application.
The view layer uses HTML, rich Java components or XML and its variations to
render the user interface. JSF based tag libraries are used for displaying the
UI.
ADF Controller (ADFc)
The ADF Controller layer controls the application's flow. Web
based applications are composed of multiple web pages with dynamic content. The
controller layer manages the flow between these pages. Different models can be
used when building this later. The most prominent architecture for Java-based
web applications relies on a servlet that acts as the controller. The Apache
Jakarta Struts controller, an open source framework controller, is the de facto
standard for Java-based web systems. Oracle ADF uses the Struts controller to
manage the flow of web applications.
ADF Business Components (ADFbc)
The business service layer manages the interaction with a data
persistence layer. It provides services as data persistence, object/relational
mapping, transaction management and business logic execution.
Business Components easily map the database object and extend it
with business logic, validation and so on.
The idea behind Business Components is to abstract the data layer
from the view layer. This is a key concept in the MVC pattern. Business
Components will expose the interface to the view layer by using an application
module that contains the View Object. Those view objects contain a specific
usage of the data layer.
ADF Business Components implements the business service through
the following set of cooperating components:
§
Entity object – An entity object represents a row in a database
table and simplifies modifying its data by handling all data manipulation
language (DML) operations for you. It can encapsulate business logic for the
row to ensure that your business rules are consistently enforced. You associate
an entity object with others to reflect relationships in the underlying
database schema to create a layer of business domain objects to reuse in
multiple applications.
§
View object – A view object represents an SQL query. You use the
full power of the familiar SQL language to join, filter, sort, and aggregate
data into the exact shape required by the end-user task. This includes the
ability to link a view object with others to create master-detail hierarchies
of any complexity. When end users modify data in the user interface, view
objects collaborate with entity objects to consistently validate and save the
changes.
§
Application module – An application module is the transactional
component that UI clients use to work with application data. It defines an
updatable data model and top-level procedures and functions (called service
methods) related to a logical unit of work related to an end-user task.
ADF Model (ADFm)
This component acts as the connector between the view and
business logic layers.
The Model layer connects the Business Services to the objects
that use them in the other layers. Oracle ADF provides a Model layer
implementation that sits on top of Business Services, providing a single interface
that can be used to access any type of Business Services.
Developers get the same development experience when binding any
type of Business Service layer implementation to the view and Controller
layers. The Model layer in Oracle ADF served as the basis for JSR 227, A
Standard Data binding & Data Access Facility for J2EE.

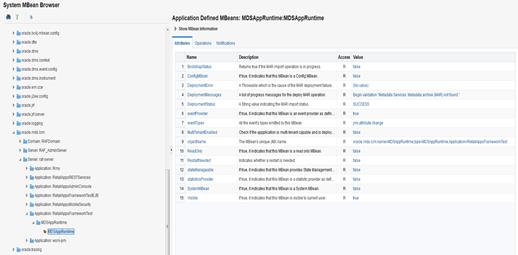

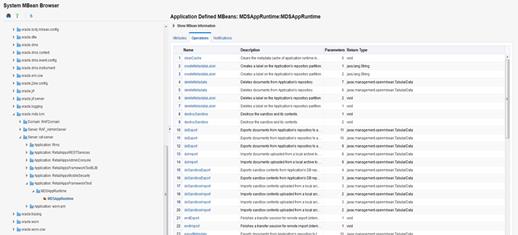

Oracle Metadata Services (MDS)
The ability of an application to adapt to changes is a necessity
that needs to be considered in the application design and that should drive the
selection of the development platform and architecture. Flexible business
applications must be able to adapt to organizational changes, different end
user preferences and changes in the supported business are required.
MDS is the customization and personalization framework integral
to Oracle Fusion Middleware and a key differentiator of the Oracle development
platform. MDS provides a repository for storing metadata for applications, such
as customizations and persisted personalization files and configurations.
Retail Applications allow the following through MDS:
§
Personalization of saved searches through MDS.
§
Implicit personalization of few ADF UI attributes.
The Retail Fusion Platform (commonly referred to as Platform) is
a collection of common, reusable software components that serve as foundation
for building Oracle Retail’s next generation ADF-based applications. The
Platform imposes standards and patterns along with a consistent look and feel
for Oracle Retail’s ADF applications.
RMS Legacy services are implemented using PL/SQL packages. The
invocation of these backend components are encapsulated in ADF business
components typically as Java wrappers that internally make use of JDBC to
invoke the PL/SQL package calls
Database interaction between the middle tier and the database is
done using the industry standard Java Database Connectivity Protocol (JDBC). JDBC
facilitates the communication between a Java application and a relational
database.
Database Access Using ADFbc
JDBC is ingrained within Oracle ADF Business Components as the
primary mechanism for its interaction between the middle tier and the database.
SQL is realized within ADF business components to facilitate create, read,
update and delete (CRUD) actions.
Connection Pooling
When the application 'disconnects' a connection, the connection
is saved into a pool instead of being actually disconnected. A standard
connection pooling technique, this saved connection enables Retail Applications
to reuse the existing connection from a pool. In other words, the application
does not have to complete the connection process for each subsequent
connection.
The Oracle Database realizes the database tier in a Retail
Application’s architecture. It is the application's storage platform,
containing the physical data (user and system) used throughout the application.
The database tier is only intended to handle the storage and retrieval of
information and is not involved in the manipulation or in the delivery of the
data. This tier responds to queries; it does not initiate them.
3
Retail Applications provide the ability to notify authenticated
users in the application when business events occur. An example of a business
event is when a background asynchronous task such as an approval of an
allocation or a validation of a price change has completed. Typically, the user
is expected to take action on these notifications.
The notification icon on the Retail Application’s navigation pane
displays the count of unread notifications for the user. When a notification is
generated, this count is incremented immediately and thereafter refreshed at
regular configurable intervals.
The sliding sidebar menu expands when the user clicks on the
notification icon. The expanded sidebar menu will show the latest
notifications. Clicking the “See All” option shows all the notifications in a
new tab.
Clicking on the link for each launchable notification opens the
specific UI flow that allows the user to address any pending action for the
notification. Illustrations follow.

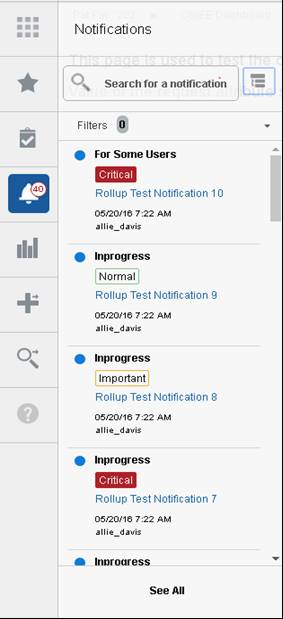

Sliding Sidebar showing the Notification Count and the Notifications
Sidebar Menu
Notifications are represented as rows in the table
RAF_NOTIFICATION. Over a period of time, depending on how notifications are
being generated by the application, the size of this table can grow continually,
potentially degrading performance of the notifications feature.
It is recommended that retailers purge this table periodically.
You can do this via the Purge feature available in the Retail Application
Administration Console (RAAC). For more details on the Manage Notifications
feature in RAAC, see the latest Merchandising Implementation Guide.
You could also setup a batch job that runs periodically, that
invokes the PL-SQL as shown below:
declare
retval number(10);
begin
-- remove Notifications from the
Allocation application that have exceeded . –- their retention duration.
retval := raf_notification_task_pkg.
DEL_NOTIF_PAST_RETENTION(‘ALC’);
end;
ReST Endpoints have been exposed by the Notifications framework
to ease the integration concerns with disparate applications.
Users of the mobile version of the Retail Application can receive
notifications in their mobile devices using push notifications.
Push notifications for Mobile Retail Applications need to be
enabled by the Retailer. This section describes the specific steps to enable
this feature.
Note: Push
notification is a native feature in modern mobile devices so the steps to
enable this service on different platforms will be different.
Prerequisite Apple Certificate and Provisioning Profile
Using push notifications on iOS requires retailers to acquire an
Apple Push Notification (APN) Service key, certificate and Provisioning
profile. These files are specific to the application and are linked to the
developer account that Apple generated them from. Refer to Apple’s developer
site for instructions on how to create an account and generate these
credentials.
Prerequisite: Android Google Cloud Messaging Registration
Using push notifications on Android requires retailers to
register the mobile Retail Application with Google Cloud Messaging (GCM). An
API key and sender ID will be generated from the account created during
registration. Refer to Google’s developer site for instructions on how to
create an account and generate these credentials.
Server Configuration
Once credentials to the specific platforms are available,
retailers need to add these to the server.
For Apple Push Notifications, retailers must import the key and
certificate from Apple into weblogic. In order to do this, a keystore (JKS)
file must be created using the Java keystore utility. The key and certificate
can then be imported into the created keystore file. Retailers can refer to
Oracle Java SE documentation for details on the keystore utility.
Once created, the keystore can be uploaded into the weblogic
system app stripe. Retailers can use the weblogic scripting tool to run a
Python script similar to the one shown below.
The example shows that the keystore is named
RetailAppsPushServices.
user = "admin username"
password = "admin password"
url = "[weblogic server]:[port]"
keypass = "keystore password"
keypath = "keystore filepath"
apnsAlias = "key alias"
apnsPass = "key password"
connect(user, password, url)
svc = getOpssService(name='KeyStoreService')
svc.importKeyStore(appStripe='system',
name='RetailAppsPushServices', type='JKS', filepath=keypath, password=keypass,
permission=true, aliases=apnsAlias, keypasswords=apnsPass)
exit('y')
For more details on how to import the created java keystores into
weblogic, refer to Oracle WebLogic Server and Oracle Fusion Middleware
documentation.

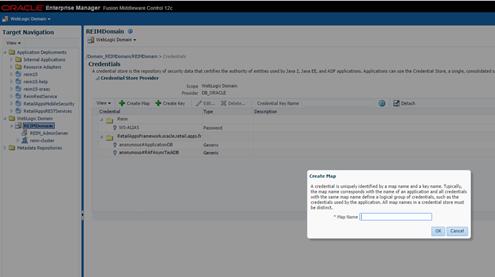

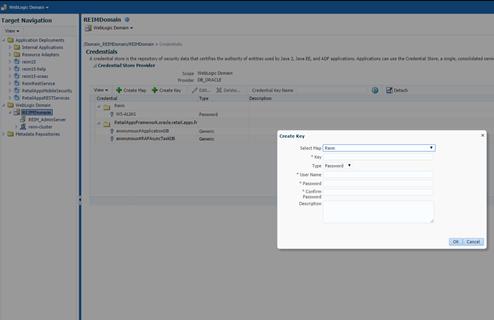

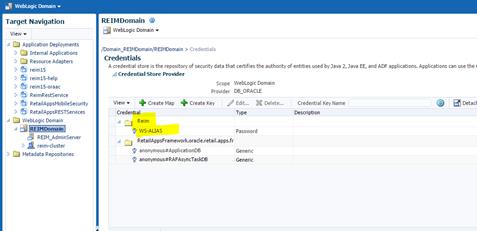

For Android notifications, retailers will need to set up the
acquired API key as a generic credential in WebLogic. The GCM API key must be
set in a map named “RetailAppsPushServices” under the key “gcmApiKey”. Refer to
Oracle WebLogic Server and Oracle Fusion Middleware documentation for
instructions on creating and setting generic credentials
Lastly, if the server environment has proxy settings, the
RetailAppsPushServices deployed on the weblogic server has to be modified.
Retrieve the RetailAppsPushServices application enterprise archive (EAR) from
the server, and modify the proxy.properties within. Once completed, the
modified EAR file has to be redployed to the server.
Retail Applications provide an ability to switch between
applications using the Application Navigator facility. These applications are
configured using the Manage Application Navigator screens on the Retail
Application Administration Console (RAAC). For more details on Application
Navigator in RAAC, see the applicable chapter in the latest Merchandising
Implementation Guide.
This chapter discusses the Functional Security for Retail
Applications and the components used to implement it. Functional security is
based on OPSS. For more details on OPSS, see the Oracle Fusion Middleware
Application Security Guide.
Users are not assigned to permissions directly; rather access is
assigned to roles. Roles group particular permissions required to accomplish a
task; instead of assigning individual permissions, roles match users with the
permissions required to complete their particular task.
There are two main types of roles, enterprise and application.
The Identity Store contains enterprise roles that are available
across applications. These are created as groups in LDAP, making them available
across applications.
Applicable Retail Applications security provides four types of
roles: abstract, job, duty, and privilege.
Applicable Retail Applications will record job, abstract roles as
enterprise roles and duty, privilege roles as application roles.
Security Policy Stripe
Application roles are stored in the application-specific policy
store. These roles and role mappings are described in the jazn-data.xml file
under the policy stripe 'RMS'.
Abstract Roles
Abstract roles are associated with a user, irrespective of their
job or job function. These roles are not associated with a job or duty. These
roles are normally assigned by the system (based on user attributes), but can
be provisioned to a user on request.
Naming Convention: All the Retail Abstract role names end with'
_ABSTRACT'
Example: APPLICATION_ADMIN_ABSTRACT
Job Roles
Job roles are associated with the job of a user. A user with this
job can have many job functions or job duties.
Note: These
roles are called Job roles because the role names closely map to the jobs
commonly found in most organizations.
Naming Convention: All the Retail Job role names end with' _JOB'
Example: ALLOCATOR_JOB.
Duty Roles
Job duties are tasks one must do on a job. A person is hired into
a job role. These are the responsibilities one has for a job.
Duty roles are roles that are associated with a specific duty or
a logical grouping of tasks. Generally, the list of duties for a job is a good
indicator of what duty roles should be defined.
Duty roles should:
§
Read as a job description at a job posting site
§
Duties that we create should be self-contained and pluggable into
any existing or new job or abstract role
Naming Convention: All the Retail duty role names end with'
_DUTY'
Example: ALC_ALLOC_POLICY_MAINTENANCE_MANAGEMENT_DUTY
Privilege Roles
Privilege is the logical collection of permissions. A privilege
can be associated with any number of UI components. Privileges are expressed as
application roles.
Naming Convention: All the Retail Privilege role names end with'
_PRIV'
For example: SEARCH_PURCHASE_ORDERS_PRIV
Privilege roles carry security grants.
Example:
<grant>
<grantee>
<principals>
<principal>
<class>oracle.security.jps.service.policystore.
ApplicationRole</class>
<name>SEARCH_PURCHASE_ORDERS_PRIV
</name>
</principal>
</principals>
</grantee>
<permissions>
<permission>
<class>oracle.adf.controller.security.TaskFlowPermission</class>
<name>//WEB-INF/oracle/retail/apps/rms/procurement/view/ordersetup/search/flow/SearchOrderFlow.xml#SearchOrderFlow</name>
<actions>view</actions>
</permission>
</permissions>
</grant>
Retail role hierarchies are structured to reflect the retail
business process model.
Job roles inherit duty roles. For example, the Buyer Job role
inherits the RMS_PURCHASE_ORDER__INQUIRY_DUTY roles.
<app-role>
<name>RMS_PURCHASE_ORDER_INQUIRY_DUTY</name>
<class>oracle.security.jps.service.policystore.ApplicationRole</class>
<members>
<member>
<class>oracle.security.jps.internal.core.principals.
JpsXmlEnterpriseRoleImpl</class>
<name>BUYER_JOB</name>
</member>
</members>
</app-role>
Duty roles inherit Privilege roles. Duty roles can inherit one or
more other Duty roles.
Example: RMS_PURCHASE_ORDER _MANAGEMENT_DUTY inherits
RMS_PURCHASE_ORDER _INQUIRY_DUTY role.
<app-role>
<name> RMS_PURCHASE_ORDER_INQUIRY_DUTY</name>
<class>oracle.security.jps.service.policystore.ApplicationRole</class>
<members>
<member>
<class>oracle.security.jps.internal.core.principals.
JpsXmlEnterpriseRoleImpl</class>
<name>BUYER_JOB</name>
</member>
<member>
<class>oracle.security.jps.service.policystore.ApplicationRole</class>
<name> RMS_PURCHASE_ORDER_MANAGEMENT_DUTY</name>
</member>
</members>
</app-role>
For example: RMS_PURCHASE_ORDER_MANAGEMENT_DUTY role inherits the
RMS_PURCHASE_ORDER_INQUIRY_DUTY
Retail Applications ship with a default security reference
implementations. The source of truth for default reference implementation is
jazn-data.xml.
Privileges
|
Privilege
|
Privilege Description
|
|
View Application Administration Priv
|
This privilege provides view access to the System Options
screen, the Download Blank Template and the Foundation Data Download screens.
Within the Foundation Data Download screen, this privilege provides access to
download the following to a spreadsheet: Codes and Descriptions, Custom Flex
Attribute Foundation, Languages, Error Messages, Security Users, Security
Groups, Associate Users to Groups, Associate Locations to Groups, Filter
Groups, and/or Role and Privileges.
|
|
Maintain Application Administration Priv
|
This privilege provides create/edit access to the System
Options, the Foundation Data Download and the Foundation Data Upload screens.
Foundation Data that can be created and maintained via spreadsheets with this
privilege includes Codes and Descriptions, Custom Flex Attribute Foundation,
Languages, Error Messages, Security Users, Security Groups, Associate Users
to Groups, Associate Locations to Groups, Filter Groups, and Role and
Privileges.
|
|
View Report Options Priv
|
A privilege for viewing Report Options and department
level Report Option Exceptions.
|
|
Maintain Report Options Priv
|
A privilege for creating and maintaining Report Options
and department level Report Option Exceptions.
|
|
View Translations Priv
|
This privilege provides view access to the centralized
data 'Translations' screen.
|
|
Maintain Translations Priv
|
This privilege provides edit access to the centralized
data 'Translations' screen.
|
|
View Asynchronous Jobs Priv
|
This privilege provides view access to the Asynchronous
Job Log and the Data Loading Status screens.
|
|
Maintain Asynchronous Jobs Priv
|
This privilege provides edit access to the Data Loading
Status, the Cost Event Search, and the Cost Event screens.
|
|
Maintain Custom Flex Attributes Priv
|
A privilege for creating and maintaining Custom Flex
Attribute definitions.
|
|
View Custom Flex Attributes Priv
|
A privilege for viewing Custom Flex Attribute definitions.
|
|
View Foundation Data via Spreadsheet Priv
|
Gives users ability to download
supporting data for Inventory, Price and Cost, Items, and Import.
|
|
Maintain Foundation Data via Spreadsheet Priv
|
Gives users ability to upload
supporting data for Inventory, Price and Cost, Items, and Import.
|
|
View Competitive Shop Priv
|
A privilege for viewing
Competitive Shop information including shop requests competitive price
history.
|
|
Maintain Competitive Shop Priv
|
A privilege for creating and
editing competitive shop requests.
|
|
Approve Contracts Priv
|
A privilege for approving
contracts
|
|
Search Contracts Priv
|
A privilege for searching for
contracts
|
|
View Contracts Priv
|
A privilege for viewing
contracts and contract cost history.
|
|
Maintain Contracts Priv
|
A privilege for creating and
maintaining contracts. Including creating orders from contracts.
|
|
Submit Contracts Priv
|
A privilege for submitting
contracts
|
|
Approve Cost Changes Priv
|
A privilege for approving cost
changes
|
|
Search Cost Changes Priv
|
A privilege for searching for
cost changes
|
|
View Cost Changes Priv
|
A privilege for viewing cost
changes
|
|
Maintain Cost Changes Priv
|
A privilege for creating and
maintaining cost changes.
|
|
Submit Cost Changes Priv
|
A privilege for submitting cost
changes
|
|
View Cost Zones Priv
|
A privilege for viewing Cost
Zone Groups and Cost Zones
|
|
Maintain Cost Zones Priv
|
A privilege for creating and
maintaining Cost Zone Groups and Cost Zones
|
|
View Buyer Dashboard Priv
|
This privilege gives the user
access to the Buyer Dashboard.
|
|
View Finance Analyst Dashboard
Priv
|
This privilege gives the user
access to the Finance Analyst Dashboard.
|
|
View Inventory Analyst Dashboard
Priv
|
This privilege gives the user
access to the Inventory Analyst Dashboard.
|
|
View Inventory Control Dashboard
Priv
|
This privilege gives the user
access to the Inventory Control Dashboard.
|
|
View Data Steward Dashboard Priv
|
This privilege gives the user
access to the Data Steward Dashboard.
|
|
Approve Deals Priv
|
A privilege for approving deals
|
|
Search Deals Priv
|
A privilege for searching for
deals
|
|
View Deals Priv
|
A privilege for viewing deals
|
|
Maintain Deals Priv
|
A privilege for creating and
maintaining deals
|
|
Submit Deals Priv
|
A privilege for submitting deals
|
|
View Expense Profiles Priv
|
A privilege for viewing Expense
Profiles for Suppliers, Partners, and Countries.
|
|
Maintain Expense Profiles Priv
|
A privilege for creating and
editing Expense Profiles for Suppliers, Partners, and Countries.
|
|
View Up Charges Priv
|
A privilege for viewing the
association of Up Charges with Departments.
|
|
Maintain Up Charges Priv
|
A privilege for creating and
editing the association of Up Charges with Departments.
|
|
Maintain Average Cost Priv
|
A privilege for creating average
cost adjustments and viewing transaction data.
|
|
View Budgets Priv
|
A privilege for the ability to
download Monthly Budget and Open to Buy information as well as viewing the
Open to Buy dashboard report.
|
|
Maintain Budgets Priv
|
Gives users ability to upload Monthly Budget and Open to
Buy information.
|
|
View Finance Admin Priv
|
Gives users ability to download supporting data for GL
Cross Reference, VAT, Terms, Currency Exchange Type Mapping, Currency, and
Non-Merchandise Codes.
|
|
Maintain Finance Admin Priv
|
Gives users ability to upload supporting data for GL Cross
Reference, VAT, Terms, Currency Exchange Type Mapping, Currency, and
Non-Merchandise Codes.
|
|
View Financial Control Priv
|
Gives users ability to download Half Data Budget.
|
|
Maintain Financial Control Priv
|
Gives users ability to upload Half Data Budget.
|
|
View GL Drill Back Priv
|
A privilege for viewing Fixed Deal Transaction Data and GL
drill back information.
|
|
View Transaction Data Priv
|
A privilege for viewing Transaction Data and Late Posted
Transactions dashboard report.
|
|
View Franchise Cost Priv
|
A privilege for viewing franchise cost templates and cost
relationships.
|
|
Maintain Franchise Cost Priv
|
A privilege for creating and maintaining franchise cost
templates and cost relationships.
|
|
View Franchise Foundation Priv
|
Gives users ability to download supporting data for Deal
Pass Through and Franchise Customers.
|
|
Maintain Franchise Foundation Priv
|
Gives users ability to upload supporting data for Deal
Pass Through and Franchise Customers.
|
|
Approve Franchise Orders and Returns Priv
|
A privilege for approving franchise orders and returns.
|
|
View Franchise Orders and Returns Priv
|
A privilege for viewing franchise orders and returns.
|
|
Maintain Franchise Orders and Returns Priv
|
A privilege for creating, maintaining, and submitting
franchise orders and returns.
|
|
Search Actual Landed Cost Priv
|
A privilege for searching for actual landed cost.
|
|
View Actual Landed Cost Priv
|
A privilege for viewing actual landed cost.
|
|
Finalize Actual Landed Cost Priv
|
A privilege for finalizing actual landed cost.
|
|
Confirm Customs Entries Priv
|
A privilege for confirming customs entries.
|
|
Search Customs Entries Priv
|
A privilege for searching for customs entries.
|
|
View Customs Entries Priv
|
A privilege for viewing customs entries.
|
|
Maintain Customs Entries Priv
|
A privilege for creating and maintaining customs entries.
|
|
Submit Customs Entries Priv
|
A privilege for submitting/sending customs entries.
|
|
View Import Foundation Priv
|
Gives users ability to download supporting data for the
import process, including Freight Sizes, Freight Types, HTS Headings, HTS
Heading Restraints, Quota Categories, HTS Import Country Setup, Tariff
Treatments, Origin Country Tariff Treatments, OGAs, SCACs and timelines. Also
included is the ability to download HTS definitions which include HTS, HTS
Tariff Treatments, HTS Tariff Treatment Zones, HTS Fees, HTS Fee Zones, HTS
Taxes, HTS Tax Zones, HTS Anti-Dumping, HTS Countervailing Duty, HTS
Reference and HTS Other Government Agencies.
|
|
Maintain Import Foundation Priv
|
Gives users ability to download and upload supporting data
for the import process, including Freight Sizes, Freight Types, HTS Headings,
HTS Heading Restraints, Quota Categories, HTS Import Country Setup, Tariff
Treatments, Origin Country Tariff Treatments, OGAs, SCACs and timelines. Also
included is the ability to download HTS definitions which include HTS, HTS
Tariff Treatments, HTS Tariff Treatment Zones, HTS Fees, HTS Fee Zones, HTS
Taxes, HTS Tax Zones, HTS Anti-Dumping, HTS Countervailing Duty, HTS
Reference and HTS Other Government Agencies.
|
|
View Import Items Priv
|
A privilege for viewing import items, including, Item
Suppliers, Item Supplier Countries, Item HTS, Item Import Attributes and Item
Eligible Tariff Treatments.
|
|
Maintain Import Items Priv
|
A privilege for maintaining import items, including, Item
Suppliers, Item Supplier Countries, Item HTS, Item Import Attributes, Item
Eligible Tariff Treatments.
|
|
Approve Letters of Credit Priv
|
A privilege for approving letters of credit.
|
|
Confirm Letters of Credit Priv
|
A privilege for confirming letters of credit.
|
|
Search Letters of Credit Priv
|
A privilege for searching for letters of credit.
|
|
View Letters of Credit Priv
|
A privilege for viewing letters of credit.
|
|
Maintain Letters of Credit Priv
|
A privilege for creating and maintaining letters of
credit.
|
|
Submit Letters of Credit Priv
|
A privilege for submitting letters of credit.
|
|
Approve Obligations Priv
|
A privilege for approving obligations.
|
|
Search Obligations Priv
|
A privilege for searching for obligations.
|
|
View Obligations Priv
|
A privilege for viewing obligations.
|
|
Maintain Obligations Priv
|
A privilege for creating and maintaining obligations.
|
|
Search Transportation Priv
|
A privilege for searching for transportation records.
|
|
View Transportation Priv
|
A privilege for viewing transportation records.
|
|
Finalize Transportation Priv
|
A privilege for finalizing transportation records,
generating customs entries.
|
|
Maintain Transportation Priv
|
A privilege for creating and maintaining transportation
records.
|
|
Maintain Inventory Adjustments Priv
|
A privilege for creating inventory adjustments by item or
by location, breaking sellable packs, and creating and maintaining product
transformations.
|
|
View Item Inventory and Sales Priv
|
A privilege for view item inventory and sales information
via the Item Location Inventory, Store Sales/Issues by Location, and Sellable
Pack Inquiry screens, as well as the Daily Sales, Inventory Variance to
Forecast, Inventory by Store, and Inventory by Warehouse, Unexpected
Inventory, and Negative Inventory dashboard reports.
|
|
Approve Intercompany Transfers Priv
|
A privilege for approving intercompany transfers. It is
expected that a user with this privilege will also have the ability to view
and maintain both intercompany and non-intercompany transfers.
|
|
View Intercompany Transfers Priv
|
A privilege for viewing intercompany transfers. It is
expected that a user with this privilege will also have the View Transfers
Priv.
|
|
Maintain Intercompany Transfers Priv
|
A privilege for creating and maintaining intercompany
transfers. It is expected that a user with this privilege will also have the
ability to view, create and maintain non-intercompany transfers.
|
|
Submit Intercompany Transfers Priv
|
A privilege for submitting intercompany transfers. It is
expected that a user with this privilege will also have the ability to view,
create and maintain non-intercompany transfers.
|
|
Approve MRTs Priv
|
A privilege for approving mass return transfers (MRTs).
|
|
Search MRTs Priv
|
A privilege for searching for mass return transfers
(MRTs).
|
|
View MRTs Priv
|
A privilege for viewing mass return transfers (MRTs).
|
|
Maintain MRTs Priv
|
A privilege for creating and maintaining mass return
transfers (MRTs).
|
|
Submit MRTs Priv
|
A privilege for submitting mass return transfers (MRTs).
|
|
Approve RTVs Priv
|
A privilege for approving returns to vendors (RTVs).
|
|
Search RTVs Priv
|
A privilege for searching for returns to vendors (RTVs).
|
|
View RTVs Priv
|
A privilege for viewing returns to vendors (RTVs) and
Overdue RTVs dashboard report.
|
|
Maintain RTVs Priv
|
A privilege for creating and maintaining returns to
vendors (RTVs).
|
|
View Shipments and Receipts Priv
|
A privilege for viewing shipment and receipt information
via the Transportation Shipments, BOL Search, BOL, Shipment Search, Shipment,
and Appointments screens, as well as the Early/Late Shipments and Stock
Orders Pending Close dashboard reports.
|
|
Maintain Shipments and Receipts Priv
|
A privilege for creating and maintaining shipment and
receipt information via the BOL Search, BOL, Receive by Carton, Receive by
Item, Adjust Receipts, Shipment Search, Shipment, Order Shipment, MRT,
Transfer, RTV, Stock Order Reconciliation, screens, as well as the Stock
Orders Pending Close dashboard report.
A user with this privilege will be able to close mass return transfers
(MRTs), assuming they have the Maintain MRTs Priv as well. A user with this
privilege will be able to ship returns to vendors (RTVs), assuming they have
the Maintain RTVs Priv as well. A user with this privilege will be able to
ship and close transfers, assuming they have the Maintain Transfers Priv.
|
|
Approve Transfers Priv
|
A privilege for approving transfers via the Transfer
screen or the Transfers Pending Approval dashboard report.
|
|
View Transfers Priv
|
A privilege for viewing transfers and appointments via the
Transfer Search and Appointments screens, as well as the Overdue Transfers
and Transfers Pending Approval dashboard reports.
|
|
Search Transfers Priv
|
A privilege for searching for transfers via the Transfer
Search screen.
|
|
Maintain Transfers Priv
|
A privilege for creating and maintaining transfers via the
Transfer Search and Transfer screens, as well as the Unexpected Inventory,
Overdue Transfers and Transfers Pending Approval dashboard reports.
|
|
Submit Transfers Priv
|
A privilege for submitting transfers via the Transfer
screen.
|
|
Maintain Transfers with Finishing Priv
|
This priv allows users to create multi-leg transfers with
finishers. Without this priv users can only create single leg transfers.
|
|
View Diffs Priv
|
A privilege for viewing Diffs including Diff Groups, Diff
Ranges, and Pack Templates
|
|
Maintain Diffs Priv
|
A privilege for creating and maintaining Diffs including
Diff Groups, Diff Ranges, and Pack Templates
|
|
Use Diffs Priv
|
The privilege provides access to the Diff Matrix, Diff
Distribution, Re-distribution by Diff, and the Order, Transfer and Contract
Parent/Diff Summary contextual reports. This privilege also provides access
to the Differentiators container in the Item screen.
|
|
Search Diff Ratios Priv
|
A privilege for searching for Diff Ratios.
|
|
View Diff Ratios Priv
|
A privilege for viewing Diff Ratios.
|
|
Maintain Diff Ratios Priv
|
A privilege for creating and maintaining Diff Ratios.
|
|
Maintain/View Grocery Attributes Priv
|
A privilege for access to grocery attributes for grocery
items.
|
|
Approve Items Priv
|
A privilege for approving items.
|
|
Search Items Priv
|
A privilege for searching for Items.
|
|
View Items Priv
|
A privilege for viewing Items, including Item Zone Retail,
Item Seasons, Item Attributes, Item Timelines, Item UDAs, Item VAT, Images,
Item Differentiators, Item Children, Mass Change Item Attributes, Simple Pack
Setup, Pack Detail, Packs by Component, Item Approval Errors, Ticketing,
Orders by Item, Item Transformation, Item Countries, Item Expenses and
viewing the Incomplete Items dashboard report.
|
|
Search Item Lists Priv
|
A privilege for searching for item lists
|
|
View Item Lists Priv
|
A privilege for viewing item lists
|
|
Maintain Item Lists Priv
|
A privilege for creating and maintaining item lists
|
|
View Item Locations Priv
|
A privilege for viewing item location information
including Item Up Charges and Scheduled Item Maintenance, also to view WAC
Variance dashboard report.
|
|
Maintain Item Locations Priv
|
A privilege for maintaining item location information
including Item Up Charges, Scheduled Item Maintenance, using Item Lists, and
Mass Change Item/Location Attributes
|
|
Maintain Items Priv
|
A privilege for creating and editing Items, including Item
Zone Retail, Item Seasons, Item Attributes, Item Timelines, Item UDAs, Item
VAT, Images, Item Differentiators, Item Children, Mass Change Item
Attributes, Simple Pack Setup, Pack Details, Item Approval Errors, Ticketing,
Orders by Item, Item Transformation, Item Countries, Item Expenses and
putting items back to Worksheet status.
|
|
Submit Items Priv
|
A privilege for submitting items.
|
|
View Item Suppliers Priv
|
A privilege for viewing item supplier relationships and
sourcing information including Item Supplier Country of Manufacture, Item
Supplier Country List, Item Supplier UOM, Item Supplier Country of Sourcing,
Item Supplier Country Dimensions, Item Bracket Costing, Item Expenses, Item
Supplier Country Locations and the Lead Time Days dashboard report
|
|
Maintain Item Suppliers Priv
|
A privilege for viewing item supplier relationships and
sourcing information including Item Supplier Country of Manufacture, Item
Supplier Country List, Item Supplier UOM, Item Supplier Country of Sourcing,
Item Supplier Country Dimensions, Item Bracket Costing, Item Expenses, and
Item Supplier Country Locations.
|
|
View Price Change History Priv
|
A privilege for viewing price change history information
via the Price Change History screen.
|
|
Maintain Ticket Requests Priv
|
A privilege for creating ticket printing requests via the
Ticket Request screen.
|
|
View Stores Priv
|
A privilege for viewing Stores, including Addresses, CFAS,
Store Location Traits and Walk Through Stores.
|
|
View Warehouses Priv
|
A privilege for viewing Physical and Virtual Warehouses,
including Warehouse Department Parameters, Addresses and CFAS.
|
|
Search Location Lists Priv
|
A privilege for searching for Location Lists.
|
|
View Location Lists Priv
|
A privilege for viewing Location Lists, including Location
List Criteria and Location List Details.
|
|
Maintain Location Lists Priv
|
A privilege for creating and editing Location Lists,
including Location List Criteria and Location List Details.
|
|
Maintain Stores Priv
|
A privilege for creating and editing Stores, including
Addresses, CFAS, Store Location Traits and Walk Through Stores.
|
|
Maintain Warehouses Priv
|
A privilege for creating and editing Physical and Virtual
Warehouses, including Warehouse Department Parameters, Addresses and CFAS.
|
|
View Supply Chain Network Priv
|
A privilege for viewing Supply Chain Network information
including Priority Groups, Location Activity Schedules, Warehouse Department
Parameters, Transit Times, and Supplier and Location Delivery Schedules.
|
|
Maintain Supply Chain Network Priv
|
A privilege for creating and editing Supply Chain Network
information including Priority Groups, Location Activity Schedules, Warehouse
Department Parameters, Transit Times, and Supplier and Location Delivery
Schedules.
|
|
Search Merchandise Hierarchy Priv
|
A privilege for searching for Pending Merchandise
Hierarchy changes via the Pending Merchandise Hierarchy Search screen.
|
|
View Classes Priv
|
A privilege for viewing Classes, including CFAS.
|
|
View Departments Priv
|
A privilege for viewing Departments, including CFAS.
|
|
View Divisions Priv
|
A privilege for viewing Divisions.
|
|
View Groups Priv
|
A privilege for viewing Groups.
|
|
View Merchandise Hierarchy Defaults Priv
|
A privilege for viewing Merchandise Hierarchy Defaults and
UDA Defaults for departments, classes, and subclasses.
|
|
View Merchandise Hierarchy Priv
|
The View Merchandise Hierarchy Priv provides access to the
Pending Merchandise Hierarchy Changes screen to view details of pending
changes, and the Merchandise Hierarchy screen to view all levels of the
merchandise hierarchy. In order to access further details of entities at each
level of the hierarchy, the view privileges specific to each entity are used.
|
|
View Subclasses Priv
|
A privilege for viewing Subclasses, including CFAS.
|
|
Maintain Classes Priv
|
A privilege for creating and editing Classes, including
CFAS.
|
|
Maintain Departments Priv
|
A privilege for creating and editing Departments,
including CFAS. Also provides access to update budget information from the
Cumulative Markon Variance dashboard report.
|
|
Maintain Divisions Priv
|
A privilege for creating and editing Divisions.
|
|
Maintain Groups Priv
|
A privilege for creating and editing Groups.
|
|
Maintain Merchandise Hierarchy Defaults Priv
|
A privilege for creating and editing Merchandise Hierarchy
Defaults and UDA Defaults for departments, classes, and subclasses.
|
|
Maintain Merchandise Hierarchy Priv
|
A privilege for editing Pending Merchandise Hierarchy changes.
|
|
Maintain Reclassifications Priv
|
A privilege for maintaining merchandise hierarchy
relationships.
|
|
Maintain Subclasses Priv
|
A privilege for creating and editing Subclasses, including
CFAS.
|
|
View Areas Priv
|
A privilege for viewing Areas.
|
|
View Chains Priv
|
A privilege for viewing Chains.
|
|
View Districts Priv
|
A privilege for viewing Districts.
|
|
View Organizational Hierarchy Priv
|
The View Organization Hierarchy Priv provides access to
the Organizational Hierarchy screen to view all levels of the Organizational
Hierarchy. In order to access further details of entities at each level of
the hierarchy, the view privileges specific to each entity are used.
|
|
View Regions Priv
|
A privilege for viewing Regions.
|
|
Maintain Areas Priv
|
A privilege for creating and editing Areas.
|
|
Maintain Chains Priv
|
A privilege for creating and editing Chains.
|
|
Maintain Districts Priv
|
A privilege for creating and editing Districts.
|
|
Maintain Regions Priv
|
A privilege for creating and editing Regions.
|
|
Maintain DSD Orders Priv
|
A privilege for creating Direct to Store Delivery (DSD)
orders.
|
|
Maintain Pre-Issued Order Numbers Priv
|
A privilege for creating pre-issued order numbers and
creating order using pre-issued numbers.
|
|
Approve Purchase Orders Priv
|
A privilege for approving purchase orders and viewing the
Orders Pending Approval dashboard report.
|
|
Search Purchase Orders Priv
|
A privilege for searching for purchase orders.
|
|
View Purchase Orders Priv
|
A privilege for viewing purchase orders and viewing the
Past Not After Date, Orders to Close, Never Approved, Once Approved, Missing
Orders Data, Items Missing Data and Open Orders dashboard reports.
|
|
Close Purchase Orders Priv
|
A privilege for closing purchase orders.
|
|
Maintain Purchase Orders Priv
|
A privilege for creating and maintaining purchase orders
|
|
Submit Purchase Orders Priv
|
A privilege for submitting purchase orders.
|
|
Maintain Receipt Adjustments by Cost Priv
|
A privilege for adjusting receipts by cost and viewing
transaction data.
|
|
View Coupons Priv
|
A privilege for viewing coupons.
|
|
View Product Restrictions Priv
|
A privilege for viewing product restrictions.
|
|
Maintain Coupons Priv
|
A privilege for creating and maintaining coupons.
|
|
Maintain Product Restrictions Priv
|
A privilege for creating and maintaining production
restrictions.
|
|
View Replenishment Attributes Priv
|
A privilege for viewing replenishment attributes.
|
|
Maintain Replenishment Attributes Priv
|
A privilege for creating and maintaining replenishment
attributes.
|
|
View Required Documents Priv
|
A privilege for viewing the association of Required
Documents with Suppliers, Partners, HTS Headings/Chapters, Countries, Letters
of Credit, Letter of Credit Amendments, Items, Orders, and Order Items.
|
|
Maintain Required Documents Priv
|
A privilege for creating and editing the association of
Required Documents with Suppliers, Partners, HTS Headings/Chapters,
Countries, Letters of Credit, Letter of Credit Amendments, Items, Orders, and
Order Items.
|
|
View Stock Count Units Priv
|
A privilege for viewing stock count results and viewing
the Stock Count Unit Variance dashboard report.
|
|
View Stock Counts Priv
|
A privilege for viewing stock count requests and viewing
the Stock Counts Missing dashboard report.
|
|
Maintain Stock Count Units Priv
|
A privilege for maintaining stock count results, unit variance
and adjustments, and virtual warehouse distribution.
|
|
Maintain Stock Counts Priv
|
A privilege for creating and maintaining stock count
requests.
|
|
Maintain Stock Count Values Priv
|
A privilege for maintaining stock count value variance and
adjustments.
|
|
View Stock Ledger Priv
|
A privilege for viewing the stock ledger and viewing the
Cumulative Markon Variance and Shrinkage Variance dashboard reports.
|
|
Maintain Stock Ledger Priv
|
A privilege for maintaining the stock ledger.
|
|
Activate Partners Priv
|
A privilege for activating a Partner.
|
|
Deactivate Partners Priv
|
A privilege for deactivating a Partner.
|
|
Search Partners Priv
|
A privilege for searching for Partners.
|
|
View Partners Priv
|
A privilege for viewing Partners including Partner Address
and Invoice Matching Attributes.
|
|
Maintain Partners Priv
|
A privilege for creating and editing Partners including
Partner Address, Invoice Matching Attributes and CFAS via the Address screen.
|
|
Activate Suppliers Priv
|
A privilege for activating a supplier.
|
|
Deactivate Suppliers Priv
|
A privilege for deactivating a supplier.
|
|
Search Suppliers Priv
|
A privilege for searching for Suppliers.
|
|
View Suppliers Priv
|
A privilege for viewing Suppliers, including Supplier
Address, EDI, Returns, Traits, Import Attributes, Invoice Matching
Attributes, Importer/Exporter, Routing Location, CFAS, and Org Unit
information.
|
|
View Supplier Inventory Management Priv
|
A privilege for creating and editing Supplier Inventory
Management information including Supplier Brackets.
|
|
Maintain Supplier Inventory Management Priv
|
A privilege for creating and editing Supplier Inventory
Management information including Supplier Brackets.
|
|
Maintain Suppliers Priv
|
A privilege for creating and editing Suppliers, including
Supplier Address, EDI, Returns, Traits, Import Attributes, Invoice Matching
Attributes, Importer/Exporter, Routing Location, CFAS, and Org Unit
information.
|
|
View VAT Priv
|
A privilege for viewing the association of VAT information
with Departments.
|
|
Maintain VAT Priv
|
A privilege for creating and editing the association of
VAT information with Departments.
|
Duties
|
Duty
|
Duty Description
|
Privileges
|
|
Application Admin Inquiry Duty
|
A duty for viewing application administrative information
including system options.
|
View Application Administration Priv
|
|
Application Admin Management Duty
|
A duty for maintaining application administration
information, including system options. This duty is an extension of the
Application Admin Inquiry Duty.
|
All privileges in the Application Admin Inquiry Duty
Maintain Application Administration Priv
|
|
Asynchronous Job Inquiry Duty
|
A duty for viewing the asynchronous job log.
|
View Asynchronous Jobs Priv
|
|
Asynchronous Job Management Duty
|
A duty for managing asynchronous jobs. This duty is an
extension of the Application Admin Inquiry Duty.
|
All privileges included in the Asynchronous Job Inquiry
Duty.
Maintain Asynchronous Jobs Priv
|
|
Data Security Inquiry Duty
|
A duty for viewing data security definitions.
|
View Data Security Priv
|
|
Data Security Management Duty
|
A duty for maintaining data security definitions. This
duty is an extension of the Data Security Inquiry Duty.
|
All privileges included in the Data Security Inquiry Duty.
Maintain Data Security Priv
|
|
Foundation Data via Spreadsheet Inquiry Duty
|
A duty for viewing supporting data for Inventory, Price
and Cost, Items, and Import, via downloaded spreadsheets.
|
View Foundation Data via Spreadsheet Priv
|
|
Foundation Data via Spreadsheet Management Duty
|
A duty for maintaining supporting data for Inventory,
Price and Cost, Items, and Import, via spreadsheet downloads and uploads. This
duty is an extension of the Foundation Data via Spreadsheet Inquiry Duty.
|
All privileges included in the Foundation Data Admin
Inquiry Duty.
Maintain Foundation Data via Spreadsheet Priv
|
|
Custom Flex Attributes Inquiry Duty
|
A duty for viewing custom flex attribute (CFAS)
definitions
|
View Custom Flex Attributes Priv
|
|
Custom Flex Attributes Management Duty
|
A duty for maintaining custom flex attribute (CFAS)
definitions. This duty is an extension of the Custom Flex Attributes Inquiry
Duty.
|
All privileges included in the Custom Flex Attributes
Inquiry Duty.
Maintain Custom Flex Attributes Priv
|
|
Report Options Inquiry Duty
|
A duty for viewing dashboard and contextual BI report
configuration options.
|
View Report Options Priv
|
|
Report Options Management Duty
|
A duty for maintaining dashboard and contextual BI report
configuration options. This duty is an extension of the Report Options
Inquiry Duty.
|
All privileges included in the Report Options Inquiry Duty
Maintain Report Options Priv
|
|
Centralized Data Translation Inquiry Duty
|
A duty for viewing data translations via a centralized
online screen.
|
View Translations Priv
|
|
Centralized Data Translation Management Duty
|
A duty for maintaining data translations via a centralized
online screen. This duty is an extension of the Centralized Data Translation
Inquiry Duty.
|
All privileges included in the Centralized Data
Translation Inquiry Duty
Maintain Translations Priv
|
|
Competitor Inquiry Duty
|
A duty for viewing competitive shop requests and
competitive price history.
|
View Competitive Shop Priv
|
|
Competitor Management Duty
|
A duty for maintaining competitive shop requests. This
duty is an extension of the Competitive Shop Inquiry Duty.
|
All privileges included in the Competitor Inquiry Duty.
Maintain Competitive Shop Priv
|
|
Contract Inquiry Duty
|
A duty for searching for and viewing Contracts.
|
Search Contracts Priv
View Contracts Priv
|
|
Contract Management Duty
|
A duty for maintaining and submitting contracts. This duty
is an extension of the Contract Inquiry Duty.
|
All privileges included in the Contract Inquiry Duty.
Maintain Contracts Priv
Submit Contracts Priv
|
|
Contract Approval Duty
|
A duty for approving contracts. This duty is an extension
of the Contract Management Duty.
|
All privileges included in the Contract Management Duty.
Approve Contracts Priv
|
|
Cost Change Inquiry Duty
|
A duty for viewing item cost changes.
|
View Cost Changes Priv
|
|
Cost Change Management Duty
|
A duty for maintaining and submitting item cost changes. This
duty is an extension of the Cost Change Inquiry Duty.
|
All privileges included in the Cost Change Inquiry Duty.
Maintain Cost Changes Priv
Submit Cost Changes Priv
|
|
Cost Change Approval Duty
|
A duty for approving item cost changes. This duty is an extension
of the Cost Change Management Duty.
|
All privileges included in the Cost Change Management
Duty.
Approve Cost Changes Priv
|
|
Cost Zone Inquiry Duty
|
A duty for viewing cost zones.
|
View Cost Zones Priv
|
|
Cost Zone Management Duty
|
A duty for maintaining cost zones. This duty is an
extension of the Cost Zone Inquiry Duty.
|
All privileges included in the Cost Zone Inquiry Duty.
Maintain Cost Zones Priv
|
|
Deal Inquiry Duty
|
A duty for searching for and viewing deals.
|
Search Deals Priv
View Deals Priv
|
|
Deal Management Duty
|
A duty for maintaining and submitting deals. This duty is
an extension of the Deal Inquiry Duty.
|
All privileges included in the Deal Inquiry Duty.
Maintain Deals Priv
Submit Deals Priv
|
|
Deal Approval Duty
|
A duty for approving deals. This duty is an extension of
the Deal Management Duty.
|
All privileges included in the Deal Management Duty.
Approve Deals Priv
|
|
Expense Inquiry Duty
|
A duty for viewing expense profiles used to build up an
item's ELC.
|
View Expense Profiles Priv
|
|
Expense Management Duty
|
A duty for maintaining expense profiles used to build up
an item's ELC. This duty is an extension of the Expense Inquiry Duty.
|
All privileges included in the Expense Inquiry Duty.
Maintain Expense Profiles Priv
|
|
Up Charge Inquiry Duty
|
A duty for viewing department up charges.
|
View Up Charges Priv
|
|
Up Charge Management Duty
|
A duty for maintaining department up charges. This duty is
an extension of the Up Charge Inquiry Duty.
|
All privileges included in the Up Charge Inquiry Duty.
Maintain Up Charges Priv
|
|
Average Cost Management Duty
|
A duty for maintaining average cost values.
|
Maintain Average Cost Priv
|
|
GL Drill Back Inquiry Duty
|
A duty for viewing general ledger drill back.
|
View GL Drill Back Priv
|
|
Tran Data Inquiry Duty
|
A duty for viewing transaction data.
|
View Transaction Data Priv
|
|
Franchise Cost Inquiry Duty
|
A duty for viewing franchise cost information.
|
View Franchise Cost Priv
|
|
Franchise Cost Management Duty
|
A duty for maintaining franchise cost. This duty is an
extension of the Franchise Cost Inquiry Duty.
|
All privileges included in the Franchise Cost Inquiry
Duty.
Maintain Franchise Cost Priv
|
|
Franchise Orders and Returns Inquiry Duty
|
A duty for viewing franchise orders and returns.
|
View Franchise Orders and Returns Priv
|
|
Franchise Orders and Returns Management Duty
|
A duty for maintaining franchise orders and returns. This
duty is an extension of the Franchise Orders and Returns Inquiry Duty.
|
All privileges included in the Franchise Orders and
Returns Inquiry Duty.
Maintain Franchise Orders and Returns Priv
|
|
Franchise Orders and Returns Approval Duty
|
A duty for approving franchise orders and returns. This is
an extension of the Franchise Orders and Returns Management Duty.
|
All privileges included in the Franchise Orders and
Returns Management Duty.
Approve Franchise Orders and Returns Priv
|
|
ALC Inquiry Duty
|
A duty for searching for and viewing actual landed cost
(ALC).
|
Search Actual Landed Cost Priv
View Actual Landed Cost Priv
|
|
ALC Management Duty
|
A duty for finalizing actual landed cost (ALC). This duty
is an extension of the ALC Inquiry Duty.
|
All privileges included in the ALC Inquiry Duty.
Finalize Actual Landed Cost Priv
|
|
Customs Entry Inquiry Duty
|
A duty for searching for and viewing customs entries.
|
Search Customs Entries Priv
View Customs Entries Priv
|
|
Customs Entry Management Duty
|
A duty for maintaining and submitting customs entries. This
is an extension of the Customs Entry Inquiry Duty.
|
All privileges included in the Customs Entry Inquiry Duty.
Maintain Customs Entries Priv
Submit Customs Entries Priv
|
|
Customs Entry Confirmation Duty
|
A duty for confirming customs entries. This is an
extension of the Customs Entry Management Duty.
|
All privileges included in the Customs Entry Management
Duty.
Confirm Customs Entries Priv
|
|
Import Item Inquiry Duty
|
A duty for viewing item data related to imports.
|
View Import Items Priv
|
|
Import Item Management Duty
|
A duty for maintaining item data related to imports. This
is an extension of the Import Item Inquiry Duty.
|
All privileges included in the Import Item Management
Duty.
Maintain Import Items Priv
|
|
Letter of Credit Inquiry Duty
|
A duty for searching for and viewing letters of credit.
|
Search Letters of Credit Priv
View Letters of Credit Priv
|
|
Letter of Credit Management Duty
|
A duty for maintaining and submitting letters of credit.
This is an extension of the Letter of Credit Inquiry Duty.
|
All privileges included in the Letter of Credit Inquiry
Duty.
Maintain Letters of Credit Priv
Submit Letters of Credit Priv
|
|
Letter of Credit Approval Duty
|
A duty for approving and confirming letters of credit. This
is an extension of the Letter of Credit Management Duty.
|
All privileges included in the Letter of Credit Management
Duty.
Approve Letters of Credit Priv
Confirm Letters of Credit Priv
|
|
Obligation Inquiry Duty
|
A duty for searching for and viewing obligations.
|
Search Obligations Priv
View Obligations Priv
|
|
Obligation Management Duty
|
A duty for maintaining obligations. This is an extension
of the Obligation Inquiry Duty.
|
All privileges included in the Obligation Inquiry Duty.
Maintain Obligations Priv
|
|
Obligation Approval Duty
|
A duty for approving obligations. This is an extension of
the Obligation Management Duty.
|
All privileges included in the Obligation Management Duty.
Approve Obligations Priv
|
|
Transportation Inquiry Duty
|
A duty for searching for and viewing transportation
information.
|
Search Transportation Priv
View Transportation Priv
|
|
Transportation Management Duty
|
A duty for maintaining transportation information. This
duty is an extension of the Transportation Inquiry Duty.
|
All privileges included in the Transportation Inquiry
Duty.
Maintain Transportation Priv
Finalize Transportation Priv
|
|
Inventory Adjustment Management Duty
|
A duty for creating inventory adjustments.
|
Maintain Inventory Adjustments Priv
|
|
Inventory and Sales Inquiry Duty
|
A duty for viewing item related inventory and sales
information.
|
View Item Inventory and Sales Priv
|
|
Transfer Inquiry Duty
|
A duty for searching for and viewing transfers.
|
Search Transfers Priv
View Transfers Priv
|
|
Transfer Management Duty
|
A duty for maintaining and submitting transfers. This duty
is an extension of the Transfer Inquiry Duty.
|
All privileges included in the Transfer Inquiry Duty.
Maintain Transfers Priv
Submit Transfers Priv
|
|
Transfer Approval Duty
|
A duty for approving transfers. This duty is an extension
of the Transfer Management Duty.
|
All privileges included in the Transfer Management Duty.
Approve Transfers Priv
|
|
Transfer with Finishing Management Duty
|
A duty for maintaining transfers with finishing. This duty
is an extension of the Transfer Management Duty.
|
All privileges included in the Transfer Management Duty.
Maintain Transfers with Finishing Priv
|
|
Intercompany Transfer Inquiry Duty
|
A duty for viewing intercompany transfers. This is an
extension of the Transfer Inquiry Duty.
|
All privileges included in the Transfer Inquiry Duty.
View Intercompany Transfers Priv
|
|
Intercompany Transfer Management Duty
|
A duty for maintaining and submitting intercompany
transfers. This is an extension of the Transfer Management Duty and the
Intercompany Transfer Inquiry Duty.
|
All privileges included in the Transfer Management Duty.
All privileges included in the Intercompany Transfer Inquiry Duty.
Maintain Intercompany Transfers Priv
Submit Intercompany Transfers Priv
|
|
Intercompany Transfer Approval Duty
|
A duty for approving intercompany transfers. This is an
extension of the Transfer Management Duty and the Intercompany Transfer
Management Duty.
|
All privileges included in the Transfer Approval Duty.
All privileges included in the Intercompany Transfer Management Duty.
Approve Intercompany Transfers Priv
|
|
MRT Inquiry Duty
|
A duty for searching for and viewing mass return transfers
(MRTs).
|
Search MRTs Priv
View MRTs Priv
|
|
MRT Management Duty
|
A duty for maintaining and submitting mass return
transfers (MRTs). This duty is an extension of the MRT Inquiry Duty.
|
All privileges included in the MRT Inquiry Duty.
Maintain MRTs Priv
Submit MRTs Priv
|
|
MRT Approval Duty
|
A duty for the approval of mass return transfers (MRTs). This
duty is an extension of the MRT Management Duty.
|
All privileges included in the MRT Management Duty.
Approve MRTs Priv
|
|
RTV Inquiry Duty
|
A duty for searching for and viewing returns to vendors
(RTVs).
|
Search RTVs Priv
View RTVs Priv
|
|
RTV Management Duty
|
A duty for maintaining returns to vendors (RTVs). This
duty is an extension of the RTV Inquiry Duty.
|
All privileges included in the RTV Inquiry Duty.
Maintain RTVs Priv
|
|
RTV Approval Duty
|
A duty for approving returns to vendors (RTVs). This duty
is an extension of the RTV Management Duty.
|
All privileges included in the RTV Management Duty.
Approve RTVs Priv
|
|
Shipment and Receipts Inquiry Duty
|
A duty for viewing shipments and receipts.
|
View Shipments and Receipts Priv
|
|
Shipment and Receipts Management Duty
|
A duty for maintaining shipments and receipts. This is an
extension of the Shipment and Receipts Inquiry Duty.
|
All privileges included in the Shipment and Receipts
Inquiry Duty.
Maintain Shipments and Receipts Priv
|
|
Diff Inquiry Duty
|
A duty for viewing differentiators.
|
View Diffs Priv
|
|
Diff Management Duty
|
A duty for maintaining differentiators. This duty is an
extension of the Diff Inquiry Duty.
|
All privileges included in Diff Inquiry Duty.
Maintain Diffs Priv
|
|
Diff Ratio Inquiry Duty
|
A duty for searching for and viewing differentiator
ratios.
|
Search Diff Ratios Priv
View Diff Ratios Priv
|
|
Diff Ratio Management Duty
|
A duty for maintaining differentiator ratios. This duty is
an extension of the Diff Ratio Inquiry Duty.
|
All privileges included in the Diff Ratio Inquiry Duty.
Maintain Diff Ratios Priv
|
|
Grocery Attribute Management Duty
|
A duty for viewing and maintaining grocery item related
attributes.
|
Maintain/View Grocery Attributes Priv
|
|
Item Inquiry Duty
|
A duty for searching for and viewing items.
|
Search Items Priv
View Items Priv
|
|
Item Management Duty
|
A duty for maintaining and submitting items. This duty is
an extension of the Item Inquiry Duty.
|
All privileges included in the Item Inquiry Duty.
Maintain Items Priv
Submit Items Priv
|
|
Item Approval Duty
|
A duty for approving items. This duty is an extension of
the Item Management Duty.
|
All privileges included in the Item Management Duty.
Approve Items Priv
|
|
Item List Inquiry Duty
|
A duty for searching for and viewing item lists.
|
Search Item Lists Priv
View Item Lists Priv
|
|
Item List Management Duty
|
A duty for maintaining item lists. This duty is an
extension of the Item List Inquiry Duty.
|
All privileges included in the Item List Inquiry Duty.
Maintain Item Lists Priv
|
|
Item Supplier Inquiry Duty
|
A duty for viewing item supplier sourcing information. This
is an extension of the Item Inquiry Duty.
|
All privileges included in the Item Inquiry Duty.
View Item Suppliers Priv
|
|
Item Supplier Management Duty
|
A duty for maintaining item supplier sourcing information.
This duty is an extension of the Item Supplier Inquiry Duty and the Item
Inquiry Duty.
|
All privileges included in the Item Supplier Inquiry Duty.
Maintain Item Suppliers Priv
|
|
Item Location Inquiry Duty
|
A duty for viewing item location information. This is an extension
of the Item Inquiry Duty.
|
All privileges included in the Item Inquiry Duty.
View Item Locations Priv
|
|
Item Location Management Duty
|
A duty for maintaining item location information. This
duty is an extension of the Item Location Inquiry Duty and the Item Inquiry
Duty.
|
All privileges included in the Item Location Inquiry Duty.
Maintain Item Locations Priv
|
|
Price Change Inquiry Duty
|
A duty for viewing price change history.
|
View Price Change History Priv
|
|
Ticket Management Duty
|
A duty for maintaining ticket requests.
|
Maintain Ticket Requests Priv
|
|
Location Inquiry Duty
|
A duty for searching for and viewing stores and
warehouses.
|
View Organizational Hierarchy Priv
View Stores Priv
View Warehouses Priv
|
|
Location Management Duty
|
A duty for maintaining stores and warehouses. This duty is
an extension of the Location Inquiry and Organizational Hierarchy Inquiry
Duties.
|
All privileges included in the Location Inquiry Duty.
Maintain Stores Priv
Maintain Warehouses Priv
|
|
Location List Inquiry Duty
|
A duty for searching for and viewing location lists.
|
Search Location Lists Priv
View Location Lists Priv
|
|
Location List Management Duty
|
A duty for maintaining location lists. This duty is an
extension of the Location List Inquiry Duty.
|
All privileges included in the Location List Inquiry Duty.
Maintain Location Lists Priv
|
|
Supply Chain Network Inquiry Duty
|
A duty for viewing supplier chain network information.
|
View Supply Chain Network Priv
|
|
Supply Chain Network Management Duty
|
A duty for maintaining supply chain network information. This
duty is an extension of the Supply Chain Network Inquiry Duty.
|
All privileges included in the Supply Chain Network
Inquiry Duty.
Maintain Supply Chain Network Priv
|
|
Merchandise Hierarchy Inquiry Duty
|
A duty for searching for and viewing the merchandise
hierarchy, viewing defaults defined at various levels of the merchandise
hierarchy, viewing pending merchandise hierarchy changes. This also includes
viewing all grouping levels of the hierarchy, Division, Group, Department,
Class, and Subclass, and viewing department level up charges and VAT
information.
|
Search Merchandise Hierarchy Priv
View Merchandise Hierarchy Priv
View Divisions Priv
View Groups Priv
View Departments Priv
View Classes Priv
View Subclasses Priv
View Merchandise Hierarchy Defaults Priv
View Up Charges Priv
View VAT Priv
|
|
Merchandise Hierarchy Management Duty
|
A duty for creating and maintaining the grouping levels of
the merchandise hierarchy, creating and maintaining defaults at various
levels of the hierarchy, creating and maintaining item reclassifications and
maintaining pending merchandise hierarchy changes. This also includes
maintaining the details of all grouping levels of the hierarchy, Division,
Group, Department, Class and Subclass, and maintaining department level up
charges and VAT information. This duty is an extension of the Merchandise
Hierarchy Inquiry Duty.
|
All privileges included in the Merchandise Hierarchy
Inquiry Duty.
Maintain Merchandise Hierarchy Priv
Maintain Divisions Priv
Maintain Groups Priv
Maintain Departments Priv
Maintain Classes Priv
Maintain Subclasses Priv
Maintain Merchandise Hierarchy Defaults Priv
Maintain Reclassifications Priv
Maintain Up Charges Priv
Maintain VAT Priv
|
|
Organizational Hierarchy Inquiry Duty
|
A duty for searching for and viewing the Organization
Hierarchy. This also includes viewing all grouping levels of the hierarchy,
Chain, Area, Region, and District.
|
View Organizational Hierarchy Priv
View Chains Priv
View Areas Priv
View Regions Priv
View Districts Priv
|
|
Organizational Hierarchy Management Duty
|
A duty for creating and maintaining the grouping levels of
the Organization Hierarchy. This includes all grouping levels of the
hierarchy, Chain, Area, Region, and District. This duty is an extension of
the Organizational Hierarchy Inquiry Duty.
|
All privileges included in the Organizational Hierarchy
Inquiry Duty.
Maintain Chains Priv
Maintain Areas Priv
Maintain Regions Priv
Maintain Districts Priv
|
|
DSD Management Duty
|
A duty for maintaining DSD purchase orders.
|
Maintain DSD Orders Priv
|
|
Pre-issued Order Numbers Management Duty
|
A duty for generating pre-issue order numbers and creating
orders using pre-issued numbers.
|
Maintain Pre-Issued Order Numbers Priv
|
|
Purchase Order Inquiry Duty
|
A duty for searching for and viewing purchase orders.
|
Search Purchase Orders Priv
View Purchase Orders Priv
|
|
Purchase Order Management Duty
|
A duty for maintaining and submitting purchase orders. This
duty is an extension of the Purchase Order Inquiry Duty.
|
All privileges included in the Purchase Order Inquiry
Duty.
Maintain Purchase Orders Priv
Submit Purchase Orders Priv
|
|
Purchase Order Approval Duty
|
A duty for approving purchase orders. This duty is an
extension of the Purchase Order Management Duty.
|
All privileges included in the Purchase Order Management
Duty.
Approve Purchase Orders Priv
|
|
Receipt Adjustments by Cost Management Duty
|
A duty for creating receipt adjustments by cost.
|
Maintain Receipt Adjustments by Cost Priv
|
|
POS Configuration Inquiry Duty
|
A duty for searching for and viewing coupons and product
restrictions.
|
View Coupons Priv
View Product Restrictions Priv
|
|
POS Configuration Management Duty
|
A duty for maintaining coupons and product restrictions. This
duty is an extension of the POS Configuration Inquiry Duty.
|
All privileges included in the POS Configuration Inquiry
Duty.
Maintain Coupons Priv
Maintain Product Restrictions Priv
|
|
Replenishment Inquiry Duty
|
A duty for searching for and viewing replenishment
attributes.
|
View Replenishment Attributes Priv
|
|
Replenishment Management Duty
|
A duty for maintaining replenishment attributes. This duty
is an extension of the Replenishment Inquiry Duty.
|
All privileges included in the Replenishment Inquiry Duty.
Maintain Replenishment Attributes Priv
|
|
Required Document Inquiry Duty
|
A duty for viewing required documents.
|
View Required Documents Priv
|
|
Required Document Management Duty
|
A duty for maintaining required documents. This duty is an
extension of the Required Documents Inquiry Duty.
|
All privileges included in the Required Documents Inquiry
Duty.
Maintain Required Documents Priv
|
|
Stock Count Inquiry Duty
|
A duty for searching for and viewing stock count requests
and stock count unit results.
|
View Stock Counts Priv
View Stock Count Units Priv
|
|
Stock Count Management Duty
|
A duty for maintaining stock count requests and stock
count unit results. This duty is an extension of the Stock Count Inquiry
Duty.
|
All privileges included in the Stock Count Inquiry Duty.
Maintain Stock Counts Priv
Maintain Stock Count Units Priv
|
|
Stock Count Value Management Duty
|
A duty for maintaining stock count value variances and
adjustments. This duty is an extension of the Stock Count Inquiry Duty.
|
All privileges included in the Stock Count Inquiry Duty.
Maintain Stock Count Values Priv
|
|
Stock Ledger Inquiry Duty
|
A duty for viewing the stock ledger.
|
View Stock Ledger Priv
|
|
Stock Ledger Management Duty
|
A duty for maintaining the stock ledger. This duty is an
extension of the Stock Ledger Inquiry Duty.
|
All privileges included in the Stock Ledger Inquiry Duty.
Maintain Stock Ledger Priv
|
|
Buyer Dashboard Inquiry Duty
|
A duty for viewing the Buyer Dashboard.
|
View Buyer Dashboard Priv
|
|
Finance Analyst Inquiry Duty
|
A duty for viewing the Finance Analyst Dashboard.
|
View Finance Analyst Dashboard Priv
|
|
Inventory Analyst Inquiry Duty
|
A duty for viewing the Inventory Analyst Dashboard.
|
View Inventory Analyst Dashboard Priv
|
|
Inventory Control Inquiry Duty
|
A duty for viewing the Inventory Control Dashboard.
|
View Inventory Control Dashboard Priv
|
|
Data Steward Inquiry Duty
|
A duty for viewing the Data Steward Dashboard.
|
View Data Steward Dashboard Priv
|
|
Partner Inquiry Duty
|
A duty for searching for and viewing partners.
|
Search Partners Priv
View Partners Priv
|
|
Partner Management Duty
|
A duty for maintaining partners. This duty is an extension
of the Partner Inquiry Duty.
|
All privileges included in the Partner Inquiry Duty.
Maintain Partners Priv
|
|
Partner Activation Duty
|
A duty for activating or deactivating a partner. This duty
is an extension of the Partner Management Duty.
|
All privileges included in the Partner Management Duty.
Activate Partners Priv
Deactivate Partners Priv
|
|
Supplier Inquiry Duty
|
A duty for searching for and viewing suppliers and
supplier sites.
|
Search Suppliers Priv
View Suppliers Priv
|
|
Supplier Management Duty
|
A duty for maintaining suppliers and supplier sites. This
duty is an extension of the Supplier Inquiry Duty.
|
All privileges included in the Supplier Inquiry Duty.
Maintain Suppliers Priv
|
|
Supplier Activation Duty
|
A duty for activating or deactivating a supplier or
supplier site. This duty is an extension of the Supplier Management Duty.
|
All privileges included in the Supplier Management Duty.
Activate Suppliers Priv
Deactivate Suppliers Priv
|
|
Supplier Inventory Inquiry Duty
|
A duty for viewing supplier inventory information.
|
View Supplier Inventory Management Priv
|
|
Supplier Inventory Management Duty
|
A duty for maintaining supplier inventory information. This
duty is an extension of the Supplier Inventory Inquiry Duty.
|
All privileges included in the Supplier Inventory Inquiry
Duty.
Maintain Supplier Inventory Management Priv
|
|
VAT Inquiry Duty
|
A duty for viewing department VAT information.
|
View VAT Priv
|
|
VAT Management Duty
|
A duty for maintaining department VAT information. This
duty is an extension of the VAT Inquiry Duty.
|
All privileges included in the VAT Inquiry Duty.
Maintain VAT Priv
|
Role Mapping
|
Roles
|
|
|
Persona
|
Roger
|
Stuart
|
Benny
|
Ivan
|
Ian
|
Connor
|
Isaac
|
Sarah
|
Fatima
|
Shawn
|
Fran
|
|
Duty
|
Privilege
|
RMS/RTM Application Administrator
|
Data Steward
|
Buyer
|
Inventory Analyst
|
Inventory Manager
|
Corporate Inventory Control Analyst
|
Inventory Control Manger
|
Sourcing Analyst
|
Finance Analyst
|
Supply Chain Analyst
|
Finance Manager
|
|
Application
Admin Inquiry Duty
|
View
Application Administration Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Application Admin Management Duty
|
Maintain Application Administration Priv
|
x
|
|
|
|
|
|
|
|
|
|
|
|
Report Options Inquiry Duty
|
View Report Options Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Report Options Management Duty
|
Maintain Report Options Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Centralized Data Translation Inquiry Duty
|
View Translations Priv
|
x
|
|
|
|
|
|
|
|
|
|
|
|
Centralized Data Translation Management Duty
|
Maintain Translations Priv
|
x
|
|
|
|
|
|
|
|
|
|
|
|
Asynchronous Job Inquiry Duty
|
View Asynchronous Jobs Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
|
Asynchronous Job Management Duty
|
Maintain Asynchronous Jobs Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
|
Custom Flex Attributes Management Duty
|
Maintain Custom Flex Attributes Priv
|
x
|
|
|
|
|
|
|
|
|
|
|
|
Custom Flex Attributes Inquiry Duty
|
View Custom Flex Attributes Priv
|
x
|
|
|
|
|
|
|
|
|
|
|
|
Foundation Data via Spreadsheet Inquiry Duty
|
View Foundation Data via Spreadsheet Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Foundation Data via Spreadsheet Management Duty
|
Maintain Foundation Data via Spreadsheet Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Competitor Inquiry Duty
|
View Competitive Shop Priv
|
x
|
x
|
x
|
|
|
|
|
|
x
|
|
|
|
Competitor Management Duty
|
Maintain Competitive Shop Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Contract Approval Duty
|
Approve Contracts Priv
|
x
|
|
x
|
|
x
|
|
|
|
|
|
|
|
Contract Inquiry Duty
|
Search Contracts Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Contract Inquiry Duty
|
View Contracts Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Contract Management Duty
|
Maintain Contracts Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Contract Management Duty
|
Submit Contracts Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Cost Change Approval Duty
|
Approve Cost Changes Priv
|
x
|
|
x
|
|
|
|
|
|
|
|
|
|
Cost Change Inquiry Duty
|
Search Cost Changes Priv
|
|
|
|
|
|
|
|
|
|
|
|
|
Cost Change Inquiry Duty
|
View Cost Changes Priv
|
x
|
x
|
x
|
|
|
|
|
x
|
|
|
|
|
Cost Change Management Duty
|
Maintain Cost Changes Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Cost Change Management Duty
|
Submit Cost Changes Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Cost Zone Inquiry Duty
|
View Cost Zones Priv
|
x
|
x
|
|
|
|
|
|
x
|
|
x
|
|
|
Cost Zone Management Duty
|
Maintain Cost Zones Priv
|
x
|
x
|
|
|
|
|
|
x
|
|
x
|
|
|
Buyer Dashboard Inquiry Duty
|
View Buyer Dashboard Priv
|
x
|
|
x
|
|
|
|
|
|
|
|
|
|
Finance Analyst Inquiry Duty
|
View Finance Analyst Dashboard Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
X
|
|
Inventory
Analyst Inquiry Duty
|
View
Inventory Analyst Dashboard Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
|
|
|
Inventory
Control Inquiry Duty
|
View
Inventory Control Dashboard Priv
|
x
|
|
|
|
|
x
|
x
|
|
|
|
|
|
Data
Steward Inquiry Duty
|
View
Data Steward Dashboard Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Deal
Approval Duty
|
Approve
Deals Priv
|
x
|
|
x
|
|
|
|
|
|
x
|
|
|
|
Deal
Inquiry Duty
|
Search
Deals Priv
|
x
|
|
x
|
|
|
|
|
|
x
|
|
|
|
Deal
Inquiry Duty
|
View
Deals Priv
|
x
|
|
x
|
|
|
|
|
|
x
|
|
|
|
Deal
Management Duty
|
Maintain
Deals Priv
|
x
|
|
x
|
|
|
|
|
|
x
|
|
|
|
Deal
Management Duty
|
Submit
Deals Priv
|
x
|
|
x
|
|
|
|
|
|
x
|
|
|
|
Expense
Inquiry Duty
|
View
Expense Profiles Priv
|
x
|
|
|
|
|
|
|
x
|
|
x
|
x
|
|
Expense
Management Duty
|
Maintain
Expense Profiles Priv
|
x
|
|
|
|
|
|
|
x
|
|
x
|
x
|
|
Up
Charge Inquiry Duty
|
View
Up Charges Priv
|
x
|
|
|
|
|
|
|
|
|
x
|
x
|
|
Up
Charge Management Duty
|
Maintain
Up Charges Priv
|
x
|
|
|
|
|
|
|
|
|
x
|
x
|
|
Average
Cost Management Duty
|
Maintain
Average Cost Priv
|
x
|
|
|
|
|
|
|
|
|
|
x
|
|
Budgets
Inquiry Duty
|
View
Budgets Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
x
|
|
x
|
|
Budgets
Management Duty
|
Maintain
Budgets Priv
|
x
|
|
x
|
|
|
|
|
|
|
|
|
|
Finance
Admin Inquiry Duty
|
View
Finance Admin Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
Finance
Admin Management Duty
|
Maintain
Finance Admin Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
|
|
|
Financial
Control Inquiry Duty
|
View
Financial Control Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
x
|
|
Financial
Control Management Duty
|
Maintain
Financial Control Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
X
|
|
GL
Drill Back Inquiry Duty
|
View
GL Drill Back Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Tran
Data Inquiry Duty
|
View
Transaction Data Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Franchise
Cost Inquiry Duty
|
View
Franchise Cost Priv
|
x
|
|
x
|
|
|
|
|
|
|
|
|
|
Franchise
Cost Management Duty
|
Maintain
Franchise Cost Priv
|
x
|
|
x
|
|
|
|
|
|
|
|
|
|
Franchise
Foundation Inquiry Duty
|
View
Franchise Foundation Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Franchise
Foundation Management Duty
|
Maintain
Franchise Foundation Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Franchise
Orders and Returns Approval Duty
|
Approve
Franchise Orders and Returns Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Franchise
Orders and Returns Inquiry Duty
|
View
Franchise Orders and Returns Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Franchise
Orders and Returns Management Duty
|
Maintain
Franchise Orders and Returns Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
ALC
Inquiry Duty
|
Search
Actual Landed Cost Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
ALC
Inquiry Duty
|
View
Actual Landed Cost Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
ALC
Management Duty
|
Finalize
Actual Landed Cost Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Customs
Entry Confirmation Duty
|
Confirm
Customs Entries Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
|
|
Customs
Entry Inquiry Duty
|
Search
Customs Entries Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
x
|
x
|
|
x
|
|
Customs
Entry Inquiry Duty
|
View
Customs Entries Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
x
|
x
|
|
x
|
|
Customs
Entry Management Duty
|
Maintain
Customs Entries Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
|
|
Customs
Entry Management Duty
|
Submit
Customs Entries Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
|
|
Import
Foundation Inquiry Duty
|
View
Import Foundation Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Import
Foundation Management Duty
|
Maintain
Import Foundation Priv
|
x
|
x
|
x
|
|
|
|
|
|
|
|
|
|
Import
Item Inquiry Duty
|
View
Import Items Priv
|
x
|
x
|
|
|
|
|
|
x
|
|
|
|
|
Import
Item Management Duty
|
Maintain
Import Items Priv
|
x
|
x
|
|
|
|
|
|
x
|
|
|
|
|
Letter
of Credit Approval Duty
|
Approve
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Letter
of Credit Approval Duty
|
Confirm
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Letter
of Credit Inquiry Duty
|
Search
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Letter
of Credit Inquiry Duty
|
View
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Letter
of Credit Management Duty
|
Maintain
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Letter
of Credit Management Duty
|
Submit
Letters of Credit Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Obligation
Approval Duty
|
Approve
Obligations Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Obligation
Inquiry Duty
|
Search
Obligations Priv
|
x
|
|
|
|
|
|
|
x
|
x
|
|
x
|
|
Obligation
Inquiry Duty
|
View
Obligations Priv
|
x
|
|
|
|
|
|
|
x
|
x
|
|
x
|
|
Obligation
Management Duty
|
Maintain
Obligations Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
x
|
|
Transportation
Inquiry Duty
|
Search
Transportation Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Transportation
Inquiry Duty
|
View
Transportation Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Transportation
Management Duty
|
Finalize
Transportation Priv
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
|
Transportation
Management Duty
|
Maintain
Transportation Priv
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
|
Inventory
Adjustment Management Duty
|
Maintain
Inventory Adjustments Priv
|
x
|
|
|
|
|
x
|
x
|
|
|
|
|
|
Inventory
and Sales Inquiry Duty
|
View
Item Inventory and Sales Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
|
x
|
|
|
|
Intercompany
Transfer Approval Duty
|
Approve
Intercompany Transfers Priv
|
x
|
|
|
x
|
x
|
|
x
|
|
|
|
|
|
Intercompany
Transfer Inquiry Duty
|
View
Intercompany Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
Intercompany
Transfer Management Duty
|
Maintain
Intercompany Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
Intercompany
Transfer Management Duty
|
Submit
Intercompany Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
MRT
Approval Duty
|
Approve
MRTs Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
|
|
|
MRT
Inquiry Duty
|
Search
MRTs Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
MRT
Inquiry Duty
|
View
MRTs Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
MRT
Management Duty
|
Maintain
MRTs Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
|
|
|
|
MRT
Management Duty
|
Submit
MRTs Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
|
|
|
|
RTV
Approval Duty
|
Approve
RTVs Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
|
|
|
RTV
Inquiry Duty
|
Search
RTVs Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
RTV
Inquiry Duty
|
View
RTVs Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
RTV
Management Duty
|
Maintain
RTVs Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
|
|
|
Shipment
and Receipts Inquiry Duty
|
View
Shipments and Receipts Priv
|
x
|
|
|
|
|
x
|
x
|
|
x
|
|
x
|
|
Shipment
and Receipts Management Duty
|
Maintain
Shipments and Receipts Priv
|
x
|
|
|
|
|
x
|
x
|
|
|
|
|
|
Transfer
Approval Duty
|
Approve
Transfers Priv
|
x
|
|
|
x
|
x
|
|
x
|
|
|
|
|
|
Transfer
Inquiry Duty
|
View
Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
Transfer
Inquiry Duty AND
Intercompany Transfer Inquiry Duty
|
Search
Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
Transfer
Management Duty
|
Maintain
Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
x
|
|
x
|
|
Transfer
Management Duty
|
Submit
Transfers Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
|
|
|
|
Transfer
with Finishing Management Duty
|
Maintain
Transfers with Finishing Priv
|
x
|
|
|
x
|
x
|
x
|
x
|
|
|
|
|
|
Diff
Inquiry Duty
|
View
Diffs Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Diff
Management Duty
|
Maintain
Diffs Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Diff
Management Duty
|
Use
Diffs Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Diff
Ratio Inquiry Duty
|
Search
Diff Ratios Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Diff
Ratio Inquiry Duty
|
View
Diff Ratios Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Diff
Ratio Management Duty
|
Maintain
Diff Ratios Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Grocery
Attribute Management Duty
|
Maintain/View
Grocery Attributes Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Item
Approval Duty
|
Approve
Items Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Item
Inquiry Duty
|
Search
Items Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Item
Inquiry Duty
|
View
Items Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Item
List Inquiry Duty
|
Search
Item Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Item
List Inquiry Duty
|
View
Item Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Item
List Management Duty
|
Maintain
Item Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Item
Location Inquiry Duty
|
View
Item Locations Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
X
|
|
Item
Location Management Duty
|
Maintain
Item Locations Priv
|
x
|
x
|
|
x
|
x
|
|
|
|
|
x
|
|
|
Item
Management Duty
|
Maintain
Items Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Item
Management Duty
|
Submit
Items Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Item
Supplier Inquiry Duty
|
View
Item Suppliers Priv
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Item
Supplier Management Duty
|
Maintain
Item Suppliers Priv
|
x
|
x
|
|
x
|
x
|
|
|
x
|
|
x
|
|
|
Price
Change Inquiry Duty
|
View
Price Change History Priv
|
x
|
x
|
x
|
|
|
|
|
|
x
|
|
x
|
|
Ticket
Management Duty
|
Maintain
Ticket Requests Priv
|
x
|
x
|
|
x
|
x
|
|
|
|
|
|
|
|
Location
Inquiry Duty
|
View
Stores Priv
|
x
|
x
|
|
|
|
|
|
|
|
x
|
|
|
Location
Inquiry Duty
|
View
Warehouses Priv
|
x
|
x
|
|
|
|
|
|
|
|
x
|
|
|
Location
List Inquiry Duty
|
Search
Location Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Location
List Inquiry Duty
|
View
Location Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Location
List Management Duty
|
Maintain
Location Lists Priv
|
x
|
x
|
x
|
x
|
x
|
|
|
|
x
|
x
|
|
|
Location
Management Duty
|
Maintain
Stores Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Location
Management Duty
|
Maintain
Warehouses Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Supply
Chain Network Inquiry Duty
|
View
Supply Chain Network Priv
|
x
|
x
|
|
|
|
|
|
|
|
x
|
|
|
Supply
Chain Network Management Duty
|
Maintain
Supply Chain Network Priv
|
x
|
x
|
|
|
|
|
|
|
|
x
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
Search
Merchandise Hierarchy Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Classes Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Departments Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Divisions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Groups Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Merchandise Hierarchy Defaults Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Merchandise Hierarchy Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Inquiry Duty
|
View
Subclasses Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Classes Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Departments Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Divisions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Groups Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Merchandise Hierarchy Defaults Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Merchandise Hierarchy Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Reclassifications Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Merchandise
Hierarchy Management Duty
|
Maintain
Subclasses Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Inquiry Duty
|
View
Areas Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Inquiry Duty
|
View
Chains Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Inquiry Duty
|
View
Districts Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Inquiry Duty
|
View
Organizational Hierarchy Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Inquiry Duty
|
View
Regions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Management Duty
|
Maintain
Areas Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Management Duty
|
Maintain
Chains Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Management Duty
|
Maintain
Districts Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Organizational
Hierarchy Management Duty
|
Maintain
Regions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
DSD
Management Duty
|
Maintain
DSD Orders Priv
|
x
|
|
|
|
|
|
|
|
|
|
x
|
|
Pre-issued
Order Numbers Management Duty
|
Maintain
Pre-Issued Order Numbers Priv
|
x
|
|
x
|
x
|
x
|
|
|
|
|
|
|
|
Purchase
Order Approval Duty
|
Approve
Purchase Orders Priv
|
x
|
|
x
|
x
|
|
|
|
|
|
|
|
|
Purchase
Order Inquiry Duty
|
Search
Purchase Orders Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Purchase
Order Inquiry Duty
|
View
Purchase Orders Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
x
|
|
Purchase
Order Management Duty
|
Close
Purchase Orders Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
Purchase
Order Management Duty
|
Maintain
Purchase Orders Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
Purchase
Order Management Duty
|
Submit
Purchase Orders Priv
|
x
|
|
x
|
x
|
x
|
x
|
x
|
x
|
|
|
|
|
Receipt
Adjustments by Cost Management Duty
|
Maintain
Receipt Adjustments by Cost Priv
|
x
|
|
|
|
|
|
|
|
|
|
x
|
|
POS
Configuration Inquiry Duty
|
View
Coupons Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
POS
Configuration Inquiry Duty
|
View
Product Restrictions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
POS
Configuration Management Duty
|
Maintain
Coupons Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
POS
Configuration Management Duty
|
Maintain
Product Restrictions Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
|
|
Replenishment
Inquiry Duty
|
View
Replenishment Attributes Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
x
|
|
|
Replenishment
Management Duty
|
Maintain
Replenishment Attributes Priv
|
x
|
|
|
x
|
x
|
|
|
|
|
|
|
|
Required
Document Inquiry Duty
|
View
Required Documents Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
|
|
Required
Document Management Duty
|
Maintain
Required Documents Priv
|
x
|
|
|
|
|
|
|
x
|
|
|
|
|
Stock
Count Inquiry Duty
|
View
Stock Count Units Priv
|
x
|
|
|
|
|
x
|
x
|
|
x
|
|
x
|
|
Stock
Count Inquiry Duty
|
View
Stock Counts Priv
|
x
|
|
|
|
|
x
|
x
|
|
x
|
|
x
|
|
Stock
Count Management Duty
|
Maintain
Stock Count Units Priv
|
x
|
|
|
|
|
x
|
x
|
|
|
|
|
|
Stock
Count Management Duty
|
Maintain
Stock Counts Priv
|
x
|
|
|
|
|
x
|
x
|
|
|
|
|
|
Stock
Count Value Management Duty
|
Maintain
Stock Count Values Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
x
|
|
Stock
Ledger Inquiry Duty
|
View
Stock Ledger Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
x
|
|
Stock
Ledger Management Duty
|
Maintain
Stock Ledger Priv
|
x
|
|
|
|
|
|
|
|
|
|
x
|
|
Partner
Activation Duty
|
Activate
Partners Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
Partner
Activation Duty
|
Deactivate
Partners Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
Partner
Inquiry Duty
|
Search
Partners Priv
|
x
|
x
|
|
|
|
|
|
x
|
x
|
|
x
|
|
Partner
Inquiry Duty
|
View
Partners Priv
|
x
|
x
|
|
|
|
|
|
x
|
x
|
|
x
|
|
Partner
Management Duty
|
Maintain
Partners Priv
|
x
|
x
|
|
|
|
|
|
x
|
|
|
x
|
|
Supplier
Activation Duty
|
Activate
Suppliers Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
x
|
|
Supplier
Activation Duty
|
Deactivate
Suppliers Priv
|
x
|
|
|
|
|
|
|
|
x
|
|
x
|
|
Supplier
Inquiry Duty
|
Search
Suppliers Priv
|
x
|
x
|
|
|
|
|
|
x
|
x
|
x
|
x
|
|
Supplier
Inquiry Duty
|
View
Suppliers Priv
|
x
|
x
|
|
|
|
|
|
x
|
x
|
x
|
x
|
|
Supplier
Inventory Inquiry Duty
|
View
Supplier Inventory Management Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
x
|
x
|
|
Supplier
Inventory Management Duty
|
Maintain
Supplier Inventory Management Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
x
|
|
|
Supplier
Management Duty
|
Maintain
Suppliers Priv
|
x
|
x
|
|
|
|
|
|
x
|
x
|
x
|
x
|
|
VAT
Inquiry Duty
|
View
VAT Priv
|
x
|
x
|
|
|
|
|
|
|
x
|
|
x
|
|
VAT
Management Duty
|
Maintain
VAT Priv
|
x
|
x
|
|
|
|
|
|
|
|
|
x
|
Note:
Make sure that the policy store is loaded with the default security
configuration. For more information, see the latest RMS Installation Guide.
The common decisions made to match your enterprise to the default
security reference implementation include the following:
§
Do the default job roles match the equivalent job roles in your
enterprise?
§
Do the jobs in your enterprise exist in the security reference
implementation?
§
Do the duties performed by the jobs in your enterprise match the
duties in the security reference implementation?
Note: It
is important when constructing a role hierarchy that circular dependencies are
not introduced. A best practice is to leave the default security configuration
in place and first incorporate your customized application roles in a test
environment.
Managing Roles in Retail Application Administration Console
Retail Applications provide a way in which retailers can modify
the default roles to map to their security groups through the Retail
Application Administration Console (RAAC).
RAAC is installed along with the Retail Application. Users with
proper security privileges to access RAAC can launch RAAC by clicking on a link
from the Retail Application’s global menu.
For more details about using RAAC, see the latest Merchandising
Implementation Guide.
There are situations where administrators need to disable certain
links or the default content such as Dashboards due to unavailability or other
reasons. Retail Applications provide the flexibility to disable such content so
that the application remains largely unaffected.
Applications can choose to serve certain content such as
dashboards to users upon launching the application. This is referred to as
“Default Content”. However sometimes this default content may cause delays in
application launch after logging-in or worse it may render the application
unusable.
To handle such scenarios Retail Applications provide a feature
for Administrators called “Safe Mode” which allows the user to log in without
serving up any default content. Once this mode is turned on, no default content
is shown to any user when the application is launched.
To turn on this mode the property “uishell.load.safe.mode” must
be set to true in the RetailAppsViewController.properties file.
Administrators may occasionally need to disable content
launchable from links in the sidebar menu. Retail Applications provide the
ability to disable such links.
To disable a link the Administrator must first find the “id” of
that link as specified in the SidebarNavigationModel.xml file. This value must
then be provided to the property “uishell.sidebar.invalid.item.ids” within the
RetailAppsViewController.properties file. To disable more than one link, pass
in multiple IDs separated by a comma.
Retail Applications are built using ADF and one of the features
within ADF is the Oracle Metadata Services (MDS) framework which provides a
facility for retailers to customize the applications.
Refer to the document, Oracle® Fusion Middleware Developing
Fusion Web Applications with Oracle Application Development Framework (
https://docs.oracle.com/middleware/1221/adf/develop/GUID-33CB77F6-6ECD-4B5D-9B95-5874AEDA1A78.htm#ADFFD2077),
for more information about MDS.
Oracle Metadata Services (MDS) is a key infrastructure component
in Oracle Fusion Middleware. It is the layer through which metadata is loaded,
saved, cached, stored, managed, and customized both by various middleware
components and by the applications built on Fusion Middleware.
The use of MDS in ADF applications, for example, can allow
applications to remember how users like to work, and therefore not require them
to set up the application for every session. This may include, for example,
saving of common searches and screen layouts for every user. This allows making
use of the application easier and more intuitive for the users. MDS provides a
foundation that can be leveraged by Oracle Application Development Framework
(ADF) applications to provide such persistent personalization.
Oracle Metadata Services (MDS) makes use of metadata repositories
or partitions. A Metadata repository or partition contains metadata for Oracle
Fusion Middleware components. It can also contain metadata about the
configuration of Oracle Fusion Middleware and metadata for applications. Oracle
Metadata Services (MDS) stores the customizations in a metadata repository and
retrieves them at runtime to merge the customizations with the base metadata to
reveal the customized application.
A common issue when a patch is installed for a Retail Application
is that certain screens would fail to load or UI elements fail to display data
properly.
The cause of this issue is commonly attributed to user
personalization on screen elements that are now removed in the patch.
For example, prior to patching the application, users may have
saved search criterias on certain screens as a way to conveniently recall their
desired search results whenever they use the application. Those saved search
criterias are persisted by ADF in the MDS repository. If the patch involves the
removal of one of the attributes used in the search criterias, applying the
patch will cause the screens that have those search criterias fail to load.
The MDS repository is configured in the WebLogic server where the
Retail Application is deployed. The repository is database-based and it is
organized or subdivided into partitions. Retail Applications are deployed with
their own partition within the server’s MDS repository.
It is recommended to not delete the MDS partition during the upgrade
of the Retail Application; instead use the functions described in this document
to resolve any issues related to MDS.
For managing MDS Customizations in Retail Fusion Applications,
use the Oracle Enterprise Manager to perform common metadata service tasks such
as exporting, deleting, and importing of MDS Customizations. This can be
performed in the Oracle Enterprise Manager using the System MBean Browser and
the MDSAppRuntime MBean.
Perform the following steps to access the MDSAppRuntime MBean.
1. Log
in to the Oracle Enterprise Manager by navigating to the URL in the following
format:
http://<host>:<port>/em/
2. Click
the WebLogic Domain dropdown under the domain name. Navigate to System MBean
Browser menu item and click System MBean Browser. The screenshot below hows the
RAFDomain as the domain name.
3. Under
Application Defined MBeans, locate MDSAppRuntime which can be found under the
following folder structure:
> oracle.mds.lcm
> Server: AppServer
> Application: Application
Name
> MDSAppRuntime
Choose the correct server and the Retail Application name based
on your installation. The screenshot below displays RAFServer and RetailAppsFrameworkTest
application.
4. Click
on MDSAppRuntime management bean (MBean).
5. Select
the Operations tab to view the operations available for the MDSAppRuntime
MBean.
These are the operations which can be used in managing MDS
Customizations. The exportMetadata, deleteMetadata, importMetadata,
createMetadataLabel, listMetadataLabels, deleteMetadataLabel, and
promoteMetadataLabel; will be briefly discussed in the following sections.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean.”
2. Export
metadata by selecting the exportMetadata operation available from the
Operations tab.
3. For
toLocation, provide a valid absolute path to a directory or archive in the file
system to which the selected documents will be exported. This location must be
accessible from the machine where the application is running. If it does not
exist, a directory will be created except that when the name ends with
".jar", ".JAR", ".zip", or ".ZIP", an
archive will be created. Exporting metadata to an existing archive will
overwrite the existing file.
Example: /tempDir/downloads/mdsExport/RetailAppsFrameworkTestMDS.zip
4. Click
Invoke (located at the upper-right corner of the page) to proceed with the
export operation.
5. Click
Return to return to the list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Export
metadata by selecting the exportMetadata operation available from the
Operations tab.
3. For
toLocation, provide a valid absolute path to a directory or archive in
the file system to which the selected documents will be exported. This location
must be accessible from the machine where the application is running. If it
does not exist, a directory will be created except that when the name ends with
".jar", ".JAR", ".zip", or ".ZIP", an
archive will be created. Exporting metadata to an existing archive will
overwrite the existing file.
Example: /tempDir/downloads/mdsExport/RetailAppsFrameworkTestMDS.zip
4. For
docs, click the pencil icon. On the Edit Parameter popup, click Add, and
in the Element box, enter a list of comma-separated, fully qualified document
names or document name patterns to export.
To export customizations for a specific page, simply enter the fully qualified
base document name in the Element box.
Example:
/oracle/retail/apps/framework/uishell/skin/page/TestTablesAndTrees.jsff
You can provide the path to multiple documents to export, by clicking the Add
button. Do not provide any docs in case you want to export all customizations
for the user.
5. For
restrictCustTo, click the pencil icon. On the Edit Parameter popup,
click Add, and in the Element box, enter the list of customization layer names.
This can be a list of comma-separated customization layer names used to
restrict the operation to only customization documents that match the specified
customization layers.
Each customization layer name can contain, within a pair of brackets, optional
customization layer values and value patterns separated by commas. Wildcards
(%) may also be used for restricting the operation.
For example:
|
Value
|
Description
|
|
user[buyer]
|
restricts operation to the user ‘buyer’
|
|
user[buyer, betty_buyer]
|
restricts operation to the users ‘buyer’, and
‘betty_buyer’
|
|
user[bu%]
|
restricts operation to user names that start with 'bu'
(i.e. buyer)
|
|
user[be%]
|
restricts operation to user names that start with 'be'
(i.e. betty_buyer)
|
|
user[%bu%]
|
restricts operation to users with 'bu' in the name (i.e.
buyer and betty_buyer)
|
6. Click
the Invoke button, located at the upper-right corner of the page, to proceed
with the export operation.
7. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Delete
metadata by selecting the deleteMetadata operation available from the
Operations tab.
3. For
docs, click the pencil icon. On the Edit Parameter popup, click Add, and
in the Element box, enter a list of comma-separated, fully qualified document
names or document name patterns
To delete all customizations for a user, enter "/**" (without
the quotes).
This will recursively delete all customizations under "/" including
any other customizations located in the folder(s) under it. Click OK.
4. For
restrictCustTo, click the pencil icon. On the Edit Parameter popup,
click Add, and in the Element box, enter the list of customization layer names.
This can be used to restrict the operation to only customization documents that
match the specified customization layers.
Each customization layer name can contain, within a pair of brackets, optional
customization layer values and value patterns separated by commas. Wildcards
(%) may also be used for restricting the operation.
For example
|
Value
|
Description
|
|
user[buyer]
|
restricts operation to the user ‘buyer’
|
|
user[buyer, betty_buyer]
|
restricts operation to the users ‘buyer’, and
‘betty_buyer’
|
|
user[bu%]
|
restricts operation to user names that start with 'bu'
(i.e. buyer)
|
|
user[be%]
|
restricts operation to user names that start with 'be'
(i.e. betty_buyer)
|
|
user[%bu%]
|
restricts operation to users with 'bu' in the name (i.e.
buyer and betty_buyer)
|
5. Click
the Invoke button, located at the upper-right corner of the page, to proceed
with the delete operation.
6. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Delete
metadata by selecting the deleteMetadata operation available from the
Operations tab.
3. For
excludeBaseDocs, select true. This is a Boolean value indicating whether to
exclude base metadata documents from being deleted.
4. For
docs, click the pencil icon. On the Edit Parameter popup, click Add, and
in the Element box, enter a list of comma-separated, fully qualified document
names or document name patterns.
5. To
delete customizations for a specific page, simply enter the fully qualified
base document name in the Element box.
Example:
/oracle/retail/apps/framework/uishell/skin/page/TestTablesAndTrees.jsff
6. You
can provide the path to multiple documents to be deleted, by clicking the Add
button. When done, click on the OK button.
7. For
restrictCustTo, click the pencil icon. On the Edit Parameter popup,
click Add, and in the Element box, enter the list of customization layer names.
This can be used to restrict the operation to only customization documents that
match the specified customization layers.
Each customization layer name can contain, within a pair of brackets, optional
customization layer values and value patterns separated by commas. Wildcards
(%) may also be used for restricting the operation.
To delete customizations for all users, you may either:
a. remove
any values for restrictCustTo or
b. enter
"user[%]" in the Element box.
For Example:
|
Value
|
Description
|
|
user[buyer]
|
restricts operation to the user ‘buyer’
|
|
user[buyer, betty_buyer]
|
restricts operation to the users ‘buyer’, and
‘betty_buyer’
|
|
user[bu%]
|
restricts operation to user names that start with 'bu'
(i.e. buyer)
|
|
user[be%]
|
restricts operation to user names that start with 'be'
(i.e. betty_buyer)
|
|
user[%bu%]
|
restricts operation to users with 'bu' in the name (i.e.
buyer and betty_buyer)
|
8. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the delete operation.
9. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Delete
metadata by selecting the deleteMetadata operation available from the
Operations tab.
3. For
excludeBaseDocs, select true. A Boolean value indicating whether to
exclude base metadata documents from being deleted.
4. For
docs, click the pencil icon. On the Edit Parameter popup, click Add, and in the
Element box, enter a list of comma-separated, fully qualified document names or
document name patterns.
5. To
delete customizations for a specific page, simply enter the fully qualified
base document name in the Element box.
Example: /oracle/retail/apps/framework/uishell/skin/page/TestTablesAndTrees.jsff
6. You
can provide the path to multiple documents to be deleted, by clicking the Add
button. When done, click on the OK button.
7. For
restrictCustTo, click the pencil icon. On the Edit Parameter popup,
click Add, and in the Element box, enter the list of customization layer names.
This can be used to restrict the operation to only customization documents that
match the specified customization layers.
Each customization layer name can contain, within a pair of brackets, optional
customization layer values and value patterns separated by commas. Wildcards
(%) may also be used for restricting the operation.
To delete customizations for a particular user, enter
"user[<username>]" in the Element box. See the table below for
other examples.
For Example:
|
Value
|
Description
|
|
user[buyer]
|
restricts operation to the user ‘buyer’
|
|
user[buyer, betty_buyer]
|
restricts operation to the users ‘buyer’, and
‘betty_buyer’
|
|
user[bu%]
|
restricts operation to user names that start with 'bu'
(i.e. buyer)
|
|
user[be%]
|
restricts operation to user names that start with 'be'
(i.e. betty_buyer)
|
|
user[%bu%]
|
restricts operation to users with 'bu' in the name (i.e.
buyer and betty_buyer)
|
8. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the delete operation.
9. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Import
metadata by selecting the importMetadata operation available from the
Operations tab.
3. For
fromLocation, enter the path of the directory or archive from which the documents
will be imported.
Example:
/tempDir/downloads/mdsExport/RetailAppsFrameworkTestMDS.zip
4. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the import operation.
5. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Import
metadata by selecting the importMetadata operation available from the
Operations tab.
3. For
fromLocation, enter the path of the directory or archive from which the
documents will be imported.
Example: /tempDir/downloads/mdsExport/RetailAppsFrameworkTestMDS.zip
4. For
excludeBaseDocs, select true. A Boolean value indicating whether to
exclude base metadata documents from being imported.
5. For
docs, click the pencil icon. On the Edit Parameter popup, click Add, and in the
Element box, enter a list of comma-separated, fully qualified document names or
document name patterns.
To import customizations for a specific page, simply enter the fully qualified
base document name in the Element box.
Example:
/oracle/retail/apps/framework/uishell/skin/page/TestTablesAndTrees.jsff
6. You
can provide the path to multiple documents to be imported, by clicking the Add
button. When done, click on the OK button.
7. For
restrictCustTo, click the pencil icon. On the Edit Parameter popup, click Add,
and in the Element box, enter the list of customization layer names. This can
be used to restrict the operation to only customization documents that match
the specified customization layers.
Each customization layer name can contain, within a pair of brackets, optional
customization layer values and value patterns separated by commas. Wildcards
(%) may also be used for restricting the operation.
To import customizations for a particular user, enter "user[<username>]"
in the Element box. See the table below for other examples.
For example:
|
Value
|
Description
|
|
user[buyer]
|
restricts operation to the user ‘buyer’
|
|
user[buyer, betty_buyer]
|
restricts operation to the users ‘buyer’, and
‘betty_buyer’
|
|
user[bu%]
|
restricts operation to user names that start with 'bu'
(i.e. buyer)
|
|
user[be%]
|
restricts operation to user names that start with 'be'
(i.e. betty_buyer)
|
|
user[%bu%]
|
restricts operation to users with 'bu' in the name (i.e.
buyer and betty_buyer)
|
8. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the import operation.
9. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Create
metadata label by selecting the createMetadataLabel operation available from
the Operations tab.
3. For
label, enter a valid name of the new metadata label to be created.
4. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the operation.
5. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. Promote
metadata label by selecting the promoteMetadataLabel operation available from
the Operations tab.
3. For
label, enter a valid name of the new metadata label to be promoted. Promoting
metadata labels can be used to roll back to an earlier version of the document,
as captured by the label.
4. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the operation.
5. A
confirmation message will display in the page. Click Return to return to the
list of operations.
1. Navigate
to the MDSAppRuntime management bean (MBean), as described in the section
"Using the System MBean Browser and the MDSAppRuntime MBean".
2. List
all metadata labels by selecting the listMetadataLabels operation available
from the Operations tab.
3. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the operation.
4. This
will list all the available metadata labels previously created. You can use
this, for example, to get the latest metadata label that you want to promote.
5. Click
Return to return to the list of operations.
1. Navigate
to the MDSAppRuntime
management bean (MBean), as described in the section "Using the System
MBean Browser and the MDSAppRuntime MBean".
2. Delete
metadata label by selecting the deleteMetadataLabel operation available from
the Operations tab.
3. For
label, enter a valid name of the metadata label to be deleted.
4. Click
on the Invoke button, located at the upper-right corner of the page, to proceed
with the operation.
A confirmation message will display in the page. Click Return to
return to the list of operations.
4
Retail Applications leverage ADF’s security framework that is
based on the Oracle Platform Security Services.
This section discusses the various assumptions around security
for Retail Applications
RAF provides the following applications as enterprise archive
(EAR) files to Retail Applications. By default, these applications are
installing as part of Retail Applications
1. RetailAppsAdminConsole(RAAC)
2. RetailAppsMobileSecurity
a. RetailAppsMobileBasicAuth
b. RetailAppsMobileAccessService
3. RetailAppsRESTServices
In an SSO environment, follow the SSO setup procedure for these
applications similar to Retail Applications.
Retail Applications allow retailers to display content from
external applications. These contents are typically business intelligence
reports from a third party application that are configured to display within
the Retail Application’s dashboard.
Some of these contents might be secured requiring users to login
before the contents can be accessed and displayed.
In non-SSO environments, when a user logs out of the Retail
Application, they may not be logged out of any secured content they had
configured access to. Therefore, it is highly recommended that customers only
configure access to external content in a SSO-enabled environments where the
application logout manages the logout from any other secured content that was
previously accessed.
5
Retailers can access backend functionality in Retail Applications
by calling the applications’ ReSTful Web Services.
Refer to http://www.oracle.com/technetwork/articles/javase/index-137171.html
to learn more about ReST as an architectural style applied to building web
services.
A Retail Application can optionally package its ReST services as
a separate Enterprise Archive (EAR) file. Installation of the ReST web services
is a deemed choice of the customer and is controlled through an installer
prompt.
Services are secured using J2EE-based security model.
§
Realm-based User Authentication. This verifies users through an
underlying realm. The username and password is passed using Http Basic
authentication.
§
Role-based Authorization.This assigns users to roles, which in
turn are granted or restricted access to resources/services. The
authorization of ReSTful web services is static and cannot be reassigned to
other rules post installation. The following role(s) is/are associated with
ReSTful Web Services and should be added to the Enterprise LDAP:
– BUYER
– CORPORATE_INVENTORY_CONTROL_ANALYST
– FINANCE_ANALYST
– FINANCE_MANAGER
– INVENTORY_ANALYST
– INVENTORY_CONTROL_MANAGER
– INVENTORY_MANAGER
– RMS_APPLICATION_ADMINISTRATOR
– RMS_DATA_STEWARD
– SOURCING_ANALYST
– SUPPLY_CHAIN_ANALYST
All enterprise roles defined above are mapped in web.xml and
weblogic.xml of the ReST Service webapp.
The communication between the server and client is encrypted
using one way SSL. In non-SSL environments the encoding defaults to BASE-64 so
it is highly recommended that these ReST services are configured to be used in
production environments secured with SSL connections.
Retail Application ReSTful web services have the following
standard HTTP headers:
Accept: application/xml or application/JSON
Accept-Version: 15.0 (service version number)
Accept-Language: en-US,en;q=0.8
Accept-Versioning: False
Note: Specify
‘Accept-Versioning: False’ in the Service Request to bypass ‘Accept-Version’
validation on services.
Depending on the type of the operation or HTTP method, the
corresponding response header is updated in the Http response with the
following codes:
§
GET/READ : 200
§
PUT/CREATE : 201 created
§
POST/UPDATE : 204
§
DELETE : 204
Example response payload in case of service error is depicted
below:
<?xml version="1.0" encoding="UTF-8"
standalone="yes"?>
<messagesRDOes>
<messagesRDO>
<message>REST Service Version
Mismatch</message>
<messageType>ERROR</messageType>
<status>BAD_REQUEST</status>
</messagesRDO>
</messagesRDOes>
§
message: The error message - translated.
§
messageType: Value of 'ERROR' is returned.
§
status : For a bad request or error, the status is BAD_REQUEST.
§
The http error code for an error response is 400
Notification ReST Services
Service endpoints have been enabled for the Notifications
Framework. These endpoints are deployed separately and can be accessed by the
following url:
http://server:port/RetailAppsReSTServices/services/private/Notifications/*
The endpoints exposed are detailed below.
|
Description
|
URL
|
HTTP Method
|
|
Creating Notifications
|
/Notifications/create
|
POST
|
|
Updating Notifications
|
/Notifications/update
|
PUT
|
|
Deleting Notifications
|
/Notifications/delete/{id}
|
DELETE
|
|
Fetch Notifications
|
/Notifications/fetch?appCode={appCode}
|
GET
|
|
Get number of unread Notifications
|
/Notifications/fetch/unreadCount?appCode={appCode}
|
GET
|
|
Search Notifications
|
/Notifications/search?appCode={appCode}
|
GET
|
|
Filter Notifications – Return list of Notifications
|
/Notifications/filter/list
|
POST
|
|
Filter Notifications – Return grouped list of
Notifications
|
/Notifications/filter/group
|
POST
|
|
Filter Notifications – Return a summarized list of
Notifications
|
/Notifications/filter/summarize
|
POST
|
|
Count Notifications matching the filter
|
/Notifications/filter/count
|
POST
|
|
Persist the Criteria
|
/Notifications/criteria
|
POST
|
|
Fetch the Criteria
|
/Notifications/fetch/criteria?appCode={appCode}
|
GET
|
|
Fetch Recipients
|
/Notifications/fetch/recipients/{id}
|
GET
|
|
Fetch Notification Context
|
/Notifications/fetch/context/{id}
|
GET
|
|
Fetch Notification Time Periods
|
/Notifications/fetch/timeperiods?appCode={appCode}
|
GET
|
|
Fetch Notification Hierarchy Levels
|
/Notifications/fetch/hierarchylevels?appCode={appCode}
|
GET
|
|
Fetch Notification Types
|
/Notifications/fetch/notificationtypes?appCode={appCode}
|
GET
|
|
Status update for multiple Notifications
|
/Notifications/update/multiple/status
|
PUT
|
|
Delete multiple Notifications
|
/Notifications/delete/multiple
|
POST
|
Access Control ReST SErvice
|
Description
|
URL
|
HTTP Method
|
|
FetchFilteredRoles
|
/AccessRoles
|
POST
|
Favorite ReST Services
|
Description
|
URL
|
HTTP Method
|
|
Fetch all Favorites
|
/Favorites/fetch
|
GET
|
|
Add a Favorite
|
/Favorites/add
|
POST
|
|
Delete a Favorite
|
/Favorites/delete
|
DELETE
|
|
Update a Favorite
|
/Favorites/update
|
POST
|
|
Replace a Favorite
|
/Favorites/replace
|
POST
|
RMS ReST Services
|
Description
|
URL
|
HTTP Method
|
|
RMS Common Services
|
/Common/
|
|
Fetch VDate
|
/Common/vDate
|
GET
|
|
Fetch Currencies
|
/Common/Currencies
|
GET
|
|
Fetch Departments
|
/Common/departmentSearch?searchString={searchString}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Departments Attributes
|
/Common/departmentLoad?departments={departments}
|
GET
|
|
Fetch Procurement System Options
|
/Common/POSysOps
|
GET
|
|
Fetch Functional Config System Options
|
/Common/FuncSysOps
|
GET
|
|
Fetch Currencies
|
/Common/Currencies
|
GET
|
|
Fetch Inventory Movement System Options
|
/Common/InvMovSysOps
|
GET
|
|
Transfer Services
|
/Transfer
|
|
Fetch Next Transfer Number
|
/Transfer/transferId
|
GET
|
|
Fetch Items for a given Inventory Transfer
|
/Transfer/item?itemSearchType={itemSearchType}&searchString={searchString}&dept={dept}&fromLocation={fromLocation}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Items for a given Inventory Transfer
|
/Transfer/item/load?items={items}&fromLocation={fromLocation}
|
GET
|
|
Fetch From Location
|
/Transfer/fromLocation?locationType={locationType}&searchString={searchString}&tsfType={tsfType}&toLocation={toLocation}&items={items}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Fetch To Location
|
/Transfer/toLocation?locationType={locationType}&searchString={searchString}&tsfType={tsfType}&fromLocation={fromLocation}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Location
|
/Transfer/loadLocations?fromLocation={fromLocation}&toLocation={toLocation}
|
GET
|
|
Create Transfer
|
/Transfer
|
POST
|
|
Recent Transfer Services
|
/Transfer/recent/
|
|
Fetch Transfer Type
|
/Transfer/recent/transferTypeList
|
GET
|
|
Fetch Transfer Status
|
/Transfer/recent/transferStatusList
|
GET
|
|
Fetch Location
|
/Transfer/recent/transferLocSearch?searchString={searchString}&locType={locType}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Location
|
/Transfer/recent/transferLocationLoad?locations={locations}
|
GET
|
|
Fetch Transfer User IDs
|
/Transfer/recent/searchUserIds?searchString={searchString}&pageSize={pageSize}&pageNumber={pageNumber}
|
|
|
Transfer Search
|
/Transfer/recent/transferSearch?statuses={statuses}&transferTypes={transferTypes}&createIds={createIds}&startCreateDate={startCreateDate}&endCreateDate={endCreateDate}&startDeliveryDate={startDeliveryDate}&endDeliveryDate={endDeliveryDate}&transferNumber={transferNumber}&locations={locations}&departments={departments}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Fetch Transfer Detail
|
/Transfer/recent/transferDetail?transferNumber={transferNumber}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Update Transfer Status
|
/Transfer/recent/updateTransferStatus?newStatus={newStatus}&transferNumbers={transferNumbers}
|
POST
|
|
Purchase Orders Services
|
/PurchaseOrders
|
|
Fetch Locations
|
/PurchaseOrders/location?locationType={locationType}&searchString={searchString}&supplier={supplier}&orgUnitId={orgUnitId}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Locations
|
/PurchaseOrders/location/load?locations={locations}&supplier={supplier}
|
GET
|
|
Fetch Items
|
/PurchaseOrders/item?itemSearchType={itemSearchType}&searchString={searchString}&dept={dept}&supplier={supplier}&locations={locations}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Items
|
/PurchaseOrders/item/load?item=item&supplier={supplier}&locations={locations}
|
GET
|
|
Fetch Supplier
|
/PurchaseOrders/supplier?supplierSearchString={supplierSearchString}&locations={locations}&items={items}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Refresh Supplier
|
/PurchaseOrders/supplier/load?suppliers={suppliers}&locations={locations}&items={items}
|
GET
|
|
Fetch Supplier Terms
|
/PurchaseOrders/supplier/terms
|
GET
|
|
Fetch Next Order Number
|
/PurchaseOrders/order/id
|
GET
|
|
Create Purchase Orders
|
/PurchaseOrders
|
POST
|
|
Recent Purchase Orders
|
/PurchaseOrders/recent
|
|
Fetch Origin Code
|
/PurchaseOrders/recent/originCodeList
|
GET
|
|
Fetch PO Status Codes
|
/PurchaseOrders/recent/purchaseOrderStatusList
|
GET
|
|
Searching Recent Purchase Orders
|
/PurchaseOrders/recent/purchaseOrderSearch?statuses={statuses}&createIds={createIds}&startCreateDate={startCreateDate}&endCreateDate={endCreateDate}&orderNumber={orderNumber}&suppliers={suppliers}&originCodes={originCodes}&departments={departments}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Purchase Order Summary
|
/PurchaseOrders/recent/PurchaseOrderSummary?orderNumber={orderNumber}
|
GET
|
|
Fetch Purchase Order Items
|
/PurchaseOrders/recent/PurchaseOrderItems?orderNumber={orderNumber}&itemDisplayLevel={itemDisplayLevel}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Fetch Purchase Order Item Locations
|
/PurchaseOrders/recent/PurchaseOrderItemLocations?orderNumber={orderNumber}&item={item}&itemDisplayLevel={itemDisplayLevel}&diff1={diff1}&diff2={diff2}&diff3={diff3}&diff4={diff4}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Fetch Purchase Orders User IDs
|
/PurchaseOrders/recent/searchUserIds?searchString={searchString}&pageSize={pageSize}&pageNumber={pageNumber}
|
GET
|
|
Fetch Cancel Reason Codes
|
/PurchaseOrders/recent/cancelReasonCodeList
|
GET
|
|
Update Purchase Orders Date
|
/PurchaseOrders/recent/updatePurchaseOrderDate?notBeforeDate={notBeforeDate}¬AfterDate={notAfterDate}&otbEowDate={otbEowDate}orderNumbers={orderNumbers}
|
POST
|
|
Canceling Purchase Orders
|
/PurchaseOrders/recent/cancelPurchaseOrders?orderNumbers={orderNumbers}&reasonCode={reasonCode}
|
POST
|
|
Rejecting Purchase Orders
|
/PurchaseOrders/recent/rejectPurchaseOrders?orderNumbers={orderNumbers}
|
POST
|
|
Approving Purchase Orders
|
/PurchaseOrders/recent/approvePurchaseOrders?orderNumbers={orderNumbers}
|
POST
|
6
This section discusses key concepts, guidelines, and supported
use cases for customizing a Retail Application.
This section contains concepts retailers must understand
before performing any of the supported customization scenarios discussed in
this document.
Understanding
the Deployment of Retail Applications
In order to customize the Retail Application, retailers must understand
the deployment of the Retail Application.
A Retail Application can install one or more application
artifacts into a Weblogic server instance. The diagram below shows a typical
installation of a Retail Application:
The Retail Application is deployed as a standalone application
and deployed using an EAR file.
Two shared libraries are typically installed along with the
application EAR:
§
The Included Dashboards Shared Library
§
The Custom Shared Library Registry
The Included Dashboards Shared Library
contains the Retail Application-built dashboards. These dashboards can be customized.
Further discussion on Retail Application Included Dashboards can be
found in the section, “Understanding Dashboards in Retail Applications.”
A Retail Application that allows for customization will have as
part of its installation an intermediary shared library that will serve as a
registry to reference the actual retailer-built shared libraries. This is
called the Custom Shared Library Registry.
When retailers need to add their own content into the
application, metadata to register their content into the application’s UI including
the binaries for the content itself (for example, task flows and pages) is
expected to be packaged into a Web Archive (WAR) file and deployed as a shared
library in the same managed server as the application itself.
Then, the names of these shared libraries have to be referenced
in the Custom Shared Library Registry.
Retail Applications allow retailers to add and display custom
content such as new workflows and dashboards. These custom contents can be
accessed from the Retail Application’s user interface (UI).
The Retail Application user interface organizes the contents into
visual containers that fulfill common layout and navigational requirements in a
structured, consistent manner.
The high-level containers or areas in the UI are highlighted
below:
§
Global Area
§
Navigation Pane and Sliding Sidebar Menu
§
Local Area
§
Contextual Area
The Local Area is the main content area of the application. Workflows
that allow users to get tasks done in the application are presented in this
area. The workflows are launched into this area as a result of actions the user
take in the navigation pane, sliding sidebar panel and global area.
The Navigation Pane organizes the different actions a user can
take on the application as iconic menu items. The options or actions available
to the users for each menu item is presented in the Sliding Sidebar panel next
to the Navigation Pane.
There are five (5) standard Navigation Pane menus that are available
to users:
§
Application Navigator/Switcher–This menu allows users to switch
between Retail Applications.
§
Favorites–This menu allows users to access their own favorite
list of actions or tasks within the application.
§
Tasks–This menu presents a hierarchy of tasks or actions the user
can access in the application.
§
Reports– This menu presents a hierarchy of links to the
application reports and dashboards.
§
Notification–This menu allows users to access unread and past
notifications around business processes that are happening in the application.
The Global Area of the application contains branding information
on the left hand side and application wide menu options on the right hand side.
Application wide menu options include access to application preferences, login
and logout, application help and application information.
The Contextual Area is a collapsible area on the right of the
page, which provides space to present information that can assist users in
completing their tasks. The Contextual Area is presented per Local Area tab.
Each task flow is presented in the local area can have a contextual area
As discussed in the section, “Understanding the Deployment of
Retail Applications,” a Retail Application that allows for customization will
have as part of its installation an intermediary shared library that will serve
as a registry to reference the actual retailer-built shared libraries. This is
called the Custom Shared Library Registry.
This section contains steps retailers can follow to create a
custom shared library that will contain new custom made content, reference that
shared library from the registry, and deploy it to the server.
Download JDeveloper
To create the custom shared library, it is recommended that
retailers download and install JDeveloper version 12.2.1 by following the link
below:
http://www.oracle.com/technetwork/developer-tools/jdev/downloads/index.html
This section describes the steps to create and configure the
Custom Shared Library Workspace in JDeveloper , which will house the code for
any custom content the retailer wants to add into the Retail Application.
Through JDeveloper, a shared library web application archive file (.WAR) can be
generated which can be deployed in the same managed server as the Retail
Application.
1. Open
JDeveloper and choose Developer Role when prompted.
2. Create
a new Fusion Web Application JDeveloper workspace.
a.
Go to File New to invoke the New Gallery
dialog. Choose Fusion Web Application (ADF) as the type of application
to create and click OK.
b.
Provide a meaningful application name, a directory path to
the workspace and an application (Java) package prefix and click Finish
c.
.JDeveloper will generate a new workspace with two projects: Model
and View-Controller.
3. Add
a Manifest file containing the name of the shared library.
a. Right-click
on the View-Controller project and choose New from the context
menu.
b.
The New Gallery dialog appears. Choose the option, File
(General), in the All Technologies section of the dialog. Click OK.
c.
The Create File dialog opens. For the File Name,
specify MANIFEST.MF.
For the Directory, the new file must be added under the src/META-INF subdirectory
under the View-Controller project’s directory.
d. Edit
the new MANIFEST.MF file and add the following entries:
Manifest-Version: 1.0
Implementation-Vendor: companyName
Implementation-Title: Custom Shared
Library for companyName
Implementation-Version: 1.0
Extension-Name:
companyname.custom.shared.lib
Specification-Version: 1.0
Created-By: companyName
Modify the contents such that meaningful and unique values
are used for Implementation-Vendor, Implementation-Title, Extension-Name and
Created-By. Example:
Manifest-Version: 1.0
Implementation-Vendor: Acme Retail
Implementation-Title: Custom Shared Library for Acme Retail
Implementation-Version: 1.0
Extension-Name: acmeretail.custom.shared.lib.procurement
Specification-Version: 1.0
Created-By: AcmeRetail
4. Create
a deployment profile for the shared library.
a. Right-click
on the View-Controller project and choose New from the context
menu.
b.
The New Gallery dialog appears. Choose the option, WAR File
(Deployment Profiles), in the All Technologies section of the dialog. Click OK
c.
Provide a unique and meaningful name for the Deployment
Profile and click OK.
d.
The Edit WAR Deployment Profile Properties dialog is shown.
e.
Under the General section, make sure that the Specify Java EE
Web Context Root is selected without any value.
When you navigate away from his section – you will be prompted to
confirm that you really want a blank context root. Respond Yes to the
confirmation dialog.
f.
Under the WAR Options section, enable the Include Manifest
File option and add the MANIFEST.MF file you created under
…/View-Controller/src/META-INF.
g.
Click OK.
Generate and Deploy the Custom Shared Library WAR
This section describes the steps to generate and deploy the
Custom Shared Library WAR file.
1. Generate
the share library WAR file through JDeveloper.
a. Open
the Custom Shared Library workspace.
b. Right-click
on the View-Controller project and choose the shared library WAR
deployment profile created previously under the Deploy option.
c.
The Deploy dialog opens. Select Deploy to WAR
and click Finish.
d.
JDeveloper will generate the WAR file into the
View-Controller project folder subdirectory, deploy.
2. Deploy
the generated WAR file to the same managed server as the Retail Application as
a shared library. Refer to section 6 of the Deploying Applications to Oracle
WebLogic Server documentation at this location:
http://docs.oracle.com/middleware/1221/wls/DEPGD/deploy.htm#DEPGD212 This task
has to be performed using the WebLogic Administration Console or Enterprise
Manager Fusion Middleware Control with a user having WebLogic administration
permissions.
Reference the Custom Shared Library from the Retail Application
Once the retailer has created and deployed its own custom shared
library, the retailer needs to modify the configuration of the Custom Shared
Library Registry to add references to the retailer’s shared library.
1. Log
into the WebLogic Administration Console as a user with administrative
permissions.
2. If
the administration console was configured with domain configuration locking, go
ahead and click on the Lock & Edit button to ensure that other administrators
can be prevented from making changes during your edit session.
3. Navigate
to the Deployments section.
4. Look
for the Retail Application deployment and shut it down. Choose “Force Stop Now”
when appropriate. Wait for the shutdown process to complete.
5. Get
the deployment location of the Retail Application’s custom shared library
registry. Under the deployments list, click on the link for the library named
oracle.retail.apps.rms.lib.dashboard(16.0,16.0). The Settings page for the
library appears.
The Settings page illustrates the file location of the registry’s
WAR file under the Path entry. Make note of this file location.
6. Using
the operating system's file manager application, go to the location of the WAR
file. You will need read and write permissions to the file system where the WAR
file is located.
7. Make
a copy of the WAR file as back-up.
8. Open
the original WAR file using an archive file manager and update the
/WEB-INF/weblogic.xml by adding a new <library-ref> entry pointing to
your custom shared library.
<library-ref>
<library-name>companyname.custom.shared.lib</library-name>
</library-ref>
Note:
The library-name has to match the Extension-Name you provided in your custom
shared library’s MANIFEST.MF file.Once this change is done, you have now linked
your custom shared library to the Retail Application.
9. Return
to the WebLogic Administration Console. Go to Environments' Servers section.
Under the Control tab, select the managed server where Retail Application is
deployed to. Shut it down and start it back up again.
Custom ADF and Java based components can be coded into the Custom
Shared Library workspace. Typically, retailers can include task flows that add
new UI workflows into the Retail Application UI. These task flows may implement
:
§
A new workflow to maintain the Retail Application’s data.
§
A dashboard page to highlight key performance indicators and
important metrics based on the Retail Application’s data.
This section contains important points that developers must
consider when building new custom ADF-based contents for Retail Applications.
Custom Shared Library must be Regenerated
Custom ADF content must be implemented within the custom shared
library workspace. Retailers must create a new custom shared library workspace
if none exists.
The WAR artifact for the custom shared library must be
regenerated and redeployed.
Refer to the section, Adding a Custom Shared Library.
New Components should have Security Grants
Since Retail Applications are secured web applications, the addition
of new ADF UI pages and task flows will need to be secured using the
application roles and policies that are recognized by the Retail Application.
The provisioning process is done using the Oracle Enterprise Manager Fusion
Middleware Control console.
Refer to Section 10, Managing Policies of the Oracle® Fusion
Middleware Securing Applications with Oracle Platform Security Services for
details (https://docs.oracle.com/middleware/1221/opss/JISEC.pdf).
ADF Best Practices Must Be Applied
Developers will be building components in both Model and
View-Controller layers using the tools and standards available for Oracle ADF.
New ADF screens will have their own business components, task flows, pages, and
bindings. These components must comply to published best practices and
standards for that technology.
Refer to the Oracle JDeveloper and Oracle ADF Technical Resources
web site (http://www.oracle.com/technetwork/developer-tools/jdev/learnmore/index.html)
.
Of particular interests are coding guidelines published under the
ADF Architecture Square section of the site (http://www.oracle.com/technetwork/developer-tools/adf/learnmore/adfarchitect-1639592.html).
Task Flow and Page Configuration Must be Supported
Task flows must be built as bounded task flows using JSF page
fragments.
The task flow must have an isolated data control scope. This is
configured in JDeveloper’s task flow designer by going to the Behavior tab and
setting data control share option as “Isolated”.
The Same Data Source Must Be Used
New application modules must be configured to use Data Sources and
not JDBC URLs when accessing the database layer. This can be configured in
JDeveloper’s application module designer.
The
data source name must be the same as the Retail Application’s primary data
source name(jdbc/RmsDBDS).
To add new contents in the Retail Application’s Reports Menu, the
retailer must override the reports menu model.
All items seen by the user in the Reports Menu are registered in
an XML file called the Reports Menu Model.
This file is kept in the application’s EAR file but can be
extracted, copied and modified so retailers can add references to their own
dashboards or reports.
To add or modify an item in the Reports Menu, follow the steps
below:
1. Add
a custom shared library. See the section, “Adding a Custom Shared Library” for
details.
2. Using
JDeveloper, open the Custom Shared Library workspace in Developer Role.
3. Add
new custom reports as required.
4. Regenerate
the shared library WAR file from the workspace and redeploy the shared library.
Shut down and restart of the Retail Application and its shared library registry
is required.
5. Changes
Required in Shared Library Registry for Custom Reports Menu Model.
a. Obtain
the application’s Reports menu model XML file.
|
Tasks Menu Model XML
|
Ear path is
RmsViewController.war\WEB-INF\classes\oracle\retail\apps\rms\view\uishell\config\custom\
HomeSidebarNavigationTreeModel.xml
|
b. Refer
the Section “Reference the Custom Shared Library from the Retail Application,”
to register the custom reports menu model shared library within the Retail
Application.
c. Open
the original WAR file using an archive file manager and copy the above Reports
menu model xml file in View-Controller project src directory, preferably under
a subdirectory called custom.
d. Add
a new or modify existing file called PageTemplateOverrideModel.properties under
the View-Controller/src directory.
e. Modify
this file and add the following entry:
Home.taskMenuModelXml=<path to
sidebar model xml within view-controller/src>
Example:
Home.taskMenuModelXml=/custom/HomeTaskMenuModel.xml
f. Modify
the copy of the model. Add new items, which are created in the shared library
project. Refer to the section, Reports Menu Model XML Items.
6. Test
the Retail Application.
Understanding Dashboards in Retail Applications
A dashboard is a page within a Retail Application that displays
the status of metrics and key performance indicators relevant to the Retail
Application. They are typically tailored for specific roles and they allow
users to easily monitor the status of the current data within the application.
Users can access dashboards from the application’s Reports menu.
The example below shows the dashboard page as rendered in the
local area of a Retail Application’s UI.
Anatomy of a Dashboard
Depicted below is an example of a dashboard that might appear in
a Retail Application
|
1
|
Dashboard Page
|
A page rendering a dashboard. A dashboard is composed of 1
or more reports. The dashboard page is launched as a tab within the Retail
Application
|
|
2
|
Prompt Region
|
The prompt region contains a set of editable input
components that allow users to modify the parameters of the various reports
in the dashboard. This allows users to see different sets of data for the
same set of reports. This is optional on a dashboard page. There can be
multiple prompt regions in a dashboard affecting different sets of reports on
a dashboard.
|
|
3,4,5
|
Report Regions
|
A report region shows a graphical view of the
application’s business data.
|
Supported Implementation of Dashboards
Retail Applications support the following implementation of
dashboards:
§
Dashboards built using Oracle ADF.
§
Dashboards built in external BI reporting tools and accessible
via a web browser URL.
§
Dashboards built using Oracle ADF is the recommended
implementation of dashboards as they have seamless integration with the rest of
the Retail Application.
§
Dashboards built in external BI reporting tools are supported as
long as the dashboards can be accessed in a web browser via a URL. Oracle
Retail recommends using Oracle Business Intelligence Enterprise Edition (OBIEE)
for URL based dashboards.
Retail Application Included Dashboards
As mentioned in the section, Understanding the Deployment of
Retail Applications, a Retail Application is installed with a shared library
containing included dashboards that are rendered by default within the
application.
These dashboards have the following characteristics:
§
The dashboards are implemented in Oracle ADF for seamless
integration with the rest of the application workflows.
§
The dashboards are implemented using a common framework called
ADF Dashboard Prompts to allow for a standard way of customizing them.
Retailers can customize included dashboards.
See the section, “Dashboard Customization Scenarios,” for details
on the types of customization retailers can perform on included dashboards.
Adding a New ADF-based Dashboard in the Reports Menu
This section describes the steps for adding ADF based dashboard
reports into the Retail Application’s UI Sidebar. ADF-based reports can be
integrated into the Retail Application by adding the dashboard report’s task
flow URL in the application’s reports menu model XML file:
1. Add
a new custom shared library. See the section, “Adding a Custom Shared Library.”
2. Implement
the dashboard page components in the custom shared library workspace. Dashboard
page components are built as Oracle ADF bounded task flows. See the section,
“Creating New ADF Content,” for important considerations when building custom
ADF content.
3. Note
the task flow URL and the parameters of the dashboard task flow.
4. Register
the task flow URL and parameters into the application’s Reports Menu Model. See
the section, “Adding or Modifying an Item in the Reports Menu.”
5. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace.
Shut down the Retail Application and its Custom Shared Library Registry,
redeploy the Custom Shared Library WAR file, and restart the Retail Application
components.
6. Grant
security permissions to dashboard page components. Seethe section, “Creating
New ADF Contents.”
7. Test
the Retail Application. Log in and verify the newly added content.
Adding a New External Dashboard into the Reports Menu
This section describes the steps for adding external dashboard
reports into the Retail Application’s UI Sidebar. The reports such as OBIEE, BI
Publisher or Microstrategy can be integrated into the Retail Application by
adding the web URL of the dashboard report in the application’s reports menu
model XML file.
1. Create
the dashboard report in the reporting server instance.
2. Obtain
the URL to the dashboard report along with any parameters needed to render it.
3. Add
a New Custom Shared Library. See the section, “Adding a Custom Shared Library.”
4. Open
the Custom Shared Library workspace in JDeveloper.
5. Add
a new item in the reports menu for the URL and parameters of the dashboard
report. See the section, “Adding or Modifying an Item in the Reports Menu.”
6. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace.
Shut down the Retail Application and its Custom Shared Library Registry,
redeploy the Custom Shared Library WAR file, and restart the Retail Application
components.
7. Test
the Retail Application. Log in and verify that a link to the BI dashboard
appears in the UI’s sidebar task tree under a folder My Custom Dashboards.
Retail Application Included Dashboard Customization Scenarios
This section contains supported customization use cases for
out-of-the-box dashboards included in the Retail Application installation.
Understanding Design Patterns of IncludedDashboards
As noted in the section, “Anatomy of a Dashboard,” dashboards are
composed of prompt regions and report regions.
The representation of those parts at runtime are depicted in the
diagram below:
The dashboard page, prompts, and reports are implemented as ADF
bounded task Flows and page fragments. The prompts and regions are configured
in an XML file called a Dashboard Prompt Configuration XML. The dashboard
prompt XML arranges visually the prompts and regions on the dashboard page.
The dashboard task flow is launchable from the Retail Application
User Interface’s Reports Menu. In order to make the report launchable, the
dashboard task flow is registered in the application’s reports menu model XML.
A set of ADF business components enable data from the Retail
Application schema to be rendered in the report regions.
The figure below shows a rendering of a dashboard (called Alloc
Dashboard) in a Retail Application:
The various parts of this example dashboard are described below:
|
1
|
Dashboard Page
|
For this example – this called the Allocations Dashboard
or Alloc Dashboard. It contains 1 prompt and 3 reports.
It is implemented as an ADF bounded task flow called
AllocDashboardFlow.
|
|
2
|
Prompt Region
|
This is the prompt region that users modify to change the
view of the various reports in this dashboard.
It is implemented as an ADF bounded task flow called
DashboardFilterFlow.
|
|
3
|
Order Status Report
|
A report region showing a row of information tiles and a
detail table.
It is implemented as an ADF bounded task flow called
OrderStatusFlow.
|
|
4
|
Top Seller Report
|
A report region showing the top selling item.
It is implemented as an ADF bounded task flow called TopSellerFlow
|
|
5
|
Bottom Seller Report
|
A report region showing the bottom selling item.
It is implemented as an ADF bounded task flow called
BottomSellerFlow
|
The dashboard is launched from the application’s reports menu. The
reports menu model XML file (as shown below) contains an item called
allocDashboard registering the task flow, AllocDashboardFlow, into the reports
menu.
Note: The
dashboard task flow includes a parameter called dashboardConfigXML which
references the location of the Dashboard Prompt Configuration XML file
<?xml version="1.0" encoding="UTF-8"
standalone="yes"?>
<NavigationDefinition id="Folder_1"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="urn:www.oracle.com:oracle.retail.apps.framework.navigation"
xsi:schemaLocation="urn:www.oracle.com:oracle.retail.apps.framework.navigation
classpath:oracle/retail/apps/framework/uishell/navigation/model/schema/NavigationModel.xsd">
<Items>
<Item id="allocDashboard" title="Alloc
Dashboard"
shortDesc="Alloc Dashboard"
type="taskflow">
<url>/WEB-INF/AllocDashboardFlow.xml#AllocDashboardFlow</url>
<Parameters>
<Parameter
id="dashboardConfigXML">”/oracle/AllocDashboardPrompt.xml”</Parameter>
<Parameters>
</Item>
</Items>
</NavigationDefinition>
The
Dashboard Prompt Configuration XML file for this example is called the
AllocDashboardPrompt.xml and it contains the following entries:
<?xml version="1.0" encoding="UTF-8" ?>
<Dashboard layout="column"
xmlns="urn:www.oracle.com:oracle.retail.apps.framework.dashboard"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:www.oracle.com:oracle.retail.apps.framework.dashboard
classpath:oracle/retail/apps/framework/dashboard/model/schema/dashboardSchema.xsd">
<Vectors>
<Vector>
<Items>
<Item id="filter"
type="prompt">
<url>/WEB-INF/DashboardFilterFlow.xml#DashboardFilterFlow</url>
</Item>
<Item id="orderStatus"
type="report">
<url>/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow</url>
<Parameters>
<Parameter
id="taskflowURL">/WEB-INF/OrderStatusFlow.xml#OrderStatusFlow</Parameter>
<Parameter
id="parameterName1">departmentIds</Parameter>
<Parameter id="payloadKeyName1">DepartmentId</Parameter>
<Parameter
id="parameterName2">classIds</Parameter>
<Parameter
id="payloadKeyName2">ClassId</Parameter>
<Parameter
id="parameterName3">subclassIds</Parameter>
<Parameter
id="payloadKeyName3">SubclassId</Parameter>
</Parameters>
</Item>
</Items>
</Vector>
<Vector width="300px">
<Items>
<Item id="topSeller"
type="report">
<url>/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow</url>
<Parameters>
<Parameter
id="taskflowURL">/WEB-INF/oracle/retail/apps/flow/TopSellerFlow.xml#TopSellerFlow</Parameter>
<Parameter
id="parameterName1">departmentIds</Parameter>
<Parameter
id="payloadKeyName1">DepartmentId</Parameter>
<Parameter
id="parameterName2">classIds</Parameter>
<Parameter
id="payloadKeyName2">ClassId</Parameter>
<Parameter
id="parameterName3">subclassIds</Parameter>
<Parameter
id="payloadKeyName3">SubclassId</Parameter>
</Parameters>
</Item>
<Item id="bottomSeller"
type="report">
<url>/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow</url>
<Parameters>
<Parameter
id="taskflowURL">/WEB-INF/oracle/retail/apps/flow/BottomSellerFlow.xml#BottomSellerFlow</Parameter>
<Parameter
id="parameterName1">departmentIds</Parameter>
<Parameter
id="payloadKeyName1">DepartmentId</Parameter>
<Parameter
id="parameterName2">classIds</Parameter>
<Parameter
id="payloadKeyName2">ClassId</Parameter>
<Parameter
id="parameterName3">subclassIds</Parameter>
<Parameter
id="payloadKeyName3">SubclassId</Parameter>
</Parameters>
</Item>
</Items>
</Vector>
</Vectors>
</Dashboard>
The file registers the prompts and regions into a hierarchy of
vectors and items. The structure of the dashboard prompt configuration XML file
is explained in the following section.
The Dashboard Prompt Configuration XML File
The root element of the model is the “Dashboard” element. Other
than schema and namespace information, the “Dashboard” element has a “layout”
attribute that must be provided, and must contain a value of either “row” or
“column”. This attribute arranges the regions of the dashboard in rows or
columns.
Inside the “Dashboard” element is a “Vectors” element, which
contains a list of “Vector” elements. If the dashboard layout=”row”, then each
“Vector” corresponds to a single row in the dashboard. Conversely, if
layout=”column”, then each “Vector” corresponds to a column. To add a new row
or column, simply add another “Vector” element inside the “Vectors” element.
Up to 12 rows and 6 columns can be displayed in a dashboard, not
including separate header and footer regions. Any items beyond 12 rows or 6
columns will not appear on the dashboard.
Rows in the dashboard display from top to bottom. If
layout=”row”, the first “Vector” will appear toward the top of the page.
Columns appear from left to right, so if layout=”column”, the first “Vector”
will appear toward the left of the page.
Each “Vector” element contains an “Items” element, which contains
a list of “Item” elements. The xml structure for “Item” elements is very
similar to the tasks or reports sidebar menu models.
The following attributes are supported on dashboard items:
|
Name
|
Description
|
Required
|
|
id
|
A unique id for this region
|
Yes
|
|
type
|
The type of content contained in this region.
Valid values: prompt, report
|
Yes
|
|
width
|
The width of this region. See below for more details.
|
No
|
|
height
|
The height of a region. See below for more details.
|
No
|
|
url
|
The task flow url to open in this region
|
Yes
|
|
Parameters
|
Parameters to be sent to the URL
|
No
|
In addition to the items arranged in rows or columns, you can add
a header and footer region to the dashboard. Both horizontally span the full
width of the dashboard, with the header appearing at the top and the footer
appearing at the bottom. These can be added in the model by specifying a
“HeaderItem” or “FooterItem” child of the root “Dashboard” element. These
regions support all the same properties as other items in the dashboard.
Vectors and items expose width and height attributes to enable
applications to resize elements to best fit on the dashboard. Certain rules and
best practices apply when using these attributes.
First, if the dashboard is in row layout, then all items in a row
must have the same height. The height attribute from the vector is used to
specify the height of every item in that row. Because rows are assumed to span
the full width, the vector width is ignored in this layout.
In the same way, when the dashboard is arranged in column layout,
all items in a column must have the same width. The vector width is used to
specify the width of every item in that column. Columns should expand
vertically to accommodate all content, allowing a scrollbar if necessary.
Therefore, vector height is ignored in this layout.
In addition to the width and height attributes, a vector also
provides a dimensionsFrom attribute. The valid values of the dimensionsFrom
attribute can be auto, child or parent. The dimensionsFrom attribute is used to
specify whether the Items in the vector inherit their dimensions from the
parent decorative box or not. When the dimensionsFrom attribute is parent, the
Items in the vector will be stretched to fill any available space in the
vector. When the dimensionsFrom attribute is child, the Items in the vector
won’t stretch but will display scroll bars if they cannot be accommodated in
the available space in the decorative box. The default value of the
dimensionsFrom attribute is ‘auto’ which gives preference to the child
dimensions.
The following table indicates which attributes are used, based on
which dashboard layout has been selected.
|
|
Row layout
|
Column layout
|
|
Vector width
|
ignored
|
valid
|
|
Vector height
|
valid
|
ignored
|
|
Item height
|
ignored
|
valid
|
|
Item width
|
valid
|
ignored
|
In column layout, either every vector width should be provided,
or every width should be omitted. If all widths are omitted, columns default to
divide the total width evenly. When the widths are omitted, the dimensionsFrom
attribute of the vector can be set to parent if stretching of the Items is
desired. If widths are provided, they should be specified as a percentage, and
the sum of all widths should equal 100%.
In row layout, heights may be specified or omitted as desired. If
a row’s height is omitted, it will default to get the dimension from the
content inside the regions. When the row’s height is omitted, the
dimensionsFrom attribute of the vector can be set to parent if stretching of
the Items is desired. Heights should be specified using an exact unit such as
px or em. Percentages should not be used.
If these rules and best practices are ignored, results may be
inconsistent or undesirable. Items may not size as intended, and horizontal
scrollbars or nested vertical scrollbars may appear.
In addition to resizing entire rows or columns, individual items
inside the row or column can also be resized. As mentioned above, items in a
row should all have the same height, so in row layout, item height is ignored
and only item width is valid. And items in a column should have the same width,
so item width is ignored and only item height is valid. See the table above for
details.
The same rules and best practices that apply to vector height and
width also apply to setting item height and width.
Refreshing Reports on Prompt Changes
When the user changes a value on the dashboard prompt, that value
translates as a parameter change on the different reports on the dashboard.
This is accomplished through a feature in ADF called Contextual
Events. In simple terms, contextual events are signals that a page in a task
flow can generate for which pages in other task flows can listen and react to.
For the included dashboards, prompt regions generate a contextual event
whenever the user changes a prompt field value. When a report “hears” an event,
it will process the contextual event information (called a payload) to extract
the changed prompt value, use that value as a parameter to the report query and
refresh the report region.
In the example depicted in the previous section, the dashboard
prompt configuration XML file shows all three reports registered under a
wrapper task flow called the DVTContextAwareReportFlow.
<Item id="bottomSeller"
type="report">
<url>/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow</url>
<Parameters>
<Parameter
id="taskflowURL">/WEB-INF/oracle/retail/apps/flow/BottomSellerFlow.xml#BottomSellerFlow</Parameter>
<Parameter
id="parameterName1">departmentIds</Parameter>
<Parameter
id="payloadKeyName1">DepartmentId</Parameter>
<Parameter
id="parameterName2">classIds</Parameter>
<Parameter
id="payloadKeyName2">ClassId</Parameter>
<Parameter
id="parameterName3">subclassIds</Parameter>
<Parameter
id="payloadKeyName3">SubclassId</Parameter>
</Parameters>
</Item>
The DVTContextAwareReportFlow wrapper task flow enables a report
to listen to contextual events generated by prompt regions.
Note the pairs of parameterNameN and payloadKeyNameN registered
in the <Parameters> section for the report task flow BottomSellerFlow. A
pair of parameter name and payload key name tells the framework what prompt
value is mapped to a specific report parameter. From the example above, parameterName1
is specified as “departmentIds” and payloadKeyName1 as “departmentIds”.
This means the following:
§
There is a task flow parameter for the BottomSellerFlow called
“departmentIds”.
§
When the user changes the value of the department ID in the
prompt region, the system will generate a contextual event with the new
department value stored as reference “DepartmentId”.
§
The report is context aware (as indicated by the wrapper task
flow – DVTContextAwareReportFlow). When the report detects the contextual
event, the framework will get the new department ID value from the payload by
using the key “DepartmentId”, use it to update the BottomSellerFlow task flow’s
“departmentId” parameter, and refresh the report region.
For more details on the DVTContextAwareReportFlow, see the
section, “Adding a DVT Taskflow-based Contextual Report.”
List of Retail Applications Included in Dashboards
This section contains a listing of all dashboard reports included
in the Retail Application.
The salient features of Inventory Control Dashboard are-
§
Resolves inventory discrepancies and manages stock counts at the
corporate level
§
Key responsibilities
– Ensuring
transfers and RTVs closed
– Ensuring
stock counts are reconciled and processed
§
Dashboard focused on
– Timely closing of transfers, allocations, and RTVs
– Timely processing of stock counts
Benefits
§
Reduces time searching for stock count exceptions from 5 clicks
to zero
§
Eliminates the need to build custom reporting to monitor for
negative inventory
§
Allows for approval of multiple transfers in one action
§
Provides suggested actions for resolving
– Inventory
in inactive/discontinued locations
– Items
unintentionally ranged to a location
Job roles with access to the Inventory control dashboard are as
follows
§
CORPORATE_INVENTORY_CONTROL_ANALYST_JOB
§
INVENTORY_CONTROL_MANAGER_JOB
§
RMS_APPLICATION_ADMINISTRATOR_JOB
Different reports under the Inventory control dashboard are as
below:-
§
Transfer Pending Approval
§
Overdue Transfers
§
Overdue Allocations
§
Overdue RTVs
§
Stock Orders Pending Close
§
Stock Counts Missing
§
Stock Count Unit Variance
§
Unexpected Inventory
The Task flow url of the Inventory control dashboard is below
/WEB-INF/oracle/retail/apps/rms/dashboards/view/inventorycontrol/flow/InventoryControlDashboardFlow.xml#InventoryControlDashboardFlow
The only required parameter for the Inventory control task flow
is “dashboardXml” which is a metadata or model file for this dashboard reports
and prompt/filter
The path for the “dashboardXml” parameter for Inventory control
dashboard is as below
/oracle/retail/apps/rms/dashboards/model/inventorycontrol/InventoryControlDashboardModel.xml
The Inventory control prompt and description are as follows
|
Prompt Name
|
Description
|
|
Chain/chainIds
|
Chain
|
|
Area/areaIds
|
Area
|
|
Location/locationIds
|
Location
|
|
Supplier Site/supplierSiteIds
|
SupplierSite
|
|
Department/departmentIds
|
Department
|
|
Class/classIds
|
ClassId
|
|
Subclass/subClassIds
|
SubClass
|
The payload map between each prompt of IC is as follows
|
Prompt Name
|
Pay Load Key Name
|
|
Chain/chainIds
|
Chain
|
|
Area/areaIds
|
Area
|
|
Location/locationIds
|
Location
|
|
Supplier Site/supplierSiteIds
|
SupplierSite
|
|
Department/departmentIds
|
Department
|
|
Class/classIds
|
ClassId
|
|
Subclass/subClassIds
|
SubClass
|
Data Steward Dashboard
The salient features of Data Steward Dashboard are:-
§
Maintains standards and accuracy of foundation and item data
§
Key responsibilities
-
Maintaining cross-enterprise attribution
-
Ensuring completeness of item data
§
Dashboard focused on
-
Timeliness and completeness of item setup
Benefits
§
Monitors for specific attributes required by department
-
Highlights overall completeness of the item
-
Tracks required attributes even after item approval
-
Single click to take action from the report
Job roles with access to the Data steward dashboard are as
follows
§
RMS_DATA_STEWARD_JOB
§
RMS_APPLICATION_ADMINISTRATOR_JOB
Different reports under the Data steward dashboard are as follows
§
Incomplete Items
Task flow URL of Inventory control dashboard is as below
/WEB-INF/oracle/retail/apps/rms/dashboards/view/datasteward/flow/DataStewardDashboardFlow.xml#DataStewardDashboardFlow
The only required parameter for the Inventory control task flow
is “dashboardXml” which is a metadata or model file for this dashboard reports
and prompt/filter
The path for the “dashboardXml” parameter for Inventory Data
steward control dashboard is as below
/oracle/retail/apps/rms/dashboards/model/dataSteward/DataStewardDashboardModel.xml
The Data steward prompt and description are as follows:
|
Prompt Name
|
Description
|
|
Department/departmentIds
|
Department
|
|
Class/classIds
|
ClassId
|
|
Subclass/subclassIds
|
Subclass
|
|
Store/storeIds
|
Store
|
|
Supplier Site/supplierSiteIds
|
SupplierSite
|
|
Brands/brands
|
BrandName
|
|
Country of Origin/originCountries
|
CountryOfOrigin
|
|
UDA Values/udaValues
|
UdaValue
|
|
Location/locationIds
|
Location
|
|
Create Date/createDates
|
CreateDate
|
|
Item Type/itemTypeId
|
ItemType
|
|
Item Level/itemLevelId
|
ItemLevel
|
|
Transaction Level/tranLevelId
|
TransactionLevel
|
|
UDA/udaId
|
UDA
|
The payload map between each prompt of DS is as follows
|
Prompt Name
|
Pay Load Key Name
|
|
Department/departmentIds
|
Department
|
|
Class/classIds
|
ClassId
|
|
Subclass/subclassIds
|
Subclass
|
|
Store/storeIds
|
Store
|
|
Supplier Site/supplierSiteIds
|
SupplierSite
|
|
Brands/brands
|
BrandName
|
|
Country of Origin/originCountries
|
CountryOfOrigin
|
|
UDA Values/udaValues
|
UdaValue
|
|
Location/locationIds
|
Location
|
|
Create Date/createDates
|
CreateDate
|
|
Item Type/itemTypeId
|
ItemType
|
|
Item Level/itemLevelId
|
ItemLevel
|
|
Transaction Level/tranLevelId
|
TransactionLevel
|
|
UDA/udaId
|
UDA
|
Financial Analyst Dashboard
The salient features of Finance Analyst Dashboard are:-
§
Focuses on inventory valuation and stock ledger accuracy
Key responsibilities
§
Reviewing and approving the value of a physical inventory
§
Resolving inventory valuation discrepancies prior to month end
Dashboard focused on
§
WAC and/or CMO variances outside of an expected tolerance
§
Monitoring late posted transactions from previous month
§
Addressing variances in inventory valuation based on counts
Benefits
§
Highlights financial anomalies in inventory valuation prior to
month close
§
Proactively manage WAC variances to ensure inventory valuation
accuracy
§
Allows for stock count value variance to be accepted in a single
action
§
Proactively monitor and update budgeted shrink and CMO based on
business trends
Benefits
§
Highlights financial anomalies in inventory valuation prior to
month close
§
Proactively manage WAC variances to ensure inventory valuation
accuracy
§
Allows for stock count value variance to be accepted in a single
action
§
Proactively monitor and update budgeted shrink and CMO based on
business trends
Job roles with access to the Financial analyst dashboard are as
follows
§
FINANCE_ANALYST_JOB
§
FINANCE_MANAGER_JOB
§
RMS_APPLICATION_ADMINISTRATOR_JOB
Different reports available in this dashboard are:
1. WAC
Variance Report
2. Cumulative
Markon Percent Variance Report
3. Stock
Count Value Variance report
4. Shrinkage
Variance report
5. Late
posted transactions report
Finance Analyst Dashboard Taskflow URL
/WEB-INF/oracle/retail/apps/rms/dashboards/view/financialanalyst/flow/FinancialAnalystDashboardFlow.xml#FinancialAnalystDashboardFlow
Dashboard Parameters:
dashboardXml – Location of metadata/model
file that contains dashboard prompt and reports in the dashboard. Value - /oracle/retail/apps/rms/dashboards/model/financialanalyst/FinancialAnalystDashboardModel.xml
Dashboard Prompt task flow URL:
/WEB-INF/oracle/retail/apps/rms/dashboards/view/financialanalyst/flow/FinancialAnalystDashboardPromptFlow.xml#FinancialAnalystDashboardPromptFlow
The Finance Analyst prompt and description are as follows
|
Prompt Name
|
Description
|
|
setOfBooksIds
|
SetOfBooksId
|
|
orgUnitIds
|
OrgUnitId
|
|
locationIds
|
Location
|
|
departmentIds
|
Department
|
|
classIds
|
ClassId
|
|
subclassIds
|
Subclass
|
The below table describes the prompt names along with the Payload
Key names
|
Prompt Name
|
Payload Key Name
|
|
setOfBooksIds
|
SetOfBooksId
|
|
orgUnitIds
|
OrgUnitId
|
|
locationIds
|
Location
|
|
departmentIds
|
Department
|
|
classIds
|
ClassId
|
|
subclassIds
|
Subclass
|
|
Area
|
Area
|
|
Brand
|
BrandName
|
|
Order Context
|
OrderType
|
Below is the screenshot of the dashboard.
Dashboard Filter and Order Alert Report
Negative Inventory Report
Inventory Variance to Forecast Report
The salient features of Inventory Analyst Dashboard are:-
§
Manages inventory levels across locations
§
• Key responsibilities:
– Monitoring
stock variance to plan
– Creating
adjustments to open orders or replenishment settings
§
Dashboard highlights
– Monitoring
forecasted sales to forecasted inventory
– Resolving
purchase order issues which may prevent timely shipping or receiving
Benefits
§
Shortens order approval process by 60% or more
§
Eliminates need to build custom reports to monitor ordering
exceptions
§
Shortens steps for closing overdue orders from 10 to 1
§
Proactively looks for forecasted inventory shortfall
§
Provides single-step resolutions
– Canceling
orders
– Creating
orders or transfers
– Re-allocation
Job roles with access to the Inventory analyst dashboard are as
follows
§
INVENTORY_ANALYST_JOB
§
INVENTORY_MANAGER_JOB
§
RMS_APPLICATION_ADMINISTRATOR_JOB
The following are the reports available in the dashboard:
§
Order Alerts
§
Negative Inventory
§
Inventory Variance to Forecast
Dashboard Task flow URL:
/WEB-INF/oracle/retail/apps/rms/dashboards/view/inventoryanalyst/flow/InventoryAnalystDashboardFlow.xml#InventoryAnalystDashboardFlow
Dashboard Parameters:
§
dashboardXml – Location of metadata/model file that contains
dashboard prompt and reports in the dashboard. Value –
/oracle/retail/apps/rms/dashboards/model/inventoryanalyst/InventoryAnalystDashboardModel.xml
Dashboard Prompt task flow URL:
/WEB-INF/oracle/retail/apps/rms/dashboards/view/inventoryanalyst/flow/InventoryAnalystDashboardPromptFlow.xml#InventoryAnalystDashboardPromptFlow
The table below describes the prompt names along with the Payload
Key names:
|
Sl. No
|
Prompt Name
|
Payload Key Name
|
Description
|
|
1.
|
Department
|
Department
|
Department Id
|
|
2.
|
Class
|
ClassId
|
Class Id
|
|
3.
|
Subclass
|
Subclass
|
Subclass Id
|
|
4.
|
Supplier Site
|
SupplierSite
|
Supplier Site Id
|
|
5.
|
Store
|
Store
|
Store Id
|
|
6.
|
Store Grade Group
|
StoreGradeGroup
|
Store Grade Group Id
|
|
7.
|
Area
|
Area
|
Area Id
|
|
8.
|
Brand
|
BrandName
|
Item Brand Name
|
|
9.
|
Order Context
|
OrderType
|
Order Context Id
|
Buyer Dashboard
Dashboard Filter and Daily Sales Report:
Early/Late Shipment and Open to Buy Reports:
Order Pending Approval Report
The salient features of the Buyer Dashboard are:-
§
Focuses on managing sales and margin performance to plan
§
Key responsibilities:
– Monitoring
open to buy
– Approving
purchase orders approval
§
Dashboard highlights
– Monitoring shipments for potential impacts on OTB
– Highlighting orders awaiting their approval
Benefits
§
Provides snapshot view of today’s top 10 selling items
§
Proactively monitors order shipment accuracy
§
Provides single step resolutions for
– Updating
PO Dates
– Canceling
Orders
§
Allows for approval of multiple orders in one action
§
Provides graphical view of buying budget and spend by period
Job roles with access to the Buyer dashboard are as follows
§
BUYER_JOB
§
RMS_APPLICATION_ADMINISTRATOR_JOB
The following reports are available in the dashboard
§
Daily Sales
§
Early / Late Shipments
§
Open to Buy
§
Orders Pending Approval
Dashboard Task flow URL:
/WEB-INF/oracle/retail/apps/rms/dashboards/view/buyer/flow/BuyerDashboardFlow.xml#BuyerDashboardFlow
Dashboard Parameters:
§
dashboardXml – Location of metadata/model file that contains
dashboard prompt and reports in the dashboard. Value -
/oracle/retail/apps/rms/dashboards/model/buyer/BuyerDashboardModel.xml
Dashboard Prompt task flow URL:
/WEB-INF/oracle/retail/apps/rms/dashboards/view/buyer/flow/BuyerDashboardFilterFlow.xml#BuyerDashboardFilterFlow
|
Sl. No
|
Prompt Name
|
Payload Key Name
|
Description
|
|
1.
|
Department
|
Department
|
Department Id
|
|
2.
|
Class
|
ClassId
|
Class Id
|
|
3.
|
Subclass
|
Subclass
|
Subclass Id
|
|
4.
|
Store
|
Store
|
Store Id
|
|
5.
|
Supplier Site
|
SupplierSite
|
Supplier Site Id
|
|
6.
|
Brand
|
BrandName
|
Item Brand Name
|
|
7.
|
Order Context
|
OrderType
|
Order Context Id
|
|
8.
|
Country of Sourcing
|
CountryOfOrigin
|
Country of Sourcing Location
|
Adding or Replacing a Report in an Included Dashboard
This section discusses the steps needed to add or replace a report
on an included dashboard.
1. Add
a custom shared library. Refer to the section, Add a Custom Shared Library. An
existing custom shared library can be reused.
2. Identify
the dashboard to be modified. Refer to the section, List of Retail Application
Included Dashboards.
3. If
needed, open the custom shared library workspace in JDeveloper and build your
own custom report as an ADF bounded task flow. Refer to the section, Creating
New ADF Content.
If the report has to refresh when a
prompt on the dashboard is changed by the user, make sure that task flow
parameters are present for the prompt values your report will need to react to.
Refer to the section, List of Retail Application Included Dashboards, for a
list of prompt payload values that can be generated for the dashboard.
4. Note
the new report’s task flow URL and parameters.
5. Obtain
a copy of the dashboard prompt configuration XML file for the dashboard to be
modified. Refer to the section, List of Retail Application Included Dashboards.
6. Modify
the copy of the dashboard prompt configuration XML file to add an item or
replace an existing item for the new report. Refer to the section, The
Dashboard Prompt Configuration XML File for details on properly creating a new
item entry in the configuration file.
If the report has to refresh when a
prompt on the dashboard is changed by the user, make sure that report task flow
is wrapped in a DVTContextAwareTaskFlow for its item entry in the dashboard
prompt configuration XML file. Use the example in the section, Understanding
Design Pattern for Included Dashboards, as reference. Refer to the section,
Adding a DVT Taskflow-based Contextual Report for usage of the
DVTContextAwareTaskFlow framework.
7. Modify
the included dashboard’s entry in the application’s Reports Menu to reference
the location of your copy of the dashboard prompt configuration XML file. Refer
to the section, Adding or Modifying an Item in the Reports Menu.
8. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace.
Shutdown the Retail Application and its Custom Shared Library Registry,
redeploy the Custom Shared Library WAR file, and restart the Retail Application
components.
9. Test
the Retail Application.
Removing a Report from an Included Dashboard
This section discusses the steps needed to remove a report from
an included dashboard.
1. Add
a custom shared library. Refer to the section, Add a Custom Shared Library. An
existing custom shared library can be reused.
2. Identify
the dashboard to be modified. Refer to the section, List of Retail Application
Included Dashboards.
3. Obtain
a copy of the dashboard prompt configuration XML file for the dashboard to be
modified. Refer to the section, List of Retail Application Included Dashboards.
4. Modify
the copy of the dashboard prompt configuration XML file and remove the report.
You may need to readjust the position of the other reports. Refer to the
section, The Dashboard Prompt Configuration XML File for details on the
configuration XML attributes that control the rendering of the dashboard.
5. Modify
the included dashboard’s entry in the application’s Reports Menu to reference
the location of your copy of the dashboard prompt configuration XML file. Refer
to the section, Adding or Modifying an Item in the Reports Menu.
6. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace.
Shutdown the Retail Application and its Custom Shared Library Registry,
redeploy the Custom Shared Library WAR file, and restart the Retail Application
components.
7. Test
the Retail Application.
Change the Layout of an Included Dashboard
This section discusses the steps needed to change the layout of
the reports in included dashboards.
This section discusses the steps needed to change the layout of
the reports in included dashboards.
1. Add
a custom shared library. Refer to the section, Add a Custom Shared Library. An
existing custom shared library can be reused.
2. Identify
the dashboard to be modified. Refer to the section, List of Retail Application
Included Dashboards.
3. Obtain
a copy of the dashboard prompt configuration XML file for the dashboard to be
modified. Refer to the section, List of Retail Application Included Dashboards.
4. Modify
the copy of the dashboard prompt configuration XML file and rearrange the position
of the item entries. Refer to the section, The Dashboard Prompt Configuration
XML File for details on the attributes to control the layout of dashboard.
5. Modify
the included dashboard’s entry in the application’s Reports Menu to reference
the location of your copy of the dashboard prompt configuration XML file. Refer
to the section, Adding or Modifying an Item in the Reports Menu.
6. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace. Shutdown
the Retail Application and its Custom Shared Library Registry, redeploy the
Custom Shared Library WAR file, and restart the Retail Application components.
7. Test
the Retail Application.
Contextual Reports are reports that appear in a task flow’s
contextual area section. As discussed in the section, Understanding the Retail
Application User Interface, the Contextual Area is a collapsible section to the
right of the local area that provides a space to present information that can
assist users in completing their tasks.
Since information presented in a contextual area is presented
depending on the task or workflow the user is on, contextual areas are
associated to task flows and there can be at most one contextual area per task
flow.
Within a contextual area – multiple contextual reports can be
configured.
Each contextual report can change its contents depending on the
action being performed in the user’s current workflow.
For example, in the screenshot below, as the user selects the
line of business from the table, the line chart will show the annual trade for
the selected line of business.
Each task flow publishes contextual business events on key
activities happening in the screen. Contextual reports can listen to those
events and change its content depending on the payload information associated
with the event.
Contextual reports can either be ADF based DVT reports or can be
maintained in a separate BI reporting tool. The ADF based DVT reports are ADF
taskflows, which are built using the ADF Data Visualization components. The
reports maintained in an external reporting tool are URLs accessible in a web
browser via a URL. Oracle Retail recommends using Oracle Business Intelligence
Enterprise Edition (Oracle BI EE) for an external reporting tool.
The contextual reports are added into a Retail Application by
adding and configuring the task flow’s contextual area model XML file into the
Custom Shared Library.
Retail Applications may provide retailers with a list of possible
contextual business events each flow generates. Retailers can configure their
contextual reports to react to these events.
Each event will also include information about the event’s
payload information (example: the item ID of the item being selected in an
Allocation Maintenance screen).
List of Contextual Business Events and Payloads
|
Event Name
|
Task Flow
|
Page
|
ContextualArea
Name
|
Contextual Area Model XML Location
|
Generated when…
|
Payload Values
|
|
ItemSearchItemSelectedEvent
|
SearchItemFlow
|
SearchItems
|
SearchItem
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemSearch_ContextualAreaModel.xml
|
The user selects an record on the 'Item Results' table
search Items screen.
|
Item – the item selected by the user.
|
|
ItemSelectedEvent
|
MaintainItemFlow
|
MaintainItem
|
MaintainItem
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/Item_ContextualAreaModel.xml
|
While opening ‘Item Master’ screen from ‘Item Search’ screen.
|
Item – the item selected by the user.
|
|
PackDetailsSelectionEvent
|
MaintainPacksByCompFlow
|
MaintainPacksByComp
|
PackDetails
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/PackDetails_ContextualAreaModel.xml
|
When a row in the ‘Packs by component’ table is selected
by user.
|
§ Item – the item
selected by the user.
|
|
ItemSuppCountrySelectedEvent
|
MaintainItemSuppCntryFlow
|
MaintainItemSuppCntry
|
MaintainItemSuppCntry
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemSuppCountry_ContextualAreaModel.xml
|
When a row in the Item Supp country table is selected by
user.
|
§ Item – the item
selected by the user.
§ Supplier – the
Supplier id selected by the user.
§ Country – the
country id selected by the user.
|
|
ItemLocSelectedEvent
|
MaintainItemLocsFlow
|
MaintainItemLocs
|
ItemLoc
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemLoc_ContextualAreaModel.xml
|
When a row in the Locations table is selected.
|
§ Item – the item
selected by the user.
§ Location – the
location id selected by the user.
|
|
ItemChildSelectedEvent
|
MaintainItemChildrenFlow
|
MaintainItemChildren
|
MaintainItemChildren
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemChildren_ContextualAreaModel.xml
|
When a row in the Item children table is selected.
|
§ Item – the item
selected by the user.
|
|
ItemChildDiffSelectedEvent
|
MaintainItemChildrenDiffFlow
|
MaintainItemChildrenDiff
|
MaintainItemChildrenDiff
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemChildrenByDiff_ContextualAreaModel.xml
|
When a row in the Item children Diff table is selected.
|
§ Item –the item
selected by the user.
|
|
ItemSupplierSelectedEvent
|
MaintainItemSuppsFlow
|
MaintainItemSupps
|
MaintainItemSupplier
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemSupplier_ContextualAreaModel.xml
|
When a row in the Item Supplier table is selected.
|
§ Item – the item
selected by the user.
§ Supplier – the
supplier id selected by the user.
|
|
SubstituteItemSelectedEvent
|
MaintainSubstituteItemsFlow
|
MaintainSubstituteItems
|
SubstituteItems
|
Rms.ear à
RmsViewController.war à AdfRmsFoundationItem.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/SubstituteItems_ContextualAreaModel.xml
|
When a row in the Items table is selected.
|
§ Item – the item
selected by the user. .
§ SubstituteItem --
the substitute item selected by the user.
|
|
AlcOrderFinalizeSelectionEvent
|
SearchAlcFinalFlow
|
SearchAlcFinal
|
AlcOrderFinalize
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/AlcOrderFinalize_ContextualAreaModel.xml
|
When a row in the ‘Alc Order Finalization’ table is
selected.
|
§ Order – the ‘order
no’ selected by the user.
§ Shipment – the
‘shipment id’ selected by the user.
|
|
CustomsEntryLoadEvent
|
MaintainCeFlow
|
MaintainCe
|
CustomsEntry
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/CustomsEntry_ContextualAreaModel.xml
|
When the screen is opening from ‘Custom Entry search’
screen.
|
§ CustEntryID -- the
‘Custom Entry Id’ selected by the user.
|
|
LetterOfCreditHeadLoadEvent
|
MaintainLcAppHeadFlow
|
MaintainLcAppHead
|
LetterOfCreditHead
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/LetterOfCreditHead_ContextualAreaModel.xml
|
When the screen is opening from tasklist i.e. while
creating of ‘Letter of credit’.
|
§ LCReferenceNum –
Letter of Credit Reference number
|
|
LetterOfCreditOrderSelectionEvent
|
MaintainLCOrderApplyFlow
|
MaintainLCOrderApply
|
LetterOfCreditOrder
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/LetterOfCreditOrder_ContextualAreaModel.xml
|
When a row in the ‘Associate LCs with Orders’ table is
selected.
|
§ Applicant – the
‘Applicant id’ selected by the user.
§ Bank –the ‘Bank id’
selected by the user.
§ Order – the ‘Order
no’ selected by the user.
|
|
ObligationLoadEvent
|
MaintainObligationFlow
|
MaintainObligation
|
Obligation
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/Obligation_ContextualAreaModel.xml
|
When the screen is opening from tasklist i.e. while
creating of ‘Create Obligation’ and opening from ‘Obligation Search’ screen.
|
§ ObligationID – the
‘obligation id’ selected by the user.
|
|
TransportationLoadEvent
|
MaintainTransportFlow
|
MaintainTransport
|
Transportation
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/Transportation_ContextualAreaModel.xml
|
When the screen is opening from tasklist i.e. while creating
of ‘Create Transportation by Order’ and opening from ‘Transportation Search’
screen.
|
§ TransportationID –
the ‘transportation id’ selected by the user.
|
|
FinalizeTransportationValueChangeEvent
|
MaintainTransportFinalFlow
|
MaintainTransportFinal
|
FinalizeTransportation
|
Rms.ear à
RmsViewController.war à AdfRmsImport.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FinalizeTransportation_ContextualAreaModel.xml
|
Upon entry of a valid Vessel, Voyage, Estimated Departutre
Date combination.
|
§ VesselID – the
‘Vessel id’ selected by the user.
§ VoyageFlightID –
the ‘voyage flight id’ selected by the user.
§ EstDepartureDate –
the ‘Estimate Departure Date’ selected by the user.
|
|
BuyerWorksheetSelectionEvent
|
MaintainBuyerWorksheetFlow
|
MaintainBuyerWorksheet
|
ContractCost
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/BuyerWorksheet_ContextualAreaModel.xml
|
When a row in the ‘Worksheet Items’ table is selected by
the user.
|
§ Item – the item
selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ SourceType – the
‘source type’ selected by the user.
§ Location – the
‘location id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
ContractItemEvent
|
MaintainContractFlow
|
MaintainContract
|
ContractCost
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItem_ContextualAreaModel.xml
|
The user selects an record on the 'Contract Results' table
‘Contract Search’ screen by the user.
|
§ ContractNum – the
‘Contract no’ selected by the user.
§ Supplier – the
‘Supplier id’ selected by the user.
§ StartDate – the
‘Startdate’ selected by the user.
§ EndDate – the
‘Endate’ selected by the user.
§ Status – the
‘Status’ selected by the user.
§ ContractCurrency –
the ‘contract currency’ selected by the user. i.e. the currency of the
contract created.
§ DisplayCurrency -- the
‘display currency’ selected by the user in which currency mode is viewing.
|
|
ContractItemEvent
|
MaintainContractCostFlow
|
MaintainContractCost
|
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItem_ContextualAreaModel.xml
|
When a row in the ‘Contract Item’ table is selected by
the user.
|
§ ContractNum -- the
‘Contract no’ selected by the user.
§ Item -- the ‘item‘ selected
by the user.
§ ItemParent – the
‘item parent’ selected by the user.
§ Diff1 – the ‘diff1’
selected by the user.
§ Diff2 – the ‘diff2’
selected by the user.
§ Diff3– the ‘diff3’
selected by the user.
§ Diff4– the ‘diff4’
selected by the user.
|
|
ContractItemEvent
|
MaintainContractCostFlow
|
MaintainContractCost
|
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItem_ContextualAreaModel.xml
|
When a row in the ‘Contract Item Location’ table is
selected by the user.
|
§ ContractNum -- the
‘Contract no’ selected by the user.
§ Item -- the item
selected by the user.
§ Location – the
‘location id’ selected by the user.
§ ReadyDate – the
‘ready date’ selected by the user.
|
|
ContractedOrderItemEvent
|
MaintainCntrctOrdersFlow
|
MaintainCntrctOrders
|
ContractItemOrderItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItemOrderItem_ContextualAreaModel.xml
|
When a row in the Items table is selected
|
§ ContractNum – the
‘Contract no’ selected by the user.
§ Item – the item
selected by the user.
§
|
|
ContractedOrderItemEvent
|
MaintainCntrctOrdersFlow
|
MaintainCntrctOrders
|
ContractItemOrderItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItemOrderItem_ContextualAreaModel.xml
|
When a row in the Locations table is selected.
|
§ ContractNum – the
‘Contract no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
§
|
|
ContractedOrderItemEvent
|
MaintainCntrctOrdersFlow
|
MaintainCntrctOrders
|
ContractItemOrderItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ContractItemOrderItem_ContextualAreaModel.xml
|
When a row in the Orders table is selected.
|
§ ContractNum – the
‘Contract no’ selected by the user.
§ Item – the’ item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ OrderType – the
‘order type’ selected by the user.
|
|
CostChangeItemSelectedEvent
|
MaintainCostChangeByItemFlow
|
MaintainCostChangeByItem
|
CostChangeByItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/CostChgByItem_ContextualAreaModel.xml
|
When a row in the Item table is selected.
|
§ CostChangeID – the
‘Cost change id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ OriginCountry – the
‘origin country id’ selected by the user.
§ EffectiveDate—the
‘effective date’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
CostChangeItemLocSelectedEvent
|
MaintainCostChangeByLocationFlow
|
MaintainCostChangeByLocation
|
CostChgByItemLoc
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/CostChgByItemLoc_ContextualAreaModel.xml
|
When a row in the Item/Location table is selected by user.
|
§ CostChangeID – the
‘Cost change id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘Location id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ OriginCountry – the
‘origin country id’ selected by the user.
§ EffectiveDate—the
‘effective date’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
DealHeadEvent
|
MaintainDealFlow
|
MaintainDeal
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/DealHead_ContextualAreaModel.xml
|
When the screen is opened for an existing deal from
‘Search Deals’ screen by user.
|
§ DealID – the ‘deal
id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ DealCurrency – the
‘deal currency’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
DealHeadEvent
|
MaintainDealFlow
|
MaintainDeal
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/DealHead_ContextualAreaModel.xml
|
When a row in the component table is selected by user.
|
§ DealID – the ‘deal
id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ DealCompID – the
‘deal comp id’ selected by the user.
§ DealCurrency – the
‘deal currency’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
FixedDealHeadEvent
|
MaintainFixedDealFlow
|
MaintainFixedDeal
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FixedDealHead_ContextualAreaModel.xml
|
When the screen is opened for an existing fixed deal from
‘Fixed deal search’ screen by user.
|
§ DealID – the ‘deal
id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
FixedDealHeadEvent
|
MaintainFixedDealFlow
|
MaintainFixedDeal
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FixedDealHead_ContextualAreaModel.xml
|
When a supplier or partner is specified during the
creation of a new fixed deal by user.
|
§ Supplier – the
‘supplier id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
OrderDetailEvent
|
MaintainOrderDetailFlow
|
MaintainOrderDetail
|
OrderDetailItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderDetail_ContextualAreaModel.xml
|
When a row in the item table is selected by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ ItemParent – the
‘item parent’ selected by the user.
§ Diff1 – the first
differentiator ‘diff1’ selected by the user.
§ Diff2 – the second
differentiator ‘diff2’ selected by the user.
§ Diff3 – the third
differentiator ‘diff3’ selected by the user.
§ Diff4 – the fourth
differentiator ‘diff4’ selected by the user.
§ OrderCurrency – the
‘order currency’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
§ DisplayUOM – the
‘display uom’ selected by the user in which UOM mode is viewing.
|
|
OrderDetailEvent
|
MaintainOrderDetailFlow
|
MaintainOrderDetail
|
OrderDetailItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderDetail_ContextualAreaModel.xml
|
When a row in the item/location table is selected by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location– the ‘Location
id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
§ DisplayUOM – the
‘display uom’ selected by the user in which UOM mode is viewing.
|
|
OrderDetailEvent
|
MaintainOrderDetailFlow
|
MaintainOrderDetail
|
OrderDetailItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderDetail_ContextualAreaModel.xml
|
When a row in the allocation table is selected by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location– the ‘Location
id’ selected by the user.
§ PhysicalWh – the
‘physical warehouse id’ selected by the user.
§ Allocation – the
‘allocation id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
§ DisplayUOM – the
‘display uom’ selected by the user in which UOM mode is viewing.
|
|
OrderDistItemSelectionEvent
|
MaintainOrderDistributionFlow
|
MaintainOrderDistribution
|
OrderDistItem
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderDistItem_ContextualAreaModel.xml
|
When a row in the distribution table is selected by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location– the ‘Location
id’ selected by the user.
|
|
OrderHeadLoadEvent
|
MaintainPurchaseOrderFlow
|
MaintainPurchaseOrder
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderHeader_ContextualAreaModel.xml
|
When an existing order is opening from ‘Order Search’
screen by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ ImportInd – the
‘import indicator’ selected by the user.
§ Department – the
‘department id’ selected by the user.
§ Location – the
‘location id’ selected by the user.
§ Status – the
‘status’ of order selected by the user.
§ OrderCurrency –
the ‘order currency’ selected by the user.
§ OrderType – the
‘order type’ selected by the user.
|
|
OrderSearchOrderSelectedEvent
|
SearchOrderFlow
|
SearchOrder
|
DealHeadReportArea
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/OrderSearch_ContextualAreaModel.xml
|
When a row in the table ‘Order details’ selected by user.
|
§ Order – the ‘order
no’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ Status – the
‘status’ of order selected by the user.
§ Currency – the
‘currency’ selected by the user.
|
|
ReceivingCostAdjItemSelectionEvent
|
MaintainReceivingCostAdjFlow
|
MaintainReceivingCostAdj
|
ContractCost
|
Rms.ear à
RmsViewController.war à AdfRmsProcurement.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ReceiverCostAdjItem_ContextuaAreaModel.xml
|
When a row is selected by user
|
§ Order – the ‘order
no’ selected by the user.
§ Supplier – the ‘supplier
id’ selected by the user.
§ Department Department
– the ‘department id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
FranchiseOrderEvent
|
MaintainFranchiseOrderFlow
|
MaintainFranchiseOrder
|
FranchiseOrderHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FranchiseOrderHead_ContextualAreaModel.xml
|
When ‘Franchise Order’ page is opening from ‘Franchise
Order Search’ screen by user.
|
§ WfOrderNo – the
‘franchise order no’ selected by the user.
§ Customer – the
‘customer id’ selected by the user.
|
|
FranchiseOrderEvent
|
MaintainFranchiseOrderFlow
|
MaintainFranchiseOrder
|
FranchiseOrderHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FranchiseOrderHead_ContextualAreaModel.xml
|
When row in the ‘Franchise Orders’ table is selected by
user.
|
§ WfOrderNo – the
‘franchise order no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ SourceLocation –
the ‘source location’ selected by the user.
§ CustomerLoc – the
‘customer location’ selected by the user.
|
|
FranchiseReturnHeadLoadEvent
|
MaintainFranchiseReturnsFlow
|
MaintainFranchiseReturns
|
FranchiseReturnHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FranchiseReturnHead_ContextualAreaModel.xml
|
When ‘Franchise Return ‘ page is opening from ‘Franchise
Search’ screen.
|
§ RMANum – the ‘RMANum’
selected by the user.
|
|
FranchiseReturnItemSelectionEvent
|
MaintainFranchiseReturnsFlow
|
MaintainFranchiseReturns
|
FranchiseReturnHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/FranchiseReturnHead_ContextualAreaModel.xml
|
When row in ‘Franchise Returns’ table is selected by user.
|
§ WfOrderNo – the
‘franchise order no’ selected by the user.
§ Item – the ‘item’
selected by the user.
|
|
ItemLocInventorySelectionEvent
|
SearchItemLocInvFlow
|
SearchItemLocInv
|
ItemLocInventory
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ItemLocInventory_ContextualAreaModel.xml
|
When row in table is selected by the user.
|
§ Item – the ‘Item’
selected by the user.
§ Location – the
‘location’ selected by the user.
|
|
MassReturnTransferEvent
|
MaintainMassReturnTransferFlow
|
MaintainMassReturnTransfer
|
MassReturnTransfer
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/MassReturnTransferHead_ContextualAreaModel.xml
|
When screen opens for an existing MRT
|
§ MRT – the ‘mass
return transfer no’ selected by the user.
§ Warehouse – the
‘warehouse id’ selected by the user.
§ Status – the
‘status’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
MassReturnTransferEvent
|
MaintainMassReturnTransferFlow
|
MaintainMassReturnTransfer
|
MassReturnTransfer
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/MassReturnTransferHead_ContextualAreaModel.xml
|
When a row in the Items table is selected
|
§ MRT – the ‘mass
return transfer no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
MassReturnTransferEvent
|
MaintainMassReturnTransferFlow
|
MaintainMassReturnTransfer
|
MassReturnTransfer
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/MassReturnTransferHead_ContextualAreaModel.xml
|
When a row in the Locations table is selected
|
§ MRT – the ‘mass
return transfer no’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
|
|
ReplAttributeLoadEvent
|
MaintainReplAttrFlow
|
MaintainReplAttr
|
ReplAttribute
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ReplAttribute_ContextualAreaModel.xml
|
When ‘Replenishment Attributes’ page is opening from
‘Replenishment Search’ screen selected by the user.
|
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
|
|
ReplAttributeSearchSelectionEvent
|
SearchReplAttrFlow
|
SearchReplAttr
|
ReplAttributeSearch
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ReplAttributeSearch_ContextualAreaModel.xml
|
When row in results ‘Replenishment Attributes’ table is
selected by the user.
|
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
|
|
ReturnToVendorEvent
|
MaintainRtvDetailFlow
|
MaintainRtvDetail
|
ReturnToVendor
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ReturnToVendorHead_ContextualAreaModel.xml
|
When screen opens for an existing RTV from ‘Return to
Vendor Search’ screen.
|
§ RTV – the ‘return
to vendor id’ selected by the user.
§ Location – the
‘location id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ Status – the
‘status’ of return to vendor selected by the user.
§ DisplayCurrency – the
‘display currency’ selected by the user in which currency mode is viewing.
§ DisplayUOM – the
‘display Unit Of measure’ selected by the user in which UOM is viewing.
|
|
ReturnToVendorEvent
|
MaintainRtvDetailFlow
|
MaintainRtvDetail
|
ReturnToVendor
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ReturnToVendorHead_ContextualAreaModel.xml
|
When a row in the Return Details table is selected by
user.
|
§ RTV – the ‘return
to vendor id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
§ Supplier – the
‘supplier id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
§ InventoryStatus–
the ‘status’ of return to vendor selected by the user.
§ DisplayUOM – the
‘display Unit Of measure’ selected by the user in which UOM is viewing.
|
|
SalesIssuesByLocSelectionEvent
|
SearchSalesIssueFlow
|
SearchSalesIssue
|
SalesIssueByLoc
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/SalesIssuesByLoc_ContextualAreaModel.xml
|
When row in ‘sales issues by location’ table is selected
by user.
|
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
|
|
ShipmentPageEvent
|
MaintainShipmentDetailFlow
|
MaintainShipmentDetail
|
ShipmentHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ShipmentHead_ContextualAreaModel.xml
|
When the screen is opening of ‘Shipment Search’ screen
|
§ Shipment – the
‘shipment id’ selected by the user.
§ ASN – the ‘asn no’
selected by the user.
§ BOL – the ‘bol no’
selected by the user.
§ EstArrivalDate –
the ‘estimated arrival date’ selected by the user.
§ InvcMatchDate – the
‘invoice match date’ selected by the user.
§ ReceiveDate – the
‘receive date’ selected by the user.
§ ShipDate – the
‘ship date’ selected by the user.
§ NotBeforeDate – the
‘not before date’ selected by the user.
§ NotAfterDate – the
‘not after date’ selected by the user.
§ ToLoc – the ‘to
location’ selected by the user.
§ Status – the
‘status’ of the shipment selected by the user.
|
|
ShipmentPageEvent
|
MaintainShipmentDetailFlow
|
MaintainShipmentDetail
|
ShipmentHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ShipmentHead_ContextualAreaModel.xml
|
When a row in the Details table is selected by user.
|
§ Shipment – the
‘shipment id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Carton – the
‘carton id’ selected by the user.
|
|
ShipmentSearchSelectionEvent
|
SearchShipmentFlow
|
SearchShipment
|
ShipmentSearch
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ShipmentSearch_ContextualAreaModel.xml
|
When a row is selected by the user in ‘Shipment Search
Results’ table.
|
§ Shipment – the
‘shipment id’ selected by the user.
§ Order – the ‘order
no’ selected by the user.
§ BOL – the ‘bol no’
selected by the user.
§ ToLoc – the ‘to
location’ selected by the user.
|
|
StockCountResultsSelectionEvent
|
MaintainStockCountResultStkvwedtFlow
|
MaintainStockCountResultStkvwedt
|
StockCountResults
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/StockCountResults_ContextualAreaModel.xml
|
When a row in the ‘item and location’ table selected by
user.
|
§ StockCountID – the
‘stock count id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ Location – the
‘location id’ selected by the user.
|
|
StockOrderExceptionEvent
|
MaintainStockOrderReconciliationFlow
|
MaintainStockOrderReconciliation
|
StockOrderExceptionDetail
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/StockOrderExceptionDetail_ContextualAreaModel.xml
|
When a row in the Exception table is selected by user.
|
§ BOL – the ‘bol no’
selected by the user.
§ FromLoc – the ‘from
location id’ selected by the user.
§ ToLoc – the ‘to
location id’ selected by the user.
§ Shipment – the
‘shipment id’ selected by the user.
|
|
StockOrderExceptionEvent
|
MaintainStockOrderReconciliationFlow
|
MaintainStockOrderReconciliation
|
StockOrderExceptionDetail
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/StockOrderExceptionDetail_ContextualAreaModel.xml
|
When a row in the Carton table is selected by user.
|
§ Carton – the
‘carton id’ selected by the user.
§ Shipment – the
‘shipment id’ selected by the user.
§ BOL – the ‘bol id’
selected by the user.
§ FromLoc – the ‘from
location id’ selected by the user.
§ ToLoc – the ‘to
location id’ selected by the user.
|
|
TransferDetailSelectionEvent
|
MaintainTransferDetailFlow
|
MaintainTransferDetail
|
MaintainTransferContextAwareReport
|
Rms.ear à
RmsViewController.war à
AdfRmsInventory.jar à
/oracle/retail/apps/framework/uishell/config/contextualarea/TransferDetail_ContextualAreaModel.xml
|
When a row in the Items table is selected by user.
|
§ Transfer – the
‘transfer id’ selected by the user.
§ Item – the ‘item’
selected by the user.
§ ItemParent – the
‘item parent ‘ selected by the user.
§ Diff1 – the ‘diff1’
selected by the user.
§ Diff2 – the ‘diff2’
selected by the user.
§ Diff3– the ‘diff3’
selected by the user.
§ Diff4– the ‘diff4’
selected by the user.
§ InventoryStatus –
the ‘inventory status’ selected by the user.
§ FromLoc – the ‘from
location id’ selected by the user.
§ ToLoc – the ‘to
location id’ selected by the user.
§ Finisher – the
‘finisher id’ selected by the user.
§ DisplayCurrency –
the ‘display currency’ selected by the user in which currency mode is
viewing.
§ DisplayUOM – the
‘display unit of measure’ selected by the user in which unit of measuring is
viewing.
§ DisplayLeg – the
‘display leg’ selected by the user in which leg is viewing.
|
|
TransferHeadLoadEvent
|
MaintainTransferHeaderFlow
|
MaintainTransferHeader
|
TransferHead
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/TransferHead_ContextualAreaModel.xml
|
When screen opens for an existing transfer from ‘transfer
search’ screen.
|
§ Transfer – the
‘transfer id’ selected by the user.
§ FromLoc – the ’from
location id’ selected by the user.
§ ToLoc – the ‘to
location id’ selected by the user.
§ Finisher – the
‘finisher id’ selected by the user.
§ Status – the
‘status’ of the transfer selected by the user.
§ DeliveryDate – the
‘delivery date’ selected by the user.
|
|
TransferSearchSelectionEvent
|
SearchTransferFlow
|
SearchTransfer
|
TransferSearch
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/TransferSearch_ContextualAreaModel.xml
|
When a row is selected in’transfer search’ result table.
|
§ Transfer – the
‘transfer id’ selected by the user.
§ FromLoc – the ’from
location id’ selected by the user.
§ ToLoc – the ‘to
location id’ selected by the user.
§ Finisher – the
‘finisher id’ selected by the user.
§ Status – the
‘status’ of the transfer selected by the user.
|
|
UnitVarianceAndAdjustmentEvent
|
MaintainStockCountVarianceFlow
|
MaintainStockCountVariance
|
ValueVarAdjLoc
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/UnitVarianceAndAdjustment_ContextualAreaModel.xml
|
When row in hierarchy table is selected by user.
|
§ StockCountID – the
‘stock count id’ selected by the user.
§ Location – the ‘location
id’ selected by the user.
§ Item -- the ‘item’
selected by the user.
|
|
UnitVarianceAndAdjustmentEvent
|
MaintainStockCountVarianceFlow
|
MaintainStockCountVariance
|
ValueVarAdjLoc
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/UnitVarianceAndAdjustment_ContextualAreaModel.xml
|
When row in table is selected by user.
|
§ StockCountID – the
‘stock count id’ selected by the user.
§ Location – the
‘location id’ selected by the user.
§ Department-- the ‘Department’
selected by the user.
§ Class – the ‘class
id’ selected by the user.
§ SubClass – the ‘SubClass
id’ selected by the user.
|
|
ValueVarAdjLocSelectionEvent
|
MaintainStockCountDollarChangeFlow
|
MaintainStockCountDollarChange
|
ValueVarAdjLoc
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/ValueVarianceAndAdjustment_ContextualAreaModel.xml
|
When row in location table is selected by user.
|
§ StockCountID – the
‘stock count id’ selected by the user.
§ Location – the
‘location id’ selected by the user.
|
|
VirtualWhDistSelectionEvent
|
MaintainStockCountVWHDistributionFlow
|
MaintainStockCountVWHDistribution
|
VirtualWhDist
|
Rms.ear à
RmsViewController.war à AdfRmsInventory.jar
à /oracle/retail/apps/framework/uishell/config/contextualarea/VirtualWhDist_ContextualAreaModel.xml
|
When item and physical warehouse selected by user.
|
§ StockCountID – the
‘stock count id’ selected by the user.
§ Item -- the ‘item’
selected by the user.
§ PhysicalWh– the
‘physical warehouse id’ selected by the user.
|
Preparing the Custom Shared Library for Adding Contextual Reports
This section describes how to prepare the Custom Shared Library
so retailers will be able to add contextual reports in Retail Application task
flows.
1. Perform
the steps described in the section Add a Custom Shared Library to create a
Custom Shared Library workspace, generate a shared library WAR, deploy the WAR,
and associate the library to the Retail Application.
2. Using
JDeveloper, open the Custom Shared Library workspace in Developer Role.
3. Add
new contents as required.
4. Regenerate
the shared library WAR file from the workspace and redeploy the shared library.
A shutdown and restart of the Retail Application and its shared library
registry is required.
5. Changes
required in Shared Library Registry for Custom Contextual Reports
a. Obtain
a copy of the task flow contextual area model XML files where contextual
reports will be added. Refer to the section, List of Contextual Business Events
and Payloads.
Example: If the contextual area
model XML for the task flow AllocMaintFlow is called AllocMaintFlowContextualAreaModel.xml –
then that file’s path must be View -Controller/src/custom/AllocMaintFlowContextualAreModel.xml.
b. See
the section Reference the Custom Shared Library from the Retail Application to
register custom contextual reports shared library with in the Retail
Applications.
c. Open
the original WAR file using an archive file manager and copy the contextual
area model XML file in the View-Controller project src directory, preferably
under a subdirectory called custom.
d.
Add a new or open the existing file called PageTemplateOverrideModel.properties
under the View-Controller/src
directory. Modify this file and add the following entry:
<ContextualAreaName>.contextualAreaModel=<path
to the contextual area model for the flow>
Example:
AllocMaintFlow.sidebarModel=/custom/AllocMaintFlowContextualAreaModel.xml
6. Test
the Retail Application. Navigate to the flow and make sure the flow is
functional.
Adding a URL Based Contextual Report
Adding a contextual report to a task flow entails the
modification of the task flow’s Contextual Area Model XML file. Multiple
reports can be added to the model. Each report is rendered in a collapsible
panel box.
Before adding a URL based contextual report, the retailer must
have:
§
Built, prepared, deployed, and tested the Custom Shared Library
as described in the section, Preparing the Custom Shared Library for Adding
Contextual Reports.
§
Obtained information about the Retail Application’s list of
contextual business events that can be broadcast from various workflows.
§
Created one or more contextual BI reports in the BI reporting
tool (for example, Oracle BI EE).
– The
web URL for each report must be available in order to proceed with the steps in
this section.
– Any
parameters to configure the content of the report must be known and should be
accessible as parameters to the dashboard’s URL.
Once the above pre-requisites have been satisfied, proceed with
the following steps:
1. Assume
the following example scenario when following the steps:
§ A contextual report
called “Item Metrics” showing information about an item is to be added to the
Allocation Maintenance Flow’s main page. When the user selects an item on the
page, the report will show information for the selected item.
§ The retail
Application has provided the following information about the contextual
business event:
Event Name
|
Task Flow
|
Page
|
Contextual Area Model XML Location
|
Generated when…
|
Payload Values
|
|
AllocMaintItem SelectedEvent
|
AllocMaintFlow
|
AllocMaintPage
|
EAR name à war
nameà jar name à
/oracle/retail/apps/xyz/AllocMaintFlowContextualAreaModel.xml
|
The user selects an item on the Allocation Maintenance
Flow’s main screen.
|
§ selectedItem – the item selected by the user. Always generated.
§ selectedItemType – the type of item. Can be “regular” or “pack”.
Optional. If
not supplied, assume item is a regular type.
|
§
The Item Metrics report was built in the retailer’s BI reporting
tool (for example, Oracle BI EE). It was built considering the payload values
the contextual business event will generate.
2. Open
the Custom Shared Library workspace in JDeveloper.
3. Open
the task flow contextual area model XML file (ex.
ViewController/src/custom/AllocMaintFlowContextualAreaModel.xml).
4. Add
an <Item>
element within the topmost <Items> element that references the task flow
called ViewContextAwareReportFlow.
The ViewContextAwareReportFlow is a framework for rendering URL based reports
that will be aware of contextual business events emanating from the Retail
Application task flows.
Example:
<?xml version="1.0"
encoding="UTF-8" standalone="yes"?>
<NavigationDefinition …
>
<Items>
...
...
<Item
id="showItemMetric"
type="taskflow"
title=”Item Metric”>
<url>
/WEB-INF/oracle/retail/apps/framework/contextawarereport/publicui/flow/ViewContextAwareReportFlow.xml#ViewContextAwareReportFlow
</url>
</Item>
</Items>
</NavigationDefinition>
Note the following:
§ Make sure that the
<Item> id is unique.
§ Make sure the
<Item> type is “taskflow”
§ Provide a meaningful
title.
5. Populate
the parameters to the ViewContextAwareReportFlow
by adding the following <Parameter>/<Parameters>
elements.
|
<Parameter>/<Parameters>
elements.
<?xml
version="1.0" encoding="UTF-8"
standalone="yes"?>
<NavigationDefinition
… >
<Items>
<Item
id="showCustomerMetric"
type="taskflow"
title=”Customer Metric”>
<url>
/WEB-INF/oracle/retail/apps/framework/contextawarereport/publicui/flow/ViewContextAwareReportFlow.xml#ViewContextAwareReportFlow
</url>
<Parameters>
<Parameter id="reportDescription">Item
Metric</Parameter>
<Parameter
id="actionType">AllocMaintItemSelectedEvent</Parameter>
<Parameter id="primaryUrl">
<![CDATA[/faces/oracle/retail/apps/framework/contextawarereport/publicui/page/ViewContextAwareReportTestPage.jspx?paramItemId=<selectedItemId>¶mItemType=<selectedItemType:token01>¶mLanguage=<language>]]>
</Parameter>
<Parameter id="token01">regular</Parameter>
</Parameters>
</Item>
</Items>
</NavigationDefinition>
|
Note the following:
§
The <Parameter
id=”reportDescription”> element is the title of the contextual
area report. Set this to a meaningful value.
§
The <Parameter
id=”actionType”> element indicates the contextual business
event name the report will listen to.
§
The <Parameter
id=”primaryUrl”> element indicates the URL to the contextual
area report in the BI server. The entire URL must be marked as character
data (for example: enclosed in CDATA). Note that the parameters to the URL are
tokenized. The
example above uses a test page called ViewContextAwareReportTestPage.jspx which
can be replaced with the actual report URL.
-
The “?paramItemId=<selectedItemId>”
portion of the URL instructs the system to pass the contextual
business event payload value called selectedItemId into the URL parameter paramItemId
when rendering the contextual report.
-
The “?paramItemType=<selectedItemType:token01>”
portion of the URL instructs the system to pass the contextual business event
payload value called selectedItemType
into the URL parameter paramItemType when rendering the
contextual report. If that payload value is empty or null at runtime, then a
default value of regular
is used as referenced in a <Parameter id=”token01”> entry. The colon symbol
separates the payload value from the default value if the payload value is null.
-
The “?paramLanguage=<language>”
portion of the URL instructs the system about the current locale of the user. The
“language”
identifier is a reference to a value in the contextual event payload. This is a
built-in value that all Retail Application contextual business event payloads
will have.
§
The <Parameter
id=”token01”> element holds the default value for the URL parameter
selectedItemType. Token parameters hold default values and you can define up to
20 default value tokens
6. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace. Shut
down the Retail Application and its Custom Shared Library Registry, redeploy
the Custom Shared Library WAR file, and restart the Retail Application
components.
7. Test
the Retail Application. Go to the flow where the report was added and verify
that the report is rendered correctly
Adding a DVT Taskflow-based Contextual Report
Before adding a DVT taskflow based contextual report, the
retailer must have:
§
Built, prepared, deployed, and tested the Custom Shared Library
as described in the section Preparing the Custom Shared Library for Adding
Contextual Reports.
§
Obtained information about the Retail Application’s business
events that can be broadcast from various workflows.
§
Created one or more taskflows using the ADF DVT components.
– Any
parameters to configure the content of the report must be known and should be
accessible as taskflow parameters.
Once the above pre-requisites have been satisfied, proceed with
the following steps:
1. Assume
the following example scenario when following the steps:
§
A contextual report called “Item Metrics” showing information
about an item is to be added to the Allocation Maintenance Flow’s main page.
§
When the user selects an item on the page, the report will show
information for the selected item.
§
Retail Application has provided the following information about
the contextual business event:
|
Event Name
|
Task Flow
|
Page
|
Contextual Area Model XML Location
|
Generated when…
|
Payload Values
|
|
AllocMaintItem SelectedEvent
|
AllocMaintFlow
|
AllocMaintPage
|
EAR name à war
nameà jar name à
/oracle/retail/apps/xyz/AllocMaintFlowContextualAreaModel.xml
|
The user selects an item on the Allocation Maintenance
Flow’s main screen.
|
§ selectedItem – the item selected by the
user. Always generated.
§ selectedItemType – the type of item. Can
be “regular” or “pack”. Optional. If not supplied, assume item
is a regular type.
|
§
The Item Metrics report was built in ADF. It was built
considering the payload values the contextual business event will generate.
2. Re-generate
the Custom Shared Library WAR file from the Custom Shared Library workspace. Shutdown
the Retail Application and its Custom Shared Library Registry, redeploy the
Custom Shared Library WAR file, and restart the Retail Application components.
3. Changes
Required in Shared Library Registry for Custom DVT Taskflow based Contextual
Report
a.
Obtain the task flow contextual area model XML file (For example:
ViewController/src/custom/AllocMaintFlowContextualAreaModel.xml).
b.
Add an <Item>
element within the topmost <Items> element that references the task flow
called DVTContextAwareReportFlow.
The DVTContextAwareReportFlow is a framework for rendering ADF DVT based
reports that will be aware of contextual business events emanating from the
Retail Application task flows.
<?xml version="1.0" encoding="UTF-8"
standalone="yes"?>
<NavigationDefinition … >
<Items>
...
...
<Item id="showItemMetric"
type="taskflow"
title=”Item Metric”>
<url>
/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow
</url>
</Item>
</Items>
</NavigationDefinition>
Note
Make sure that the <Item> id is unique.
Make sure the <Item> type is “taskflow”
Provide a meaningful title.
c. Populate
the parameters to the DVTContextAwareReportFlow
by adding the following <Parameter>/<Parameters>
elements
<NavigationDefinition … >
<Items>
<Item id="showCustomerMetric"
type="taskflow"
title=”Customer Metric”>
<url>
/WEB-INF/oracle/retail/apps/framework/dvtcontextawarereport/publicui/flow/DVTContextAwareReportFlow.xml#DVTContextAwareReportFlow
</url>
<Parameters>
<Parameter
id="taskflowURL">/WEB-INF/oracle/retail/apps/framework/uishell/navigation/contextualarea/flow/ItemMetricFlow.xml#ItemMetricFlow</Parameter>
<Parameter id="parameterName1">itemId</Parameter>
<Parameter id="payloadKeyName1">ItemId</Parameter>
<Parameter
id="parameterValue1">#{payload.valueMap['ItemId']}</Parameter>
<Parameter
id="refreshOnDisclosure">#{true}</Parameter>
</Parameters>
</Item>
</Items>
</NavigationDefinition>
Note the following:
§
The <Parameter id=”taskflowURL”> element is
the URL of the DVT taskflow that will be displayed in the contextual area.
§
The <Parameter id=”parameterName1”> element
indicates a parameter for the DVT taskflow. A maximum of 15 parameters can be specified.
§
The <Parameter id=”payloadKeyName1”>
element indicates the name of the payload key that maps to the taskflow
parameter parameterName1. A maximum of 15 payload keys can be specified. The
value of the payload key in the event payload will be used for the parameter in
the DVT taskflow.
§
The <Parameter id=”parameterValue1”>
element holds the default value of the DVT taskflow. A maximum of 15 parameter
values can be specified.
§
The <Parameter id=”refreshOnDisclosure”> element
is used to refresh the DVT taskflow on the disclosure of the tab
4. Test
the Retail Application. Go to the flow where the report was added and verify
that the report is rendered correctly.
The Retail Application provides the capability to display both
static and dynamic tasks in the task list. The static tasks are based off an
xml model file, for example, HomeTaskMenuModel.xml, HomeReportsMenuModel.xml. These
tasks should be predefined in the tasks or reports menu model file.
The dynamic tasks can be sourced from any data source such as
OBIEE, BIPublisher, database tables, Web Services, and so on. The complete
hierarchy of task items including the folders and actions can be generated
dynamically at runtime.
From the user’s perspective, there is no difference between the
static versus the dynamic task items. They look and behave the same.
The DynamicContentHandler Interface
The Retail Application provides an interface called DynamicContentHandler
that can be implemented to add dynamic tasks in the task menu. The interface is
as follows:
package
oracle.retail.apps.framework.uishell.taskmenu.dynamiccontent.handler;
import java.util.List;
import
oracle.retail.apps.framework.uishell.taskmenu.dynamiccontent.dataobject.TaskMenuItem;
import
oracle.retail.apps.framework.uishell.util.RetailUiShellHttpSessionListeners;
public interface DynamicContentHandler extends
RetailUiShellHttpSessionListeners.RemovalListener {
public List<TaskMenuItem> getChildren(TaskMenuItem
taskMenuItem) throws Exception;
public List<TaskMenuItem> getDefaultTaskMenuItems()
throws Exception;
public TaskMenuItem getInContextTaskMenuItem(String
taskMenuItemId) throws Exception;
The interface extends another interface called
RetailUiShellHttpSessionListeners.RemovalListener
The RemovalListener interface provides the following method.
public
static interface RemovalListener extends Serializable {
public void onSessionRemove();
}
The below table explains the use of these methods.
|
getChildren(TaskMenuItem taskMenuItem)
|
This method provides the child task items for a given task
menu item.
|
|
getDefaultTaskMenuItems()
|
This method provides the task items that will be loaded as
the default content in the Retail Application.
|
|
getInContextTaskMenuItem(String taskMenuItemId)
|
This method provides the task item based on a given task
menu id for In-Context launching.
|
|
onSessionRemove()
|
This method will be called by the Retail Application when
the user logs out of the application. The method can be used to do any
resource cleanup or can be used to logout from the external data source.
|
DynamicContent Type
The Item element of the menu model file supports a type called
‘dynamicContent’ along with the type’s taskflow and link. When the Retail
Application encounters the type as dynamicContent, it looks for the attribute
called dynamicContentHandler. The dynamicContentHandler attribute will tell the
Retail Application the name of the implementation class which will be used to
provide the dynamic task items.
The class should implement the DynamicContentHandler interface.
<Item
id="customDynamicMenuFolder" visible="#{true}"
title="Custom Dynamic Menu"
type="folder">
<Items>
<Item
id="customTreeModelDynamicContent" title="Custom Dynamic
Menu"
type="dynamicContent"
dynamicContentHandler="oracle.retail.apps.framework.uishell.taskmenu.handler.custom.CustomTreeModelDynamicContentHandler"
visible="#{securityContext.authenticated}"/>
</Items>
</Item>
The Item element with the type attribute as dynamicContent can be
placed anywhere in the hierarchy of the static task items in the tasks or
reports menu model file. The dynamic task items will begin exactly from the
location where the dynamicContent Item is defined.
The menu model file can be customized to add an entry for the
dynamic content as shown above. Refer to the section Adding or Modifying an Item
in the Tasks Menu for more details.
Example Implementation of the DynamicContentHandler Interface
The following simple example shows how to display the dynamic
task items in the task menu. The example uses the
org.apache.myfaces.trinidad.model.TreeModel implementation called
org.apache.myfaces.trinidad.model.RowKeyPropertyTreeModel to pull and display
data in the task menu hierarchy. The class
org.apache.myfaces.trinidad.model.RowKeyPropertyTreeModel is a subclass of
org.apache.myfaces.trinidad.model. ChildPropertyTreeModel. The class
ChildPropertyTreeModel creates a TreeModel from a list of beans and the class
RowKeyPropertyTreeModel adds the support of row keys to the TreeModel. Let’s
assume that we have a TreeModel object created for a hierarchy of Employee
objects. We want to display the names of the employees as tasks in the task
list. The managers will be displayed as folders.
The action on the manager’s name will open the list of directs
for the manager. The action on the leaf employee names will open the employee
details screen for the selected employee.
The implementation class for the DynamicContentHandler interface
is named as CustomTreeModelDynamicContentHandler. It has a method that builds
the TreeModel from the list of Employee objects.
/**
* Build a custom tree model.
* @return
*/
private TreeModel buildTreeModel()
{
List<Employee> allEmployees
= new ArrayList<Employee>();
Employee manager1 = new
Employee(197, "Kevin Feeny");
Employee emp = new
Employee(198, "Donald OConnel");
manager1.addDirect(emp);
emp = new Employee(199,
"Douglas Grant");
manager1.addDirect(emp);
Employee manager2 = new
Employee(200, "Jennifer Whalen");
emp = new Employee(201,
"Michael Harstein");
manager2.addDirect(emp);
Employee manager3 = new
Employee(203, "Susan Marvis");
emp = new Employee(202,
"Pat Fay");
manager3.addDirect(emp);
manager2.addDirect(manager3);
emp = new Employee(204,
"Hermann Baer");
allEmployees.add(manager1);
allEmployees.add(manager2);
allEmployees.add(emp);
//create a
RowKeyPropertyTreeModel with employeeId as a row key and directs as child
property
return new
RowKeyPropertyTreeModel(allEmployees, "directs",
"employeeId");
}
The TreeModel is initialized on the initialization of the class CustomTreeModelDynamicContentHandler.
public class
CustomTreeModelDynamicContentHandler implements DynamicContentHandler {
private static final ADFLogger LOG
=
ADFLogger.createADFLogger(CustomTreeModelDynamicContentHandler.class);
private TreeModel treeModel;
private static final String
TASKMENU_ITEM_ID_SEPARATOR = "_";
public
CustomTreeModelDynamicContentHandler() {
super();
this.treeModel =
buildTreeModel();
}
Implement the getChildren method of the DynamicContentHandler
interface.
/**
* This method is called by the Retail
Application to get the dynamic task items.
* @param taskMenuItem
* @return
*/
public List<TaskMenuItem>
getChildren(TaskMenuItem taskMenuItem) {
//if taskMenuItem is null then
framework is trying to load the root objects,
//otherwise the framework has
already navigated the tree
if (taskMenuItem != null) {
this.treeModel.setRowKey(taskMenuItem.getPath());
this.treeModel.enterContainer();
this.treeModel.setRowIndex(0);
} else {
this.treeModel.setRowKey(null); //move to root
}
return
getChildrenForCurrentRowKey();
}
/**
* This method returns the children
for the current row key in the tree model.
* @param model
* @return
*/
private List<TaskMenuItem>
getChildrenForCurrentRowKey() {
List<TaskMenuItem>
childTaskMenuItemList = new ArrayList<TaskMenuItem>();
int rowCount =
this.treeModel.getRowCount();
for (int i = 0; i <
rowCount; i++) {
this.treeModel.setRowIndex(i);
TaskMenuItem
childTaskMenuItem = buildTaskMenuItem();
if (childTaskMenuItem !=
null)
childTaskMenuItemList.add(childTaskMenuItem);
}
return childTaskMenuItemList;
}
The Retail Application will instantiate the class
oracle.retail.apps.framework.uishell.taskmenu.handler.custom.CustomTreeModelDynamicContentHandler.
It will cache the class for subsequent requests after instantiating it once.
On the initial load of the page, the Retail Application will
call getChildren on the dynamicContentHandler implementation class by passing
it a null value of the TaskMenuItem object.
When the argument is null, the method getChildern should return
the root dynamic task items. The Retail Application will display the root items
on the initial load of the page. In the example above, the employees Kevin,
Jennifer and Hermann are the root items of the TreeModel so they will be loaded
by the Retail Application and displayed as the initial dynamic task items for
the CustomTreeModelDynamicContentHandler.
When the user clicks on a Folder, the Retail Application will
send the current selected TaskMenuItem object to the getChildern method to load
the children of the current selected task item. When the argument of the
getChildren method is a valid TaskMenuItem object, the getChildren method
should return the children of the TaskMenuItem object.
The Retail Application always lazy loads the dynamic items. This
means that the children of a dynamic Folder will only be loaded when the user
clicks on the Folder. Once the children are loaded they are cached by the
Retail Application. In the above example, even though the Retail Application
lazy loads the dynamic items, the TreeModel pre-loads all the employees.
TaskMenuItem Class
private Object path;
private String id;
private String title;
private String url;
private String shortDesc;
private boolean visible = true;
private TaskMenuItemType type =
TaskMenuItemType.LINK;
private TaskMenuTarget target;
private List<Parameter>
parameters;
private List<Attribute>
attributes;
private String accessKey;
private boolean disabled;
The following is a java doc screenshot of the TaskMenuItem class
The
attribute ‘path’ can be used to store the information of the current node. The
‘path’ attribute is of type ‘Object’ so it can store any object which can be
used to identify the current node in the external hierarchy. In the example
above, the path stores the row key of the TreeModel which is an ArrayList of
employeeId’s starting from the root to the current selected node. The path can
vary based on the implementation of the DynamicContentHandler interface. For
example, if the DynamicContentHandler implementation reads the database tables
to display a dynamic menu then the path can be an ArrayList of the primary keys
of the database tables, if the DynamicContentHandler implementation calls an
external web service to generate a dynamic menu then the path can be a String
object which identifies a node in the external system.
The following code snippet shows how a TaskMenuItem can be built
in the DynamicContentHandler implementation class.
/**
* build a task menu item from the
custom object.
* @param rowKey
* @param employee
* @return
*/
private TaskMenuItem
buildTaskMenuItem() {
List<Object> rowKey =
(List<Object>)this.treeModel.getRowKey();
Employee employee =
(Employee)this.treeModel.getRowData();
if
(this.treeModel.isContainer()) {
return buildContainerTaskMenuItem(rowKey,
employee);
} else {
return
buildLeafTaskMenuItem(rowKey, employee);
}
}
/**build container taskmenu item.
* @param rowKey
* @param employee
* @return
*/
private TaskMenuItem
buildContainerTaskMenuItem(List<Object> rowKey, Employee employee) {
TaskMenuItem taskMenuItem = new
TaskMenuItem();
taskMenuItem.setPath(rowKey);
taskMenuItem.setId(generateUniqueId(rowKey));
taskMenuItem.setTitle(employee.getName());
taskMenuItem.setShortDesc(employee.getName() + " : " +
employee.getEmployeeId());
taskMenuItem.setType(TaskMenuItem.TaskMenuItemType.FOLDER);
return taskMenuItem;
}
/**build leaf task menu item.
* @param rowKey
* @param employee
* @return
*/
private TaskMenuItem
buildLeafTaskMenuItem(List<Object> rowKey, Employee employee) {
TaskMenuItem taskMenuItem = new
TaskMenuItem();
taskMenuItem.setPath(rowKey);
taskMenuItem.setId(generateUniqueId(rowKey));
taskMenuItem.setTitle(employee.getName());
taskMenuItem.setShortDesc(employee.getName() + " : " +
employee.getEmployeeId());
taskMenuItem.setType(TaskMenuItem.TaskMenuItemType.TASKFLOW);
taskMenuItem.setUrl("/WEB-INF/oracle/retail/apps/framework/uishell/navigation/contentarea/flow/TestOverrideCloseTabFlow.xml#TestOverrideCloseTabFlow");
//set attributes on
taskMenuItem
taskMenuItem.setAttribute("TabTitle",
employee.getName()
+ " : " + employee.getEmployeeId());
taskMenuItem.setAttribute("tabShortDesc",
"Employee " + employee.getName() + " has emplyee Id " +
employee.getEmployeeId()
+ ".");
//set parameters on
taskMenuItem
taskMenuItem.setParameter("EmployeeId",
String.valueOf(employee.getEmployeeId()));
return taskMenuItem;
}
/**This method generages a unique
id for the taskmenu item.
* @param rowKey
* @return
*/
private String
generateUniqueId(List<Object> rowKey) {
return rowKey.stream().map(c
-> c.toString()).collect(Collectors.joining(TASKMENU_ITEM_ID_SEPARATOR));
}
Default Dynamic Task Items
When a user logs in the Retail Application, the user sees the
default content that has been configured in the Retail Application. The default
content opens up directly in a Retail UIShell tab without the user having to
launch it from the task menu. The dynamic task items can also be configured as
the default content in the application. The DynamicContentHandler interface
provides a method called getDefaultTaskMenuItems which returns a List of
TaskMenuItem objects. The items returned from this method will be launched
automatically after the user logs in.
The following is a sample implementation of the
getDefaultTaskMenuItems method:
/**Get the default task menu items. These will be automatically loaded on
initial load of the home page.
* @return
*/
@Override
public List<TaskMenuItem>
getDefaultTaskMenuItems() {
List<Object> rowKey = new
ArrayList<Object>();
rowKey.add(200);
//"Jennifer Whalen"
rowKey.add(203); //"Susan
Marvis"
rowKey.add(202); //"Pat Fay"
Employee employee =
(Employee)this.treeModel.getRowData(rowKey); //get Pat Fay
TaskMenuItem taskMenuItem =
buildLeafTaskMenuItem(rowKey, employee);
List<TaskMenuItem>
defaultTaskMenuItems = new ArrayList<TaskMenuItem>();
defaultTaskMenuItems.add(taskMenuItem);
return defaultTaskMenuItems;
}
In-Context Launch of Dynamic Task Items
The Retail Application provides a way to launch links and
taskflows directly using a browser URL. The content is launched in the context
of the external application by passing parameters in the URL.
The Retail Application requires a navModelItemId parameter in the
request to identify the content that needs to be launched. The Retail
Application checks the static task menu model files to see if an Item exists
with that id in the model file. If the Retail Application does not find a
static item, it consults the list of dynamic content handlers configured with
the application to look for the item. If the dynamic content handler returns a
TaskMenuItem for the given id, it will be launched in the Retail Application.
The dynamic content handler should implement a method called
getInContextTaskMenuItem(String taskMenuItemId) which will return the
TaskMenuItem object for the taskMenuItemId received. The
getInContextTaskMenuItem should be able to find the Item using the
taskMenuItemId.
The following is a sample implementation of the
getInContextTaskMenuItem(String taskMenuItemId) method.
/**This method returns an in-context item.
* @param taskMenuItemId
* @return
*/
@Override
public TaskMenuItem getInContextTaskMenuItem(String
taskMenuItemId) {
TaskMenuItem inContextTaskMenuItem = null;
Employee employee = null;
List<Object> rowKey = null;
if (taskMenuItemId != null) {
try {
rowKey =
Arrays.stream(taskMenuItemId.split(TASKMENU_ITEM_ID_SEPARATOR)).map(c ->
Integer.valueOf(c)).collect(Collectors.toList());
employee = (Employee)this.treeModel.getRowData(rowKey);
if ((employee != null) &&
(employee.getDirects().isEmpty())) {
inContextTaskMenuItem =
buildLeafTaskMenuItem(rowKey, employee);
}
} catch (Exception e) {
if (LOG.isWarning()) {
LOG.warning("Error occurred looking for
dynamic In-Context Item with id " +
taskMenuItemId, e);
}
}
}
return inContextTaskMenuItem;
}
The custom dynamic content handler can be added to the classpath
of the Retail Application by deploying it as a shared library. Refer to the
section Adding a Custom Shared Library for details on how to deploy a shared
library.
Report Adapters
The
DynamicContentHandler interface can be used to add dynamic task items in the
task menu from a variety of data sources including OBIEE, BIPublisher, database
tables, and custom Web Services and so on. The Retail Application provides the
default implementation of the DynamicContentHandler interface for OBIEE and
BIPublisher. These implementations are called Report Adapters. The Report
Adapters can display the user’s reports from OBIEE and BIPublisher as tasks in
the task list. The user can click on the tasks to display individual reports
and dashboards.
Note:
The connection to both the OBIEE and BIPublisher should be secured using TLS
protocol. Ensure that the Report Adapter integration is done using secured
protocol in the production environments.
OBIEE Report Adapter
The RetailAppsObieeAdapter relies on a properties file called
RetailAppsObieeAdapter.properties for the OBIEE configuration. Create
RetailAppsObieeAdapter.properties in any location on the file system. Modify
the setDomainEnv.cmd for the Windows environment or setDomainEnv.sh file for
the Unix environment to add the RetailAppsObieeAdapter.properties as a Java
system property specifying the location in the file system where the
RetailAppsObieeAdapter.properties file resides.
For example for windows environment
set
EXTRA_JAVA_PROPERTIES=-DRetailAppsObieeAdapter.properties=D:\Work\RetailAppsFramework\RetailAppsObieeAdapter.properties
%EXTRA_JAVA_PROPERTIES%
For Unix environment
EXTRA_JAVA_PROPERTIES="-DRetailAppsObieeAdapter.properties
=/scratch/u00/product/Oracle/Middleware/user_projects/domains/RAFDomain/custom_properties/RetailAppsObieeAdapter.properties
${EXTRA_JAVA_PROPERTIES}"
export EXTRA_JAVA_PROPERTIES
The RetailAppsObieeAdapter.properties can be used to specify the
following properties for the OBIEE Report Adapter configuration.
|
Property
|
Required
|
Description
|
|
bi.connection.name
|
Yes
|
This property is used to specify the name of the
BISoapConnection used to display the OBIEE reports. The connection should be
created using the Enterprise Manager. Refer to the section Creating the
BIConnection for more details.
|
|
bi.bipublisher.context.path
|
No
|
If the OBIEE installation includes both the OBIEE
analytics and BIPublisher then the BIPublisher reports can also be displayed
using the RetailAppsObieeAdapter. The bi.bipublisher.context.path is used to
specify the context root of the BIPublisher installation. The default value
is xmlpserver.
|
|
bi.external.integration
|
No
|
This property can be used to disable the RetailAppsObieeAdapter
integration. Setting this to false will disable the RetailAppsObieeAdapter
integratioin. The default value is true.
|
|
bi.report.new.browser.tab
|
No
|
This property can be used to display the OBIEE reports in
a new browser tab on in a new Retail UI Shell tab. The default behavior of
the RetailAppsObieeAdapter is to open the OBIEE reports in a new browser tab.
Setting this property to false opens the reports in a new UI Shell tab. The
default value is true.
|
Creating the BIConnection
Follow these steps to create the BIConnection for the RetailAppsObieeAdapter
configuration.
1. Log
in to the Enterprise Manager of the environment where the Retail Application is
deployed and go to ‘System MBean Browser’ as shown below.
2. Go
to ‘Application Defined MBeans’ and its sub folder ‘oracle.adf.share.connections
3. Expand
‘Application: <AppName>’ and select ‘ADFConnections’. The following example
uses RetailAppsFrameworkTest as the AppName.
4. Go
to the ‘Operations’ tab and click ‘createConnection’.
5. Enter
Connection Type as BISoapConnection and Connection Name as BIConnection. Click
Invoke on top right.
6. Refresh
the tree using the button ‘Refresh cached tree data’.
7. Once
the tree is refreshed, you will notice that ‘ADFConnections’ becomes a folder
and it has a new connection ‘BIConnection’. Click on the BIConnection to open
its properties in the right pane.
8. Enter
the values shown in the table below. Once done click Apply on the top right.
|
Context
|
The context root of the Oracle BI EE installation.
Example: analytics
|
|
Host
|
The host of the Oracle BI EE installation.
|
|
IsStaticResourcesLocationAutomatic
|
The IsStaticResourcesLocationAutomatic attribute can be
either true or false. When this attribute is true, the BI Presentation Server
will be used to specify the location of the static resources. When this
attribute is false, the attribute ‘StaticResourcesLocation’ should be
provided. The attribute StaticResourcesLocation will be used to find the
static resources when the attribute IsStaticResourcesLocationAutomatic is
false.
|
|
Password
|
The password for the BIImpersonateUser.
|
|
Port
|
The port of the Oracle BI managed server. Example 9704
|
|
Protocol
|
http or https
For production environments, use https.
|
|
ShouldPerformImpersonation
|
true (keep it true, default is true)
|
|
StaticResourcesLocation
|
The path of the location where the static resources are
available.
If the IsStaticResourcesLocationAutomatic attribute is
true then use the following URL for the StaticResourcesLocation attribute.
http://<obiee_host>:<obiee_port>/analytics
If the IsStaticResourcesLocationAutomatic attribute is
false, then use the following URL for the StaticResourcesLocation attribute.
http://<web_tier_host>:<web_tier_port>
The Oracle BI EE static resources, namely the ‘res’ and
‘analyticsRes’ directories should be available from the Oracle Web Tier’s
htdocs directory when the IsStaticResourcesLocationAutomatic attribute is
false.
|
|
Username
|
The username that has been configured on the Oracle BI EE
with the impersonate permissions.
Example: BIImpersonateUser
|
|
WSDLContext
|
analytics-ws
|
9. Go
to ‘ADFConections’ to save the changes. Click on ‘save’ operation in the
Operations tab.
10. Click on
‘Invoke’ on the top right to save the changes.
Once the connection is created successfully, modify the RetailAppsObieeAdapter.properties
to add the bi.connection.name as BIConnection.
Configuring the Reports Menu
Once we have configured the RetailAppsObieeAdapter.properties and
created a BIConnection, we can add an Item of type=”dynamicContent” in the
HomeReportsMenuModel.xml file to display the OBIEE Reports in the Reports menu.
The implementation of the DynamicContentHandler interface for OBIEE is called oracle.retail.apps.framework.report.obiee.handler.ObieeDynamicContentHandler.
<Item id="obieeFolder"
visible="#{true}" title="OBIEE" type="folder">
<Items>
<Item id="obieeDynamicContent"
title="OBIEE Dynamic Menu" type="dynamicContent"
dynamicContentHandler="oracle.retail.apps.framework.report.obiee.handler.ObieeDynamicContentHandler"
visible="#{securityContext.authenticated}"/>
</Items>
</Item>
The reports menu model can be customized to add an entry for the
dynamic content as shown above. Refer to the section Adding or Modifying an
Item in the Reports Menu for more details.
BIPublisher Report Adapter
The RetailAppsBiPublisherAdapter relies on a properties file
called RetailAppsBiPublisherAdapter.properties for the BIPublisher
configuration. Create RetailAppsBiPublisherAdapter.properties in any location
on the file system. Modify the setDomainEnv.cmd for the Windows environment or
setDomainEnv.sh file for the Unix environment to add the RetailAppsBiPublisherAdapter.properties
as a Java system property specifying the location in the file system where the
RetailAppsBiPublisherAdapter.properties file resides.
For example for windows environment
set EXTRA_JAVA_PROPERTIES=-DRetailAppsBiPublisherAdapter.properties=D:\Work\RetailAppsFramework\RetailAppsBiPublisherAdapter.properties
%EXTRA_JAVA_PROPERTIES%
For Unix environment
EXTRA_JAVA_PROPERTIES="-DRetailAppsBiPublisherAdapter.properties=/scratch/u00/product/Oracle/Middleware/user_projects/domains/RAFDomain/custom_properties/RetailAppsBiPublisherAdapter.properties
${EXTRA_JAVA_PROPERTIES}"
export EXTRA_JAVA_PROPERTIES
The RetailAppsBiPublisherAdapter.properties can be used to
specify the following properties for the BIPublisher Report Adapter configuration.
|
Property
|
Required
|
Description
|
|
bipublisher.wsdl.location
|
Yes
|
This property is used to specify the WSDL URL of the
BIPublisher PublicReportService. For example: https://bipublisher_host:bipublisher_port/
xmlpserver/services/PublicReportService?wsdl
|
|
bipublisher.external.integration
|
No
|
This property can be used to disable the RetailAppsBiPublisherAdapter
integration. Setting this to false will disable the RetailAppsBiPublisherAdapter
integratioin. The default value is true.
|
|
bipublisher.report.new.browser.tab
|
No
|
This property can be used to display the BIPublisher
reports in a new browser tab on in a new Retail UI Shell tab. The default
behavior of the RetailAppsBiPublisherAdapter is to open the BIPublisher
reports in a new browser tab. Setting this property to false opens the
reports in a new UI Shell tab. The default value is true.
|
Store the BIPublisher Admin Credentials
The RetailAppsBiPublisherAdapter requires the admin credentials
of the BIPublisher to be stored in the WebLogic domain credential store where
the Retail Application is deployed. The admin credentials are used by the
RetailAppsBiPublisherAdapter to connect to the BIPublisher.
The admin credentials can be stored the in domain credential
store by using WebLogic Scripting tool or the Enterprise Manager.
WebLogic Scripting Tool
After running the wlst script, connect to the WebLogic Domain
using the connect() command and run the following createCred() command. Replace
the <bip_admin_user> and <bip_admin_password> with the BIPublisher
admin user and password.
createCred(map="oracle.retail.apps.framework.report.bipublisher",
key="bipadmin", user="<bip_admin_user>",
password="<bip_admin_password>", desc="BIPublisher admin
user credentials")
If the credentials already exist for the map ’oracle.retail.apps.framework.report.bipublisher’
and key ‘bipadmin’,
update them using the following command
updateCred(map="oracle.retail.apps.framework.report.bipublisher",
key="bipadmin", user="<bip_admin_user>",
password="<bip_admin_password>")
Enterprise Manager
Navigate to Security/Credentials.
Create a new map called ‘oracle.retail.apps.framework.report.bipublisher’.
Inside this map create a new key called ‘bipadmin’ and enter the
BIPublisher admin credentials.
Configuring the Reports Menu
Once we have configured the
RetailAppsBiPublisherAdapter.properties and have added the BIPublisher WSDL URL
property in the properties file, we can add an Item of type=”dynamicContent” in
the HomeReportsMenuModel.xml file to display the BIPublilsher Reports in the
Reports menu. The implementation of the DynamicContentHandler interface for the
BIPublisher is called
oracle.retail.apps.framework.report.bipublisher.handler.BiPublisherDynamicContentHandler.
<Item
id="bipublisherFolder" visible="#{true}"
title="BiPublisher" type="folder">
<Items>
<Item
id="bipublisherDynamicContent" title="BIPublisher Dynamic
Menu"
type="dynamicContent"
dynamicContentHandler="oracle.retail.apps.framework.report.bipublisher.handler.BiPublisherDynamicContentHandler"
visible="#{securityContext.authenticated}"/>
</Items>
</Item>
The
reports menu model can be customized to add an entry for the dynamic content as
shown above. Refer to the section Adding or Modifying an Item in the Reports
Menu for more details.
Retail applications can expose select task flows that retailers
can directly launch into. This feature is referred to as in-context launching
in a retail application. Retailers can launch these task flows directly through
specific URLs.
Retail Applications will provide information about the various
task flows that retailers can in-context launch into, including the URLs and the
required parameters.
Retailiers can use these URLs in other web pages as links. For
example, the URL to a task flow that invokes the Create Transfer Flow in a
Retail Application can be added as a link to dashboard reports on a BI server
When the user clicks on a URL to a task flow, the Retail Application
will open in a new browser window or tab, depending on the specificed target of
the RUL. The requested task flow will be shown as a UI tab within the Retail
Application.
The In-Context launch feature will not detect if there is an
already opened window or tab for the Retail Application. So when a user clicks
on a link to a Retail Application’s task flow, for example, a report on a BI
server, a new browser window or tab will be opened even though the user already
has an existing browser window or tab opened for that same Retail Application.
If a BI dashboard is added on the Retail Application, and if that
dashboard has a report that contains links to in-context launchable task flows
in the same Retail Application, a new browser window or tab will still be
opened.
The following table lists the in-context launchable task flows.
|
Source
|
Paramers in Taskfow
|
Task Flow Name
|
|
Item Header
|
pmItem
pmMode
|
WEB-INF/oracle/retail/apps/rms/foundation/item/view/itemsetup/itemmaster/flow/MaintainItemFlow.xml
|
|
Shipment
|
pmShipment
pmMode
|
WEB-INF/oracle/retail/apps/rms/inventory/view/shipment/detail/flow/MaintainShipmentDetailFlow.xml
|
|
Transfer
|
pmTsfNo
pmMode
|
WEB-INF/oracle/retail/apps/rms/inventory/view/transfer/setup/header/flow/MaintainTransferHeaderFlow.xml#MaintainTransferHeaderFlow
|
|
RTV Maintenance
|
pmRtvOrderNo
pmMode
|
/WEB-INF/oracle/retail/apps/rms/inventory/view/rtv/detail/flow/MaintainRtvDetailFlow.xml#MaintainRtvDetailFlow
|
|
Transaction Data
|
pmItem
pmLoc
pmLocType
pmWh
pmStore
pmTranStartDate
pmTranEndDate
pmMode
pmPostStartDate
pmPostEndDate
pmDept
pmClass
pmSubclass
pmCreatedDate
|
/WEB-INF/oracle/retail/apps/rms/inventory/view/stockledger/detail/flow/ViewTransactionDataFlow.xml#ViewTransactionDataFlow
|
|
Average Cost Adjustment
|
pmMode
pmItem
pmLocation
pmLocType
|
/WEB-INF/oracle/retail/apps/rms/inventory/view/adjustment/cost/flow/MaintainAverageCostAdjustmentFlow.xml#MaintainAverageCostAdjustmentFlow
|
7
Pro*C Restart and
Recovery
RMS has implemented a restart recovery process in most of its
batch architecture. The general purpose of restart/recovery is to:
§
Recover a halted process from the point of failure.
§
Prevent system halts due to large numbers of transactions.
§
Allow multiple instances of a given process to be active at the
same time.
Further, the RMS restart/recovery tracks batch execution
statistics and does not require DBA authority to execute.
The restart capabilities revolve around a program’s logical unit
of work (LUW). A batch program processes transactions, and commit points are
enabled based on the LUW. LUWs consist of a relatively unique transaction key (such
as sku/store) and a maximum commit counter. Commit events take place after the
number of processed transaction keys meet or exceed the maximum commit counter.
For example, after every 10,000 sku/store combinations, a commit occurs. At the
time of commit, key data information that is necessary for restart is stored in
the restart tables. In the event of a handled or un-handled exception,
transactions is rolled back to the last commit point, and upon restart the key
information is retrieved from the tables so that processing can continue from
the last commit point.
The RMS restart/recovery process is driven by a set of four
tables. These tables are shown in Entity Relationship diagram. For detailed table
description, see RESTART_CONTROL, RESTART_PROGRAM_STATUS, RESTART_BOOKMARK and RESTART_PROGRAM_HISTORY.
RMS Restart Recovery Entity
Relationships Diagram
RESTART_CONTROL
The restart_control
table is the master table in the restart/recovery table set. One record exists
on this table for each batch program that is run with restart/recovery logic in
place. The restart/recovery process uses this table to determine:
§
Whether the restart/recovery is table-based or file-based.
§
The total number of threads used for each batch program.
§
The maximum records processed before a commit event takes place.
§
The driver for the threading (multi-processing) logic.
§
Time to wait for a lock and the number of lock retry.
|
restart_control
|
|
(PK) program_name
|
varchar2
|
25
|
Batch program name.
|
|
program_desc
|
varchar2
|
120
|
A brief description of the program function.
|
|
driver_name
|
varchar2
|
25
|
Driver on query, for example, department (non-updatable).
|
|
num_threads
|
num
|
10
|
Number of threads used for current process.
|
|
update_allowed
|
varchar2
|
2
|
Indicates whether user can update thread numbers or if
done programmatically.
|
|
process_flag
|
varchar2
|
1
|
Indicates whether the process is table-based (T) or file-based
(F).
|
|
commit_max_ctr
|
num
|
6
|
Numeric maximum value for counter before commit occurs.
|
|
LOCK_WAIT_TIME
|
num
|
6
|
Contains the number of seconds between the last and the
next lock retry.
|
|
RETRY_MAX_CTR
|
num
|
10
|
Contains the maximum number of lock retry.
|
RESTART_PROGRAM_STATUS
The restart_program_status
table is the table that holds record keeping information about current program
processes. The number of rows for a program on the status table is equal to its
num_threads value on the restart_control table. The status table
is modified during restart/recovery initialization and close logic. For
table-based processing, the restart/recovery initialization logic assigns the
next available thread to a program based on the program status and restart
flag. For file-based processing, the thread value is passed in from the input
file name. When a thread is assigned, the program_status
is updated to prevent the assignment of that thread to another process.
Information is logged on the current status of a given thread, as well as
record keeping information such as operator and process timing information.
|
restart_program_status
|
|
(PK)restart_name
|
varchar2
|
50
|
Program name
|
|
(PK)thread_val
|
num
|
10
|
Thread counter
|
|
start_time
|
date
|
|
dd-mon-yy hh:mi:ss
|
|
program_name
|
varchar2
|
25
|
Program name
|
|
program_status
|
varchar2
|
25
|
Started, aborted, aborted in init, aborted in process,
aborted in final, completed, ready for start.
|
|
restart_flag
|
varchar2
|
1
|
Automatically set to ‘N’ after abnormal end, must be
manually set to ‘Y’ for program to restart.
|
|
restart_time
|
date
|
|
dd-mon-yy hh:mi:ss.
|
|
finish_time
|
date
|
|
dd-mon-yy hh:mi:ss.
|
|
current_pid
|
num
|
15
|
Starting program ID.
|
|
current_operator_id
|
varchar2
|
20
|
Operator that started the program.
|
|
err_message
|
varchar2
|
255
|
Record that caused program abort and associated error
message.
|
|
current_oracle_sid
|
num
|
15
|
Oracle SID for the session associated with the current
process.
|
|
current_shadow_pid
|
num
|
15
|
O/S process ID for the shadow process associated with the
current process. It is used to locate the session trace file when a process
is not finished successfully.
|
RESTART_PROGRAM_HISTORY
The restart_program_history
table will contain one record for every successfully completed program thread
with restart/recovery logic. Upon the successful completion of a program
thread, its record on the restart_program_status
table will be inserted into the history table. Table purging will be at
user discretion.
|
restart_program_history
|
|
restart_name
|
varchar2
|
50
|
Program name.
|
|
thread_val
|
Num
|
10
|
Thread counter.
|
|
start_time
|
Date
|
|
dd-mon-yy hh:mi:ss.
|
|
program_name
|
varchar2
|
25
|
Program name.
|
|
num_threads
|
Num
|
10
|
Number of threads.
|
|
commit_max_ctr
|
num
|
6
|
Numeric maximum value for counter before commit occurs.
|
|
restart_time
|
date
|
|
dd-mon-yy hh:mi:ss.
|
|
finish_time
|
date
|
|
dd-mon-yy hh:mi:ss.
|
|
shadow_pid
|
num
|
15
|
O/S process ID for the shadow process associated with the
process. It is used to locate the session trace file.
|
|
success_flag
|
varchar2
|
1
|
Indicates whether the process finished successfully
(reserved for future use).
|
|
non_fatal_err_flag
|
varchar2
|
1
|
Indicates whether non-fatal errors have occurred for the
process.
|
|
num_commits
|
num
|
12
|
Total number of commits for the process. The possible last
commit when restart/recovery is closed is not counted.
|
|
avg_time_btwn_commits
|
num
|
12
|
Accumulated average time between commits for the process.
The possible last commit when restart/recovery is closed is not counted.
|
|
LREAD
|
num
|
|
Session logical reads. The sum of "db block
gets" plus "consistent gets". This includes logical reads of
database blocks from either the buffer cache or process private memory.
|
|
LWRITE
|
num
|
|
Session logical writes. The sum of "db block
changes" plus "consistent changes".
|
|
PREAD
|
num
|
|
Physical reads. Total number of data blocks read from
disk.
|
|
UGA_MAX
|
num
|
|
Peak UGA (user global area) size for a session.
|
|
PGA_MAX
|
num
|
|
Peak PGA (program global area) size for the session.
|
|
SQLNET_BYTES_FROM_CLIENT
|
num
|
|
Total number of bytes received from the client over Oracle
Net Services.
|
|
SQLNET_BYTES_TO_CLIENT
|
num
|
|
Total number of bytes sent to the client from the
foreground processes.
|
|
SQLNET_ROUNDTRIPS
|
num
|
|
Total number of Oracle Net Services messages sent to and
received from the client.
|
|
COMMITS
|
num
|
|
Number of user commits. When a user commits a transaction,
the redo generated that reflects the changes made to database blocks must be
written to disk. Commits often represent the closest thing to a user
transaction rate.
|
RESTART_BOOKMARK
When a restart/recovery program thread is active, its state is
started or aborted, and a record for it exists on the restart_bookmark table. Restart/recovery initialization logic
inserts the record into the table for a program thread. The restart/recovery
commit process updates the record with the following restart information:
§
A concatenated string of key values for table processing
§
A file pointer value for file processing
§
Application context information such as counters and accumulators
The restart/recovery closing process deletes the program thread
record if the program finishes successfully. In the event of a restart, the
program thread information on this table will allow the process to begin from
the last commit point.
|
restart_bookmark
|
|
(PK)
restart_name
|
varchar2
|
50
|
Program name.
|
|
(PK)
thread_val
|
num
|
10
|
Thread counter.
|
|
bookmark_string
|
varchar2
|
255
|
Character string of key of last committed record.
|
|
application_image
|
varchar2
|
1000
|
Application parameters from the last save point.
|
|
out_file_string
|
varchar2
|
255
|
Concatenated file pointers (UNIX sometimes refers to these
as stream positions) of all the output files from the last commit point of
the current process. It is used to return to the right restart point for all
the output files during restart process.
|
|
non_fatal_err_flag
|
varchar2
|
1
|
Indicates whether non-fatal errors have occurred for the
current process.
|
|
num_commits
|
num
|
12
|
Number of commits for the current process. The possible
last commit when restart/recovery is closed is not counted.
|
|
avg_time_btwn_commits
|
num
|
12
|
Average time between commits for the current process. The
possible last commit when restart/recovery is closed is not counted.
|
Restart views are used for query-based programs that require
multi-threading. Separate views (ex v_restart_dept, and v_restart_store) are created
for each threading driver, for example, department or store. A join is made to
a view based on threading driver to force the separation of discrete data into
particular threads. See the threading discussion for more details.
|
v_restart_<x>
|
|
driver_name
|
varchar2
|
Example dept, store, region, and others.
|
|
num_threads
|
number
|
Total number of threads in set (defined on restart
control).
|
|
driver_value
|
number
|
Numeric value of the driver_name.
|
|
thread_val
|
number
|
Thread value defined for driver_value and num_threads
combination.
|
The restart_program_status
and restart_bookmark are separate
tables. This is because the initialization process needs to fetch all of
the rows associated with restart_name/schema,
but will only update one row. The commit process will continually lock a row
with a specific restart_name and Thread_val. The data involved with these
two processes is separated into two tables to reduce the number of hangs that
could occur due to locked rows. Even if you allow ‘dirty reads’ on locked rows,
a process will still hang if it attempts to do an update on a locked row. The
commit process is only interested in a unique row, so if we move the commit
process data to a separate table with row level (not page level) locking, there
will not be contention issues during the commit. With the separate tables, the
initialization process will now see fewer problems with contention because rows
will only be locked twice, at the beginning and end of the process.
The restart/recovery process needs to be as robust as possible in
the event of database related failure. The costs outweigh the benefits of
placing the restart/recovery tables in a separate database. The tables should,
however, be setup in a separate, mirrored table space with a separate rollback
segment.
The restart/recovery process works by storing all the data
necessary to resume processing from the last commit point. Therefore, the necessary
information is updated on the restart_bookmark
table before the processed data is committed. Query-based and file-based module
stores different information on the restart tables, and therefore calls different
functions within the restart/recovery API to perform their tasks.
When a program’s process is query-based on a module is driven by
a driving query that processes the retrieved rows, the information that is
stored on the restart_bookmark table
is related to the data retrieved in the driving query. If the program fails
while processing, the information that is stored on the restart-tables can be
used in the conditional where-clause of the driving query to only retrieve data
that has yet to be processed since the last commit event.
File-based processing, needs to store the file location at the
time of the last commit point. This file’s byte location is stored on the restart_bookmark table and will be
retrieved at the time of a restart. This location information will be used
further be used in reopening the file when the data was last committed. Because
there is different information being saved to and retrieved from the restart_bookmark table for each of the
different types of processing, different functions need to be called to perform
the restart/recovery logic. The query-based processing calls the restart_init or retek_init and restart_commit
or retek_commit functions
while the file-based processing calls the restart_file_init
and restart_file_commit functions.
In addition to the differences in API function calls, the batch
processing flow of the restart/recovery differs between the files. Table-based
restart/recovery needs to use a priming fetch logical flow, while the
file-based processing usually reads lines in a batch. Table-based processing
requires its structure to ensure that the LUW key has changed before a commit
event is allowed to occur, while the file-based processing does not need to
evaluate the LUW, which can typically be thought of as the type of transaction
being processed by the input file.
The following diagram depicts table-based Restart/Recovery
program flow:
Table-Based Restart/Recovery Program Flow
The following diagram depicts file-based Restart/Recovery
program flow
File-based Restart/Recovery Program Flow
Initialization logic:
§
Variable declarations
§
File initialization
§
Call restart_init() or restart_file_init() function - determines
start or restart logic
§
First fetch on driving query
Start logic: initialize counters/accumulators to start values
Restart logic:
§
Parse application_image field on bookmark table into
counters/accumulators
§
Initialize counters/accumulators to values of parsed fields
Process/commit loop:
§
Process updates and manipulations
§
Fetch new record
§
Create varchar from counters/accumulators to pass into
application_image field on restart_bookmark table
§
Call restart_commit() or restart_file_commit()
Close logic:
§
Reset pointers
§
Close files/cursors
§
Call Restart_close()
An initialization functions for table-based batch processing.
The batch process gathers the following information from the
restart control tables:
§
Total number of threads for a program and thread value assigned
to current process.
§
Number of records to loop through in driving cursor before commit
(LUW).
§
Start string - bookmark of last commit to be used for restart or
a null string if current process is an initial start and initializes the
restart record-keeping (restart_program_status).
§
Program status is changed to ‘started’ for the first available
thread.
§
Operational information is updated: operator, process,
start_time, and bookmarking (restart_bookmark) tables.
§
On an initial start, a record is inserted.
§
On restart, the start string and application context information
from the last commit is retrieved.
§
Lock wait time and maximum retry for locking.
An initialization functions for file-based batch processing. It
is called from program modules.
§
The batch process gathers the following information from the
restart control tables:
§
Number of records to read from file for array processing and for
commit cycle.
§
File start point- bookmark of last commit to be used for restart
or 0 for initial start.
§
The process initializes the restart record-keeping
(restart_program_status):
§
Program status is changed to ‘started’ for the current thread.
§
Operational information is updated: operator, process, start_time.
§
The process initializes the restart bookmarking (restart_bookmark)
tables:
§
On an initial start, a record is inserted.
§
On restart, the file starting point information and application
context information from the last commit is retrieved.
A function that commits the processed transaction for a given
number of driving query fetches. It is called from program modules.
The process updates the restart_bookmark
start string and application image information if a commit event has taken
place:
§
The current number of driving query fetches is greater than or
equal to the maximum set in the restart_program_status table (and fetched in
the restart_init function).
§
The bookmark string of the last processed record is greater than
or equal to the maximum set in the restart_program_status table (and fetched in
the restart_init function).
§
The bookmark string increments the counter.
§
The bookmark string sets the current string to be the most
recently fetched key string.
A function that commits processed transactions after reading a
number of lines from a flat file. It is called from program modules.
The process updates the RESTART_BOOKMARK table:
§
Start_string is set to the file pointer location in the current
read of the flat file.
§
Application image is updated with context information.
A function that updates the restart tables after program
completion.
The process determines whether the program was successful. If the
program finished successfully:
§
The restart_program_status table is updated with finish
information and the status is reset.
§
The corresponding record in the RESTART_BOOKMARK table is deleted.
§
The restart_program_history table has a copy of the
restart_program_status table record inserted into it.
§
The restart_program_status is re-initialized.
If the program ends with errors:
§
The transactions are rolled back.
§
The program_status column on the restart_program_status table is
set to ‘aborted in *’ where * is one of the three main functions in batch:
init, process or final.
§
The changes are committed.
This function parses a string into components and places results
into multidimensional array. It is only called within API functions and will
never be called in program modules.
The process is passes a string to parse, and a pointer to an
array of characters.
The first character of the passed string is the delimiter.
This function will append output in temporary files to final
output files when a commit point is reached. It is called from program modules.
This function contains the logic that appends one file to
another. It is only called within the restart/recovery API functions and never
called directly in program modules.
The restart.h and
the std_err.h header files are
included in retek.h to utilize
the restart/recovery functionality.
This library header file contains constant, macro substitutions,
and external global variable definitions as well as restart/recovery functions prototypes.
The global variables that are defined include:
§
The thread number assigned to the current process.
§
The value of the current process’s thread maximum counter:
-
For
table-based processing, it is equal to the number of iterations of the driving
query before a commit can take place.
-
For
file-based processing, it is equal to the number of lines that is read from a
flat file and processed using a structured array before a commit can take place.
§
The current count of driving query iterations used for
table-based processing or the current array index used in file-based processing.
§
The name assigned to the program/logical unit of work by the
programmer. It is the same as the restart_name column on the
restart_program_status, restart_program_history, and RESTART_BOOKMARK tables.
This library header file contains standard restart variable
declarations that are used in the program modules.
The variable definitions that are included are:
§
The concatenated string value of the fetched driving query key
that is currently being processed.
§
The concatenated string value of the fetched driving query key that
will be processed next.
§
The error message passed to the restart_close function and
updated to restart_program_status.
§
Concatenated string of application context information, for
example, counters and accumulators.
§
The name of the threading driver, for example, department, store,
warehouse and others.
§
The total number of threads used by this program.
§
The pointer to pass to initialization function to retail number
of threads value.
Restart/recovery
performs the following, among other capabilities:
§
Organizes global variables associated with restart recovery.
§
Allows the batch developer full control of restart recovery
variables parameter passing during initialization.
§
Removes temporary write files to speed up the commit process.
§
Moves more information and processing from the batch code into
the library code.
§
Adds more information into the restart recovery tables for tuning
purposes.
retek_2.h
This library header file is included by all C code within Retail
and serves to centralize system includes, macro defines, globals, function
prototypes, and, especially, structs for use in the new restart/recovery
library.
The globals used by the old restart/recovery library are all
discarded. Instead, each batch program declares variables needed and calls
retek_init() to get them populated from restart/recovery tables. Therefore,
only the following variables are declared:
§
gi_no_commit: flag for NO_COMMIT command line option (used for
tuning purposes).
§
gi_error_flag: fatal error flag.
§
gi_non_fatal_err_flag: non-fatal error flag.
In addition, a rtk_file struct is defined to handle all file
interfaces associated with restart/recovery. Operation functions on the file
struct are also defined.
#define NOT_PAD 1000 /* Flag not to pad thread_val */
#define PAD 1001 /* Flag to pad thread_val at the
end */
#define TEMPLATE 1002 /* Flag to pad thread_val using
filename template */
#define MAX_FILENAME_LEN 50
typedef struct
{
FILE* fp; /* File pointer */
char filename[MAX_FILENAME_LEN + 1]; /* Filename */
int pad_flag; /* Flag whether to pad thread_val to
filename */
} rtk_file;
int set_filename(rtk_file* file_struct, char* file_name, int
pad_flag);
FILE* get_FILE(rtk_file* file_struct);
int rtk_print(rtk_file* file_struct, char* format, ...);
int rtk_seek(rtk_file* file_struct, long offset, int whence);
The parameters that retek_init() needs to populate passed using a
format known to retek_init(). A struct is defined here for this purpose. An
array of parameters of this struct type is needed in each batch program. Other requirements
have to be initialized at each batch program.
§
The lengths of name, type and sub_type should not exceed the
definitions here.
§
Type can only be: "int", “uint”, "long",
"string", or "rtk_file".
§
For type "int", “uint” or "long", use
"" as sub_type.
§
For type "string", sub_type can only be "S"
(start string) unless the string is the thread value or number of threads, in
which case use “” as sub_type or "I" (image string).
§
For type "rtk_file", sub_type can only be "I"
(input) or "O" (output).
#define NULL_PARA_NAME 51
#define NULL_PARA_TYPE 21
#define NULL_PARA_SUB_TYPE 2
typedef struct
{
char name[NULL_PARA_NAME];
char type[NULL_PARA_TYPE];
char sub_type[NULL_PARA_SUB_TYPE];
} init_parameter;
INT RETEK_INIT(INT NUM_ARGS, INIT_PARAMETER *parameter, ...)
retek_init
initializes restart/recovery (for both table and file-based):
§
Pass in num_args as
the number of elements in the init_parameter
array, and then the init_parameter
array, then variables a batch program needs to initialize in the order and
types defined in the init_parameter
array. Note that all int, uint and long variables need to be passed by
reference.
§
Get all global and module level values from databases.
§
Initialize records for RESTART_PROGRAM_STATUS and
RESTART_BOOKMARK.
§
Parse out user-specified initialization variables (variable arg
list).
§
Return NO_THREAD_AVAILABLE if no qualified record in
RESTART_CONTROL or RESTART_PROGRAM_STATUS.
§
Commit work.
INT RETEK_COMMIT(INT NUM_ARGS, ...)
retek_commit checks
and commits if needed (for both table and file-based):
§
Pass in num_args, then variables for start_STRING first, and
those for image string (if needed) second. The num_args is the total number of
these two groups. All are string variables and are passed in the same order as
in retek_init().
§
Concatenate start_string either from passed in variables
(table-based) or from ftell of input file pointers (file-based).
§
Check if commit point is reached (counter check and, if table-based,
start string comparison).
§
If reached, concatenated image_string from passed in variables
(if needed) and call internal_commit() to get out_file_string and update
RESTART_BOOKMARK.
§
If table-based, increment pl_current_count and update ps_cur_string.
INT COMMIT_POINT_REACHED(INT
NUM_ARGS, ...)
commit_point_reached
checks if the commit point is reached (for both table- and file-based). The
difference between this function and the check in retek_commit() is that here the pl_current_count and ps_cur_string
are not updated. This checking function is designed to be used with retek_force_commit(), and the logic to
ensure integrity of LUW exists in user batch program. It can also be used
together with retek_commit() for
extra processing at the time of commit.
§
Pass in num_args, then all string variables for start_string in
the same order as in retek_init(). The num_args is the number of variables for
start_string. If no start_string (as in file-based), pass in NULL.
§
For table-based, if pl_curren_count reaches pl_max_counter and if
newly concatenated bookmark string is different from ps_cur_string, return 1;
otherwise return 0.
§
For file-based, if pl_curren_count reaches pl_max_counter return
1; otherwise return 0.
INT RETEK_FORCE_COMMIT(INT NUM_ARGS,
...)
retek_force_commit always
commits (for both table and file-based):
§
Pass in num_args, then variables for start_string first, and
those for image string (if needed) second. The num_args is the total number of
these two groups. All are string variables and are passed in the same order as
in retek_init().
§
Concatenate start_string either from passed in variables
(table-based) or from ftell of input file pointers (file-based).
§
Concatenated image_string from passed in variables (if needed)
and call internal_commit() to get out_file_string and update RESTART_BOOKMARK.
§
If table-based, increment pl_current_count and update
ps_cur_string.
INT RETEK_CLOSE(void)
retek_close closes
restart/recovery (for both table and file-based):
§
If gi_error_flag or NO_COMMIT command line option is TRUE,
rollback all database changes.
§
Update RESTART_PROGRAM_STATUS according to gi_error_flag.
§
If no gi_error_flag, insert record into RESTART_PROGRAM_HISTORY
with information fetched from RESTART_CONTROL, RESTART_PROGRAM_BOOKMARK and
RESTART_PROGRAM_STATUS tables.
§
If no gi_error_flag, delete RESTART_BOOKMARK record.
§
Commit work.
§
Close all opened file streams.
INT RETEK_REFRESH_THREAD(void)
You must refresh a program’s thread, so that it can be run again.
§
Updates the RESTART_PROGRAM_STATUS record for the current
program’s PROGRAM_STATUS to be ‘ready for start’.
§
Deletes any RESTART_BOOKMARK records for the current program.
§
Commits work.
VOID INCREMENT_CURRENT_COUNT(void)
increment_current_count
increases pl_current_count by 1.
Note:
This is called from get_record()
of intrface.pc for file-based input/output.
INT PARSE_NAME_FOR_THREAD_VAL(char*
name)
parse_name_for_thread_val
parses thread value from the extension of the specified file name.
INT IS_NEW_START(void)
is_new_start checks
if current run is a new start; if yes, return 1; otherwise 0.
The restart capabilities revolve around a program’s logical unit
of work (LUW). A batch program processes transactions and enables commit points
based on the LUW. An LUW is comprised of a transaction key (such as item-store)
and a maximum commit counter. Commit events occur after a given number of
transaction keys are processed. At the time of the commit, key data information
that is necessary for restart is stored in the restart table. In the event of a
handled or un-handled exception, transactions will be rolled back to the last
commit point. Upon restart the restart key information will be retrieved from
the tables so that processing can resume with the unprocessed data.
8
Processing multiple instances of a given program can be
accomplished through “threading”. This requires driving cursors to be separated
into discrete segments of data to be processed by different threads. This is
accomplished through a stored procedure that separates threading mechanisms
(for example, departments or stores) into particular thread given value (for
example, department 1001) and the total number of threads for a given process.
File-based processing will not “thread” its processing. The same
data file will never be acted upon by multiple processes. Multi-threading is
accomplished by dividing the data into separate files using a separate process
for each file. The thread value is related to the input file. This is necessary
to ensure that the appropriate information can be tied back to the relevant
file in the event of a restart.
The store length in RMS is ten digits. Therefore, thread value
which is based on the store number must allow ten digits. As the thread value
is declared as a ‘C’ variable of type integer (long), the system restricts
thread values to nine digits.
This does not mean that you cannot use ten digit store numbers.
It means that if you do use ten digit store numbers you cannot use them as
thread values.
The use of multiple threads or processes in Oracle Retail batch
processing increases efficiency and decrease processing time. The design of the
threading process allows maximum flexibility to the end user in defining the
number of processes over which a program is divided.
Originally, the threading function was used directly in the
driving queries. This was a slow process. Instead of using the function call
directly in the driving queries, the designs call for joining driving query
tables to a view (for example, v_restart_store) that includes the function.
A stored procedure has been created to determine thread values.
Restart_thread_return returns a thread value derived from a numeric driver
value, such as department number, and the total number of threads in a given
process. Retailers should be able to determine the best algorithm for their
design, and if a different means of segmenting data is required, then either
the restart_thread_return function can be altered, or a different function can
be used in any of the views in which the function is contained.
Currently the restart_thread_return function is a very simple
modulus routine:
CREATE OR REPLACE FUNCTION RESTART_THREAD_RETURN(in_unit_value
NUMBER,
in_total_threads NUMBER)
RETURN NUMBER IS
ret_val NUMBER;
BEGIN
ret_val := MOD(ABS(in_unit_value),in_total_threads) + 1;
RETURN ret_val;
END;
Each restart view will have four elements:
§
The name of the threading mechanism, driver_name.
§
The total number of threads in a grouping, num_threads.
§
The value of the driving mechanism, driver_value.
§
The thread value for that given combination of driver_name,
num_threads, and driver value, thread_val.
The view will be based on the restart_control table and an
information table such as DEPS or STORES. A row will exist in the view for
every driver value and every total number of threads value. Therefore, if a
retailer were to always use the same number of threads for a given driver
(dept, store, and others), then the view would be relatively small. As an
example, if all of a retailer’s programs threaded by department have a total of
5 threads, then the view will contain only one value for each department. For
example, if there are 10 total departments, 10 rows will exist in
v_restart_dept. However, if the retailer wants to have one of the programs to
have ten threads, then there will be 2 rows for every department: one for five
total threads and one for ten total threads (for example, if 10 total
departments, 20 rows will exist in v_restart_dept). Obviously, retailers should
be advised to keep the number of total thread values for a thread driver to a
minimum to reduce the scope of the table joins of the driving cursor with the
view.
Below is an example of how the same driver value can result in
differing thread values. This example uses the restart_thread_return function
as it currently is written to derive thread values.
|
Driver_name
|
num_threads
|
driver_val
|
thread_val
|
|
DEPT
|
1
|
101
|
1
|
|
DEPT
|
2
|
101
|
2
|
|
DEPT
|
3
|
101
|
3
|
|
DEPT
|
4
|
101
|
2
|
|
DEPT
|
5
|
101
|
2
|
|
DEPT
|
6
|
101
|
6
|
|
DEPT
|
7
|
101
|
4
|
Below is an example of what a distribution of stores might look
like given 10 stores and 5 total threads:
|
Driver_name
|
num_threads
|
driver_val
|
thread_val
|
|
STORE
|
5
|
1
|
2
|
|
STORE
|
5
|
2
|
3
|
|
STORE
|
5
|
3
|
4
|
|
STORE
|
5
|
4
|
5
|
|
STORE
|
5
|
5
|
1
|
|
STORE
|
5
|
6
|
2
|
|
STORE
|
5
|
7
|
3
|
|
STORE
|
5
|
8
|
4
|
|
STORE
|
5
|
9
|
5
|
|
STORE
|
5
|
10
|
1
|
View syntax:
The following is an example of the syntax needed to create the
view for the multi-threading join, created with script (see threading
discussion for details on restart_thread_return
function):
create or replace view v_restart_store
as
select rc.driver_name driver_name,
rc.num_threads num_threads,
s.store driver_value,
restart_thread_return(s.store,
rc.num_threads) thread_val
from restart_control rc, store s
where rc.driver_name = 'STORE'
There is a different threading scheme used within Oracle Retail
Sales Audit (ReSA). Because ReSA needs to run 24 hours a day and seven days a
week, there is no batch window. This means that there may be batch programs
running at the same time that there are online users. ReSA solved this
concurrency problem by creating a locking mechanism for data that is organized
by store days. These locks provide a natural threading scheme. Programs that
cycle through all of the store day data attempt to lock the store day first. If
the lock fails, the program simply goes on to the next store day. This has the
affect of automatically balancing the workload between all of the programs
executing.
All program names will be stored on the restart_control table
along with a functional description, the query driver (department, store,
class, and others) and the user-defined number of threads associated with them.
Users should be able to scroll through all programs to view the name,
description, and query driver, and if the update_allowed flag is set to true,
to modify the number of threads (update is set to true).
File-based processing does not truly “multi-thread” and therefore
the number of threads defined on restart_control will always be one. However, a
restart_program_status record needs to be created for each input file that is
to be processed for the program module. Further, the thread value that is
assigned must be part of the input file name. The restart_parse_name function
included in the program module will parse the thread value from the program
name and use that to determine the availability and restart requirements on the
restart_program_status table.
Refer to the beginning of this multi-threading section for a
discussion of limits on using large (greater than nine digits) thread values.
When the number of threads is modified in the restart_control
table, the form must first validate that no records for that program are
currently being processed in the restart_program_status_table (that is, all
records = ‘Completed’). The program must insert or delete rows depending on
whether the new thread number is greater than or less than the old thread
number. In the event that the new number is less than the previous number, all
records for that program_name with a thread number greater than the new thread
number will be deleted. If the new number is greater than the old number, new
rows will be inserted. A new record is inserted for each restart_name/thread_val combination.
For example if the batch program SALDLY has its number of
processes changed from 2 to 3, then an additional row (3) will be added to the
restart_program_status table. In the same way, if the number of threads was
reduced to 1 in this example, rows 2 and 3 would be deleted.
|
Row
|
RESTART_NAME
|
THREAD_VA
|
program_name
|
|
1
|
SALDLY
|
1
|
SALDLY
|
|
2
|
SALDLY
|
2
|
SALDLY
|
restart_program_status
table after insert:
|
Row
|
RESTART_NAME
|
THREAD_VA
|
program_name
|
|
1
|
SALDLY
|
1
|
SALDLY
|
|
2
|
SALDLY
|
2
|
SALDLY
|
|
3
|
SALDLY
|
3
|
SALDLY
|
restart_program_status
table after delete:
|
Row
|
RESTART_NAME
|
THREAD_VA
|
program_name
|
|
1
|
SALDLY
|
1
|
SALDLY
|
Users should also be able to modify the commit_max_ctr column in
restart_program_status table. This controls the number of iterations in driving
query or the number of lines read from a flat file that determine the logical
unit of work (LUW).
Users must be able to view the status of all records in
restart_program_status table. This is where the user gets to view error
messages from aborted programs, and statistics and histories of batch runs. The
only fields that are modified will be program_status and restart_flag. The user
should be able to reset the restart_flag to ‘Y’ from ‘N’ on records with a
status of aborted, started records to aborted in the event of an abend
(abnormal termination), and all records in the event of a restore from
tape/re-run of all batch.
Before any batch with restart/recovery logic is run, an
initialization program must be run to update the status in the
restart_program_status table. This program must update the program_status to
‘ready for start’ wherever a record’s program_status is ‘completed.’ This leaves
unchanged all programs that ended unsuccessfully in the last batch run.
Due to the nature of threading algorithm, individual programs
needs a pre or a post program run to initialize variables or files before any
of the threads have run or to update final data when all the threads are run.
The decision was made to create pre-programs and post-programs in these cases
rather than let the restart/recovery logic decide whether the currently
processed thread is the first thread to start or the last thread to end for a
given program.
For ksh driven batch programs that call PL/SQL for its main
processing logic, multi-threading is also supported. An example of this type of
batch job is ksh script stockcountupload.ksh calling PL/SQL package
CORESVC_STOCK_UPLOAD_SQL. The threading configuration for each program is
defined in table RMS_PLSQL_BATCH_CONFIG (instead of RESTART_CONTROL for the
ProC programs). Column MAX_CONSURRENT_THREAD holds the maximum number of
concurrent threads. MAX_CHUNK_SIZE defines the commit size within each thread,
similar to the RESTART_CONTROL.COMMIT_MAX_CTR column.
9
Oracle Retail batch architecture uses array processing to improve
performance. Instead of processing SQL statements using scalar data, data is
grouped into arrays and used as bind variables in SQL statements. This improves
performance by reducing the server/client and network traffic.
Array processing is used in selecting, inserting, deleting, and
updating statements. Oracle Retail typically does not statically define the
array sizes, but uses the restart maximum commit variable as a sizing multiple.
The user must remember this when defining the system's maximum commit counters.
Remember, when using array processing in Oracle, it does not
allow a single array operation to be performed for more than 32000 records in
one step. The Oracle Retail restart/recovery libraries have been updated to
define macros for this value: MAX_ORACLE_ARRAY_SIZE.
All batch programs that use array processing need to limit the
size of their array operations to MAX_ORACLE_ARRAY_SIZE.
If the commit max counter is used for array processing size,
check it after the call to restart_init() and, if necessary, reset it to the
maximum value if greater. If retek_init() is used to initialize, check the
returned commit max counter and reset it to the maximum size if it is greater.
In case of retek_init(), reset the library’s internal commit max counter by
calling extern int limit_commit_max_ctr(unsigned int new_max_ctr).
If some other variable is used for sizing the array processing,
the actual array-processing step must be encapsulated in a calling loop that
performs the array operation in sub segments of the total array size where each
sub-segment is at most MAX_ORACLE_ARRAY_SIZE large. Currently all Oracle Retail
batch programs are implemented in the similar way.
10
Pro*C
Input and Output Formats
Oracle Retail batch processing utilizes input from both tables
and flat files. Further, the outcome of processing can both modify data
structures and write output data. Interfacing Oracle Retail with external
systems is the main use of file based I/O.
To simplify the interface requirements, Oracle Retail requires
that all in-bound and out-bound file-based transactions adhere to standard file
layouts. There are two types of file layouts, detail-only and master-detail,
which are described in the sections below.
An interfacing API exists within Oracle Retail to simplify the
coding and the maintenance of input files. The API provides functionality to
read input from files, ensure file layout integrity, and write and maintain
files for rejected transactions.
The RMS interface library supports two standard file layouts; one
for master/detail processing, and one for processing detail records only. True
sub-details are not supported within the RMS base package interface library
functions.
A 5-character identification code or record type identifies all
records within an I/O file, regardless of file type. The following includes the
valid record type values:
§
FHEAD—File Header
§
FDETL—File Detail
§
FTAIL—File Tail
§
THEAD—Transaction Header
§
TDETL—Transaction Detail
§
TTAIL—Transaction Tail
Each line of the file must begin with the record type code
followed by a 10-character record ID.
File layouts have a standard file header record, a detail record
for each transaction to be processed, and a file trailer record. Valid record
types are FHEAD, FDETL, and FTAIL.
Example:
FHEAD0000000001STKU1996010100000019960929
FDETL0000000002SKU100000040000011011
FDETL0000000003SKU100000050003002001
FDETL0000000004SKU100000050003002001
FTAIL00000000050000000003
File layouts consists of:
§
Standard file header record
§
Set of records for each transaction to be processed
§
File trailer record.
The transaction set consists of:
§
Transaction set header record
§
Transaction set detail for detail within the transaction
§
Transaction trailer record
Valid record types are FHEAD, THEAD, TDETL, TTAIL, and FTAIL.
Example:
FHEAD0000000001RTV 19960908172000
THEAD000000000200000000000001199609091202000000000003R
TDETL000000000300000000000001000001SKU10000012
TTAIL0000000004000001
THEAD000000000500000000000002199609091202001215720131R
TDETL000000000600000000000002000001UPC400100002667
TDETL0000000007000000000000020000021UPC400100002643 0
TTAIL0000000008000002
FTAIL00000000090000000007
|
Record Name
|
Field Name
|
Field Type
|
Default Value
|
Description
|
|
File Header
|
File Type Record Descriptor
|
Char(5)
|
FHEAD
|
Identifies file record type.
|
|
|
File Line Identifier
|
Number(10)
|
Specified by external system
|
Line number of the current file.
|
|
|
File Type Definition
|
Char(4)
|
n/a
|
Identifies transaction type.
|
|
|
File Create Date
|
Date
|
Create date
|
Date file was written by external system.
|
|
Transaction Header
|
File Type Record Descriptor
|
Char(5)
|
THEAD
|
Identifies file record type.
|
|
|
File Line Identifier
|
Number(10)
|
Specified by external system
|
Line number of the current file.
|
|
|
Transaction Set Control Number
|
Char(14)
|
Specified by external system
|
Used to force unique transaction check.
|
|
|
Transaction Date
|
Char(14)
|
Specified by external system
|
Date the transaction was created in external system.
|
|
Transaction Detail
|
File Type Record Descriptor
|
Char(5)
|
TDETL
|
Identifies file record type.
|
|
|
File Line Identifier
|
Number(10)
|
Specified by external system
|
Line number of the current file.
|
|
|
Transaction Set Control Number
|
Char(14)
|
Specified by external system
|
Used to force unique transaction check.
|
|
|
Detail Sequence Number
|
Char(6)
|
Specified by external system
|
Sequential number assigned to detail records within a
transaction.
|
|
Transaction Trailer
|
File Type Record Descriptor
|
Char(5)
|
TTAIL
|
Identifies file record type.
|
|
|
File Line Identifier
|
Number(10)
|
Specified by external system
|
Line number of the current file.
|
|
|
Transaction Detail Line Count
|
Number(6)
|
Sum of detail lines
|
Sum of the detail lines within a transaction.
|
|
File Trailer
|
File Type Record Descriptor
|
Char(5)
|
FTAIL
|
Identifies file record type.
|
|
|
File Line Identifier
|
Number(10)
|
Specified by external system
|
Line number of the current file.
|
|
|
Total Transaction Line Count
|
Number(10)
|
Sum of all transaction lines
|
All lines in file less the file header and trailer records.
|
11
RETL Program
Overview for the RMS-RPAS Interface
This chapter covers information about the Oracle Retail Extract
Transform and Load (RETL) program overview for the RMS and the RPAS interface. The
RETL architecture is mentioned along with the RETL program overview.
RMS works with the Oracle Retail Extract Transform and Load
(RETL) framework. This architecture utilizes a high performance data processing
tool that allows database batch processes to take advantage of parallel
processing capabilities.
The RETL framework runs and parses through the valid operators
composed in XML scripts. For more information on RETL tool, see RETL
Programmer’s Guide.
The figure The two stages of RETL
processing illustrates the extraction processing architecture. Instead of managing the change captures as they
occur in the source system during the day, the process involves
extracting the current data from the source system. The extracted data is output to flat files. These flat files are then
available for consumption by products such as RPAS.
The target system has its own way of completing the
transformations and loading the necessary data into the system, where it can be used for further processing.. For more
information on transformation and loading, see RPAS documentation.
The architecture relies upon two distinct stages, shown in the figure
The two stages of RETL processing.
§
Stage 1- Extraction from the RMS database using
well-defined flows specific to the RMS database. The resulting output is
comprised of data files written in a well-defined schema file format. This
stage includes no destination specific code.
§
Stage 2- Introduces a flow specific to the destination. In
this case, flows for RPAS are
designed to transform the data so that RPAS can import the data properly.
The two stages of RETL processing
This section summarizes the RETL program features utilized in the
RMS extractions and loads. Installation information about the RETL tool is
available in the latest RETL Programmer’s Guide.
Before trying to configure and run RMS RETL, install RETL version
13.0 or later, which is requires RMS RETL to run. For thorough installation
procedure, see RETL Programmer’s Guide.
The permissions are set up as per the RETL Programmer’s Guide.
RMS RETL reads and writes data files, you can also create, delete, update and
insert into tables. The extraction fails, if it is not set up properly.
See the RETL Programmer’s Guide for RETL environment variables
that must be set up for your version of RETL. You will need to set RDF_HOME to
your base directory for RMS RETL. This is the top level directory that you
select during the installation process. Add export RDF_HOME=<base
directory for RMS RETL> in. profile.
There are several constants that must be set in
rmse_rpas_config.env depending upon a retailer’s preferences and the local
environment. This is summarized in the table below.
|
Constant Name
|
Default Value
|
Alternate Value
|
Description
|
|
DATE_TYPE
|
vdate
|
current_date
|
Determines whether the date used in naming the error, log,
and status files is the current date or the VDATE value found in the PERIOD
table.
|
|
DBNAME
|
rtkdev01
|
Depends on installation
|
The database schema name.
|
|
RMS_OWNER
|
RPASINT
|
Depends on installation
|
The username of the RMS database schema owner.
|
|
BA_OWNER
|
|
Depends on installation
|
The username of the RMS batch user (not currently used by
RMS-RPAS).
|
|
CONN_TYPE
|
thin
|
oci
|
The way in which RMS connects to the database.
|
|
DBHOST
|
mspdev17
|
Depends on installation
|
The computer hardware node name.
|
|
DBPORT
|
1524
|
Depends on installation
|
The port on which the database listener resides.
|
|
LOC_ATTRIBUTES_
ACTIVE
|
False
|
True
|
Determines whether rmse_rpas_attributes.ksh is run or not.
|
|
PROD_
ATTRIBUTES_ACTIVE
|
False
|
True
|
Determines whether rmse_rpas_attributes.ksh is run or not.
|
|
DIFFS_ACTIVE
|
True
|
False
|
Determines whether rmse_rpas_merchhier.ksh generates data
files that contain diff allocation information.
|
|
ISSUES_ACTIVE
|
True
|
False
|
If set to ‘True’, rmse_rpas_stock_on_hand also extracts
stock at the warehouse level. If set to ‘False’, rmse_rpas_stock_on_hand
extracts stock at the store level only.
|
|
LOAD_TYPE
|
CONVENTIONAL
|
DIRECT
|
Data loading method to be used by SQL*Loader
(Direct may be faster than conventional).
|
|
DB_ENV
|
ORA
|
DB2, TERA
|
Database type (Additional changes to the software may be
needed if a database other than Oracle is selected).
|
|
NO_OF_CPUS
|
4
|
Depends on installation
|
Used in parallel database query hints to improve
performance.
|
|
LANGUAGE
|
en
|
Various
|
En = English
|
|
RFX_OPTIONS
|
-c $RDF_HOME/
rfx/etc/rfx.conf
-s SCHEMAFILE
|
-c $RDF_
HOME/
rfx/etc/rfx
.conf
|
Processing speed may be increased for some extractions if
the
-s SCHEMAFILE
option is omitted.
|
You must set up the wallet alias in the rmse_aip_config.env. The
wallet and wallet alias creation is required to use programs in a secured mode.
The following variables must be setup RETL_WALLET_ALIAS, ORACLE_WALLET_ALIAS,
SQLPLUS_LOGON.
Be sure to review the environmental parameters in the
rmse_rpas_config.env file before executing batch modules.
Steps to Configure RETL
1. Log
in to the UNIX server with a UNIX account that will run the RETL scripts.
2. Change
directories to <base_directory>/rfx/etc.
3. Modify
the constants from the table above in the rmse_rpas_config.env script as
needed.
RETL programs use a return code to indicate successful
completion. If the program successfully runs, a zero (0) is returned. If the
program fails, no number is returned.
To prevent a program from running while the same program is
already running against the same set of data, the code utilizes a program
status control file. At the beginning of each module, rmse_rpas_config.env is
run. This script checks for the existence of the program status control file.
If the file exists, then a message stating, ‘${PROGRAM_NAME} has already started’, is
logged and the module exits. If the file does not exist, a program status
control file is created and the module executes.
If the module fails at any point, the program status control file
is not removed, and the user is responsible for removing the control file
before running the module again.
File Naming Conventions
The name and directory of the program status control file is set
in the configuration script (rmse_rpas_config.env). The directory defaults to
$RDF_HOME/error.
The naming convention for the program status control file itself
defaults to the following dot separated file name:
§
The program name.
§
The program status is mentioned under the ‘status’ parameter.
§
The business virtual date for which the module was run.
For example, a program status control file for the
rmse_rpas_daily_sales.ksh program is named as follows for a batch run on the
business virtual date of January 5, 2001:
$RDF_HOME/error/rmse_rpas_daily_sales.status.20010105
Because RETL processes all records as a set, as opposed to one
record at a time, the method for restart and recovery must be different from
the method that is used for Pro*C. The restart and recovery process serves the
following two purposes:
1. It
prevents the loss of data due to program or database failure.
2. It
increases performance when restarting after a program or database failure by
limiting the amount of reprocessing that needs to occur.
The RMS extract (RMSE) modules extract from a source transaction
database or text file and write to a text file. The RMS loads module import
data from flat files, performs necessary transformations, and then loads the
data into the applicable RMS table.
Most modules use a single RETL flow and do not require the use of
restart and recovery. If the extraction process fails for any reason, the
problem can be fixed, and the entire process is started again without the loss
of data. No RMS to RPAS extraction programs has any restart/recovery
capability. The single RMS load program, rmsl_rpas_forecast.ksh, takes
a text file as its input, and the following choices are available, that enables
the program to complete the load in the event of an error:
a. Re-run
the program with the entire input file.
b. Re-run
the program with only the input records that were not processed successfully
the first time.
Message logs are written daily in a format as described in this
section.
Every RETL program writes a message to the daily log file when it
starts and when it finishes. In some cases, progress messages are also written.
The name and directory of the daily log file is set in the configuration script
(rmse_rpas_config.env). The directory defaults to $RDF_HOME/log. All log files
are encoded UTF-8.
The naming convention of the daily log file defaults to the
following “dot” separated file name:
§
The business virtual date for which the modules are run.
§
The log file format should be ‘.log’.
For example, the location and the name of the log file for the
business virtual date of January 5, 2001 would be the following:
$RDF_HOME/log/20010105.log
As the following examples illustrate, every message written to a
log file has the name of the program, a timestamp, and either an informational
or error message. For example:
rmse_rpas_item_retail 17:09:07: Program started ...
rmse_rpas_item_retail 17:09:12: Program completed successfully
Some error messages are also written to the log file, such as ‘No output file specified’.
In addition to the daily log file, each program also writes its
own detailed flow and error messages. Rather than clutter the daily log file
with these messages, each program writes out its errors to a separate error
file unique to each execution.
If a program finishes unsuccessfully, a message is usually
written in the error file that indicates where the problem occurred in the
process.
The name and directory of the program error file is set in the
applicable configuration file (rmse_rpas_config.env). The directory defaults to
$RDF_HOME/error. All errors and all routine processing messages for a
given program on a given day go into this error file (for example, it contains
both the stderr and stdout produced during execution of the program).
The naming convention for the program’s error file defaults to
the following “dot” separated file name:
§
The program name
§
The business virtual date for which the module was run
For example, all errors and detailed log information for the rms_item_master.ksh
program would be placed in the following file for the batch run on the business
virtual date of January 5, 2001:
$MMHOME/error/rms_item_master.20010105
RMSE extract modules may produce a reject file if they encounter
data related problems, such as the inability to find data on required lookup
tables. The module tries to process all data and then indicates that records
were rejected so that all data problems can be identified in one pass and
corrected; then, the module can be re-run to successful completion. If a module
does reject records, the reject file is not removed, and the user is
responsible for removing the reject file before re-running the module. The records
in the reject file consist of the rejected records.
The name and directory of the reject file are defined in the
applicable configuration script (rmse_rpas_config.env). The directory defaults
to $RDF_HOME/data.
Note:
A directory specific to reject files can be created. The rmse_rpas_config.env
script would need to be changed to define the reject directory constant such
that it would point to that directory.
The naming convention for the reject file defaults to the
following “dot” separated file name:
§
The program name.
§
The first filename, if one is specified on the command line.
§
The file format should be as ‘.rej’.
§
The business virtual date for which the module was run.
RETL uses schema files to specify the format of incoming or
outgoing datasets. The schema file defines each column’s data type and format,
which is then used within RETL to format/handle the data. For more information
about schema files, see the latest RETL Programmer’s Guide. Schema file names
are hard-coded within each module because they do not change on a day-to-day
basis. All schema files end with “.schema” and are placed in the
“$RDF_HOME/rfx/schema” directory.
The only programs or scripts that allows the command line
parameters (or arguments) are:
§
rmse_rpas_config.env script
§
pre_rmse_rpas.ksh
§
rmse_rpas.ksh programs.
All of the command line parameters for these modules are optional
and are described in section rmse_rpas_config.env, the
square brackets indicate that the parameter is optional.
Usage: $RDF_HOME/rfx/etc/rmse_rpas_config.env [-t
$*] [-r $*] [-s $*] [-v $* | -c $*]
Description of Command Line Options
Note:
See the end of this description for an explanation of the need for the ‘$*’
that appears after each command line option.
§
-t: This option causes rmse_rpas_config.env
to skip the initializing of the environment variables that obtains the values
from the ‘.txt’ files, except for VDATE which is initialized with the date
found in the vdate.txt file. This option is utilized by pre_rmse_rpas.ksh,
rmse_rpas.ksh, rdft.ksh and outage.ksh when they call rmse_rpas_config.env.
§
-r:
This option prevents the redirection of all output (stdout and stderr) to the
error file. This can be useful during debugging and maintenance. This option
can also be utilized by rmse_rpas.ksh, rdft.ksh and outage.ksh when they call
rmse_rpas_config.env.
o The ‘-t’ and ‘-r’
options must be followed by ‘$*’ on
the line which invokes this script. This step is necessary in order to preserve
the command line arguments or options that may have been present on the command
line for the RETL script that invokes this script. However, the ‘$*’ must only appear once if both options are
used.
§
-s:
This option causes rmse_rpas_config.env to skip the STATUS_FILE
test. This is also useful during maintenance and debugging.
§
-v:
If DATE_TYPE (in rmse_rpas_config.env) is set to ‘vdate’, this option prevents
the normal exit with an error message when the vdate.txt file is empty or
non-existent; instead, it uses the current date to derive FILE_DATE. However,
if DATE_TYPE is set to ‘vdate’, and
vdate.txt actually does exist and is non-empty, the date in vdate.txt continues
to be used even if this option is set. If DATE_TYPE is set to ‘current_date’, this option has no effect.
§
-c:
This option overrides the DATE_TYPE switch setting and causes the current date
to be used to derive FILE_DATE regardless of what DATE_TYPE is set to. This
option is utilized by pre_rmse_rpas.ksh when it calls rmse_rpas_config.env, if
it is run with the -c option on its command line. The ‘-c’
option is normally only used when rmse_rpas_config.env is called from
pre_rmse_rpas.ksh.
o If only
one command line option is used, it must be followed by ‘$*’.
But if more than one option is specified, then ‘$*’ must be entered on
the command line only once after all options have been entered. The ‘$*’
is necessary in order to preserve the command line arguments or options (if
there are any) that are present on the command line that is used to execute the
RETL script which invokes this script.
o If more
than one option is specified, options must appear on the command line in the
same order as shown on the “Usage” line, above.
pre_rmse_rpas.ksh
§
Usage: pre_rmse_rpas.ksh [-c]
§
The ‘-c’ option is used to specify what option is
to be placed on the rmse_rpas_config.env command line when it is called by this
program. It is usually used the first time that pre_rmse_rpas.ksh is run at a
new installation or if the state of the vdate.txt file is unknown. This option
is passed directly to rmse_rpas_config.env when it is called by
pre_rmse_rpas.ksh. No other use is made of this parameter by pre_rmse_rpas.ksh.
§
This option causes rmse_rpas_config.env to use the current date
to initialize FILE_DATE instead of possibly setting it to VDATE, which is
obtained from the vdate.txt file. (FILE_DATE is the date that is used to name
the error, log, and status files).
§
The current date is used regardless of how DATE_TYPE is set in
rmse_rpas_config.env. By using the ‘-c’ option, there is
no need to manually set up the vdate.txt file before running this script.
§
The normal mode for pre_rmse_rpas.ksh (without the -c
option) is that when it calls rmse_rpas_config.env, FILE_DATE is set to VDATE
or the current date, depending on how DATE_TYPE is set in rmse_rpas_config.env.
If DATE_TYPE is set to ‘vdate’, and if the vdate.txt file does not exist or is
empty, rmse_rpas_config.env (and this program) exits with an error message.
§
The use of this option does not affect what date is used by any
of the other RETL scripts that run after this script is done. After
pre_rmse_rpas.ksh has run, when the other RETL scripts are run, they call
rmse_rpas_config.env with no options on the command line, and their files are
named using VDATE or the current date, depending on how DATE_TYPE is set in
rmse_rpas_config.env.
rmse_rpas.ksh
§
Usage: rmse_rpas.ksh [-c]
§
The presence of the ‘-c’ option causes
FILE_DATE in rmse_rpas_config.env to be set to the current date instead of
possibly using VDATE (which gets its value from the vdate.txt file), but only
when it is called by rmse_rpas.ksh and pre_rmse_rpas.ksh (pre_rmse_rpas.ksh is
invoked by rmse_rpas.ksh). It has no effect when other extract programs call
rmse_rpas_config.env, at the time that they are invoked by rmse_rpas.ksh. This
option is passed directly to rmse_rpas_config.env and pre_rmse_rpas.ksh when
they are called by rmse_rpas.ksh. No other use is made of this parameter by
rmse_rpas.ksh.
Note: During the rmse_rpas_config.env configuration to
connect to the JDBC, enter the connection details as follows:
jdbc:oracle:thin:@<DB host server>:<PORT ID>:<connection
string>. For example, oracle:thin:@msp52417.us.oracle.com:1521:dolsp01app.
RMSE I/O File Names
Most of the output path/filenames have the format,
$DATA_DIR/(RMSE_RPAS_program name).dat. Similarly, the schema format for the
records in these files are specified in the file - $SCHEMA_DIR/(RMSE_RPAS_program
name).schema.
The following examples illustrate typical run and debugging
situations for programs. The log, error, etc. file names referenced below assumes
that the module is run on the business virtual date of March 9, 2001. For more
information on naming convention, see File Naming
Conventions section.
For example:
To run rmse_rpas_stores.ksh:
1. Change
directories to $RDF_HOME/rfx/src.
2. At
a UNIX prompt ($) enter:
$rmse_rpas_stores.ksh
If the module runs successfully, the following results:
3. Log
file: Today’s log file, 20010309.log, contains the messages “Program
started …” and “Program completed successfully” for rmse_rpas_stores.
4. Data:
The rmse_rpas_stores.dat file exists in the data directory and contains the
extracted records.
5. Schema:
The rmse_rpas_stores.schema file exists in the schema directory and contains
the definition of the data file in #2 above.
6. Error
file: The program’s error file, rmse_rpas_stores.20010309, contains the
standard RETL flow (ending with “All threads complete” and “Flow ran
successfully”) and no error messages.
7. Program
status control: The program status control file,
rmse_rpas_stores.status.20010309, will not exist.
8. Reject
file: The reject file, rmse_rpas_stores.rej.20010309, will not exist.
If the module does not run successfully, the
following results:
9. Log
file: Today’s log file, 20010309.log, does not contain the “Program
completed successfully” message for rmse_rpas_stores.
10. Data:
The rmse_rpas_stores.dat file may exist in the data directory but may not
contain all the extracted records.
11. Schema:
The rmse_rpas_stores.schema file exists in the schema directory and contains
the definition of the data file in #2 above.
12. Error
file: The program’s error file, rmse_rpas_stores.20010309, may contain one
or more error messages.
13. Program
status control: The program status control file,
rmse_rpas_stores.status.20010309, exists.
14. Reject
file: The reject file, rmse_rpas_stores.status.20010309, does not exist
because this module does not reject records.
To re-run the module, perform the following actions:
15. Determine
and fix the problem causing the error.
16. Remove the
program’s status control file.
17. Change
directories to $RDF_HOME/rfx/src. At a UNIX prompt, enter: $rmse_rpas_stores.ksh
This section covers information about the configuration of
RPAS/AIP. It gives an overview of handling installation and configuration in
RMS ETL.
This section summarizes the RETL program features utilized in the
RMS Extractions (RMSE) for the RMS–time-phased inventory planning tool
integration. Starting with RMS version 11, the RMS extract for a time-phased
inventory planning tool is separate from the RMS extracts for RPAS. In prior
RMS version, time-phased inventory planning tool and RPAS had common RETL
extracts.
More installation information about the RETL tool is available in
the latest RETL Programmer’s Guide.
Note:
In this section, some examples refer to RETL programs that are not related to
RMS or are related to other versions of RMS than this document addresses. Such
examples are included for illustration purposes only.
Select a directory where you would like to install RMS ETL. This
directory (also called MMHOME) is the location from which the RMS ETL files are
extracted.
The following code tree is utilized for the RETL framework during
the extractions, transformations, and loads and is referred to in this
documentation.
<base directory (MMHOME)>
/data
/error
/log
/rfx
/bookmark
/etc
/lib
/schema
/src
Before trying to configure and run RMS RETL, install RETL version
13.0 or later, which is required to run RMS ETL. For thorough installation
process, see the latest RETL Programmer’s Guide.
RMS ETL is installed and run as the RETL user. Additionally, the
permissions are set up as per the RETL Programmer’s Guide. RMS ETL reads data,
creates, deletes and updates tables. If these permissions are not set up
properly, extractions fail.
To set up RETL environment variable for the RETL version you have
installed, see RETL Programmers Guide. You will need to set MMHOME to your base
directory for RMS RETL. This is the top level directory that you selected
during the installation process (see the section, ‘Installation’, above). In
your .kshrc, you should add a line such as the following:
export MMHOME=<base directory for RMS ETL>
There variables you must be change depending upon your local
settings:
For example:
export DBNAME=int9i
export RMS_OWNER=steffej_rms1011
export BA_OWNER=rmsint1011
You must set up the wallet alias in the rmse_aip_config.env. The
wallet and wallet alias creation is required to use programs in a secured mode.
The following variables must be setup RETL_WALLET_ALIAS, ORACLE_WALLET_ALIAS,
SQLPLUS_LOGON.
Make sure to review the environmental parameters in the
rmse_aip_config.env file file before executing batch modules.
Steps to Configure RETL
1. Log
in to the UNIX server with a UNIX account that will run the RETL scripts.
2. Change
directories to <base_directory>/rfx/etc.
3. Modify
the rmse_aip_config.env script.
For example:
a. Change
the DBNAME variable to the name of the RMS database.
b. Change
the RMS_OWNER variable to the username of the RMS schema owner.
c. Change
the BA_OWNER variable to the username of the RMSE batch user.
Note: During the rmse_aip_config.env configuration to
connect to the JDBC, enter the connection details as follows: jdbc:oracle:thin:@<DB
host server>:<PORT ID>:<connection string>. For example, oracle:thin:@msp52417.us.oracle.com:1521:dolsp01app.
RETL program uses one return code to indicate successful
completion. If the program successfully runs, a zero (0) is returned. If the
program fails then, zero is not returned.
To prevent a program from running while the same program is
already running against the same set of data, the code utilizes a program
status control file. At the beginning of each module, rmse_aip_config.env is
run. These files check for the existence of the program status control file. If
the file exists, then a message stating, ‘${PROGRAM_NAME} has already started’,
is logged and the module exits. If the file does not exist, a program status
control file is created and the module executes.
If the module fails at any point, the program status control file
is not removed, and the user is responsible for removing the control file
before re-running the module.
The naming convention of the program status control file allows a
program whose input is a text file to be run multiple times at the same time
against different files.
The name and directory of the program status control file is set
in the applicable configuration file (rmse_aip_config.env). The directory
defaults to $MMHOME/error. The naming convention for the program status control
file itself defaults to the following dot separated file name:
§
The program name.
§
The status of the program name should be specified in ‘status’.
§
The business virtual date for which the module was run.
For example, a program status control file for one program is
named as follows for the batch run of January 5, 2001:
$MMHOME/error/rmse_aip_banded_item.status.20010105
Because RETL processes all records as a set, as opposed to one
record at a time, the method for restart and recovery must be different from
the method that is used for Pro*C. The restart and recovery process serves the
following two purposes:
1. It
prevents the loss of data due to program or database failure.
2. It
increases performance when restarting after a program or database failure by
limiting the amount of reprocessing that needs to occur.
The RMS Extract (RMSE) module extracts a source transaction
database or text file and writes to a text file. The RMS Load (RMSL) modules
import data from flat files, performs transformation if necessary and then loads
the data into the applicable RMS tables.
Most modules use a single RETL flow and do not require the use of
restart and recovery. If the extraction process fails for any reason, the
problem is fixed, and the entire process runs from the beginning without the
loss of data. For a module that takes a text file as its input, the following
two choices are available that enables the module to be re-run from the
beginning:
3. Re-run
the module with the entire input file.
4. Re-run
the module with only the records that were not processed successfully the first
time and concatenate the resulting file with the output file from the first
time.
To limit the amount of data that needs to be re-processed, more
complicated modules that require the use of multiple RETL flows utilize a
bookmark method for restart and recovery. This method allows the module to be
restarted at the point of last success and run to completion. The bookmark
restart/recovery method incorporates the use of a bookmark flag to indicate
which step of the process should be run next. For each step in the process, the
bookmark flag is written to and read from a bookmark file.
Note:
If the fix for the problem causing the failure requires changing data in the
source table or file, then the bookmark file must be removed and the process
must be re-run from the beginning in order to extract the changed data.
Message logs are written daily in a format described in this
section.
Every RETL program writes a message to the daily log file when it
starts and when it finishes. The name and directory of the daily log file is
set in the configuration file (rmse_aip_config.env). The directory defaults to
$MMHOME/log. All log files are encoded UTF-8.
The naming convention of the daily log file defaults to the
following “dot” separated file name:
§
The business virtual date for which the modules are run
§
‘.log’
For example, the location and the name of the log file for the
business virtual date of January 5, 2001 would be the following:
$MMHOME/log/20010105.log
As the following examples illustrate, every message written to a
log file has the name of the program, a timestamp, and either an informational
or error message:
aipt_item 17:07:43: Program started ...
aipt_item 17:07:50: Program completed successfully
rmse_aip_item_master 17:08:53: Program started ...
rmse_aip_item_master 17:08:59: Program completed successfully
rmse_item_retail 17:09:07: Program started ...
rmse_item_retail 17:09:12: Program completed successfully
If a program finishes unsuccessfully, an error file is usually
written that indicates where the problem occurred in the process. There are
some error messages written to the log file, such as ‘No output file
specified’, that require no further explanation written to the error file.
Program Error File
In addition to the daily log file, each program also writes its
own detail flow and error messages. Rather than clutter the daily log file with
these messages, each program writes out its errors to a separate error file
unique to each execution.
The name and directory of the program error file is set in the
applicable configuration file (rmse_aip_config.env). The directory defaults to
$MMHOME/error. All errors and all routine processing messages for a
given program on a given day go into this error file (for example, it will
contain both the stderr and stdout from the call to RETL). All error files are
encoded UTF-8.
The naming convention for the program’s error file defaults to
the following “dot” separated file name:
§
The program name
§
The business virtual date for which the module was run
For example, all errors and detail log information for the rms_aip_item_master
program would be placed in the following file for the batch run of January 5,
2001:
$MMHOME/error/rms_aip_item_master.20010105
RMSE extract and transformation modules may produce a reject file
if they encounter data related problems, such as the inability to find data on
required lookup tables. The module tries to process all data and then indicates
that records were rejected so that all data problems can be identified in one
pass and corrected; then, the module can be re-run to successful completion. If
a module does reject records, the reject file is not removed, and the user is
responsible for removing the reject file before re-running the module.
The record in the reject file contains an error message and key
information from the rejected record. The following example illustrates a
record that is rejected due to problems within the currency conversion library:
Currency Conversion Failed|101721472|20010309
The following example illustrates a record that is rejected due
to problems looking up information on a source table:
Unable to find item_master record for Item|101721472
The name and directory of the reject file is set in the applicable
configuration file (rmse_config.env or config.env). The directory defaults to
$MMHOME/data.
Note:
A directory specific to reject files can be created. The rmse_config.env and/or
config.env file would need to be changed to point to that directory.
The naming convention for the reject file defaults to the
following “dot” separated file name:
§
The program name
§
The first filename, if one is specified on the command line
§
‘rej’
§
The business virtual date for which the module was run
For example, all rejected records for the slsildmex
program would be placed in the following file for the batch run of January 5,
2001:
$MMHOME/data/slsildmex.slsildmdm.txt.rej.20010105
RETL uses schema files to specify the format of incoming or
outgoing datasets. The schema file defines each column’s data type and format,
which is then used within RETL to format/handle the data. For more information
about schema files, see the latest RETL Programmer’s Guide. Schema file names
are hard-coded within each module since they do not change on a day-to-day
basis. All schema files end with “.schema” and are placed in the “rfx/schema”
directory.
In order for each RETL module to run, the input/output data file
paths and names may need to be passed in at the UNIX command line.
Most RMSE and transformation modules do not require the passing
in of any parameters. The output path/filename defaults to $DATA_DIR/(RMSE and
transfer program name).dat. Similarly, the schema format for the records in
these files are specified in the file - $SCHEMA_DIR/(RMSE program name).schema.
The scripts below are run on a full snapshot basis. The parameter
is F (for
full snapshot).
§
rmse_aip_store_cur_inventory.ksh
§
rmse_aip_wh_cur_inventory.ksh
The following examples illustrate typical run and debugging
situations for types of programs. The log, error, and other file names
referenced below assume that the module is run on the business virtual date of
March 9, 2001. See the previously described naming conventions for the location
of each file.
For example:
To run rmse_aip_store.ksh:
1. Change
directories to $MMHOME/rfx/src.
2. At
a UNIX prompt enter:
%rmse_aip_store.ksh
If the module runs successfully, the following results:
§
Log file: Today’s log file, 20010309.log, contains the
messages “Program started …” and “Program completed successfully” for
rmse_aip_store.
§
Data: The rmse_aip_store.dat file exists in the data
directory and contains the extracted records.
§
Schema: The rmse_aip_store.schema file exists in the
schema directory and contains the definition of the data file in #2 above.
§
Error file: The program’s error file,
rmse_aip_store.20010309, contains the standard RETL flow (ending with “All
threads complete” and “Flow ran successfully”) and no additional error
messages.
§
Program status control: The program status control file,
rmse_aip_store.status.20010309, does not exist.
§
Reject file: The reject file, rmse_aip_store.rej.20010309,
does not exist because this module does not reject records.
§
If the module does not run successfully, the following
results:
§
Log file: Today’s log file, 20010309.log, does not contain
the “Program completed successfully” message for rmse_stores.
§
Data: The rmse_aip_store.dat file may exist in the data
directory but may not contain all the extracted records.
§
Schema: The rmse_aip_store.schema file exists in the
schema directory and contains the definition of the data file in #2 above.
§
Error file: The program’s error file,
rmse_aip_store.20010309, may contain an error message.
§
Program status control: The program status control file,
rmse_aip_store.status.20010309, exists.
§
Reject file: The reject file,
rmse_aip_store.status.20010309, does not exist because this module does not
reject records.
To re-run the module, perform the following actions:
1. Determine
and fix the problem causing the error.
2. Remove
the program’s status control file.
3. Change
directories to $MMHOME/rfx/src. At a UNIX prompt, enter: %rmse_aip_store.ksh.
12
Internationalization is the process of creating software that can
be translated more easily. Changes to the code are not specific to any particular
market. RMS is internationalized to support multiple languages.
This section describes configuration settings and features of the
software that ensure that the base application can handle multiple languages.
Translation is the process of interpreting and adapting text from
one language into another. Although the code itself is not translated,
components of the application that are translated may include the following:
§
Graphical user interface (GUI)
§
Error messages
§
Reports
§
Spreadsheets
The following components are not translated:
§
Documentation (online help, release notes, installation guide,
user guide, operations guide)
§
Batch programs and messages
§
Log files
§
Configuration tools
§
Demonstration data
§
Training materials
The user interface for RMS is translated into:
§
Chinese (simplified)
§
Chinese (traditional)
§
Croatian
§
Dutch
§
English
§
French
§
German
§
Greek
§
Hungarian
§
Italian
§
Japanese
§
Korean
§
Polish
§
Portuguese (Brazilian)
§
Russian
§
Spanish
§
Swedish
§
Turkish
Several of the RMS entities supports translation in which the
name or description or some text field for that entity can be maintained in
other supported languages in addition to the data integration language for that
installation. There are more than 100 tables for which a corresponding
translation tables exists. The general naming convention for the translation
table is to suffix the entities table name with _TL. For example,
ITEM_MASTER_TL is the translation table for ITEM_MASTER.
The entities in the translation table are loaded based on the
usage of the entities. The entities which are populated during install time
also contain the seed script in all supported languages. This includes tables
such as UOM_LANG, CODE_DETAIL.
The entities which are user created will have the capability to
maintain the translation values for individual entities. This includes entities
such as items, merchandise hierarchy. The translation support is “inbuilt” in
both user interface for entities maintained via UI and also in spreadsheet as a
separate worksheet for entities maintained via spreadsheet upload.
The user can select a preferred language through the RMS UI user
preference menu. The language selected in user preference can be defaulted for
all subsequent logins for that user or can be configured only for that session
only. The default language for the user if the user preference is not set is
the browser default language.
Note:
During installation, the primary language for the installation is English. This
can be changed to any one of the supported language during installation or even
after installation. The primary language is also referred as Data Integration
language. All the inbound and outbound integration with RMS will always have
the names, descriptions, and so on in the data integration language only even
though those values are maintained in multiple languages.
For every user session, the application user language is updated
to Database SYS_CONTEXT with the namespace RETAIL_CTX and the parameter
APP_ISO_LANGUAGE. The backend packages and database views refers to the
application user language and for the entities supporting language entries, the
data is fetched in the application’s user language.
The data presented in the screen, in which the entities
supporting translation is maintained, changes depending on the user language
configuration and the mode in which the user launches the screen.
The values loaded in the base table of the entity are always
maintained in the data integration language for the installation. All users,
irrespective of the configured language, maintain the name or description field
for that entity during Create or Edit mode in data integration language only.
If the user enters an entity page in View mode, the name or
description field for that entity is visible in the user language if entries
exist in the entities translation table for the user language. If the user
language entry is not same as data integration language and there are no
entries in entities translation table, the data in the data integration
language is presented to the user.
The entities which support translation and are maintained through
the user interface have two ways to maintain the translation entry through the UI.
1. In
the main entity page, the user is presented with a globe icon. Clicking on the
globe icon opens a translation popup in which the user is able to view and
maintain other language entries for that entity and the columns that support
translation. For example, in the case of the Item screen, the user is allowed
to maintain translation values in all supported language for item description,
short description and secondary description. The language entries for item are
maintained in the item_master_tl table.
2. A
generic Translation screen is available on the left navigation link to allow
for the maintenance of data across multiple entities through a single screen.
The user can choose the entity for which translation entries have to be
maintained, and all the data for that entity will be presented to the user. The
user can choose to filter to identify the specific record, and for that record,
the translation entry in all supported language can be maintained.
The two translation screens above get dynamically rendered based
on metadata of the translation tables.
The metadata tables used by the translation screens are
§
TRANSLATE_METADATA to hold the table to column mapping and the
variable mapping to interact with the PLSQL package where the updates to the
database table are implemented.
§
TRANSLATE_METADATA_TABLE to hold the list of tables supported by
the generic translation screen.
The spreadsheet upload process supports maintenance of the
translation entry for entities having translation support and maintained via
spreadsheet uploads. The spreadsheet has an additional worksheet with the
default name of the worksheet suffixed with _TL to indicate that it is a
translation worksheet. The maintenance of names or description columns in
primary language occurs via the worksheet for the base entity. The maintenance
of the translatable columns in the non-data integration language occurs using
the translation worksheet.
13
Integrating
RMS with Store Inventory Management
Oracle Retail Store Inventory Management (ORSIM or SIM) is a Java
based application with multitier architecture. SIM assists store operation,
tracking item and item inventory with all the integrated systems.
SIM helps store personnel in performing the following in-store
operations:
§
Receiving merchandise from the warehouse or directly from the
vendor.
§
Replenishing and order stock.
§
Requesting and implementing price changes.
§
Managing physical inventories and performing stock count.
§
Lookup for the detailed information about merchandise items,
suppliers, containers, and customer orders.
§
Transferring or returning stock.
SIM function includes administration, shipping, receiving,
inventory management, lookups and reporting.
The administration function is performed either by the SIM
administrator or the Manager. The function includes:
§
Setup and technical maintenance of SIM.
§
Security setup to define SIM users and their roles.
§
Setup and maintenance of serial numbers that are Unique
Identification Numbers (UIN) based.
The usage of serial numbers for item is an optional feature.
The inventory management function helps to maintain an accurate
perpetual store Inventory for the Stock Counts, Sequencing, Pick Lists, Item Requests,
Store Orders, Price Changes, and Ticketing.
The inventory management system provides detailed information
about inventory items, suppliers, containers and customer orders which are
created in RMS. You can check for the related information in parallel. For
example, when you are checking for an item, the supplier information of the
item can also be viewed.
Using inventory management, you can perform lookup along with the
other SIM tasks. For example, lookup for an item while preparing an item
request or lookup for a supplier information when preparing the store order.
SIM includes many standard reports, which can be customized as
per your requirement. SIM uses Oracle BI Publisher as an interface for the SIM
reports. The SIM reports are custom designed as per the organizational
requirement. The BI Publisher interface is also customized to organize and
present the reports available to the SIM users.
All the location, item and supplier information are created in
RMS whether it is ranged or not ranged to a store, flows to SIM using the RIB
Adapter.
Supplier is created in RMS. The details of the supplier are sent
to SIM through RIB.
RIB Validation: After successful execution of the batches, check
for the stores in the RIB.
§
Vendor_Publisher in
RIB-RMS
§
Vendor_Subscriber
in RIB-SIM
When
RIB message shows as succeeded, the vendor will be available in the SIM.
Merchandise hierarchy includes Department, Class, and Sub-Class
which are created in RMS. After they are created successfully in RMS, the
details are sent to SIM through RIB.
RIB Validation: After successful execution of the batches, check
for the stores in the RIB.
§
MerchHier_Publisher
in RIB-RMS
§
MerchHier_Subscriber
in RIB-SIM
When
RIB message shows as succeeded, the Department, Class and Subclass is available
in SIM.
When a warehouse is created in the RMS, the details of warehouse
are sent to SIM through RIB.
RIB Validation: After successful execution of the batches, check
for the stores in the RIB.
§
WH_Publisher in
RIB-RMS
§
WH_Subscriber in
RIB-SIM
When
RIB message shows as succeeded, warehouse will be available in SIM.
The SIM Store function allows you to set operating parameters for
stores managed with SIM. The Store is created in RMS and flows to SIM
application.
RIB Validation: After successful creation of the stores,
check for the stores message in the RIB.
§
Stores_Publisher in
RIB-RMS
§
Store_Subscriber in
RIB-SIM
When
RIB message shows as succeeded, the store is available in SIM.
You can add, change, and delete reason codes used for inventory
adjustments. In addition to showing the reasons for inventory adjustments, the reason
code specifies how inventory adjustments affect stock on hand, unavailable
inventory, or customer order reserve inventory.
Note: The Reason Codes created in SIM
must be mapped to the RMS Inventory Adjustment Reason Codes.
To add an Inventory Adjustment Reason in SIM:
1. Navigate
and select Admin > Setup > Inv. Adj. Reason. >The
Inventory Adjustment Reason Maintenance window opens.
2. Click
Add.
3. Enter
ID: 123.
4. Description:
Test Inventory Reason Code.
5. The
UI must be check.
6. Select
Stock on Hand from the Disposition dropdown list.
7. Click
Done.
8. Validate
the database in the INV_ADJUSTMENT_REASON table.
9. When
the Inventory reason code is set up in SIM, it must be mapped to RMS.
To map Inventory Adjustment Reasons in RMS:
1. Navigate
to Foundation Data à Data Loading à Upload.
2. In
Upload Data, select Inventory from the Template Type choice list.
3. Select
Inventory Status and Adjustment Reasons from the Template list of values. The
Process Description field gets auto-populated.
4. Click
on the Browse button and select the data file with the Inventory Adjustment
Reason values.
5. Click
Upload to upload the values in the file into RMS. An information message
will appear to confirm that the upload was processed successfully. Click OK on
the information message.
6. Click
Done to close the screen.
Database Validation
|
Functionality
|
SIM Table
|
RMS Table
|
|
Inventory Adjustment Reason
|
INV_ADJUSTMENT_REASON
|
INV_ADJ_REASON
|
To
create a Diff ID in RMS, navigate and select Items > Diffs > Diff
Group/Diff IDs.
RIB Validation: Validate the details in RIB.
§
Diffs Publisher in RIB-RMS
§
Diffs Subscriber in RIB-SIM
When the Diff ID is available in both publisher and subscriber,
it will be available in SIM.
You can create the item with diff or without diff in RMS. To
create you must navigate and select Item> Items. Select the items to
be created in RMS. If you have associated the stores to the item, then you can
validate the item availability in SIM.
RIB Validation: Validate the details in RIB.
§
Items Publisher (for item) and ItemLoc Publisher (For location)
in RIB-RMS.
§
Items Subscriber and ItemLoc Subscriber in RIB-SIM.
§
When the item and location are available in publisher and
subscriber, it will be available in SIM.
Database Validation
|
Functionality
|
SIM Table
|
RMS Table
|
|
Item
|
ITEM
|
ITEM_MASTER
|
|
Country of Manufacture
|
SUPPLIER_ITEM_MANUFACTURE
|
ITEM_SUPP_MANU_COUNTRY
|
|
Item Supplier Relationship
|
SUPPLIER_ITEM
|
ITEM_SUPPLIER
|
|
Item Supplier Relationship
|
SUPPLIER_ITEM_COUNTRY
|
ITEM_SUPP_COUNTRY
|
|
Item Location Relationship
|
STORE_SEQUENCE_ITEM
|
ITEM_LOC
|
To view SIM GUI item lookup:
1. Log
in to SIM and select the associated store.
2. Navigate
and select Lookups > Item Lookup.
3. Enter
the item created in RMS and search.
4. You
get the details with the diff (optional) available in the Merchandise Hierarchy
block.
There are different types of transactions created and maintained
in SIM.
1. Purchase
Order
2. Transfer
3. Return
to Warehouse
4. Return
to Vendor
5. Store
Order
6. Inventory
Adjustment
7. Stock
Count
8. Price
Change
To create a purchase order in RMS for a store you must navigate
and select Ordersà Create
Order. When the order is created and submitted, approve the Purchase Order
(PO). The order details is be sent to SIM successfully.
RIB Validation: When the purchase order is create, make sure to
verify the order number for the following:
§
Order_Publisher in
RIB-RMS
§
Order_Subscriber in
RIB-SIM
Receiving the Order in SIM
The Purchase Order is received with different combinations as
given below:
1. Receive
with Exact Quantity.
2. Under
Receive
Quantity.
3. Over
Receive Quantity.
4. Receive
with Damage Quantity.
5. PO
On The FLY – In this scenario, the Purchase Order is created in SIM and not
RMS. This can be done based on the item and supplier’s detail, when we have the
details in SIM a PO is displayed.
Transfer implies to movement of goods from one location to
another. Accordingly to SIM, transfer is either store to store transfer or
warehouse to store transfer. Transfers can be generated in SIM also.
Store To Store Transfer
The Store to Store transfer is created for the movement of goods
from Store A to Store B.
RIB Validation:
§
Verify the Stock-Order/Transfer in Transfer_Publisher in RIB-RMS.
§
Verify the Stock-Order/Transfer in StockOrder_Subscriber in
RIB-SIM.
To receive a transfer, select the receiving store in the SIM
login form. For dispatching transfer from store to store:
1. Log
in to the correct FROM store.
2. Navigate
and select > Shipping/Receiving > Transfers.
3. Double-click
the record and update the quantity column with the unit which needs to be
transferred. The transfer functionality supports both overage and underage.
4. Click
Dispatch and accept the warnings.
RIB Validation: When the dispatch is completed, a message is sent
to RMS.
§
ASNOut_Publisher in
RIB SIM
§
ASNOut_Subscriber in
RIB RMS
To receive the transfer from store to store:
5. Log
in to the correct TO store.
6. Navigate
and select Shipping/Receiving > Transfers.
7. Double-click
the record and updates the quantity column with the unit which needs to be
transferred. The transfer functionality supports overage and underage.
8. Click
Receive All and accept the warning.
RIB Validation: When the receiving is done, a message is
sent to RMS. Verify the order number in:
§
Receiving_Publisher in RIB-SIM
§
Receiving _Subscriber in RIB-RMS
RMS Database Validation
§
Stock on Hand gets updated in ITEM_LOC_SOH table in RMS. Received
quantity is deducted from FROM store and added in TO store.
§
Tran code 37 and 38 is posted in TRAN_DATA table.
In this case of transfer, the goods are moved from warehouse to
another store. The user must login to the receiving store to receive the
transfer. Before receiving in SIM, the transfer must to be shipped from the
corresponding warehouse.
To receive the transfer from Warehouse to Store:
1. Log
in to the correct TO store.
2. Navigate
and select Shipping/Receiving > Warehouse Delivery.
3. Double-click
the container ID which has received from Warehouse.
4. Edit
quantities or record damages.
5. Click
Receive. The status changes to Received.
6. Click
Confirm and accept the warning message.
RIB Validation: When the transfer is received, a message
is sent to RMS. Verify the order number in:
§
Receiving_Publisher in RIB-SIM
§
Receiving _Subscriber in RIB-RMS
RMS Database Validation:
§
Stock on Hand gets updated in ITEM_LOC_SOH table in RMS. Received
quantity is deducted from FROM Warehouse and added in TO store.
§
Tran code 30 and 32 is posted in TRAN_DATA table.
SIM
Database Validation:
§
STORE_ITEM_STOCK is increased in SOH for the store.
You can create the transfers from one store to another. No other
transfers are possible.
1. Navigate
and select Shipping/Receiving > Transfer > Create
Transfer.
2. Select
Transfer To store from the dropdown.
3. Enter
the item and shipped quantity.
4. Click
BOL and select the pickup date.
5. Click
Dispatch and accept the warning message.
To
receive the transfer on the FLY:
6. The
user must log in to the correct TO store.
7. Navigate
and select Shipping/Receiving > Transfers.
8. Double-click
on the record and updates the quantity column with the units which needs to be
transferred. The transfer functionality supports overage and underage.
9. Click
Receive All and accept the warning in the pop up.
10. Click Done
to save changes and confirm the transfer.
RIB Validation: When receiving is done, message is sent to
RMS. Verify the order number in:
§
Receiving_Publisher in RIB-SIM
§
Receiving _Subscriber in RIB-RMS
RMS Database Validation
§
Stock on Hand is updated in ITEM_LOC_SOH table in RMS. The
received quantity is deducted from FROM store and added in TO store.
§
Tran code 30, 32 and 22 is posted in TRAN_DATA table.
Note:
§
The Reason Codes created in SIM must be mapped to the RMS
Inventory Adjustment Reason Codes.
§
If the external ID is a number and the user is external it implies
that the transfer is generated in RMS.
§
If a transfer request is initiated in SIM this message is not
published in RMS or any other integrated application.
§
A transfer handles damaged quantities which in turn are put in
the non-sellable bucket in RMS.
§
Negative receiving though cannot be done nor can be transferred.
§
We can also receive multiple times against the same transfer for
the expected quantity. This action will be allowed as long as the transfer is
open and not restricted by expected quantity.
§
While transferring we can also add items which were not part of
the original transfer but we cannot remove the original item while we transfer
as long as we have stock on hand.
§
Non ranged items can also be part of the transfer. These are
items which are not ranged to that particular location but it is ranged by
raising the transfer.
You can create, edit, and dispatch returns from the store to a
company-owned warehouse, or directly to a vendor. If there is unavailable stock
for a returned item, you have an option to use items from unavailable stock for
the return. A completed (dispatched) return decreases available Stock on Hand.
The store to warehouse transfer is created in RMS, which is
displayed as a return to warehouse in SIM. A similar transfer is created in
SIM.
Note: Unless the return is dispatched
from SIM, WMS cannot see the transaction.
Creating Return to Warehouse in SIM
To create a return to Warehouse in SIM:
1. Select
the correct store from the dropdown in the Login page.
2. Navigate
and select Shipping/Receiving > Returns.
3. Click
Create.
4. In
the Return Type field, select Warehouse from the dropdown.
5. Enter
warehouse, inventory status, authorization number, item details, reason to
return and quantity.
6. Click
Dispatch.
7. Click
Done to save the changes.
RIB Validation: After dispatch is cleared, a message is
sent to RMS.
Verify the order number in:
§
RTV_Publisher in RIB-SIM
§
RTV _Subscriber in RIB-RMS
A transfer (RTW) is created in RMS with APPROVED status.
RMS/SIM Database Validation
§
Stock on Hand gets updated in ITEM_LOC_SOH table in RMS. Inventory
must be reduced from SIM and RMS by correct quantity.
§
Tran code 30 and 32 is posted in TRAN_DATA table.
When initiated by RMS, a warehouse to store transfer is created
in RMS, and is returned back to warehouse then it is called Return to
Warehouse.
RMS functionality includes, create a transfer, return to
warehouse in RMS and APPROVE it.
RIB Validation: When the dispatch is completed, a message
is sent to RMS.
§
RTV_Publisher in RIB-RMS
§
RTV _Subscriber in RIB-SIM
§
Transfer_Publisher in RIB-RMS
Dispatching in SIM
To dispatch to SIM:
1. Select
the correct store from the login form.
2. Navigate
and select Shipping/Receiving > Returns.
3. Select
the transfer you need to return. The user ID will be external along with the
external ID number which indicates that the transfer originated in RMS.
4. Double-click
on the Record.
5. Update
the quantity column with the unit which needs to be returned.
6. Click
Dispatch and accept the warning message.
RIB Validation: When the dispatch is completed, a message is sent
to RMS.
§
RTV_Publisher in RIB-SIM
§
RTV _Subscriber in RIB-RMS
RMS/SIM Database Validation:
§
Stock on Hand is updated in ITEM_LOC_SOH table in RMS. Inventory
should be reduced from SIM and RMS by correct quantity.
§
Tran code 30 and 32 is posted in TRAN_DATA table.
Return to vendor can be created both in SIM and RMS.
Initiating SIM in RTV
Following the the steps to initiate SIM in RTV:
1. Select
the correct store from the dropdown in the login page.
2. Navigate
and select Main menu > Shipping/Receiving > Returns.
3. Click
Create.
4. In
the Return Type field, select Supplier from the dropdown.
5. Enter
supplier, authorization number, item details, reason to return and quantity.
6. Click
Dispatch.
RIB Validation: When the dispatch is done, message is sent
to RMS
§
RTV_Publisher in RIB-SIM
§
RTV _Subscriber in RIB-RMS
A transfer (RTV) is created in RMS.
RMS/SIM Database
Validation
§
Stock on hand gets updated in ITEM_LOC_SOH table in RMS
(Inventory should be reduced from SIM and RMS by correct quantity).
§
Tran code 24 is posted in TRAN_DATA table.
Initiating RMS in RTV
When a Return to vendor along with a mass return transfer is
created in RMS, and is returned back to vendor then it is called Return to
Vendor.
Steps for creating Returns in SIM:
1. Select
the correct store from the login form.
2. Navigate
and select Main menu > Shipping/Receiving > Returns.
3. Select
the transfer you need to return. (The user ID will be external along with the
external ID number which indicates that the transfer originated in RMS).
4. Double-click
on the record which needs to be returned.
5. Update
the quantity column with the units which need to be returned.
6. Click
Dispatch and accept the warning message.
RIB Validation: When dispatch is completed, message is
sent to RMS
§
RTV_Publisher in
RIB-SIM
§
RTV _Subscriber in
RIB-RMS
RMS/SIM Database Validation:
Stock on hand gets updated in ITEM_LOC_SOH table in RMS
(Inventory should be reduced from SIM and RMS by correct quantity). Tran code
24 is posted in TRAN_DATA table.
Store ordering allows to View, Create, Modify, and Approve orders
to a supplier or Transfer requests from a warehouse. Use store-level ordering
to order items that are not set up for automatic replenishment, when items run
short, or demand increases.
Create a store orders to replenish items for which you have the
authority to place orders from the store.
1. Log
in to SIM with the correct store.
2. Navigate
and select Inv Mgmt > Store Orders.
3. Click
Create Order.
4. Specify
a delivery date range.
5. Enter
Item number, quantity, and UOM.
6. Click
Done. Order is created in Pending Status.
1. Log
in to the SIM with the correct store.
2. Navigate
and select Inv Mgmt > Store Orders.
3. Double-click
on the store order to be approved.
4. Specify
a delivery date range.
5. Click
Approve. Order status is changed to Approved Status.
Database Validation
|
Functionality
|
SIM Table
|
RMS Table
|
|
Store Order
|
PRINT_STORE_ORDER_ITEM
|
STORE_ORDER
|
|
|
PRINT_STORE_ORDER
|
N/A
|
Inventory adjustments that you enter in SIM are supplied to the
merchandising system to adjust stock levels and maintain perpetual inventory. Inventory
adjustments increment or decrement inventory levels such as Stock on Hand and
unavailable inventory.
Each inventory adjustment contains a reason code that determines
the disposition of the inventory being adjusted. For example, inventory removed
for repair is added to the unavailable inventory and the Stock on Hand is
decreased. When the items are returned to inventory, unavailable inventory is
decreased and the Stock on Hand is increased.
1. Log
in to SIM with the store where you need to do the inventory adjustment.
2. Navigate
and select Inv Mgmt > Inventory Adjustment.
3. Click
Create.
4. Enter
the item number in the Item field.
5. Update
the UOM, Quantity, and Reason.
6. Click
Done.
Enter UINs for an Inventory Adjustment
If an item requires a serial number type UIN, the Quantity field
is disabled on the Inventory Adjustment Detail window.
7. Double-click
the UIN Qty field.
8. Click
Add.
9. Enter
valid number in the in the Unique Identification Number (UIN) field.
10. Click Save
to return to the Inventory Adjustment Detail window.
RIB Validation: When the Inventory adjustment is completed
in SIM, a message is sent to RMS to update the inventory stock. Message flows
through RIB:
§
InvAdjust_Publisher in RIB-SIM
§
InvAdjust_Subscriber in RIB-RMS
SIM TABLES Validation:
§
INV_ADJUSTMENT: STORE_ID, ITEM_ID, QUANTITY
RMS DATABASE Validation
§
INV_ADJ: ITEM, ADJ_QTY, LOCATION
§
INV_STATUS_QTY : ITEM, QTY
Stock counts are the principal tools to ensure that the perpetual
inventory for a store remains accurate. For maximum flexibility in performing
stock counts, SIM allows the following types of stock counts:
§
Unit - Unit stock counts are scheduled counts that update
the RMS and SIM inventory positions, but only for the physical count values.
These counts are performed on regular schedules.
§
Unit and Amount - A Unit and Amount count is an annual
count that can be used to adjust the financial systems in a corporate
merchandising system, in addition to updating inventory positions in SIM.
§
Problem Line - Problem Line stock counts are similar to
Unit counts. Problem Line product groups use.
Pre-defined criteria to the identify
problem items. For example, you might use a Problem Line count for all of the
items that have negative Stock on Hand values.
§
Ad hoc - An ad hoc stock count is an unscheduled stock
count that is initiated on a handheld device. An ad hoc count is similar to a
Unit count, but the items are not pre-assigned and there is no schedule.
Each stock count must be generated, except for ad hoc stock count
type. To generate a stock count, you must first create a product group and
schedule. Product groups can include a particular inventory item or entire
segments of the inventory hierarchy, including all items in a store.
Stock Counting Process
The general process to conduct a stock count in SIM is as
follows:
1. Create
the stock count product group.
2. Schedule
the stock count.
3. Perform
a stock count using both or any of the hand held devices or a personal
computer.
4. Recount
discrepant items, depending on whether the product group requires a recount.
5. Review
the count information and authorize the count quantities.
6. For
Unit and Amount counts, export the stock count results to the merchandising
system to update Stock on Hand.
The following diagram illustrates the general process flow.
General Process Flow
Executing a Stock Count
The steps to execute a stock count from start to finish are as
follows:
1. Take
a Snapshot.
2. Enter
Stock Count Results.
3. Enter
Recount Results.
4. Complete
a Child Stock Count.
5. Authorize
a Stock Count.
RIB Validations: When the Stock Count is schedule, a message
flows to RMS using RIB as interface:
§
StkCountSch_Publisher
in RIB-SIM
§
StkCountSch_Subscriber
in RIB-RMS
Using the Price Change function, you can request price changes for
items at your store. Price changes are set in the pricing system. The pricing
system might be in Oracle Retail Price Management (RPM) or another application.
You can request price changes only for items for which you can
control prices. This is controlled by an indicator at the store (location)
level. Your price change requests are submitted to the pricing system, where
they may be approved or rejected. After a price change is approved in the
pricing system, a price change event is sent from the pricing system to SIM.
A price change request that is approved in the pricing system
creates a pricing event that is sent back to SIM. For an approved price change,
you can print labels and tickets for the re-priced items.
You can request price changes for those items for which you are
allowed to make pricing changes at the store (location) level. For these items,
you can request changes to retail, promotion, or clearance pricing.
The request is sent to the pricing system, where it may be
approved or rejected. Your price change requests are checked for possible
conflicts. You cannot request price changes for items involved in complex
promotions (such as buy one, get one free). You cannot request multiple price
changes on the same day. Your request may be rejected if it conflicts with any
other pricing events.
To create price change and promotions in SIM:
1. Navigate
and select Inv Mgmt > Price Change.
2. Enter
search criteria to limit the price change requests that you want displayed, and
click Search.
3. Click
Create.
4. Enter
Item, start date, price change description and new price.
5. For
clearance or promotion, select end date.
6. Click
Done and accept the warning message.
RIB Validations: When the price is completed, a message is sent
to ORPM using RIB as interface.
§
PrcChgReq_Publisher
in RIB-SIM
SIM DATABASE VALIDATION
§
ITEM_PRICE : ID_ITM, EFFECTIVE_DATE, UNIT_RETAIL, STATUS.
14
Integrating RMS with Oracle E-Business Suite
Financials Using Oracle Retail Financial Integration
This chapter describes the integration between Oracle Retail
systems and Oracle E-Business Suite Financials (including Oracle General Ledger
and Oracle Payables), as developed and supported by Oracle Retail Financial
Integration (ORFI).
When the option to integrate is chosen, the selected information
is shared between the systems. Integration and validation services are in place
to ensure the shared data matches.
Note: This chapter addresses the points
within Oracle Retail systems that are essential to integration. For more
information about the entire integration process, including mapping to Oracle
E-Business Suite data and settings, see the ORFI documents, Oracle Retail
Financial Integration for Oracle Retail Merchandising Suite and Oracle
E-Business Suite Financials - Implementation Guide. For more information
about Web services, see the following chapters in the Oracle
Retail Merchandising System Operations Guide, Volume 2: "Service
Provider Implementations API Designs" and "Web Services”.
The following Oracle Retail applications are included in the
integration covered by this chapter:
§
Oracle Retail Merchandising System (RMS)
§
Oracle Retail Sales Audit (ReSA)
§
Oracle Retail Invoice Matching (ReIM)
§
Oracle Retail Integration Bus (RIB)
§
The option to integrate must be selected during initial set up of
the RMS system.
§
ReIM accesses RMS to determine if integration is active. The RMS
set up must be done before integrating with REIM.
§
The URLs for the RFI Web services that are necessary for this
integration are maintained in the RETAIL_SERVICE_REPORT_URL table and in the
ReIM IM_SYSTEM_OPTIONS table.
§
Real time account validation is done only when the financial
integration with Oracle E-Business Suite is ON.
§
Partners must be set up as suppliers in Oracle E-Business Suite
and manually set up in RMS using the RMS Supplier ID. The RMS supplier ID
generated when the Oracle E-Business Suite supplier is interfaced with Oracle
Retail. The RMS supplier generated as part of this process is not used.
§
Payment terms and freight terms are manually maintained.
Integration of Oracle Retail applications and Oracle E-Business
Suite Financials relies on synchronization of essential data, such as currency
exchange rates and suppliers. Through careful discussions, the users of both
systems determine the common codes and descriptions that will best serve their
business needs.
When an agreement is reached, this information is set up and
maintained. Depending on the volume, some shared information is set up in
Oracle Retail applications or in Oracle E-Business Suite and electronically
transferred to other systems. Otherwise, shared information is set up manually
within each system, and the users of both systems must ensure that the code and
the description match.
This section describes setup considerations for RMS data.
RMS System Options
As part of the RMS system options setup, set the following
options as indicated:
1. The
system_option indicates that the
Oracle Retail system is integrated with a financial system:
§
FINANCIAL_AP=A
2. A
value of A indicates that the financial system to which RMS is interfaced is
Oracle E-Business Suite through Oracle Retail Financial Integration (ORFI).
§
GL_ROLL_UP can be D/S/C
§
SUPPLIER_SITES_IND = Y
§
ORG_UNIT_IND = Y
Organization Units
Use the Upload Data screen (RMS Tasks List > Foundation
Data > Data Loading > Upload) to define organizational
units in RMS that match those being setup in Oracle E-Business Suite. When an
organizational unit is entered in RMS, the valid organizational units are those
associated with the Set Of Books (SOB) used for the general ledger interface.
Currency Exchange Rates
Currency exchange rate is used to translate the monetary value of
one currency in terms of another. Depending on business needs, a Currency
Exchange Rate Type of Operational or Consolidation is selected for use in all
transactions.
This value is set up manually in RMS and mapped to Oracle
E-Business Suite through the Currency Exchange Type mapping window.
Currency Exchange Rate data is owned by Oracle General Ledger and
updates are sent to Oracle Retail applications.
1. Determine
the Exchange Type being sent by Oracle General Ledger (for example,
Consolidation or Operational) that you want RMS to use.
2. Update
the FIF_CURRENCY_XREF for mapping the external exchange type being sent by
Oracle General Ledger with RMS Exchange Type. For example, for Consolidation
and Operational exchange types, the FIF_CURRENCY_XREF table holds the following
entries:
|
FIF_EXCHANGE_TYPE
|
RMS_EXCHANGE_TYPE
|
|
C
|
C
|
|
O
|
O
|
Supplier Address Types
Within RMS, supplier information (such as Order From and Remit To
addresses) is used for generating the purchase orders. Oracle Payables uses
supplier information for payment generation. It is important that this
information is synchronized.
Suppliers are created in Oracle Payables and exported to RMS.
When FINANCIAL_AP is set to A, suppliers cannot be created using the RMS screens.
However, if a supplier exists in RMS, all data values for the supplier (except
supplier name and status) are updated using the RMS screens. The association of
supplier sites to organization units is accessed only in view mode through RMS screens.
One supplier site per supplier and organization unit combination can be marked
as primary payment site.
Where SYSTEM_OPTIONS.FINANCIAL_AP is A, disable auto generate
supplier/partner numbers and associated check boxes.
Note: Supplier information is created, updated and
inactivated only in Oracle Payables. This information is transferred from
Oracle Payables to the participating Oracle Retail applications, where
additional retail-specific attributes are maintained.
Country Codes
When country codes are defined and seeded in RMS, ensure that
country codes are mapped to Oracle E-Business Suite country codes through RFI
DVM mapping. The following is an example of RFI DVM Mapping (Table
RFI_XREF_DVM, available in RFI schema in Retail.
|
EXT_SYSTEM_ID
|
COMMON_ID
|
RETL_ID
|
|
USA
|
700
|
US
|
|
CAN
|
701
|
CA
|
Financial Calendar
The financial calendar within Oracle Retail systems is manually
set up and maintained separately from the Oracle General Ledger financial
calendar.
Freight Terms
A freight term is an agreement between the retailer and a
supplier regarding transportation charges for goods delivered by the supplier.
Freight terms are used by RMS as purchase orders are generated.
Within the RMS system, freight terms are set up and maintained
manually. They are also maintained in Oracle Payables.
Payment Terms and Currency Exchange Rates
Currency, exchange rates are created and updated in Oracle General
Ledger and exported to RMS. Changes to Retail currency exchange rates are not
propagated to Oracle General Ledger. Payment terms, however, are manually set
up and maintained in each system.
Oracle E-Business Suite Financials Units and Site IDs
The data concepts of Org Units and Site IDs in RMS mirror the
data maintained in Oracle E-Business Suite. RMS screens are used to manage and
view Oracle Org Units and Site IDs. The RMS windows for Store and Warehouse
allow for the association of each store and warehouse with an Org Unit.
Store and Warehouse Maintenance
The organizational unit is found in the Store and Warehouse screens,
which allow the Oracle E-Business Suite operating unit to be associated with
the Store or Warehouse.
§
When RMS is set up for multi-channel operation, the
organizational unit is set up at the virtual warehouse level.
Financial sales audit and inventory information is identified
through interface routines and posted to the appropriate general ledger
accounts. An organizational unit must be designated for each Store and
Warehouse location in the RMS.
The following are examples of the Store and Warehouse screens:
Store Screen
Virtual Warehouse Screen
RMS General Ledger Setup
For RMS and ReSA, manual setup is required for validating the
chart of accounts. Valid chart of accounts are created and stored in general
ledger cross reference tables. Once the validation is completed, transaction
data is assigned to specific account codes.
Ongoing maintenance of the chart of accounts information (such as
adding, changing, or deleting chart of accounts) requires re-validation. In
this regard, Oracle General Ledger is the system of record, as it is used to
verify the chart of accounts used by Oracle Retail applications. When these applications
send a chart of accounts for validation, Oracle General Ledgers issues a
message with:
§
Valid or invalid status
§
Response date
§
Chart of accounts
The RMS table FIF_GL_SETUP, stores the Oracle E-Business Suite
Set of Books IDs to post financial information. This table must be setup
manually after Set of Books IDs are determined. Where a system indicator
Multiple Set of Books ID is set to N, FIF_GL_SETUP must hold a single Set of
Books (SOB) record.
The Set of Books IDs is associated with the chart of accounts
when setting up general ledger cross-reference.
RMS General Ledger Cross Reference
Select RMS
Tasks List > Foundation Data > Data Loading > Upload. The Upload
Data screen opens. Map Chart of Accounts to department, Class, Subclass, Set Of
Books, location, and transaction codes by selecting the GL Cross Reference
template to maintain the data using spreadsheet upload.
ReSA General Ledger Cross Reference
Select ReSA task list>Foundation
Data>Data
Loading> Upload
Data. The Upload Data screen
opens. Through this screen, the user can choose the GL Cross Reference template
to maintain the data using spreadsheet upload.
When
SYSTEM_OPTIONS.FINANCIAL_AP is A, the upload validates entries of valid segment
combinations.
Upload Data
This section describes setup considerations for ReIM data.
System Options
As part of the RMS system options setup script, set the following
options as indicated:
§
FINANCIAL_AP =A
Chart of Accounts Setup
The chart of accounts is set up manually in Oracle Retail
applications and in Oracle General Ledger. All account combinations are set up
in each Set Of Books. Account validation is done while executing Financial
Posting batch
Segment Mapping
The retailer determines how many segments are populated. Up to 20
account segments can be specified. The following is an example of how segments
are mapped between the ReIM transaction table and Oracle General Ledger:
|
ReIM Segments
|
Oracle General Ledger Chart of Accounts
|
|
Segment 1
|
PRODUCT
|
|
Segment 2
|
ACCOUNT
|
|
Segment 3
|
ALTACCT
|
|
Segment 4
|
OPERATING_UNIT
|
|
Segment 5
|
FUND_CODE
|
|
Segment 6
|
DEPTID
|
|
Segment 7
|
PROGRAM_CODE
|
|
Segment 8
|
CLASS_FLD
|
|
Segment 9
|
BUDGET_REF
|
|
Segment 10
|
BUSINESS_UNIT_PC
|
|
Segment 11
|
PROJECT_ID
|
|
Segment 12
|
ACTIVITY_ID
|
|
Segment 13
|
RESOURCE_TYPE
|
|
Segment 14
|
RESOURCE_CATEGORY
|
|
Segment 15
|
RESOURCE_SUB_CAT
|
|
Segment 16
|
CHARTFIELD1
|
|
Segment 17
|
CHARTFIELD2
|
|
Segment 18
|
CHARTFIELD3
|
|
Segment 19
|
AFFILIATE
|
|
Segment 20
|
AFFILIATE_INTRA1
|
If any one of the values in the 20 segments does not match the
Oracle General Ledger, the account combination is considered as invalid. The
following error message is added to IM_POSTING_DOC_ERRORS table “One or more
accounts subjected to posting is invalid”.
Segments 1 and 2 may be set up as dynamic at the Location level,
or Segments 4 and 5 can be dynamic at the Department and Class level
respectively. Segments defined as dynamic are allowed to be null for certain
types of Basic Transaction or Reason Code cross-reference types. When a segment
is null, the segment is assigned dynamically when transactions are posted.
(Non-dynamic segments cannot be blank). Validation applies to the segment
combination, not to individual segments.
Note: For Tran code TAP, each segment must have a
value regardless of whether the segment is dynamic.
The initial load for ReIM is run by Oracle E-Business Suite and
includes the following information:
§
Suppliers
§
Currency Rates
Note: The
view, mv_currency_conversion_rates should be refreshed once the initial loads
of currencies from Oracle General Ledger are loaded to ReIM.
To accommodate integration, the IM_SYSTEM_OPTOINS table should be
configured with the following properties.
WS_FIN_ACC_VALID_URL
- This attribute holds the URL for the financial account validation web
service.
WS_FIN_ACC_VALID_CRED
- This attribute indicates if the account validation web service call is
authenticated or not. Y means Authentication enabled. N means Authentication is
not enabled (See configuring web service credentials in weblogic server).
WS_FIN_DRILL_FWD_URL
- This attribute holds the URL for the financial drill
forward web service.
WS_FIN_DRILL_FWD_CRED
- This attribute indicates if the drill forward web service call is
authenticated or not. Y means Authentication enabled. N means Authentication is
not enabled (See configuring web service credentials in weblogic server).
The above attributes are configured in the System Options screen.
Configuring WebService Credentials in Weblogic Server
Enterprise Manager:
The credentials for the web service call are configured in the
default domain credential store of the weblogic server through the admin
console.
Create A Map:
Creating Credentials:
Note: Select
the map as ReIM. The Key name should always be WS-ALIAS. Any user name /
password can be assigned to the key
Reports are created by Business Intelligence Publisher for the
following:
The URL for each report must be updated in the table, retail_service_report_url. The
following table provides sample URLs.
Integration to Oracle General Ledger includes a number of
transactions, as described below.
The TRANS_AMOUNT field in the im_financial_stage
table stores the value of the journal entry to be posted to Oracle General
Ledger.
(The currency for the calculated amount is the currency assigned
to the transaction). The TRANS_AMOUNT value is calculated as follows:
|
Row Description
|
DEBIT_CREDIT_IND
|
TRANS_AMOUNT Value
|
|
Normal
|
Debit
|
Transaction Amount
|
|
Normal
|
Credit
|
(-1) * Transaction Amount
|
|
VAT
|
Debit
|
Transaction Amount * VAT Rate
|
|
VAT
|
Credit
|
(-1) * Transaction Amount * VAT Rate
|
Note: Transaction
Amount is taken from the database column, IM_FINANCIALS_STAGE.AMOUNT.
A staging table accommodates the outgoing transfer of data. The
reference key assigned to each document or receipt is used to find data on this
table.
|
From
|
To
|
Transactions
|
|
ReIM
|
Oracle Payables
|
Invoices
Debit Memos
Credit Memos
Credit Notes
|
|
ReIM
|
Oracle General Ledger
|
General Ledger accounting entries resulting from the
Invoice Matching process, including:
Pre-paid invoices
Receipt Write-offs
|
|
RMS
|
Oracle General Ledger
|
Accounting entry data (potentially very high volume)
|
|
ReSA
|
Oracle General Ledger
|
Accounting entry data (potentially very high volume)
|
Valid chart of accounts are stored in the ReIM table,
IM_VALID_ACCOUNTS, which includes the Set of Books ID (sob_id) and 20 segments.
An ORFI Web service validates accounts against the Oracle General Ledger. Valid
accounts are posted to IM_VALID_ACCOUNTS; invalid accounts are posted to
IM_POSTING_DOC_ERROR. The following steps describe the validation process:
1. The
ReIM system invokes the validation Web service to validate the chart of
accounts. (A URL for the ORFI Web service is configured in the SYSTEM_OPTIONS
table.
2. The
posting batch job checks the accounts to be posted against the
IM_VALID_ACCOUNTS table.
3. If
the chart of accounts is in the table, the transaction is posted to staging
tables.
4. If
the chart of account does not exist in the table, a collection of accounts is
built. These collected accounts are validated against the Oracle General
Ledger, and a status is returned.
§ If the status of the
collected accounts is valid, the accounts are inserted in the IM_VALID_ACCOUNTS
table, and the transactions are posted to the staging tables.
§ If the status of the
accounts is NOT valid, the entire collection is flagged as errors, and
transactions are posted to IM_POSTING_DOC_ERROR.
Note:
ReIM completes the first level of account validation and posts the transaction
to staging tables. It is assumed the second level of account validation is done
at the end of the extraction process (where transactions are moved from ReIM
staging tables to Oracle General Ledger). If account validation fails at this
point, Oracle General Ledger must change the account information before
transactions are loaded to Oracle General Ledger, and the chart of accounts
must be re-validated in ReIM.
A Merchandise document with a ready for match status can be pre
paid before matching. The Document Search screen provides this option.
Valid chart of accounts are stored in the ReIM table,
IM_VALID_ACCOUNTS, which includes the Set of Books ID (sob_id) and 20 segments.
An ORFI Web service validates accounts against the Oracle General Ledger. Valid
accounts are posted to IM_VALID_ACCOUNTS; invalid accounts are posted to
IM_POSTING_DOC_ERROR. The following steps describe the validation process:
1. The
ReIM system invokes the validation Web service to validate the chart of
accounts. (A URL for the ORFI Web service is configured in the SYSTEM_OPTIONS
table.
2. The
Prepay operation checks the accounts to be posted against the IM_VALID_ACCOUNTS
table.
3. If
the chart of accounts is in the table, the transaction is posted to staging
tables.
If the chart of account does not exist in the table, a collection
of accounts is built. These collected accounts are validated against the Oracle
General Ledger, and a status is returned.
§ If the status of the
collected accounts is valid, the accounts are inserted in the IM_VALID_ACCOUNTS
table, and the transactions are posted to the staging tables.
§ If the status of the
accounts is NOT valid, the entire collection is flagged as errors, and
transactions are posted to IM_POSTING_DOC_ERROR and the user will be shown an
error message “One or more accounts subjected to posting is invalid”.
As account information is changed in the Oracle General Ledger,
Retail must re-validate the locally stored chart of accounts. Oracle General
Ledger will not propagate chart of account changes to Retail. The AccountWorkspacePurge
Batch can clear all valid accounts in the IM_VALID_ACCOUNTS table or only those
that are considered updates in Oracle E-Business Suite.
Usage
AccountWorkspacePurge userid/password PURGE [ALL |
<Accounts>]
Where:
§
The argument is a combination of user ID and password.
§
The argument is the word PURGE.
§
The argument is either ALL or specific accounts to be deleted
from the local table.
15
Integrating RMS
with PeopleSoft Financials Using Oracle Retail Financial Integration
This chapter describes the integration between Oracle Retail
systems and PeopleSoft Financials (including PeopleSoft General Ledger and
PeopleSoft Payables), as developed and supported by Oracle Retail Financial
Integration (ORFI).
When the option to integrate is chosen, the selected information
is shared between the systems. Integration and validation services are in place
to ensure the shared data matches.
Note: This
chapter addresses the points within Oracle Retail systems that are essential to
integration. For more information about the entire integration process,
including mapping to data and settings, see the ORFI document, Oracle Retail Financial Integration for Oracle Retail Merchandise
Operations Management and Oracle Financials Implementation Guide. For
more information about Web services, see the following chapters in the Oracle Retail Merchandising System Operations Guide, Volume 2:
"Service Provider Implementations API Designs" and "Web Services”.
The following Oracle Retail applications are included in the
integration covered by this chapter:
§
Oracle Retail Merchandising System (RMS)
§
Oracle Retail Sales Audit (ReSA)
§
Oracle Retail Invoice Matching (ReIM)
§
Oracle Retail Integration Bus (RIB)
§
The option to integrate must be selected during initial set up of
the RMS system.
§
ReIM accesses RMS to determine if integration is active. The RMS
set up must be done before integrating with REIM.
§
The URLs for the RFI Web services that are necessary for this
integration are maintained in the RETAIL_SERVICE_REPORT_URL table and in the
ReIM SYSTEM_OPTIONS table.
§
Real time account validation is done only when the financial
integration with Oracle E-Business Suite is ON.
§
Partners must be set up as suppliers in Oracle E-Business Suite
and manually set up in RMS using the RMS Supplier ID. The RMS supplier ID
generated when the Oracle E-Business Suite supplier is interfaced with Oracle
Retail. The RMS supplier generated as part of this process is not used.
§
Payment terms and freight terms are manually maintained.
The Location ID field is restricted to eight characters, to
accommodate PeopleSoft Operating Unit, which has a maximum of eight characters.
The Ext_Doc_ID field is restricted to 30 characters, because the
corresponding PeopleSoft field has only 30 characters. Characters beyond 30 are
truncated.
RMS allows for four decimals, and PeopleSoft allows only three.
Truncation may occur when data is passed to PeopleSoft Enterprise Financials.
ReIM values in the IM_CURRENCY_LOCALE are restricted to three
decimals, because the corresponding PeopleSoft Enterprise Financials field can
accept no more than three decimal positions.
Integration of Oracle Retail applications and PeopleSoft
Financials relies on synchronization of essential data, such as currency
exchange rates, suppliers, and payment terns. Through careful discussions, the
users of both systems determine the common codes and descriptions that will
best serve their business needs.
Once agreement is reached, this information is set up and
maintained. Depending on the volume, some shared information is set up in
Oracle Retail applications or in PeopleSoft and electronically transferred to
the other systems. Otherwise, shared information is set up manually within each
system, and the user of both systems must ensure that the code and the
description match.
This section describes setup considerations for the RMS data.
This system_option
indicates that the Oracle Retail system is integrated with a financial system:
§
FINANCIAL_AP=A
A value of A indicates that the financial system to which RMS is
interfaced is PeopleSoft through Oracle Retail Financial Integration (ORFI).
§
GL_ROLL_UP can be D/S/C
§
SUPPLIER_SITE_IND = Y
§
ORG_UNIT_IND = Y
Organization Units
Use the Upload Data screen (RMS Tasks List > Foundation
Data > Data Loading > Upload) to define organizational units in RMS by
uploading a spreadsheet of organizational unit information that matches those
being setup in PeopleSoft. When an organizational unit is entered in RMS, the
valid organizational units are those associated with the Set Of Books (SOB)
that is being used for the general ledger interface.
Currency Exchange Rates
Currency exchange rate is used to translate the monetary value of
one currency in terms of another. Depending on business needs, a Currency
Exchange Rate Type of Operational or Consolidation is selected for use in all
transactions.
This value is set up manually in RMS and mapped to PeopleSoft
through the Currency Exchange Type mapping window. Currency Exchange Rate data
is owned by PeopleSoft General Ledger and updates are sent to Oracle Retail
applications.
Determine the Exchange Type being sent by PeopleSoft General
Ledger (for example, Consolidation or Operational) that you want RMS to use.
Update the
FIF_CURRENCY_XREF for mapping the external exchange type being sent by
PeopleSoft General Ledger with RMS Exchange Type.
For example, for Consolidation and Operational exchange types,
the
FIF_CURRENCY_XREF table holds the following entries:
|
FIF_EXCHANGE_TYPE
|
RMS_EXCHANGE_TYPE
|
|
C
|
C
|
|
O
|
O
|
Supplier Address Types
Within RMS, supplier information (such as Order From and Remit To
addresses) is used for generating the purchase orders. PeopleSoft Payables uses
supplier information for payment generation. It is important that this
information is synchronized.
Suppliers are created in PeopleSoft Payables and exported to RMS.
When FINANCIAL_AP is set to A, suppliers cannot be created using the RMS screens.
However, after the supplier exists in RMS, all data values for the supplier
(except supplier name and status) continue to be updated using the RMS screens.
The association of supplier sites to organization units is accessed only in
view mode through RMS screens. One supplier site per supplier organization unit
combination can be marked as primary payment site.
Where SYSTEM_OPTIONS.FINANCIAL_AP is A, disable auto generate
supplier/partner numbers and associated check boxes.
Note: Supplier information is
created, updated and inactivated only in PeopleSoft Payables. This information
is transferred from PeopleSoft Payables to the participating Oracle Retail
applications, where additional retail-specific attributes may be maintained.
Country Codes
When country codes are defined and seeded in RMS, ensure that
country codes are mapped to PeopleSoft country codes through RFI DVM mapping.
The following is an example of RFI DVM Mapping (Table RFI_XREF_DVM, available
in RFI schema in Retail.
|
EXT_SYSTEM_ID
|
COMMON_ID
|
RETL_ID
|
|
USA
|
700
|
US
|
|
CAN
|
701
|
CA
|
Financial Calendar
The financial calendar within Oracle Retail systems is manually
set up and maintained separately from the PeopleSoft General Ledger financial
calendar.
Freight Terms
A freight term is an agreement between the retailer and a
supplier regarding transportation charges for goods delivered by the supplier.
Freight terms are used by RMS as purchase orders are generated.
Within the RMS system, freight terms are set up and maintained
manually. They also are maintained in PeopleSoft Payables.
Payment Terms and Currency Exchange Rates
Currency exchange rates are created and updated in PeopleSoft
General Ledger and exported to RMS. Changes to Retail currency exchange rates
are not propagated to PeopleSoft General Ledger. Payment terms set up in
PeopleSoft are propagated to RMS but changes to payment terms in RMS are not
propagated back to PeopleSoft.
PeopleSoft Financials Units and Site IDs
The data concepts of Org Units and Site IDs in RMS mirror the
data maintained in PeopleSoft. RMS screens are used to manage and view Oracle
Org Units and Site IDs. The RMS windows for Store and Warehouse maintenance
allows for the association of each store and warehouse with an Org Unit. The
following is an example of the Organizational Unit form:
Store and Warehouse Maintenance
The organizational unit is found in the Store and Warehouse screens,
which allow the PeopleSoft operating unit to be associated with the Store or
Warehouse. When RMS is set up for single-channel operation, the organizational
unit is set at the physical warehouse level. When RMS is set up for
multi-channel operation, the organizational unit is set up at the virtual
warehouse level. Financial sales audit and inventory information can then be
identified through interface routines and posted to the appropriate general
ledger accounts. An organizational unit must be designated for each Store and
Warehouse location in the RMS.
The following are examples of the Store and Warehouse screens:
Store Screen
Virtual Warehouse Screen
RMS General Ledger Setup
For RMS and ReSA, manual setup is required for validating the
chart of accounts. Valid chart of accounts are created and stored in general
ledger cross reference tables. Once the validation is completed, transaction
data can be assigned to specific account codes.
Ongoing maintenance of the chart of accounts information (such as
adding, changing, or deleting chart of accounts) requires re-validation. In
this regard, PeopleSoft General Ledger is the system of record, as it is used
to verify the chart of accounts used by Oracle Retail applications. When these
applications send a chart of accounts for validation, PeopleSoft General Ledgers
issues a message with:
§
Valid or invalid status
§
Response date
§
Chart of accounts
The RMS table, FIF_GL_SETUP, stores the PeopleSoft Set of Books
IDs to post financial information. This table must be setup manually after Set
of Books IDs are determined. Where system indicator Multiple Set of Books ID is
set to N, FIF_GL_SETUP must hold a single Set of Books (SOB) record.
The Set of Books IDs is associated with the chart of accounts
when setting up general ledger cross reference.
RMS General Ledger Cross Reference
Select RMS
Tasks List > Foundation Data > Data Loading > Upload. The Upload
Data screen opens. Map Chart of Accounts to department, Class, Subclass, Set Of
Books, location, and transaction codes by selecting the GL Cross Reference
template to maintain the data using spreadsheet upload.
ReSA General Ledger Cross Reference
Select ReSA task list>Foundation
Data>Data
Loading>Upload
Data. The manage data
screen opens. Through this screen, the user can choose the General Ledger
template to maintain the data using spreadsheet upload.
When
SYSTEM_OPTIONS.FINANCIAL_AP is A, the upload validates entries of valid segment
combinations.
Upload Data
Retail web services table, RETAIL_SERVICE_REPORT_URL, must be
updated with appropriate URLs to integrate with PeopleSoft Enterprise
Financials.
The records in the table for Services (indicated by RS_TYPE=S)
for Account Validation (RAV) and Drill Forward (RDF), must be updated with the
URL information from AIA where the services are hosted.
Note: If
Web services are secure, then the SYS_ACCOUNT column must be populated with
authentication information in the form of user name/password.
The records in the table for Reports (indicated by RS_TYPE=R) for
both RMS and ReIM reports, must be updated with the URL information from the
BIP Server where the reports are hosted.
This section describes setup considerations for ReIM data.
System Options
As part of the RMS system options setup script, set the following
options as indicated:
§
FINANCIAL_AP =A
Because PeopleSoft Enterprise Financials uses only three decimals,
the transactions generated by the Oracle Retail ReIM application must not
include more than three decimals.
Make sure that the RMS table CURRENCIES has maximum of 3 decimal
places for the currency_cost_dec attribute for difference currency codes. The
currency_rates table in RMS should be loaded initially by PeopleSoft Enterprise
Financials.
System Options window
The chart of accounts is set up manually in Oracle Retail
applications and in PeopleSoft General Ledger. All account combinations are set
up in each Set Of Books. Account validation is done while executing Financial
Posting batch.
Segment Mapping
The retailer determines how many segments are populated. Up to 20
account segments can be specified. The following is an example of how segments
are mapped between the ReIM transaction table and PeopleSoft General Ledger:
|
ReIM Segments
|
PeopleSoft General Ledger Chart of Accounts
|
|
Segment 1
|
ACCOUNT
|
|
Segment 2
|
ALTACCT
|
|
Segment 3
|
DEPTID
|
|
Segment 4
|
OPERATING_UNIT
|
|
Segment 5
|
PRODUCT
|
|
Segment 6
|
FUND_CODE
|
|
Segment 7
|
CLASS_FLD
|
|
Segment 8
|
PROGRAM_CODE
|
|
Segment 9
|
BUDGET_REF
|
|
Segment 10
|
AFFILIATE
|
|
Segment 11
|
AFFILIATE_INTRA1
|
|
Segment 12
|
AFFILIATE_INTRA2
|
|
Segment 13
|
CHARTFIELD1
|
|
Segment 14
|
CHARTFIELD2
|
|
Segment 15
|
CHARTFIELD3
|
|
Segment 16
|
RESOURCE_TYPE
|
|
Segment 17
|
RESOURCE_CATEGORY
|
|
Segment 18
|
RESOURCE_SUB_CAT
|
|
Segment 19
|
BUSINESS_UNIT_PC
|
|
Segment 20
|
PROJECT_ID
|
If any one of the values in the 20 segments does not match the
PeopleSoft General Ledger, the account combination is considered as invalid.
The following error message is added to IM_POSTING_DOC_ERRORS table: “One or
more accounts subjected to posting is invalid“
Segments 1 and 2 may be set up as dynamic at the Location level,
or Segments 4 and 5 can be dynamic at the Department and Class level
respectively. Segments defined as dynamic are allowed to be null for certain
types of Basic Transaction or Reason Code cross-reference types. When a segment
is null, the segment is assigned dynamically when transactions are posted.
(Non-dynamic segments cannot be blank). Validation applies to the segment
combination, not to individual segments.
Note: For Tran code TAP, each
segment must have a value regardless of whether the segment is dynamic.
Running the Initial Load from PeopleSoft Financials
The initial load for ReIM is run by PeopleSoft and includes the
following information:
§
Suppliers
§
Currency Rates
§
Payment Terms
Note: The
view, mv_currency_conversion_rates should be refreshed once the initial loads
of currencies from PeopleSoft General Ledger are loaded to ReIM
IM_SYSTEM_OPTIONS table Setup
To accommodate integration, IM_SYSTEM_OPTOINS table should be
configured to with the following properties.
Note:
Drill forward functionality is applicable for PeopleSoft – RMS and ReIM integration.
Drill backward functionality is only applicable for PeopleSoft – RMS
integration.
Drill forward and drill backward functionality is applicable
for Peoplesoft - RMS integration only.
WS_FIN_ACC_VALID_URL
- This attribute holds the URL for the financial account validation web
service.
WS_FIN_ACC_VALID_CRED
- This attribute indicates if the account validation web service call is
authenticated or not. Y means Authentication enabled. N means Authentication is
not enabled (See configuring web service credentials in weblogic server).
WS_FIN_DRILL_FWD_URL
- This attribute holds the URL for the financial drill forward web service.
WS_FIN_DRILL_FWD_CRED
- This attribute indicates if the drill forward web service call is
authenticated or not. Y means Authentication enabled. N means Authentication is
not enabled (See configuring web service credentials in weblogic server).
The above attributes are configured in the System Options screen.
Reports are created by Business Intelligence Publisher for the
following:
The URL for each report must be updated in the table,
retail_service_report_url. The following table provides sample URLs.
Reporting
Reports are created by Business Intelligence Publisher for the
following:
§
Merchandise Invoice
§
Non-Merchandise Invoice
§
Credit Note
§
Credit Memo
§
Debit Memo
§
Receipt Write-Off
The URL for each report must be updated in the table,
retail_service_report_url. The following table provides sample URLs:
|
Document Type
|
Report Name
|
Sample Report URL
|
|
MRCHI
|
Merchandise invoice document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/invreport.xdo
|
|
NMRCHI
|
Non-Merchandise invoice document Report
|
http://hostname:portno
/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/invreport.xdo
|
|
CRDNT
|
Credit Note document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/crnreport.xdo
|
|
CRDMEC
|
Credit Memo cost document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/memoreport.xdo
|
|
CRDMEQ
|
Credit Memo quantity document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/memoreport.xdo
|
|
DEBMEC
|
Debit Memo cost document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/imemoreport.xdo
|
|
DEBMEQ
|
Debit Memo quantity document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/memoreport.xdo
|
|
DEBMEV
|
Debit Memo Tax document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/memoreport.xdo
|
|
RWO
|
Receipt Write Off document Report
|
http://hostname:portno/xmlpserver_nonsso/
Guest/REIM13/Finance/invreport/rworeport.xdo
|
Integration to PeopleSoft General Ledger includes a number of
transactions, as described below.
The TRANS_AMOUNT field in the im_financial_stage table stores the
value of the journal entry to be posted to PeopleSoft General Ledger. (The
currency for the calculated amount is the currency assigned to the transaction).
The TRANS_AMOUNT value is calculated as follows:
|
Row Description
|
DEBIT_CREDIT_IND
|
TRANS_AMOUNT Value
|
|
Normal
|
Debit
|
Transaction Amount
|
|
Normal
|
Credit
|
(-1) * Transaction Amount
|
|
VAT
|
Debit
|
Transaction Amount * Tax Rate
|
|
VAT
|
Credit
|
(-1) * Transaction Amount * Tax Rate
|
Note: Transaction
Amount is taken from the database column, IM_FINANCIALS_STAGE.AMOUNT.
A staging table accommodates the outgoing transfer of data. The
reference key assigned to each document or receipt is used to find data on this
table.
Outgoing Data
|
From
|
To
|
Transactions
|
|
ReIM
|
PeopleSoft Accounts Payable
|
Invoices
Debit Memos
Credit Memos
Credit Notes
|
|
ReIM
|
PeopleSoft General Ledger
|
General Ledger accounting entries resulting from the
Invoice Matching process, including:
Pre-paid invoices
Receipt Write-offs
|
|
RMS
|
PeopleSoft General Ledger
|
Accounting entry data (potentially very high volume)
|
|
ReSA
|
PeopleSoft General Ledger
|
Accounting entry data (potentially very high volume)
|
Valid accounts are stored in the ReIM table, IM_VALID_ACCOUNTS,
which includes the Set of Books ID (sob_id) and 20 segments. An ORFI Web
service validates accounts against the PeopleSoft Enterprise Financials system.
Valid accounts are posted to IM_VALID_ACCOUNTS; invalid accounts are posted to
IM_POSTING_DOC_ERROR. The following steps describe the validation process:
1. The
ReIM system invokes the account validation Web service to validate the account.
(A URL for the ORFI Web service is configured in the ReIM SYSTEM_OPTIONS table.
2. The
posting batch job checks the accounts to be posted against the
IM_VALID_ACCOUNTS table.
3. If
the account entries are in the table, the transaction is posted to the G/L or
AP tables.
4. If
the account does not exist in the table, a collection of accounts is built.
These collected accounts are validated against the PeopleSoft Enterprise
Financials system, and a status is returned.
§
If the status of the collected accounts is valid, the accounts
are inserted in the IM_VALID_ACCOUNTS table, and the transactions are posted to
the staging tables.
§
If the status of the accounts is NOT valid, the entire collection
is flagged as errors, and transactions are posted to IM_POSTING_DOC_ERROR.
Note: ReIM
completes the first level of account validation and posts the transaction to
staging tables. It is assumed the second level of account validation is done at
the end of the extraction process (where transactions are moved from ReIM
staging tables to PeopleSoft). If account validation fails at this point,
Oracle Data Integrator (ODI) or PeopleSoft must change the account information
before transactions are loaded to PeopleSoft, and the account change must be
communicated to ReIM.
As account information is changed in the PeopleSoft system, the
same changes are communicated to, and manually completed in, the ReIM system.
After ReIM is updated accordingly, the AccountWorkspacePurge Batch is run to
clear the valid accounts maintained locally in ReIM.
The AccountWorkspacePurge Batch can clear all valid accounts in
the IM_VALID_ACCOUNTS table or only those that are considered updates in
PeopleSoft.
Usage:
AccountPurge batch-alias-name PURGE [ALL | <Accounts>]
Where:
The first argument is batch alias name.
The second argument is the word PURGE.
The third argument is either ALL or specific accounts to be
deleted from the local table.
Drill back and drill forward functionality uses Reference ID to
locate documents and receipts. A Reference ID is a combination of document type
and document (or receipt) ID, as illustrated in the table below:
|
Type
|
Doc ID
|
Receipt ID
|
Reference ID
|
|
Merchandise Invoice
|
101
|
Null
|
MRCHI#101
|
|
Non-Merchandise Invoice
|
102
|
Null
|
NMRCHI#102
|
|
Receipt
|
Null
|
103
|
RECEIPT#103
|
For documents, the Resolution Posting Batch program builds the
Reference ID using the standard, Document Type + DeLimiter + Doc_id. For
receipts, the program builds the Reference ID using the standard, Document Type
+ DeLimiter + Receipt_id.
To enable drill down functionality, Reference IDs are loaded to
staging tables. FinancialsAPStageDao and FinancialsGLStageDao are populated, as
are IM_RWO_SHIPMENT_HIST and IM_RWO_SHIPSKU_HIST.
Drilling back allows users to view the source of posted PeopleSoft
transactions that originated in Oracle Retail systems (from a voucher to an
invoice, for example).
When drilling back from PeopleSoft Enterprise Financials, users
are not directed to an actual screen within RMS, ReIM or ReSA. Rather, a retail
Web service generates and launches a URL to a BI Publisher report. The report
contains the information that typically appears on the appropriate retail
screen.
Depending on the information requested by the user, PeopleSoft
invokes web service in the ORFI layer which in turn calls the report locator
service available in RMS. This service returns back BIP report reference URL
which is passed back to PeopleSoft and report gets launched in browser window.
Information from the reference key determines what kind of report
URL to issue. For example, if the retail key has a prefix of ReIM, the
ReIM_REPORT_URL function is called, else the RMS_REPORT_URL function is called
to retrieve the appropriate report URL. If the key does not match any key in
the retail systems, an error message is launched.
The following function determines which RMS report to return to
the user:
RMS_REPORT_URL() -
O_error_message IN OUT RTK_ERRORS.RTK_TEXT%TYPE
O_rpt_url IN OUT
RETAIL_SERVICE_REPORT_URL.URL%TYPE
I_ref_key IN KEY_MAP_GL.REFERENCE_TRACE_ID%TYPE
The appropriate report URL is found and issued as follows:
1. The
ref_trace_type is found on KEY_MAP_GL by matching I_ref_key with the
KEY_MAP_GL.REFERENCE_TRACE_ID column.
2. When
ref type is determined, the re_trace_type is used to find the appropriate
report URL on the RETAIL_SERVICE_REPORT_URL table.
3. The
value of I_ref_key is appended to the end of the URL retrieved from the table.
4. The
URL is sent back to the calling function.
5. If
I_ref_key does not exist on KEY_MAP_GL, an error message is sent back to the
calling function.
The following drill back options are available for viewing
information within the ReIM system:
Using Document ID, users can drill back to ReIM to view information
related to a voucher or payment. The report includes information from
im_doc_head and im_invoice_detail, the same data shown on the Document
Maintenance Header screen within ReIM.
Using the Receipt ID, users can drill back to view information from
the Receipt Write-off History screen. Receipt write-offs occur either when an
open receipt is closed in ReIM or if a receipt is purged in RMS before it is
fully matched. Details come from the IM_RWO_SHIPMENT_HIST and
IM_RWO_SHIPSKU_HIST tables.
The function below determines which of the two ReIM reports to
return to the user:
REIM_REPORT_URL() -
O_error_message IN OUT RTK_ERRORS.RTK_TEXT%TYPE
O_rpt_url IN OUT
RETAIL_SERVICE_REPORT_URL.URL%TYPE
I_ref_key IN KEY_MAP_GL.REFERENCE_TRACE_ID%TYPE
The I_ref_key contains the reference ID, which ultimately
determines the type of report required. The appropriate BI Publisher report URL
is found on the RETAIL_SERVICE_REPORT_URL table.
In general, if the reference ID has a prefix of RECEIPT, the
report type (RS_CODE) is RCPT. Otherwise, the report type is DOC. For example:
|
Reference ID
|
Report Type (RS_CODE)
|
|
MRCHI#101
|
DOC
|
|
NMRCHI#102
|
DOC
|
|
RECEIPT#103
|
RCPT
|
The following is an example of a BI Publisher URL that is
generated upon drilling back to PeopleSoft Enterprise Financials for
information on an invoice in ReIM, using Document ID as the search parameter:
http://mspdev6970vip:7777/BIPublisher/Guest/ReIM/13.0.3/doc/tsf_det.xdo
?doc_id=101
Where
http://mspdev6970vip:7777/BIPublisher = the BI Publisher
application server address and port
Guest/ReIM/13.0.3 = the directory/folder location
doc/tsf_det.xdo ? = report name (Document Report)
doc_id=101 = the parameter name and value (Document ID 101)
The following is an example of an Oracle Business Intelligence
Publisher URL that is generated upon drilling back to PeopleSoft Enterprise
Financials for information on an invoice in ReIM, using Receipt ID as the
search parameter:
http://mspdev6970vip:7777/BIPublisher/Guest/ReIM/13.0.3/doc/tsf_det.xdo
?receipt_id=101
Where
http://mspdev6970vip:7777/BIPublisher = the BI Publisher
application server address and port
Guest/ReIM/13.0.3 = the directory/folder location
doc/tsf_det.xdo ? = report name (Receipt Report)
receipt_id=101 = the parameter name and value (Receipt ID 101)
Drilling forward allows users to see detailed information about
retail transactions that have been posted to PeopleSoft Enterprise Financials.
When drilling forward, users are directed to selected "view-only"
screens.
The following forms may be used to drill forward from RMS/ReSA:
§
RMS StartMenu->Finance->Transaction Data View
(trandata.fmb)
§
RMS StartMenu->Ordering->Fixed Deals->Fixed Deal
Transaction Data View (fdltrandata.fmb)
§
Resa Task List-> Operations->General Level Transaction View
For drilling forward, the ORFI Web service uses the Invoice ID
and Accounting Entry parameters. The ReIM system uses these parameters together
as the Reference ID.
From the Document search screen, users can drill forward to
PeopleSoft Enterprise Financials accounts payable to view voucher and payment
status. The information is displayed on a read-only Payment Doc Status Inquiry
screen. Drill forward access to the accounts payable system is available only
for pre-paid invoices (but not for manually pre-paid invoices).
To drill down to the payables/ledger screens, the user invokes
the Web service as follows:
Invoice ID/Accounting Entry parameter = Reference ID
Drill forward access to the G/L system is available only for
pre-paid and manually pre-paid invoices.
Note: For
more information on drilling forward, see the Oracle Retail Financial Integration for Oracle Retail Merchandise Operations
Management and Oracle Financials Suite (E-Business Suite Financials
or PeopleSoft Financials).
16
Understanding
Data Access Schema
The Data Access Schema (DAS) is a
new schema that allows third party applications to access RMS owned data. A
subset of the data mastered by RMS is replicated to a new database schema. This
replicated data is in a READ ONLY format. The DAS is an optional function;
where the base RMS does not require DAS. However, you may want to install DAS
for the following reasons:
§
Accelerate integration with some of the third party systems.
§
Insulate core RMS processes from the resource demands for the
third party systems.
§
Provide downstream applications with data 24x7, instead of a
predetermined time for the batch cycle that extracts RMS data.
§
Perform custom operational reporting without impacting the core
RMS operations.
§
Use out of box integration with Merchandise Financial Planning’s (MFP)
PoViewer micro application.
Views are layered on top of the replicated data to shape it in a
less RMS specific terms.
Oracle recommends that DAS be deployed in a separate database
instance on a separate hardware. This insulates the operations and performance
of RMS from all demands made of DAS by other systems.
For more information on DAS, see the Oracle Retail Merchandising
System Data Access Schema Developer’s Guide and the Oracle Retail Merchandising
System Data Access Schema Data Model.
The process flow diagram of a DAS system:
DAS Process Flow
DAS contains replicated tables and parallel layers of views. The
two parallel layers of views are:
§
Generic Data Shaping View
§
Client Specific Data Shaping View
DAS Views
The Generic Data Shaping View makes RMS owned data more
understandable to external systems by both flattening and exploding some of the
concepts in RMS.
The client specific data shaping views presents data for specific
downstream client applications. You can add additional client specific data
shaping views to execute queries that are important to manage the DAS
integrations with the third party systems.
You are encouraged to use the DAS for downstream, custom
integration batch, and query service integrations. The following are the
advantages of using DAS instead of the core RMS system of record tables:
§
DAS insulates core RMS processing from the resource demands of
third party systems.
§
DAS allows constant access to data that of a RMS batch cycle
which is processed once in a day, restricting the access of data or a real time
query that is slower when processing demands of high point of RMS batch cycles.
§
Custom client specific data shaping views can accelerate the
development of custom integrations.
17
RMS Batch programs runs using wallet alias as the first parameter
to the batch command line arguments. This is enabled to prevent the security
concerns around exposing database user ID and password while running the batch
programs.
The wallet creation steps are described in the RMS Installation
Guide. The wallet and wallet alias creation are a required in order to use
batch programs in secured mode.
If we assume wallet alias is “dvols29_rms01batch”;
Usage:
./dtesys $UP
(where UP will be set during installation to the wallet alias,
that is: $UP=/@dvols29_rms01batch)
or
./dtesys /@dvols29_rms01batch (wallet alias)
RMS/RPAS and RMS/AIP RETL scripts uses Oracle Wallet. Defined
Oracle Wallet is referenced in rmse_config.env, rmse_aip_config.env and
rmse_rpas_config.env files.
