13 Import Management

The Oracle Retail Trade Management application allows retailers to perform the following import management tasks.

• Build an accurate estimated landed cost.

• Opens purchase orders at the point of origin.

• Automatically issue a Letter of Credit application and amendment requests.

• Classify merchandise for clearance through customs.

• Track merchandise from landing to receipt.

• Generate an actual landed cost and cost variance analysis.

Letter of Credit

Letters of credit (LCs) are a widely used form of payment when dealing with imported goods. They provide importers with a secure method to pay for merchandise and vendors as well as a secure method to receive payment for merchandise. Letters of credit can be created and applied to purchase orders. Activities against the letter of credit can also be tracked.

Letter of Credit Types

The following types of letters of credit can be created:

• Normal: The letter of credit is applied to one purchase order.

• Master: The letter of credit is applied to multiple purchase orders.

• Revolving: Purchase orders may be added until the agreed upon term of the LC is reached. The term is typically one to two years, at which point the letter of credit is closed. Revolving LC is used to support multiple shipments and payments/drawdowns over a period of time, either from a single PO or multiple POs. Adding a PO to a letter of credit after confirmation is a change in the ”terms” of the letter of credit, which will result in an amendment to the letter of credit.

• Open: An open account is a way to pay a vendor without restrictions. When the goods are shipped, payment will be drawn out of the buyer's account. Technically this is not a letter of credit, but the function is facilitated through the letter of credit dialog within Trade Management. This method of payment is not as secure as letters of credit. No details are added to this type of letter of credit in Trade Management, the amount to be paid is entered directly.

You can choose from two letter of credit formats.

• Long: The long form includes details at the purchase order and item level.

• Short: The short form includes details at the purchase order level.

Completed applications and amendments can be transmitted to bank partners. Confirmations, drawdowns, and charges can also be received from bank partners.

Letter of Credit Window

The Letter of Credit window allows you to view, create and edit a letter of credit. The window contains the following sections:

• Letter of Credit

• Partners

• Banks

• Conditions

• Dates

• LC Value

• Terms

• Comments

• Letter of Credit Toolbar

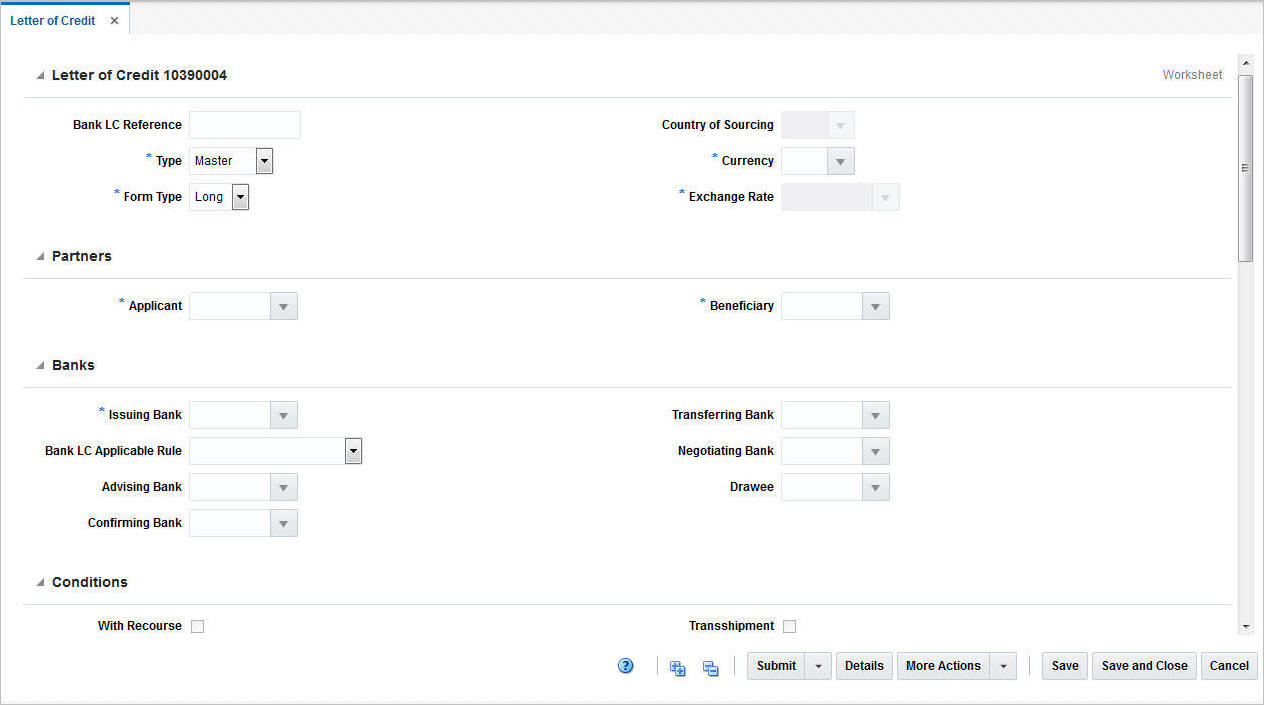

Figure 13-1 Letter of Credit Window

Letter of Credit

The Letter of Credit ID is populated automatically. The status of the letter of credit is displayed in the top right corner of the window, for example, Worksheet.

In the Letter of Credit section enter the following data.

Table 13-1 Letter of Credit - Fields and Description

Field	Description
Bank LC Reference	Enter the Bank LC Reference.
Type	Select the Letter of Credit type from the list. Possible types are: Normal: LC applied to one PO. Master: LC applied to multiple POs. Revolving: POs may be added until the agreed upon term of the LC is reached. Open: LC created without details, the amount to be paid is entered directly. For more detailed information about possible letter of credit types, see the Letter of Credit Types section. This field is a required field.
Form Type	Choose between the following two letter of credit formats. Long: The long form includes details at the PO and item level. Short: The short form includes details at the purchase order level. This field is a required field.
Country of Sourcing	Only available, if you select the LC Type Open. Enter, select or search for the appropriate country.
Currency	Enter, select or search for the currency of the LC. This field is a required field.
Exchange Rate	The exchange rate is populated automatically, based on the selected currency. By default the effective LC/bank rate is displayed in this field. If no LC/bank rate is found, the rate is either defaulted to the consolidation or operational exchange rate. If necessary, edit the displayed exchange rate with the Edit Exchange Rate icon. For more information about how to edit an exchange rate, see the Editing the Exchange Rate section. This field is a required field.

Partners

In the Partners section enter the following data.

Table 13-2 Partners - Fields and Description

Field	Description
Applicant	Enter, select or search for the applicant. This field is a required field.
Beneficiary	Enter, select or search for the beneficiary. This field is a required field.

Banks

In the Banks section select, enter or search for the banks that are involved with the letter of credit transaction.

Table 13-3 Banks - Fields and Description

Field	Description
Issuing Bank	The issuing bank opens the letter of credit when contacted by the retailer who intends to import goods. Enter, select or search for the corresponding bank. This field is a required field.
Bank LC Applicable Rule	The set of rules on the issuance and use of letters of credit. Select the set of rules from the list. If you select OTHER from the list, an entry field is displayed next to the Bank LC Applicable Rule field. Enter the used rule set.
Advising Bank	The foreign bank that advises the seller (vendor) that a letter of credit has been opened in their favor. Collects the documents required for compliance to the terms and conditions of the letter of credit so that payment can be made. Enter, select or search for the advising bank.
Confirming Bank	The bank that guarantees that funds are necessary to pay claims against a letter of credit. Enter, select or search for the confirming bank.
Transferring Bank	The bank which is asked by the beneficiary (first beneficiary) to transfer, in part or in full, its rights under the letter of credit to the second beneficiary. Enter, select or search for the transferring bank.
Negotiating Bank	The bank that is responsible for negotiating the letter of credit between the seller and the advising bank. Enter, select or search for the negotiating bank.
Drawee	The bank that is responsible for paying claims against a letter of credit. Enter, select or search for the drawee.

Conditions

In the Conditions section, select the conditions that apply to the letter of credit.

Table 13-4 Conditions - Fields and Description

Field	Description
With Recourse	The With recourse term defines the situation in which the paying bank will be able to claim refunds from the beneficiary in case the letter of credit documents are not paid by the issuing bank. Check the With Recourse checkbox.
Transferable	A letter of credit can be transferred to the second beneficiary at the request of the first beneficiary, only if it expressly states that the letter of credit is ”transferable”. Check the Transferable checkbox.
Transshipment	Transshipment means unloading from one means of conveyance and reloading to another means of conveyance (whether or not in different modes of transport) during the carriage from the place of dispatch, taking in charge or shipment to the place of final destination stated in the credit. Check the Transshipment checkbox.
Partial Shipment	Partial shipment means shipping a lesser amount than what is stated in the letter of credit when only one set of transport documents presented; or making less amount of shipment than what is stated in the letter of credit or using multiple means of conveyance when more than one set of transport documents presented. Check the Partial Shipment checkbox.

Dates

In the Dates section, enter or select the relevant dates for the letter of credit as shown in the following table.

Table 13-5 Dates - Fields and Description

Field	Description
Application Date	Enter the application date or click the Calendar icon to select the date. This field is a required field.
Confirmation Date	Enter the confirmation date or click the Calendar icon to select a date.
Expiration Date	Enter the expiration date or click the Calendar icon to select a date. This field is a required field.
Earliest Ship Date	Enter the earliest ship date or click the Calendar icon to select a date. This field is only available, if you select the LC Type Open in the Letter of Credit header. This field is a required field for an open letter of credit.
Latest Ship Date	Enter the latest ship date or click the Calendar icon to select a date. This field is only available, if you select the LC Type Open in the Letter of Credit header. This field is a required field for an open letter of credit.

LC Value

The LC Value section contains the following fields. Enter the variance percent or specification value, depending on your selection in the Amount Type field.

Table 13-6 LC Value - Fields and Description

Fields	Description
Amount Type	Select the amount type from the list. Possible types are: Exact Approximately This field is a required field.
Variance %	Enter the variance value in percent. If you select the Amount Type Exact, this field is disabled.
Specification	Select a specification, from the list. For example, select Maximum. If you select the Amount Type Approximately, this field is disabled.
Amount	Enter the amount. If you select the Amount Type Approximately, this field is disabled. This field is a required field
Amount Word	If you select the Amount Type Exact, this field is disabled.
Net Amount	This field displays the net value of the letter of credit, calculated as the total amount of the letter of credit plus or minus any amendments. You cannot edit this value.
Open Amount	This field displays the open amount of the letter of credit; calculated as the net amount minus any drawdowns issued against the letter of credit. You cannot edit this value.
Amendments	This field displays the total of all accepted amendments attached to the letter of credit. You cannot edit this value.
Drawdown	This field displays the total of all drawdowns executed against the letter of credit. You cannot edit this value.
Charges	This field displays the total of all charges incurred against the letter of credit. You cannot edit this value.

Terms

The Terms section contains the following fields.

Table 13-7 Terms - Fields and Description

Fields	Description
Title Pass Location Type	Select the location type from the list.
Title Pass Location	Enter the location.
Transport To	Enter, select or search for the transport to location.
Lading Port	Enter, select or search for the lading port.
Discharge Port	Enter, select or search for the discharge port.
Place of Expiry	Enter, select or search for the place of expiry. This field is a required field.
Credit Available With	Enter, select or search for the bank at which credit is available.
Purchase Type	Select the purchase type from the list. For example, select Backhaul or Pick-up. This field is a required field.
Issuance	Select the issuance from the list.
Advice Method	Select the advice method from the list.
Drafts At	Select the draft at entry from the list. For example, select 60 Days.
Presentation Terms	Select the presentation terms from the list. For example, select By Payment. This field is a required field.
Negotiation Days	Enter the negotiation days.

Comments

The Comments section holds the comments field. You can enter any comments for the letter of credit.

Letter of Credit Toolbar

The Toolbar displays the icons and buttons for actions that can be performed for the letter of credit such as changing the status of the letter of credit or navigating to the LC Details window to view details of the letter of credit and the PO attached to it. The Toolbar contains the following icons and buttons.

Table 13-8 Letter of Credit Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Expand and Collapse icons	You can expand all the sections and collapse all the sections in the Letter of credit window by clicking the Expand or Collapse icons.
Status	If you click the Status button, the status of the letter of credit changes to the status specified on the button. When there is more than one status to which the LC can be changed, click the arrow on the right side of the button to display the additional status options. Possible letter of credit status are: Worksheet Submit Approved Confirmed Closed Letters of credit move to the Extracted status when you send them to banks from the Send Letters of Credit window. Therefore, the status Extracted does not appear in the status option list.
Details	Click Details to view the details of the letter of credit. The LC Details window appears. For more information about LC details, see the LC Details section.
More Actions	Click More Actions to see a list of additional actions that can be performed in the Letter of Credit window. For more information about the More Action Menu for LCs, see the Letter of Credit - More Actions Menu section.
Save	Click Save to save changes to the letter of credit.
Save and Close	Click Save and Close to save changes to the letter of credit and close the window.
Cancel	Click Cancel to reject all entries and close the window.
Done	Only available in view mode. Click Done to close the window.

Letter of Credit - More Actions Menu

Use the More Actions menu to navigate to the following windows. The More Actions menu contains the following options.

Table 13-9 More Actions Menu - Buttons and Description

Action Buttons	Description

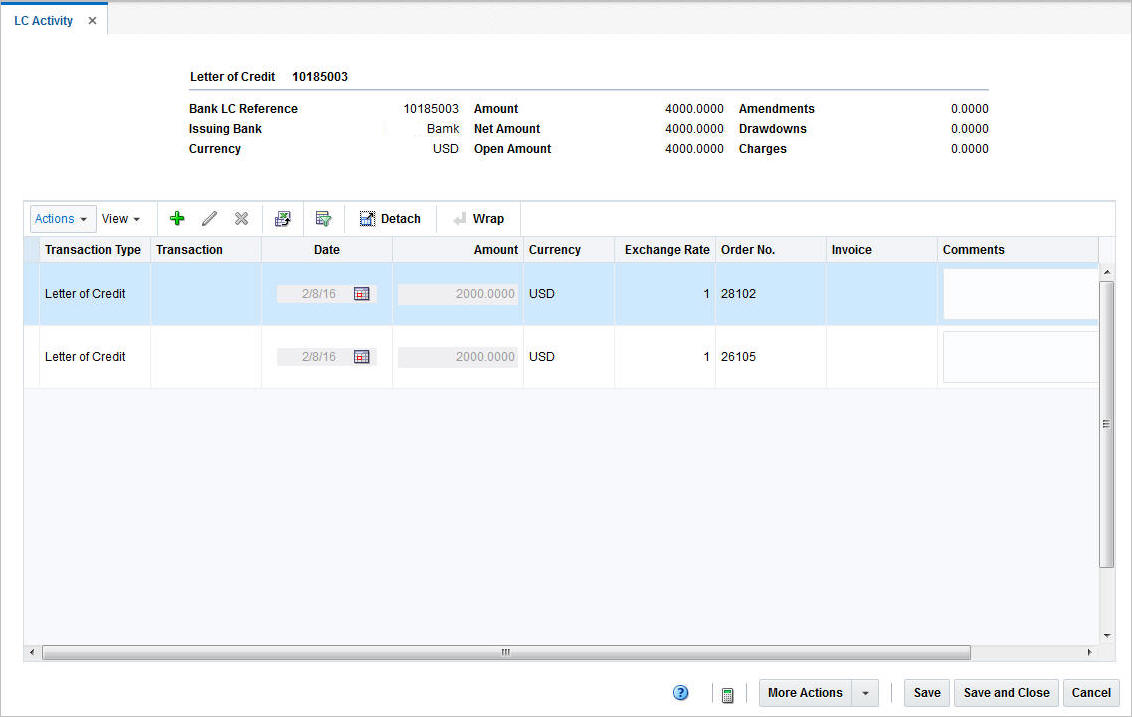

Activities	Opens the LC Activities window. This window displays a list of all activities created against the LC, for example, purchase orders, amendments, bank charges and drawdowns. For more information about this function, see the LC Activity section.

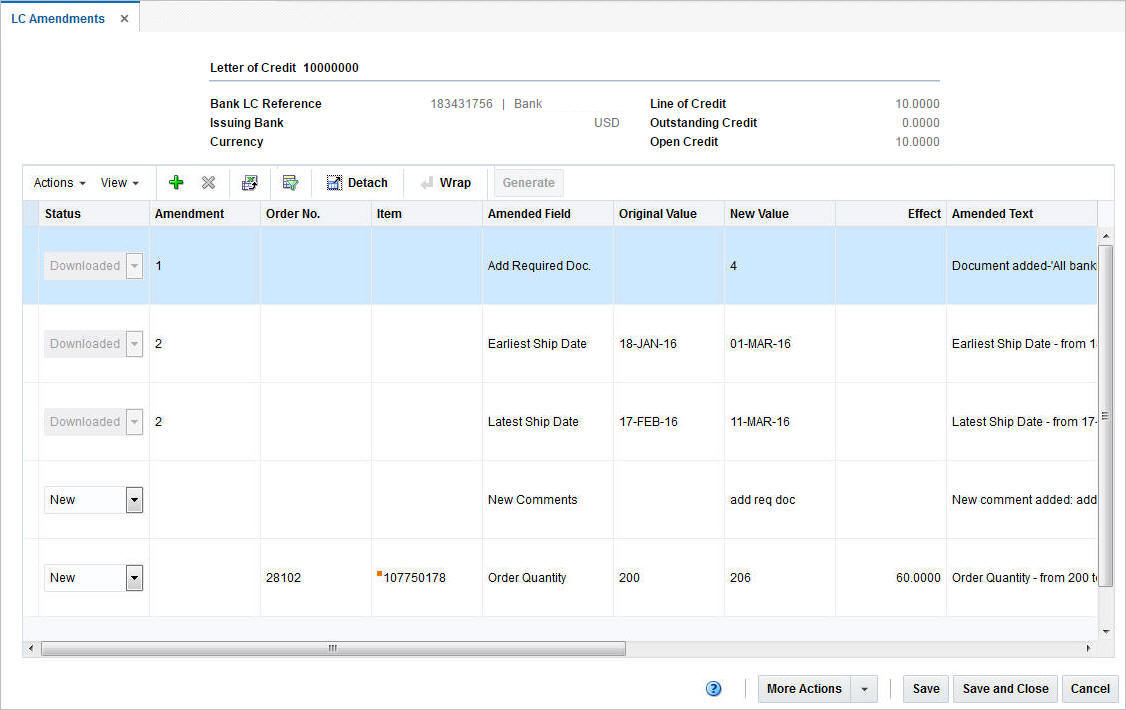

Amendments	Opens the LC Amendments window. This window allows you to manage amendments to the LC. For more information about this function, see the LC Amendments section.
Required Documents	Opens the Required Documents window. This window displays all required documents for the LC. For more information, see the Orders chapter, section "Required Documents".
Letter of Credit Report	Opens the Letter of Credit Report. You can print the report, in case a hard copy is needed.
Currency	You can toggle between the letter of credit and the primary currency, to view the LC amounts in either the LC or the system's primary currency. The currency is set to LC by default.

Creating a Letter of Credit

To create a letter of credit, follow the steps listed below.

1. From the Tasks menu, select Import Management > Create Letter of Credit. The Letter of Credit window appears.




   Note: An open letter of credit does not require the existence of a purchase order. It can be opened to a beneficiary for a monetary amount.




2. The Letter of Credit ID is populated automatically. The status of the letter of credit is displayed in the top right corner of the window. The default status is Worksheet.

3. Enter, select or search for LC data in the individual sections. For more information about the individual sections, see the Letter of Credit Window section.

4. After you have entered all necessary LC data, choose one of the following options.

   • Select Save to save the LC.

   • Select Save and Close to save the LC and close the Letter of Credit window.

   • Select Cancel to reject all entries and close the Letter of Credit window.

Editing a Letter of Credit

To edit an already existing LC, follow the steps below.

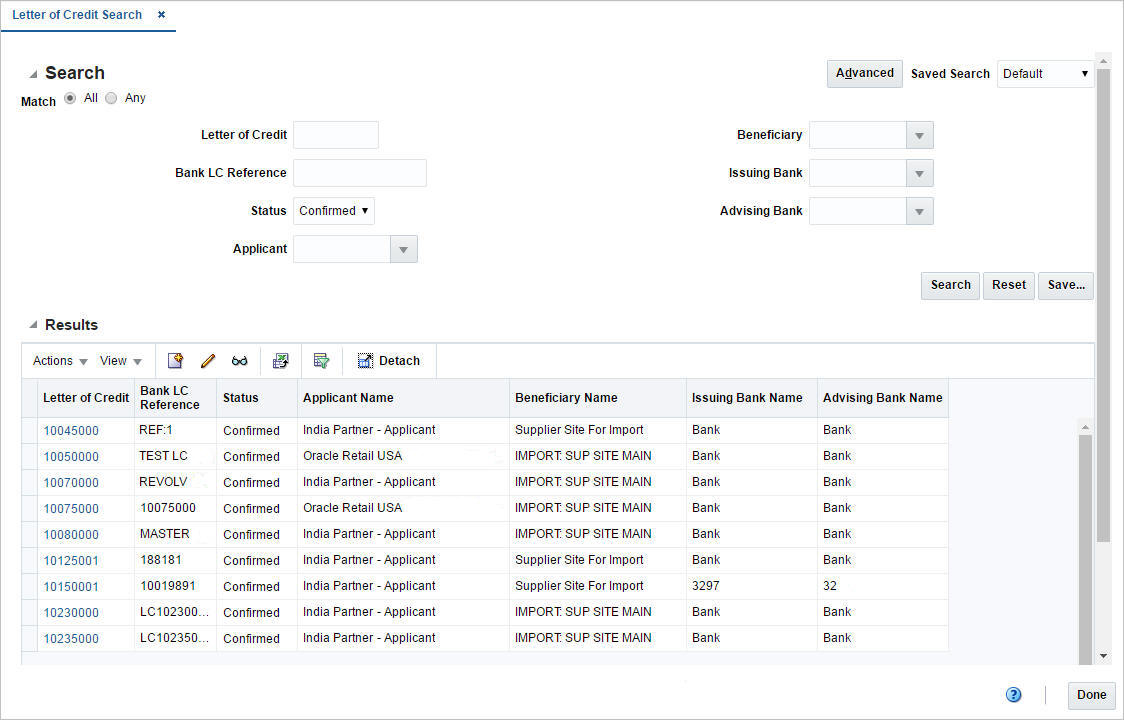

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The letters of credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears. The data of the selected LC is shown.

6. Edit the data as necessary.

7. After you have entered the necessary information, choose one of the following options.

   • Select Save to save your changes.

   • Select Save and Close to save your changes and close the Letter of Credit window.

   • Select Cancel to reject all entries and close the Letter of Credit window.

Editing the Exchange Rate

To edit the displayed exchange rate, follow the steps listed below.

1. Click on the Edit Exchange Rate icon.

2. The Edit Exchange Rate window appears.

   Figure 13-2 Edit Exchange Rate Window




3. In the Exchange Rate field, enter the exchange rate manually or select a record in the Exchange Rate table.




   Note: The Exchange Rate table lists the following exchange rates types - LC/bank, consolidation or operational. The consolidation exchange rate is only shown, if enabled.




4. Then choose one of the following options.

   • Click OK. The system overwrites the current value.

   • Click Cancel to reject all entries and close the Edit Exchange Rate window.

LC Details

The LC Details window allows you to view details of a letter of credit and delete attached purchase orders. The window contains the following sections:

• LC Details Header

• LC Details Table

• LC Details Toolbar

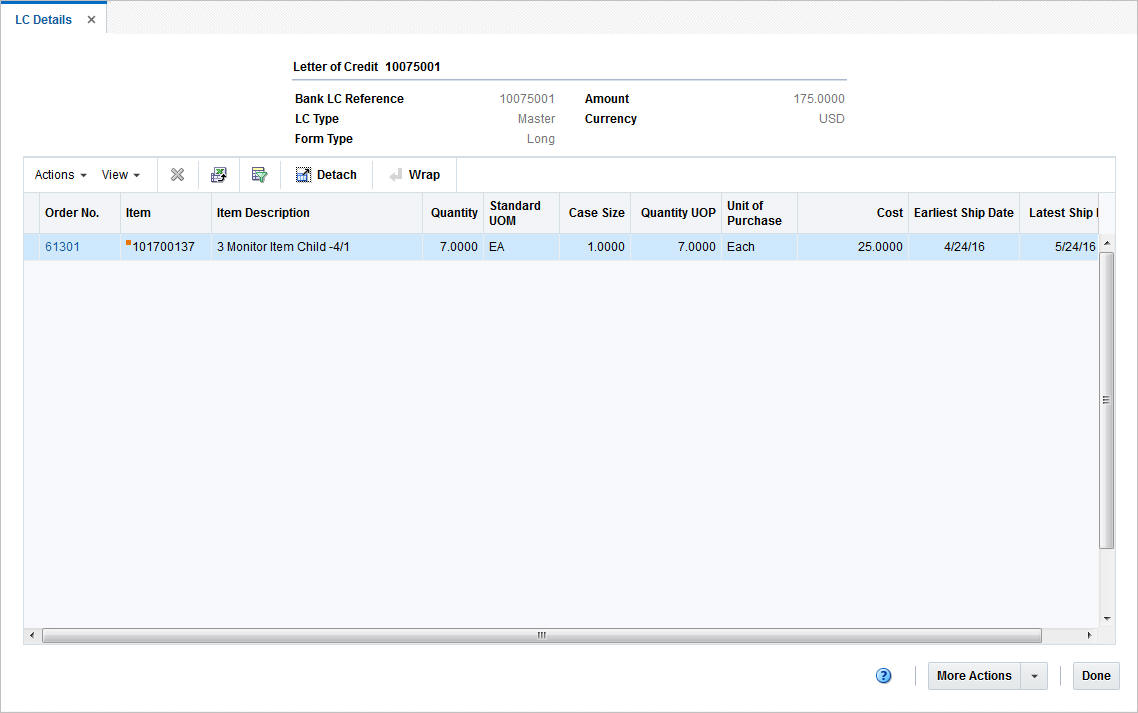

Figure 13-3 LC Details Window

LC Details Header

The LC Details Header section contains the following fields:

• Letter of Credit ID

• Bank LC Reference

• LC Type

• Form Type

• LC Amount

  When you delete a PO from the LC, the value of the Amount field is recalculated.

• LC Currency

LC Details Table

Depending on the selected LC Form Type, the LC Details table has two views.

If you select the LC Form Type Long, the table displays the following columns by default:

• Order No.

• Item

• Item Description

• Quantity

• Standard UOM

• Case Size

• Quantity UOP

• Unit of Purchase

• Cost

• Earliest Ship Date

• Latest Ship Date

If you select the LC Form Type Short, the table displays the following columns by default:

• Order No.

• Merchandise Description

• Cost

• Earliest Ship Date

• Latest Ship Date

LC Details Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-10 LC Details Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Delete and Delete icon	You can delete POs from an LC by selecting Actions > Delete, or by using the Delete icon. For more information about hod to delete POs from an LC, see the Deleting a PO from a Letter of Credit section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
View Order	You can view the attached PO by selecting Actions > View Order. The Order window appears. For more information, about how to view the attached PO of an LC, see the View PO attached to a Letter of Credit section.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then use the Wrap icon.

LC Details Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-11 LC Details Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach or Detach icon	You can view the tables in the application in a separate window by clicking the Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example or Query by Example icon	You can filter the records by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

LC Details Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the LC Details window. The Toolbar contains the following icons and buttons.

Table 13-12 LC Details Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
More Actions	Click More Actions to see additional actions that can be performed in the LC Details window. The following action is available: Currency You can toggle between the letter of credit and the primary currency, to view the LC amounts in either the LC or the system's primary currency. The currency is set to LC by default.
Save	Click Save to save your changes to the letter of credit.
Save and Close	Click Save and Close to save your changes and close window.
Cancel	Click Cancel to reject all entries and close the window.
Done	Only available in view mode. Click Done to close the window.

Deleting a PO from a Letter of Credit

To delete a purchase order from a letter of credit, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The letters of credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the LC Toolbar select Details. The LC Details window appears.

7. In the LC Details table, select a purchase order.

8. Then click Actions > Delete or use the Delete icon to delete the selected purchase order.




   Note: If the LC is in Confirmed status, the Delete option is still available, however, you receive a message that an amendment is created, if you confirm the prompt with Yes. The selected PO remains in the LC Details table. You need to accept the amendment and generate an amendment number for the change in the LC Amendments screen. For more information about amendments, see the LC Amendments section.




9. You are prompted if you want to delete the selected purchase order from the LC Details table. Confirm the displayed prompt with Yes.

10. The purchase order is removed from the LC Details table and the amount in the LC Details Header is recalculated.

11. After you have deleted all necessary POs, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the LC Details window.

    • Click Cancel to reject all entries and close the LC Details window.

View PO attached to a Letter of Credit

To view a particular purchase order attached to the selected LC, follow the steps below.

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Letters of Credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the LC Toolbar select Details. The LC Details window appears.

7. In the LC Details table, select a purchase order.

8. Then select Actions > View Order. The Order window appears. You can view the details of the attached purchase order.

9. Click Done to close the Order window.

LC Activity

The LC Activities window allows you to view, add, edit and delete activities that have occurred against a letter of credit. Activities include purchase orders, amendments, bank charges and drawdowns.

Note: The LC Activity function is only available, if the LC is in the status Confirmed.

The LC Activity window contains the following sections:

• LC Activity Header

• LC Activity Table

• LC Activity Toolbar

Figure 13-4 LC Activity Window

LC Activity Header

The LC Activity header contains LC information such as the LC ID, bank LC reference, issuing bank, LC currency and amounts (open and net) as well as amendments, drawdowns and charges.

LC Activity Table

The LC Activity Table shows the following columns by default:

• Transaction Type

• Transaction

• Date

• Amount

• Currency

• Exchange Rate

• Order No.

• Invoice

• Comments

LC Activity Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-13 LC Activity Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add activities to an LC by selecting Actions > Add or use the Add icon. For more information about how to add activities to an LC, see the Adding an LC Activity section.
Edit and Edit icon	You can edit activities by selecting Actions > Edit or by using the Edit icon. For more information about how to edit activities, see the Editing an LC Activity section.
Delete and Delete icon	You can delete activities from an LC: Select a record in the table. Select Actions > Delete or use the Delete icon. You are prompted if you want to delete the record. Select Yes to confirm the prompt. The record is deleted from the table.
Export to Excel and Export to Excel icon	You can export the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

LC Activity Table - View Menu and Icons

You can customize the view of the table. Use the View Menu or icons to customize the view as listed below.

Table 13-14 LC Activity Table - View Menu and Description

View Menu Options	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

LC Activity Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the LC Activity window. The Toolbar contains the following icons and buttons.

Table 13-15 LC Activity Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Recalculate icon	Use the Recalculation icon to recalculate the values of the LC amounts shown in the LC Activity header, after you have added, edited or deleted an activity.
More Actions	Click More Actions to see a list of additional actions that can be performed in the LC Activity window. The following action is available: Currency You can toggle between the currency of the letter of credit, the currency of the activity and the system's primary currency, to view the LC amounts in either the LC's, the activities' or the system's primary currency. The currency is set to Activity by default.
Save	Click Save to save your changes to the letter of credit.
Save and Close	Click Save and Close to save your changes to the letter of credit and close the window.
Cancel	Click Cancel to reject all entries and close the window.

Adding an LC Activity

To add an activity to the LC, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Restrict your search to LCs with the status Confirmed.

3. Click Search. The Letters of Credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the LC Toolbar, select More Actions > Activities. The LC Activity window appears.

7. In the LC Activity table, select Actions > Add or use the Add icon. The Add Activity window appears.

   Figure 13-5 Add Activity Window




   1. In the Transaction Type field, select the transaction type from the list. For example, select Bank Charges. This is a required field

   2. In the Transaction field, enter the transaction number.

   3. In the Date field, enter a date or use the Calendar icon to select a date. This field is a required field.

   4. In the Amount field, enter the amount of the activity. This field is a required field.

   5. In the Currency field, enter, select or search for the currency. This field is a required field.

   6. The Exchange Rate field is populated automatically, depending on your selected currency. If you need to change the exchange rate, see the Editing the Exchange Rate section.

   7. In the Order No. field, select the PO number from the list.

   8. In the Invoice field, enter the invoice number.

   9. In the Comments field, enter comments for the current activity, if necessary.

   10. Then choose one of the following options.

       • Click OK to save the current activity to the LC and close the Add Activity window. The activity is shown in the LC Activity table.

       • Click OK and Add Another to add additional activities to the LC.

       • Click Cancel to reject all entries and close the Add Activity window.




       Note: If want to see the impact of the added activity, use the Recalculate icon to recalculate the values of the LC Activity header.




Editing an LC Activity

To update LC activities, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Restrict your search to LCs with the status Confirmed.

3. Click Search. The Letters of Credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the LC Toolbar, select More Actions > Activities. The LC Activity window appears.

7. In the LC Activity table, you can edit the following fields.

   • Date: Enter the date or use the Calendar icon to change the date.

   • Amount: Edit the amount.




     Note: If you edit the amount of an activity, you need to use the Recalculation icon to update the values shown in the LC Activity header.




   • Comments: Edit the Comment column for the selected activity, if necessary.

8. To update any other values of an activity, select an activity in the LC Activity table.

9. Select Actions > Edit or use the Edit icon. The Edit Activity window appears.

   1. Edit the fields, if necessary.




      Note: You cannot edit the Transaction Type field. The field is disabled once an activity has been saved.




   2. Then choose one of the following options.

      • Click OK to save your changes and close the Edit Activity window. The system returns to the LC Activity window.

      • Click Cancel to reject all entries and close the Edit Activity window.

10. After you have made all necessary changes, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the LC Activity window.

    • Click Cancel to reject all entries and close the LC Activity window.

LC Amendments

The LC Amendments window allows you to manage amendments to letters of credit. Amendments are any changes made to letters of credit after they have been confirmed.

You can carry out the following actions in the LC Amendments window:

• Add

• View

• Delete

• Update the status

Amendments are either created manually in this window, or are system-generated when any of the following changes are made to a purchase order:

• Another order is added to a confirmed letter of credit.

• An item is added to a PO.

• An item is deleted from a PO.

• Earliest and latest ship dates are changed.

• POs are cancelled.

• Transshipment or partial shipment options are changed.

• Unit cost or order quantity are updated.

• Required documents are updated.




  Note: You cannot change the content of the document, only whether the documents is included or not.




The LC Amendments window contains the following sections.

• LC Amendments Header

• LC Amendments Table

• LC Amendments Toolbar

Figure 13-6 LC Amendments Window

LC Amendments Header

The LC Amendments header displays LC information such as LC ID, bank LC reference, issuing bank, currency as well as line of credit information.

LC Amendments Table

The LC Amendments table contains all amendments created against the LC. The table contains the following columns by default:

• Status

  In the Status field you can select the status of the amendment from the list. Possible status are:

  • New

  • Accept

  • Hold

  • Download

• Amendment

• Order No.

• Item

• Amended Field

• Original Value

• New Value

• Effect

• Amended Text

LC Amendments Table - Actions Menu/Icons and Button

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-16 LC Amendments Table - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
Add and Add icon	You can add amendments to the LC by selecting Actions > Add or by using the Add icon. For more information about how to add amendments to an LC, see the Adding Amendments section.
Delete and Delete icon	You can delete amendments from the LC by selecting Actions > Delete or by using the Delete icon. For more information about how to delete amendments from an LC, see the Deleting Amendments section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.
Generate and Generate button	Select Actions > Generate or use the Generate button to generate an Amendment ID. If you click Generate, the system generates the next sequential Amendment ID and populates the ID in the Amendment column for all line(s) in Accept status. For more information about how to generate amendment IDs, see the Generating Amendment IDs section. When you select the Send Amendments link in the Tasks menu and search for letters of credit to send, only amendments that have been generated in the LC Amendments window are transmitted.

LC Amendments Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-17 LC Amendments Table - View Menu and Description

View Menu Options	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example or Query by Example icon	You can filter the records by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

LC Amendments Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the LC Amendments window. The Toolbar contains the following icons and buttons.

Table 13-18 LC Amendments Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
More Actions	Click More Actions to see a list of additional actions that can be performed in the LC Amendments window. For more information about the available actions, see the LC Amendments - More Actions Menu section.
Save	Click Save to save your changes to the letter of credit.
Save and Close	Click Save and Close to save your changes to the letter of credit and close the LC Amendments window.
Cancel	Click Cancel to reject all entries and close the LC Amendments window.

LC Amendments - More Actions Menu

Use the More Actions menu to navigate to the following windows.

Table 13-19 LC Amendments - More Actions Menu and Description

Actions Menu	Description
Required Documents	Opens the Required Documents window. This window displays all required documents for the LC. For more information, see the Orders chapter, section "Required Documents".
Amendments Report	Opens the Amendments Report. You can print the report, in case a hard copy is needed.
Currency	You can toggle between the letter of credit and the primary currency, to view the LC amounts in either the LC or the system's primary currency. The currency is set to LC by default.

Adding Amendments

To add amendments to an LC follow the steps below.

1. From the Tasks menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Letters of Credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the More Actions menu select Amendments. The LC Amendments window appears.

7. In the LC Amendments table, select Actions > Add or use the Add icon. The Add Amendments window appears.

   Figure 13-7 Add Amendments Window




   1. The following two columns are displayed:

      • Original Value, containing the current values

      • New Value

   2. Enter new values, if necessary.

   3. In the Add Required Documents field, use the list to add documents to the LC.

   4. In the Remove Required Document field, use the list to delete documents from the LC.

   5. In the Add Comments field, enter your remarks for the amendments, if necessary.

   6. Then choose one of the following options.

      • Click OK to add your changes and close the Add Amendments window. The system returns to the LC Amendments window. All changes are shown in the LC Amendment table with the status New. The Amendment column is blank.

      • Click OK and Add Another to add additional amendments.

      • Click Cancel to reject all entries and close the Add Amendments window.

Deleting Amendments

To delete amendments from an LC follow the steps below:

1. From the Tasks menu, select Import Management > Manage Letter of Credit The Letter of Credit Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Letters of Credit that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Letter of Credit column, click on the LC link, or mark a record and select Actions > Edit or use the Edit icon. The Letter of Credit window appears.

6. In the More Actions menu select Amendments. The LC Amendments window appears.

7. In the LC Amendments table select a record. Choose Actions > Delete or use the Delete icon.

8. You are prompted if you want to delete the record. Confirm the displayed prompt with Yes.




   Note: Amendments can only be deleted up until the time they are generated and an amendment ID is created. Additionally, you can only delete manually created amendments. System-generated amendments cannot be deleted. Therefore, the Delete option is only enabled for manually created amendments.




9. The record is deleted from the LC Amendments table.

10. Then choose one of the following options.

    • Click Save to save your changes to the letter of credit.

    • Click Save and Close to save your changes to the letter of credit and close the LC Amendments window.

    • Click Cancel to reject all entries and close the LC Amendments window.

Generating Amendment IDs

To generate Amendment IDs follow the steps below.

1. In the LC Amendments window, go to the LC Amendments table.

2. In the Status column, select the status Accept from the list, for all amendments you want to create an ID for.

3. Select Actions > Generate or use the Generate button to create Amendment IDs for all records with a status Accept. The system generates the next sequential Amendment ID and populates the Amendment column.

4. Then choose one of the following options.

   • Click Save to save your changes to the letter of credit.

   • Click Save and Close to save your changes to the letter of credit and close the LC Amendments window.

   • Click Cancel to reject all entries and close the LC Amendments window.

Managing Letters of Credit

The Manage Letter of Credit option opens the Letter of Credit Search window. In the Letter of Credit Search window you can search for, maintain and view letters of credit.

You can access Letter of Credit search window form the Task menu, Import Management > Manage Letter of Credit. The Letter of Credit Search window appears

The Letter of Credit Search window contains the following two sections.

• Search

  For more information about how to search for an LC, see the Searching for an LC section.

• Results

• LC Search Toolbar

Figure 13-8 Letter of Credit Search Window

Searching for an LC

To search for an LC:

1. From the Task menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. You can search for an LC using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for an LC Through the Basic Search Criteria

To search for an LC using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-20 Letter of Credit Search - Basic Search Criteria and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only LCs matching all entered search criteria are shown. Any - LCs matching any of the entered search criteria are shown.
   Letter of Credit	Enter the Letter of Credit ID.
   Bank LC Reference	Enter the bank LC reference.
   Status	Select the LC status. Possible statuses are: Worksheet Submitted Approved Extracted Confirmed Closed
   Applicant	Enter, select or search for the applicant.
   Beneficiary	Enter, select or search for the beneficiary.
   Issuing Bank	Enter, select or search for the issuing bank.
   Advising Bank	Enter, select or search for the advising bank.




2. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for an LC Through Advanced Search Criteria

To search for an LC using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should be equal or not equal the search result.

3. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The LCs that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved letters of credit. The Results table shows the following columns by default.

• Letter of Credit

• Bank LC Reference

• Status

• Applicant Name

• Beneficiary Name

• Department Name

• Issuing Bank Name

• Advising Bank Name

Results - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-21 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Create or Create icon	Select Actions > Create or use the Create icon to create a new letter of credit. The Letter of Credit window appears. For more details about how to create an LC, see the Creating a Letter of Credit section.
Edit and Edit icon	Select Actions > Edit or use the Edit icon to edit the selected LC. For more information about how to edit an LC, see the Editing a Letter of Credit section.
View and View icon	To view an LC: Select a record in the Results section. Select Actions > View or use the View icon. The Letter of Credit window appears. Click Done to close the window. For more details about the Letter of Credit window, see the Letter of Credit Window section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Results - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-22 Results - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example or Query by Example icon	You can filter the records by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

LC Search Toolbar

The toolbar contains the following icons and buttons.

Table 13-23 LC Search Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Done	Click Done to close the window.

Send Letter of Credit

The Send Letter of Credit option opens the Send Letters of Credit window. The Send Letters of Credit window allows you to search for letter(s) of credit and send them to the bank.

You can access Send Letter of Credit window form the Task menu, select Import Management > Send Letter of Credit. The Supplier Search window appears.

The Send Letters of Credit window contains the following sections:

• Search

  For more information about how to search for send letters of credit, see the Searching for a Letter of Credit to Send section.

• Results

• Send LC Toolbar

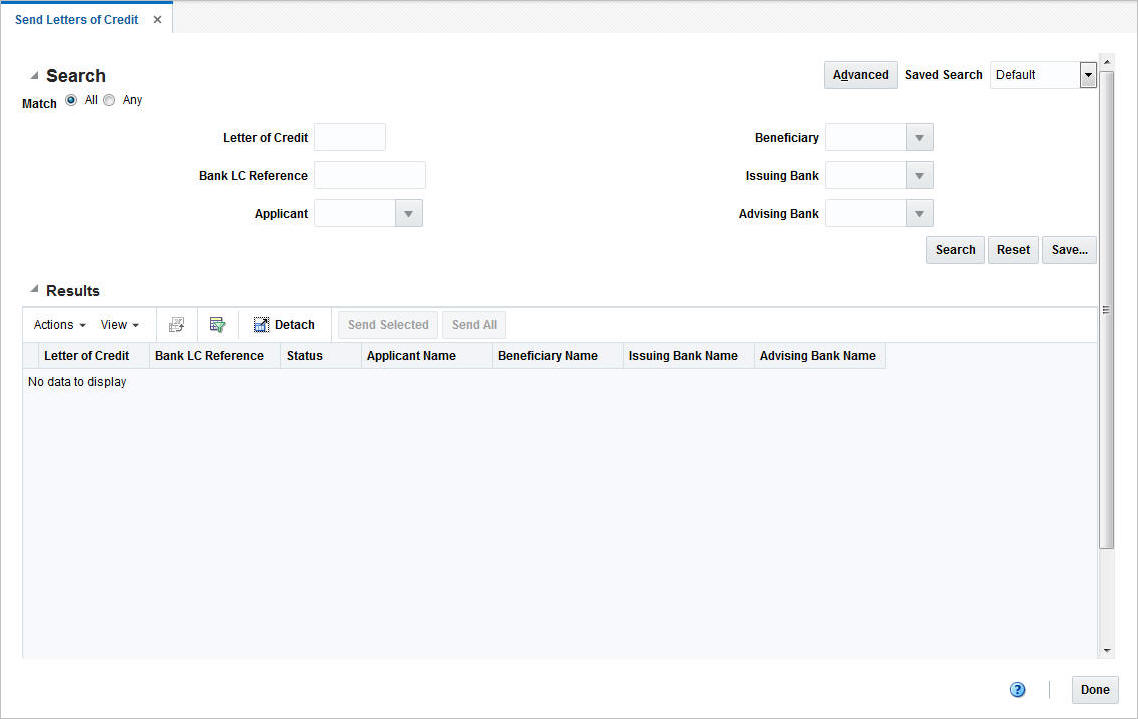

Figure 13-9 Send Letters of Credit Window

Searching for a Letter of Credit to Send

To search for an LC to send to the bank:

1. From the Task menu, select Import Management > Send Letter of Credit. The Send Letters of Credit window appears.

2. You can search for an LC using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for an LC Through the Basic Search Criteria

To search for an LC using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-24 Send Letters of Credit - Basic Search Criteria and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only LCs matching all entered search criteria are shown. Any - LCs matching any of the entered search criteria are shown.
   Letter of Credit	Enter the Letter of Credit ID.
   Bank LC Reference	Enter the bank LC reference.
   Applicant	Enter, select or search for the applicant.
   Beneficiary	Enter, select or search for the beneficiary.
   Issuing Bank	Enter, select or search for the issuing bank.
   Advising Bank	Enter, select or search for the advising bank.




2. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for an LC Through Advanced Search Criteria

To search for an LC using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should be equal or not equal the search result.

3. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The LCs that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved letters of credit. The Results table shows the following columns by default.

• Letter of Credit

• Bank LC Reference

• Status

• Applicant Name

• Beneficiary Name

• Department Name

• Issuing Bank Name

• Advising Bank Name

Results - Actions Menu and Buttons

Use the Actions Menu and buttons to apply actions to the Results table.You can perform the actions listed below.

Table 13-25 Results - Actions Menu /Buttons and Description

Actions Menu/Buttons	Description
Export to Excel and Export to Excel icon	You can export the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Send Selected and Send Selected button	Select Actions > Send Selected or use the Send Selected button to send the selected LCs to the bank. For more details about how to send selected LCs to the bank, see the Sending Selected LCs section.
Send All and Send All button	Select Actions > Send All or use the Send All button to send all LCs shown in the Results table to the bank. For more information about how to send all LCs to the bank, see the Sending All LCs section.

Results - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-26 Results - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Send LC Toolbar

The toolbar contains the following icons and buttons.

Table 13-27 Send LC Search Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Done	Click Done to close the window.

Sending Selected LCs

To send the selected LCs shown in the Results table to the bank, follow the steps below.

1. From the Tasks menu, select Import Management > Send Letters of Credit. The Send Letters of Credit window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.




   Note: Only LCs with status Approved are displayed.




4. Select the LCs you want to send to the bank.

5. Then select Actions > Send Selected, or use the Send Selected button.

6. You are prompted to download the LC(s). Confirm the prompt with Yes.

7. You are informed that the selected LCs will be sent during the next batch process. Confirm the prompt with OK.




   Note: Once the LCs are sent, the status changes to Extracted.




8. After you have send all LCs, click Done.

Sending All LCs

To send all LCs shown in the Results table to the bank, follow the steps below.

1. From the Tasks menu, select Import Management > Send Letters of Credit. The Send Letters of Credit window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.




   Note: Only LCs with status Approved are displayed.




4. Select Actions > Send All, or use the Send All button.

5. You are prompted to download the LCs. Confirm the prompt with Yes.

6. You are informed that the LCs will be sent during the next batch process. Confirm the prompt with OK.




   Note: Once the LCs are sent, the status changes to Extracted.




7. After you have sent all LCs, click Done.

Sending Amendments

The Send Amendments option opens the Send Amendments window. The Send Amendments window allows you to search for amended Letters of Credit and send them to the bank.

The Send Amendments window contains the following sections.

• Search

  For more information about how to search for amended LCs, see the Searching for an Amended LC section.

• Results

• Send Amendments Toolbar

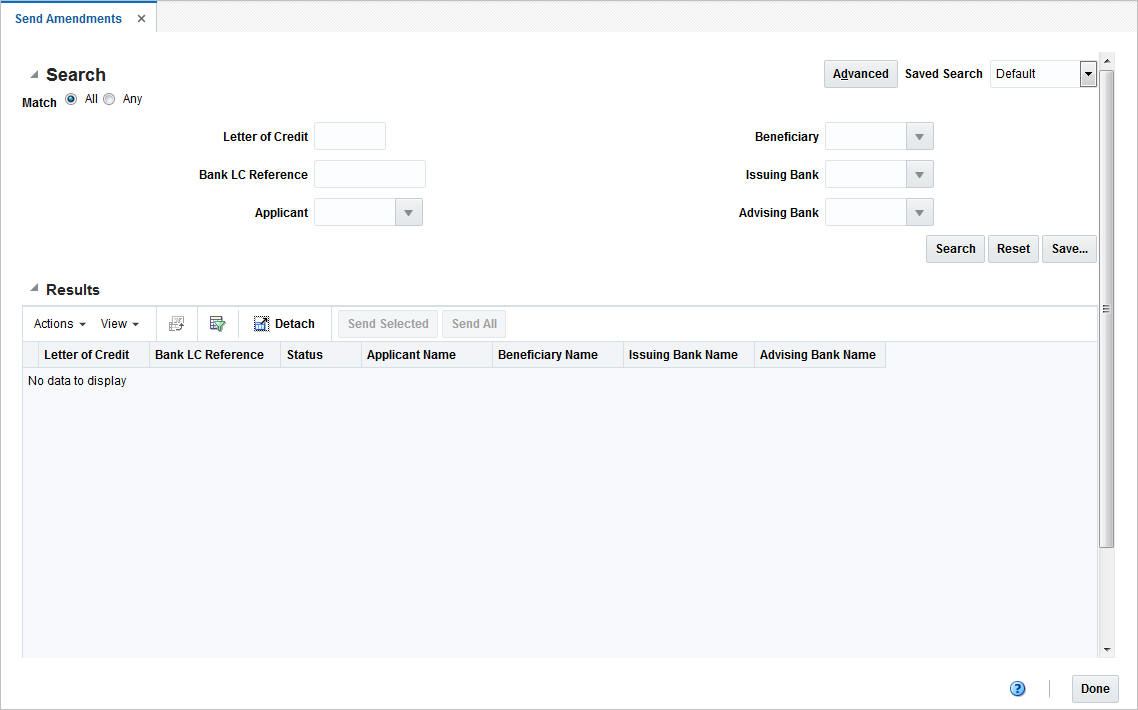

Figure 13-10 Send Amendments Window

Searching for an Amended LC

To search for amended LCs:

1. From the Task menu, select Import Management > Send Amendments. The Send Amendments window appears.

2. You can search for amended LCs using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for an Amended LC Through the Basic Search Criteria

To search for an amended LC using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-28 Send Amendments - Basic Search Criteria and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only LCs matching all entered search criteria are shown. Any -LCs matching each entered search criteria are shown.
   Letter of Credit	Enter the Letter of Credit ID.
   Bank LC Reference	Enter the bank LC reference.
   Applicant	Enter, select or search for the applicant.
   Beneficiary	Enter, select or search for the beneficiary.
   Issuing Bank	Enter, select or search for the issuing bank.
   Advising Bank	Enter, select or search for the advising bank.




2. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The amended LCs that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for an Amended LC Through Advanced Search Criteria

To search for an amended LC using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should be equal or not equal the search result.

3. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The LCs that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the amended letters of credit. The Results table shows the following columns by default.

• Letter of Credit

• Bank LC Reference

• Status

• Applicant Name

• Beneficiary Name

• Department Name

• Issuing Bank Name

• Advising Bank Name

Results - Actions Menu, Icons and Buttons

Use the Actions Menu, icons and buttons to apply actions to the Results table. You can perform the actions listed below.

Table 13-29 Results - Actions Menu/Icons /Buttons and Description

Actions Menu/Icons/ Buttons	Description
Export to Excel and Export to Excel icon	You can export the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Send Selected and Send Selected button	Select Actions > Send Selected or use the Send Selected button to send the selected amended LCs to the bank. For more details about how to send an LC, see the Sending Selected Amended LCs section.
Sent All and Send All button	Select Actions > Send All or use the Send All button to send all amended LCs shown in the Results table to the bank. For more information about how to send all LCs to the bank, see the Sending All Amended LCs section.

Results - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-30 Results - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Send Amendments Toolbar

The toolbar contains the following icons and buttons.

Table 13-31 Send Amendments Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Done	Click Done to close the window.

Sending Selected Amended LCs

To send the selected amended LCs shown in the Results table to the bank, follow the steps below.

1. From the Tasks menu, select Import Management > Send Amendments. The Send Amendments window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. Select the LCs you want to send to the bank.

5. Then select Actions > Send Selected, or use the Send Selected button.

6. You are prompted to download the LC(s). Confirm the prompt with Yes.

7. You are informed that the selected LC amendments will be sent during the next batch process. Confirm with OK.




   Note: Once the LCs are sent, the status changes to Download.




8. Click Done to close the window.

Sending All Amended LCs

To send all amended LCs shown in the Results table to the bank, follow the steps below.

1. From the Tasks menu, select Import Management > Send Amendments. The Send Letters of Credit window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. Select Actions > Send All, or use the Send All button.

5. You are prompted to download the LCs. Confirm the prompt with Yes.

6. You are informed that the LC amendments will be sent during the next batch process. Confirm with OK.




   Note: Once the LCs are sent, the status changes to Download.




7. Click Done to close the window.

Letter of Credit Order Selection Window

The Letter of Credit Order Selection window allows you to associate purchase orders to letters of credit.

The Letter of Credit Order Selection window contains the following sections.

• LC Order Selection Header

• Associate LCs with Orders Table

• LC Order Selection Toolbar

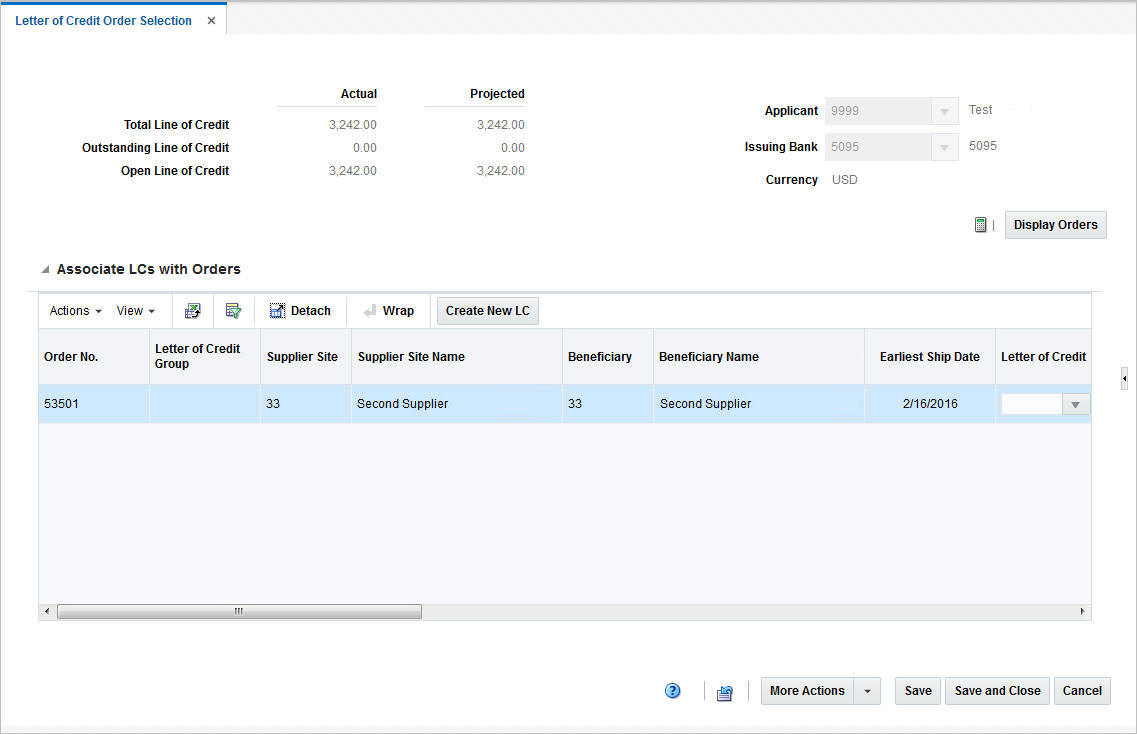

Figure 13-11 Letter of Credit Order Selection Window

LC Order Selection Header

The LC Order Selection header displays the following information.

Table 13-32 LC Order Selection Header - Fields and Description

Fields	Description
Total Line of Credit	This field is auto-populated, after you have selected the issuing bank.
Outstanding Line of Credit	This field is auto-populated, after you have selected the issuing bank.
Open Line of Credit	This field is auto-populated, after you have selected the issuing bank.
Applicant	Enter, select or search for the applicant.
Issuing Bank	Enter, select or search for the issuing bank.
Currency	This field is auto-populated, after you have selected the issuing bank.

Additionally, the LC Order Selection header contains the following icon and action button.

Table 13-33 LC Order Selection - Fields and Description

Icon/Action Button	Description
Recalculate icon	If you create a new letter of credit, use the Recalculate icon to update the displayed credit values such as Total Line of Credit, Outstanding of Credit and Open Line of Credit.
Display Orders	Starts the order search. For more information about the how to search for orders and associate LCs with them, see the Associating LCs with Purchase Orders section.

Associate LCs with Orders Table

In this table you can associate LCs with orders. The table displays the following columns by default.

• Order No.

• Letter of Credit Group

• Supplier Site and Supplier Site Name

• Beneficiary and Beneficiary Name

• Earliest Ship Date

• Letter of Credit

  In the Letter of Credit column you can search for the corresponding letter of credit, by Letter of Credit ID, Bank LC Reference and LC Type.

• Errors

  The Errors column displays a checkbox, if checked the purchase order contains an error. To view the individual error message, add the Error Message column to the table and view the message.

Associate LCs with Orders Table - Actions Menu, Icons and Buttons

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-34 Associate LCs with Orders Table - Actions Menu/Icons/Button and Description

Actions Menu/Icon/Button	Description
Create New LC and Create New LC button	Select Actions > Create New LC, or use the Create New LC button to create a new letter of credit. The Letter of Credit window appears. For more details about how to create an LC, see the Creating a Letter of Credit section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Associate LCs with Orders Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-35 Associate LCs with Order Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

LC Order Selection Toolbar

The LC Order Selection Toolbar displays the icons and buttons for actions that can be performed in the Letter of Credit Order Selection window such as clear all entries or toggle between currencies. The Toolbar contains the following icons and buttons.

Table 13-36 LC Order Selection Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Revert All icon	Use the Revert All icon to clear the window from all entries. No entries are saved, when you select the icon.
More Actions	Click More Actions to see a list of additional actions that can be performed in the Letter of Credit Order Selection window. Currency You can view the LC Actual and Projected Credit Values in either the bank's or the system's primary currency. By default the bank currency is displayed.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and close the window.
Cancel	Click Cancel to reject all entries and close the window.

Associating LCs with Purchase Orders

To associate an LC with a purchase order, follow the steps below.

1. From the Tasks Menu select, Import Management > Letter of Credit Order Selection. The Letter of Credit Order Selection window appears.

2. In the Applicant field, enter, select or search for the corresponding applicant.

3. In the Issuing Bank field, enter, select or search for the bank.

4. Click Display Orders. The results are shown in the Purchase Order table.




   Note: Only POs created for the selected applicant, with the status Approved and payment method LC are displayed. All shown POs are also not yet associated to a letter of credit.




5. In the Letter of Credit column, enter select or search for the corresponding LC.

6. The Letter of Credit ID is shown in the Purchase Order table.

7. Then choose one of the following options.

   • Select Save to save your changes.

   • Select Save and Close to save your changes and close the Letter of Credit Orders Selection window.

   • Select Cancel to reject all entries and close the Letter of Credit Orders Selection window.

Creating a New LC and associate LC with Purchase Order

To create a new LC and associate it with a purchase order follow the steps below.

1. From the Tasks Menu select, Import Management > Letter of Credit Order Selection. The Letter of Credit Order Selection window appears.

2. In the Applicant field, enter, select or search for the corresponding applicant.

3. In the Issuing Bank field, enter, select or search for the bank.

4. Click Display Orders. The results are shown in the Associate LCs with Orders table below.

5. Select a record in the table.

6. Then select Actions > Create New LC, or use the Create New LC button.

7. The system generates a letter of credit ID and populates the Letter of Credit field for the selected purchase order. Additionally, the system defaults the Type and Form Type column.




   Note: You can change the values of the Type and Form Type columns. You can also associate additional POs to the newly created LC by selecting the created LC from the list in the Letter of Credit column.




8. Use the Recalculate icon, to recalculate the Actual and Projected Credit values.

9. After you have associated the LCs with the purchase orders, choose one of the following options.

   • Select Save to save your changes.

   • Select Save and Close to save your changes and exit the Letter of Credit Orders Selection window.

   • Select Cancel to reject all entries and close the Letter of Credit Orders Selection window.

Letters of Credit Approval Process

When a letter of credit is added to the system, it must go through a series of checks before it is accessible in the system. Depending on your user role, you may not be able to move the letter of credit to the next status. A letter of credit may be in any of the following statuses.

Status	Definition
Worksheet	The letter of credit has been started, but not completed.
Submitted	The letter of credit has been completed and is pending review.
Approved	The letter of credit has been reviewed and approved.
Extracted	The details of the letter of credit were sent to the external entity affected by the letter of credit.
Confirmed	The letter of credit has been confirmed by the bank and a reference number has been assigned to the letter of credit.
Closed	The letter of credit is complete.

Submitting a Letter of Credit for Approval

To submit a letter of credit for approval follow the steps below.

1. From the Tasks Menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Restrict your search to letters of credit in the status Worksheet.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. In the Letter of Credit column, click on the LC ID link, or mark a record and select Actions > Edit, or use the Edit icon. The Letter of Credit window appears.

5. In the LC Toolbar, select Submit.

6. When prompted to submit the letter of credit, click Yes.

7. After you have submitted the LC, choose one of the following options.

   • Select Save to save your changes.

   • Select Save and Close to save your changes and exit the Letter of Credit window.

   • Select Cancel to reject all entries and exit the Letter of Credit window.

Approving a Letter of Credit

To approve a letter of credit follow the steps below.

1. From the Tasks Menu, select Import Management > Manage Letter of Credit. The Letter of Credit Search window appears.

2. Restrict your search to letters of credit in the status Submit.

3. Click Search. The LCs that match the search criteria are displayed in the Results section.

4. In the Letter of Credit column, click on the LC ID link, or mark a record and select Actions > Edit, or use the Edit icon. The Letter of Credit window appears.

5. In the LC Toolbar, select Approve.

6. When prompted to approve the letter of credit, click Yes.

7. After you have approved the LC, choose one of the following options.

   • Select Save to save your changes.

   • Select Save and Close to save your changes and exit the Letter of Credit window.

   • Select Cancel to reject all entries and exit the Letter of Credit window.

Transportation

The movement of goods from origin country to final destination can be tracked through the transportation module.

You can track the following information in the transportation module:

• Shipments

• Countries and ports

• Departure, arrival, and delivery dates

• Commercial invoices

• Freight sizes, SCAC codes, and freight types

• Measurements, weights, and quantities

• Deliveries to final destinations

• Packing methods

• Licenses and visas

• Claims against trading partners

• Missing documents

• Timelines

• Members of an item family

A transportation upload batch program converts data received from trading partners into a standard Oracle Retail file format. As additional information is acquired, it can be entered manually. When a transportation record is complete, you can finalize the record. Finalized transportation records are used to automatically create customs entries. The goods can then be tracked as they move through customs.

The Transportation window contains the following sections.

• Transportation

• Item and Quantities

• Shipment and Receipt

• Freight

• Totals

• Comments

• Transportation Toolbar

Figure 13-12 Transportation Window

Transportation

The Transportation section contains the transportation ID. In the top right corner of the section the Candidate checkbox and the Status list for the transportation is displayed.

Note: The Candidate checkbox can only be elected for items that have an approved HTS code.

The Status field displays the status of the transport. Possible values for the Status field are booked, delivered, loaded, sailed or finalized.

The Transportation section contains the following fields.

Table 13-37 Transportation - Fields and Description

Fields	Description
Shipment Method	Select a shipment method from the list.
Vessel	Enter the vessel ID.
Voyage/Flight	Enter the voyage or flight number.
Estimated Departure Date	Enter or use the Calendar icon to select the estimated departure date.
Actual Departure Date	Enter or use the Calendar icon to select the actual departure date.
BOL/AWB	Enter the Bill of Lading (BOL) or the Airway Bill (AWB).
Container	Enter the container ID.
Vessel SCAC Code	Enter, select or search for the standard carrier alpha code.
Rush checkbox	Check the Rush checkbox, to indicate that it is a rush shipment.
Partner Type/Partner	Select a partner type from the list. For example, select Agent. Then the Partner field next to the Partner Type field enables. Enter, select or search for the appropriate partner.

Item and Quantities

The Item and Quantities section contains the following fields.

Table 13-38 Item and Quantities - Fields and Description

Fields	Description
Order No.	Enter, select or search for the appropriate order number. The Details icon opens the Order Details window. For more information about the Order Details window, see the Orders chapter, section "Order Details".
Item	Enter the item number or use the Search icon to search for the appropriate item.
Lot	Enter the lot number.
Carton Quantity	Enter the carton quantity. Then select or search for the carton unit of measure (UOM).
Item Quantity	Enter the item quantity. Then select or search for the item unit of measure (UOM).
Gross Weight	Enter the gross weight. Then select or search for the gross weight unit of measure (UOM).
Net Weight	Enter the net weight. Then select or search for the net weight unit of measure (UOM).
Cubic	Enter the cubic quantity. Then select or search for the cubic unit of measure (UOM).

Commercial Invoice

The Commercial Invoice section contains the following fields.

Table 13-39 Commercial Invoice - Fields and Description

Fields	Description
Commercial Invoice	Enter the commercial invoice ID.
Date	Enter or use the Calendar icon to select the date of the commercial invoice.
Supplier Site	The supplier site is displayed automatically.
Amount	Enter the amount of the commercial invoice. Use the Recalculate icon to recalculate the invoice amount.
Currency	Enter, select or search for the appropriate currency.
Exchange Rate	Use the Edit Exchange Rate icon to change the rate, if necessary. If you click the icon, the Edit Exchange Rate window appears. For more information about how to edit the Exchange Rate, see the Editing the Exchange Rate section.

Shipment and Receipt

The Shipment and Receipt section contains the following fields.

Table 13-40 Shipment and Receipt - Fields and Description

Fields	Description
Country of Sourcing	The country of sourcing is displayed automatically.
Consolidation Country	Enter, select or search for the consolidation country.
Export Country	Enter, select or search for the export country.
Shipment	Enter the shipment ID.
Lading Port	Enter, select or search for the lading port.
Discharge Port	Enter, select or search for the discharge port.
Receipt	Enter the receipt number.
Forwarder's Cargo Receipt	Enter the forwarder's cargo receipt.
Forwarder's Cargo Receipt Date	Enter or use the Calendar icon to select the Forwarder's Cargo Receipt Date.
Estimated Arrival Date	Enter or use the Calendar icon to select the estimated arrival date.
Actual Arrival Date	Enter or use the Calendar icon to select the actual arrival date.
Delivery Date	Enter or use the Calender icon to select the delivery date.

Freight

The Freight section contains the following fields.

Table 13-41 Freight - Fields and Description

Fields	Description
Type	Enter, select or search for the freight type of the shipment.
Size	Enter, select or search for the freight size of the shipment.
In Transit No.	Enter the in transit number.
In Transit Date	Enter the in transit date or use the Calendar icon to select a date.
Service Contract	Enter the service contract.
Seal	Enter the seal.
Container SCAC Code	Enter, select or search for the container standard carrier alpha code (SCAC).
Packing Method	Select the packing method from the list.
Level	Select the level from the list.

Totals

The Totals section contains the following fields.

Table 13-42 Totals - Fields and Description

Fields	Description
Total Units	Enter, select or search for the total units of measure.
Total Cartons	Enter, select or search for the total cartons units of measure.
Total Gross Weight	Enter, select or search for the total gross weight units of measure.
Total Net Weight	Enter, select or search for the total net weight units of measure.
Total Cube	Enter, select or search for the total cube units of measure.
Total Value	The total value is displayed automatically.

Comments

The Comments section contains the comment field. You can enter any comments for the created transport, if necessary.

Transportation Toolbar

The Toolbar displays the icons and buttons for actions that can be performed for the transport such as navigating to the Transportation Details window to view details of the transport. The Toolbar contains the following icons and buttons.

Table 13-43 Transportation Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Expand and Collapse icon	You can view all the sections and collapse all the sections in the Transportation window by clicking the Expand and Collapse icons.
Delete icon	You can delete a transport by clicking the Delete icon.
More Actions	Click More Actions to see a list of additional actions that can be performed in the Transportation window. For more information about the More Action Menu for transports, see the Transportation - More Actions Menu section.
Save	Click Save to save changes to the transport.
Save and Close	Click Save and Close, to save changes to the transport and exit the Transportation window.
Cancel	Click Cancel to cancel any changes made to the transport and exit the Transportation window.
Done	If you opened the Transportation window in view mode, the Done button is displayed. Click Done to close the Transportation window.

Transportation - More Actions Menu

Use the More Actions menu to navigate to the following windows. The More Actions menu contains the following options.

Table 13-44 More Actions Menu - Action Buttons and Description

More Actions Buttons	Description
Details	Opens the Transportation Details window. This window displays details of the delivery, packing, and license/visa information as well as claims. For more information about Details, see the Transportation Details section.
Missing Documents	Opens the Missing Documents window. You can add and delete all the missing documents for the current transport in this window. For more information about Missing Documents, see the Missing Documents section.
Shipments	Opens the Transportation Shipments window. This window displays shipment information such as ASNs, shipped and received date, to location and location name. For more information about Shipments, see the Transportation Shipments section.
Timelines	Opens the Timelines menu. The menu contains the following options. Transportation Opens the Transportation Timelines window. Order/Item Opens the Order/Item Timelines window. Container Opens the Container Timelines window. BOL/AWB (Bill of Lading/Airway Bill) Opens the BOL/AWB Timelines window. Commercial Invoice Opens the Commercial Invoice Timelines window. For more information about timelines, see the Timelines section.
Items	Opens the Transportation Items window. For more information about Items, see the Transportation Items section.

Creating a Transportation

To create a transportation follow the steps below.

1. From the Tasks menu, select Import Management > Create Transportation. The Create Transportation window appears.

   Figure 13-13 Create Transportation Window




2. In the Shipment Method field, enter, select or search for the appropriate shipment method.

3. In the Vessel field, enter the vessel ID.

4. In the Voyage/Flight field, enter, the voyage/flight ID.

5. In the Estimated Departure Date, enter the estimated departure date or use the Calendar icon to select the date.

6. In the BOL/AWB field, enter the bill of lading number or the airway bill number.

7. In the Container field, enter the container ID.

8. In the Order No. field, enter, select or search for the appropriate order number.

9. In the Item field, enter the item number or use the Search icon to search for the appropriate icon.

10. In the Item Quantity field, enter the quantity of the item and enter, select or search for the appropriate unit of measure.

11. In the Commercial Invoice field, enter the commercial invoice number.

12. In the Date field, enter the date or use the Calendar icon to select the date.

13. In the Amount field, enter the amount of the transportation.

14. After you have entered all necessary transportation information, choose one of the following options.

    • Select OK to save the transportation and close the Create Transportation window. The Transportation window appears.

      For more information about the Transportation window, see the Transportation section.

    • Select Cancel to reject all entries and exit the Create Transportation window.

Transportation Details

In the Transportation Details window you can edit and view delivery, packing, license/visa and claims information related to a transportation record.

Delivery information is edited and viewed at the final destination level. You can indicate how many units and cartons of an item were delivered to which locations.

You can edit and view packing information at the container level. To display the shipped and received quantities for the packing records, select the appropriate option from the View menu.

The Claims table contains claims against a partner. Claims can be created for damaged merchandise and inadequate quantities. A single claim can span multiple cartons.

The Transportation Details window contains the following sections.

• Transportation Details Header

• Delivery

• Packing

• License/Visa

• Claims

• Transportation Details Toolbar

Figure 13-14 Transportation Details Window

Transportation Details Header

The Transportation Details header displays transportation information such as transportation ID, vessel, voyage/flight number, estimated departure date, container, bill of lading/airway bill, commercial invoice, order number and item information.

Delivery

The Delivery section lists delivery information such as location, location type and description, estimated delivery date, carton and item quantities as well as the vendor order number.

Delivery Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-45 Delivery Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add delivery information by selecting Actions > Add or by using the Add icon. For more information about how to add a delivery to a transportation, see the Adding a Delivery section.
Delete and Delete icon	You can delete delivery information from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete delivery information from a transportation, see the Deleting a Delivery section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Delivery Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-46 Delivery Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Packing

The Packing section lists packing information such as ID of the first (From Carton) and the last carton (To Carton), the position of a load in the series of containers (Load Position), location of a sample carton, and sample position as well as comments.

Packing Table - Actions Menu, Icons and Button

Use the Actions Menu, icons and buttons to apply actions to the table. You can perform the actions listed below.

Table 13-47 Packing Table - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
Add and Add icon	You can add packing information by selecting Actions > Add or by using the Add icon. For more information about how to add packing information to a transportation, see the Adding a Packing Information section.
Edit and Edit icon	You can edit packing information by selecting Actions > Edit or by using the Edit icon. For more information about how to edit packing information, see the Editing a Packing Information section.
Delete and Delete icon	You can delete packing information from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete packing information from a transportation, see the Deleting a Packing Information section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Default Received Quantities and Default Received Quantities button	You can default the received quantities to the value of the shipped quantities by selecting Actions > Default Received Quantities or by using the Default Received Quantities button.

Packing Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-48 Packing Table - View Menu/Icons and Description

View Menu/Icons	Description
Saved Views	You can toggle the following saved views: Default Quantity Received Quantity Select Reset Views to return to the system's Default view.
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

License/Visa

The Licence/Visa section lists license/visa information such as license/visa type, import country, licence/visa quantity and quantity unit of measure, quota category, net weight, and weight UOM as well as possible comments.

License/Visa Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-49 Licence/Visa Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add licence/visa information by selecting Actions > Add or by using the Add icon. For more information about how to add licence/visa information to a transportation, see the Adding a License/Visa section.
Edit and Edit icon	You can edit licence/visa information by selecting Actions > Edit or by using the Edit icon. For more information about how to edit licence/visa information, see the Editing a Licence/Visa section.
Delete and Delete icon	You can delete licence/visa information from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete licence/visa information from a transportation, see the Deleting a Licence/Visa section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Licence/Visa Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-50 Licence/Visa Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Claims

The Claims section contains claims information such as claim ID, ID of the first (From Carton) and the last carton (To Carton), claim date, item quantity and unit of measure, claim against type and ID, as well as the claim amount and comments.

Claims Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-51 Claims Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add a claim by selecting Actions > Add or by using the Add icon. For more information about how to add a claim to a transportation, see the Adding a Claim section.
Edit and Edit icon	You can edit a claim by selecting Actions > Edit or by using the Edit icon. For more information about how to edit a claim, see the Editing a Claim section.
Delete and Delete icon	You can delete a claim from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete a claim from a transportation, see the Deleting a Claim section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Claims Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-52 Claims Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Transportation Details Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Transportation Details window. The Toolbar contains the following icons and buttons.

Table 13-53 Transportation Details Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save changes.
Save and Close	Click Save and Close to save changes and exit the Transportation Details window.
Cancel	Click Cancel to cancel any changes and exit the Transportation Details window.
Done	If you opened the Transportation Details window in view mode, the Done button is displayed. Click Done to close the Transportation Details window.

Adding a Delivery

To add a delivery information to a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Delivery table, select Actions > Add or use the Add icon. The Add Delivery window appears.

   Figure 13-15 Add Delivery Window




   1. In the Location type field, select a location type from the list.The field next to the Location type field enables, enter, select or search for the location. The Location field is a required field.

   2. In the Estimated Delivery Date field, enter the estimated delivery date or use the Calendar icon to select the date.

   3. In the Carton Quantity field, enter the appropriate carton quantity. Then enter, select or search for the carton quantity UOM.

   4. In the Item Quantity field, enter the appropriate carton quantity. Then enter, select or search for the item quantity UOM.

   5. In the Vendor Order No. field, enter the vendor order number.

   6. In the Comments field, enter comments for the delivery, if necessary.

   7. Then choose one of the following options.

      • Click OK to add the delivery and close the Add Delivery window. The system returns to the Transportation Details window. The new delivery is added to the Delivery table.

      • Click OK and Add Another to add additional deliveries.

      • Click Cancel to reject all entries and exit the Add Delivery window. The system returns to the Transportation Details window.

8. After you have added all necessary deliveries, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Deleting a Delivery

To delete a delivery from a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the Transportation Toolbar select Details. The Transportation Details window appears.

7. In the Delivery table, select a delivery.

8. Click Actions > Delete or use the Delete icon to delete the selected delivery.

9. You are prompted if you want to delete the selected delivery from the Delivery table. Confirm with Yes.

10. The delivery is removed from the Delivery table.

11. After you have deleted all necessary records, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the Transportation Details window.

    • Click Cancel to reject all changes and close the Transportation Details window.

Adding a Packing Information

To add a packing information to a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Packing table, select Actions > Add or use the Add icon. The Add Packing window appears.

   Figure 13-16 Add Packing Window




   1. In the From Carton field, enter the ID of the first carton of a series. This field is a required field.

   2. In the To Carton field, enter the ID of the last carton of a series. This field is a required field.

   3. In the Loaded Position field, select the position of a load within a series from the list.

   4. In the Sample Carton field, enter the sample carton.

   5. In the Sample Position field, select the sample position from a list.

   6. In the Comments field, enter a comment for the packing information, if necessary.

   7. In the Quantity column, enter one of following options.

      • In the Carton field, enter the carton quantity. Then enter, select or search for the carton quantity UOM.

      • In the Carton Pack field, enter the carton pack quantity. Then enter, select or search for the carton pack quantity UOM.

      • In the Item field, enter the item quantity. Then enter, select or search for the item quantity UOM.

   8. In the Received Quantity column, enter one of the following options.

      • In the Carton field, enter the received carton quantity. Then enter, select or search for the carton quantity UOM.

      • In the Carton Pack field, enter the received carton pack quantity. Then enter, select or search for the carton pack quantity UOM.

      • In the Item field, enter the received item quantity. Then enter, select or search for the item quantity UOM.

   9. Then choose one of the following options.

      • Click OK to add the delivery and close the Add Packing window. The system returns to the Transportation Details window. The new packing information is added to the Packing table.

      • Click OK and Add Another to add further records.

      • Click Cancel to reject all entries and close the Add Packing window. The system returns to the Transportation Details window.

8. After you have added all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Editing a Packing Information

To edit a packing information follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Packing table, select Actions > Edit or use the Edit icon. The Edit Packing window appears.

   Figure 13-17 Edit Packing Window




   1. All previously entered fields are populated. Change the values in the appropriate fields, if necessary.

   2. Then choose one of the following options.

      • Click OK to save the changes and close the Edit Packing window. The system returns to the Transportation Details window. The packing information is updated.

      • Click Cancel to reject all entries and close the Edit Packing window. The system returns to the Transportation Details window.

8. After you have added all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Deleting a Packing Information

To delete a packing information from a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the Transportation Toolbar select Details. The Transportation Details window appears.

7. In the Packing table, select a packing information.

8. Click Actions > Delete or use the Delete icon to delete the selected packing information.

9. You are prompted if you want to delete the selected packing from the Packing table. Confirm with Yes.

10. The packing information is removed from the Packing table.

11. After you have deleted all necessary records, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the Transportation Details window.

    • Click Cancel to reject all changes and close the Transportation Details window.

Adding a License/Visa

To add a licence/visa information to a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Licence/Visa table, select Actions > Add or use the Add icon. The Add Licence/Visa window appears.

   Figure 13-18 Add Licence/Visa Window




   1. In the Type field, select licence or visa from the list. This field is a required field.

   2. In the Licence/Visa field, enter the licence or visa number. This field is a required field.

   3. In the Import Country field, enter, select or search for the import country. This field is a required field.

   4. In the Quantity field, enter the appropriated quantity. Then enter, select or search for the quantity unit of measure.

   5. In the Quota Category field, enter, select or search for the appropriate quota category.

   6. In the Net/Net Weight field, enter the net weight. Then enter, select or search for the weight unit of measure.

   7. In the Holder field, enter the holder of the licence/visa.

   8. In the Comments field, enter a comment for the licence/visa, if necessary.

   9. Then choose one of the following options.

      • Click OK to add the licence/visa and close the Add Licence/Visa window. The system returns to the Transportation Details window. The new licence/visa information is added to the Licence/Visa table.

      • Click OK and Add Another to add additional records.

      • Click Cancel to reject all entries and exit the Add Licence/Visa window. The system returns to the Transportation Details window.

8. After you have added all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Editing a Licence/Visa

To edit a licence/visa information follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Licence/Visa table, select Actions > Edit or use the Edit icon. The Edit Licence/Visa window appears.

   Figure 13-19 Edit Licence/Visa Window




   1. All previously entered fields are populated. Change the values in the appropriate fields, if necessary.

   2. Then choose one of the following options.

      • Click OK to save the changes and close the Edit Licence/Visa window. The system returns to the Transportation Details window. The licence/visa information is updated.

      • Click Cancel to reject all entries and exit the Edit Licence/Visa window. The system returns to the Transportation Details window.

8. Then choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Deleting a Licence/Visa

To delete a licence/visa information from a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the Transportation Toolbar select Details. The Transportation Details window appears.

7. In the Licence/Visa table, select the licence/visa information.

8. Click Actions > Delete or use the Delete icon to delete the selected licence/visa information.

9. You are prompted if you want to delete the selected licence/visa from the Licence/Visa table. Confirm with Yes.

10. The licence/visa information is removed from the Licence/Visa table.

11. Then choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and exit the Transportation Details window.

    • Click Cancel to reject all changes and exit the Transportation Details window.

Adding a Claim

To add a claim to a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Claims table, select Actions > Add or use the Add icon. The Add Claim window appears.

   Figure 13-20 Add Claim Window




   1. In the Claim field, enter the claim ID. This field is a required field.

   2. In the From Carton, enter the ID of the first carton of a series. This field is a required field.

   3. In the To Carton, enter the ID of the last carton in a series. This field is a required field.

   4. In the Date field, enter the claim date or use the Calendar icon to select the date. This field is a required field.

   5. In the Quantity field, enter the quantity. Then enter, select or search for the quantity unit of measure. These fields are required fields.

   6. In the Claim Against field, select who you want to add a claim against. For example, select Agent. Then select the claim against ID. These fields are required fields.

   7. In the Amount field, enter the amount of the claim.

   8. In the Discrepancy Type field, select the appropriate type from the list. Possible types are Overage or Shortage.

   9. In the Damage Code field, select the appropriate code from the list. For example, select external damage.

   10. In the Comments field, enter a comment for the licence/visa, if necessary.

   11. Then choose one of the following options.

       • Click OK to add the claim and close the Add Claim window. The system returns to the Transportation Details window. The new claim is added to the Claims table.

       • Click OK and Add Another to add additional records.

       • Click Cancel to reject all entries and close the Add Claims window. The system returns to the Transportation Details window.

8. After you have added all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Editing a Claim

To edit a claim follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Details. The Transportation Details window appears.

7. In the Claims table, select Actions > Edit or use the Edit icon. The Edit Claim window appears.

   Figure 13-21 Edit Claim Window




   1. All previously entered fields are populated. Change the values in the appropriate fields, if necessary.

   2. Then choose one of the following options.

      • Click OK to save the changes and close the Edit Claim window. The system returns to the Transportation Details window. The claim information is updated.

      • Click Cancel to reject all entries and close the Edit Claim window. The system returns to the Transportation Details window.

8. After you have added all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Details window.

   • Click Cancel to reject all changes and close the Transportation Details window.

Deleting a Claim

To delete claim from a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the Transportation Toolbar select Details. The Transportation Details window appears.

7. In the Claims table, select a claim.

8. Click Actions > Delete or use the Delete icon to delete the selected claim.

9. You are prompted if you want to delete the selected claim from the Claims table. Confirm with Yes.

10. The claim is removed from the Claims table.

11. After you have deleted all necessary records, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the Transportation Details window.

    • Click Cancel to reject all changes and close the Transportation Details window.

Transportation Shipments

In the Transportation Shipments window you can manage associations of shipments with a PO or a transportation record.

The Transportation Shipments window contains the following sections.

• Transportation Shipments Header

• Transportation Shipments Table

• Transportation Shipments Toolbar

Transportation Shipments Header

The Transportation Shipments header contains the following transportation information.

• Vessel ID

• Voyage/Flight number

• Estimated Departure Date

• Container

• Bill of Lading/Airway Bill

• Commercial Invoice

• Order Number

• Item

Transportation Shipments Table

The Transportation Shipments table contains information such as shipment, advanced shipping notice (ASN), and shipped as well as received date, the to location and the location name.

Transportation Shipments - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-54 Transportation Shipments Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add shipments by selecting Actions > Add or by using the Add icon. For more information about how to add a shipment to a transportation, see the Adding a Shipment section.
Delete and Delete icon	You can delete a shipment from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete a shipment from a transportation, see the Deleting a Shipment section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Transportation Shipments - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-55 Transportation Shipments Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Transportation Shipments Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Transportation Shipments window. The Toolbar contains the following icons and buttons.

Table 13-56 Transportation Shipments Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Delete icon	You can delete a transport by clicking the Delete icon.
Save	Click Save to save changes.
Save and Close	Click Save and Close to save changes and exit the Transportation Shipments window.
Cancel	Click Cancel to cancel any changes and exit the Transportation Shipments window.
Done	If you opened the Transportation Shipments window in view mode, the Done button is displayed. Click Done to close the Transportation Shipments window.

Adding a Shipment

To add a shipment to a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Shipments. The Transportation Shipments window appears.

7. In the table, select Actions > Add or use the Add icon. The Add Shipment window appears.

   Figure 13-22 Add Shipments Window




   1. The Add Shipments table displays shipments that are not associated with the PO/transportation record.

   2. In the table select all the shipments you want to associate with the current transportation.

   3. Then choose one of the following options.

      • Click OK to add the shipments and close the Add Shipments window. The system returns to the Transportation Shipments window. The new shipments are added to the Transportation Shipments table.

      • Click Cancel to reject all entries and close the Add Shipments window. The system returns to the Transportation Shipments window.

8. After you have added all necessary shipments, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Shipments window.

   • Click Cancel to reject all changes and close the Transportation Shipments window.

Deleting a Shipment

To delete a shipment from a transportation follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Shipments. The Transportation Shipments window appears.

7. In the Transportation Shipments table, select a shipment.

8. Click Actions > Delete or use the Delete icon to delete the selected shipment.

9. You are prompted if you want to delete the selected shipment from the Transportation Shipments table. Confirm with Yes.

10. The shipment is removed from the Transportation Shipments table.

11. After you have deleted all necessary records, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the Transportation Shipments window.

    • Click Cancel to reject all changes and close the Transportation Shipments window.

Timelines

A timeline refers to a schedule of events that can be attached to an activity to track its life cycle. Possible timeline types are.

• Item

• Purchase Order

• Order/Item

• Customs Entry

• Transportation

• Transportation PO/Item

• Container

• BOL/AWB

• Commercial Invoice

• PO BOL/AWB

You can add timelines to the values listed above. You can attach a date to each step linked with an activity and monitor the completion of the activity. You can also modify the dates based on the changes in the schedule of related activity and add a relevant reason/comment for the change.

The Timelines Window contains the following sections.

• Timeline Header

  The Timeline header varies according to your selected timeline type. For example, if you want to add a timeline for a purchase order, the purchase order number is displayed in the Timeline header.

• Timelines

• Timeline Details

• Timeline Toolbar

Figure 13-23 Transportation Timeline Window

Timelines

In the timeline section you can add or delete a timeline to/from the selected timeline type.

Timeline Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-57 Timeline Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add timelines to a timeline type by selecting Actions > Add or by using the Add icon. For more information about how to add a timeline to a timeline type, see the Adding Timelines section.
Delete and Delete icon	You can delete timelines from a timeline type by selecting Actions > Delete or by using the Delete icon. For more information about how to delete a timeline from a timeline type, see the Deleting Timelines section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Timeline Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-58 Timeline Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Timeline Details

In the Timeline Details section you can view the reason and comments for a modified step within a timeline. You can also delete a timeline detail from the entry.

Timeline Details Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-59 Timeline Details Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Delete and Delete icon	You can delete timeline details from an entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete timeline details from an entry, see the Deleting Timeline Details section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.
Calculate Revised Dates	Use the Calculate Revised Dates button to recalculate Base or Original dates. Follow the steps below. Enter the Base Date. Select Calculate Revised Dates. All the Original Dates are calculated automatically, based on the entered Base Date. If you enter the Original Date, the Base Date is recalculated. If you enter both, Base and Original date, you receive an error message.

Timeline Detail Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-60 Timeline Detail Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Timeline Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Timeline window. The Toolbar contains the following icons and buttons.

Table 13-61 Customs Timeline Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and exit the Timeline window.
Cancel	Click Cancel to reject all entries and exit the Timeline window.

Adding Timelines

To add a timeline to an entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Timelines. In the submenu choose for which entry you want to add timelines.

   • Transportation

   • Order/Item

   • Container

   • BOL/AWB

   • Commercial Invoice

   The Timeline window appears.

7. In the Timeline table, select Actions > Add or use the Add icon. The Add Timeline window appears.

   Figure 13-24 Add Timeline




   1. In the Timeline field, enter, select or search for the step number you want to add a timeline for. This field is a required field.

   2. In the Base Date field, enter or use the Calendar icon to select a date.

   3. Then choose one of the following options.

      • Click OK to add the timeline and close the Add Timeline window. The system returns to the Timeline window. The new timeline is added to the Timeline table.

      • Click OK and Add Another to add additional timelines.

      • Click Cancel to reject all entries and exit the Add Timeline window. The system returns to the Timelines window.

8. After you have added all necessary timelines, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Timelines window.

   • Click Cancel to reject all changes and close the Timelines window.

Deleting Timelines

To delete a timeline from an entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Timelines. In the sub menu select the appropriate timeline type. The Timelines window appears.

7. In the Timeline table, select Actions > Delete or use the Delete icon.

8. Confirm the displayed prompt with Yes. The record is deleted from the table.

9. After you have deleted all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and exit the Timeline window.

   • Click Cancel to reject all changes and exit the Timeline window.

Editing Timeline Details

To edit a timeline detail of an entry, follow the steps listed below.

1. In the Timeline Details table, select a record and edit the following columns, if necessary.

   • Revised Date

     Enter or use the Calendar icon to select a new date for an activity.

   • Actual Date

     Enter or use the Calendar icon to select the actual date for an activity.

   • Reason

     Enter, select or search for a reason for the timeline change.

   • Comments

     Enter or change comments for the activity.




     Note: The original date is populated, when you enter the base date in the Add Timeline window. You can only modify the Base and Original Date field during the timeline definition. Once a timeline has been attached to an activity, you can no longer update these fields.




2. After you have changed all necessary data, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Timeline window.

   • Click Cancel to reject all entries and close the Timeline window.

Deleting Timeline Details

To delete a timeline detail from an entry, follow the steps listed below.

1. In the Timeline Details table, select a record.

2. Then select Actions > Delete or use the Delete icon.

3. Confirm the displayed prompt with Yes. The record is deleted from the table.

4. After you have deleted all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and exit the Timeline window.

   • Click Cancel to reject all changes and exit the Timeline window.

Transportation Items

The Transportation Items window allows you to add, edit and view child items for an item parent on an order.

Note: This menu option is only enabled, if you entered a parent item in the Item field in the Transportation window.

Figure 13-25 Transportation Items Window

The Transportation Item window contains the following sections.

• Transportation Items Header

  The header displays the transportation ID, the vessel and voyage/flight number, the estimated departure date, container, bill of lading/airway bill, the commercial invoice, and order number as well as parent item information.

• Transportation Items Table

• Transportation Items Toolbar

Transportation Items Table

The Transportation Items table lists the child items added to the transportation record. You can add and delete records from this table. Furthermore, you can edit the Quantity and UOM field values directly in the table.

The Transportation Item table contains the following columns by default.

• Item

• Description

• Diff 1-4

• Quantity

  You can edit the quantity of the child item directly in the table.

• UOM (Unit of Measure)

  You can edit the UOM of the child item directly in the table.

Transportation Items Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-62 Transportation Items Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add child items to a transportation by selecting Actions > Add or by using the Add icon. For more information about how to add a child item to a transportation, see the Adding Child Items section.
Delete and Delete icon	You can delete child items from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete child items from a transportation, see the Deleting Child Items section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Transportation Items Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-63 Transportation Items Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Transportation Items Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Transportation Items window. The Toolbar contains the following icons and buttons.

Table 13-64 Transportation Items Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your entries.
Save and Close	Click Save and Close to save your entries and exit the Transportation Items window.
Cancel	Click Cancel to reject all entries and exit the Transportation Items window.

Adding Child Items

To add child items to a transportation of an order, follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Items. The Transportation Items window appears.

7. In the Transportation Items table, select Actions > Add or use the Add icon. The Add Item window appears.

   Figure 13-26 Add Item Window




   1. Select if you want to add the child items individually or if you want to add all the child items on the order.

   2. In the Items field, enter or use the Search icon to search for the appropriate child item.




      Note: If you have selected the Add All Child Items on Order checkbox, the Item field is disabled.




   3. In the Quantity field, enter the appropriate quantity. Then enter, select or search for the item quantity UOM.

   4. Then choose one of the following options.

      • Click OK to add the child item and close the Add Item window. The system returns to the Transportation Items window. The new child items is added to the Transportation Items table.

      • Click OK and Add Another to add additional child items.

      • Click Cancel to reject all entries and exit the Add Items window. The system returns to the Transportation Items window.

8. After you have added all necessary child items, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Transportation Items window.

   • Click Cancel to reject all changes and close the Transportation Items window.

Deleting Child Items

To delete a child item of a transportation, follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Items. The Transportation Items window appears.

7. In the Transportation Items table, select the child item you want to delete.

8. Then select Actions > Delete or use the Delete icon.

9. You are prompted if you want to delete the selected record. Confirm the prompt with Yes.

10. The selected child item is removed from the Transportation Items table.

11. After you have deleted all necessary child items, choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the Transportation Items window.

    • Click Cancel to reject all changes and close the Transportation Items window.

Create Transportation by Order

In the Create Transportation by Order window you can enter and edit items, related shipments and other information for a specific purchase order. After populating all the information in the header you can query the details. In addition, you can edit or mass edit records.

The Create Transportation by Order window contains the following sections.

• Create Transportation by Order Header

• Details

• Create Transportation by Order Toolbar

Figure 13-27 Create Transportation by Order

Create Transportation by Order Header

The header contains the following fields and button.

Table 13-65 Create Transportation by Order Header - Fields/Button and Description

Fields	Description
Order No.	Enter select or search for the appropriate order number. This field is a required field.
Vessel	Enter the vessel ID. This field is a required field.
Voyage/Flight	Enter the voyage/flight number. This field is a required field.
Estimated Departure Date	Enter or use the Calendar icon to select an estimated departure date. This field is a required field.
Item Default Level	Select the item default level from the list. Possible levels are Transaction Level and Above Transaction Level.
Default Child/Diff checkbox	Select the Default Child/Diff checkbox to indicate that all transaction-level values (child/diffs) associated with the parent items will be defaulted. The quantity/UOM values will be rolled-up and displayed for each parent item. The parent item qty/UOM is non-editable when child records exist. The Child/Diff values may be edited by clicking the Items option. If the you delete all of the quantity values from the Item window, the Parent level quantities can then be edited. The parent-level Item quantity will be calculated based on the sum of child-level quantities in the Item window, the Item UOM value will also default to the parent-level.
Supplier Site	The supplier site is displayed. You cannot edit the supplier site.
Details button	Use the Details button, to query the details for the entered order information. The transportation details are displayed in the Details section. For more information about transportation details, see the Details section.

Details

The Details section lists details for the entered order information. You can add, edit and delete item information for the transportation.

Details Table - Actions Menu, Icons and Button

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-66 Details Table - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
Add and Add icon	You can add items to a transportation by selecting Actions > Add or by using the Add icon. For more information about how to add items, see the Adding Items section.
Edit and Edit icon	You can edit item information of a transportation by selections Actions > Edit or by using the Edit icon. For more information about how to edit an item information for a transportation, see the Editing Items section.
Delete and Delete icon	You can delete items from a transportation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete items from a transportation, see the Deleting Items section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Mass Update or Mass Update button	Opens the Mass Update window. For more information about how to perform a mass update, see the Mass Update section.
Transportation	Opens the Transportation window. For more information about this function, see the Transportation section.
Items	Opens the Transportation Items window. For more information about this function, see the Transportation Items section.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Details Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-67 Details Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Create Transportation by Order Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Create Transportation by Order The Toolbar contains the following icons and buttons.

Table 13-68 Create Transportation by Order Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Refresh icon	To refresh the Create Transportation by Order use the Refresh icon. If you click this icon, all entries are deleted.
More Actions	Click More Actions to see a list of additional actions that can be performed in the Create Transportation by Order window. For more information about the More Actions menu, see the Create Transportation by Order - More Actions Menu section.
Save and Close	Click Save and Close, to save changes to the customs entry and exit the Customs Entry window. Click the arrow on the right side of the button to display the additional save options. Click Save to save your entries. Click Save and Create Another to save the current customs entry and create additional entries. Only displayed, if you opened the Create Transportation by Order window. Click Save and Edit Another to save the current customs entry and create additional entries. Only displayed, if you open the Manage Transportation by Order window.
Cancel	Click Cancel to reject all entries and exit the Create Transportation by Order window.

Create Transportation by Order - More Actions Menu

Use the More Actions menu to navigate to the following windows. The More Actions menu contains the following options.

Table 13-69 Create Transportation by Order - More Actions Menu

More Actions Menu	Description
Shipments	Opens the Transportation Shipments window. This window displays shipment information such as ASN, shipped and received date, to location and location name. For more information about shipments, see the Transportation Shipments section.
Details	Opens the Transportation Details window. This window displays a details of the delivery, packing, license/visa information as well as claims. For more information about transportation details, see the Transportation Details section.
Missing Documents	Opens the Missing Documents window. You can add and delete all the missing documents for the current transport in this window. For more information about missing documents, see the Missing Documents section.
Timelines	Opens the Timelines menu. The menu contains the following options. Transportation Opens the Transportation Timelines window. Order/Item Opens the Order/Item Timelines window. Container Opens the Container Timelines window. BOL/AWB (Bill of Lading/Airway Bill) Opens the BOL/AWB Timelines window. Commercial Invoice Opens the Commercial Invoice Timelines window. Order/BOL/AWB Opens the Order/BOL/AWB window. For more information about timelines, see the Timelines section.

Creating a Transportation by Order

To create a transportation by order follow the steps below.

1. From the Tasks menu, select Import Management > Create Transportation by Order. The Create Transportation by Order window appears.

2. Enter, select or search for the necessary order information. For more information, about what do add in the Create Transportation header, see the Create Transportation by Order Header section.

3. Click Details. The details for the entered order information is displayed in the Detail section.

   • Add items to the transportation by order. For more information about how to add items to the transportation by order, see the Adding Items section.

   • Edit item of the transportation by order. For more information about how to edit items of a transportation by order, see the Editing Items section.

   • Delete items form the transportation by order. For more information about how to delete items from a transportation by order, see the Deleting Items section.

   • Update multiple items of a transportation by order. For more information about how to update multiple items from a transportation by order, see the Mass Update section.

4. After you have made all the necessary changes, choose one of the following options.

   • Click Save and Close, to save changes to the transportation and exit the Create Transportation by Order window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to save the current transportation and create additional entries.

Adding Items

To add an item to a transportation by order, follow the steps below.

1. In the Details table, select Actions > Add or use the Add icon. The Add Item window appears.

   Figure 13-28 Add Item Window




   1. In the Item field, enter or use the Search icon to search for the appropriate item. This field is a required field.

   2. In the Container field, enter the container ID.

   3. In the BOL/AWB field, enter the bill of lading or airway bill number.

   4. In the Commercial Invoice field, enter the commercial invoice number. This filed is a required field.

   5. In the Invoice Date field, enter or use the Calendar icon to select a date. This field is a required field.

   6. In the Invoice Amount field, enter the invoice amount.

   7. In the Exchange Rate field the current rate is displayed. If you need to edit the displayed exchange rate, see the Editing the Exchange Rate section.

   8. In the Item Quantity field, enter the appropriate quantity. Then select the item quantity unit of measure.

   9. In the Carton Quantity field, enter the appropriate quantity. Then select the carton quantity unit of measure.

   10. In the Gross Weight field, enter the appropriate weight. Then select the weight unit of measure.

   11. In the Net Weight field, enter the appropriate weight. Then select the weight unit of measure.

   12. In the Cubic field, there appropriate cubic amount. Then select the cubic unit of measure.

   13. Then choose one of the following options.

       • Click OK to save your entries and close the Add Item window.

       • Click OK and Add Another to add additional records.

       • Click Cancel to reject all entries and close the Add Item window.

2. After you have made all the necessary changes, choose one of the following options.

   • Click Save and Close, to save changes to the transportation and close the Create/Manage Transportation by Order window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another/Save and Edit Another to save the current transportation and create additional entries.

   • Click Cancel to reject all entries and close the Create/Manage Transportation by Order window.

Editing Items

To edit items of a transportation by order, follow the step listed below.

1. In the Details table, select Actions > Edit or use the Edit icon. The Edit Item window appears.

   Figure 13-29 Edit Item Window




   1. The item information of the current item is displayed. Update the field as necessary.

   2. Then choose one of the following options.

      • Click OK to save your entries and close the Edit Item window.

      • Click Cancel to reject all entries and close the Edit Item window.

2. After you have made all the necessary changes, choose one of the following options.

   • Click Save and Close, to save changes to the transportation and close the Create/Manage Transportation by Order window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another/Save and Edit Another to save the current transportation and create additional entries.

   • Click Cancel to reject all entries and exit the Create/Manage Transportation by Order window.

Deleting Items

To delete items from an transportation by order follow the steps below.

1. In the Details table, select the item you want to delete from the transportation.

2. Then select Actions > Delete or use the Delete icon.

3. You are prompted if you want to delete the record. Confirm the prompt with Yes.

4. The item is deleted from the Details table.

5. Then choose one of the following options.

   • Click Save and Close, to save changes to the transportation and close the Create/Manage Transportation by Order window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another/Save and Edit Another to create additional entries.

   • Click Cancel to reject all entries and close the Create/Manage Transportation by Order window.

Mass Update

In the Mass Update window you can edit multiple items.

The Mass Update window contains the following sections.

• Apply Updates To

• Set Initial Values For

• Update

• Mass Update Toolbar

Figure 13-30 Mass Update Window

Apply Updates To

In the Apply Updates to section, enter, select or search for the values you want to apply the updates to.

Table 13-70 Apply Updates to - Fields and Description

Fields	Description
Item	Choose one of the following options from the list. Select All Items, the Item field and the item search are disabled. The updates will be performed for all items. Choose Single Item, the Item field and the item search are enabled. Enter or use the Search icon to search for the appropriate item. The updates will only be performed for the selected item.
Container	Enter, select or search for the appropriate container ID, you want to apply the update to.
BOL/AWB	Enter, select or search for the bill of lading or airway bill, you want to apply the update to.
Commercial Invoice	Enter, select or search for the commercial invoice, you want to apply the update to.

Set Initial Values For

In the Set Initial Values section you can enter only initial values for the container, the BOL/AWB and the commercial invoice. You cannot edit these values later.

Update

In the Update section, enter new values for those fields you want to update. The Update section displays the following fields.

Table 13-71 Updates - Fields and Description

Fields	Description
Status	Select the appropriate status from the list. For example, select status Loaded.
Commercial Invoice Date	Enter or use the Calendar icon to select the date.
Actual Departure Date	Enter or use the Calendar icon to select the date.
Estimated Arrival Date	Enter or use the Calendar icon to select the date.
Actual Arrival Date	Enter or use the Calendar icon to select the date.
Delivery Date	Enter or use the Calendar icon to select the date.
Shipment	Enter the shipment ID.
Receipt	Enter the receipt number.
Forwarder's Cargo Receipt	Enter the forwarder's cargo receipt number.
Forwarder's Cargo Receipt Date	Enter or use the Calendar icon to select the date.
In Transit	Enter In Transit number for shipments cleared at inland locations, or other than Discharge Port.
In Transit Date	Enter or use the Calendar icon to select the date.
Service Contract No.	Enter the service contract number.
Lot	Enter the lot number.
Seal	Enter the seal number
Packing Method	Select the packing method from the list. For example, select Flat.
Partner Type	Select the partner type from the list. For example, select Agent.
Partner	This field is only enabled, if you have selected a partner type. Enter, select or search for the appropriate partner.
Lading Port	Enter, select or search for the lading port.
Discharge Port	Enter, select or search for the discharge port.
Container SCAC Code	Enter, select or search for the container SCAC code.
Vessel SCAC Code	Enter, select or search for the vessel SCAC code.
Freight Type	Enter, select or search for the freight type.
Freight Size	Enter, select or search for the freight size.
Consolidation Country	Enter, select or search for the consolidation country.
Origin Country	Enter, select or search for the origin country.
Export Country	Enter, select or search for the export country.
Shipment Method	Select the shipment method from the list.
Rush checkbox	Select the Rush checkbox to indicate that the transport is a rush shipment.
Candidate checkbox	Select the Candidate checkbox, if the record is complete and ready for finalization. The Candidate checkbox can only be selected for items that have an approved HTS code.
Comments	Enter comments, if necessary.

Note: All fields are enabled by default. Check the Clear Value checkbox to disable the selected field. The field Commercial Invoice can not be cleared.

Mass Update Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Mass Update window. The Toolbar contains the following icons and buttons.

Table 13-72 Mass Update Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Preserve Selected Values checkbox	Select the Preserve Selected Values checkbox, if you want to keep the values for later mass updates.
Refresh icon	Use the Refresh icon to clear all entered values in the Mass Update window. No values are saved.
OK	Click OK to perform the updates as indicated and exit the Mass Update window.
Cancel	Click Cancel to reject all entries and exit the Mass Update window.

Managing a Transportation by Order

The Manage Transportation by Order window allows you to search and maintain transportations for an order.

The Manage Transportation by Order window contains the same sections and functions as the Create Transportation by Order window.

For more information about the available sections and functions to manage transportations by order, see the Create Transportation by Order section.

Searching for a Transportation by Order

To search for transportations by order follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation by Order. The Manage Transportation by Order window appears.

   Figure 13-31 Manage Transportation by Order Window




2. Enter or select search for the appropriate order number, vessel ID, voyage/flight number and estimated departure date for which the transportation record needs to be edited.

3. Click Details. The transportation details are displayed in Details table.

4. Then update the transportations as necessary.

   • Add items to the transportation by order. For more information about how to add items to the transportation by order, see the Adding Items section.

   • Edit item of the transportation by order. For more information about how to edit items of a transportation by order, see the Editing Items section.

   • Delete items from the transportation by order. For more information about how to delete items from a transportation by order, see the Deleting Items section.

   • Update multiple items of a transportation by order. For more information about how to update multiple items from a transportation by order, see the Mass Update section.

5. Then choose one of the following options.

   • Click Save and Close, to save changes to the transportation and close the Create/Manage Transportation by Order window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another/Save and Edit Another to save the current transportation and create additional entries.

   • Click Cancel to reject all entries and exit the Create/Manage Transportation by Order window.

Managing a Transportation

The Manage Transportation option opens the Transportation Search window. In the Transportation Search window you can search, maintain and view transportations.

You can access the Transportation Search window from the Task menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

The Transportation Search window contains the following two sections.

• Search

  For more information about how to search for a transportation, see the Searching for a Transportation section.

• Results

• Transportation Search Toolbar

Figure 13-32 Transportation Search Window

Searching for a Transportation

To search for a transportation:

1. From the Task menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. You can search for a transportation by using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for a Transportation Through the Basic Search Criteria

To search for a transportation using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-73 Transportation Search - Basic Search Criteria and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only transportations matching all entered search criteria are shown. Any - transportations matching each entered search criteria are shown.
   Transportation	Enter the transportation ID.
   Status	Select the transportation status. For example, select Booked.
   Vessel	Enter the vessel ID.
   Voyage/Flight	Enter the voyage/flight number.
   Estimated Departure Date	Enter or use the Calendar icon to select the estimated departure date.
   BOL/AWB	Enter the bill of lading or airway bill.
   Container	Enter the container ID.
   Order No.	Enter, select or search for the order number.
   Item	Enter the item number or use the Search icon to search for the appropriate item.
   Commercial Invoice	Enter the commercial invoice number.




2. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for a Transportation Through Advanced Search Criteria

To search for a transportation using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should equal or not equal the search result.

3. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The transportations that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved transportations. The Results table shows the following columns by default.

• Transportation ID

• Status

• Vessel

• Voyage/Flight

• Estimated Departure Date

• BOL/AWB

• Container

• Order No.

• Item

• Commercial Invoice

Results - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-74 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Create or Create icon	Select Actions > Create or use the Create icon to create a new transportation. The Create Transportation window appears. For more details about how to create a transportation, see the Creating a Transportation section.
Edit and Edit icon	Select Actions > Edit or use the Edit icon to edit the selected transportation. For more information about the available fields to edit, see the Transportation section.
View and View icon	To view a transportation: Select a record in the Results section. Select Actions > View or use the View icon. The Transportation window appears. For more details about the Transportation window, see the Transportation section.
Export to Excel and Export to Excel icon	You can save the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Results - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-75 Results - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach	You can view the tables in the application in a separate window by clicking Detach.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Transportation Search Toolbar

The toolbar contains the following icons and buttons.

Table 13-76 Transportation Search Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Done	Click Done to close the window.

Finalize Transportation

In the Transportation Finalize window you can enter the entry number, import country, broker, and currency code to finalize the transportation record. When you enter the information in the Finalize Transportation window, the information is added to all records that match the vessel, voyage, and estimated departure date criteria.

Note: A transportation record must be marked as a Candidate before it can be finalized.

If no search criteria is entered, all transportation records that are marked as candidates are finalized and you cannot apply an entry number, import country, broker, or currency information.

The Finalize Transportation window contains the following sections.

• Transportation Selection

• Assign Values

• Finalize Transportation Toolbar

Figure 13-33 Finalize Transportation Window

Transportation Selection

In the Transportation Selection you can enter search criteria for the transportation record to be finalized. To clear the Transportation Selection use the Reset icon.

Table 13-77 Transportation Selection - Fields and Description

Fields	Description
Vessel	Enter, select or search for the vessel ID.
Voyage/Flight	Enter, select or search for the voyage/flight number.
Estimated Departure Date	Enter, select or search for the estimated departure date.

Assign Values

In the Assign Values section enter, select or search for the customs entry values that you want to apply to the transportation record.

Table 13-78 Assign Values - Fields an Description

Fields	Description
Entry No.	Enter the entry number assigned by the customs agency.
Broker	Enter, select or search for the ID of the broker.
Import Country	Enter, select or search for the ID of the import country.
Currency	Enter, select or search for the code for the currency of the import country.

Finalize Transportation Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Finalize Transportation window. The Toolbar contains the following icons and buttons.

Table 13-79 Finalize Transportation Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Delete icon	You can delete a transport by clicking the Delete icon.
Finalize	Click Finalize to change the status of the transportation to finalized.
Done	Click Done to close the Finalize Transportation window.

Finalizing Transportation Records

To finalize transportation records, follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Finalize Transportation. The Finalize Transportation window appears.




   Note: A transportation record must be marked as a Candidate before it can be finalized.




2. Enter the criteria for the transportation record to be finalized. Enter, select or search for the following values.

   • Vessel ID

   • Voyage/Flight number

   • Estimated departure date




   Note: If you leave all fields empty and click Finalize, all transportation records marked as candidates are finalized.




3. Enter the customs entry values that you want to apply to the record. Enter, select or search for following values.

   • Entry number assigned by customs agency

   • Import country ID

   • Broker ID

   • Currency Code

4. After you have entered all necessary information, choose one of the following options.

   • Select Finalize. The transportation records that match the criteria are copied to the Customs Entry module. The status of the transportation records are automatically changed to Finalized.

   • Select Done to close the Finalize Transportation window.

Customs Entry

The movement of goods through customs in the import country can be tracked through the customs entry module.

You can track the following information in the customs entry module:

• Forms

• Protests

• Timelines

• Shipments, orders, and items

• Departure, arrival, export, and import dates

• Missing documents

• Bills of lading and containers

• Charges and assessments

• Licenses and visas

A customs entry batch program transmits data to brokers so they can prepare the necessary documentation. When you finalize transportation records in the transportation module, the customs entries are created automatically. As additional information is acquired, it can be entered manually.

When the charges and assessments are complete, you can choose to allocate the costs to the actual landed cost module. When the customs entry is complete, you can confirm the record. If you have access to the Oracle Retail Invoice Matching product, non-merchandise invoices are created automatically from confirmed customs entries.

Customs Entry Window

You can track the movement of goods through customs in the import country through the Customs Entry (CE) module.

The Create Customs Entry option opens the Customs Entry window. This window allows you to view and maintain customs entries. You can also calculate assessments and allocate them to actual landed cost (ALC).

The Customs Entry window contains the following sections.

• Customs Entry Header

• Details

• Comments

• Customs Entry Toolbar

Figure 13-34 Customs Entry Window

Customs Entry Header

The Customs Entry header displays the Customs Entry ID. In the top right corner of the section the ALC status as well as the status of the customs entry are displayed. Additionally, the section contains the following entry fields.

Table 13-80 Customs Entry Header - Fields and Description

Field	Description
Entry No.	Enter the entry number.
Entry Date	Enter the entry date or use the Calendar icon to select an entry date.
Import Country	Displays default value.
Currency	Displays default value.
Exchange Rate	Displays default value. If you need to edit the current Exchange Rate, see the Editing the Exchange Rate section for more details.
Entry Status	Enter, select or search for the status of the customs entry.
Entry Port	Enter, select or search for the entry port.
Entry Type	Enter, select or search for the entry type.
Summary Date	Enter the summary date or use the Calendar icon to select the date.
Release Date	Enter the release date or use the Calendar icon to select the date.

Furthermore, the Customs Entry Header contains the Totals section. You can view the following totals in this section.

Table 13-81 Totals - Fields an Description

Field	Description
Total Actual Assessments	The Actual Assessments column lists the following values: Duty Taxes Other
Value for Duty	Displays the dutiable value of the merchandise on the customs entry.
Estimated Assessments	Displays the estimated value of the assessments on the customs entry.

Details

The Details section contains the following fields.

Table 13-82 Details - Fields and Description

Field	Description
Importer	Enter, select or search for the importer.
Consignee	Enter, select or search for the consignee.
Broker	Enter, select or search for the broker.
Broker Ref. No.	Enter the broker reference number.
File No.	Enter the file number.
Bond Type	Select the bond type from the list.
Bond No.	This field is only enabled, if you selected a bond type. Enter the bond number.
Payee Type	Select the payee type from the field.
Payee	This field is only enabled, if you selected a payee type. Enter, select or search for the payee.
Liquidation Amount	Enter the liquidation amount.
Liquidation Date	Enter the liquidation date or use the Calendar icon to select the date.
Re-liquidation Amount	Enter the re-liquidation amount.
Re-liquidation Date	Enter the re-liquidation date or use the Calendar icon to select a date.
Surety Code	Select a surety code from the list.
Entry Team	Enter the entry team.
Live Cargo	Select the Live Cargo checkbox, to indicate the entry is live in accordance to the U.S. 7501 form.
Merchandise Location	Enter the merchandise location.
Location Code	Enter the location code.

Comments

The Comments section holds the Comments field. You can enter any comments for the customs entry.

Customs Entry Toolbar

The Customs Entry Toolbar displays the icons and buttons for actions that can be performed for the customs entry such as changing the status of the customs entry or navigating to the CE Details window to edit and view shipments, orders, items or charges information related to the customs entry. The Customs Entry Toolbar contains the following icons and buttons.

Table 13-83 Customs Entry Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Delete icon	Deletes the current customs entry. Only possible, if the Customs Entry is still in the status Worksheet.
Recalculate icon	Use this icon to recalculate the totals in the Customs Entry window, after you have changed CE Details such as order/items or charges.
Status	If you click the Status button, the status of the customs entry changes to the status specified on the button. When there is more than one status to which the customs entry can be changed to, click the arrow on the right side of the button to display the additional status options. Possible customs entry statuses are: Worksheet Send Downloaded Confirmed
Details	Click Details to view the details of the customs entry. The CE Details window appears. For more information about CE details, see the CE Details section.
Allocate ALC	Click Allocate ALC to allocate the costs to the actual landed costs module.
More Actions	Click More Actions to see a list of additional actions that can be performed in the Customs Entry window. For more information about the More Action Menu for customs entries, see the Customs Entry - More Actions Menu section.
Save and Close	Click Save and Close to save your changes and close the window. Click the arrow on the right side of the button to display the additional save options. Click Save to save your entries. Click Save and Create Another to create additional entries.
Cancel	Click Cancel to reject all entries and close the window.
Done	Only displayed in view mode. Click Done to close the window.

Note: If you enter the Customs Entry window in view mode, only the following icons and buttons are available: Help icon Details button More Actions menu Done button All other icons and buttons are disabled in view mode.

Customs Entry - More Actions Menu

Use the More Actions menu to navigate to the following windows. The More Actions menu contains the following options.

Table 13-84 More Actions Menu - Buttons and Description

Action Buttons	Description
Forms and Protests	Opens the CE Forms and Protests window. For more information about this function, see the CE Forms and Protests section.
Timelines	Opens the Customs Entry Timelines window. For more information about this function, see the Customs Entry Timelines section.

Creating a Customs Entry

To create a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Create Customs Entry. The Customs Entry window appears.

2. In the Customs Entry header, the customs entry number is auto-generated, if you create a customs entry. The ALC status as well as the status of the customs entry are displayed in the top right corner of the window. If you create a customs entry the ALC status defaults to Pending and the status of the customs entry to Worksheet.

3. Enter, select or search for customs entry data, in the individual sections. For more information about the individual sections of the Customs Entry window, see the Customs Entry Window section.

4. Then select one of the following options.

   • Click Save and Close to save you entries and close the Customs Entry window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to create additional entries.

   • Click Cancel to reject all entries and close the Customs Entry window.

Editing a Customs Entry

To edit a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. The values of the selected customs entry are displayed. Change the values, if necessary. For more details about the values of the Customs Entry window, see the Customs Entry Window section.

7. Then select one of the following options.

   • Click Save and Close to save you entries and close the Customs Entry window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to create further entries.

   • Click Cancel to reject all entries and close the Customs Entry window.

CE Forms and Protests

In the CE Forms and Protests window you can create, edit and view forms and protest information related to the selected customs entry.

The CE Forms and Protests window contains the following sections.

• CE Forms and Protests Header

• Forms Table

• Protest Table

• CE Forms and Protests Toolbar

Figure 13-35 CE Forms and Protests Window

CE Forms and Protests Header

The CE Forms and Protests header displays the customs entry, the entry number and the import country.

Forms Table

In the Forms table you can maintain forms records. The table displays the following columns by default.

• Form Type

• OGA Code and Description

• Issues

• Dates such as Notice, Due and Response Date

• Comments

Forms Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-85 Forms Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add forms to a customs entry by selecting Actions > Add or by using the Add icon. For more information about how to add forms, see the Adding Forms section.
Delete and Delete icon	You can delete a form from a customs entry: Select a record in the table. Select Actions > Delete or use the Delete icon. You are prompted if you want to delete the record. Select Yes to confirm the prompt. The record is deleted from the table.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Forms Table - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-86 Forms Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Protest Table

In the Protest table you can maintain protest records. The table displays the following columns by default.

• Protest Number

• Protest Code

• Description

• Protest Date

• Comments

Protests Table - Actions Menu and Icons

Use the Actions Menu and Icons to apply actions to the table. You can perform the actions listed below.

Table 13-87 Protests Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add protests to a customs entry by selecting Actions > Add or by using the Add icon. For more information about how to add protests, see the Adding Protests section.
Delete and Delete icon	You can delete a protest from a customs entry: Select a record in the table. Select Actions > Delete or use the Delete icon. You are prompted if you want to delete the record. Select Yes to confirm the prompt. The record is deleted from the table.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Protests Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-88 Protests Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

CE Forms and Protests Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the CE Forms and Protest window. The Toolbar contains the following icons and buttons.

Table 13-89 CE Forms and Protests Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and close the window.
Cancel	Click Cancel to reject all entries and close the window.

Adding Forms

To add a form to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the More Actions menu select Forms and Protests. The CE Forms and Protests window appears.

7. In the Forms table, select Actions > Add or use the Add icon. The Add Form window appears.

   Figure 13-36 Add Form Window




   1. In the Form Type field, select the form from the list. This field is a required field.

   2. In the OGA field, enter, select or search for the ID of the other government agency. This field is a required field.

   3. In the Issues field, enter the issue raised be the government agency. This field is a required field.

   4. In the Notice Date field, enter or select the appropriate date or use the Calendar icon to select the date. This field is a required field.

   5. In the Due Date field, enter or select the appropriate date or use the Calendar icon to select the date.

   6. In the Response Date field, enter or select the appropriate date or use the Calendar icon to select the date.

   7. In the Comments field, enter your comments, if necessary.

   8. Then choose one of the following options.

      • Click OK to add your changes and close the Add Form window. The system returns to the CE Forms and Protests window. The new form is added to the Form table.

      • Click OK and Add Another to add additional forms.

      • Click Cancel to reject all entries and close the Add Form window. The system returns to the CE Forms and Protests window.

8. After have added all necessary forms, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Forms and Protests window.

   • Click Cancel to reject all changes and close the CE Forms and Protests window.

Editing Forms

After you have added a form to a customs entry, you can edit the form as shown below.

1. In the Forms table, select a record and edit the following columns, if necessary.

   • Issues

     Add, change or delete the shown entry.

   • Notice, Due and/or Response Date

     Enter or use the Calendar icon to select the notice, due and/or response date.

   • Comments

     Add, change or delete the shown entry.

2. After you have changed all necessary data, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Forms and Protests window.

   • Click Cancel to reject all entries and close the CE Forms and Protests window.

Adding Protests

To add protests to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the More Actions menu select Forms and Protests. The CE Forms and Protests window appears.

7. In the Protest table, select Actions > Add or use the Add icon. The Add Protest window appears.

   Figure 13-37 Add Protest Window




   1. In the Protest No. field, enter the number of the protest. This field is a required field.

   2. In the Protest Code field, enter, select or search for appropriate protest code.

   3. In the Protest Date field, enter or use the Calendar icon to select the date of the protest. This field is a required field.

   4. In the Comments field, enter your comments, if necessary.

   5. Then choose one of the following options.

      • Click OK to add the protest and close the Add Form window. The system returns to the CE Forms and Protests window. The new protest is added to the Protests table.

      • Click OK and Add Another to add additional protests.

      • Click Cancel to reject all entries and exit the Add Protest window. The system returns to the CE Forms and Protests window.

8. After have added all necessary protests, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Forms and Protests window.

   • Click Cancel to reject all changes and close the CE Forms and Protests window.

Editing Protests

After you have added a protest to the customs entry, you can edit the protest as shown below.

1. In the Protests table, select a record and edit the following columns, if necessary.

   • Protest Code

     Enter, select or search for a another protest code.

   • Protest Date

     Enter or use the Calendar icon to select the corresponding date of the protest.

   • Comments

     Add, change or delete the comments of the displayed protest.

2. Then choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Forms and Protests window.

   • Click Cancel to reject all entries and close the CE Forms and Protests window.

Customs Entry Timelines

In this window you can add timelines to a customs entry. You can attach a date to each step linked with an activity and monitor the completion of the activity. You can also modify the dates based on the changes in the schedule of related activity and add a relevant reason/comment for the change.

The Customs Entry Timelines Window contains the following sections.

• Customs Timeline Header

  This section contains the customs entry number.

• Timelines

• Timeline Details

• Customs Entry Timeline Toolbar

Timelines

In the timeline section you can add or delete a timeline to/from the selected customs entry.

Timelines Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-90 Timelines Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add timelines to a customs entry by selecting Actions > Add or by using the Add icon. For more information about how to add a customs timeline, see the Adding a Timeline to a Customs Entry section.
Delete and Delete icon	You can delete timelines from a customs entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete a timeline from a customs entry, see the Deleting Timelines from a Customs Entry section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Timeline Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-91 Timeline Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Timeline Details

In the Timeline Details section you can view the reason and comments for a modified step within a timeline. You can also delete timeline details from the custom entry.

Timeline Details Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-92 Timeline Details Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Delete and Delete icon	You can delete timeline details from a customs entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete protests, see the Deleting Timeline Details from a Customs Entry section.
Export to Excel and Export to Excel icon	You can save the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Calculate Revised Dates button	Use the Calculate Revised Dates button, after you have made timeline changes.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Timeline Detail Table - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-93 Timeline Detail Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach	You can view the tables in the application in a separate window by clicking Detach.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Customs Entry Timeline Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Customs Timeline window. The Toolbar contains the following icons and buttons.

Table 13-94 Customs Timeline Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and exit the Customs Timeline window.
Cancel	Click Cancel to reject all entries and exit the Customs Timeline window.

Adding a Timeline to a Customs Entry

To add a timeline to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the More Actions menu select Timelines. The Customs Timeline window appears.

7. In the Timeline table, select Actions > Add or use the Add icon. The Add Timeline window appears.

   1. In the Timeline field, enter, select or search for the step number you want to add a timeline for. This field is a required field.

   2. In the Base Date field, enter or use the Calendar icon to select a date.

   3. Then choose one of the following options.

      • Click OK to add the timeline and close the Add Timeline window. The system returns to the Customs Timeline window. The new timeline is added to the Timeline table.

      • Click OK and Add Another to add additional timelines.

      • Click Cancel to reject all entries and close the Add Timeline window. The system returns to the Customs Timeline window.

8. After you have added all necessary timelines, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Customs Timeline window.

   • Click Cancel to reject all changes and close the Customs Timeline window.

Deleting Timelines from a Customs Entry

To delete a timeline from a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the More Actions menu select Timelines. The Timelines window appears.

7. In the Timeline table, select Actions > Delete or use the Delete icon.

8. Confirm the displayed prompt with Yes. The record is deleted from the table.

9. Then choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Customs Timeline window.

   • Click Cancel to reject all changes and close the Customs Timeline window.

Editing Timeline Details of a Customs Entry

To edit timeline details of a customs entry, follow the steps listed below.

1. In the Timeline Details table, select a record and edit the following columns, if necessary.

   • Revised Date

     Enter or use the Calendar icon to select a new date for an activity.

   • Actual Date

     Enter or use the Calendar icon to select the actual date for an activity.

   • Reason

     Enter, select or search for a reason for the timeline change.

   • Comments

     Enter or change comments for the activity.

2. Then choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Customs Timeline window.

   • Click Cancel to reject all entries and close the Customs Timeline window.

Deleting Timeline Details from a Customs Entry

To delete timeline details from a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the More Actions menu select Timelines. The Timelines window appears.

7. In the Timeline Details table, select Actions > Delete or use the Delete icon.

8. Confirm the displayed prompt with Yes. The record is deleted from the table.

9. After you have deleted all necessary records, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and exit the Customs Timeline window.

   • Click Cancel to reject all changes and exit the Customs Timeline window.

CE Details

The CE Details window allows you to add, edit and view shipments, order/items and charges information related to a customs entry.

A transportation shipment is represented as a vessel/voyage or flight/estimated departure date combination. You can add, edit and view vessel/voyage/ETD details such as lading and discharge ports, SCAC code (standard carrier alpha code), shipment method, export country, relevant dates and shipment number.

For each transportation shipment on the CE you can add, edit and view the order/item information. You can edit or view the item level information needed for clearing customs. Use the Actions menu to edit or view related license/visa details, BOLs/containers and missing documents.

The charges table displays any charges against an order/item on a particular transportation shipment. All HTS components or a single component (expense or assessment) can be added as a charge for the item.

The CE Details window contains the following sections.

• CE Details Header

• Shipments

• Order/Items

• Charges

• CE Details Toolbar

Figure 13-38 CE Details Window

CE Details Header

The CE Details Header contains the following information.

• Customs Entry ID

• Entry No.

• Import Country

Shipments

The Shipments section displays the following columns by default.

• Vessel

• Voyage/Flight

• Estimated Departure Date

• Vessel SCAC Code

• Discharge Port

• Shipment Method

• Export Country

• Shipment

• Comments

Shipments - Actions Menu and Icons

Use the Actions Menu to apply actions to the table. You can perform the actions listed below.

Table 13-95 Shipments - Actions Menu/icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add shipments to the table by selecting Actions > Add or by using the Add icon. For more information about how to add shipments to a customs entry, see the Adding Shipments to a Customs Entry section.
Edit and Edit icon	You can edit shipments for a customs entry by selecting Actions > Edit or by using the Edit icon. For more information about how to edit shipments for a customs entry, see the Editing Shipments of a Customs Entry section.
Delete and Delete icon	You can delete shipments from a customs entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete shipments from a customs entry, see the Deleting Shipments from a Customs Entry section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Shipments - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-96 Shipments - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Order/Items

The Order/Items section displays the following columns by default.

• Order No.

• Item

• Item Description

• Commercial Invoice

• Invoice Amount

  You can edit the invoice amount in the column.

• Currency

• Manifest Quantity

• Manifest UOM

• Cleared Qty

• Cleared UOM

• Comments

Order/Items - Actions Menu, Icons and Buttons

Use the Actions Menu, icons and buttons to apply actions to the table. You can perform the actions listed below.

Table 13-97 Order/Items - Actions Menu/Icons and Description

Actions Menu/Icons/Buttons	Description
Add and Add icon	You can add order/item combination to the table by selecting Actions > Add or by using the Add icon. For more information about how to add order/items to a customs entry, see the Adding Order/Item to Customs Entry section.
Edit and Edit icon	You can edit order/item combination for a customs entry by selecting Actions > Edit or by using the Edit icon. For more information about how to edit order/items for a customs entry, see Editing Order/Item of a Customs Entry section.
Delete and Delete icon	You can delete an order/items combination from a customs entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete order/items from a customs entry, see the Deleting Order/Item from a Customs Entry section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
BOLs/Container and BOLs/Container button	Opens the CE BOLs/Containers window. For more information about this function, see the Viewing BOLs/Containers section.
ASN and ASN button	Opens the Transportation Shipments window. The ASN option is only displayed when the retailer allocates transportation level obligations to an ALC, using quantities found on their associated ASNs. For more information about this function, see the Transportation Shipments section.
Licence/Visa	Opens the CE License/Visa window. For more information about this function, see the CE Licence/Visa section.
Missing Documents	Opens the Missing Documents window. For more information about this function, see the Missing Documents section.

Order/Items - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-98 Order/Items - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Charges

The Charges section displays the following columns by default.

• HTS

• Description

• Effective Form

• Effective To

• Component

• Rate

• Per Count UOM

• CVB

• Value

Note: The component item information displays when the highlighted item in the Order/Items table is a buyer pack. In that case the Charges related to an individual component item of the pack are displayed. Use the displayed arrow buttons to move from one component item of the pack to another to see the charges.

Charges - Actions Menu, Icons and Button

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-99 Charges - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
Add and Add icon	You can add charges to an order/items combination by selecting Actions > Add or by using the Add icon. For more information about how to add charges to an order/items combination, see the Adding Charges to Order/Items section.
Edit and Edit icon	You can edit charges of an order/items combination by selecting Actions > Edit or by using the Edit icon. For more information about how to edit charges of an order/items combination, see the Editing Charges of Order/Items section.
Delete and Delete icon	You can delete charges from an order/items combination by selecting Actions > Delete or by using the Delete icon. For more information about how to delete charges from an order/items combination, see the Deleting Charges from Order/Items section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.
Delete HTS	Use the Delete HTS button to delete HTS codes from the table. For more information about how to delete an HTS code from the table, see the Deleting Charges from Order/Items section.
Next and Previous icons	Only available in the Charges title bar, when the selected item in the Order/Items table is a buyer pack. Use the Next and Previous icons to navigate between component items of the buyer pack.

Charges - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-100 Charges - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

CE Details Toolbar

The CE Details Toolbar displays the icons and buttons for actions that can be performed in the CE Details window. The CE Details Toolbar contains the following icons and buttons.

Table 13-101 CE Details Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
More Actions	Click More Actions to see a list of additional actions that can be performed in the CE Details window. Currency You can toggle between the invoice/CE, the currency of the customs entry and the system's primary currency.
Save	Click Save to save the changes to the customs entry.
Save and Close	Click Save and Close to save changes to the customs entry and close the CE Details window.
Cancel	Click Cancel to reject all changes and close the CE Details window.
Done	Only displayed in view mode. Click Done to close the CE Details window.

Adding Shipments to a Customs Entry

To add a shipment to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Shipments table, select Actions > Add or use the Add icon. The Add Shipment window appears.

   Figure 13-39 Add Shipment Window




   1. In the Vessel field, enter, select or search for the vessel ID. This field is a required field.

   2. In the Voyage/Flight field, enter, select or search for the voyage/flight number. This field is a required field.

   3. In the Estimated Departure Date field, enter, select or search for the appropriate date. This field is a required field.

   4. In the Vessel SCAC Code field, enter, select or search for the vessel standard carrier alpha code.

   5. In the Shipment Method field, select the appropriate shipment method from the list.

   6. In the Shipment field, enter the shipment reference number.

   7. In the Export Country field, enter, select or search for the appropriate country.

   8. In the Lading Port field, enter, select or search for the lading port.

   9. In the Discharge Port field, enter, select or search for the discharge port.

   10. In the Export Date field, enter or use the Calendar icon to select an export date.

   11. In the Import Date field, enter or use the Calendar icon to select an import date.

   12. In the Arrival Date field, enter or use the Calendar icon to select an arrival date.

   13. In the Comments field, enter comments for the shipment, if necessary.

   14. Then choose one of the following options.

       • Click OK to add the shipment and close the Add Shipment window. The system returns to the CE Details window. The shipment is added to the Shipments table.

       • Click OK and Add Another to add additional shipments.

       • Click Cancel to reject all entries and exit the Add Shipments window. The system returns to the CE Details window.

8. After have added all necessary shipments, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Editing Shipments of a Customs Entry

To edit shipments of a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Shipments table, select a record.




   Note: You can change the shipment and the comments directly in the Shipments table.




8. Then select Actions > Edit or use the Edit icon. The Edit Shipment window appears.

   Figure 13-40 Edit Shipment Window




   1. The values of the selected shipment are displayed. Change the values, if necessary.




      Note: You cannot change the vessel ID, voyage/flight number and estimated departure date.




   2. Then choose one of the following options.

      • Click OK to save your changes and close the Edit Shipment window. The system returns to the CE Details window.

      • Click Cancel to reject all entries and close the Edit Shipments window. The system returns to the CE Details window.

9. After have made all necessary changes, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Deleting Shipments from a Customs Entry

To delete a shipment from a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Shipments table, select a record.

8. Then select Actions > Delete or use the Delete icon.

9. You are prompted if you want to delete the selected record. Confirm the prompt with Yes.

10. Then choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the CE Details window.

    • Click Cancel to reject all changes and close the CE Details window.

Adding Order/Item to Customs Entry

To add an order/items combination to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Item table, select Actions > Add or use the Add icon. The Add Order/Item window appears.

   Figure 13-41 Add Order/Item Window




   1. In the Order field, enter, select or search for the order number. This field is a required field.

   2. In the Item field, enter the item number. If you do not know the item number you can enter a full or partial item description and click the Search icon, or click the Search icon directly to search for the appropriate item. This field is a required field.

   3. Select the Rush checkbox, to indicate if the item is on a rush shipment.

   4. The fields in the Commercial invoice section are populated with the values from the transportation record. Change the values, if necessary.

   5. In the Manifest Quantity field, enter the appropriate quantity. Then enter, select or search for the manifest unit of measure (UOM).

   6. In the Cleared Quantity field, enter the appropriate quantity. Then enter, select or search for the cleared UOM.

   7. In the Carton Quantity field, enter the appropriate quantity. Then enter, select or search for the carton UOM.

   8. In the Gross Weight field, enter the appropriate weight. Then enter, select or search for the gross weight UOM.

   9. In the Net Weight field, enter the appropriate weight. Then enter, select or search for the net weight UOM.

   10. In the Cubic field, enter the appropriate cubic value. Then enter, select or search for the cubic UOM.

   11. In the In Transit No. field, enter the transit number.

   12. In the In Transit Date field, enter or use the Calendar icon to select the in transit date.

   13. In the DO. No. field, enter the due order number.

   14. In the DO. Date field, select due order date.

   15. In the Tariff Treatment field, enter the tariff treatment. This field is only enabled when the item and origin country fields are populated, and the customs entry is not in Confirmed status.

   16. In the Ruling No. field, enter ruling number.

   17. In the BOL/AWB field, enter, select or search for the bill of lading or the airway bill.

   18. Select the Multiple BOL/AWBs checkbox, to indicate that there is more than one bill of lading or airway bill.

   19. In the Comments field, enter comments for the order/item information, if necessary.

   20. Then choose one of the following options.

       • Click OK to add the order/item and close the Add Order/Item window. The system returns to the CE Details window. The order/item information is added to the Order/Item table.

       • Click OK and Add Another to add additional order/item information.

       • Click Cancel to reject all entries and exit the Add Order/Item window. The system returns to the CE Details window.

8. After have added all necessary order/item information, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Editing Order/Item of a Customs Entry

To edit an order/items combination of a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Item table, select a record.




   Note: You can change the comments directly in the Order/Item table.




8. Then select Actions > Edit or use the Edit icon. The Edit Order/Item window appears.

   Figure 13-42 Edit Order/Item Window




   1. The values of the selected order/item information are displayed. Change the values, if necessary.




      Note: You cannot change the order number and the item. If you need to change the Exchange Rate, see the Editing the Exchange Rate section for more details.




   2. Then choose one of the following options.

      • Click OK to save your changes and close the Edit Order/Item window. The system returns to the CE Details window.

      • Click Cancel to reject all entries and close the Edit Order/Item window. The system returns to the CE Details window.

9. After have made all necessary changes, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Deleting Order/Item from a Customs Entry

To delete an order/items combination from a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Item table, select a record.

8. Then select Actions > Delete or use the Delete icon.

9. You are prompted if you want to delete the selected record. Confirm the prompt with Yes.

10. Then choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the CE Details window.

    • Click Cancel to reject all changes and close the CE Details window.

Viewing BOLs/Containers

To view bill of lading and/or container information of a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Item table, select a record.

8. Then select Actions > BOLs/Containers or use the BOLs/Containers button.

9. The CE BOLs/Containers Window appears. View the bill of lading and container information.

   Figure 13-43 CE BOLs/Containers Window




10. Click OK to exit the CE BOLs/Containers window.

Adding Charges to Order/Items

To add charges to an order/items combination, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Charges - Component Item table, select Actions > Add or use the Add icon. The Add Charge window appears.

   Figure 13-44 Add Charges Window




   1. In the HTS field, enter the HTS code or use the Search icon to search for the appropriate HTS code. The remaining fields are auto-populated. This field is a required field.

   2. Select if you want to apply the HTS code to all HTS components or a single assessment.

      • If you select the All HTS Components checkbox, all remaining fields are disabled.

      • If you select the Single Assessment checkbox, the Component field enables.

   3. In the Component field, enter, select or search for the appropriate component.

   4. In the CBV field, enter, select or search for the appropriate calculation basis of value.

   5. In the Rate field, enter the appropriate rate.

   6. In the per field, enter, select or search for the Per Count UOM.

   7. Then choose one of the following options.

      • Click OK to add the charge and close the Add Charge window. The system returns to the CE Details window. The charge is added to the Charges - Component Item table.

      • Click OK and Add Another to add additional charges.

      • Click Cancel to reject all entries and exit the Add Charge window. The system returns to the CE Details window.

8. After have added all necessary charges, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Editing Charges of Order/Items

To edit an charge of an order/items combination, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Charges - Component Item table, select a record.

8. Then select Actions > Edit or use the Edit icon. The Edit Charge window appears.

   Figure 13-45 Edit Charge Window




   1. The values of the selected charge are displayed. Change the values, if necessary.




      Note: You cannot change the HTS code and component.




   2. Then choose one of the following options.

      • Click OK to save your changes and close the Edit Charge window. The system returns to the CE Details window.

      • Click Cancel to reject all entries and close the Edit Charge window. The system returns to the CE Details window.

9. After have made all necessary changes, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Details window.

   • Click Cancel to reject all changes and close the CE Details window.

Deleting Charges from Order/Items

To delete a charge from an order/items combination, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Charges - Component Item table, select a record.

8. Then select Actions > Delete or Delete HTS. You can also use the Delete icon, or the Delete HTS button.

9. You are prompted if you want to delete the selected record. Confirm the prompt with Yes.

10. Then choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the CE Details window.

    • Click Cancel to reject all changes and close the CE Details window.

CE Licence/Visa

In the CE License/Visa window you can create, edit and view license and visa information related to a customs entry.

The CE Licence/Visa window contains the following sections.

• CE Licence/Visa Header

• CE Licence/Visa Table

• CE Licence/Visa Toolbar

CE Licence/Visa Header

The CE Licence/Visa header contains the following information:

• Customs Entry

• Entry No.

• Vessel

• Voyage/Flight

• Estimated Departure Date

• Import Country

• Order No.

• Item

CE Licence/Visa Table

In the CE License/Visa table you can maintain license and visa records.

The CE Licence/Visa table contains the following columns by default:

• Type

• License/Visa

• Quantity

• Quantity UOM

• Weight UOM

• Quota Category

• Quota Category Description

• Comments

CE Licence/Visa Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-102 CE Licence/Visa Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add a licence or a visa to a customs entry by selecting Actions > Add or by using the Add icon. For more information about how to add a licence or a visa, see the Adding a Licence or a Visa to a Customs Entry section.
Edit and Edit icon	You can edit a licence or a visa for a customs entry by selecting Actions > Edit or by using the Edit icon. For more information about how to edit licence and visa entries for a custom entry, see the Editing a Licence or Visa for a Customs Entry section.
Delete and Delete icon	You can delete a licence or a visa from a customs entry by selecting Actions > Delete or by using the Delete icon. For more information about how to delete a licence or a visa from a customs entry, see the Deleting a Licence/Visa from a Customs Entry section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

CE Licence/Visa Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-103 CE Licence/Visa Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

CE Licence/Visa Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the CE Licence/Visa window. The Toolbar contains the following icons and buttons.

Table 13-104 CE Licence/Visa - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and exit the CE Licence/Visa window.
Cancel	Click Cancel to reject all entries and exit the CE Licence/Visa window.

Adding a Licence or a Visa to a Customs Entry

To add a licence or a visa to a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Items section select Actions > Licence/Visa. The CE Licence/Visa window appears.

8. In the Licence/Visa table, select Actions > Add or use the Add icon. The Add Licence/Visa window appears.

   Figure 13-46 Add Licence/Visa Window




   1. In the Type field, select either the document type from the list. This field is a required field.

   2. In the Licence/Visa field, enter the ID of the licence or visa. This field is a required field.

   3. In the Import Country field, enter, select or search for the appropriate country.

   4. In the Quantity field, enter the number of units included on the licence or visa. Then, enter, select or search for the quantity unit of measure (UOM). This field is a required field.

   5. In the Quota Category field, enter, select or search for the ID of the quota category.

   6. In the Net Weight field, enter the net weight. Then, enter, select or search for the weight unit of measure (UOM). This field is a required field.

   7. In the Holder field, enter, select or search for the ID of the person or organization that holds the licence or visa.

   8. In the Comments field, enter a comment for the licence or visa, if necessary.

   9. Then choose one of the following options.

      • Click OK to add the licence/visa and exit the Add Licence/Visa window. The system returns to the CE Licence/Visa window. The licence or visa is added to the CE Licence/Visa table.

      • Click OK and Add Another to add additional licences/visas.

      • Click Cancel to reject all entries and exit the Add Licence/Visa window. The system returns to the CE Licence/Visa window.

9. After have added all necessary licences/visas, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Licence/Visa window.

   • Click Cancel to reject all changes and close the CE Licence/Visa window.

Editing a Licence or Visa for a Customs Entry

To edit a licence or visa for a customs entry, follow the steps below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Items section select Actions > Licence/Visa. The CE Licence/Visa window appears.

8. In the Licence/Visa table, select Actions > Edit or use the Edit icon. The Add Licence/Visa window appears.

   Figure 13-47 Edit Licence/Visa Window




   1. The Type, Licence/Visa and Import Country fields are disabled. You cannot edit these fields.

   2. If necessary, edit one of the following fields.

      • Quantity

      • Quota Category

      • Net Weight

      • Holder

      • Comments




        Note: You can also add, change or delete a comment for a licence and/or visa directly in the CE Licence/Visa table.




   3. Then choose one of the following options.

      • Click OK to save your changes and close the Add Licence/Visa window. The system returns to the CE Licence/Visa window. Your changes are displayed in the CE Licence/Visa window.

      • Click Cancel to reject all entries and close the Add Licence/Visa window. The system returns to the CE Licence/Visa window.

9. After have made all necessary licence/visa changes, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the CE Licence/Visa window.

   • Click Cancel to reject all changes and close the CE Licence/Visa window.

Deleting a Licence/Visa from a Customs Entry

To delete a licence/visa from a customs entry, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Items section select Actions > Licence/Visa. The CE Licence/Visa window appears.

8. In the CE Licence/Visa table, select a record.

9. Then select Actions > Delete or use the Delete icon.

10. Confirm the displayed prompt with Yes. The record is deleted from the table.

11. Then choose one of the following options.

    • Click Save to save your changes.

    • Click Save and Close to save your changes and close the CE Licence/Visa window.

    • Click Cancel to reject all changes and close the CE Licence/Visa window.

Missing Documents

In the Missing Documents window you can edit and view the documents that are required by the customs agency for each order and item combination. You can track missing documents in both the Transportation module and the Customs Entry module.

The Missing Documents window contains the following sections.

• Missing Documents Header

• Missing Documents Table

• Missing Documents Toolbar

Figure 13-48 Missing Documents

Missing Documents Header

The Missing Documents Header contains the following information.

• Vessel ID

• Voyage/Flight ID

• Estimated Departure Date

• Order Number

• Item and Item Description

Missing Documents Table

The Missing Documents Table contains the following columns.

• Document

• Description

• Text

• Received Date

  You can edit the received date directly in the table.

• Comments

  You can add, edit or delete comments directly in the table.

Missing Documents Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-105 Missing Documents Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Add and Add icon	You can add document to a customs entry or transport by selecting Actions > Add or by using the Add icon. For more information about how to add a document, see the Adding a Missing Document section.
Delete and Delete icon	You can delete documents from a customs entry or transport by selecting Actions > Delete or by using the Delete icon. For more information about how to delete missing documents, see the Deleting a Missing Document section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Missing Documents Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-106 Missing Documents Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Missing Documents Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the Missing Documents window. The Toolbar contains the following icons and buttons.

Table 13-107 Missing Documents Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save	Click Save to save your changes.
Save and Close	Click Save and Close to save your changes and close the Missing Documents window.
Cancel	Click Cancel to reject all entries and close the Missing Documents window.

Adding a Missing Document

You can add a missing document to a customs entry or a transportation.

To open the Missing Documents window for a Customs Entry follow the steps below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Items section select Actions > Missing Documents. The Missing Documents window appears.

To open the Missing Documents window for a transportation, follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Missing Documents. The Missing Documents window appears.

To add a document to a customs entry or a transportation follow the steps below.

1. In the Missing Documents table, select Actions > Add or use the Add icon. The Add Document window appears.

   Figure 13-49 Add Document Window




   1. In the Document field, enter, select or search for the ID of the missing document. This field is a required field.

   2. In the Received Date field, enter or use the Calendar icon to select the received date.

   3. In the Comments field, enter a comment for the document, if necessary.

   4. Then choose one of the following options.

      • Click OK to add the missing document and close the Add Documents window. The system returns to the Missing Documents window. The document is added to the Missing Documents table.

      • Click OK and Add Another to add additional documents.

      • Click Cancel to reject all entries and exit the Add Documents window. The system returns to the Missing Documents window.

2. After have added all necessary documents, choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Missing Documents window.

   • Click Cancel to reject all changes and close the Missing Documents window.

Deleting a Missing Document

You can delete a missing document from a customs entry or a transportation.

To open the Missing Documents for a customs entry, follow the steps below.

1. From the Tasks menu, select Import Management > Manage Customs Entry. The Customs Entry Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The Customs Entries that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Customs Entry column, click on the customs entry link, or mark a record and select Actions > Edit or use the Edit icon. The Customs Entry window appears.

6. In the Toolbar, click the Details button. The CE Details window appears.

7. In the Order/Items section select Actions > Missing Documents. The Missing Documents window appears.

To open the Missing Documents window for a transportation, follow the steps below.

1. From the Tasks menu, select Import Management > Transportation > Manage Transportation. The Transportation Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The transportations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Transportation column, click on the transportation link, or mark a record and select Actions > Edit or use the Edit icon. The Transportation window appears.

6. In the More Actions menu select Missing Documents. The Missing Documents window appears.

To delete a missing document from a customs entry or a transportation follow the steps below.

1. In the Missing Documents table, select a record.

2. Then select Actions > Delete or use the Delete icon.

3. Confirm the displayed prompt with Yes. The record is deleted from the table.

4. Then choose one of the following options.

   • Click Save to save your changes.

   • Click Save and Close to save your changes and close the Missing Documents window.

   • Click Cancel to reject all changes and close the Missing Documents window.

Managing Customs Entries

The Manage Customs Entries option opens the Customs Entry Search window. The Customs Entry Search window allows you to search for customs entry as well as view and edit the search results.

You can access the Customs Entry Search window from the Task menu, select Import Management > Manage Customs Entries. The Customs Entry Search window appears.

The Customs Entry Search window contains the following sections.

• Search

  For more information about how to search for customs entries, see the Searching for a Customs Entry section.

• Results

• Customs Entry Search Toolbar

Figure 13-50 Customs Entry Search

Searching for a Customs Entry

To search for a customs entry:

1. From the Task menu, select Inventory Management > Manage Customs Entries. The Customs Entry Search window appears.

2. You can search for a customs entry by using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for a Customs Entry Through the Basic Search Criteria

To search for a customs entry by using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-108 Customs Entry Search - Basic Search Fields and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only CEs matching all entered search criteria are shown. Any - CEs matching each entered search criteria are shown.
   Customs Entry	Enter the customs entry ID.
   Entry No.	Enter the customs entry number.
   Status	Select the customs entry status. Possible customs entry statuses are: Worksheet Send Confirm Downloaded Confirmed
   Import Country	Enter, select or search for the import country.
   Entry Status	Enter, select or search for the entry status.
   Entry Date	Enter a date or use the Calendar icon to select a date.
   Entry Port	Enter, select or search for the entry port.




2. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The customs entries that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for a Customs Entry Through Advanced Search Criteria

To search for a customs entry by using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

   Table 13-109 Customs Entry Search - Advanced Search Criteria and Description

   Fields	Description
   Division	Enter, select or search for the division.
   Group	Enter, select or search for the group.
   Department	Enter, select or search for the department.
   Class	Enter, select or search for the class.
   Subclass	Enter, select or search for the subclass.




2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should equal or not equal the search result.

3. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The custom entries that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved customs entries. The Results table shows the following columns by default.

• Customs Entry

• Entry No.

• Status

• Import Country

• Entry Status

• Entry Date

• Entry Port Description

Results - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-110 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Create and Create icon	Select Actions > Create or use the Create icon to create a new customs entry. The Customs Entry window appears. For more details about how to create a new customs entry, see the Creating a Customs Entry section.
Edit and Edit icon	Select Actions > Edit or use the Edit icon to edit the selected customs entry. For more information about how to edit a customs entry, see the Editing a Customs Entry section.
View and View icon	To view a customs entry: Select a record in the Results section. Select Actions > View or use the View icon. The Customs Entry window appears. For more details about the Customs Entry window, see the Customs Entry Window section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.

Results - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-111 Results - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Customs Entry Search Toolbar

The Toolbar displays the icons and buttons for actions that can be performed for the customs entry search. The Toolbar contains the following icons and buttons.

Table 13-112 Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Done	Click Done to close the Customs Entry Search window.

Obligation

In the Obligation window you can create, edit and view obligations. An obligation can be received from a partner or supplier, and contains the expenses typically incurred for the movement and handling of goods. An obligation does not include the cost of the goods.

You can choose which expenses should be included in the actual landed cost calculation. For obligations entered at the Purchase Order header or Purchase Order/Item level, you can allocate each cost component to one or more locations. After entering the details of the obligation, you can set the status of the obligation to Approved.

If Trade Management is being used to import costs, it is assumed that all locations have the same cost value for an item. However, if the cost of the items that are being imported do vary by location, Trade Management will convert the cost values to an identical weighted average cost.

As commercial invoices are received from trading partners and suppliers, they can be recorded in the obligations module. The expenses can be recorded at a variety of levels. The levels are:

Trans Container

Applies to a unique shipment and container combination.

Trans Container PO

Applies to a unique shipment, container and purchase order combination.

Trans Container PO/Item

Applies to a unique shipment, container, purchase order, and item combination.

Trans BL/AWB

Applies to a unique shipment and bill of lading or air waybill combination.

Trans BL/AWB PO

Applies to a unique shipment, bill of lading or air waybill and purchase order combination.

Trans BL/AWB PO/Item

Applies to a unique shipment, bill of lading or air waybill, purchase order, and item combination.

Trans Vessel/Voyage/ETD

Applies to a unique shipment.

Trans Vessel/Voyage/ETD PO

Applies to a unique shipment and purchase order combination.

Trans Vessel/Voyage/ETD PO/Item

Applies to a unique shipment, purchase order, and item combination.

Purchase Order Header

Applies to a unique purchase order.

Purchase Order/Item

Applies to a unique purchase order and item combination.

PO Trans Vessel/Voyage/ETD

Applies to all transportation records associated with a unique purchase order.

Customs Entry Header

Applies to a unique customs entry.

ASN Shipment

Applies to an ASN.

ASN Purchase Order

Applies to a unique ASN and purchase order combination.

ASN Container

Applies to a unique ASN and carton combination.

Each shipment is designated by a unique combination of vessel, voyage, and estimated departure date. For obligations at the purchase order header and purchase order/item level, you can allocate costs to one or more locations.

When the obligation is complete, you can approve the costs. The costs are transmitted to the actual landed cost module. If you have access to the Oracle Retail Invoice Matching product, non-merchandise invoices are created automatically from approved obligations.

The Obligation window contains the following sections.

• Obligation

• Invoice and Payment

• Comments

• Components

• Location

• Obligations Toolbar

Figure 13-51 Obligation Window

Obligation

The header of the Obligation section displays the obligation ID and the level and the status of the obligation. For example, the level of the ASN and the status Pending are displayed in the top right corner of the section.

The fields of the Obligation section vary depending on the selected level of the obligation. Only fields necessary for the specific level are displayed. The table below lists the possible fields.

Table 13-113 Obligation - Fields and Description

Fields	Description
Vessel	Enter, select or search for the vessel.
Voyage/Flight	Enter, select or search for the voyage/flight number.
Estimated Departure Date	Enter, select or search for the estimated departure date.
Container	Enter, select or search for the container.
Order No.	Enter, select or search for the order number.
Item	Enter the item number or use the Search icon to search for an item.
BOL/AWB	Enter the bill of lading or airway bill.
Entry No.	Enter, select or search for the entry number.
ASN	Enter, select or search for the Advanced Shipping Notice (ASN).
Carton	Enter, select or search for the carton.

Invoice and Payment

In the Invoice and Payment container you can identify the partner or supplier site the obligation is being received from.

If Partner is selected, a choice list will be enabled, which will enable the user to select a Partner Type. Once a Partner Type is selected, the LOV will enable and will allow the user to select partners for the selected partner type. If Supplier Site is selected, the Partner Type choice list will not be enabled, and the LOV will contain Supplier Site values.

It will also contain fields for Invoice, Invoice Date, Payment Method, Check Authorization No., Amount Paid, Paid Date, Currency and Exchange Rate. The Exchange Rate field will be auto-populated upon selecting a Currency Code value, but will remain editable.

Table 13-114 Invoice and Payment - Fields and Description

Fields	Description
Partner checkbox	If you check the Partner checkbox, the Partner Type field is enabled. After have selected a partner type, you can enter, select or search for the partner.
Supplier Site checkbox	If you check the Supplier Site checkbox, the Supplier field is enabled. Enter, select or search for the Supplier.
Invoice	Enter the invoice number.
Invoice Date	Enter the invoice date or use the Calendar icon to select the date.
Payment Method	Enter, select or search for the payment method.
Check Authorization No.	Enter the authorization number.
Amount Paid	Enter the amount paid.
Paid Date	Enter the paid date or use the Calendar icon to select the date.
Currency	Enter, select or search for the currency.
Exchange Rate	This field is populated automatically, after you have selected the currency. For more information about how to edit the exchange rate, see the Editing the Exchange Rate section.

Comments

The Comments section holds the comments field. Enter any comments for the obligation, if necessary.

Components

In the Components section you can add, edit or delete components from the obligation. The section contains the following columns by default.

• Component

• Allocation Type and Basis

• Rate

• Per Count and Per Count UOM

• Quantity and Quantity UOM

• Amount

• Allocate to ALC checkbox

Components Table - Actions Menu, Icons and Button

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-115 Components Table - Actions Menu/Icons/Button and Description

Actions Menu/Icon/Button	Description
Add and Add icon	You can add components to an obligation by selecting Actions > Add or by using the Add icon. For more information about how to add components to an obligation, see the Adding a Component to an Obligation section.
Edit and Edit icon	You can edit components of an obligation by selecting Actions > Edit or by using the Edit icon. For more information about how to edit components of an obligation, see the Editing a Component of an Obligation section.
Delete and Delete icon	You can delete components from an obligation by selecting Actions > Delete or by using the Delete icon. For more information about how to delete components from an obligation, see the Deleting a Component from an Obligation section.
Update Quantities and Update Quantities button	You can update the quantities of the table by selecting Actions > Update Quantities or by clicking the Update Quantities button.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Components Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-116 Components Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Location

In the Locations section you can add and delete locations from a component of the obligation. The section is only available, if the level of the obligation is Purchase Order Header or Purchase Order/Item. The Location table contains the location type, location and location name as well as quantity and amount columns by default.

Locations Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-117 Locations Table - Actions Menu/Icons and Description

Actions Menu/Icon	Description
Add and Add icon	You can add locations to a component of an obligation by selecting Actions > Add or by using the Add icon. For more information about how to add locations to the component of an obligation, see the Adding a Location to a Component section.
Delete and Delete icon	You can delete locations of a component by selecting Actions > Delete or by using the Delete icon. For more information about how to delete locations of components, see the Deleting a Location from a Component section.
Export to Excel and Export to Excel icon	You can export the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Locations Table - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-118 Components Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Obligations Toolbar

The Toolbar displays the icons and buttons for actions that can be performed for the obligation. The Obligations Toolbar contains the following icons and buttons.

Table 13-119 Obligations Toolbar - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Delete icon	Deletes the current obligation. Only possible, if the obligation is not in the status Approved. For more information about how to delete an obligation, see the Deleting an Obligation section.
Approve	Changes the status of the obligation to Approved.
Reallocate	Reallocates the cost components.
Save and Close menu	Click Save and Close, to save changes to the obligation and exit the Obligation window. Click the arrow on the right side of the button to display the additional save options. Click Save to save your entries in the Obligation window. Click Save and Create Another to save the current obligation and create further entries.
Cancel	Click Cancel to cancel any changes made to the obligation and exit the Obligation window.
Done	Only displayed in view mode. Click Done to close the Obligation window.

Creating an Obligation

To create a new obligation follow the steps below.

1. From the Tasks menu, select Import Management > Create Obligation. The Create Obligation window appears.

2. In the Level field, select the level of the obligation from the list. For example, select ASN.

   • Click OK to create the obligation. The Obligation window appears.

   • Click Cancel to exit the Obligation window.

3. In the Obligation window fill out the sections as necessary. For more information about the Obligation window, see the Obligation section.

4. After you have entered all necessary information, choose one of the following options.

   • Click Save and Close, to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to save the current obligation and create further entries.

Adding a Component to an Obligation

To add a component to an obligation follow the steps below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Component section, select Actions > Add or use the Add icon. The Add Component window appears.

   Figure 13-52 Add Component Window




   1. In the Component field, enter, select or search for the corresponding component. This field is a required field.

   2. The Allocate to ALC checkbox is selected by default. Deselect the checkbox, if the components should not be included in the actual landed cost calculation.

   3. The Allocation Type field is populated with the allocation type, depending on the component you selected. Possible allocation types are Unit of Measure and Amount. Change the allocation type, if necessary. This field is a required field.

      • If you select Amount as the allocation type, only the Quantity and Amount fields are enabled. Change the values of these fields, if necessary.

      • If you select Unit of Measure as the allocation type, the Allocation Basis, the Rate, the Per Count, and the Quantity as well as the Amount field are enabled. Change the values of these fields, if necessary.

   4. Then choose one of the following options.

      • Click OK to add the component to the obligation and close the Add Component window.

      • Click OK and Add Another to add additional entries.

      • Click Cancel to reject all entries and close the Add Component window.

7. After you have added all necessary components to the obligation, choose one of the following options.

   • Click Save and Close to save changes to the obligation and close the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to create additional entries.

Editing a Component of an Obligation

To edit a component of an obligation, follow the steps listed below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Component section, select a record in the table.

7. Then select Actions > Edit or use the Edit icon. The Edit Component window appears.

   1. The Component field is populated with the component you selected. The field is disabled, you cannot change the component.

   2. The Allocate to ALC checkbox is selected or deselected, depending the previous entry of the component. Change the entry, if necessary.

   3. The Allocation Type field is populated with the allocation type, depending on the component. Possible allocation types are Unit of Measure and Amount. Change the allocation type, if necessary. This field is a required field.

      • If the selected allocation type is Amount, only the Quantity and Amount fields are enabled. The fields are populated with the current values of the component. Change the values of these fields, if necessary.

      • If the selected allocation type is Unit of Measure, the Allocation Basis, the Rate, the Per Count, and the Quantity as well as the Amount field are enabled. The fields are populated with the current values of the component. Change the values of these fields, if necessary.

   4. Then choose one of the following options.

      • Click OK to save the changes and exit the Edit Component window.

      • Click Cancel to reject all entries and exit the Edit Component window.

8. After you have made all necessary changes to the obligation, choose one of the following options.

   • Click Save and Close to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to create additional entries.

Deleting a Component from an Obligation

To delete a component from an obligation, follow the steps below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Component section, select a record in the table.

7. Then select Actions > Delete or use the Delete icon.

8. You are prompted to delete the component. Confirm the prompt with Yes.

9. After you have deleted all necessary components from the obligation, choose one of the following options.

   • Click Save and Close to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to create additional entries.

Adding a Location to a Component

To add a location to a component follow the steps below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Location section, select Actions > Add or use the Add icon. The Add Location window appears.

   1. In the Location Type field, enter, select or search for the corresponding location.

   2. After you have entered the location type, the Location field is enabled. Enter, select or search for the appropriate location.

   3. In the Quantity field, enter the quantity.

   4. In the Amount field, enter the amount.

   5. Then choose one of the following options.

      • Click OK to add the location to the component and close the Add Location window.

      • Click OK and Add Another to add additional entries.

      • Click Cancel to reject all entries and close the Add Location window.

7. After you have added all necessary locations to the component, choose one of the following options.

   • Click Save and Close to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to save the current obligation and create further entries.

Deleting a Location from a Component

To delete a location from a component, follow the steps below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Locations section, select a record in the table.

7. Then select Actions > Delete or use the Delete icon.

8. You are prompted to delete the location. Confirm the prompt with Yes.

9. After you have deleted all necessary locations from the component, choose one of the following options.

   • Click Save and Close to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to save the current obligation and create further entries.

Deleting an Obligation

To delete an obligation follow the steps below.

1. From the Tasks menu, select Import Management > Manage Obligation. The Obligation window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Obligation column, click on the obligation link, or mark a record and select Actions > Edit or use the Edit icon. The Obligation window appears. The data of the selected obligation is shown.

6. In the Obligation Toolbar, select the Delete icon.

7. You are prompted to delete the obligation. Confirm the prompt with Yes.

8. Then choose one of the following options.

   • Click Save and Close to save changes to the obligation and exit the Obligation window.

   • Click the arrow on the right side of the button to display the additional save options.

     • Click Save to save your entries.

     • Click Save and Create Another to save the current obligation and create further entries.

Managing Obligations

The Manage Obligations option opens the Obligation Search window. In the Obligation window you can search, create, maintain and view obligations.

You can access the Obligation Search window from the Task menu, select Import Management > Manage Obligations. The Obligation Search window appears.

The Obligation Search window contains the following two sections.

• Search

  For more information about how to search for obligations, see the Searching for an Obligation section.

• Results

• Obligation Search Toolbar

Figure 13-53 Obligation Search Window

Searching for an Obligation

To search for an obligation:

1. From the Task menu, select Import Management > Manage Obligations. The Obligation Search window appears.

2. You can search for an obligation by using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for an Obligation Through the Basic Search Criteria

To search for an obligation using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-120 Obligation Search - Basic Search Criteria and Description

   Fields	Description
   Match option	Check the radio button All or Any. All - only obligations matching all entered search criteria are shown. Any - obligations matching any of the entered search criteria are shown.
   Obligation	Enter the obligation.
   Level	Select the level of the obligation from the list. For example, select ASN.
   Status	Select the status of the obligation. Possible statuses are: Pending Approved
   Supplier Site	Enter, select or search for the supplier site.
   Partner Type	Select the partner type from the list.
   Partner	Enter, select or search for the partner ID.
   Invoice	Enter, select or search for the invoice ID.
   Invoice Date	Enter the invoice date or use the Calendar icon to select a date.




2. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The obligations that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for an Obligation Through Advanced Search Criteria

To search for an obligation using advanced search criteria:

1. To search using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should equal or not equal the search result.

3. Click on the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The obligations that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved obligations. The Results table shows the following columns by default.

• Obligation

• Level

• Invoice

• Invoice Date

• Status

• Partner Type

• Partner

• Partner Name

• Supplier Site

• Supplier Site Name

Results - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-121 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Create or Create icon	Select Actions > Create or use the Create icon to create a new obligation. The Create Obligation window appears. For more details about how to create an obligation, see the Creating an Obligation section.
Edit and Edit icon	Select Actions > Edit or use the Edit icon to edit the selected obligation. For more information about how to edit an obligation, see the Obligation section.
View and View icon	To view an obligation: Select a record in the Results section. Select Actions > View or use the View icon. The Obligation window appears. For more details about the Obligation window, see the Obligation section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Results - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-122 Results - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Obligation Search Toolbar

The toolbar contains the following icons and buttons.

Table 13-123 Obligation Search Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Done	Click Done to close the window.

Actual Landed Cost

The actual landed cost module provides a view of the expenses and assessments that are accumulated as goods move from origin country, through customs, to their final destination. Estimated and actual landed costs are summarized for analysis.

The amounts can be viewed at the entry, shipment, purchase order level or at the purchase order/item level. After analysis, you can finalize the actual landed costs. As a result the stock ledger and open to buy are updated. You also have the option to update weighted average costs.

ALC Window

In the ALC window you can view the actual landed cost details of an item on a purchase order. The costs are limited to the expenses and assessments that are non-merchandise charges. The comparison between the estimated landed cost and the actual landed cost are listed in the primary currency of the company.

The cost can be viewed for each of the following unique combinations.

• Purchase order, item, pack item, and transportation shipment (vessel/voyage/estimated departure date)

• Purchase order, item, pack item, and obligation

• Purchase order, item, pack item, and customs entry

The ALC window contains the following sections.

• ALC Header

• Estimates with no Actuals

• Values Included in ALC by Direct Nomination

• Transportation Shipments

• Transportation Related Obligations/Entries

• Non-Transportation Related Obligations

• ALC Toolbar

Figure 13-54 ALC Window

ALC Header

The ALC Header displays the following information:

• Order No.

• Pack

  Pack is only displayed, if the item on the purchase order is a buyer pack with an order type of pack.

• Item

• Standard UOM

• Next and Previous button

  The Next and Previous buttons are only displayed, if a pack item exists.

Furthermore, the ALC header displays the unit cost, unit retail, markup, quantities such as ordered, shipped and received, the unit and total ELC, the currency, the unit and total ALC as well as the variance in percent.

Estimates with no Actuals

The Estimates with no Actuals section displays estimates that are available, but where the retailer has not yet been billed for the actuals, either via obligations or customs entries. When a PO is approved, a record is written to ALC for each estimated cost component. The total of each estimated cost component is shown in this section.

The following fields are displayed:

• Unit

  Displays the per unit value of all estimated expenses and assessments without an actual.

• Total

  Displays the total value of all estimated expenses and assessments without an actual.

Note: If there are no estimated components for which actuals have not been entered, this section is not displayed.

Use Component List button to open the ALC Component window. The component list shows each component without an actual. For more information about the ALC Component window, see the ALC Components section.

Values Included in ALC by Direct Nomination

This section displays the actual values directly nominated on the PO for inclusion in the ALC, for which the retailer does not expect to pay either via obligations or customs entries.

The following fields are displayed:

• Unit

  Displays the unit value. If this value is zero the section is not displayed.

• Total

  Displays the total value.

Use the Component List button to open the ALC Component window. The component list shows each component with an actual, where it is a direct nomination.

Transportation Shipments

The Transportation Shipments table displays the following columns by default:

• Vessel

• Voyage/ Flight

• Estimated Departure Date

• Quantity

• Unit and Total ELC

• Unit and Total ALC

• % Variance

Transportation Shipments - Actions Menu, Icons and Button

Use the Actions Menu, icons and button apply actions to the table. You can perform the actions listed below.

Table 13-124 Transportation Shipments - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
View Shipment	Opens the Shipment Detail window to view the shipment details of an item on a purchase order. For more information about this window, see the Shipment Detail section.
Component List and Component List button	Opens the ALC Component window. For more information about this window, see the ALC Components section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Transportation Shipments - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-125 Transportation Shipments - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Transportation Related Obligations/Entries

The Transportation Related Obligations/Entries table contains the following columns:

• Obligation

• Entry Number

• Shipment

• Vendor Name

• Invoice

• Quantity

• Unit ELC and Total ELC

• Unit ALC and Total ALC

• %Variance

• Status

An Error icon will be shown for each row at the row header if there are errors. If you click on the Error icon, the Interface Errors window appears.

For more information about the Interface Errors window, see the Interface Errors section.

Transportation Related Obligations/Entries - Actions Menu, Icons and Button

Use the Actions Menu, icons and button to apply actions to the table. You can perform the actions listed below.

Table 13-126 Transportation Related Obligations/Entries - Actions Menu/Icons/Button and Description

Actions Menu/Icons	Description
View Obligation	Opens the Obligation window to view the obligation. For more information about this window, see the Obligation section.
View Customs Entry	Opens the Customs Entry window to view the customs entry. For more information about this window, see the Customs Entry Window section.
Component List and Component List button	Opens the ALC Component window. For more information about this window, see the ALC Components section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Transportation Related Obligations/Entries - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-127 Transportation Related Obligations/Entries - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Non-Transportation Related Obligations

The Non-Transportation Related Obligations table displays the following columns by default:

• Obligation

• Shipment

• Vendor Name

• Invoice and Invoice Date

• Quantity

• Unit ELC and Total ELC

• Unit ALC and Total ALC

• % Variance

• Status

An Error icon will be shown for each row at the row header if there are errors. If you click on the Error icon, the Interface Errors window appears.

For more information about the Interface Errors window, see the Interface Errors section.

Non-Transportation Related Obligations - Actions Menu, Icons and Button

Use the Actions Menu, icons and button apply actions to the table. You can perform the actions listed below.

Table 13-128 Non-Transportation Related Obligations - Actions Menu/Icons/Button and Description

Actions Menu/Icons/Button	Description
View Obligation	Opens the Obligations window. For more information about this window, see the Obligation section.
Component List and Component List button	Opens the ALC Component window. For more information about this window, see the ALC Components section.
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Non-Transportation Related Obligations - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-129 Non-Transportation Related Obligations - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

ALC Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the ALC window. The Toolbar contains the following icons and buttons.

Table 13-130 ALC - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Done	Click Done and exit the ALC window.

Viewing ALC Details of an Item

To view the ALC Details of an item on an order follow the steps below.

1. From the Tasks menu, select Import Management > Review ALS. The ALC Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The orders that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Order No. column, click on the order number link, or mark a record and select Actions > View or use the View icon. The ALC window appears.

6. View the actual landed cost details of an item on an order.

7. Click Done to exit the ALC window.

ALC Components

In ALC Component window you can view the cost components of an item on a purchase order. The cost components are limited to the expenses and assessments that are non-merchandise charges. The comparison between the estimated and the actual landed cost components are listed in the primary currency of the company.

The cost components can be viewed for each of the following unique combinations.

• Purchase order, item, pack item, and transportation shipment (vessel/voyage/estimated departure date)

• Purchase order, item, pack item, and obligation

• Purchase order, item, pack item, and customs entry

The ALC Components window contains the following sections.

• ALC Components Header

• Components Table

• Locations Table

• ALC Components Toolbar

Figure 13-55 ALC Components

ALC Components Header

The ALC Components Header varies depending on from which table you select the Component List function. The pack information is only displayed when the item on the order is a buyer pack with the order type Pack.

Components Table

The Components table contains the following columns by default.

• Component and Description

• Last Calculated

• Quantity (UOM)

• Estimated and Actual Unit Value

• Estimated and Actual Total Value

• % Variance

The first record in the table is selected by default and the respective cost component by location is displayed in the Locations table.

Components Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-131 Components Table - Actions Menu/Icons and Description

Actions Menu/Icon/Button	Description
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Components Table - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-132 Components Table - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

Locations Table

This table lists the cost by locations, based on the cost component selected in the Components table. The Location table displays the following columns by default.

• Location Type, Location and Location Name

• Last Calculated

• Quantity (UOM)

• Estimated and Actual Unit Value

• Estimated and Actual Total Value

• % Variance

Locations Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-133 Locations Table - Actions Menu/Icons and Description

Actions Menu/Icon/Button	Description
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Locations Table - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-134 Locations Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

ALC Components Toolbar

The Toolbar displays the icon and button for actions that can be performed in the ALC Components window. The Toolbar contains the following icon and button.

Table 13-135 ALC Component Toolbar - Icon/Button and Description

Action Icon/Button	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Done	Click Done to reject all entries and exit the ALC Components window.

Viewing ALC Components

To view ALC components follow the steps listed below.

1. From the Tasks menu, select Import Management > Review ALC. The ALC Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The orders that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Order No. column, click on the order number link, or mark a record and select Actions > View or use the View icon. The ALC window appears.

6. In the ALC window choose one of the following options.

   • In the Transportation Shipments section, select Actions > Component List. The ALC Components window appears.

   • In the Transportation Related Obligations/Entries section, select Actions > Component List. The ALC Components window appears.

   • In the Non-Transportation Related Obligations section, select Actions > Component List. The ALC Components window appears.




     Note: Depending on from which section you entered the Component List, the information in the header of the ALC Components window varies.




7. In the Components table the first record is selected by default and the respective cost component by location is displayed in the Locations table below.

8. Click Done to close the ALC Components window.

Interface Errors

The Interface Error window allows you to view the details of any errors that occurred during the allocating of obligations and customs entries to actual landed cost.

The table displays the program name, date, unit of work and the error.

Interface Errors - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-136 Interface Errors - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon .
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon .

Interface Errors - View Menu and Icons

You can customize the view of the table by using the options in View Menu.

Table 13-137 Interface Errors - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon .
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon .

Interface Errors Toolbar

The toolbar contains the following icons and buttons.

Table 13-138 Interface Errors Options Toolbar - Icons/Buttons and Description

Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon .
Save	Click Save to save the entered records.
Save and Close	Click Save and Close to save the entered records and close the window.
Cancel	Click Cancel to reject all entries and close the window.

Shipment Detail

The Shipment Detail window displays shipment information.

Figure 13-56 Shipment Detail Window

The Shipment Detail window contains the following sections.

• Shipment Detail Header

  The Shipment Details header displays shipping information such as vessel, voyage/flight as well as the estimated departure date.

• Shipment Detail Table

Shipment Detail Table

The Shipment Detail Table displays the following columns by default.

• BOL/AWB

• Container

• Landing Port and Landing Port Description

• Discharge Port and Discharge Port Description

• Shipment Method

Shipment Detail Table - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the table. You can perform the actions listed below.

Table 13-139 Shipment Detail Table - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Export to Excel and Export to Excel icon	You can copy the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Shipment Detail Table - View Menu

You can customize the view of the table. Use the View Menu to customize the view as listed below.

Table 13-140 Shipment Detail Table - View Menu and Description

View Menu	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.

Viewing Shipment Details

To view shipment details follow the steps listed below.

1. From the Tasks menu, select Import Management > Review ALC. The ALC Search window appears.

2. Enter or select search criteria as desired to make the search more restrictive.

3. Click Search. The orders that match the search criteria are displayed in the Results section.

4. Select a record in the Results section.

5. In the Order No. column, click on the order number link, or mark a record and select Actions > View or use the View icon. The ALC window appears.

6. In the Transportation Shipment section, select Actions > Shipment Detail or go to the vessel column and click on the vessel number link. The Shipment Detail window appears.

7. View the shipment details of an item on an order.

8. Click OK to exit the Shipment Detail window.

Reviewing Actual Landed Costs

The Review ALC option opens the ALC Search window. In the ALC Search window you can search for an order or item to view the ALC values for a single item on a purchase order.

You can access the ALC Search window from the Task menu, select Import Management > Review ALC. The ALC Search window appears.

The ALC Search window contains the following sections.

• Search

  For more information about how to search for orders or items to view ALC values, see the Searching for Orders/Items section.

• Results

• ALC Search Toolbar

Figure 13-57 ALC Search Window

Searching for Orders/Items

To search for orders/items:

1. From the Task menu, select Import Management > Review ALC. The ALC Search window appears.

2. You can search for orders/items by using basic or advanced search criteria, depending on the requirement. The basic mode is the default search mode.

   • Click Advanced to access the search section in advanced mode.

   • Click Basic to return to the basic mode.

Searching for Orders/Items Through the Basic Search Criteria

To search for orders/items using basic search criteria:

1. Enter, select or search for one or all of the following basic search criteria.

   Table 13-141 ALC Search - Basic Search Criteria and Description

   Fields	Description
   Match option	Check radio button All or Any. All - only orders matching all entered search criteria are shown. Any - orders matching any of the entered search criteria are shown.
   Order No.	Enter, select or search for the order number.
   Item	Enter the item number or use the Search icon to search for the particular item
   Obligation	Enter, select or search for an obligation.
   Entry No.	Enter, select or search for an entry number.
   Status	Select the ALC status from the list. Possible status are: Estimated No Finalization Pending Processed
   Vessel	Enter, select or search for the vessel number.
   Voyage/Flight	Enter, select or search for the voyage/flight number.
   Estimated Depart. Date	Enter or use the Calendar icon to select the estimated departure date of the transport.




2. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

3. Click Search. The orders/items that match the search criteria are displayed in the Results section.

4. Click Reset to clear the search section and results.

5. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

6. Click Done to close the window.

Searching for Orders/Items Through Advanced Search Criteria

To search for orders/items using advanced search criteria:

1. To search by using advanced search criteria, enter or select one or all of the advanced search criteria.

2. To narrow down the search, use the list next to the search fields. For example, determine if the entered value should equal or not equal the search result.

3. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The orders/items that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

7. Click Add Fields to add more fields for the advanced search. To remove the field from the search, click the x right next to the field.

8. Click Reorder to change the order of the available search fields. The Reorder Search Fields window appears.

   • Select the desired search field and use the up and down arrows to rearrange the order of the fields.

   • Click OK to confirm the new order of the fields and close the window.

   • Click Cancel to reject any changes and close the window.

9. Click Done to close the window.

Results

The Results section lists the retrieved orders/items. The Results table shows the following columns by default.

• Order Number

• Item and Item Description

• Obligation

• Entry Number

• Vessel

• Voyage/Flight

• Estimated Departure Date

• Quantity

Results - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-142 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
View and View icon	Opens the ALC window to view the ALC of an item. For more information about this window, see the Viewing ALC Details of an Item section.
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.

Results - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-143 Results - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

ALC Search Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the ALC Search window. The Toolbar contains the following icon and button.

Table 13-144 ALC Search- Icon/Button and Description

Action Icon/Button	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Done	Click Done and close the ALC Search window.

ALC Finalization

The Finalize ALC option opens the ALC Finalization window. In the ALC Finalization window you can search for an order or order/shipments to review the variance between the estimated landed cost and actual landed cost and determine whether or not to finalize the ALC resulting in the update of the stock ledger and weighted average cost of all item/locations on the associated order/shipment.

You can access the ALC Finalization window from the Task menu, select Import Management > Finalize ALC. The ALC Finalization window appears.

The ALC Finalization window contains the following sections.

• Search

  For more information about how to search for orders or oder/shipments, see the Searching for Orders or Order/Shipments section.

• Results

• ALC Finalization Toolbar

Figure 13-58 ALC Finalization Window

Searching for Orders or Order/Shipments

To search for orders or order/shipments:

1. From the Task menu, select Import Management > Finalize ALC. The ALC Finalization window appears.

2. Enter, select or search for one or all of the following search criteria.

   Table 13-145 ALC Finalization Search - Search Criteria and Description

   Fields	Description
   Order No.	Enter, select or search for the order number.
   Order Status	Select the order status from the list. Possible statuses are: Worksheet Submitted Approved Closed
   Item	Enter the item number or use the Search icon to search for the particular item.
   Pack	Enter the pack item or use the Search icon to search for the pack item.
   Obligation	Enter, select or search for an obligation.
   Entry No.	Enter, select or search for an entry number.
   ALC Status	Select the ALC status from the list. Possible statuses are: Estimated No Finalization Pending Processed Processed - Records Pending
   Vessel	Enter, select or search for the vessel number.
   Voyage/Flight	Enter, select or search for the voyage/flight number.
   Estimated Departure Date	Enter, select or search for the estimated departure date.
   ASN	Enter, select or search for the Advanced Shipping Notice (ASN).
   Variance %	In this field you can search on a range of % variance values. Enter the first and second Variance % value in the corresponding field.




3. Click the Saved Search list to select one of the saved search criteria. Selecting a saved search populates the search section with the saved search criteria. If the run automatically function is enabled for the search, the search is executed immediately.

   You can also personalize your saved searches by selecting Personalize. The Personalize Saved Searches window appears.

   For more information about the Personalized Saved Search, see the Common User Interface Controls chapter, section "Personalize Saved Search".

4. Click Search. The orders or order/shipments that match the search criteria are displayed in the Results section.

5. Click Reset to clear the search section and results.

6. Click Save As... to save the current search criteria. The Create Saved Search window appears.

   For more information about how to save your search criteria, see the Common User Interface Controls chapter, section "Create Saved Search".

Results

The Results section lists the retrieved orders. The Results table shows the following columns by default.

• Order Number and Order Status

• Shipment

• ASN

• Total ELC

• Total ALC

• % Variance

• ALC Status

• Comments

Results - Actions Menu and Icons

Use the Actions Menu and icons to apply actions to the Results table. You can perform the actions listed below.

Table 13-146 Results - Actions Menu/Icons and Description

Actions Menu/Icons	Description
Export to Excel and Export to Excel icon	You can export the records in the table to a Microsoft Excel spreadsheet by selecting Actions > Export to Excel or by using the Export to Excel icon.
Wrap icon	You can wrap the values in the table column by first clicking the column on which you would like the text to wrap and then using the Wrap icon.
Finalize button	Opens the Finalize ALC window. For more information about how to finalize the actual landed costs, see the Finalizing the Actual Landed Costs section.
ALC Detail button	Opens the ALC Search window. Select a record in the Results section. Click ALC Detail. The ALC Search window appears with the values from the highlighted record populated as search criteria. You can search and review the detailed ALC information. For more information about how to review detailed ALC information, see the Reviewing Actual Landed Costs section.

Results - View Menu and Icons

You can customize the view of the table. Use the View Menu and icons to customize the view as listed below.

Table 13-147 Results - View Menu/Icons and Description

View Menu/Icons	Description
Columns	You can manage which of the columns will be shown in the table by clicking the Show All and Manage Columns options.
Detach and Detach icon	You can view the tables in the application in a separate window by clicking Detach or by using the Detach icon.
Sort	You can sort columns by the following options: Ascending Descending Advanced
Reorder Columns	You can reorder columns by clicking the Reorder Columns option.
Query by Example and Query by Example icon	You can filter the items by one or multiple column values by clicking the Query by Example option or by using the Query by Example icon.

ALC Finalization Toolbar

The Toolbar displays the icons and buttons for actions that can be performed in the ALC Finalization window. The Toolbar contains the following icons and buttons.

Table 13-148 ALC Finalization - Icons/Buttons and Description

Action Icons/Buttons	Description
Help icon	You can access the online help for a particular page by clicking the Help icon.
Save and Close	Click Save and Close to save your changes and close the ALC Finalization window.
Cancel	Click Cancel and close the ALC Finalization window.

Finalizing the Actual Landed Costs

To finalize the actual landed costs, follow the steps below:

1. In the Results section, select one or more records.

2. Then press the Finalize button. The Finalize ALC window appears.

   Figure 13-59 Finalize ALC Window




3. In the Method of Finalization field, select the method from the list.

4. In the Comments field, edit or enter comments as necessary.

5. Then choose one of the following options.

   • Click OK to finalize the ALC and close the window.

   • Click Cancel to reject all entries and close the window.
