A Understanding RTIL WorkManager Settings

This appendix discusses the steps it is necessary to take to configure the RTIL WorkManager.

Configuring RTIL WorkManager

The steps involved in configuring the RTIL WorkManager are as follows:

1. Login to Oracle WebLogic Server Administration Console.

   Figure A-1 Oracle WebLogic Server Login

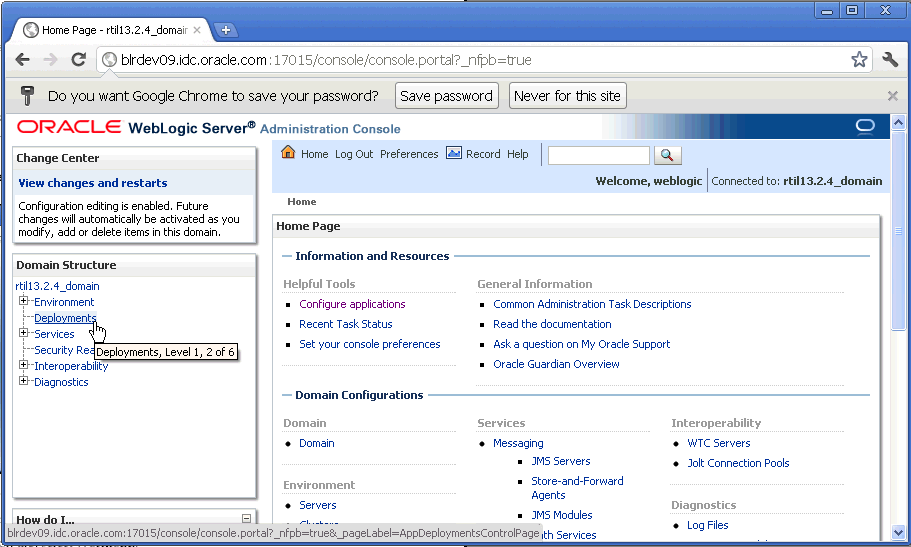

2. Click Deployments in the Domain Structure area of the console.

   Figure A-2 Deployment




3. Select rtilservice from the Summary of Deployments area of the console.

   Figure A-3 RTILService

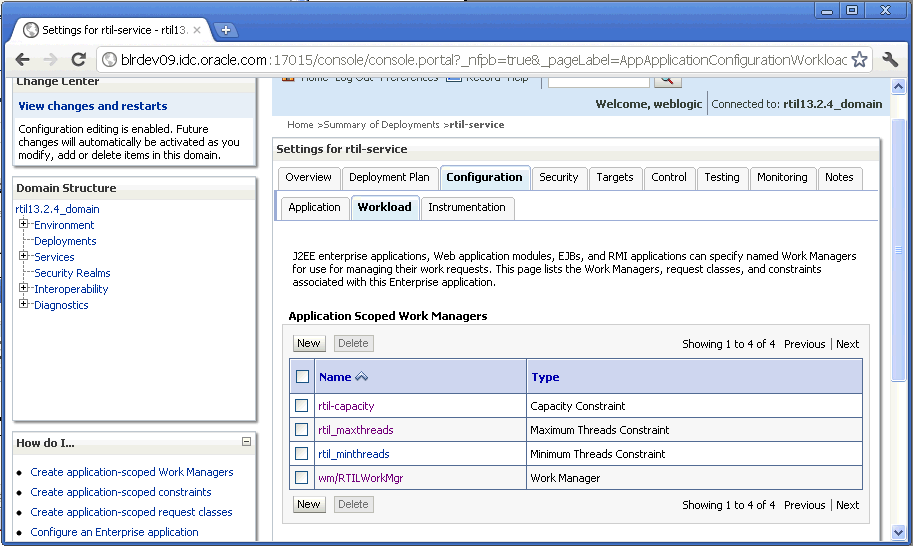

4. In the Settings for rtil-service area of the console, from the Configuration tab, select Workload.

   Figure A-4 Workload




5. The Applications Scoped Work Managers area includes rtil_capacity, rtil_maxthreads, and rtil_minthreads. Select the parameter that needs to be modified.

   Figure A-5 Applications




6. If it is necessary to modify the number of requests that can be queued, click rtil_capacity.

   Figure A-6 RTIL Capacity




7. In the Settings for rtil_capacity window, enter the total number of requests that can be in the queue, and click Save.

   Figure A-7 Set RTIL Capacity




8. It returns to the Applications Scoped Work Managers window. If necessary, modify the maximum number of concurrent threads that can execute requests, click rtil_maxthreads.

   Figure A-8 RTIL Maxthreads




9. In the Settings for rtil_maxthreads area of the window, enter the maximum number of concurrent threads that can execute requests, and click Save.
