F Node Type Definitions for Oracle WebCenter Adapters

The chapter describes node type definitions for Oracle WebCenter adapters for Microsoft SharePoint, EMC Documentum, and IBM Lotus Domino. It contains the following sections:

• Section F.1, "Node Type Definitions for the Oracle WebCenter Adapter for IBM Lotus Domino"

• Section F.2, "Node Type Definitions for the Oracle WebCenter Adapter for Microsoft SharePoint"

• Section F.3, "Node Type Definitions for the Oracle WebCenter Adapter for EMC Documentum"

F.1 Node Type Definitions for the Oracle WebCenter Adapter for IBM Lotus Domino

This section covers the following:

• Section F.1.1, "Reading"

• Section F.1.2, "Node Type Mapping"

• Section F.1.3, "Searching"

• Section F.1.4, "Authorization"

F.1.1 Reading

The Oracle WebCenter adapter for IBM Lotus Domino maps the repository workspace to a single Lotus Domino database. The adapter can read Domino documents, views, and view entries. All documents are available under the root folder, /DOCUMENTS. Views with view entries are visible under the folder, /VIEWS. However, soft deleted documents are not visible through this adapter.

A Domino database allows all documents to be accessed without a hierarchy. The Oracle WebCenter adapter for IBM Lotus Domino allows access to all documents as mix:referenceable nodes under a /DOCUMENTS root folder. To handle multiple nodes at the same level, the adapter builds an artificial hierarchy for documents in the database. The hierarchy has a fixed depth and is built based on document identifiers. A document identifier consists of eight hexadecimal characters. For example a document with note Id NT000008F6 is visible in workspace as a node at the following path:

/DOCUMENTS/0/0/0/0/0/8/8F6

Folder node names are created from leading characters of a document Id and the final document node name is the IBM Lotus Notes identifier.

Database views are visible under the folder, /VIEWS. A database view may be hierarchical, and there may be views providing different hierarchies for the same set of documents. Views correspond to ld:view child nodes under /VIEWS. The name of each ld:view node is the name of the view. Within each view there are ld:category and ld:viewEntry child nodes. The ld:category nodes preserve the view's hierarchical structure, and are named as defined by the view. The leaf nodes in the hierarchy are ld:viewEntry nodes. An ld:viewEntry node is an nt:linkedFile node. Its jcr:content value is a reference property pointing to an ld:document under the /DOCUMENTS node.

F.1.2 Node Type Mapping

The Oracle WebCenter adapter for IBM Lotus Domino maps a Domino database (.nsf) content to a JCR workspace using subtypes of the JCR nt:hierarchyNode node type. The content of the workspace is organized around folders, files, and links.

F.1.2.1 IBM Lotus Notes/Domino Namespace

The Oracle WebCenter adapter for IBM Lotus Domino uses its own namespace for the repository node types. This namespace is denoted by prefix ld.

F.1.2.2 Documents

The artificial hierarchy of folders created by the adapter uses built-in nt:folder node type.

A document in the JCR workspace of the adapter represents the IBM Lotus Domino document object.

The main node types in the document mapping are as shown in Table F-1.

Table F-1 Main Node Types for Oracle WebCenter Adapter for IBM Lotus Domino

JCR Type	JCR Super Types	Description
ld:document	mix:referenceable,nt:file	Represents a Domino document in the /DOCUMENTS hierarchy. Properties of this node represent system properties of the IBM Lotus Domino document.
ld:content	nt:unstructured	The jcr:content child node of an ld:document, representing the content of the Domino document.
ld:attachment	nt:hierarchyNode	Represents file attachments of an IBM Lotus Domino document. If the document has attachments, the ld:content has a child node $FILE of type nt:folder, which in turn contains all the attachments represented as ld:attachment nodes.
ld:view	nt:folder	Represents a view in the /VIEWS hierarchy. A view includes links (ld:viewEntry) to the documents contained in the given view.
ld:category	nt:folder	Child nodes of an ld:view or ld:category node, corresponding to the hierarchy defined by the view.
ld:viewEntry	nt:linkedFile	Represents a link to the document contained in the view.

The following sample node with one attachment (readme.txt) illustrates the document structure in the IBM Lotus Domino mapping. This sample does not show all node properties.

+ 8F6 (ld:document)
 + jcr:content (ld:content)
  - Body (string)
  + $FILE (nt:folder)
   + readme.txt (ld:attachment)
    - jcr:data (binary)

In this simplified notation, a + sign denotes a node, while a - sign denotes a property.

Document System Properties

Documents are mapped to ld:document node type, which extends the nt:file node type as shown in Id:document Node Type.

The properties of the ld:document node correspond to only the system properties of an IBM Lotus Domino document. The name of the JCR property is created by prepending the Domino property name by ld: prefix, for example, ld:authors corresponds to a document's authors property. For more information on the properties defined for Domino objects, see the IBM Lotus Domino documentation.

Id:document Node Type

NodeTypeName
   ld:document
Supertypes
   mix:referenceable
   nt:file
IsMixin
   false
HasOrderableChildNodes
   false
PrimaryItemName
   jcr:content
PropertyDefinition
   Name: ld:authors
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:deleted
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:encrypted
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:encryptionKeys
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: true
PropertyDefinition
   Name: ld:encryptOnSend
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:folderReferences
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:hasEmbedded
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:httpURL
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:key
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:lastAccessed
   RequiredType: Date
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:lastModified
   RequiredType: Date
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:lockHolders
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:nameOfProfile
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:newNote
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:noteID
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:notesURL
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:parentDocument
   RequiredType: Reference
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:parentDocumentUNID
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:profile
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
 PropertyDefinition
   Name: ld:response
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:responses
   RequiredType: Reference
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:saveMessageOnSend
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:sentByAgent
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:signed
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:signer
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:signOnSend
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:size
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:universalID
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:valid
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:verifier
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false

Document Properties Managed by Applications

The content managed by a Domino application, for example, the IBM Lotus Notes email and collaboration client, appears as properties and child nodes of the ld:document's jcr:content node. An ld:document's jcr:content node is always of type ld:content. The ld:content node type includes residual property and node type definitions. These residual definitions allow an ld:content node to store the application specific data for any Domino database. For example, an email application such as IBM Lotus Notes uses attributes such as:

• Subject - for email subject

• From - for sender of the email

• Body - for body of the email

These are mapped to similarly named properties of the jcr:content node, that is, jcr:content/Subject, jcr:content/From, and jcr:content/Body.

If you want to build applications using the Domino application content, you must understand the content definition and semantics of the native Domino application using the IBM Lotus Domino database.

Note:

Some properties are reserved by the application and have a dollar sign ($) prepended to the name, for example, $MessageID in case of Lotus Notes email databases. The adapter maps these properties with these reserved names.

The jcr:data property contains an XML representation of the entire document structure, and not just the binary content of any document attachments.

The ld:content node type definition is:

NodeTypeName
   ld:content
Supertypes
   nt:unstructured
IsMixin
   false
HasOrderableChildNodes
   false
PrimaryItemName
   jcr:data
PropertyDefinition
   Name: jcr:data
   RequiredType: Binary
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: jcr:mimeType
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false

Mapping of Attachments

A Domino document may have one or more file attachments which contain binary data. If a document has attachments, the document's jcr:content node will have a child node of type nt:folder called $FILE. This $FILE node will contain the attachments as child nodes of type ld:attachment.

Each ld:attachment child node corresponds to a single attachment, and is named to match the file name of the attachment, for example:

+ 8F6 (ld:document)
 + jcr:content (ld:content)
  - Body (string)
  + $FILE (nt:folder)
   + readme.txt (ld:attachment)
    - jcr:data (binary)

where + represents a node and - a property.

The following is the node type definition of ld:attachment:

NodeTypeName
   ld:attachment
Supertypes
   nt:hierarchyNode
IsMixin
   false
HasOrderableChildNodes
   false
PrimaryItemName
   jcr:data
PropertyDefinition
   Name: jcr:data
   RequiredType: Binary
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: jcr:mimeType
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false

Figure F-1 and Figure F-2 show portions of sample attributes of a single email document. Figure F-2 displays the message attachments, that is, the document's $FILE items in the IBM Lotus Domino database.

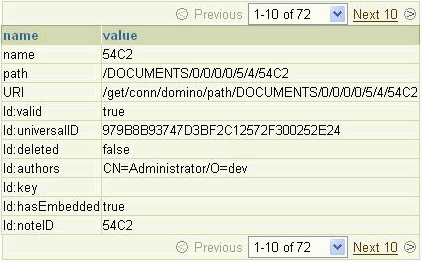

Figure F-1 Sample Attributes of an Email Document

Description of "Figure F-1 Sample Attributes of an Email Document"

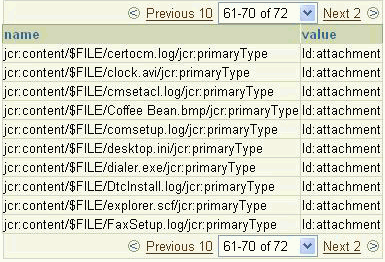

Figure F-2 Sample Attributes of an Email Document

Description of "Figure F-2 Sample Attributes of an Email Document"

F.1.2.3 Views

Each database view corresponds to an ld:view node under /VIEWS in the JCR workspace. The ld:view node's properties represent the system properties of the Domino view, as described in Document System Properties.

An ld:view node can have ld:category and ld:viewEntry child nodes.

The ld:category nodes correspond to the categories in a hierarchical view, and the ld:viewEntry nodes are the leaves of the hierarchy, pointing to ld:document nodes under /DOCUMENTS.

The ld:view node type definition is:

NodeTypeName
   ld:view
Supertypes
   nt:folder
IsMixin
   false
HasOrderableChildNodes
   true
PrimaryItemName
   null
PropertyDefinition
   Name: ld:aliases
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:autoUpdate
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:backgroundColor
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:calendar
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:categorized
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnNames
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:columnValues
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:conflict
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:defaultView
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:entryCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:folder
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:headerLines
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:hierarchical
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:httpURL
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:lastModified
   RequiredType: Date
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:lockHolders
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:modified
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:name
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:notesURL
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:private
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:prohibitDesignRefresh
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:protectReaders
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:readers
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:rowLines
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:selectionFormula
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:spacing
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:topLevelEntryCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:universalID
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:viewInheritedName
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
ChildNodeDefinition
   Name: *
   RequiredPrimaryTypes: [ld:category]
   DefaultPrimaryType none
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   SameNameSiblings: true
ChildNodeDefinition
   Name: *
   RequiredPrimaryTypes: [ld:viewEntry]
   DefaultPrimaryType none
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   SameNameSiblings: true

The node type definition for ld:category is:

NodeTypeName
   ld:category
Supertypes
   nt:folder
IsMixin
   false
HasOrderableChildNodes
   true
PrimaryItemName
   null
PropertyDefinition
   Name: ld:category
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:childCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnIndentLevel
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnValues
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:conflict
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:descendantCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:document
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:indentLevel
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:siblingCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:total
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:valid
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
ChildNodeDefinition
   Name: *
   RequiredPrimaryTypes: [ld:viewEntry]
   DefaultPrimaryType none
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   SameNameSiblings: true

The node type definition for ld:viewEntry is:

NodeTypeName
   ld:viewEntry
Supertypes
   nt:linkedFile
IsMixin
   false
HasOrderableChildNodes
   false
PrimaryItemName    null
PropertyDefinition
   Name: ld:category
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:childCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnIndentLevel
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:columnValues
   RequiredType: String
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: true
PropertyDefinition
   Name: ld:conflict
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:descendantCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:document
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: false
   Multiple: false
PropertyDefinition
   Name: ld:indentLevel
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:siblingCount
   RequiredType: Long
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:total
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false
PropertyDefinition
   Name: ld:valid
   RequiredType: Boolean
   ValueConstraints: []
   DefaultValues: []
   AutoCreated: false
   Mandatory: false
   OnParentVersion: COPY
   Protected: true
   Multiple: false

F.1.3 Searching

The Oracle WebCenter adapter for IBM Lotus Domino supports queries for documents stored in an IBM Lotus Notes database. It converts JCR queries into corresponding Domino queries and translates Domino search results into JCR query results. For example, //element(*, ld:document), a simple XPath query, returns all documents stored in Lotus Notes database.

The Oracle WebCenter adapter for IBM Lotus Domino supports a partial mapping of the JCR query model to the Domino search using the Formula Language. Only the part of JCR query syntax, which is directly supported by the underlying repository, is implemented. The currently supported features include:

• Type constraint: element(*, …)

• Property constraints (=, <, >, <=, >=, !=, jcr:like())

• Boolean predicates: and, or, not

• Ordering specifier

Additionally, the Oracle WebCenter adapter for IBM Lotus Domino supports full-text search using the jcr:contains() function and Lotus Domino search syntax. When searching in a view for documents, a XPath query must use the jcr:deref function to create a query that applies to the documents selected by the view.

Note:

The search function in Oracle WebCenter adapter for IBM Lotus Domino does not support nt:folder nodes. This is because the IBM Lotus Domino database is a flat object store, and the object hierarchy under /DOCUMENTS in the adapter's JCR mapping is artificial. See Section F.1.1, "Reading" and Section F.1.2, "Node Type Mapping" for information.

Sample XPath queries

The following are sample XPath queries:

By node type:

/jcr:root//element(*, ld:document)

By document metadata:

/jcr:root//element(*, ld:document)[@ld:noteID = '8F6']
/jcr:root//element(*, ld:document)[@jcr:created > xs:dateTime('2002-10-10T17:00:00.000Z')]

By document content:

/jcr:root//element(*, ld:document)[jcr:content/@Form = 'Message']
/jcr:root//element(*, ld:document)[jcr:like(jcr:content/@Subject, 'Test%')]

Full text search:

/jcr:root//element(*, ld:document)[jcr:contains(jcr:content/@jcr:data,'keyword')]

Search for all documents:

/jcr:root/DOCUMENTS//element(*, ld:document)

Search in a view ($Inbox) for a document with application property Subject containing test:

/jcr:root//VIEWS/_x0028__x0024_Inbox_x0029_//jcr:deref(@jcr:content)[jcr:contains(@Subject,'test')]

F.1.4 Authorization

The Oracle WebCenter adapter for IBM Lotus Domino reads Access Control Lists (ACLs) from IBM Lotus Domino databases and converts them into JCR permissions accessible through JCR API.

F.1.4.1 Workspaces Access

Users must have at least READER level access to corresponding database to be able to login into the workspace.

F.1.4.2 Document read access

Users have access to documents to which they have sufficient rights. It means that either documents have no special Readers/Authors fields or users are listed in those fields directly.

A private document is visible through the adapter if the administrator account used by the adapter connection is specified directly in the document's Readers or Authors fields. A private document will only be invisible to the adapter if this administrator account is removed from the document's Readers and Authors field.

F.2 Node Type Definitions for the Oracle WebCenter Adapter for Microsoft SharePoint

The following description of Microsoft SharePoint Services is provided to support the explanation of the node types of Oracle WebCenter adapter for Microsoft SharePoint. Refer to your Microsoft SharePoint Services documentation for a full description of SharePoint Services.

Figure F-3 illustrates the structure of SharePoint Services.

Figure F-3 SharePoint Architecture

Description of "Figure F-3 SharePoint Architecture"

The SQL Server 2000 databases (1) are a collection of content databases that are used to store SharePoint repository data.

The Web Servers (2), represent the collection of front-end Web servers that in turn contain one or more Virtual Servers (3).

Each Virtual Server has one or more Site Collections (4).

Each Site Collection includes any number of Site objects.

Within a Site collection there is a Top-level Web Site (5).

The Top-level Web Site corresponds to the root of the JCR hierarchy of the Oracle WebCenter adapter for Microsoft SharePoint.

A Site object can contain a collection of Subsites and a collection of Lists.

Each List object (6) contains Fields (7) and List Items (8).

The Fields provide information about the List Items. Each List Item represents a single object contained within the List.

SharePoint provides several predefined list types, for example, Document Library, Links List, Contacts List, and it also allows for creation of custom list types.

The following sections describe how these SharePoint structures are represented by the Oracle WebCenter adapter for Microsoft SharePoint:

• Section F.2.1, "SharePoint Namespace"

• Section F.2.2, "Object"

• Section F.2.3, "Collection"

• Section F.2.4, "Site"

• Section F.2.5, "Template"

• Section F.2.6, "Item"

• Section F.2.7, "Web"

• Section F.2.8, "Web Site"

• Section F.2.9, "List"

• Section F.2.10, "Field"

• Section F.2.11, "Form"

• Section F.2.12, "View"

• Section F.2.13, "List Item"

• Section F.2.14, "Folder and Files"

F.2.1 SharePoint Namespace

The Oracle WebCenter adapter for Microsoft SharePoint defines a single namespace for all node types used by SharePoint. In this documentation this namespace is denoted by the prefix sp.

F.2.2 Object

The sp:Object type is for all SharePoint objects. All node types of the Oracle WebCenter adapter for Microsoft SharePoint are extended from it. This object has the signature shown in Table F-2.

Table F-2 Object Signature

Type	Value
Namespace	sp
Local name	Object
Super type	nt:base

The sp:Object type does not define any child nodes or properties.

F.2.3 Collection

The sp:Collection type represents a collection, and is the base type of all collections. It has the signature shown in Table F-3.

Table F-3 Collection Signature

Type	Value
Namespace	sp
Local name	Collection
Super types	sp:Object

The sp:Collection type does not define child nodes or any properties.

F.2.3.1 Web Collection

The sp:WebCollection type represents collection of SharePoint web sites. The sp:WebCollection type has the signature shown in Table F-4.

Table F-4 Web Collection Signature

Type	Value
Namespace	sp
Local name	WebCollection
Super types	sp:Collection

The sp:WebCollection type defines the child node types shown in Table F-5.

Table F-5 Child Node Types of Web Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:Web Collection	No	No	No	No	sp:Web	sp:Web

The sp:WebCollection type does not define any properties.

F.2.3.2 List Collection

The sp:ListCollection type represents a collection of SharePoint lists. The sp:ListCollection type has the signature shown in Table F-6.

Table F-6 List Collection Signature

Type	Value
Namespace	sp
Local name	ListCollection
Super types	sp:Collection

The sp:ListCollection type defines the child node types shown in Table F-7.

Table F-7 Child Node Types of List Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:List Collection	No	No	No	No	sp:List	sp:List

The sp:ListCollection type does not define any properties.

F.2.3.3 Field Collection

The sp:FieldCollection type represents field collection of SharePoint list. The sp:FieldCollection type has the signature shown in Table F-8.

Table F-8 Field Collection Signature

Type	Value
Namespace	sp
Local name	FieldCollection
Super types	sp:Collection

The sp:FieldCollection type defines child node types shown in Table F-9.

Table F-9 Child Node Types of Field Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:Field Collection	No	No	No	No	sp:Field	sp:Field
*	sp:FieldCollection	No	No	No	No	sp:Calculated Field	sp:Calculated Field
*	sp:FieldCollection	No	No	No	No	sp:Choice Field	sp:Choice Field
*	sp:FieldCollection	No	No	No	No	sp:Currency Field	sp:Currency Field
*	sp:FieldCollection	No	No	No	No	sp:DateTime Field	sp:DateTime Field
*	sp:FieldCollection	No	No	No	No	sp:MultiChoice Field	sp:MultiChoice Field
*	sp:FieldCollection	No	No	No	No	sp:MultiLine TextField	sp:MultiLine TextField
*	sp:FieldCollection	No	No	No	No	sp:Number Field	sp:Number Field
*	sp:FieldCollection	No	No	No	No	sp:LookupField	sp:LookupField
*	sp:FieldCollection	No	No	No	No	sp:RatingScale Field	sp:RatingScale Field
*	sp:FieldCollection	No	No	No	No	sp:TextField	sp:TextField
*	sp:FieldCollection	No	No	No	No	sp:URLField	sp:URLField
*	sp:FieldCollection	No	No	No	No	sp:UserField	sp:UserField
*	sp:FieldCollection	No	No	No	No	sp:Computed Field	sp:Computed Field

The sp:FieldCollection type does not define any properties.

F.2.3.4 Site Template Collection

The sp:SiteTemplateCollection type represents collection of site's templates. The sp:SiteTemplateCollection type has the signature shown in Table F-10.

Table F-10 Site Template Collection Signature

Type	Value
Namespace	sp
Local name	SiteTemplateCollection
Super types	sp:Collection

The sp:SiteTemplateCollection type defines child node types shown in Table F-11.

Table F-11 Child Node Types of Site Template Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:Template Collection	No	No	No	No	sp: SiteTemplate	sp: SiteTemplate

The sp:SiteTemplateCollection type does not define any properties.

F.2.3.5 Item Collection

The sp:ItemCollection node type represents collection of files and folders in the SharePoint document library. The sp:ItemCollection type has the signature shown in Table F-12.

Table F-12 Item Collection Signature

Type	Value
Namespace	sp
Local name	ItemCollection
Super types	sp:Collection

The sp:ItemCollection type defines child node types shown in Table F-13.

Table F-13 Child Node Types of Item Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:ItemCollection	No	No	No	No	sp:ListItem	sp:ListItem

The sp:ItemCollection type does not define any properties.

F.2.3.6 File Collection

The sp:FileCollection type represents collection of files and folders in the SharePoint document library. The sp:FileCollection type has the signature shown in Table F-14.

Table F-14 File Collection Signature

Type	Value
Namespace	sp
Local name	FileCollection
Super types	sp:Collection

The sp:FileCollection type defines child node types shown in Table F-15.

Table F-15 Child Node Types of File Collection

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:FileCollection	No	No	No	No	sp:ListItem	sp:ListItem
*	sp:FileCollection	No	No	No	No	sp:Folder	sp:Folder

The sp:FileCollection type does not define any properties.

F.2.4 Site

The sp:Site type represents site and is the root node of JCR. The sp:Site type has the signature shown in Table F-16.

Table F-16 Site Signature

Type	Value
Namespace	sp
Local name	Site
Super types	sp:Object

The sp:Site type defines child node types shown in Table F-17.

Table F-17 Child Nodes Types of Site

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:RootWeb	sp:Site	Yes	Yes	No	Yes	sp:WebSite	sp:WebSite
sp:Templates	sp:Site	Yes	Yes	No	Yes	sp:Template Collection	sp:Template Collection

The sp:Site type defines the properties shown in Table F-18.

Table F-18 Site Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
allowUnsafeUpdates	Boolean	Yes	False	No	No	Yes	Contains a flag that specifies whether to allow updates to the database as a result of a GET request or without requiring a security validation.
allWebs	Reference	No	-	No	Yes	Yes	Contains references on all Web sites available within the site collection, including the top-level site and nested subsites.
catchAccessDenied Exception	Boolean	Yes	False	No	No	Yes	Contains a flag that specifies whether to handle access denied exceptions and require user authentication.
certificationDate	Date	No	-	No	No	Yes	Contains date on which usage was checked for the site collection.
deadWeb NotificationCount	Long	No	-	No	No	Yes	Contains the number of Web site notifications within the site collection that are out of use.
globalPermMask	String	No	-	No	No	Yes	Contains the rights for the permissions mask that is used globally on the virtual server.
hostName	String	No	-	No	No	Yes	Contains the name of the server that hosts the site collection.
iisAllowsAnonymous	Boolean	Yes	False	No	No	Yes	Contains a flag that indicates whether anonymous access is enabled in Internet Information Services (IIS).
lastContent ModifiedDate	Date	No	-	No	No	Yes	Contains the date and time in Coordinated Universal Time (UTC) when the content of the site was last changed.
lastSecurity ModifiedDate	Date	No	-	No	No	Yes	Contains the date and time in Coordinated Universal Time (UTC) when security on the site was last changed.
lockIssue	String	No	-	No	No	Yes	Contains the explanation for locking a site collection.
owner	String	No	-	No	No	Yes	Contains the owner of the site collection.
port	Long	No	-	No	No	Yes	Contains the port number used for input and output on the virtual server containing the site collection.
portalName	String	No	-	No	No	Yes	Contains the name of a portal.
portalUrl	String	No	-	No	No	Yes	Contains the URL to a portal.
protocol	String	No	-	No	No	Yes	Contains the protocol, HTTP or HTTPS that is used by the server.
quota	String	No	-	No	No	Yes	Contains a quota for the site collection.
readLocked	Boolean	Yes	False	No	No	Yes	Contains a flag that indicates whether the site collection is locked and unavailable for Read access.
secondaryContact	String	No	-	No	No	Yes	Contains the secondary contact used for the site collection.
serverReletiveUrl	String	No	-	No	No	Yes	Contains the server-relative URL of the top-level Web site in the site collection.
url	String	No	-	Yes	No	Yes	Contains the URL of the top-level Web site in the site collection, including host name, port number, and path.
usageInfo	String	No	-	No	No	Yes	Contains information about site usage, including bandwidth, storage, and number of visits to the site collection.
warning NotificationSent	Boolean	Yes	False	No	No	Yes	Contains a flag that indicates whether a warning notification was sent.
writeLocked	Boolean	Yes	False	No	No	Yes	Contains a flag that indicates whether the site collection is locked and unavailabe for Write access.

F.2.5 Template

This section describes the following node types:

• List Template

• Site Template

F.2.5.1 List Template

The sp:ListTemplate type represents templates of lists and contains the signature shown in Table F-19.

Table F-19 List Template Signature

Type	Value
Namespace	sp
Local name	ListTemplate
Super types	sp:Object

The sp:ListTemplate type does not define any child node types. The sp:ListTemplate type defines the properties shown in Table F-20.

Table F-20 List Template Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
baseType	String	No	-	Yes	No	Yes	Contains the base type for the list definition or list template.
catalog	Boolean	Yes	-	Yes	No	Yes	Specifies whether the list definition is for a site gallery, a list gallery, or a Web Part gallery.
description	String	No	-	Yes	No	Yes	Contains the description of the list definition or list template that is displayed in the user interface.
displayName	String	No	-	Yes	No	Yes	Contains the display name for the list definition or list template.
dontSaveInTemplate	Boolean	Yes	-	Yes	No	Yes	Contains a flag that specifies whether to exclude the content of the list when the list is saved as a custom list template or when the site to which the list belongs is saved as a custom site template through the user interface.
documentTemplate	String	Yes	-	Yes	No	Yes	Corresponds the type of the default creating document.
hidden	Boolean	Yes	False	Yes	No	Yes	Contains a flag that specifies whether the list definition or list template is hidden from Web site users and does not appear as an option on the Documents and Lists page.
hiddenList	Boolean	Yes	False	Yes	No	Yes	Contains a flag that specifies whether a list created from the list definition is hidden.
image	String	No	-	Yes	No	Yes	Contains the relative path, based on the server, for the image used to represent the list definition or list template.
isCustomTemplate	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the SPListTemplate object represents a list template.
name	String	No	-	Yes	No	Yes	Contains the display name for the list definition or list template.
onQuickLanch	Boolean	Yes	False	Yes	No	Yes	Contains a flag that specifies whether any list created with the list definition or list template is displayed on the Quick Launch bar.
rootWebOnly	Boolean	Yes	-	Yes	No	Yes	Specifies whether the list created from the definition exists only in the root Web site of a site collection.
securityBits	String	Yes	-	Yes	No	Yes	Defines read, write, and schema design security. Each digit in the string corresponds to the three security settings contained in the List of Lists database table. This attribute does not apply to document libraries.
type	String	No	-	Yes	No	Yes	Contains the type of the list definition or list template.
unique	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the list definition or list template is used to create only one list in the site collection.

F.2.5.2 Site Template

The sp:SiteTemplate type represents templates of the site and contains the signature shown in Table F-21.

Table F-21 Site Template Signature

Type	Value
Namespace	sp
Local name	SiteTemplate
Super types	sp:Object

The sp:SiteTemplate type does not define any child node types. The sp:SiteTemplate type defines the properties shown in Table F-22.

Table F-22 Site Template Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
id	String	Yes	-	Yes	No	Yes	Contains the unique template identifier.
description	String	No	-	Yes	No	Yes	Contains the description for the site definition or site template.
imageUrl	String	No	-	Yes	No	Yes	Contains the URL for the image that is used to represent the site definition or site template in the user interface.
isCustomTemplate	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the SPSiteTemplate object is a site template.
isHidden	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the site definition or site template is displayed as an option for creating a site collection on the Template Selection page.
isUnique	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the site created from the site definition or site template inherits from its parent Web site.
name	String	No	-	Yes	No	Yes	Contains the name of the site definition or site template.
title	String	No	-	Yes	No	Yes	Contains the display name for the site definition or site template.

F.2.6 Item

The sp:Item node is a base JCR type of a List and Web SharePoint object. It extends List and Web node types of SharePoint. The sp:Item type has the signature shown in Table F-23.

Table F-23 Item Signature

Type	Value
Namespace	sp
Local name	Item
Super types	sp:Object

The sp:Item type does not define child node types. It contains the properties shown in Table F-24.

Table F-24 Item Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
title	String	No	-	Yes	No	Yes	Contains title of item.
description	String	No	-	No	No	Yes	Contains description of item.
author	String	Yes	Current user	Yes	No	Yes	Contains name of user, who created item.
lastModified	Date	Yes	Current date	Yes	No	Yes	Contains the date when the item was last modified.
lastModifiedForceRecrawl	Date	Yes	Current date	Yes	No	Yes	Contains date of last modification, which was forced by recrawl.
validSecurityInfo	Boolean	No	True	Yes	No	Yes	Contains a flag that shows that security information is valid.
inheritedSecurity	Boolean	No	False	Yes	No	Yes	Contains a flag that shows that security is equals to parent item.
allowAnonymousAccess	Boolean	No	False	Yes	No	Yes	Contains a flag that shows that anonymous user has access to item.
anonymousViewListItems	Boolean	No	False	Yes	No	Yes	Contains a flag that shows that anonymous user can view list items.
permission	String	No	-	No	No	Yes	Contains permissions as string.

F.2.7 Web

The sp:Web is a JCR type. It provides information about the Web SharePoint object. The sp:Web type has the signature shown in Table F-25.

Table F-25 Web Signature

Type	Value
Namespace	sp
Local name	Web
Super types	sp:Item

The sp:Web type defines the child node types shown in Table F-26.

Table F-26 Child Node Types of Web

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:List	sp:Web	Yes	Yes	No	Yes	sp:List Collection	sp:List Collection

The sp:Web type defines the properties shown in Table F-27.

Table F-27 Web Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
url	String	No	-	Yes	No	Yes	Contains URL of site.
webId	String	Yes	Generated	Yes	No	Yes	Contains SharePoint internal Id of site.
language	Long	No	-	Yes	No	Yes	Contains language of site.
noIndex	String	No	-	No	No	Yes	Contains no index text.
externalSecurity	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that the site supports external security.
categoryId	String	No	-	No	No	Yes	Contains Id of site's category.
categoryName	String	No	-	No	No	Yes	Contains name of site's category.
categoryIdPath	String	No	-	No	No	Yes	Contains path of id category of site.
isBucketWeb	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that site is bucket web.
usedInAutocat	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that site is used in autocat.
categoryBucketId	Boolean	No	-	No	No	Yes	Contains Id of category's bucket.

The sp:Web type provides the default values for properties of extended node types, as shown in Table F-28.

Table F-28 Default Values for Properties of Extended Node Types

Name	Super Node Type	Default Value
inheritedSecurity	sp:Item	False
allowAnonymousAccess	sp:Item	False
anonymousViewListItems	sp:Item	True

F.2.8 Web Site

The sp:WebSite type provides information about a Web SharePoint object. The sp:WebSite type has the signature shown in Table F-29.

Table F-29 Web Site Signature

Type	Value
Namespace	sp
Local name	Web Site
Super types	sp:Web

The sp:WebSite type defines the child node types shown in Table F-30.

Table F-30 Child Nodes Types of Web Site

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:Webs	sp:Web	yes	yes	no	yes	sp:Web Collection	sp:Web Collection

The sp:WebSite type does not define any properties.

F.2.9 List

The sp:List type provides information about a SharePoint list object. The sp:List type has the signature shown in Table F-31.

Table F-31 List Signature

Type	Value
Namespace	sp
Local name	List
Super types	sp:Item nt:hierarchyNode

The sp:List type defines the child node types shown in Table F-32.

Table F-32 Child Node Types of List

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:Items	sp:List	Yes	Yes	No	Yes	sp:Item Collection	sp:Item Collection
sp:RegionalSettings	sp:List	Yes	Yes	No	Yes	sp:Regional Settings	sp:Regional Settings
sp:Fields	sp:List	Yes	Yes	No	Yes	sp:Field Collection	sp:Field Collection
sp:Forms	sp:List	Yes	Yes	No	Yes	sp:Form Collection	sp:Form Collection
sp:Views	sp:List	Yes	Yes	No	Yes	sp:View Collection	sp:View Collection

The sp:List type defines the properties shown in Table F-33.

Table F-33 List Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
allowDeletion	Boolean	Yes	True	Yes	No	Yes	Contains a flag that shows do allow deletion items from list.
allowMultiResponses	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows do allow multi responses.
anonymousPermMask	Long	No	-	Yes	No	Yes	Contains type of anonymous perm mask.
author	Long	No	-	Yes	No	Yes	Contains Id of the user who created the list.
baseTemplate	String	No	-	Yes	No	Yes	Contains base template of list.
baseType	String	No	-	Yes	No	Yes	Contains a list of the base type.
created	Date	No	-	Yes	No	Yes	Contains the date when the list was created.
defaultView	Reference	No	-	Yes	No	Yes	Contains the reference on default view for the list.
defaultViewUrl	String	No	-	No	No	Yes	Contains default URL to view the list.
description	String	No	-	No	No	Yes	Contains description of the list.
direction	String	No	-	Yes	No	Yes	Contains direction of the list.
enableAttachments	Boolean	Yes	True	Yes	No	Yes	Contains a flag that shows that attachment is enabled.
enableModeration	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that moderation is enabled.
enableVersioning	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that versioning is enabled.
eventSinkAssembly	String	No	-	No	No	Yes	Contains strong name of file in the Global Assembly Cache.
eventSinkClass	String	No	-	No	No	Yes	Contains class name of the event handler.
eventSinkData	String	No	-	No	No	Yes	Contains arbitrary string that the event handler uses.
excludeFromTemplate	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the content of the list is included when the site to which the list belongs is saved as a custom site template.
hidden	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that the list is hidden.
imageUrl	String	No	-	Yes	No	Yes	Contains URL of the image.
itemCount	Long	No	-	Yes	No	Yes	Contains count of list items.
lastItemDeletedDate	Date	No	-	Yes	No	Yes	Contains date of the last deleted item.
lastItemModifiedDate	Date	No	-	Yes	No	Yes	Contains date and time that an item, field, or property of the list was last modified.
multipleDataList	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that list supports multiple data.
onQuickLaunch	Boolean	Yes	False	Yes	No	Yes	Contains a flag that specifies whether the list appears on the Quick Launch area of the home page.
ordered	Boolean	Yes	False	Yes	No	Yes	Contains a flag that shows that the list is ordered.
permissions	String	No	-	No	No	Yes	Contains the collection of permission objects, which represents all the permissions for the list.
propertiesXml	String	No	-	No	No	Yes	Contains a fragment in Collaborative Application Markup Language (CAML) that specifies property values for the list.
readSecurity	Long	No	-	No	No	Yes	Contains type of read security.
rootFolder	String	Yes	Parent/title	Yes	No	Yes	Contains folder of list.
schemaXml	String	No	-	No	No	Yes
showUser	Boolean	Yes	True	Yes	No	Yes	Contains a flag that indicates that users should be shown.
title	String	No	-	Yes	No	Yes	Contains the displayed title for the list.
version	Long	Yes	0	Yes	No	Yes	Contains the version number of the list.
writeSecurity	Long	Yes	1	Yes	No	Yes	Contains write security type of list.

The sp:List type provides the default values for properties of extended node types, as shown in Table F-34.

Table F-34 Default Values for Properties of Extended Node Types

Name	Super Node Type	Default Value
inheritedSecurity	sp:Item	True
allowAnonymousAccess	sp:Item	False
anonymousViewListItems	sp:Item	False

F.2.10 Field

The sp:Field type provides information about field of SharePoint list object. This is the base type of all fields. The sp:Field type has the signature shown in Table F-35.

Table F-35 Field Signature

Type	Value
Namespace	sp
Local name	Field
Super types	sp:Object

The sp:Field type does not define child node types. It contains the properties shown in Table F-36.

Table F-36 Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
colName	String	Yes	-	Yes	No	Yes	Contains name of the column.
readOnly	Boolean	Yes	True	Yes	No	Yes	Contains a read-only flag.
hidden	Boolean	Yes	-	Yes	No	Yes	Contains a hidden flag.
type	String	Yes	-	Yes	No	Yes	Contains type of the field.
name	String	Yes	-	Yes	No	Yes	Contains name of the field.
displayName	String	Yes	-	Yes	No	Yes	Contains display name of the field.
fromBaseType	Boolean	Yes	-	Yes	No	Yes	Contains a flag that shows origin of the field.
required	Boolean	Yes	True	Yes	No	Yes	Contains a flag that determines whether the field requires values.
canToggleHidden	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the column can be hidden through the user interface.
defaultFormula	String	No	-	No	No	Yes	Contains default formula for calculation fields.
defaulValue	String	No	-	No	No	Yes	Contains default value of the field.
authoringInfo	String	No	-	No	No	Yes	Contains authoring information of the field.
description	String	No	-	No	No	Yes	Contains description of the field.
direction	String	No	-	No	No	Yes	Contains direction of the field.
displaySize	String	No	-	No	No	Yes	Contains display size of the field.
filterable	Boolean	No	False	Yes	No	Yes	Contains a filterable flag.
filterableBySchema	Boolean	No	False	Yes	No	Yes	Contains a filterable by schema flag.
filterableNoRecurence	Boolean	No	False	Yes	No	Yes	Contains a filterable no recurrence flag.
filterableNoRecurence BySchem	Boolean	No	False	Yes	No	Yes	Contains a filterable no recurrence by schema flag.
imeMode	String	No	-	No	No	Yes	Contains Input Method Editor (IME) mode.
reorderable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether values in the field can be reordered.
sealed	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether other fields can be derived from the field.
sortable	Boolean	Yes	False	Yes	No	Yes	Contains a flag that determines whether the field can be sorted.
sortableBySchema	Boolean	No	False	Yes	No	Yes	Contains a sortable by schema flag.

F.2.10.1 Field Type

The SharePoint repository supports the types of fields shown in Table F-37.

Table F-37 Field Types

Type	Description	JSR Type
Attachments	Contains attachments
Boolean	Contains Boolean values that are stored in the database as 1 or 0.
Calculated	Contains calculated values.	sp:CalculatedField
Choice	Specifies a predetermined set of values that can be used to enter data into the field.	sp:ChoiceField
Computed	Specifies an abstract field type that depends on other fields for its content and definition.	sp:ComputedField
Counter	Contains an integer used for internal Id fields.	sp:NubmerField
CrossProjectLink	Specifies a link between projects in a Meetings Workspace site.	sp:UrlField
Currency	Contains currency values formatted based on a specific locale.	sp:CurrencyField
DateTime	Contains date and time values.	sp:DateTimeField
Error	Contains errors.
File	Contains files.
GridChoice	Specifies a Choice field for a data sheet.	sp:ChoiceField
Guid	Contains GUIDs.
Integer	Contains positive or negative integer values.	sp:NumberField
Invalid	Not used.
Lookup	Contains references to values in other lists.	sp:LookupField
MaxItems	Contains the maximum number of items.
ModStat	Specifies Content Approval status.	sp:MultiChoiceField
MultiChoice	Contains multiple values per list item.	sp:MultiChoiceField
Note	Specifies a field that can contain multiple lines of text.	sp:MultiLineTextField
Number	Contains floating point numbers.	sp:NumberField
Recurrence	Specifies a field used in calendars for recurring events and, like computed fields, an abstract field type that depends on other fields for its content and definition.
Text	Contains a single line of text.	sp:TextField
Threading	Specifies a field that is used in the creation and display of threaded Web discussions.
URL	Contains hyperlinks.	sp:UrlField
User	Specifies users of a SharePoint site.	sp:UserField

F.2.10.2 Computed Field

The sp:ComputedField type represents a field that depends on other fields in a SharePoint list. The sp:ComputedField type contains signature shown in Table F-38.

Table F-38 Computed Field Signature

Type	Value
Namespace	Sp
Local name	ComputedField
Super types	sp:Field

The sp:ComputedField type does not define child node types. It contains the properties shown in Table F-39.

Table F-39 Computed Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
FieldRefs	String	No	-	Yes	Yes	Yes	Contains a collection of field references used to define computed fields.
DisplayPattern	String	No	-	Yes	No	Yes	Is used to define how the field is rendered.

F.2.10.3 Calculated Field

The sp:CalculatedField type represents a calculated field in a SharePoint list. The sp:CalculatedField type contains the signature shown in Table F-40.

Table F-40 Calculated Field Signature

Type	Value
Namespace	Sp
Local name	CalculatedField
Super types	sp:Field

The sp:CalculatedField type does not define child node types. It defines properties shown in Table F-41.

Table F-41 Calculated Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
currency	String	No	-	No	No	Yes	Contains the currency format that is used in the field.
dateFormat	String	No	-	No	No	Yes	Contains the date and time formatting that is used in the field.
displayFormat	String	No	-	No	No	Yes	Contains the number format that is displayed in the field.
formula	String	No	-	Yes	No	Yes	Contains formula used for calculation in the field.
outputType	String	No	-	Yes	No	Yes	Contains type of field.
showAsPersantage	Boolean	No	False	Yes	No	Yes	Contains a flag that determines whether values in the field are displayed as percentages.

F.2.10.4 Choice Field

The sp:ChoiceField type represents a choice field in a SharePoint list. It contains the signature shown in Table F-42.

Table F-42 Choice Field Signature

Type	Value
Namespace	Sp
Local name	ChoiseField
Super types	sp:Field

The sp:ChoiceField type does not define child node types. It contains the properties shown in Table F-43.

Table F-43 Choice Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
editFormat	String	No	-	Yes	No	Yes	Contains format whether to display the choice field as radio buttons or as a dropdown list.
soratable	Boolean	Yes	False	Yes	No	Yes	Contains a flag that indicates whether the field can be sorted.

F.2.10.5 Number Field

The sp:NumberField type represents a number field in a SharePoint list. The sp:NumberField type contains the signature shown in Table F-44.

Table F-44 Number Field Signature

Type	Value
Namespace	sp
Local name	NumberField
Super types	sp:Field

The sp:NumberField type does not define any child node types. It defines the properties shown in Table F-45.

Table F-45 Number Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
displayFormat	String	No	-	Yes	No	Yes	Contains the number of decimal places to use when displaying a field.
maximumValue	Double	No	-	Yes	No	Yes	Contains maximum value for the field.
minimumValue	Double	No	-	Yes	No	Yes	Contains minimum value of field.
showAsPersentage	Boolean	No	False	Yes	No	Yes	Contains a flag that specifies whether the field is rendered as a percentage.

F.2.10.6 Currency Field

The sp:CurrencyField type represents a currency field in a SharePoint list. The sp:CurrencyField type contains the signature shown in Table F-46.

Table F-46 Currency Field Signature

Type	Value
Namespace	Sp
Local name	CurrencyField
Super types	sp:NumberField

The sp:CurrencyField type does not define any child node types. It defines the properties shown in Table F-47.

Table F-47 Currency Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
currency	String	No	-	Yes	No	Yes	Contains currency used in the field.

F.2.10.7 Date Time Field

The sp:DateTimeField type represents a date and time field in a SharePoint list. It contains the signature shown in Table F-48.

Table F-48 Date Time Field Signature

Type	Value
Namespace	Sp
Local name	DateTimeField
Super types	sp:Field

The sp:DateTimeField type does not define child node types. It contains the properties shown in Table F-49.

Table F-49 Date Time Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
calendarType	String	No	-	Yes	No	Yes	Contains the type of calendar that is used to display the field.
displayFormat	String	No	-	Yes	No	Yes	Contains the type of date and time format that is used in the field.

F.2.10.8 Lookup Field

The sp:LookupField type represents a lookup field in a SharePoint list. The sp:LookupField type contains the signature shown in Table F-50.

Table F-50 Lookup Field Signature

Type	Value
Namespace	Sp
Local name	LookupField
Super types	sp:Field

The sp:LookupField type does not define child node types. It defines the properties shown in Table F-51.

Table F-51 Lookup Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
lookupField	String	No	-	Yes	No	Yes	Contains the field from a non-local list to which this field is a lookup.
lookupList	String	No	-	Yes	No	Yes	Contains the GUID of the list to use for the lookup.

F.2.10.9 Multi Choice Field

The sp:MultiChoiseField type represents a field that can contain multiple values. The sp:MultiChoiseField type contains the signature shown in Table F-52.

Table F-52 Multi Choice Field Signature

Type	Value
Namespace	Sp
Local name	MultiChoiseField
Super types	sp:Field

The sp:MultiChoiseField type does not define child node types. It defines properties shown in Table F-53.

Table F-53 Multi Choice Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
choices	String	No	-	Yes	Yes	Yes	Contains the choices used in the multichoice field.
fillInChoise	Boolean	No	False	Yes	No	Yes	Contains a flag that determines whether a text box for typing an alternative value is provided for the multichoice field.
sortable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the multichoice field can be sorted.

F.2.10.10 Multi Line Text Field

The sp:MultiListTextField type represents a text field that can contain multiple lines. The sp:MultiListTextField type contains the signature shown in Table F-54.

Table F-54 Multi Line Text Field

Type	Value
Namespace	Sp
Local name	MultiLineTextField
Super types	sp:Field

The sp:MultiListTextField type does not define child node types. It defines the properties shown in Table F-55.

Table F-55 Multi Line Text Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
allowHyperlink	Boolean	No	False	Yes	No	Yes	Contains a flag that specifies whether hyperlinks can be used in the field.
filterable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the multiline text field can be filtered.
numberOfLines	Long	No	False	Yes	No	Yes	Contains the number of lines to display in the field.
richText	Boolean	No	False	Yes	No	Yes	Contains a flag that specifies whether rich text formatting can be used in the field.
sortable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the multiline text field can be sorted.

F.2.10.11 Rating Scale Field

The sp:RatingScaleField type represents a rating scale field used in surveys. The sp:RatingScaleField type contains the signature shown in Table F-56.

Table F-56 Rating Scale Field Signature

Type	Value
Namespace	Sp
Local name	RatingScaleField
Super types	sp:MultiChoiceField

The sp:RatingScaleField type does not define child node types. It defines the properties shown in Table F-57.

Table F-57 Rating Scale Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
filterable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the rating-scale field can be filtered.
gridEndNumber	Long	No	-	Yes	No	Yes	Contains the end number for the rating scale.
gridNAOptionText	String	No	-	Yes	No	Yes	Contains the text to display for the not applicable (N/A) option.
gridStartNumber	Long	No	-	Yes	No	Yes	Contains the start number for the rating scale.
gridTextRangeAverage	String	No	-	Yes	No	Yes	Contains the text to display for average ratings.
gridRangeHigh	String	No	-	Yes	No	Yes	Contains the text to display for high ratings.
gridRangeLow	String	No	-	Yes	No	Yes	Contains the text to display for low ratings.
sortable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the rating-scale field can be sorted.

F.2.10.12 Text Field

The sp:TextField type represents a rating scale field used in surveys. The sp:TextField type contains the signature shown in Table F-58.

Table F-58 Text Field Signature

Type	Value
Namespace	Sp
Local name	TextField
Super types	sp:Field

The sp:TextField type does not define child node types. It defines properties shown in Table F-59.

Table F-59 Text Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
maxLength	Long	No	255	Yes	No	Yes	Contains the maximum number of characters that can be typed in the field.

F.2.10.13 URL Field

The sp:UrlField type represents a rating scale field used in surveys. The sp:UrlField type contains the signature shown in Table F-60.

Table F-60 URL Field Signature

Type	Value
Namespace	Sp
Local name	UrlField
Super types	sp:Field

The sp:UrlField type does not define child node types. It defines the properties shown in Table F-61.

Table F-61 URL Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
displayFormat	String	No	-	Yes	No	Yes	Contains value that determines whether the field is displayed as an image or as a hyperlink.
filterable	Boolean	No	False	Yes	No	Yes	Contains a flag that indicates whether the URL field can be filtered.

F.2.10.14 User Field

The sp:UserField type represents a user field. The sp:UserField type contains the signature shown in Table F-62.

Table F-62 User Field Signature

Type	Value
Namespace	Sp
Local name	UserField
Super types	sp:LookupField

The sp:UserField type does not define child node types. It defines the properties shown in Table F-63.

Table F-63 User Field Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
allowDisplay	Boolean	No	True	Yes	No	Yes	Contains a flag that specifies whether to display the name of the user who created or last modified the field.
presence	Boolean	No	False	Yes	No	Yes	Contains a flag that specifies whether presence is enabled on the field to display user names and e-mail addresses.

F.2.11 Form

The sp:Form type represents a list item to create, display, or edit a form, in a list. It contains the signature shown in Table F-64.

Table F-64 Form Signature

Type	Value
Namespace	sp
Local name	Form
Super types	sp:Object

The sp:Form type does not define child node types. It defines the properties shown in Table F-65.

Table F-65 Form Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
schemaXml	String	No	-	Yes	No	Yes	Contains the schema in CAML that defines the form.
type	String	No	-	Yes	No	Yes	Contains the type of the form.
url	String	No	-	Yes	No	Yes	Gets the site-relative URL of the form.

F.2.12 View

The sp:View type represents a view of the data contained in a list on a SharePoint site. The sp:View type contains the signature shown in Table F-66.

Table F-66 View Signature

Type	Value
Namespace	sp
Local name	View
Super types	sp:Object

The sp:View type defines the child node types shown in Table F-67.

Table F-67 Child Node Types of View

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:Field	sp:View	Yes	Yes	No	Yes	sp:Field Collection	sp:Field Collection

The sp:View type defines the properties shown in Table F-68.

Table F-68 View Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
aggregations	String	No	-	No	No	Yes	Contains field references for one or more aggregate or total columns used in a view.
aggregationStatus	String	No	-	No	No	Yes	Contains a string that specifies whether aggregate or total columns are used in the view.
baseViewID	String	No	-	Yes	No	Yes	Contains the Id of the base view for the view.
defaultView	Boolean	Yes	False	Yes	No	Yes	Contains the value that specifies whether the view is the default view.
editorModified	Boolean	Yes	False	Yes	No	Yes	Contains the value that indicates whether the view was modified by using an HTML editor.
formats	String	No	-	Yes	Yes	Yes	Contains definitions for column and row formatting used in a datasheet view.
groupByFooter	String	No	-	Yes	No	Yes	Contains the definition of the Group By footer that is used in the view.
groupByHeader	String	No	-	Yes	No	Yes	Contains the definition of the Group By header used in the view.
hidden	Boolean	Yes	False	Yes	No	Yes	Contains the hidden flag.
htmlSchemaXml	String	No	-	Yes	No	Yes	Contains the entire schema for the view.
moderationType	String	No	-	Yes	No	Yes	Contains the moderation type for the view.
name	String	No	-	Yes	No	Yes	Contains the GUID that identifies the view.
orderedView	Boolean	Yes	False	Yes	No	Yes	Contains the value that indicates whether users can reorder items through the user interface.
paged	Boolean	Yes	False	Yes	No	Yes	Contains the value that specifies whether the list supports displaying more items by adding more pages.
personalView	Boolean	Yes	False	Yes	No	Yes	Contains the value that indicates whether the view is personalized.
query	String	No	-	Yes	No	Yes	Contains an XML string representing the query for the view.
readOnlyView	Boolean	Yes	False	Yes	No	Yes	Contains the value that indicates whether the view is read-only.
recurrenceRowset	Boolean	Yes	False	Yes	No	Yes	Contains the value that specifies whether the view supports recurrence rowsets.
rowLimit	Long	No	-	Yes	No	Yes	Contains the maximum number of items to return in a view.
rowLimitExceeded	String	No	-	Yes	No	Yes	Contains the alternate rendering when the rowLimit is exceeded.
schemaXml	String	No	-	Yes	No	Yes	Contains the schema that defines the view.
scope	String	No	-	No	No	Yes	Contains the recursive scope for the view of a document library.
styleId	String	No	-	Yes	No	Yes	Contains the Id of the view style for the view.
threaded	Boolean	Yes	False	Yes	No	Yes	Contains the value that indicates whether the view is threaded.
title	String	No	-	Yes	No	Yes	Contains the display name for the view.
toolbar	String	No	-	Yes	No	Yes	Contains the toolbar for the view.
toolbarType	String	No	-	Yes	No	Yes	Contains the type of the toolbar for the view.
type	String	No	-	Yes	No	Yes	Contains the type of the view.
url	String	No	-	Yes	No	Yes	Contains the URL of the main page that includes the view.
viewBody	String	No	-	Yes	No	Yes	Contains the body of the view.
viewEmpty	String	No	-	Yes	No	Yes	Is displayed when the query returns no list data for the view.
viewFooter	String	No	-	Yes	No	Yes	Contains the footer area for the view.
viewHeader	String	No	-	Yes	No	Yes	Contains the header area for the view.

F.2.13 List Item

The sp:ListItem is a JSP type of SharePoint's SPListItem class. It represents an item, or row in a list. It contains the signature shown in Table F-69.

Table F-69 List Item Signature

Type	Value
Namespace	sp
Local name	ListItem
Super types	sp:Object nt:hierarchyNode

The sp:ListItem type defines child node types shown in Table F-70.

Table F-70 Child Node Types of List Item

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
sp:Attachment	sp:ListItem	No	No	No	Yes	sp:Attachment	sp:Attachment
sp:ListItem	sp:ListItem	No	No	No	Yes	sp:ListItem	sp:ListItem

The sp:ListItem type does not define common properties. All properties are built automatically for each type of list item.

F.2.14 Folder and Files

This section describes the following types of JCR nodes:

• Folder

• File

F.2.14.1 Folder

The sp:Folder type represents the folder in the SharePoint document library. The sp:Folder type contains the signature shown in Table F-71.

Table F-71 Folder Signature

Type	Value
Namespace	sp
Local name	Folder
Super types	sp:ListItem

The sp:Folder type defines child node types shown in Table F-72.

Table F-72 Child Node Types of Folder

Name	Declared Node Type	Auto-created	Mandatory	Allows Same Name Siblings	Protected	Default Primary Node Type	Required Primary Types
*	sp:Folder	No	No	No	No	sp:ListItem	sp:ListItem
*	sp:Folder	No	No	No	No	sp:Folder	sp:Folder
*	sp:Folder	No	No	No	No	sp:FileItem	sp:FileItem
*	sp:Folder	No	No	No	No	sp:Attachment	sp:Attachment

The sp:Folder type defines the properties shown in Table F-73.

Table F-73 Folder Properties

Name	Required Type	Auto-Created	Default Value	Mandatory	Multiple	Protected	Description
itemCount	Long	Yes	-	Yes	No	Yes	Contains the count of files and folders in the folder.

F.2.14.2 File

The sp:File type represents the file in the SharePoint document library. The sp:File type contains the signature shown in Table F-74.

Table F-74 File Signature

Type	Value
Namespace	sp
Local name	File
Super types	sp:ListItem nt:file

The sp:File type does not define any child node types and properties.

F.2.14.3 Attachment

The sp:Attachment type represents the attachment of list item. The sp:Attachment type contains the signature shown in Table F-75.

Table F-75 Attachment Signature

Type	Value
Namespace	sp
Local name	Attachment
Super types	sp:Object nt:file

The sp:Attachment type does not define child node types and properties.

F.3 Node Type Definitions for the Oracle WebCenter Adapter for EMC Documentum

This section describes node types for the Oracle WebCenter adapter for EMC Documentum. It contains the following subsections:

• Section F.3.1, "Documentum Namespace"

• Section F.3.2, "Node Type Mapping"

• Section F.3.3, "Hierarchy Mapping"

• Section F.3.4, "Virtual Documents Mapping"

• Section F.3.5, "Accessing Permissions Mapping"

• Section F.3.6, "Caching for Oracle WebCenter Adapter for EMC Documentum"

F.3.1 Documentum Namespace

The Oracle WebCenter adapter for EMC Documentum uses its own namespace for the repository node types. This namespace is denoted by prefix dctm in the following descriptions.

F.3.2 Node Type Mapping

All of the registered Documentum types are available through the JCR adapter by means of a simple type mapping mechanism. The Oracle WebCenter adapter for EMC Documentum uses the prefix dctm as a default. If the default is used already, the rule dctm(n) namespace will be used, where n = integer.

Table F-76 lists the main node types that show how the document hierarchy is mapped to types, that is, the content mapping classes to map Documentum objects to JCR node types.

Table F-76 Content Mapping Classes to Map Documentum Objects to JCR Node Types

JCR Type	Description
dctm:dmr_content	Represents a binary data of document content.
dctm:dm_document	Base class for all Documentum documents.
dctm:dm_folder	Represent a list of folders and documents. (Super class for cabinet)
dctm:dm_root	Represents an root folder or set of cabinets, depends of configuration.

All JCR node types have one or several super types. Table F-77 lists Documentum node types and its super types.

Table F-77 Documentum Node Types and Super Types

JCR Types	JCR Super Types
dctm:dm_acl	dctm:dm_base, mix:referenceable
dctm:dm_activity	dctm:dm_sysobject, dctm:dm_base, mix:referenceable
dctm:dm_aggr_domain	dctm:dm_domain, dctm:dm_base, mix:referenceable
dctm:dm_alias_set	dctm:dm_base, mix:referenceable
dctm:dm_assembly	dctm:dm_base, mix:referenceable
dctm:dm_audittrail	dctm:dm_base, mix:referenceable
dctm:dm_audittrail_acl	dctm:dm_audittrail, mix:referenceable
dctm:dm_audittrail_group	dctm:dm_audittrail, mix:referenceable
dctm:dm_base	mix:referenceable, mix:referenceable
dctm:dm_blobstore	dctm:dm_store, mix:referenceable
dctm:dm_builtin_expr	dctm:dm_expression, mix:referenceable
dctm:dm_business_pro	dctm:dm_sysobject, mix:referenceable
dctm:dm_cabinet	dctm:dm_folder, mix:referenceable
dctm:dm_cond_expr	dctm:dm_func_expr, mix:referenceable
dctm:dm_cond_id_expr	dctm:dm_cond_expr, mix:referenceable
dctm:dm_dd_info	dctm:dm_base, mix:referenceable
dctm:dm_display_config	dctm:dm_base, mix:referenceable
dctm:dm_docbaseid_map	dctm:dm_base, mix:referenceable
dctm:dm_decision	dctm:dm_sysobject, mix:referenceable
dctm:dm_distributedstore	dctm:dm_store, mix:referenceable
dctm:dm_document	nt:file, dctm:dm_sysobject, mix:referenceable, rep:AccessControllable
dctm:dm_domain	dctm:dm_base, mix:referenceable
dctm:dm_aggr_domain	dctm:dm_domain, mix:referenceable
dctm:dm_dump_record	dctm:dm_base, mix:referenceable
dctm:dm_expression	dctm:dm_base, mix:referenceable
dctm:dm_builtin_expr	dctm:dm_expression, mix:referenceable
dctm:dm_func_expr	dctm:dm_expression, mix:referenceable
dctm:dm_literal_expr	dctm:dm_expression, mix:referenceable
dctm:dm_format	dctm:dm_base, mix:referenceable
dctm:dm_fulltext_index	dctm:dm_base, mix:referenceable
dctm:dm_group	dctm:dm_base, rep:Group mix:referenceable
dctm:dm_id_range	dctm:dm_base, mix:referenceable
dctm:dm_extern_file	dctm:dm_extern_store, mix:referenceable
dctm:dm_extern_free	dctm:dm_extern_store, mix:referenceable
dctm:dm_extern_store	dctm:dm_store, mix:referenceable
dctm:dm_extern_url	dctm:dm_extern_store, mix:referenceable
dctm:dm_federation	dctm:dm_sysobject, mix:referenceable
dctm:dm_filestore	dctm:dm_store, mix:referenceable
dctm:dm_folder	nt:folder, dctm:dm_sysobject, mix:referenceable, rep:AccessControllable
dctm:dm_foreign_key	dctm:dm_relation_type, mix:referenceable
dctm:dm_format_preferences	dctm:dm_document, mix:referenceable
Dctm:dm_sysobject	dctm:dm_base, mix:referenceable

F.3.3 Hierarchy Mapping

The Oracle WebCenter adapter for EMC Documentum presents the content hierarchically, in a similar way to the Documentum Web Console. The Documentum workspace root, dctm:dm_root contains list of administrative folders and cabinets, dctm:dm_cabinet. Each cabinet contains a hierarchy of system objects.

F.3.4 Virtual Documents Mapping

The JCR adapter supports Documentum virtual documents. A virtual document appears in the JCR hierarchy as a document node with child document nodes corresponding to the associated documents or virtual documents. In addition, the child document nodes also appear as document nodes in the parent folder that contains the virtual document. The dctm:r_is_virtual_doc property indicates if a document is a virtual document.

F.3.5 Accessing Permissions Mapping

The Documentum access control permissions are mapped to JCR permissions as shown in Table F-78.

Table F-78 Permission Mapping

Documentum Permission	Description	JCR Permission
Browse	Read and browse folders	Read
Read	Read and browse folders and content	Read
Relate	Make references for documents	Read
Version	View document history	Read
Write	Modify a document	Read, Write
Delete	Read, modify, or delete	Write, Remove

F.3.6 Caching for Oracle WebCenter Adapter for EMC Documentum

The Oracle WebCenter adapter for EMC Documentum caches information retrieved from the Documentum repository. It periodically checks for content updates, such as modified, created, or deleted Documentum objects as well as user and permission updates. The frequency with which this cache is updated can be set by configuring the Refresh Interval adapter parameter. See Table 5-15 for more information.
