Machine Properties (Limits)

You get the Limits Machine Properties dialog window when you select your machine in the left panel on the main window and choose Edit->Properties, then select the Limits tab.

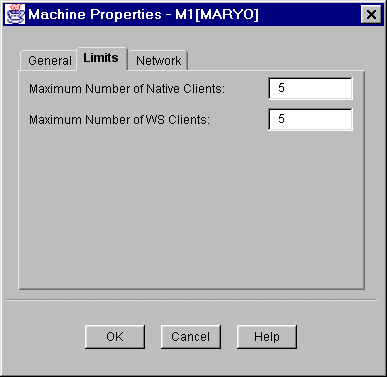

Figure 7-5 Limits Machine Properties

Fields

The following table explains the options available on this window.

Table 7-5 Limits Machine Properties

Field	Description
Maximum Number of Native Clients	Maximum number of native clients you can assign to this machine.
Maximum Number of WS Clients	Maximum number of WorkStation clients you can assign to this machine. The corresponding BEA TUXEDO parameter is MAXWSCLIENTS.

Description

This defines how many native and workstation clients are accepted.

Buttons

When you have filled in the fields, click OK to close the window and save your changes. (Or click Cancel to close the window without saving your changes.)

See Also

Configuring Machines (Step1), Modifying Machine Properties
