Chapter 2 . Using BEA TUXEDO on UNIX and AS/400 Platforms

User Interface and AS/400 Concepts

The user interface on an AS/400 system is completely menu-driven; there is no shell. The interface makes extensive use of function keys F1-F24.

Note: Although some screen shots may refer to Release 6.3, the information contained therein is the same as that in Release 6.4.

Figure 2-1 Main Menu of Tasks for an AS/400 Platform

Virtually every action performed via the menu has a command-line equivalent. Application executables, such as BEA TUXEDO utilities, can be invoked from the command line using the call command. The call command has the following syntax:

	call pgm parm(arg1 arg2 .  .  .  )

The notion of the PATH and LD_LIBRARY_PATH environment variables in the UNIX shell is replaced by the "library list." For example, the following command:

	call hello parm('world')

is a request to search in the library list for the "hello" program. The first library in the library list that contains this program becomes the "current library" and the hello program is "activated."

During this activation, if a service program (the AS/400 equivalent of a DLL or shared object) is needed, then the library list is searched again. The library list can be displayed with the dsplible command, and manipulated with the addlible and rmvlible commands.

	ovrdbf file(stdout) tofile (tmplib/tmpfile) +

		mbr (stdout)

	call prog

	cpytostmf frommbr +

		('/qsys.lib/tmplib.lib/tmpfile.file/stdout.mbr') +

		tostmf ('/home/dougd/out') stmfopt (*replace)

Development Environment

The make, lex, and yacc utilities are not available on the AS/400. The native character set is EBCDIC, not ASCII.

Two BEA TUXEDO commands, buildclient and buildserver, have been renamed buildclt and buildsrvr, respectively, in order to conform to the ten-character maximum.

The buildclt and buildsrvr commands accept input only for module files (*MODULE) and service program files (*SRVPGM), and produce output program files (*PGM). ILE/C modules must be produced by crtcmod. Likewise, ILE/COBOL modules must be produced by crtcblmod.

The following example command lines show how to compile a C source file in member cx of a file called tuxsrc in a library called apps. The object module is created in a file called cx in a library called apps.

	crtcmod module(apps/cx) srcfile(apps/tuxsrc) srcmbr(cx) +

		sysifcopt(*ifsio) dbgview(*all) define('DEF=1')

Note that the special system interface option sysifcopt(*ifsio) is specified here. This option allows the C runtime library to access IFS files. Because BEA TUXEDO is compiled with this option, we strongly recommend using it for compatibility.

Note also that debugging has been turned on by dbgview(*all) and the preprocessor defined for DEF has been set to 1. This is equivalent to specifying -DDEF=1 -g on a cc command line (on a UNIX platform).

Currently you cannot specify a C source file on the buildclt or buildsrvr command line.

The -f and -l options to the buildclt and buildsrvr commands also mean something slightly different from the same options to the equivalent commands (buildclient and buildserver) on a UNIX system.

On a UNIX platform, the -f ("first") option allows you to specify a list of items to be passed to the cc command such that the objects produced by running cc on these items are linked before the BEA TUXEDO libraries are linked.

The -l ("last") option allows you to specify a list of items to be passed to the cc command such that the objects produced by running cc on these items are linked after the BEA TUXEDO libraries are linked.

On an AS/400 platform the -f option accepts object modules (that is, files of type *MODULE) only, and the -l option accepts service programs (that is, files of type *SVRPGM) only.

buildclt Example

Consider the following example command line:

buildclt ('-fapps/cx' '-fapps/cy' '-oapps/client')

This command accomplishes two tasks:

It links two objects (cx and cy) in an HFS library called apps.
It produces a client executable program called client in the apps library.

buildsrvr Example

Consider the following example command line:

buildsrvr ('-fapps/sx' '-fapps/sy' '-oapps/server' '-sSVC')

This command accomplishes two tasks:

It links objects sx and sy in an HFS library (apps).
It produces a server executable program (server) in a library (apps) which offers a service (SVC).

If the -k option of buildsrvr is used, then the server main code will be generated in member BSpid of the tuxsrc file in the qtemp library, where the value of pid is the process ID of the buildsrvr process. Because the qtemp library is removed at the end of each job, you must make a copy of it in a permanent directory before signing off, if you want to keep it.

Both mkfldhdr and viewc generate header files in IFS, usually in the current directory. You must copy these .h files into an HFS h file so the C compiler will be able to find them.

viewc also generates the binary output file with a .VV (instead of a .V) suffix.

Runtime Environment

BEA TUXEDO is distributed with a set of tools for manipulating the environment: getenv, putenv, setenv, and env.

Table 2-1 Command Syntax for Runtime Tools


Syntax	Function
getenv var	Displays the value of the specified environment variable (var)
putenv 'var=value'	Sets the specified environment variable (var) to the specified value (value)
setenv file	Calls putenv on every line of the specified file (file)
env	Displays the values of all variables in your environment

V4R1 provides a single command, wrkenvvar, that offers functionality similar to that available through getenv, putenv, setenv, and env. The wrkenvvar command differs from the BEA TUXEDO commands, however, in several aspects. First, unlike the distributed tools delivered with BEA TUXEDO, wrkenvvar cannot handle the expansion of variable names marked with a $ prefix (similar to shell variable expansion).

In addition, the hostname and id utilities are distributed only with BEA TUXEDO.

The hostname command prints the name of the network node for the AS/400. The machine name used in the UBB configuration file must match the name returned by hostname.
The id command prints the UID and GID of the current user profile. The UID and GID values specified in the UBB configuration file must match the values returned by the id command. (See "Creating a Profile for a TUXEDO Administrative Group" in Chapter 3.)

All BEA TUXEDO executables and header files are packaged in an HFS library (see tuxlib during installation). Other data files (such as udataobj/* and locale/C/*) are placed in $TUXDIR in IFS. $TUXDIR/bin has symbolic links to HFS executables. $APPDIR should also reside in IFS. You must add the HFS library to the library list before invoking any BEA TUXEDO commands.

Sample Application

Let's use simpapp as an example. Assume tuxdir is installed in /QOpenSys/tuxedo, tuxlib is installed as tuxedo, and APPDIR is set to /home/apps/simpapp.

Begin by building the simpcl and simpserv programs (in Steps 1-9).

Create an HFS library called apps:
```
	crtlib apps
```
Create a physical source file called tuxsrc:
```
	crtsrcpf apps/tuxsrc rcdlen (120)
```

Copy simpcl.c from /qopensys/tuxedo/apps/simpapp to member simpcl or tuxsrc:

cpyfrmstmf fromstmf('/qopensys/tuxedo/apps/simpapp/simpcl.mbr') +
	tombr('/qsys.lib/apps.lib/tuxsrc.file/simpcl.mbr') +
	mbropt(*replace)

Generate a client object module by running the ILE/C compiler:

crtcmod module(apps/simpcl) srcfile(apps/tuxsrc) +
	srcmbr(simpcl) sysifcopt(*ifsio)

Generate a client program by running buildclt:

	call buildclt ('-fapps/simpcl' '-oapps/simpcl')

Copy simpserv.c from /qopensys/tuxedo/apps/simpapp to member simpserv of tuxsrc:

cpyfrmstmf fromstmf('/qopensys/tuxedo/apps/simpapp/simpserv.c') +
	tombr('/qsys.lib/apps.lib/tuxsrc.file/simpserv.mbr') +
	mbropt(*replace)

Generate a server object module by running the ILE/C compiler:

	crtcmod module(apps/simpserv) srcfile(apps/tuxsrc) +
		srcmbr(simpserv) sysifcopt(*ifsio)

Generate a server program by running the buildsrvr command:

  call buildsrvr ('-sTOUPPER' '-fapps/simpserv' '-oapps/simpserv')

Create a symbolic link from /home/apps/simpapp/simpserv to apps/simpserv:

	addlnk obj('/qsys.lib/apps.lib/simpserv.pgm') +
		newlink('/home/apps/simpapp/simpserv')

Add tuxlib to the library list:
```
	addlible tuxedo
```

Set the necessary environment variables as follows:

	call putenv 'TUXDIR=/QOpenSys/tuxedo'

	call putenv 'APPDIR=/home/apps/simpapp'

Create the TUXCONFIG file from the UBB configuration file UBB:

	call putenv 'TUXCONFIG=$APPDIR/tuxconfig'

	call tmloadcf ('-y' 'UBB')

Run wrklnk to verify that the file tuxconfig has been created in /home/apps/simpapp.
Boot the application:
```
	call tmboot '-y'
```
Messages similar to those shown in Figure 2-2 will be displayed.

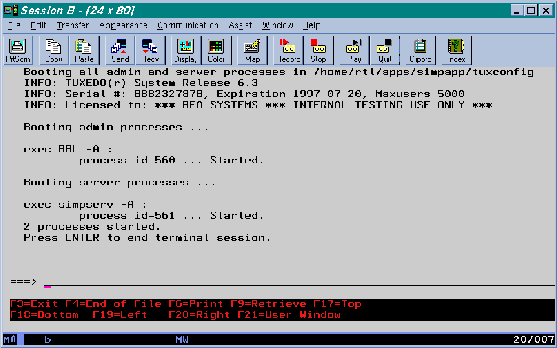

Figure 2-2 Messages Displayed at Boot Time
```
	call apps/simpcl 'abc'
```
Figure 2-3 shows the messages that will be displayed.
Figure 2-3 Messages Displayed after the Client Is Called

Figure 2-4 Viewing the Userlog File with WordPad

To shut down an application, enter the following command:

	call tmshutdown '-y'

Figure 2-5 shows the messages displayed during the shutdown process.

Figure 2-5 Messages Displayed during Shutdown

IBM ships a set of IPC tools as a PTF. These tools provide the functionality available on a UNIX system through the ipcs and ipcrm commands. There are some differences, however: the IBM tools have different names and produce output in a different manner.

To view the IPC resources consumed by all your applications, enter the following command:

	call qp0zipcs

The output of qp0zipcs is generated in *QPRINT which means that it can be viewed as a spool file with the wrksplf command.

To remove a particular IPC resource, such as a message queue ID (qid), enter the following command:

	call qp0zipcr ('-qqid')

When an error occurs while you are running qp0zipcr, a message is generated in the joblog. Use the dspjoblog command to view it.

Configuration Issues

No more than one version of BEA TUXEDO can be installed on one machine.
Server names are case-sensitive if $APPDIR is in /QOpenSys.
Servers must reside in IFS under $APPDIR. These IFS files must be symbolic links to the HFS *PGM files. (Use the addlnk command to create a symbolic link.) The IFS name must be identical to the HFS name; thus each IFS name is restricted to 10 characters.
The machine name must be a string returned by the hostname command.
The tlisten command does not start itself in the background. To submit a batch job with tlisten, use the sbmjob command.
Because a TCP/IP socket is used, no BRIDGE device needs to be specified.
The RCMD parameter to be executed on a server when the latter is restarted must refer to a symbolic link in $PATH, typically $APPDIR. This symbolic link must point to an executable program in HFS. UNIX shell scripts will not work here.
Due to the difference between the collating sequences in EBCDIC and ASCII, ranges specified for data-dependent routing may not behave the same way on AS/400 and UNIX platforms.
On an AS/400 platform, a superuser (QSECOFR) cannot perform BEA TUXEDO administrative tasks. For example, you cannot boot an application while signed on as QSECOFR. Therefore BEA TUXEDO administrators must not sign on as QSECOFR.

/Q

The threshold command parameter specified on the qmadmin qcreate command line (such as the server RCMD), must refer to a symbolic link to an executable program in HFS. The link must be included in $PATH; typically it is found in $APPDIR.

UNIX shell scripts will not work here.

TxRPC

By default, the tidl compiler does not run the C preprocessor. This means that if you have #define statements or any other pre-processor constructs in the input file, then you'll need to specify the -cpp_cmd option:

	call tidl ('-cpp_cmd' 'crtcmod' . . . )

By default, the tidl command also produces server and client stub files in the current IFS directory. The stub files are named x_cstub.c and x_sstub.c. It is also possible to generate stub files in HFS by using the -out option to specify a library in the directory /qsys.lib, as in the following example:

	call tidl ('-out' '/qsys.lib/tuxedo.lib' . . . )

In this case, the stub files will be generated in the physical file idl with members named x_cs and x_ss for client and server stubs, respectively. The tidl command also generates a header file in the current working directory of IFS. For example, if the idl compiler is run on input file x.idl as follows:

	call tidl ('-cpp_cmd' 'crtcmod' '-keep' 'c_source' x.idl)

then tidl will generate the following three files in the current working directory of IFS:

x_cstub.c
x_sstub.c
x.h

In addition, the tidl compiler will copy the header file to member x belonging to file h in the qtemp library.

If the -keep option is not specified, then the C compiler will be invoked on the stub files to produce object modules x_cs and x_ss in library qtemp. (qtemp is the default output library which can be overridden by the -out option, as described earlier.)

/COBOL

BEA TUXEDO supports clients and servers written in the ILE/COBOL language. The major differences between MicroFocus COBOL and ILE/COBOL are listed below.

The ILE/COBOL compiler does not allow tabs in source code; use spaces whenever possible.
The COMP-5 data type is COMP-4 in ILE/COBOL.
The command-line interface for ILE/COBOL must use the linkage section rather than the ACCEPT statement.
The method of redirecting output to a file is different. Consult the COBOL Programmer's Guide and COBOL reference manuals for details. Two applications shipped with BEA TUXEDO (CSIMPAPP and STOCKAPP) also show how some tasks are performed on an AS/400 platform.

Web GUI

With Release 6.4, you can administer a BEA TUXEDO application through any Web browser (such as Netscape or Internet Explorer) by using the Web-based GUI for administration. This section provides some tips for running the "Web GUI" on an AS/400 platform.

Two programs, tuxwsvr and wlisten, need to be run in the background. This can be accomplished by running a CL script using sbmdbjob. For example, the following CL script could be used to start tuxwsvr:

	//BCHJOB JOB(WEBSERVER) JOBD(TUXADM/JOBD)

	addlible tuxlib

	cd '/home/tuxadm/web'

	call setenv env

	call tuxwsvr ('-l//lc400b.beasys.com:3184' '-iwinput.ini')

The first line should begin with //BCHJOB which allows a number of parameters to be set. (See the CL Programming Manual.) The JOB parameter, for example, sets the name of the job such that it appears on a WRKACTJOB screen. A customized Job Description is needed here also so that the job can be run in batch. The default Job Description for interactive sessions (QDFTJOBD) cannot be used here. To create a new one, use WRKJOBD to copy QDFTJOBD to TUXADM/JOBD, and then add a USER name to TUXADM/JOB.

Several environment variables, such as TUXDIR, also need to be set. To set an environment variable, list all necessary environment settings in an "env" file and then run the setenv command, specifying the env file on the command line. Set any other application-specific variables (such as APPDIR) as well.

One additional input file that tuxwsvr expects is an initialization or "ini" file. The ini file tells the server where to find HTML pages and JAVA images. For example:

	CGI /cgi-bin tuxdir/bin

	HTML /java/images tuxdir/web/gui/java/bea/tuxadm/images

	JAVA /java tuxdir/web/gui/java

	HTML /docs tuxdir/docs

	HTML / tuxdir/udataobj/webgui

For example, suppose BEA TUXEDO has been installed in /qopensys/tuxr64 and you are now creating an ini file called winput.ini. If you substitute the root directory of TUXEDO for the word tuxdir in the lines shown above, your ini file will look like the following:

CGI /cgi-bin /qopensys/tuxr64/bin

HTML /java/images /qopensys/tuxr64/web/gui/java/bea/tuxadm/images

JAVA /java /qopensys/tuxr64/web/gui/java

HTML /docs /qopensys/tuxr64/docs

HTML / /qopensys/tuxr64/udataobj/webgui

For more detailed information on creating an ini file for tuxwsvr, see the tuxwsvr manual page in section 1 of the BEA TUXEDO Reference Manual.

Current implementation also requires that for all user CGI programs, the HFS library in which they reside be added to the library list.

The procedure for setting up a batch job with wlisten is similar to the one you follow to set up a batch job for tuxwsvr.

All wlisten options are taken from an ini file that is specified with the -i option. This ini file must be created; IT IS NOT GENERATED WHEN YOU INSTALL BEA TUXEDO ON THE AS/400. For detailed information on creating an ini file for wlisten, see the wlisten manual page in section 1 of the BEA TUXEDO Reference Manual. The following is an example:

	TUXDIR=/qopensys/tuxr64

	NADDR=0x00020c71c604a68d

	CODEBASE=/java

	DOCBASE=http://lc400b:3184/docs

To start the Web GUI for BEA TUXEDO administration on the AS/400, enter the following URL:

 	 http://machine_name:port/cgi-bin/tuxadm?TUXDIR=tuxdir&INIFILE=ini_file

where

machine_name:port is the AS/400 machine/port combination on which tuxwsvr is running
tuxdir is the directory in which TUXEDO has been installed (as specified on the command line during the installation procedure)
ini_file refers to the initialization file for wlisten

For additional information on preparing to use the Web GUI, see the BEA TUXEDO System 6 Installation Guide.
