Introduction
The purpose of this chapter is to describe the environment in which you will be writing code for a BEA TUXEDO System/T application.
In addition to the COBOL code that expresses the logic of your application, you will be using the Application-Transaction Monitor Interface (ATMI), which refers to the interface between BEA TUXEDO System/T and your application. The ATMI calls are COBOL CALLs that have the specific purpose of implementing the communication among application modules running under the control of BEA TUXEDO System/T, including all the associated resources you need.
As you might remember from the
A client process takes user input and sends it as
a service request to a server process that offers
the requested service.
A client process uses one
ATMI
call to join an application,
another to send the data structure to a server and
still others to receive the reply.
The operation of a basic client process can
be summarized by the
pseudo-code shown in Figure 1:
Most of the statements in Figure 1
are implemented with
ATMI
calls.
Placing user input in a
DATA-REC
and passing the reply to
the user are implemented with
COBOL
CALLs.
When client programs are ready to test, you use the
buildclient
-C
command to compile and link edit them.
A client may send and receive
any number of service requests before leaving the application.
These can be sent as a series of
request/response calls or, if
it is important to carry state information from
one call to the next, a connection to a
conversational server can be set up.
The logic within the client program is about the
same, but different
ATMI
calls are used.
Servers are processes
that provide one or more services.
They continually check their message queue
for service requests and dispatch them to
the appropriate service subroutines.
Applications combine their service subroutines with
the controlling program
that System/T provides
in order to build server processes.
This system supplied controlling program
is a set of predefined routines.
It performs server initialization and termination
and places user input in data structures
to receive and dispatch incoming requests
to service routines.
All of this processing is transparent to the application.
Server and a service subroutine interaction can
be summarized by the pseudo-code shown in Figure 2:
After some initialization a server waits until a request message is
put on its message queue, dequeues the request and
dispatches it to a service subroutine for processing.
If a reply is needed,
the reply is considered part of request processing.

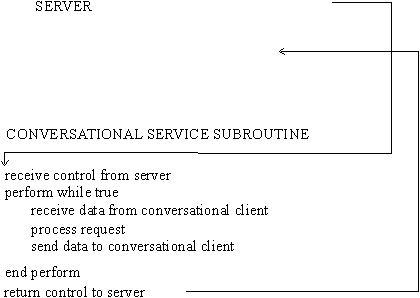

The conversational paradigm is somewhat different.
Pseudo-code is shown in Figure 3.
The BEA TUXEDO System/T-supplied controlling program
contains the code needed to enroll as a server,
advertise services and dequeue request messages.
The
ATMI
calls are used in
service subroutines that process requests.
When they are ready to compile and test,
service subroutines
are link edited with the server
by means of the
buildserver
-C command
to form an executable server.
The serially reusable architecture of servers is
particularly significant
if the operation requested by the user is logically divisible
into several services, or several iterations of the same service.
Such operations can
be overlapped by having a server assume the role of a client and
hand off part of the task to another server as part of
fulfilling the original client's request.
In such a capacity the server becomes a requester.
Both clients and servers can be requesters.
In fact, a client can only be a requester.
The coding model for such a system
is easily accomplished with the routines that
are provided by
ATMI.
A request/response
server can also forward a request to another server.
This is different from becoming a requester.
In this case, the server does not assume the role of client since no
reply is expected by the server that forwards a request.
The reply is expected by the original client.
The Application-Transaction Monitor Interface is a reasonably
compact set of calls used to open and close
resources, begin and end transactions,
and provide the communication between clients and servers.
Table 1 summarizes them.
Each routine is documented on its own page in the
BEA TUXEDO Reference Manual.
In addition to
ATMI's
transaction management verbs, System/T also
supports X/Open's TX Interface for defining and managing transactions.
Because X/Open used
ATMI's
transaction demarcation verbs as the base for the TX Interface,
the syntax and semantics of the TX Interface are quite similar to
ATMI.
The following table introduces the routines in the TX Interface and
highlights the main differences with their corresponding
ATMI
routines.
For maximum portability, the TX routines can be used in place of the
ATMI
routines shown in Table 2.
There are two points to keep in mind when using the TX Interface.
First, the TX interface requires that
TXOPEN
be called before using any
other TX verbs.
Thus, even if a client or a server is not accessing an
XA-compliant resource manager, it must call
TXOPEN
before it can use
TXBEGIN,
TXCOMMIT,
and
TXROLLBACK
to define transactions.
The second rule concerns the default
TPSVRINIT
and
TPSVRDONE
routines provided with System/T.
If an application writer wants to use the
TX Interface in service routines, then the default System/T
TPSVRINIT
and
TPSVRDONE
routines should not be used.
This is because these routines call
TPOPEN
and
TPCLOSE
which would preclude the use of TX verbs in
service routines.
Thus, application writers should supply their own
TPSVRINIT
and
TPSVRDONE
routines that call
TXOPEN
and
TXCLOSE.
Figure 4 is an example of how the TX Interface can be used to support
chained transactions.
Note that TXBEGIN
must be used to start the first of a series of chained transactions.
Also, note that before calling
TXCLOSE,
the application must switch to unchained transactions so that the last
TXCOMMIT
or
TXROLLBACK
does not start a new transaction.
Messages are passed to servers in typed records,
actually pairs of records.
Why ``typed?''
Well, different types of data
require different software to initialize
the record, send and receive the data and perhaps
encode and decode it, if the record is passed between
heterogeneous machines.
Records are designated as being of a specific
type so the routines appropriate
to the record and its contents can be invoked.
These issues are typically not of concern to application
developers, but details can be found in the
buffer(3i),
tuxtypes(5),
and
typesw(5)
pages of the
BEA TUXEDO Reference Manual.
System/T provides eight record types for messages:
STRING,
CARRAY,
VIEW,
VIEW32,
X_OCTET,
X_COMMON,
FML,
and
FML32.
Applications can define additional types
as needed.
Consult the manual pages referred to above and the
The
STRING
record type allows an arbitrary number of characters
which may not contain
LOW-VALUE
characters anywhere within the record
but could be at the end of the record.
When sending data,
LEN IN
TPTYPE-REC
must contain the number of bytes to be transferred.
The data in a
CARRAY
record type allows an arbitrary number of characters
which may contain
LOW-VALUE
characters.
When sending data,
LEN IN
TPTYPE-REC
must contain the number of bytes to be transferred.
The
X_OCTET
record type is equivalent to
CARRAY.
The
VIEW
type is a
COBOL
data structure
that the application defines
and for which there has to be a view description file.
Records of the
VIEW
type must have subtypes, that designate
individual data structures.
The
X_COMMON
record type is similar to
VIEW
but is used for both
COBOL
and C programs so field types should be limited to
An
FML
record is a proprietary BEA TUXEDO System type of self-defining buffer
where each data field carries its own identifier,
an implied occurrence number and possibly a length indicator.
This type provides great flexibility at the expense of some
processing overhead in that all data manipulation is done
via
FML
function calls.
The
FML
function calls are not available from
COBOL.
COBOL
procedures are provided with procedures to initialize an
FML
record, and convert
FML
records to/from
VIEW
records.
This is used primarily for applications that have
COBOL
programs communicating with
C
programs that use
FML
records.
If you are using the
VIEW
or
FML
buffer types,
some preliminary work is required to create
view description files or field table files.
In the case of
VIEWs,
a description file must exist and must be available to client
and server processes that use a data structure
described in the
VIEW.
The BEA TUXEDO System view compiler program,
viewc,
is used with the -C option to produce one or more
COBOL
COPY
files (one per view) from a source viewfile.
These
COPY
files contain Data Description Records,
which may be used in the
LINKAGE SECTION
or the
WORKING STORAGE
section of the
DATA DIVISION
according to the demands of the program.
For
FML
buffers, a field table file containing descriptions of
all fields that may be in the buffer must be available.
There are two kinds of
VIEW
buffers.
One is based on an
FML
buffer.
The other
VIEW
buffer is independent;
it is simply a C structure.
Both types are described in view description files and
compiled with
viewc(1),
the BEA TUXEDO System view compiler.
We're going to talk first about the FML variety.
BEA TUXEDO System
FML
is a family of functions some of which
convert an
FML
buffer into a
COBOL
record or vice versa.
The COBOL record that is derived from the fielded buffer
is referred to as an
FML
VIEW.
FML
buffers must be converted to
COBOL
records for manipulation since the
FML
are functions not available to
COBOL
programs.
The
VIEW
is then converted back into an
FML
buffer for message transmission to a C program that expects an
FML
buffer.
There are slight differences between a view description
of an
FML-based
view and one that is independent of
FML.
Figure 5 shows
a view description file
with all of the available data types.
Note that the
CARRAY1
field has a count of 2 occurrences and has the "C" count flag to indicate
that an additional count element should be created in the record
so the application can indicate how many of the occurrences are actually
being used.
It also has the "L" length flag such that there is a length element
(which occurs twice, once for each occurrence of the field)
indicating how many of the characters the application has populated.
Field table files are always required
when using
FML
records, including the use of
FML-dependent
VIEWS.
A field table file maps the logical name of a field in an
FML
buffer to a field identifier that uniquely identifies the field.
An example that could be used with the view shown in Figure 5 is shown in Figure 6.
Figure 7 shows
the view description file, similar to the example in Figure 5,
but for a
VIEW
independent from
FML.
Note that in this view description, the format is similar to the
FML-dependent
view, except that the columns
fbname
and
null
in the file are ignored by the view compiler.
These columns are not relevant when an
FML
buffer does not stand behind the view, but
it is necessary to place some value (a dash, for example)
in these columns to serve as a placeholder.
The COBOL application programmer
should define
float
and
double
fields in the application as
COMP-1
and
COMP-2
respectively.
The UNIX field types
long
and
short
correspond to
S9(9)
COMP-5
and
S9(4)
COMP-5
respectively in
COBOL
(the use of
COMP-5
is for use with MicroFocus
COBOL
so that the
COBOL
integer fields match the data format of the corresponding
C
fields; the data type for
VS
COBOL
II
would simply be
COMP).
The
dec_t
type maps to a
COBOL
COMP-3
packed decimal field.
Packed decimals exist in the
COBOL
environment as two decimal
digits packed into each byte with the
low-order half byte used to store the sign.
The length of a packed decimal may be 1 to 9 bytes with storage available
for 1 to 17 digits and a sign.
The
dec_t
field type is supported within the
VIEW
definition for the conversion of packed decimals between the
C
and the
COBOL
environments.
The
dec_t
field is defined in a
VIEW
with a size of two numbers separated by a comma.
The number to the left of the comma is the total number of bytes
that the decimal occupies in
COBOL.
The number to the right is the number of digits to the right of the
decimal point in
COBOL.
The formula for conversion to the
COBOL
declaration is:
View description files are source files.
To use the
VIEW
in a program, you need a
COBOL
COPY
file that defines the data structures in the view.
You can create a
COBOL
COPY
file from the
myview.v
view description file by
invoking the view compiler,
viewc.
The
COBOL
COPY
file created from
myview.v
is shown in Figure 8.
COBOL
COPY
files for views must be brought into
client programs and service subroutines with
COPY
statements.
In the figure above, note that there are some FILLER fields. These are
created by the view compiler so that the alignment of fields in
COBOL
matches the alignment in
C.
Also, note the format of the packed decimal value,
DEC1.
It is composed of 5 fields; the
DEC-EXP,
DEC-POS,
DEC-NDGTS
and
FILLER
fields are used only in
C
(they are defined in the dec_t type)
but are included in the
COBOL
record for filler; they should not be used by the
COBOL
application programmer.
The actual packed decimal value is stored in the
DEC-DGTS
value; this is the value that should be set and/or accessed by the
COBOL
programmer.
All of the
ATMI
primitives take care of correctly populating the
DEC-DGTS
in packed decimal format before the record is passed to the
COBOL
program from a
C
program, and convert back to the dec_t type when passed from the
COBOL
program to a
C
program.
The only restriction is that a
COBOL
program cannot directly pass the record to a
C
function without going through the
ATMI
interface (the decimal formats won't match).
Also note that there is an
L-CARRAY1
length field that occurs twice, once for each occurrence of
CARRAY1
and there is also the
C-CARRAY1
count field.
viewc
also creates a
C
version of the header file which can be used if an
application desires to mix
C
and
COBOL
service and/or client programs.
The
FML
function interface consists of about eighty 16-bit primitives
and the same number for
FML32.
This interface was designed for use with the C language.
Instead of providing a
COBOL
version of this interface,
COBOL
procedures are provided to convert a received
FML
buffer to a
COBOL
record for processing, and then convert the record back to
FML.
If a
COBOL
client or server is the originator of an
FML
message, the record must be initialized using the
FINIT
procedure.
FINIT
takes the
FML
record (suitably aligned on a full-word boundary) and
FML-LENGTH
in an
FMLINFO
record which is set to length of the
FML
record.
The initialization is shown in Figure 9.
If an
FML
record is received in a program, it is automatically initialized
(unless
TPNOCHANGE
is set).
That means that if a program first receives an
FML
record instead of being the originator of the message,
it is unnecessary to call
FINIT.
The
FVSTOF
procedure is used to convert an
FML
record to a
VIEW
record. The view is defined by including the copy file generated
by the view compiler. The
FML-REC
record provides the
VIEWNAME
and the
FML-MODE
transfer mode which can be set to
FUPDATE, FOJOIN FJOIN or
FCONCAT.
The action of these modes are the same as that described in
Fupdate(3fml),
Fojoin(3fml),
Fjoin(3fml), and
Fconcat(3fml).
The
FVFTOS
procedure is used to convert a
VIEW
record into an
FML
record.
The parameters are the same as for
FVSTOF
procedure but the
FML-MODE
need not be set.
Fields are copied from the fielded buffer into the
structure based on the element descriptions in the view.
If a field in the fielded buffer has no corresponding
element in the
COBOL
record, it is ignored.
If an element specified in the
COBOL
record has no
corresponding field in the fielded buffer,
a null value is copied into the element.
The null value used is definable for each element in the
view description.
To store multiple occurrences in the
COBOL
record, the
record element should defined with
OCCURS.
If the buffer has fewer occurrences of the field
than there are occurrences of the element, the extra element slots are
assigned null values.
On the other hand, if the buffer has
more occurrences of the field than there are
occurrences of the element, the surplus occurrences are ignored.
For
FML32
and
VIEW32,
the
FINIT32,
FVSTOF32,
and
FVFTOS32
procedures should be used.
Upon successful completion, FML-STATUS
is set to FOK.
On error, FML-STATUS is set to a non-zero value
(see the reference manual pages).
Environment variables
needed either for
clients or service routines associated
with a server
can be set in
ENVFILEs
that are specified in the configuration file.
The environment variables, for example,
that need to be set for
view descriptions
are summarized in the Table 3.
For the
FML32
and
VIEW32
record types, the environment variables are suffixed with "32", that is,
FLDTBLDIR32,
FIELDTBLS32,
VIEWFILES32,
and
VIEWDIR32.
The
ALTCC
and
ALTCFLAGS
environment variables are used by the
buildclient
and
buildserver
commands when run with the -C option for
COBOL.
You may want to set them in your environment to
make compilation of clients and servers more convenient.
Set
ALTCC
to the command that invokes the
COBOL
compiler.
It defaults to cobcc.
Set
ALTCFLAGS
to the link edit flags you may want to use
on the compile command line.
Setting these variables are optional.
Set
COBOPT
to the arguments you may want to use on
the compile command line.
This variable is also optional.
Set
COBCPY
to the directories that contain
a set of the
COBOL
COPY
files to be used by the compiler.
Set
COBDIR
to the directory that contains the
COBOL
compiler software.
The location of the BEA TUXEDO System binary files must be
known to your application.
It is the convention to install the BEA TUXEDO System software under
a root directory whose location is specified in the
TUXDIR
environment variable.
$TUXDIR/bin
must be included in your
PATH
in order for your application to locate the executables
for BEA TUXEDO System commands.
The configuration file specifies the
configuration of an application to System/T.
For a BEA TUXEDO System/T application in production,
it is the responsibility of the System/T administrator to set up
a configuration file that defines the application.
In the development environment,
the responsibility may be delegated to application
programmers to create their own.
If you are faced with the task of creating a configuration
file, here are some suggestions:
The configuration file is an
ASCII
file.
To make it usable, you have to run
tmloadcf(1)
to convert it to a binary file.
The
TUXCONFIG
environment variable must be set to the
pathname for the binary file, and exported.
The bulletin board is the BEA TUXEDO System/T name for a
group of data structures in
a segment of shared memory
that is allocated
from information stored in
TUXCONFIG
when the application is booted.
Both client and server processes attach to the bulletin board.
Part of the bulletin board
associates service names with the queue address of servers
that advertise that service.
Clients send their requests to the name of the service
they want to invoke, rather than to a specific address.
All processes that are part of a System/T application
share this UNIX shared memory.
Execute the
tmboot(1)
command to bring up an application.
The command gets the
IPC
resources needed by the application, starts
administrative processes and the application servers.
When it is time to bring the application down,
execute the
tmshutdown(1)
command.
tmshutdown
stops the servers and
releases the
IPC
resources used by the application, except any that
might be used by the database resource manager.
Client Processes
Basic Client Operation
Fig. 1: Pseudo-code for a Client
START PROGRAM
enroll as a client of the System/T application
place initial client identification in data structure
perform until end
get user input
place user input in DATA-REC
send service request
receive reply
pass reply to the user
end perform
leave application
END PROGRAM
Client Sending Repeated Service Requests
Server Processes and Service Subroutines
Basic Server Operation
Fig. 2: Pseudo-code for a Request/Response Server and a Service Subroutine
Fig. 3: Pseudo-code for a Conversational Service Subroutine
Servers As Requesters
The ATMI Calls
Table 1:ATMI Calls
Group
Name
Operation
Application Interface
TPINITIALIZE
join an application
TPTERM
leave an application
Request/response Communication Interface
TPCALL
send a request, wait for answer
TPACALL
send request asynchronously
TPGETRPLY
get reply after asynchronous call
TPCANCEL
cancel communications handle for outstanding reply
TPGPRIO
get priority of last request
TPSPRIO
set priority of next request
Conversational Interface
TPCONNECT
begin a conversation
TPDISCON
end a conversation
TPSEND
send data in conversation
TPRECV
receive data in conversation
Unsolicited Notification Interface
TPNOTIFY
notify by client id
TPBROADCAST
notify by name
TPSETUNSOL
set unsolicited message handling routine
TPGETUNSOL
get unsolicited message
TPCHKUNSOL
check for unsolicited messages
Transaction Management Interface
TPBEGIN
begin a transaction
TPCOMMIT
commit the current transaction
TPABORT
abort the current transaction
TPGETLEV
check if in transaction mode
Service Routine Template
TPSVCSTART
start a service
TPRETURN
end service routine
TPFORWAR
forward request and end service routine
Dynamic Advertisement Interface
TPADVERTISE
advertise a service name
TPUNADVERTISE
unadvertise a service name
Resource Manager Interface
TPOPEN
open a resource manager
TPCLOSE
close a resource manager
Events
See EVENTS(5)
and these man pages
TPSUBSCRIBE
subscribe to events
TPPOST
post events
TPUNSUBSCRIB
unsubscribe events
An Overview of X/Open's TX Interface
Table 2:TX Calls
TX Verbs
Corresponding ATMI Verbs
Main Differences
TXBEGIN
TPBEGIN
Timeout value not passed
as argument to TXBEGIN.
See TXSETTIMEOUT.
TXCLOSE
TPCLOSE
None
TXCOMMIT
TPCOMMIT
TXCOMMIT can optionally start
a new transaction before it returns.
This is known as a "chained" transaction.
TXINFORM
TPGETLEV
TXINFORM returns the settings
of transaction characteristics set via the
three TXSET* routines.
TXOPEN
TPOPEN
None
TXROLLBACK
TPABORT
TXROLLBACK supports
chained transactions.
TXSETCOMMITRET
TPSCMT
None
TXSETTRANCTL
None
Defines whether the application is
using chained or unchained transactions.
TXSETTIMEOUT
TPBEGIN
Transaction timeout parameter
separated from TXBEGIN.
Fig. 4: Chained Transaction Example
CALL "TXOPEN" USING TX-RETURN-STATUS.
SET TXCHAINED TO TRUE.
CALL "TXSETTRANCTL" USING TX-INFO-AREA
TX-RETURN-STATUS.
MOVE 120 TRANSACTION-TIMEOUT.
CALL "TXSETTIMEOUT" USING TX-INFO-AREA
TX-RETURN-STATUS.
do forever
do work as part of transaction.
if no more work exists
SET TXCHAINED TO FALSE.
CALL "TXSETTRANCTL" USING TX-INFO-AREA
TX-RETURN-STATUS.
if work done was successful
CALL "TXCOMMIT" USING TX-RETURN-STATUS.
else
CALL "TXROLLBACK" USING TX-RETURN-STATUS.
if no more work exists
leave
end do
CALL "TXCLOSE" USING TX-RETURN-STATUS.
Typed Records
PIC S9(4) COMP-5,
PIC S9(9) COMP-5,
and
PIC X(any-length).
The
VIEW32
record type is similar to
VIEW
but allows for larger character fields, more fields, and larger
overall records.
Using VIEW and FML Buffers
Relationship Between VIEW Buffers and FML
FML Views
Fig. 5: View Description File for FML View
VIEW MYVIEW
$ /* View structure */
#type cname fbname count flag size null
float float1 FLOAT1 1 - - 0.0
double double1 DOUBLE1 1 - - 0.0
long long1 LONG1 1 - - 0
short short1 SHORT1 1 - - 0
int int1 INT1 1 - - 0
dec_t dec1 DEC1 1 - 9,16 0
char char1 CHAR1 1 - - '\0'
string string1 STRING1 1 - 20 '\0'
carray carray1 CARRAY1 2 CL 20 '\0'
END
FML Field Table Files
Fig. 6: The myview.flds Field Table File
# name number type flags comments
FLOAT1 110 float - -
DOUBLE1 111 double - -
LONG1 112 long - -
SHORT1 113 short - -
INT1 114 long - -
DEC1 115 string - -
CHAR1 116 char - -
STRING1 117 string - -
CARRAY1 118 carray - -
Independent VIEWs
Fig. 7: View Description File for Independent Views
$ /* View data structure */
VIEW MYVIEW
#type cname fbname count flag size null
float float1 - 1 - - -
double double1 - 1 - - -
long long1 - 1 - - -
short short1 - 1 - - -
int int1 - 1 - - -
dec_t dec1 - 1 - 9,16 -
char char1 - 1 - - -
string string1 - 1 - 20 -
carray carray1 - 2 CL 20 -
END
Corresponding Data Type Definitions
dec_t(m, n) <=> S9(2*m-(n+1),n)COMP-3
For example, say a size of 6,4 is specified in the
VIEW.
There are 4 digits to the right of the decimal point, 7 digits to
the left and the last half byte stores the sign.
The
COBOL
application programmer would represent this as
9(7)V9(4),
with the
V
representing the decimal point between the
number of digits to each side.
Note that there is no
dec_t
type supported in
FML;
if
FML-dependent
VIEWs
are used, then the field must be mapped to a
C
type in the
VIEW
file (for instance, the packed decimal can be mapped to an
FML
string field and the mapping functions do the conversion between
the formats).
Creating COBOL COPY Files from View Descriptions
viewc -C -n myview.v
Note that the -n option is specified only if the
VIEW
is independent of any
FML
definition.
viewc
-C
creates three files.
One is the
COBOL
COPY
file,
MYVIEW.cbl,
another is the header file,
myview.h,
for C routines that share the same view,
and the other is the binary version of
the source description file,
myview.V.
This binary file must be in the environment
when a
VIEW
record is defined.
Fig. 8: Resulting MYVIEW COBOL Copy File
* VIEWFILE: "myview.v"
* VIEWNAME: "MYVIEW"
05 FLOAT1 USAGE IS COMP-1.
05 DOUBLE1 USAGE IS COMP-2.
05 LONG1 PIC S9(9) USAGE IS COMP-5.
05 SHORT1 PIC S9(4) USAGE IS COMP-5.
05 FILLER PIC X(02).
05 INT1 PIC S9(9) USAGE IS COMP-5.
05 DEC1.
07 DEC-EXP PIC S9(4) USAGE IS COMP-5.
07 DEC-POS PIC S9(4) USAGE IS COMP-5.
07 DEC-NDGTS PIC S9(4) USAGE IS COMP-5.
* DEC-DGTS is the actual packed decimal value
07 DEC-DGTS PIC S9(1)V9(16) COMP-3.
07 FILLER PIC X(07).
05 CHAR1 PIC X(01).
05 STRING1 PIC X(20).
05 FILLER PIC X(01).
05 L-CARRAY1 OCCURS 2 TIMES PIC 9(4) USAGE IS COMP-5.
* LENGTH OF CARRAY1
05 C-CARRAY1 PIC S9(4) USAGE IS COMP-5.
* COUNT OF CARRAY1
05 CARRAY1 OCCURS 2 TIMES PIC X(20).
05 FILLER PIC X(02).
FML/VIEW Conversion
Fig. 9: FML/VIEW Conversion
WORKING-STORAGE SECTION.
*RECORD TYPE AND LENGTH
01 TPTYPE-REC.
COPY TPTYPE.
*STATUS OF CALL
01 TPSTATUS-REC.
COPY TPSTATUS.
* SERVICE CALL FLAGS/RECORD
01 TPSVCDEF-REC.
COPY TPSVCDEF.
* TPINIT FLAGS/RECORD
01 TPINFDEF-REC.
COPY TPINFDEF.
* FML CALL FLAGS/RECORD
01 FML-REC.
COPY FMLINFO.
*
*
* APPLICATION FML RECORD - ALIGNED
01 MYFML.
05 FBFR-DTA OCCURS 100 TIMES PIC S9(9) USAGE IS COMP-5.
* APPLICATION VIEW RECORD
01 MYVIEW.
COPY MYVIEW.
.....
* MOVE DATA INTO MYVIEW
.....
* INITIALIZE FML RECORD
MOVE LENGTH OF MYFML TO FML-LENGTH.
CALL "FINIT" USING MYFML FML-REC.
IF NOT FOK
MOVE "FINIT Failed" TO LOGMSG-TEXT
PERFORM DO-USERLOG
PERFORM EXIT-PROGRAM
END-IF.
* Convert VIEW to FML Record
SET FUPDATE TO TRUE.
MOVE "MYVIEW" TO VIEWNAME.
CALL "FVSTOF" USING MYFML MYVIEW FML-REC.
IF NOT FOK
MOVE "FVSTOF Failed" TO LOGMSG-TEXT
PERFORM DO-USERLOG
PERFORM EXIT-PROGRAM
END-IF.
* CALL THE SERVICE USING THE FML RECORD
MOVE "FML" TO REC-TYPE IN TPTYPE-REC.
MOVE SPACES TO SUB-TYPE IN TPTYPE-REC.
MOVE LENGTH OF MYFML TO LEN.
CALL "TPCALL" USING TPSVCDEF-REC
TPTYPE-REC
MYFML
TPTYPE-REC
MYFML
TPSTATUS-REC.
IF NOT TPOK
F: MOVE "TPCALL MYFML Failed" TO LOGMSG-TEXT
PERFORM DO-USERLOG
PERFORM EXIT-PROGRAM
END-IF.
* CONVERT THE FML RECORD BACK TO MYVIEW
CALL "FVFTOS" USING MYFML MYVIEW FML-REC.
IF NOT FOK
MOVE "FVFTOS Failed" TO LOGMSG-TEXT
PERFORM DO-USERLOG
PERFORM EXIT-PROGRAM
END-IF.
Environment Variables
Table 3: BEA TUXEDO System/T Environment Variables
VARIABLE
CONTAINS
USED BY
FIELDTBLS
comma separated list of field table file names
client and server processes
using FML buffers
FLDTBLDIR
colon separated list of directories to be used to find
field table files with relative file names
client and server processes
using FML buffers
VIEWFILES
comma separated list of binary view description files
client and server processes
using VIEW records
VIEWDIR
colon separated list of directories to be used to find
binary view description files can be found
client and server processes
using VIEW records
Configuration File
Making the Configuration Usable
The Bulletin Board
Starting and Stopping an Application
