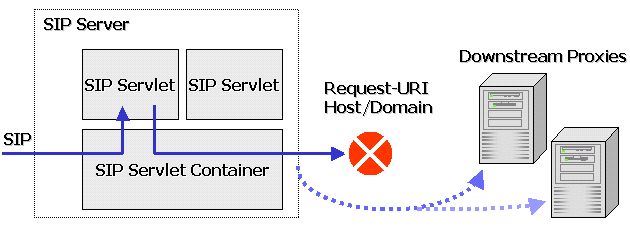

In the SIP Services --> Configuration --> Proxy tab, you can configure the settings for SIP message forwarding policy of the SIP server in the domain as well as the associated external SIP server.
| Attribute Label | Description | Constraints |
|---|---|---|
| Forwarding Policy for SIP Message | Specify one of the following three types of policies. Send to host or domain specified in Request-URI. (domain) Send to the specified downstream proxy. (proxy) Send to the specified downstream proxy when sending to host or domain specified in Request-URI has failed. (domain,proxy) |
|
| Downstream Proxy | The server information of the destination of proxy of the SIP message by WebLogic SIP Server when the forwarding destination is "proxy" or "domain,proxy". Downstream proxy: FQDN or IP address of the destination host Port number: SIP listen port (1 - 65535) of the destination host. Normally, 5060 is used. Transport type: the protocol type of the SIP listen port of the destination host. Specify "tcp" or "udp". |
