2 Oracle Identity Manager Customization

Oracle Identity Manager customization is enabled by the Design Console that lets you deal with configuration and design functions, such as designing forms and workflows and creating and managing adapters. Using the Design Console, you can grant user privileges to work on particular areas of the application configuration.

This chapter discusses the following topics:

• Forms Accessible from the Design Console

• Rule Elements, Variables, Data Types, and System Properties

• Service Accounts

• Design Console Actions

• Adapter Mapping Information

2.1 Forms Accessible from the Design Console

The left side of the Design Console main screen is the Design Console Explorer. The Explorer consists of a list of icons that represent forms that you have permissions to access. These icons are grouped under folders based on functionality and are displayed to the users according to the access rights that you assign to them. Figure 2-1 shows the Explorer in the Design Console main screen.

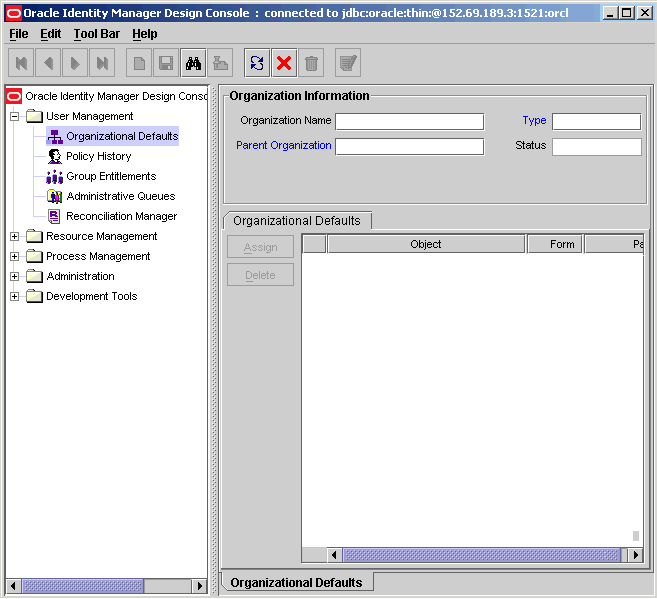

Figure 2-1 The Design Console Main Screen

Description of "Figure 2-1 The Design Console Main Screen"

The following topics are discussed in this section:

• Forms in the User Management Folder

• Forms in the Resource Management Folder

• Forms in the Process Management Folder

• Forms in the Design Console Administration Folder

• Forms in the Development Tools Folder

• Forms in the Business Rule Definition Folder

2.1.1 Forms in the User Management Folder

The User Management folder provides tools to create and manage information about organizations, users, user groups, requests, form templates, locations, process tasks, and reconciliation events. This folder contains the following forms:

• Organizational Defaults: Use this form to specify the default values that the organization users should have for certain resources.

• Policy History: Use this form to view resources that are allowed and disallowed for users through policies.

• Group Entitlements: Use this form to specify which Design Console forms are available for which user groups.

• Administrative Queues: Use this form to define queues or list of groups, which can be used to define as administrators for the requests.

• Reconciliation Manager: Use this form to manage reconciliation events in Oracle Identity Manager.

2.1.2 Forms in the Resource Management Folder

The Resource Management folder provides you tools for managing Oracle Identity Manager resources. This folder contains the following forms:

• IT Resources Type Definition: Use this form to create resource types that are displayed as lookup values on the IT Resources form.

• IT Resources: Use this form to define and manage IT resources.

• Rule Designer: Use this form to create rules that can be applied to password policy selection, auto-group membership, provisioning process selection, task assignment, and prepopulating adapters.

• Resource Objects: Use this form to create and manage resource objects. These objects represent resources that you want to make available to users and organizations.

2.1.3 Forms in the Process Management Folder

The Process Management folder provides you tools for creating and managing Oracle Identity Manager processes and e-mail templates.

This folder contains the following forms:

• Email Definition: This form enables you to create templates for e-mail notifications.

• Process Definition: This form is used to create and manage approval and provisioning processes. It also lets you start the Workflow Definition Renderer that displays your workflow definition in a graphical presentation.

2.1.4 Forms in the Design Console Administration Folder

The Design Console Administration folder provides you tools for managing Oracle Identity Manager administrative features. This folder contains the following forms:

• Form Information: Use this form to specify the class name, form label, form type, menu item, and graphic icon to be associated with a given Oracle Identity Manager form. You can also use this form to modify the folders and folder items that are displayed in the Design Console Explorer.

• Lookup Definition: Use this form to create and manage lookup definitions. A lookup definition represents a lookup field and the values you can access from that lookup field.

• User Defined Field Definition: Use this form to create and manage user-defined fields. A user-defined field enables you to store additional information, such as user, request, and resource information.

• System Configuration: Use this form to define and set the value of properties that control the behavior of the Client and/or Server. You can specify the users and user groups that a property value applies to, or you can specify that the value applies to all users.

• Remote Manager: Use this form to display information about the servers that Oracle Identity Manager uses to communicate with third-party programs. These servers are known as remote managers.

• Password Policies: Use this form to set password restrictions for the users and view the rules and resource objects that are associated with a password policy.

• Task Scheduler: Use this form to create tasks and set up the schedules that determine when these tasks are to be run.

2.1.5 Forms in the Development Tools Folder

The Design Console provides a suite of development tools that enable system administrators or developers to customize Oracle Identity Manager. This folder contains the following forms:

• Adapter Factory: You use this form to create and manage the code that enables Oracle Identity Manager to communicate with any IT Resource by connecting to that resource's API. This code is known as an adapter.

• Adapter Manager: You use this form to compile multiple adapters simultaneously.

• Form Designer: You use this form to create process and resource object forms that do not come packaged with Oracle Identity Manager.

• Error Message Definition: You use this form to create error messages that can be used for reporting when certain problems occur while using Oracle Identity Manager. This form also enables a system administrator or developer to define the error messages that users can access when they create error handler tasks by using the Adapter Factory form.

• Reconciliation Rules: You use this form to create and manage reconciliation rules in Oracle Identity Manager.

2.1.6 Forms in the Business Rule Definition Folder

The Development Tools/Business Rule Definition folder provides system administrators and developers with tools to manage the event handlers and data objects of Oracle Identity Manager. This folder contains the following forms:

• Event Handler Manager: You use this form to create and manage the event handlers that are used with Oracle Identity Manager.

• Data Object Manager: Through this form, you can define a data object, assign event handlers and adapters to it, and map any adapter variables associated with it.

2.2 Rule Elements, Variables, Data Types, and System Properties

The Design Console lets you perform Oracle Identity Manager customization tasks such as adding and modifying rule elements for a rule, creating or editing e-mail definitions, creating forms, and setting system properties. For these customization tasks, you must set parameters, variables, and data types. This section describes these parameters, variables, and data types.

In the Rule Elements tab of the Rule Designer form, you can create and manage elements and nested rules for a rule. Table 2-1 lists the rule elements that can be used to create Oracle Identity Manager rules, by using the Rule Designer form.

Table 2-1 Rule Elements to Create Oracle Identity Manager Rules

Type	Sub-Type	Attribute Source	Variable
General	NA	User Profile Data	Email
			End Date
			First Name
			Identity
			Last Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
			Role
			Start Date
General	NA	User Profile Data	Status
			User Group Name
			User Login
			Oracle Identity Manager Type
			Any fields that are displayed in the User Defined Fields region of the User Profile tab of the Users form.
Process Determination	Organization Provisioning	Requester Information	Email
			End Date
			First Name
			Identity
			Last Name
			Location Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
			Role
			Start Date
			State
			Status
			User Group Name
			User Login
			Oracle Identity Manager Type
			Any fields that are displayed in the User Defined Fields region of the User Profile tab of the Users form.
Process Determination	Organization Provisioning	Object Information	Object Name
			Object Type
		Request Target Information	Organization Customer Type
			Organization Name
			Organization Status
			Parent Organization
			Any fields that are displayed in the User Defined Fields tab of the Organizations form.
		Object Data Information	Any fields that are displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object.
		Process Data Information	Any fields that are displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process.
	User Provisioning	Requester Information
			Email
		Request Target Information	End Date
			First Name
			Identity
			Last Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
			Role
			Start Date
			Status
			User Group Name
			User Login
			Oracle Identity Manager Type
		Request Details	Any field defined on the FormMetadata.xml user self-registration and user profile modification section with property useInRule set to true
Process Determination	User Provisioning	Requester Information; Request Target Information	Any fields that are displayed in the User Defined Fields region of the User Profile tab of the Users form.
		Object Information	Object Name
			Object Type
		Object Data Information	Any fields that are displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object.
		Process Data Information	Any fields that are displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process.
	Approval; Standard Approval		Email
			End Date
			First Name
			Identity
			Last Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
			Role
			Start Date
			Status
			User Group Name
			User Login
			Oracle Identity Manager Type
			Any fields that are displayed in the User Defined Fields region of the User Profile tab of the Users form.
		RequestInformation	Request Creation Date
			Request ID
			Request Object Action
			Request Priority
			Requestor
Process Determination	Approval	Object Information	Object Name
			Object Type
		Object Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object
		Process Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process
Task Assignment	Organization Provisioning; User Provisioning	Task Information	Allow Cancellation while Pending
			Allow Multiple Instances
			Assign Task to Manager
			Disable Manual Insert
			Task Conditional
			Task Data Label
			Task Default Assignee
			Task Name
			Task Required for Completion
			Task Sequence
		Process Information	Object Name
			Process Name
			Process Type
		Object Information	Object Name
			Object Type
		Requester Information	Email
			End Date
			First Name
			Identity
Task Assignment	Organization Provisioning; User Provisioning	Requester Information	Last Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
			Role
			Start Date
			State
			Status
			User Group Name
			User Login
			Oracle Identity Manager Type
			Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form
		Object Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object
		Process Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process
Pre-Populate	Organization Provisioning; User Provisioning	Requester Information	Email
			End Date
			First Name
			Identity
			Last Name
			Manager Full Name
			Manager Login
			Middle Name
			Organization Name
Pre-Populate	Organization Provisioning; User Provisioning	Requester Information	Role
			Start Date
			Status
			User Group Name
			User Login
			Email
			Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form
		Request Information	Request Creation Date
			Request ID
			Request Object Action
			Request Priority
			Requestor
		Object Information	Object Name
			Object Type
		Object Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object
		Process Data Information	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process
	Organization Provisioning	Request Target Information	Organization Customer Type
			Organization Name
			Organization Status
			Parent Organization
			Any field that is displayed in the User Defined Fields tab of the Organizations form
	User Provisioning	Request Target Information	Email
			End Date
			First Name
			Identity
			Last Name
			Manager Full Name
			Manager Login
Pre-Populate	User Provisioning	Request Target Information	Middle Name
			Organization Name
			Role
			Start Date
			Status
			User Group Name
			User Login
			Oracle Identity Manager Type
			Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form

You can use the Email Definition form to create templates for e-mail notifications to be sent to the users. Table 2-2 lists the variables that can be used to create e-mail templates by using the Email Definition form.

Table 2-2 Variables to Create Templates

Type	Target	Location Type	Contact Type	Variable
Provisioning Related	User Profile Information; Assignee Profile Information	NA	NA	First Name
				Identity
				Last Name
				Manager Login
				Middle Name
				Role
				Status
				End Date
				User Group Name
				User Login
				User Manager
				Start Date
				Oracle Identity Manager Type
				Manager Full Name
				Organization Name
				Email
Provisioning Related	User Profile Information; Assignee Profile Information	NA	NA	Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form
	Object Information	NA	NA	Object Name
				Object Target Type
				Object Type
	Process Information	NA	NA	Object Name
				Process Name
				Process Type
	Object Data Information	NA	NA	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the resource object
	Process Data Information	NA	NA	Any field that is displayed in the Additional Columns tab of the Form Designer form for the custom form associated with the process
Request Related	Requester Information	NA	NA	First Name
				Identity
				Email Address
				Manager Login
				Middle Name
				Role
				Status
				User End Date
				User Group Name
				User Login
				User Manager
				User Start Date
				Oracle Identity Manager Type
				Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form
Request Related	Request Information	NA	NA	List of objects being requested
				List of targets being provisioned
				Request Creation Date
				Request ID
				Request Name
				Request Object Action
				Request Priority
				Requestor
				List of user Targets
General	User Profile Information	NA	NA	First Name
				Identity
				Last Name
				Email Address
				Manager Login
				Middle Name
				Role
				Status
				User End Date
				User Group Name
				User Login
				User Manager
				User Start Date
				Oracle Identity Manager Type
				Any field that is displayed in the User Defined Fields region of the User Profile tab of the Users form

Table 2-3 describes the properties that can be associated with different data types used to create Oracle Identity Manager forms, by using the Form Designer form.

Table 2-3 Properties Associated with Data Types for Creating Oracle Identity Manager Forms

Data Type	Data Property	Description
Text Field	Required	If this text field must be populated for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is false.
	Is Visible	If you want this text field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is true.
Lookup Field	Auto Complete	By entering "true" in the corresponding Property Value field, Oracle Identity Manager filters the lookup field. A user can then add characters to the lookup field before double-clicking it. By doing so, only those Lookup values which match these characters are displayed in the Lookup window. As an example, for a State lookup field, a user can enter "new" into the field. Then, once the user double-clicks the lookup field, only those states that begins with the letters "new" (for example, New Hampshire, New Jersey, New Mexico, and New York) are displayed in the Lookup window. If you do not want Oracle Identity Manager to filter the lookup field, then enter "false" into the associated Property Value field. The default property value for the Auto Complete property is false.
	Column Captions	In the corresponding Property Value field, enter the name of the column heading that is displayed in the Lookup window when a user double-clicks the lookup field. If the Lookup window has multiple columns, then enter each column heading into the Property Value field, separating them with commas, for example, Organization Name, Organization Status.
Lookup Field	Column Names	In the corresponding Property Value field, enter the name of the database column that represents the column caption that you want to be displayed in the Lookup window. If the Lookup window has multiple columns, then enter each database column into the Property Value field, separating them with commas.
	Column Widths	In the corresponding Property Value field, enter the width of the column that is displayed in the Lookup window. If the Lookup window has multiple columns, then enter each column width into the Property Value field, separating them with commas, for example, 20,20.
	Lookup Column Name	In the corresponding Property Value field, enter the name of the Lookup column as it is displayed in the database, which must be saved to the database.
	Lookup Query	In the corresponding Property Value field, enter the name of the SQL query that runs when a user double-clicks the lookup field. As a result, the appropriate Lookup columns are displayed in the Lookup window. To correctly display the data returned from a query, you must add a lookupfield.header property to the xlWebAdmin_locale.properties file. For example, consider the following SQL query: select usr_status from usr. To view the data returned from the query, you must add the following entry to the xlWebAdmin_ locale.properties files: lookupfield.header.users.status=User Status If the xlWebAdmin_locale.properties file does not contain a lookupfield.header property for your specified query, then the Administrative and User Console displays a lookup window after you click the corresponding lookup icon. The syntax for a lookupfield.header property is as follows: lookupfield.header.column_code=display value The column_code portion of the entry must be lowercase and any space must be replaced by the underscore character (_). By default, the following entries for lookup field column headers are already available in the system resource bundle: lookupfield.header.lookup_definition.lookup_ code_information .code_key=Value lookupfield.header.lookup_definition.lookup_code_information .decode=Description lookupfield.header.users.manager_login=User ID lookupfield.header.organizations.organization_ name=Name lookupfield.header.it_resources.key=Key lookupfield.header.it_resources.name=Instance Name lookupfield.header.users.user_id=User ID lookupfield.header.users.last_name=Last Name lookupfield.header.users.first_name=First Name lookupfield.header.groups.group_name=Group Name lookupfield.header.objects.name=Resource Name lookupfield.header.access_policies.name=Access Policy Name
Lookup Field	Lookup Code	In the corresponding Property Value field, enter the lookup definition code. This code contains all information pertaining to the lookup field, including lookup values and the text that are displayed with the lookup field once a lookup value is selected. Important: The Lookup Code data property can be used in lieu of the Column Captions, Column Names, Column Widths, Lookup Column Name, and Lookup Query properties. In addition, the information contained in the Lookup Code property supersedes any values set in these five data properties. Tip: An easy way to enter a lookup code is by starting the Lookup Definition form, querying for the desired code, copying this code to the Clipboard, and pasting it into the Lookup Code field. Note: The classification type of the lookup definition code must be of Lookup Type (the Lookup Type radio button on the Lookup Definition form must be selected).
	Required	If this Lookup field must be populated for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is false.
	Visible Field	If you want this lookup field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is true.
Text Area	Number of Rows	In the corresponding Property Value field, enter the row length of the text area. So, if you want the text area to be five rows in length, then type "5" into the Property Value field.
	Required	If this text area must be populated for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is false.
	Visible Field	If you want this text area to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
IT Resource Lookup Field	Type	If you select this data property, then a box is displayed in the Property Value field. From this box, select the type of Server for the IT Resource. Important: This property is required.
	Required	If this lookup field must be populated for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is false.
	Visible Field	If you want this lookup field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is true.
Date Field (Display Only)	Visible Field	If you want this text field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: The default value for this data property is true.
Date and Time Window	Required	If this text field must be populated for the form to be saved, enter "true" into the corresponding Property Value field. Otherwise, type "false" into this field. Note: To populate this text field, double-click it, and select a date and time from the Date & Time window that is displayed. Note: The default value for this data property is false.
	Visible Field	If you want this text field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
Password Field	Required	If this text field must be populated for the form to be saved, enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is false.
	Visible Field	If you want this text field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
Radio Button	Button Labels	In the corresponding Property Value field, enter the label for the radio button. For multiple radio buttons, this label represents the heading for the group box, containing the radio buttons. When you are applying a label to multiple radio buttons, enter each label into the Property Value field, separating them with commas, for example Sun or Microsoft. When Oracle Identity Manager generates the form, then a group box encompasses these radio buttons, signifying that the buttons are associated with one another.
	Button Values	In the corresponding Property Value field, enter the value for the radio button. This value goes to the database when a user selects the radio button. For multiple radio buttons, enter each value into the Property Value field, separating them with commas (for example, on, off).
Radio Button	Required	If a radio button must be selected for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is false.
	Visible Field	If you want this radio button (or group of radio buttons) to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
Check Box	Required	If this check box must be selected for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is false.
	Visible Field	If you want this check box to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
Combo Box	Lookup Code	In the corresponding Property Value field, enter the Lookup definition code. This code contains all information pertaining to the box, including box items and the text that is displayed with the box once a lookup value is selected. Important: The Lookup Code data property can be used in lieu of the Column Captions, Column Names, Column Widths, Lookup Column Name, and Lookup Query properties. In addition, the information contained in the Lookup Code property supersedes any values set in these five data properties. Tip: An easy way to enter a lookup code is by starting the Lookup Definition form, querying for the desired code, copying this code to the Clipboard, and pasting it into the Lookup Code field. Note: The classification type of the lookup definition code must be of Lookup Type (the Lookup Type option on the Lookup Definition form must be selected).
	Required	If this item from this box field must be selected for the form to be saved, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is false.
	Visible Field	If you want this box to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.
Text Field (Display Only)	Visible Field	If you want this text field to be displayed when Oracle Identity Manager generates the form, then enter "true" into the corresponding Property Value field. Otherwise, type "false" in this field. Note: The default value for this data property is true.

You can use the System Configuration form to define and set the value of properties that control the behavior of Oracle Identity Manager. Table 2-4 lists and describes the system properties of Oracle Identity Manager:

Note:

After you change a system property, you must clear the cache for the change to take effect. To clear the server cache, perform any one of the following steps:

• Enter the following command:

  - For Microsoft Windows:

  OIM_HOME\xellerate\bin\PurgeCache.bat category_name


  - For UNIX:

  OIM_HOME/xellerate/bin/PurgeCache.sh category_name


• Restart the application server.

Table 2-4 System Properties

Name	Description	Keyword	Value
Organization Process Inheritance	If a resource is added to an organization as permitted resource, then by setting this property to TRUE, the same resource is automatically added as the permitted resource for suborganizations.	XL.OrganizationProcessInherit	TRUE
Organization Process Restriction	Note: This property is for internal use by Oracle Identity Manager. You must not use this property.	XL.OrganizationProcessRestrict	FALSE
Base Help URL	Note: This property is for internal use by Oracle Identity Manager. You must not use this property.	XL.BaseHelpUrl	//docs/thortech.com/72/
Pending Cancelled Tasks	If this property is set to TRUE and tasks are configured to allow cancellation while they are pending, then these tasks are moved to Pending Cancelled (PX) status if the corresponding process instance is cancelled. If the property is set to FALSE, then tasks are moved to Cancelled (X) status when corresponding process instance is cancelled. Note that process instances are called by Oracle Identity Manager when the corresponding resource instances are revoked.	XL.PendingCancelled	true
Use Row Restriction	Note: This property is for internal use by Oracle Identity Manager. You must not use this property.	XL.UseRowRestriction	FALSE
Enable disabled resource instances when a user is enabled	If the value is TRUE, then the disabled resource instances are enabled when a user is enabled.	XL.EnableDisabledResources	TRUE
Proxy User Email Notification	The corresponding PTY_VALUE is the e-mail definition name that is sent when a proxy user is created. User gets a notification e-mail when the user is made proxy for some other user.	XL.ProxyNotificationTemplate	Notify Proxy User
Internal date format for reporting errors and reporting stored procedures	Date format used in stored procedure for reporting.	Reports.InternalDateFormat	mm/dd/yyyy
Property to indicate whether the auditing engine should send a JMS message	Note: This property is for internal use by Oracle Identity Manager. You must not use this property.	XL.SendAuditJMSMessage	false
Compiler Path for Connectors	Specifies the Java home depending on the application server. Note: If the path of the JDK directory is not included in the System Path variable, then you must set the path of the JDK directory in the XL.CompilerPath system property. If this is not done, then an error is encountered during the adapter compilation stage of the process performed when you import an XML file by using the Deployment Manager.	XL.CompilerPath
Record Read Limit	Sets the maximum number of records that can be displayed in a query result set.	XL.READ_LIMIT	500
Number of Questions	Sets the number of questions that must be completed by a user who is using the Web Application to reset the user's password.	PCQ.NO_OF_QUES	3
Use of Default Questions	Determines whether a user is required to answer questions defined in the Web Application, or if the user is required to provide his or her own questions.	PCQ.USE_DEF_QUES	TRUE
Force to set questions at startup	When the user logs into the Web Application for the first time, he/she must set the default questions for resetting his/her password.	PCQ.FORCE_SET_QUES	TRUE
Default Date Format	When creating reconciliation events by calling the APIs and date format is not passed as one of the arguments to the API, Oracle Identity Manager assumes that all the date field values are specified in Default Date Format. If no value is set for this system property, Oracle Identity Manager assumes the format to be yyyy/mm/dd hh:mm:ss z.	XL.DefaultDateFormat	yyyy/mm/dd hh:mm:ss z
Shows tasks assigned to group users with highest priority or least load only	If the value is TRUE, then the tasks are assigned to group users with highest priority or least load only when the assignment types are Group User With Highest Priority, Group User With Least Load, and so on.	XL.ShowTaskAssignedToGroup	FALSE
Property to indicate the duration in months of open tasks and pending approvals	Note: Do not use this property. It is retained in this release for internal use only. It will be removed in a future release of Oracle Identity Manager.	XL.OpenTasksPendingApproval	3
Property for counter display flag for open tasks and pending approvals	The following property entries are used to speed up the login process: Property Name: XL.WebAdminHome.CounterDisplay.Type Property Value: DayLimit If the above system property is set to DayLimit, then respective counter APIs will read the following system properties: XL.RequestRaisedByYou.DayLimit=30 XL.RequestRaisedForYou.DayLimit=30	XL.WebAdminHome.CounterDisplay	DayLimit
User Id reuse property	Determines whether a deleted user account can be reused. To reuse a deleted user account, assign this property a value of TRUE and drop the unique index for the USR_LOGIN column in the USR table and create a nonunique index. To prevent a user account from being reused, assign this property a value of FALSE.	XL.UserIDReuse	FALSE
Organization Self-Serviceable	Determines whether the default value for a process is self-serviceable and if it is set or not. This is used to determine which resources can be self requested. This is same as selecting the option from the Design Console. The only difference is that from here it is allowed for a particular organization.	ORG.SELF_SERVICEABLE_DEFAULT	FALSE
Property to indicate day limit set for pending approvals	Used prior to implementation of the Separation of active/non-active task feature to specify the duration for which the pending approval tasks would be fetched. Used at the API level to get the Pending approval related counters.	XL.PendingApproval.DayLimit	30
Property dictates whether database name will be displayed	If the value is TRUE, then the database name is displayed.	XL.TOOLBAR_DBNAME_DISPLAY	TRUE
Direct Provisioning vs. Request for Access Policy Conflicts	If multiple access policies are evaluated to be true for a user that requires the same resource to be provisioned and some of the policies are defined to provision resource with approvals and some without approval, and if the Direct Provisioning vs. Request for Access Policy Conflicts property is set to FALSE, then Oracle Identity Manager creates a request for provisioning the corresponding resource. If there are no conflicts, then resources are provisioned based on what is defined on the access policy.	XL.DirectProvision	FALSE
Organization Delete/Disable Action	If this property is set to TRUE, then users can disable/delete the organization even if the organization contains users and suborganizations. If this property is FALSE, then users cannot disable/delete the organization if the organization contains users and suborganizations. The default value is FALSE.	ORG.DisableDeleteActionEnabled	FALSE
Property to indicate day limit set for open provisioning tasks	Used prior to implementation of the separation of active or nonactive task feature to specify the duration for which the pending approval tasks would be fetched. This is used at the API level to get the Pending approval-related counters.	XL.OpenTask.DayLimit	30
Email Server	Name of the e-mail server.	XL.MailServer	Email Server
User Language	The user.language value is configured during installation for Locale handling at server side.	user.language	en
User Region	The user.region value is configured during installation for Locale handling at server side.	user.region	US
User Variant	The user.variant value is configured during installation for Locale handling at server side.	user.variant
Property to indicate day limit set for Request raised by you	Day limit value to fetch the requests raised by you in the past n number of days . Here, n is fetched from this property and is used to show counters for the same on the home page.	XL.RequestRaiseByYou.DayLimit	30
Property to indicate day limit set for Request raised for you	Day limit value to fetch the requests raised for you in the past n number of days. Here, n is fetched from this property and is used to show counters for the same on the home page.	XL.RequestRaiseForYou.DayLimi	30
Reassign Email Notification	Email Template name, which is sent when the task is re-assigned if no value found. The default value is Notify Task Reassign.	XL.ReassignNotificationTemplate	Notify Task Reassign
Force Password Change at First Login	If the value is TRUE, then the user is forced to change the password when the user logs in for the first time.	XL.ForcePasswordChangeAtFirstLogin	TRUE
Request complete status	Ensures that the request status is set to Request Complete after a object approval completes.	XL.RequestCompleteStatus	TRUE
Request Email	This property value contains an e-mail template name that is used for sending e-mail notifications when a request is Approved.	Request.Approval Email
Assign Task to Requesters Manager	Assign Task to Requesters Manager when the assignment type is Request Target User's Manager.	XL.AssignTaskToRequestersManager	true
Number of Correct Answers	This value represents how many questions the user must answer correctly to reset user password.	PCQ.NO_OF_CORRECT_ANSWERS	3
Maximum Number of Login Attempts	This value represents how many consecutive times the user can attempt to login to Oracle Identity Manager unsuccessfully before Oracle Identity Manager locks the user account. Note: If the user account is locked, then the user can unlock it by resetting the "challenge" questions associated with resetting the password.	XL.MaxLoginAttempts	3
Maximum Number of Password Reset Attempts	This value represents how many consecutive times the user can attempt to reset the password unsuccessfully before Oracle Identity Manager locks the user account. Important: When the user account is locked, the user cannot unlock it. If this occurs, then contact the system administrator.	XL.MaxPasswordResetAttempts	3
Self Registration Email From Address	The e-mail address from which the user, who raised a self-registration request, receives an e-mail.	XL.SelfRegistrationEmailFromAddress	[e-mail]
Profile Edit Email From Address	The e-mail address from which the user, who created a profile edit request, receives an e-mail.	XL.ProfileEditEmailFromAddress	[e-mail]
Is Self-Registration Allowed	If the value is TRUE, then the users are allowed to self-register.	XL.SelfRegistrationAllowed	TRUE
Does user have to provide challenge information during registration	If the value is TRUE, then users will have to provide challenge information during registration.	PCQ.PROVIDE_DURING_SELFREG	TRUE
Resource Form Data + task information for resources	Depending upon the property value such as Resource Form, NULL, the data will be populated in UPA table.	XL.UserProfileAuditDataCollection	Resource Form
Defines if UPA should be in the secondary DS	If the value is set to True, then auditing occurs in separate db. By default, it is set to False.	XL.UserProfileAuditInSecondaryDS	False
Use semicolon as delimiter in API parameters	This property is used to specify whether or not semicolon should be used as a delimiter to the API input parameter values. Some APIs accepted string input values that are separated by semicolon. This has been changed to use a vertical bar "|" instead. To keep backward compatibility, this new property can be used to go back to using semicolons. The default value is FALSE signifying the usage of "|". When set to TRUE, the input for those APIs are accepted with semicolon as separator.	XL.UseSemiColonAsDelimiter	FALSE
Enable exception reports	This property is used to enable the exception reporting feature. Exception reporting will be enabled only if the value is set to TRUE.	XL.EnableExceptionReports	FALSE

2.3 Service Accounts

Service accounts are general administrator accounts that are used for maintenance purpose. They are typically shared by a set of users. Service accounts are requested, provisioned, and managed in the same manner as regular accounts. A service account is distinguished from a regular account by an internal flag.

When a user is provisioned with a service account, Oracle Identity Manager manages a mapping from the user's identity to the service account. This user is considered the owner of the Service Account. When the user is deleted or the resource is revoked, the provisioning process for the service account does not get canceled, which would cause the undo tasks to fire. Instead, a task is inserted into the provisioning process in the same way Oracle Identity Manager handles Disable and Enable actions. This task removes the mapping from the user to the service account, and returns the service account to the pool of available accounts. This management capability is exposed through APIs.

Table 2-5 describes the service account management tasks and their corresponding APIs.

Table 2-5 Service Account Management Tasks and Corresponding APIs

Tasks	Description	API Methods
Service Account Change	You can change an existing regular account to be a service account or change an existing service account to be a regular account. If any of these changes occur, then the Service Account Change task is inserted in the provisioning process, becoming active in the Tasks tab of the Process Definition. Any adapter that is associated with this provisioning process runs. If there is no adapter, then a predefined response code is attached.	tcUserOperations.changeFromServiceAccount tcUserOperations.changeToServiceAccount
Service Account Alert	When a user is deleted or disabled to whom a service account is linked, the Service Account Alert task is inserted into the provisioning process of that service account instance. You can use this task to start the appropriate actions in response to the event that occurred for the user.	NA
Service Account Moved	You can transfer ownership of a service account from one user to another. This translates into the provisioning instance showing up in the resource profile of the new owner, and no longer in the resource profile of the old user. The Service Account Moved task is inserted into the provisioning process of the resource instance after the account is moved. Any adapter associated with this provisioning process runs. If there is no adapter, then a predefined response code is attached.	tcUserOperationsIntf.moveServiceAccount

2.4 Design Console Actions

Table 2-6 lists the Oracle Identity Manager actions, and the conditions and results of these actions.

Table 2-6 Oracle idenitty Manager Actions, Conditions, and Results

Action	Condition	Result
A user is deleted.	Oracle Identity Manager cancels all the existing tasks in process instance and inserts undo tasks for these tasks, if they are defined.	If so, then the condition for this task has been met (the user has been revoked), and Oracle Identity Manager inserts the task into the existing process. If the task has an adapter attached to it, then it will run.
A user is disabled.	Oracle Identity Manager checks each process for any tasks that display the Disable selection in the Task Effect combo box.	If so, then the condition for this task has been met (the user has been disabled), and Oracle Identity Manager inserts the task into the existing process. If the task has an adapter attached to it, then it will run.
A user is enabled.	Oracle Identity Manager checks each process for any tasks that display the Enable selection in the Task Effect combo box.	If so, then the condition for this task has been met (the user has been enabled), and Oracle Identity Manager inserts the task into the existing process. If the task has an adapter attached to it, then it will run.
A user's password has been modified on the Users form	Oracle Identity Manager checks each process to see if it has a Change User Password task.	If so, then the condition for this task has been met (the user's password has been modified), and Oracle Identity Manager inserts the task into all existing processes, which have that task defined. If the task has an adapter attached to it, then it will run.
The data fields of an application process form have been modified.	Oracle Identity Manager checks each process to see if it has a task that starts with the field label Updated naming convention (for example, HomeDirectory Updated).	The condition for this task is met (the process task begins with the field label Updated naming convention). Oracle Identity Manager inserts the task into all existing processes, which have that task defined. If the task has an adapter attached to it, then it will run.
A user's profile information has been moved to a different organization.	Oracle Identity Manager checks each process to see if it has a task that begins with the words Move User.	The condition for this task is met (the user's profile information has been moved to a different organization). Oracle Identity Manager inserts the task into the existing process. If the task has an adapter attached to it, then it will run.

2.5 Adapter Mapping Information

An adapter is a Java class, generated by the Adapter Factory, which enables Oracle Identity Manager to interact with an external JAR file, a target IT resource (for example, a resource asset), or a user-defined form. The Adapter Factory is a code-generation tool provided by Oracle Identity Manager, which enables a User Administrator to create Java classes.

An adapter extends the internal logic and functionality of Oracle Identity Manager. It automates process tasks, and defines the rules for the auto-generation and validation of data in fields within Oracle Identity Manager. There are five types of adapters: task assignment adapters, task adapters, rule generator adapters, pre-populate adapters, and entity adapters.

The following topics are discussed in this section:

• Adapter Task Mapping Information

• Adapter Variable Mapping Information

2.5.1 Adapter Task Mapping Information

An adapter task is one of the several possible components within an adapter. And this is a logical step within an adapter, equivalent to calling a programming language method. The following types of adapter tasks are available: Functional Tasks (Java Task, Remote Task, and Stored Procedure Task), Utility Tasks (Utility Task and Oracle Identity Manager API Task), and Logic Tasks (Set Variable Task and Error Handler Task).

This section lists the mappings that you can set for the parameters of an adapter task, in the following topics:

• Adapter Variables

• Adapter Task

• Literal

• Adapter References

• Organization Definition

• Process Definition

• User Definition

2.5.1.1 Adapter Variables

The following table lists and describes the items of the Map To list box of the Data Mapping for Variable window and the Name list box to which you can map the parameters of an adapter variable for an adapter task.

Map To Combo Box	Name Combo Box	Description
Adapter Variables	A list of adapter variables are displayed	You can map the parameter to the adapter variables that you created for this adapter. Note: When the adapter variable's classification type is Object, it cannot be used with process task adapters. Note: If the adapter variable's classification type is IT Resource, then an Attribute combo box is displayed. From this combo box, select the attribute of the IT resource to which you wish to map the parameter.

2.5.1.2 Adapter Task

The following table lists and describes the items of the Map To, Name, and Output combo boxes of the Adapter Factory form to which you can map the parameters of an adapter task.

Map To Combo Box	Name Combo Box	Output combo Box	Description
Adapter Task	A list of adapter tasks are displayed.	A list of output variables pertaining to the selected adapter task is displayed.	You can map the parameter to the adapter tasks that you created for this adapter.

2.5.1.3 Literal

The following table lists and describes the items of the Map To and Type combo boxes, as well as the Value field of the Adapter Factory form, to which you can map the parameters of a constant (or literal) for an adapter task.

Map To Combo Box	Type Combo Box	Value Field	Description
Literal	String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	Enter the value of the literal into this field.	You can map the parameter to a String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, or Double data type, respectively.

2.5.1.4 Adapter References

The following table lists and describes the items of the Map To and Type combo boxes of the Adapter Factory form to which you can map the parameters of an adapter reference for an adapter task.

Map To Combo Box	Type Combo Box	Description
Adapter References	Event Handler Name or Database Reference	You can map the parameter to the active adapter.

2.5.1.5 Organization Definition

The following table lists and describes the items of the Map To and Field combo boxes of the Adapter Factory form to which you can map the parameters of an organization definition for an adapter task.

Map To combo box	Field Combo Box	Description
Organization Definition	Organization Name	You can map the parameter to the Organization Name field of the Organizations form.
	Organization Type	You can map the parameter to the Type field of the Organizations form.
	Organization ID	You can map the parameter to the Organization # field of the Organizations form.
	Organization Parent	You can map the parameter to the Parent Organization field of the Organizations form.
	Organization Status	You can map the parameter to the Status field of the Organizations form.
	Organization Parent ID	You can map the parameter to the parent_key field in the ACT database table.
	Any fields that are displayed in the User Defined Fields tab of the Organizations form.	You can map the parameter to the selected user-defined field.

2.5.1.6 Process Definition

The following table lists and describes the items of the Map To and Field combo boxes of the Adapter Factory form to which you can map the parameters of a process definition for an adapter task.

Map To Combo Box	Field Combo Box	Description
Process Definition	Name	You can map the parameter to the Name field of the Process Definition form.
	Type	You can map the parameter to the Type field of the Process Definition form.

2.5.1.7 User Definition

The following table lists and describes the items of the Map To and Field combo boxes of the Adapter Factory form to which you can map the parameters of a user definition for an adapter task.

Map To Combo Box	Field Combo Box	Description
User Definition	User Key	You can map the parameter to a key, representing a unique record of the Users form.
	First Name	You can map the parameter to the First Name field of the Users form.
	Middle Initial	You can map the parameter to the Middle Name field of the Users form.
	Last Name	You can map the parameter to the Last Name field of the Users form.
	User Login	You can map the parameter to the User ID field of the Users form.
	Password	You can map the parameter to the New Password and Confirm Password fields of the Users form.
	Type	You can map the parameter to the Xellerate Type field of the Users form.
	User Status	You can map the parameter to the Status field of the Users form.
	Role	You can map the parameter to the Role field of the Users form.
	Identity	You can map the parameter to the Identity field of the Users form.
	Disabled	You can map the parameter to the Disable User check box of the Users form.
	Organization	You can map the parameter to the Organization field of the Users form.
	Manager	You can map the parameter to the Manager field of the Users form.
	Start Date	You can map the parameter to the Start Date field of the Users form.
	End Date	You can map the parameter to the End Date field of the Users form.
	Email	You can map the parameter to the Email field of the Users form.
	Any fields that are displayed in the User Defined Fields tab of the Users form.	You can map the parameter to the selected user-defined field.

2.5.2 Adapter Variable Mapping Information

For a newly created adapter to work, you can map data to the parameters of the adapter's tasks. For this reason, you create placeholders, also known as adapter variables, to map the data at run time. Once an adapter variable is not needed for the adapter to run, you can remove it from the adapter. After you have deleted the adapter variable, recompile the adapter.

When an adapter variable is not the adapter return variable, or it is not designated as Resolve at Run time, it should be mapped within the Variable List tab of the Adapter Factory form. On the other hand, if the adapter variable is classified as an adapter return variable, or the adapter variable is set to Resolve at Run time, it can be mapped at another location within Oracle Identity Manager. This location is contingent upon the adapter's type. For example, the variables of a process task adapter will be mapped at a different place than the variables of a pre-populate adapter. The following table lists the variables of a particular type of adapter that can be mapped.

Adapter Type	Location
Process Task	The Integration tab of the Editing Task window
Task Assignment	The Assignment tab of the Editing Task window
Rule Generator	The Map Adapters tab of the Data Object Manager form
Pre-Populate	The Pre-Populate tab of the Form Designer form
Entity	The Map Adapters tab of the Data Object Manager form

The following topics are discussed in this section:

• From the Variable List Tab

• Process Task Adapter Variable Mappings

• Task Assignment Adapter Variable Mappings

• Rule Generator and Entity Adapter Variable Mappings

• Prepopulate Adapter Variable Mappings

2.5.2.1 From the Variable List Tab

The following table lists the mappings that you can set from the Variable List tab.

Variable Type	Map To	Qualifier/Resource Type
Object	Adapter References	Database References
		Data Object References
	Set at run time (for Task Assignment adapters only)	Database References
		Data Object References
IT Resource	Resolve at Run time	The IT Resource types that are displayed in the Table view of the IT Resources Type Definition form
String, Character, Byte, Integer, Float, Long, Short, Double	Literal	If you are mapping the adapter variable to a literal, a Literal Value field is displayed below the Resource Type combo box. Within this field, enter the value of this literal.
	Resolve at Run time	NA
	Adapter References	Event Handler Name Note: If the data type of the adapter variable is not String, Adapter References cannot be selected from the Map To combo box.
Boolean	Literal	Boolean. If you select this resource type, two Literal Value options are displayed below the Resource Type combo box: True and False. Select the option that corresponds to the value of the adapter variable.
	Resolve at Run time	NA
Date	Literal	If you are mapping the adapter variable to a literal, a Literal Value lookup field is displayed below the Resource Type combo box. Double-click this lookup field. From the Date & Time window that is displayed, select the date and time that will be the value of this literal.
	Resolve at Run time	NA
	System Date	NA Note: This variable's value will reflect Oracle Identity Manager's date and time. Hence, you do not map it.

2.5.2.2 Process Task Adapter Variable Mappings

The following table lists the process task adapter variable mappings.

Variable Type	Map To	Qualifier/Description
Object (Adapter Return Variable)	Process Data	You can map the parameter to a field of either the associated custom process form, or a child table that belongs to this form.
	Response Code	NA
	Task Information	Note. You can map the parameter to the Note tab of the Task List form. Reason. You can map the parameter to the Error Details window. To access this window, double-click a task that is displayed within the Task List form.
	Process Definition	Name. You can map the parameter to the Name field of the Process Definition form. Type. You can map the parameter to the Type lookup field of the Process Definition form.
Object (Adapter Return Variable)	Organization Definition	The fields of the Organizations form to which you can map the adapter variable. Note: Because the data type of the adapter variable is Object, you cannot select Organization ID and Organization Parent ID from the Qualifier combo box.
	User Definition	The fields of the Users form to which you can map the adapter variable.
IT Resource	IT Resource	You can map the parameter to an IT resource. This IT resource is a member of the IT resource type that is displayed in parenthesis from within the Data Type field.
	Process Data	You can map the parameter to a field of the associated process-specific form. Note: The only field names that are displayed in this combo box are ones with a data type of IT Resource Lookup Field.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	Process Data	You can map the parameter to a field of either the associated custom process form, or a child table that belongs to this form.
	Task Information	Note. You can map the parameter to the Note tab of the Task List form.
		Reason. You can map the parameter to the Error Details window. To access this window, double-click a task that is displayed within the Task List form.
	Process Definition	Name. You can map the parameter to the Name field of the Process Definition form.
		Type. You can map the parameter to the Type lookup field of the Process Definition form.
	Organization Definition	The fields of the Organizations form to which you can map the adapter variable.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	User Definition	The fields of the Users form to which you can map the adapter variable.
	Literal	If you are mapping the adapter variable to a literal, and the variable's data type is String, Character, Byte, Integer, Float, Long, Short, or Double, a Literal Value field is displayed below the Qualifier combo box. Within the field, enter the value of this literal. When you are mapping the adapter variable to a literal, and the variable's data type is Boolean, two Literal Value options are displayed below the Qualifier combo box: True and False. Select the option that corresponds to the value of the adapter variable. If you are mapping the adapter variable to a literal, and the variable's data type is Date, a Literal Value lookup field is displayed below the Qualifier combo box. Double-click this lookup field. From the Date & Time window that is displayed, select the date and time that will be the value of this literal.
String	IT Resources	If you are mapping the adapter variable to an IT Resource, three combo boxes are displayed below the Map To combo box: Qualifier, IT Asset Type, and IT Asset Property. From these combo boxes, select the qualifier for the mapping, the specific name of the IT resource, and the field of the IT resource that will receive the results of the mapping. Note: If the data type of the adapter variable is not String, IT Resources cannot be selected from the Map To combo box.

2.5.2.3 Task Assignment Adapter Variable Mappings

The following table lists the task assignment adapter variable mappings.

Variable Type	Map To	Qualifier/Description
IT Resource	Object Data	You can map the parameter to an IT resource's instance key. This IT resource is a member of the IT resource type that is displayed in parenthesis from within the Data Type field.
	IT Resource	You can map the parameter to an IT resource.
Object (Adapter Return Value)	Object Data	You can map the parameter to a field of either the associated custom resource object form, or a child table that belongs to this form.
	Response Code	NA
	Task Information	The fields of the Task List form to which you can map the adapter variable.
	Process Definition	The fields of the Process Definition form to which you can map the adapter variable.
	Organization Definition	The fields of the Organizations form to which you can map the adapter variable.
	User Definition	The fields of the Users form to which you can map the adapter variable.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	Object Data	You can map the parameter to a resource object's instance key.
	Task Information	The fields of the Task List form to which you can map the adapter variable.
	Process Definition	The fields of the Process Definition form to which you can map the adapter variable.
	Organization Definition	The fields of the Organizations form to which you can map the adapter variable.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	User Definition	The fields of the Users form to which you can map the adapter variable.
	Request Info	Request ID. You can map the parameter to the Request ID field of the Requests form.
		Request Action. You can map the parameter to the Request Action field of the Requests form.
		Request Priority. You can map the parameter to the Request Priority field of the Requests form.
	Request Target User	The fields of the Users form to which you can map the adapter variable.
	Request Target Organization	The fields of the Organizations form to which you can map the adapter variable.
	Requester Info	The fields of the Users form to which you can map the adapter variable.
	Literal	If you are mapping the adapter variable to a literal, a Literal Value field is displayed below the Qualifier combo box. Within the field, enter the value of this literal. Note: If the data type of the adapter variable is Boolean, two options are displayed in place of the field: True and False. Select the option that reflects the value of the adapter variable. Note: If the data type of the adapter variable is Object, Literal cannot be selected from the Map To combo box.
String	IT Resources	Resource Instance. You can map the parameter to an IT resource's instance key. This IT resource is a member of the IT resource type that is displayed in parenthesis from within the Data Type field.
		IT Asset Type. You can map the parameter to an IT resource type.
String	IT Resources	IT Asset Property. You can map this parameter to one of the properties that comprise the selected IT resource type.

2.5.2.4 Rule Generator and Entity Adapter Variable Mappings

The following table lists the rule generator and entity adapter variable mappings.

Variable Type	Map To	Qualifier/Description
Object (Adapter Return Variable), IT Resource, String, Boolean, Character, Byte, Date, Integer, Float, Long, Short	Literal	If you are mapping the adapter variable to a literal, a Literal Value field is displayed below the Qualifier combo box. Within the field, enter the value of this literal. Note: If the data type of the adapter variable is Object, Literal cannot be selected from the Map To combo box.
	Entity Field	You can map the adapter variable to a field of the associated process form. The name of this form is displayed in the Form Description field of the Data Object Manager form.
	Contact	The fields of the Contact Information tab to which you can map the adapter variable.
	Location	The fields of the Location form to which you can map the adapter variable.
	Organization Definition	The fields of the Organizations form to which you can map the adapter variable. Note: If the data type of the adapter variable is not Object, you cannot select Organization ID and Organization Parent ID from the Qualifier combo box.
	User Definition	The fields of the Users form to which you can map the adapter variable.

2.5.2.5 Prepopulate Adapter Variable Mappings

The following table lists the prepopulate adapter variable mappings.

Variable Type	Map To	Qualifier/Description
IT Resource	IT Resource	You can map the parameter to an IT resource. This IT resource is a member of the IT resource type that is displayed in parenthesis from within the Data Type field.
	Process Data	You can map the parameter to a field of the associated process-specific form. Note: The only field names that are displayed in this combo box are ones with a data type of IT Resource Lookup Field.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	Process Data	You can map the parameter to a field of the associated process-specific form.
	Organization Definition	The fields of the Organizations form to which you can map the adapter variable.
	User Definition	The fields of the Users form to which you can map the adapter variable.
	Location	The fields of the Location form to which you can map the adapter variable.
	Contact	The fields of the Contact Information tab to which you can map the adapter variable.
String, Boolean, Character, Byte, Date, Integer, Float, Long, Short, Double	Literal	If you are mapping the adapter variable to a literal, and the variable's data type is String, Character, Byte, Integer, Float, Long, Short, or Double, a Literal Value field is displayed below the Qualifier combo box. Within the field, enter the value of this literal. When you are mapping the adapter variable to a literal, and the variable's data type is Boolean, two Literal Value options are displayed below the Qualifier combo box: True and False. Select the option that corresponds to the value of the adapter variable. If you are mapping the adapter variable to a literal, and the variable's data type is Date, a Literal Value lookup field is displayed below the Qualifier combo box. Double-click this lookup field. From the Date & Time window that is displayed, select the date and time that will be the value of this literal.
String	IT Resources	If you are mapping the adapter variable to an IT Resource, three combo boxes are displayed below the Map To combo box: Qualifier, IT Asset Type, and IT Asset Property. From these combo boxes, select the qualifier for the mapping, the specific name of the IT resource, and the field of the IT resource that will receive the results of the mapping. Note: If the data type of the adapter variable is not String, then IT Resources cannot be selected from the Map To combo box.
