Getting Started with JD Edwards EnterpriseOne Integration with Oracle Transportation Management

This chapter provides an overview of the JD Edwards EnterpriseOne integration with Oracle Transportation Management.

JD Edwards EnterpriseOne Integration with Oracle Transportation Management Overview

The integration of JD Edwards EnterpriseOne and Oracle Transportation Management enhances Oracle's EnterpriseOne solution by providing robust transportation planning and execution capabilities for shippers and third-party logistics providers. This integration:

Enables the streamlining of all transportation planning, transportation execution, and freight payment on a single application.
Provides a complete collaborative solution for logistics operations, suppliers, service providers, carriers, customers, purchasing, and finance.
Accommodates all modes of transportation from full truckload to complex multi-leg air, ocean, and rail shipments.
Lowers transportation costs and improves customer service and asset utilization, while providing flexible, global fulfillment options.
Increases supply chain reliability, customer service levels, and asset utilization.
Improves process efficiencies, high performance optimization, and seamless order processing

An additional benefit is that JD Edwards EnterpriseOne provides choices, so that customers may:

Implement JD Edwards EnterpriseOne to Oracle Transportation Management whereby implementing the JD Edwards EnterpriseOne Transportation Management system is not required.
Continue using the JD Edwards EnterpriseOne module without using Oracle Transportation Management.
Run both JD Edwards EnterpriseOne and Oracle Transportation Management systems parallel to one another.

Products

This implementation guide documents the integrations between these JD Edwards EnterpriseOne applications and Oracle Transportation Management:

JD Edwards EnterpriseOne Accounts Payable
JD Edwards EnterpriseOne Accounts Receivable
JD Edwards EnterpriseOne Address Book
JD Edwards EnterpriseOne General Accounting
JD Edwards EnterpriseOne Inventory Management
JD Edwards EnterpriseOne Procurement and Subcontractor Management
JD Edwards EnterpriseOne Sales Order Management

When determining which electronic software updates (ESUs) to install for JD Edwards EnterpriseOne integration with Oracle Transportation Management, use the JD Edwards EnterpriseOne and JD Edwards World Change Assistant. JD Edwards EnterpriseOne and JD Edwards World Change Assistant, a Java-based tool, reduces the time required to search and download ESUs by 75 percent or more, and enables you to install multiple ESUs at one time.

Features

The Oracle Transportation Management features that benefit the JD Edwards EnterpriseOne system include:

Global transportation (multi-modal, multi-leg).
Automated planning and optimization.
Freight rating and routing.
Transportation visibility and tracking.
Planning and optimization.
High-volume shipments.

Functional Interface

JD Edwards EnterpriseOne interacts with Oracle Transportation Management in two functional areas:

Functional Area	Description
Sales Order Management	You create sales orders in the JD Edwards EnterpriseOne Sales Order Management system. The JD Edwards EnterpriseOne system sends the sales order information to the Oracle Transportation Management system to arrange transportation for the sold inventory. The Oracle Transportation Management system arranges the transportation and sends the shipment information to the JD Edwards EnterpriseOne Sales Order Management system. The JD Edwards EnterpriseOne system sends the shipment confirmation to Oracle Transportation Management. After accepting the JD Edwards EnterpriseOne shipment confirmation, Oracle Transportation Management executes transportation confirmation back to JD Edwards EnterpriseOne Sales Order Management. It also sends voucher information to the JD Edwards EnterpriseOne Accounts Payable system for payment.
Procurement	You create purchase orders in the JD Edwards EnterpriseOne Procurement system. The JD Edwards EnterpriseOne system sends the purchase order information to the Oracle Transportation Management system to arrange transportation for the purchased inventory. The Oracle Transportation Management system arranges shipment and does all of the planning. It then sends voucher information to the JD Edwards EnterpriseOne Accounts Payable system for payment.

Integrations

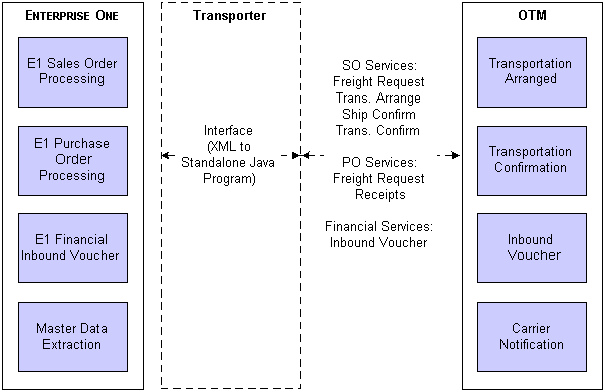

This diagram illustrates the four main areas in the integration process:

JD Edwards EnterpriseOne to Oracle Transportation Management Integration

The four main areas for integration are:

Sales order processing.
Purchase order processing.
Financials.
Master Data Extraction.

The JD Edwards EnterpriseOne system transmits information to and from Oracle Transportation Management via HTTP post. The system transmits the data in XML format based on the Oracle Transportation Management Schema. The Schema name is GLogXML-v2001.xsd and located at URL http://www-apps.us.oracle.com/otm/.

The sales order integration points include:

Sales Freight Request.
Sales Transportation Arranged.
Sales Ship Confirmation.
Sales Transportation Confirmation.

The purchase order integration points include:

Purchase Order Freight Request.
Purchase Order Close/Cancel.

Both sales order and purchase order integrations use the same inbound logic for the Inbound Voucher process. You must set up Java programs. Access the Update Center for instructions.
