Creating an Oracle TSAM Agent Custom Plug-in

This chapter contains the following sections:

•

Overview

•	Developing a Oracle TSAM Agent Plug-in

•	Oracle TSAM Agent Plug-in Interface

•	Oracle TSAM Agent Plug-in Implementation

•	Oracle TSAM Agent Plug-in Development/Deployment Notes

Overview

Tuxedo has a built-in plug-in framework that facilitates additional functionality. For example, the Tuxedo security mechanism is constructed on the plug-in framework. Tuxedo defines an interface set as a contract between a service provider and end user. The term “service” here is used as a general term; not a Tuxedo ATMI service. Oracle TSAM Agent also use the Tuxedo plug-in framework to attach different data receivers.

Tuxedo Plug-in Framework Concepts

The following section highlights Oracle Tuxedo plug-in framework key concepts.

Interface

An Interface is the contract format between the plug-in implementation and the plug-in caller. An interface requires the following attributes:

•	Interface ID

The interface ID is the name of the interface that is uniquely identified in the Tuxedo plug-in framework and uses the following format:

<interface id> ::= <component name>[/<sub-component/name>]/<interface name>

The Oracle TSAM Agent plug-in uses the following format:

engine/performance/monitoring

•

Version

An interface has two versions, the major version number and minor version number.

•	Data Structure and Function Declaration

The data structure defines the concrete information conveyed between plug-in caller and implementation.The function declaration defines the routines must be implemented by plug-in.

Implementation

A plug-in is a dynamic library written in C code. The library implements the methods specified by the interface. The Tuxedo plug-in framework supports multiple implementations (interceptors) for one interface.

Tuxedo supports two types of interceptors: Fan-out interceptors and Stack interceptors. The Oracle TSAM Agent uses the Fan-out interceptors. Figure 3‑1 displays the Oracle TSAM Agent plug-in architecture.

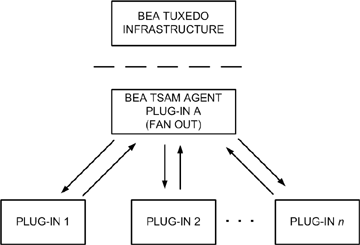

Figure 3‑1 Oracle TSAM Agent Plug-in Architecture

When the Tuxedo infrastructure invokes plug-in A method X, plug-in A invokes method X of the intercepting plug-ins in the order specified by the InterceptionSeq attribute as follows:

•	Plug-in method X is invoked

•	Plug-in 1 method X is returned

•	Plug-in 2 method X is invoked

•	Plug-in 2 method X is returned

•	Plug-in n method X is invoked

•	Plug-in n method X of is returned

All plug-ins involved in the interceptor implement the same interface. Multiple occurrences of the same plug-in are not allowed in an interception sequence.

Oracle TSAM Agent provides the Fan-out plug-in which allows you to write/create an interceptor plug-in.

Plug-in Register/Un-register/Modifications

Once the plug-in written it must be registered in the Tuxedo registry so that the functional components will locate the plug-in and invoke the appropriate methods. Tuxedo provides three commands specifically for plug-in use:

•	epifreg: registers a plug-in

•	epifunreg: un-registers a plug-in

•	epifregedt: edits a plug-in

Developing a Oracle TSAM Agent Plug-in

Oracle TSAM Agent plug-in invocation begins at the monitoring points. The Oracle TSAM Agent collects and computes the metrics, and composes the arguments passed to the plug-in. The Oracle TSAM Agent Fan-out plug-in invokes the interceptor plug-in according to the registration sequence.

A simple Oracle TSAM custom plug-in development example is provided as a guideline. The system environment is Solaris on Sparc. The functionality is basic and just prints out the metrics buffers. This plug-in works together with the Oracle TSAM Agent default plug-in.

1.	Create Plug-in Source Code

2.	Build the Plug-in

3.	Register the Plug-in

4.	Enable Oracle TSAM Monitoring

5.	Run a Call and Check the Standard Output.

Create Plug-in Source Code

Listing 3‑1 displays an example of the Oracle TSAM plug-in customplugin.c.

Listing 3‑1 Oracle TSAM Agent customplugin.c Plug-in Source Code Example

#include <e_pif.h>
#include <tpadm.h>
#include <fml32.h>
#include <e_perf_mon.h>

static TM32I _TMDLLENTRY print_app(
       perf_mon_1 *,
       FBFR32 **,
       MONITORCTL *,
       TM32U);

static TM32I _TMDLLENTRY print_svc(
       perf_mon_1 *,
       FBFR32 **,
       MONITORCTL *,
       TM32U);

static TM32I _TMDLLENTRY print_sys(
       perf_mon_1 *,
       FBFR32 **,
       MONITORCTL *,
       TM32U);

static TM32I _TMDLLENTRY print_tran(
       perf_mon_1 *,
       FBFR32 **,
       MONITORCTL *,
       TM32U);

static TM32I _TMDLLENTRY plugin_destroy (
       _TCADEF,
       const struct _e_pif_instance_handles *,
       TM32U);

static TM32I _TMDLLENTRY plugin_copy (_TCADEF,
       void *,
       const struct _e_pif_interception_data *,
       struct _e_pif_instance_handles *,
       TM32U);

static const perf_mon_1 Vtblperfapp_1 = {
       print_app,
       print_svc,
       print_sys,
       print_tran,
};

static const _e_pif_plugin_info perf_mon_1_info = {
       { 1, 0 }, /* interface major version */
       { 1, 0 }, /* implementation */
       "abc/tuxedo/tsam", /* implementation id */
       ED_PERF_MON_INTF_ID, /* interface id */
       4, /* virtual table size */
       "ABC, Inc.", /* vendor */
       "Custom Plug-in for Oracle TSAM", /* product name */
       "1.0", /* vendor version */
       EF_PIF_SINGLETON, /* m_flags */
       plugin_destroy,
       plugin_copy
};

int _TMDLLENTRY
plugin_entry(_TCADEF, const char *pIId,
       const char *pImplId,
       const struct _e_pif_iversion *version,
       const struct _e_pif_data *pData,
       const struct _e_pif_interception_data *pInterceptionData,
       struct _e_pif_instance_handles *pI,
       TM32U flags)
{
       const char * const * regData = pData->regdata;
        char *logfile = NULL;

       pI->pVtbl = (void *) &Vtblperfapp_1;
       pI->pPluginInfo = (_e_pif_plugin_info *) &perf_mon_1_info;
       pI->pPrivData = NULL;
return (EE_SUCCESS);
}


static TM32I _TMDLLENTRY
plugin_destroy (_TCADEF, const struct _e_pif_instance_handles *pIhandles,
       TM32U flags)
{
       return(EE_SUCCESS);
}


static TM32I _TMDLLENTRY
plugin_copy (_TCADEF, void *iP,
       const struct _e_pif_interception_data *pInterceptionData,
       struct _e_pif_instance_handles *pIhandles,
       TM32U flags)
{
       return(EE_SUCCESS);
}
static TM32I _TMDLLENTRY print_app(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)
{
       Fprint32(*buf);
       return(0);
}

static TM32I _TMDLLENTRY print_svc(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)
{
       Fprint32(*buf);
       return(0);
}

static TM32I _TMDLLENTRY print_sys(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)
{
       Fprint32(*buf);
       return(0);
}
static TM32I _TMDLLENTRY print_tran(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)
{
       Fprint32(*buf);
       return(0);
}



Build the Plug-in

cc -c customplugin.c -I$TUXDIR/include

cc -G -KPIC -o customplugin.so -L$TUXDIR/lib -lfml customplugin.o

Register the Plug-in

To register the plug-in, do the following steps:

1.	Shutdown your tuxedo application by “tmshutdown”

2.	Compose a shell script named “reg.sh”

3.	Run the script

sh ./reg.sh

4.	Boot your Tuxedo applications by "tmboot"

Listing 3‑2 displays an example of the reg.sh shell script

Listing 3‑2 reg.h Shell Script

#!/bin/sh
epifreg -r -p abc/tuxedo/tsam -i engine/performance/monitoring \
-o SYSTEM -v 1.0 \
-f $APPDIR/customplugin.so -e plugin_entry
epifregedt -s -k "SYSTEM/impl/bea/performance/monfan" \
-a InterceptionSeq=bea/performance/monshm \
-a InterceptionSeq=abc/tuxedo/tsam \



Enable Oracle TSAM Monitoring

Enable Oracle TSAM Monitoring by defining the proper monitoring policy through Oracle TSAM console

For more information, see the Oracle TSAM Administration Guide and Oracle TSAM Users Guide.

Run a Call and Check the Standard Output.

You will find the metrics collected printed out.

Listing 3‑3 displays the metrics print out.

Listing 3‑3 Metrics Print Out Example

TA_MONDEPTH 1
TA_MONSTATUS 1
TA_MONPROCTYPE 2
TA_PID 2459
TA_SRVID 10
TA_MONLOGTIMESEC 1259292914
TA_MONLOGTIMEUSEC 26411
TA_MONFIELDSMAP1 -1
TA_MONFIELDSMAP2 -1
TA_MONMSGSIZE 24
TA_MONMSGQUEUED 0
TA_MONLASTTIMESEC 1259292914
TA_MONLASTTIMEUSEC 26411
TA_MONSTARTTIMESEC 1259292914
TA_MONSTARTTIMEUSEC 10500
TA_MONELAPSETIME 15
TA_DOMAINID dom2:bjsol16:66536
TA_GROUPNAME ATMIGRP1
TA_LMID L1
TA_MONTYPE APP
TA_MONCORRID dom2:bjsol16:66536 L1 tuxclient 2478 1 1 1259292909
TA_MONMSGTYPE ARQ
TA_MONSTAGE Q2ME

TA_MONSVCNAME I_TOUPPER
TA_MONHOSTSVC I_TOUPPER
TA_MONSVCSEQ INITIATOR-I_TOUPPER-11659-0
TA_MONPSVCSEQ INITIATOR
TA_MONQID 1879048194-00010.00010
TA_MONPROCNAME tux_atmi_svr

TA_MONDEPTH 1
TA_MONSTATUS 1
TA_MONPROCTYPE 2
TA_PID 2459
TA_SRVID 10
TA_MONLOGTIMESEC 1259292914
TA_MONLOGTIMEUSEC 29368
TA_MONFIELDSMAP1 -1
TA_MONFIELDSMAP2 -1
TA_MONMSGSIZE 100
TA_MONLASTTIMESEC 1259292914
TA_MONLASTTIMEUSEC 29368
TA_MONSTARTTIMESEC 1259292914
TA_MONSTARTTIMEUSEC 10500
TA_MONERRNO 0
TA_MONURCODE 1
TA_MONELAPSETIME 18
TA_DOMAINID dom2:bjsol16:66536
TA_GROUPNAME ATMIGRP1
TA_LMID L1
TA_MONTYPE APP
TA_MONCORRID dom2:bjsol16:66536 L1 tuxclient 2478 1 1 1259292909
TA_MONMSGTYPE ARP
TA_MONSTAGE ME2Q
TA_MONSVCNAME I_TOUPPER
TA_MONHOSTSVC I_TOUPPER
TA_MONSVCSEQ INITIATOR-I_TOUPPER-11659-0
TA_MONPSVCSEQ INITIATOR
TA_MONPROCNAME tux_atmi_svr



Oracle TSAM Agent Plug-in Interface

All Oracle TSAM Plug-in interface contents are defined in the $TUXDIR/include/e_perf_mon.h file. When you build a Oracle TSAM Plug-in, this file must be included in your plug-in source code

. The $TUXDIR/include/e_perf_mon.h file definitions are as follows:

•	Version and Interface Identifier

•	Function Table

Version and Interface Identifier

Listing 3‑4 provides a version and identifier example.

Listing 3‑4 Version and Interface Identifier

#define ED_PERF_MON_MAJOR_VERSION 1
#define ED_PERF_MON_MINOR_VERSION 0
/* Interfaces defined in this module */
#define ED_PERF_MON_INTF_ID "engine/performance/monitoring"
Value Definitions and Data Structure



Listing 3‑5 displays the Oracle TSAM framework and plug-in core data structure.

Listing 3‑5 Core Data Structure

typedef struct {
unsigned char fieldsmap[MAXMAPSIZE];
char monitoring_policy[MAXPOLICYLEN]; /* monitor policy */
char corr_id[MAXCORRIDLEN]; /* plug-in supplied correlation ID */
int ulen;
void * udata;
long mon_flag;
} MONITORCTL;



Table 3‑1 lists the MONITORCTL members.



Table 3‑1 MONITORCTL Members

Members	Description
monitoring_policy	Internal use only
corr_id	It is used to bring the corralling ID from plug-in to TSAM framework
ulen	The data length of the application buffer.
udata	The application buffer. It is a typed buffer and only available for call path monitoring and service monitoring. tptypes(5) can be used to check the type and subtype.
mon_flag	The flag set both by TSAM framework and plug-in to indicate the requirement and changes.

Table 3‑2 lists the MONITORCTL array size definitions. Table 3‑3 lists the mon_flag Values.



Table 3‑2 MONITORCTL Array Size Definitions

Array	Size Description
/* Size of fieldsmap*/	#define MAXMAPSIZE 128
/* Size of monitoring_policy */	#define MAXPOLICYLEN 128
/* Size of corr_id*/	#define MAXCORRIDLEN 256



Table 3‑3 mon_flag Values

Members	Description
#define PI_CORRID_REQUIRED 0x00000001	PI_CORRID_REQUIRED is set by TSAM framework when a call path monitoring is started. It means the plug-in must supply a correlation ID to the framework by the corr_id member of MONITORCTL.

Function Table

Listing 3‑6 defines the plug-in implementation method function table.

Listing 3‑6 Plug-in Implementation Method Function Table

typedef struct perf_mon_1_Vtbl {

       TM32I (_TMDLLENTRY *_ec_perf_mon_app) _((
                        struct perf_mon_1_Vtbl * ip,
                        FBFR32 **buf,
                        MONITORCTL *mon_ctl,
                        TM32U flags
       ));
       TM32I (_TMDLLENTRY *_ec_perf_mon_svc) _((
                        struct perf_mon_1_Vtbl * ip,
                        FBFR32 **buf,
                        MONITORCTL *mon_ctl,
                        TM32U flags
       ));
       TM32I (_TMDLLENTRY *_ec_perf_mon_sys) _((
                        struct perf_mon_1_Vtbl * ip,
                        FBFR32 **buf,
                        MONITORCTL *mon_ctl,
                        TM32U flags
       ));
       TM32I (_TMDLLENTRY *_ec_perf_mon_tran) _((
                        struct perf_mon_1_Vtbl * ip,
                        FBFR32 **buf,
                        MONITORCTL *mon_ctl,
                        TM32U flags
       ));
} perf_mon_1, *perf_mon_1_ptr;



Each method corresponds to a monitoring type. “_ec_perf_mon_app” is for call path monitoring, “_ec_perf_mon_svc” is for service monitoring, “_ec_perf_mon_sys” is for system server monitoring and “_ec_perf_mon_tran” is for transaction monitoring. Each method will be invoked at the corresponding monitoring type’s monitoring points.The method arguments are:

•	struct perf_mon_1_Vtbl *ip: the virtual table pointer e.

Note:

Not required for custom plug-ins.

•	FBFR32 **buf: the address of the metrics buffer in FML32 type.

•	MONITORCTL *mon_ctl: the control structure.

•	TM32U flags: the bit flag in a 32-byte, unsigned integer.

Other Help Header Files

•	$TUXDIR/include/e_pif.h

The Tuxedo general plug-in definition file. It must be included in the plug-in source code.

•	$TUXDIR/include/tpadm.h

It is the Tuxedo built-in FML32 fields definition files. All performance metrics are defined as FML32 fields and some performance metrics are defined in this file

•	$TUXDIR/include/monflds.h

The TSAM built-in FML32 fields definition files. All performance metrics are defined in this file beside the tpadm.h

•	$TUXDIR/include/fml32.h

The metrics collected are stored in a Tuxedo FML32 buffer. To access these items, FML32 routines must be used; fml32.h must be included.

Oracle TSAM Agent Plug-in Implementation

Oracle TSAM Agent plug-in implementation requires the following steps:

1.	Define “perf_mon_1” in the “e_perf_mon.h” Function Table

2.	Define the Plug-in Information Variable

3.	Write the Plug-in Entry Routine

Define “perf_mon_1” in the “e_perf_mon.h” Function Table

Listing 3‑7 shows a perf_mon_1 defined in the e_perf_mon.h function table example.

Listing 3‑7 Define a "perf_mon_1" defined in "e_perf_mon.h" Function Table

static const perf_mon_1 Vtblperfapp_1 = {
       print_app,
       print_svc,
       print_sys,
       print_tran,
};



Define the Plug-in Information Variable

Listing 3‑8 shows how to define the plug-in information variable.

Listing 3‑8 Define the Plug-in Information Variable

static const _e_pif_plugin_info perf_mon_1_info = {
       { 1, 0 }, /* interface version */
       { 1, 0 }, /* implementation version */
       "abc/tuxedo/tsam", /* implementation id */
       ED_PERF_MON_INTF_ID, /* interface id */
       4, /* virtual table size */
       "ABC, Inc.", /* vendor */
       "Custom Plug-in for Oracle TSAM", /* product name */
       "1.0", /* vendor version */
       EF_PIF_SINGLETON, /* m_flags */
       plugin_destroy,
       plugin_copy
};



The changeable members are “implementation version”, “implementation id”, “vendor”, “product name”, “vendor version”. Other items must be kept with same with the sample.

plugin_destroy and plugin_copy are the general Tuxedo plug-in routines for destroy and copy. For a Oracle TSAM Plug-in, you can write two empty functions as shown in Listing 3‑9.

Listing 3‑9 plugin_destroy and plugin_copy

static TM32I _TMDLLENTRY
plugin_destroy (_TCADEF, const struct _e_pif_instance_handles *pIhandles, TM32U flags)
{
       return(EE_SUCCESS);
}
static TM32I _TMDLLENTRY
plugin_copy (_TCADEF, void *iP,
       const struct _e_pif_interception_data *pInterceptionData,
       struct _e_pif_instance_handles *pIhandles, TM32U flags)

{
       return(EE_SUCCESS);
}



Write the Plug-in Entry Routine

Each plug-in must have an “entry” routine and specified in plug-in registration process. In this routine, the virtual function table and plug-in information structure must be supplied to the plug-in instance handler.

Listing 3‑10 shows a plug-in routine example.

Listing 3‑10 Plug-in Entry Routine

int _TMDLLENTRY
plugin_entry(_TCADEF, const char *pIId,
       const char *pImplId,
       const struct _e_pif_iversion *version,
       const struct _e_pif_data *pData,
       const struct _e_pif_interception_data *pInterceptionData,
       struct _e_pif_instance_handles *pI,
       TM32U flags)

{
const char * const * regData = pData->regdata;
char *logfile = NULL;
       pI->pVtbl = (void *) &Vtblperfapp_1;
       pI->pPluginInfo = (_e_pif_plugin_info *) &perf_mon_1_info;
       pI->pPrivData = NULL;
       return (EE_SUCCESS);
}



Note:

It is recommends that you t to use the fixed process shown in the sample. The “entry” routine is called only once to instantiate the plug-in.

Writing Concrete Plug-in Implementations

The implementation function table is registered to Tuxedo in the “entry” routine. Then following chapters will focus on how to write TSAM plug-in based on the corresponding monitoring types.

WARNING:

Do not make Tuxedo ATMI calls (except for FML32 operations, tpalloc/tprealloc/tpfree and tptypes) in the plug-in. It may result un-expected behavior as Tuxedo context may be compromised.

Call Path Monitoring Plug-in Routine

The call path monitoring plug-in routine are invoked at the monitoring points. For more information, see “Oracle TSAM Agent Data Collection Framework” on page 2‑1.

A Basic Implementation

In this example, the routine prints out the passed FML32 buffer:

static TM32I _TMDLLENTRY print_app(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)

{
       Fprint32(*buf);
       return(0);
}
Understanding Current Monitoring Points

Call path monitoring is the most comprehensive Tuxedo application interceptor. It provides a variety of metrics for recording and analysis.

•	Determine the monitoring stage

The monitoring stage itself is a metric with the FML32 field name TA_MONSTAGE. Table 3‑4 lists TA_MONSTAGE values.



Table 3‑4 TA_MONSTAGE Values

Value	Description
STMO	A new call path monitoring is initiated. This is the first record for the current monitored call path.
ME2Q	Before a message is sent to the IPC. It could be a request message or reply message. For the monitoring “initiator”, “STMO” replaces “ME2Q” stage since they are at the same point.
Q2ME	Before a message is received from the IPC. It could be a request or reply message
ME2NET	Before a message sent to the network. It only applies to GWTDOMAIN. It could be a request message or reply message.
NET2ME	After a message is received from the network. It only applies to GWTDOMAIN. It could be a request message or reply message.

Listing 3‑11 displays a judge monitoring stage example.

Listing 3‑11 Judge Monitoring Stage

{
       char *stage;
       FLDLEN32 len;
       stage = Ffind32(*obuf, TA_MONSTAGE,0,&len);
       if (stage != NULL ) {
              if (strcmp(stage,”STMO”) == 0 ) {
                     /* ... */
              }else if (strcmp(stage,”Q2ME” == 0 ) {
                     /* ... */

              /* other processment */
       }
}



For “STRING” field type, we recommend to use “Ffind32” routine to get a more fast process.

•	Determine the message type

For an application message transmitted in Tuxedo system, it has two choice, request message or reply message. The field TA_MONMSGTYPE indicates the message type.

Table 3‑5 lists the TA_MONMSGTYPE values.



Table 3‑5 TA_MONMSGTYPE Values

Value	Description
ARQ	Request Message
ARP	Reply Message

•	Determine current process location

The monitoring points always are located in processes of Tuxedo applications. So understand current process is important. Oracle TSAM framework uses the fields TA_DOMAINID, TA_PID, TA_LMID,TA_MONPROCNAME,TA_GROUPNAME and TA_SRVID (as defined in Table 3‑6) to tell the process location.



Table 3‑6 Current Process Location Fields

Format	Description
TA_DOMAINID	The domain identifier. Its format is: domainid: mastername:ipckey. • domainid is the DOMAINID configured in UBBCONFIG. If it is not set, TUXDOM is used. • Mastername is the master machine name. • Ipckey is the key in UBBCONFIG
TA_PID	Process ID
TA_LMID	Logic machine ID
TA_MONPROCNAME	Process name.
TA_GROUPNAME	Oracle Tuxedo server group name
TA_SRVID	Oracle tuxedo server ID.

Note:

Not all metrics available for certain processes. For example, for client processes, TA_SRVID is not available.

Check Commonly Used Metrics

After get the necessary information on the monitoring stage, message type and process location, the next step is to check the common used metrics also carried in the FML32 buffer. The metrics will be available depending on the conditions mentioned previously.

Table 3‑7 lists the commonly used metrics.



Table 3‑7 Commonly Used Metrics

Field Name	Type	Description	Stage
TA_MONCORRID	string	The correlation ID of this monitored call path	All
TA_MONMSGSIZE	long	The message size of current message	All1
TA_MONMSGQUEUED	long	How many message queued on the server request IPC queue	Request Message Q2ME
TA_MONSTARTTIMESEC	long	The second part of timestamp when this call path monitoring is initiated. It is the number of seconds since epoch.	All
TA_MONSTARTTIMEUSEC	long	The microsecond part of the startup timestamp. It is always with TA_MONSTARTUTIMESEC to provide a more fine-grained time measurement.	All
TA_MONLASTTIMESEC	long	The second part of timestamp when the monitored message entering/leaving a transport. It is the number of seconds since epoch. A transport is the way carrying message, such as IPC queue and network. A typical usage is, • When a request is fetched from IPC queue, the TA_LASTTIMESEC indicates the timestamp when the request message was put into queue. • When a request is fetched from network, the TA_LASTTIMESEC indicates the timestamp when the peer process sent the message to network.	All
TA_MONLASTTIMEUSEC	long	The microsecond part of the last time timestamp. It is always with TA_MONLASTTIMESEC to provide a more fin-grained time measurement.	All
TA_MONLGTRID	string	The GTRID of current monitoring points if the call path involved in transaction.	Monitoring points involved transaction
TA_MONCLTADDR	string	The remote client address. If the monitoring is started from Tuxedo workstation client, WSH, JSH or GWWS, TSAM framework will attach the client ip address and port number to call path information propagation. The format is //ip address:port.	All
TA_MONDEPTH	short	The call path depth. A hop from one service to another is deemed the depth increased one. The start value at the initiator is 0.The detail can be referred at TSAM User Guide.	All
TA_MONERRNO	long	The error number set by Tuxedo infrastructure.	Reply Message
TA_MONURCODE	long	The urcode of tpreturn.	Reply Message
TA_MONSVCNAME	string	The service name of current monitoring points involved. For request message, it is the target service name and for reply message, it is the service which returns the reply.	All
TA_MONHOSTSVC	string	The service name of current service routine	Monitoring points in a application server.
TA_MONCALLFLAG	long	The call flags set in tpcall/tpacall	Request Message ME2Q STMO
TA_MONCALLMODE	short	The call type, 1 - tpacall, 2 - tpcall, 3 - tpforward	Request Message ME2Q STMO
TA_MONQID	string	The request queue id of server which provides current service. Its format is “physical queue key - Tuxedo logic queue name”. For example, 14444547-00004.00018	Request Message Q2ME
TA_MONLDOM	string	The local domain configuration. Its format is ldom:domainid. For example DOM1:FINANCE. The detail information of the “LDOM” and “DOMAINID” can be referred Tuxedo Manual of DMCONFIG.	ME2NET NET2ME
TA_MONRDOM	string	The remote domain configuration. Its format is same with TA_MONLDOM but the values are for remote domain.	ME2NET NET2ME
TA_MONWSENDPOINT	string	The web service end point URL of GWWS.	Reply Message ME2Q
TA_MONCPUTIME	long	CPU time used for service execution.	Reply Message ME2Q

---

1

For some self-describe buffer types, such as STRING, the size might be zero.

Generate Call Path Correlation ID

The correlation ID must be given by the plug-in at the monitoring initiating stage, which is the TA_MONSTAGE value is “STMO”. The Oracle TSAM framework sets PI_CORRID_REQUIRED in the MONITORCTL mon_flag. If no correlation ID is given, an error is reported. The Oracle TSAM default plug-in provides the correlation ID also. Two scenarios need to consider,

•	Working with the Oracle TSAM default plug-in.

The custom plug-in can skip the correlation ID generation. If the custom plug-in wants to overwrite the correlation ID generated by the Oracle TSAM default plug-in, the interceptor sequence of custom plug-in must come after the Oracle TSAM default plug-in.

•	Working without The Oracle TSAM default plug-in

If the Oracle TSAM default plug-in is removed from the Tuxedo plug-in framework, the custom plug-in must supply the correlation ID i. For example:

if (monctl->mon_flag & PI_CORRID_REQUIRED) {

       strcpy(monctl->corr_id, mygetid());
}

“mygetid()” is an assumed ID generation routine. The length of the new ID must not exceed the size of corr_id of MONITORCTL.

To help ID generation, the custom plug-in can use a Oracle TSAM framework service to get a correlation ID. Listing 3‑12 displays an ID generation example.

Listing 3‑12 ID Generation Example

extern int _TMDLLENTRY tmmon_getcorrid(char *obuf, int len);
...

if (monctl->mon_flag & PI_CORRID_REQUIRED) {
       char new_corrid[MAXCORRIDLEN];
       if (tmmon_getcorrid(new_corrid, sizeof(new_corrid)) == 0 ) {
              strpcy(monctl->corr_id,new_corrid);
       }
}
...



Note:

When using the Oracle TSAM framework correlation ID generation routine, libtsam must be linked with the plug-in.

Service Monitoring Plug-in Routine

Service monitoring is a straightforward procedure. The data collection points are before and after the service routine invocation. The plug-in is invoked when a request is to be executed and a reply to be sent back to client.

A Basic Implementation

In this example, the routine prints out the passed FML32 buffer:

static TM32I _TMDLLENTRY print_svc(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)

{

       Fprint32(*buf);

       return(0);

}

.

Check Commonly Used Metrics

Table 3‑8 lists the service monitoring plug-in routine metrics.



Table 3‑8 Service Monitoring Plug-in Routine Metrics

Field Name	Type	Description
TA_MONMSGWAITTIME	long	The request message waiting time in server’s request IPC queue before execution. The unit is millisecond. The waiting time is computed in two scenarios, • Oracle Tuxedo 11gR1 and later is the request sender The waiting time is computed by considering the last time stamp of transport to this service. The waiting time is exact. • Pre-Tuxedo 11gR1 release sender. The waiting time is computed based on average queue length and last service execution time and the dispatching thread number. This is an approximate value. It only applies to a server which provides similar services and the execution time is steady.
TA_MONMSGSIZE	long	The message size of reply message.
TA_MONMSGQUEUED	long	The number of messages queued on the server request IPC queue currently.
TA_MONLASTTIMESEC	long	The number of seconds since epoch when the service begin to execute
TA_MONLASTTIMEUSEC	long	The microsecond seconds since time seconds since epoch. It is used with TA_MONLASTTIMESEC
TA_MONERRNO	long	Tuxedo return error code, that is tperrno
TA_MONURCODE	long	The urcode of tpreturn.
TA_MONEXECTIME	long	The response time in millisecond of current service execution. It is computed by the Oracle TSAM framework. Plug-in can also get the current time and the last time timestamp.
TA_MONCPUTIME	long	How much CPU time is used of current service execution. It is in milliseconds.
TA_MONSVCNAME	string	The service name.
TA_MONLOCATION	string	The process location of current process. It has same meaning in call path monitoring.

System Server Monitoring Plug-in Routine

Oracle TSAM supports several types of Oracle Tuxedo system servers monitoring: GWTDOMAIN, BRIDGE, and GWWS. The monitoring focus on the throughput, outstanding request number and message number queued on network. The plug-in is invoked periodically by the Oracle TSAM framework. The interval is specified by the monitoring policy. Data collection occurs on the on-going server operations.

A Basic Implementation

In this example, the routine prints out the passed FML32 buffer:

static TM32I _TMDLLENTRY print_sys(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)

{
       Fprint32(*buf);
       return(0);
}

Check Commonly Used Metrics

Table 3‑9 lists the system server monitoring plug-in routine metrics.



Table 3‑9 System Server Monitoring Plug-in Routine Metrics

Field Name	Type	Description
TA_MONLINKNUM	short	The number of network link connected to current server. If the value is more than 1, then the following statistics data on network link are in FML occurrences style. For example, TA_MONLINKADDR[0] is belong to the first network link, TA_MONLINKADDR[1] is belong to the second network link etc.
TA_MONLINKSTATUS	short	The status of the network link, three possible values, 1 - initialize stage. 0 - connected and is ok. -1 connection lost.
TA_MONNUMPEND	long	The number of messages queued on network buffer for this network link. The buffer is for Tuxedo network layer instead of system network stack. This is a snapshot value reflecting the number situation when plug-in is invoked.
TA_MONBYTESPEND	long	The number of messages bytes queued on network buffer. It is related with TA_MONNUMPEND but computing the data volume
TA_MONNUMWAITRPLY	long	The outstanding request number on this network link. That means how many request message are waiting for reply. It only applies to GWTDOMAIN. BRIDGE does not support this metric. This is a snapshot value.
TA_MONACCNUM	long	The accumulated message number for this network link between current plug-in invocation and last plug-in invocation which controlled by the “sysinterval” policy. This is a throughput value reflecting the accumulated information between an interval.
TA_MONACCBYTES	long	The accumulated message bytes. It is related TA_MONACCNUM but computing the data volume. This is a throughput value.
TA_MONLINKADDR	string	The link address, for GWTDOMAIN, it is the RDOM defined in UBBCONFIG. For BRIDGE, it is the remote host name.
TA_MONINRPCFAIL	long	The number of RPC failed requests for inbound of GWWS.
TA_MONOUTRPCFAIL	long	The number of RPC failed request for outbound of GWWS.
TA_MONINBOUNDPEND	long	The number of pending request waiting for reply for inbound of GWWS.
TA_MONOUTBOUNDPEND	long	The number of pending request waiting for reply for outbound of GWWS

Transaction Monitoring Plug-in Routine

Oracle TSAM also traces critical routines invocation in XA transaction. The scope includes tpbegin,tpcommit, tpabort,xa_xxx calls and GWTDOMAINS transaction routines.

A Basic Implementation

In this example, the routine prints out the passed FML32 buffer:

static TM32I _TMDLLENTRY print_tran(perf_mon_1 * ip,FBFR32 **buf, MONITORCTL * monctl, TM32U flags)

{
       Fprint32(*buf);
       return(0);
}

Check Commonly Used Metrics

Listing 3‑10 lists the commonly used transaction monitoring plug-in routine metrics.



Table 3‑10 Transaction Monitoring Plug-in Routine Metrics

Field Name	Type	Description
TA_MONXANAME	string	The routine name of a XA transaction, such as “tpbegin”, “xa_commit” etc.
TA_MONXACODE	long	The routine return code
TA_MONEXECTIME	long	The routine execution time in millisecond.
TA_MONRMID	long	The resource manager instance ID. It only applies to xa_xxx calls
TA_MONLGTRID	string	The global transaction ID of current transaction
TA_MONRGTRID	string	The parent transaction’s GTRID. It only applies to GWTDOMAIN when it is a network subordinator.
TA_MONLOCATION	string	The process location of current process. It has same meaning in call path monitoring.

Configure the Plug-in to Tuxedo

Note:

The plug-in will run in Tuxedo infrastructure. It must be well tested before configure to Tuxedo production environment.

Register to Tuxedo

Tuxedo uses the epifreg command to register the plug-ins to the Tuxedo registry so that the infrastructure can invoke the plug-in at run time. Oracle TSAM uses the Oracle TSAM framework to invoke the plug-in.

Listing 3‑13 shows how the epifreg command is used to invoke a plug-in.

Listing 3‑13 Using epifreg to Invoke a Plug-in

epifreg -r -p abc/tuxedo/tsam -i engine/performance/monitoring \

       -o SYSTEM -v 1.0 -f /test/abc/customplugin.so -e plugin_entry

epifregedt -s -k "SYSTEM/impl/bea/performance/monfan" \

       -a InterceptionSeq=bea/performance/monshm \

          -a InterceptionSeq=abc/tuxedo/tsam



In this, there are two steps required to register the custom plug-in Tuxedo.

1.	Using “epifreg” to register the custom implementation to Tuxedo.

a.	“-p” option specifies the implementation id and it must be consistent the value specified in source code.

b.	“-v” indicates the version number.

c.	“-f” specifies the dynamic library path.

d.	“-e” specifies the “entry” routine described in the “General Steps” section.

2.	Using “epifregedt” to change the fan-out plug-in “InterceptionSeq” attribute.

Oracle TSAM supports a Fan-out plug-in mechanism which means multiple plug-ins can work together. Oracle TSAM Agent provides the Fan-out plug-in and a default interceptor plug-in. The custom plug-in is an additional interceptor plug-in.

The “-a InterceptionSeq=xxx” option tells the Fan-out plug-in invokes the interceptor plug-in using the specified order. “xxx” is the implementation id. In this example, the Tuxedo default interceptor plug-in implementation ID, “bea/performance/monshm”, is invoked before the custom plug-in implementation ID “abc/tuxedo/tsam”.

3.	If you have multiple custom plug-in developed, you need to register them first with “epifreg”, then modify the invocation sequence with “epifregedt” with the proper “InterceptionSeq” sequence.

Un-register from Tuxedo

“epifunreg” can be used to un-register a specified plug-in, for example,

epifunreg -p abc/tuxedo/tsam

After unregistering the custom plug-in, you must use “epifregedt” to modify the Fan-out plug-in invocation again based on current available plug-ins. For example:

epifregedt -s -k "SYSTEM/impl/bea/performance/monfan" \

-a InterceptionSeq=bea/performance/monshm

Note:

It is strongly recommended to register/unregister/modify the plug-in after shutting down a Tuxedo application.

Oracle TSAM Agent Plug-in Development/Deployment Notes

•	Do not use Oracle Tuxedo ATMI calls in the plug-in except for the FML32 operations tpalloc/tprealloc/tpfree and tptypes. The monitoring points are embedded in the Tuxedo communication framework. Embedded ATMI calls may compromise current Tuxedo context.

•	You cannot free FML32 buffers passed by the plug-in.

•	If there is any information returned to the Oracle TSAM framework, such as new correlation ID, the latest plug-in changes take effect.

•	Do not change the MONITORCTL udata. It is a read only interception of application messages. Any modification will result un-expected behavior.
