12 Understanding the Oracle Directory Integration Platform for Provisioning

As of 11g Release 1 (11.1.1), Oracle offers two complementary provisioning products, optimized for different use cases:

This chapter discusses Oracle Directory Integration Platform Provisioning. It contains these sections:


See Also:

  • The chapter on developing provisioning-integrated applications in Oracle Fusion Middleware Application Developer's Guide for Oracle Identity Management

  • "Troubleshooting Provisioning"


What Is Provisioning?

Provisioning refers to the process of providing users, groups, and other objects with access to applications and other resources that may be available in an enterprise environment. A provisioning-integrated application refers to an application that has registered for provisioning events and registered a provisioning-integration profile in Oracle Internet Directory. At times, you may want to synchronize all user entries in an application-specific directory with those in Oracle Internet Directory, but provision a particular application to receive notification about only some of them. For example, the directory for Oracle Human Resources typically contains data for all employees in an enterprise, and you would probably want to synchronize all of that data with Oracle Internet Directory. However, you might want to provision another application, such as Oracle Email, to be notified only when members join or leave a particular group.

Before a user account can be provisioned for applications in an Oracle Identity Management deployment, it must first be created in Oracle Internet Directory. User accounts can be created in Oracle Internet Directory with any of the following tools or methods:

The Oracle Directory Integration Platform Service can be invoked for any user entries, regardless of how they were created in Oracle Internet Directory. However, creating a user entry in Oracle Internet Directory does not necessarily mean that the user entry will have access to all applications in the Oracle Identity Management environment. The user account must be manually provisioned by an administrator or automatically provisioned according to an application's provisioning policies. The default provisioning policy of an application can be one of the following:

Provisioning policies are entirely dependent on the needs and requirements within each enterprise environment. For example, an organization may choose to provision all users with access to an e-mail application, but may restrict the users that are provisioned to access a human resources application.

Components of the Oracle Directory Integration Platform Service

The Oracle Directory Integration Platform Service consists of the following components:

Understanding Provisioning Concepts

This section explains how applications are provisioned with Oracle Directory Integration Platform Provisioning. It contains these topics:

Synchronous Provisioning

A provisioning-integrated application can maintain user information in Oracle Internet Directory or a third-party repository. Applications that maintain user information in Oracle Internet Directory can use the Data Access Java plug-in to create, modify, and delete user entries whenever the change occurs in Oracle Internet Directory.


See Also:

Oracle Fusion Middleware Application Developer's Guide for Oracle Identity Management for more information about the Data Access Java plug-in

The Data Access Java plug-in can be invoked directly from Oracle Identity Management, including the Provisioning Console and command-line LDAP tools. For this reason, applications that can be provisioned with the Data Access Java plug-in are provisioned synchronously; no separate provisioning event needs to be sent to the application from the Oracle Directory Integration Platform. The Data Access Java plug-in returns either SUCCESS or FAILURE to the Oracle Directory Integration Platform. If an execution status of SUCCESS is returned for the Data Access Java plug-in, then a provisioning status is also returned, which is recorded in the user's provisioning status attribute in Oracle Internet Directory for the specific provisioning-integrated application. If the status of FAILURE is returned for new user provisioning requests, then the user's provisioning status is assigned a value of PROVISIONING_FAILURE. See "Provisioning Status in Oracle Internet Directory" for a list of provisioning statuses.

Synchronous provisioning with the Oracle Directory Integration Platform Service from the Provisioning Console, bulk provisioning with the provProfileBulkProv command, and from third-party directories follows this process:

  1. A new user entry is created in Oracle Internet Directory from one of the following sources:

    • Oracle Internet Directory Provisioning Console

    • Bulk provisioning with the Directory Integration Assistant

    • Synchronization with third-party directories

  2. The Oracle Identity Management component that created the new user entry invokes the Data Access Java plug-in.

  3. The Data Access Java plug-in provisions the new user account in the application.

Figure 12-1 illustrates the process of how an application is synchronously provisioned using command-line LDAP tools.

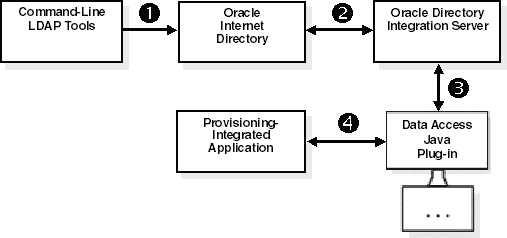

Figure 12-1 Synchronous Provisioning from Command-Line LDAP Tools

This illustration is described in the text.

Synchronous provisioning from command-line LDAP tools follows this process:

  1. A command-line LDAP tool creates a new user entry in Oracle Internet Directory.

  2. At the next scheduled synchronization interval, the Oracle Directory Integration Platform identifies new user entries in Oracle Internet Directory that require provisioning.

  3. The Oracle Directory Integration Platform invokes the Data Access Java plug-in.

  4. The Data Access Java plug-in provisions the new user accounts in the application.

Asynchronous Provisioning

The Oracle Directory Integration Platform propagates PL/SQL events to a provisioning-integrated application, which then executes a PL/SQL plug-in to process the events. Execution of a PL/SQL plug-in occurs within the application repository and not within the address space of any Oracle Identity Management component. Because, provisioning is handled by a PL/SQL plug-in and not by any component of Oracle Identity Management, provisioning-integrated applications that implement a PL/SQL plug-in are provisioned asynchronously. The PL/SQL plug-in returns the status of SUCCESS or FAILURE to the Oracle Directory Integration Platform. If the status of SUCCESS is returned for the PL/SQL plug-in, then a provisioning status is also returned, which is recorded in the user's provisioning status attribute in Oracle Internet Directory for the specific provisioning-integrated application. If the status of FAILURE is returned for new user provisioning requests, then the user's provisioning status is assigned a value of PROVISIONING_FAILURE. See "Provisioning Status in Oracle Internet Directory" for a list of provisioning statuses.

Asynchronous provisioning from the Provisioning Console, bulk provisioning with the provProfileBulkProv command, and third-party directories follows this process:

  1. A new user entry and an associated entry containing application-specific user preferences are created in Oracle Internet Directory from one of the following sources:

    • Oracle Internet Directory Provisioning Console

    • Bulk provisioning with the provProfileBulkProv command

    • Synchronization with third-party directories

  2. At the next scheduled synchronization interval, the Oracle Directory Integration Platform identifies new user entries in Oracle Internet Directory that require provisioning.

  3. Provisioning events are sent from the Oracle Directory Integration Platform to the PL/SQL plug-in.

Figure 12-2 illustrates the process of how an application is asynchronously provisioned using command-line LDAP tools.

Figure 12-2 Asynchronous Provisioning using Command-Line LDAP Tools

This illustration is described in the text.

As illustrated in Figure 12-2, asynchronous provisioning using command-line LDAP tools follows this process:

  1. A new user entry is created in Oracle Internet Directory using a command-line LDAP tool.

  2. At the next scheduled synchronization interval, the Oracle Directory Integration Platform identifies new users entries in Oracle Internet Directory that require provisioning, and creates an associated entry containing application-specific user preferences.

  3. Provisioning events are sent from the Oracle Directory Integration Platform to the PL/SQL plug-in.

Provisioning Data Flow

Regardless of whether it is provisioned synchronously or asynchronously, an application can invoke the Pre-Data Entry and Post-Data Entry plug-ins to enhance provisioning intelligence and implement business policies. Both plug-ins are invoked by Oracle Identity Management components such as the Oracle Internet Directory Provisioning Console and bulk provisioning with the provProfileBulkProv command.

The Pre-Data Entry plug-in populates fields according to provisioning policies. The primary purpose of this plug-in is to determine whether a user should be provisioned in an application. For example, if an organization has a a policy where only managers are provisioned for a financial application, the Pre-Data Entry plug-in can be used to identify which user entries to provision. Common user attributes are already populated when this plug-in is invoked, so it should have adequate information to make provisioning decisions.

The Post-Data Entry plug-in primarily validates data entered by users for common attributes and application-specific attributes. The validation for the plug-in must be successful for provisioning to continue.

Figure 12-3 illustrates the provisioning data flow using the Pre-Data Entry and Post-Data Entry plug-ins.

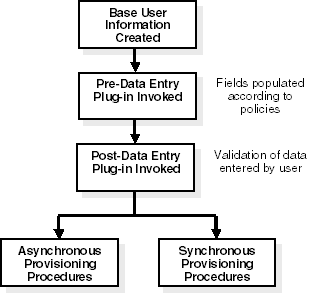

Figure 12-3 Provisioning Data Flow

This illustration is described in the text.

As illustrated in Figure 12-3, the provisioning data flow follows this process:

  1. Base user information is created.

  2. The Pre-Data Entry plug-in is invoked, which populates fields according to policies.

  3. The Post-Data Entry plug-in is invoked, which validates data entered by the user.

  4. Depending on the provisioning approach, either asynchronous or synchronous provisioning procedures are invoked.

If provisioning is performed with the Provisioning Console, then after the Pre-Data Entry Plug-in is invoked, but before the Post-Data Entry plug-in is invoked, an administrator can modify the application attributes.

Overview of Provisioning Methodologies

This section describes the procedures for provisioning users in Oracle Identity Management. It contains these topics:

Provisioning Users from the Provisioning Console

You can use the Provisioning Console to centrally manage user provisioning and deprovisioning of one or more users simultaneously. The console includes a wizard-based interface for creating, modifying, and deleting individual users, and for selectively provision and deprovision users for any provisioning-integrated applications. The Provisioning Console also supports bulk user creation, modification, and deletion of users from an LDIF file. See "Bulk Provisioning Using the provProfileBulkProv Tool" for more information.

Provisioning Users that are Synchronized from an External Source

When Oracle Internet Directory is used as a central repository and enterprise user entries are synchronized from third-party directories to Oracle Internet Directory, each user identity is automatically provisioned according to the default provisioning policy of each provisioning-integrated application.

Provisioning Users Created with Command-Line LDAP Tools

Any tools developed by Oracle or third-party vendors that use standard command-line LDAP syntax can create user entries in Oracle Internet Directory. As with user entries that are synchronized from external sources, any user entries created with command-line LDAP tools or any other means are provisioned according to the default provisioning policies for each provisioning-integrated application.

Bulk Provisioning Using the provProfileBulkProv Tool

Use the provProfileBulkProv utility, located in the ORACLE_HOME/bin directory, to perform initial migration of data from an LDIF file to Oracle Internet Directory for a provisioning profile.


Notes:

  • Best security practice is to provide a password only in response to a prompt from the command.

  • You must set the WLS_HOME and ORACLE_HOME environment variables before executing any of the Oracle Directory Integration Platform commands

  • The Oracle WebLogic Managed Server where Oracle Directory Integration Platform is deployed must be configured for SSL to execute this command in SSL mode. Refer to the Configuring SSL chapter in Oracle Fusion Middleware Securing Oracle WebLogic Server for more information.


Syntax for provProfileBulkProv

provProfileBulkProv

provProfileBulkProv -h HOST -p PORT -D wlsuser -file LDIF_FILE -realm REALM_DN
[-ssl -keystorePath PATH_TO_KEYSTORE -keystoreType TYPE]
[-encoding INPUT_ENCODING] [-help]

Arguments for provProfileBulkProv

-h | -host

Oracle WebLogic Server host where Oracle Directory Integration Platform is deployed.

-p | -port

Listening port of the Oracle WebLogic Managed Server where Oracle Directory Integration Platform is deployed.

-D | -wlsuser

Oracle WebLogic Server login ID


Note:

You will be prompted for the Oracle WebLogic Server login password. You cannot provide the password as a command-line argument. Best security practice is to provide a password only in response to a prompt from the command. If you must execute provProfileBulkProv from a script, you can redirect input from a file containing the Oracle WebLogic Server login password. Use file permissions to protect the file and delete it when it is no longer necessary.

-f | -file

LDIF file containing the data to be migrated.

-realm

The realm in which the users are to be provisioned.

-ssl

Executes the command in SSL mode.


Note:

The Oracle WebLogic Managed Server where Oracle Directory Integration Platform is deployed must be configured for SSL to execute this command in SSL mode. Refer to the Configuring SSL chapter in Oracle Fusion Middleware Securing Oracle WebLogic Server for more information.

-keystorePath

The full path to the keystore.

-keystoreType

The type of the keystore identified by -keystorePath. For example: -keystorePath jks or -keystorePath PKCS12

-encoding

Input file encoding.

-help

Provides command usage help.

Tasks and Examples for provProfileBulkProv

provProfileBulkprov -h myhost.mycompany.com -p 7005 -D login_ID \
  -f /opt/ldap/odip/users.ldif -realm cn=aaaa,ou=bbbb,dc=cccc

On-Demand Provisioning

On-demand provisioning occurs when a user accesses an application and the application has no knowledge of the user in its repository. The application determines whether to provision a user account based on its default provisioning policies. After provisioning a user account in its repository, an application will update the provisioning status of the user entry in Oracle Internet Directory.

Application Bootstrapping

The Oracle Directory Integration Platform Service notifies newly registered applications of all existing user entries in Oracle Internet Directory and attempts to provision each existing user entry as if they were a new user in the application.

Organization of User Profiles in Oracle Internet Directory

This section discusses the organization of user profiles in Oracle Internet Directory. It contains these topics:

Organization of Provisioning Entries in the Directory Information Tree

The Oracle Directory Integration Platform Provisioning relies on user profiles in the directory information tree (DIT) that consist of attributes containing personal information and preferences for the various applications in which the user is provisioned. These user attributes for the Oracle Directory Integration Platform Service can be categorized as follows:

  • Base attributes that are available for every user entry

  • Application-specific attributes that are only available if a user is provisioned in an application

Base user attributes primarily belong to standard LDAP object classes such as organizationalPerson and inetOrgPerson, and consist of personal details that include first name, last name, given name, e-mail address, and telephone numbers. Base user attributes also consist of Oracle application-specific attributes that belong to the orclUserV2 auxilliary class.

Oracle Internet Directory is the primary repository for both base attributes and application-specific attributes. Both types of attributes are stored in each user's profile. However, an application can cache user attributes that are updated with the provisioning event notification service.As shown in Figure 12-4, user attributes are stored in two locations within the DIT. Base user entries, which include attributes belonging to inetorgperson and orcluserv2, are stored under cn=users,Realm DN. The provisioning status of each user entry is also stored in the base user entry. Application-specific attributes reside in separate entries in the application container. The LDAP schema relating to the application-specific attribute definitions and the object classes are created during the installation or upgrade process. Application-specific attributes are qualified by an auxiliary object class, which will enable searching for the application-specific user properties of the entry. By default, application-specific entries are stored as orclOwnerGUID=GUID of the Base User under the cn=User Properties, cn=Application Type, cn=Products,cn=OracleContext, Realm DN container.Some applications manage their own application attributes and implement the Data Access Java plug-in, which is described in "Understanding Provisioning Concepts". The Oracle Directory Integration Platform Service invokes this plug-in whenever the base user attributes or application-specific attributes are modified.

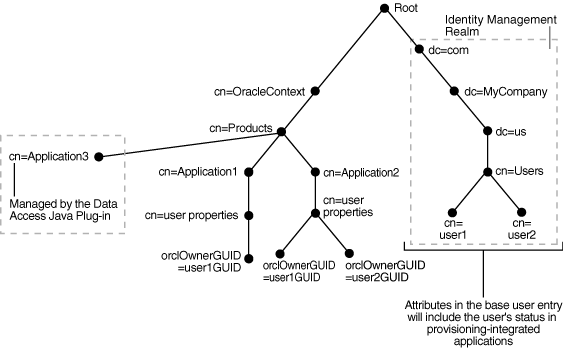

Figure 12-4 Base User and Application-Specific Attributes

Base User and Application-Specific Attributes

Understanding User Provisioning Statuses

This section discusses the user provisioning statuses in Oracle Internet Directory. It contains these topics:

Provisioning Status in Oracle Internet Directory

The Oracle Provisioning Service records a user's provisioning status in Oracle Internet Directory for each provisioning-integrated application. Provisioning status can be set by the Oracle Directory Integration Platform, with bulk provisioning using the provProfileBulkProv command, or by a provisioning-integrated application. Table 12-1 lists the provisioning statuses.

Table 12-1 Provisioning Statuses in Oracle Internet Directory

Internal Status GUI Status Description

Provisioning Statuses



PROVISIONING_REQUIRED

Pending

Provisioning required. This status is selected by an administrator or set according to an application's provisioning policies. Note that this status determines whether a user has been provisioned.

PROVISIONING_IN_PROGRESS

In Progress

Provisioning in progress. The user can access the application when this is the current status if the application performs provisioning at scheduled intervals. The application can also provision the user on-demand.

PROVISIONING_SUCCESSFUL

Successful

Provisioning successful. This status is updated automatically by the Oracle Directory Integration Platform, with bulk provisioning using the provProfileBulkProv command, or a provisioning-integrated application.

PROVISIONING_NOT_REQUIRED

Not Requested

Provisioning not required. This status is selected by an administrator or set according to an application's provisioning policies. Note that this status determines whether a user will be provisioned.

PROVISIONING_FAILURE

Failed

Provisioning failed. This status is updated automatically by the Oracle Directory Integration Platform, with bulk provisioning using the provProfileBulkProv command, or a provisioning-integrated application. The user cannot access the application when this is the current status.

Deprovisioning Statuses



DEPROVISIONING_REQUIRED

Pending de-provisioning

Deprovisioning required. The user is still provisioned when this is the current status.

DEPROVISIONING_IN_PROGRESS

De-provisioning In Progress

Deprovisioning in progress.

DEPROVISIONING_SUCCESSFUL

Successfully de-provisioned

Deprovisioning successful. The user cannot access the application when this is the current status.

DEPROVISIONING_FAILURE

Failed de-provisioning

Deprovisioning failed. The user is still provisioned when this is the current status.

Upgrade Statuses



PENDING_UPGRADE

Pending Upgrade

Provisioning upgrade pending.

UPGRADE_IN_PROGRESS

Upgrade In Progress

Provisioning upgrade in progress.

UPGRADE_FAILURE

Upgrade Failed

Provisioning upgrade failed.


The provisioning status for each application is stored in the orclUserApplnProvStatus attribute in a user entry. This attribute is indexed in Oracle Internet Directory and is searchable. A subtyped orclUserApplnProvStatus attribute is created for each provisioning-integrated application. For example, the following statements store a user's provisioning statuses for an e-mail application and a scheduling application. The user's provisioning status for the e-mail application is PROVISIONING_SUCCESS while his or her provisioning status for the scheduling application is PROVISIONING_FAILURE.

orclUserApplnProvStatus;CORP-MAIL_E-MAIL:PROVISIONING_SUCCESS
orclUserApplnProvStatus;CORP-SCHEDULE_CALENDAR:PROVISIONING_FAILURE

Additional information about a user's provisioning status in an application is stored in the orclUserApplnProvStatusDesc attribute and the provisioning failure account for each application is stored in the orclUserApplnProvFailureCount attribute. As with the orclUserApplnProvStatus attribute, separate orclUserApplnProvStatusDesc and orclUserApplnProvFailureCount attributes are created for each provisioning-integrated application. The format for the orclUserApplnProvStatusDesc attribute is the same as the orclUserApplnProvStatus attribute, except that a timestamp and descriptive information are appended to the application name and type, as follows:

orclUserApplnProvStatusDesc;CORP-MAIL_E-MAIL:20040101010101^Missing employee ID

The orclUserApplnProvStatus, orclUserApplnProvStatusDesc, and orclUserApplnProvFailureCount attributes are contained in the orclUserProvStatus object class as optional attributes.

Provisioning Status Transitions

Table 12-2 lists the valid provisioning status transitions.

Table 12-2 Valid Provisioning Status Transitions in Oracle Internet Directory

Internal Status GUI Status Valid Transition From

Provisioning Statuses



PROVISIONING_REQUIRED

Pending

Initial missing state

DEPROVISIONING_SUCCESSFUL

PROVISIONING_IN_PROGRESS

In Progress

PROVISIONING_REQUIRED

PROVISIONING_SUCCESSFUL

Successful

PROVISIONING_REQUIRED

PROVISIONING_IN_PROGRESS

PROVISIONING_FAILURE

PROVISIONING_NOT_REQUIRED

Not Requested

Initial missing state

PROVISIONING_FAILURE

Failed

PROVISIONING_REQUIRED

PROVISIONING_IN_PROGRESS

Deprovisioning Statuses



DEPROVISIONING_REQUIRED

Pending de-provisioning

PROVISIONING_SUCCESSFUL

DEPROVISIONING_IN_PROGRESS

De-provisioning In Progress

PROVISIONING_SUCCESSFUL

DEPROVISIONING_SUCCESSFUL

Successfully de-provisioned

DEPROVISIONING_REQUIRED

DEPROVISIONING_IN_PROGRESS

DEPROVISIONING_FAILURE

DEPROVISIONING_FAILURE

Failed de-provisioning

DEPROVISIONING_REQUIRED

DEPROVISIONING_IN_PROGRESS


Figure 12-5 illustrates the valid provisioning status transitions.

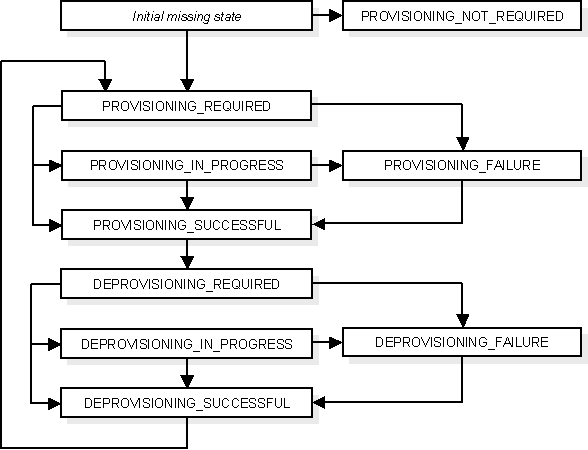

Figure 12-5 Valid Provisioning Status Transitions

This illustration is described in the text.

Upgrading and Coexistence Provisioning Statuses

In Oracle Identity Management 11g Release 1 (11.1.1), a user entry can be physically represented in Oracle Internet Directory by multiple LDAP entries. In addition to the base user entry, separate LDAP entries can exist for each provisioning-integrated application.

In a typical upgrade of Oracle Identity Management, multiple middle tiers are not upgraded simultaneously. This means that following an Oracle Identity Management upgrade, middle tiers from a previous version may need to run in parallel with middle tiers from the upgraded version. When a middle tier is upgraded, all of a user's application-specific data that was previously stored in the application metadata repository, will be migrated on-demand. For each user entry that is present in Oracle Internet Directory prior to the upgrade, the Oracle Directory Integration Platform will initiate a new user event and assign a provisioning status of PENDING_UPGRADE to the user entry. If a new user entry is created from an older middle tier or some unsupported route, such as an existing application using the standard LDAP SDK, the provisioning status attribute will be missing. In this case, the Oracle Directory Integration Platform also initiates a new user event and assign a provisioning status of PENDING_UPGRADE to the user entry.

Once a provisioning-integrated application receives the event, it will return a response to the Oracle Directory Integration Platform indicating whether or not the user is provisioned. The Oracle Directory Integration Platform then updates the provisioning status in the user entry accordingly.

Provisioning Statuses and Exception Handling

If a new user entry created with the Provisioning Console or through synchronization with an external data source does not contain enough information to provision the user in a particular application, provisioning may fail. Provisioning can also fail for a variety of other reasons. The Oracle Directory Integration Platform Service identifies user provisioning failures as exceptions. Whenever an application responds to a USER_ADD event with a failure status, the Oracle Directory Integration Platform will change the user's provisioning status to PROVISIONING_FAILURE. The Oracle Directory Integration Platform will then send notifications to the applications of the failed cases also just like a new user case. This will serve as a retry for the provisioning request. The provisioning status of a user displays in the Provisioning Console. The administrator can make the necessary changes to fix the problem, and the provisioning would get retried automatically. This will result in invocation of the data access plug-in if the provisioning is synchronous. However, an event will be propagated if the provisioning is asynchronous.This sequence of steps will be retried as long as the user is not provisioned successfully.

Understanding Provisioning Flow

This section discusses the flow of information and control in various provisioning scenarios. It contains these topics:

Creating and Modifying Users with the Provisioning Console

You can use the Provisioning Console to create and provision new user entries in Oracle Internet Directory. The console uses a wizard-based interface to perform the following steps:

  1. The initial user creation screen shows a list of required base user attributes. The base user attributes are populated after the Provisioning Console invokes the Pre-Data Entry plug-in. For user creation, the plug-in processes the base user attributes and generates the application's default provisioning policy and attributes. For user modification, the Provisioning Console retrieves user information from Oracle Internet Directory, and the plug-in retrieves application information.

  2. The next step in the wizard displays how a user will be provisioned in each application, based on the application's default provisioning policy. For user modification, this step displays one list with applications for which the user is currently provisioned and another list in which the user can be provisioned. You can select one of the following values for an application in which the user is not yet provisioned:

    • User Policy. The selected value for this field is based on each application's default provisioning policy. This field can display one of two values: Provision or Do Not Provision.

    • Override Policy to perform Provision. Selecting this option overrides the application's default policy and provisions the user.

    • Override Policy NOT to perform Provision. Selecting this option override the application's default policy and does not provision the user.

    For applications in which the user is currently provisioned, there will be an option for deprovisioning the user.

  3. For applications in which the user is not provisioned, the next step in the wizard displays attributes for the applications to be provisioned, with the default values returned by the Pre-Data Entry plug-in. For applications in which the user is provisioned, current application information is listed. You can make any necessary changes to the attributes in this step before clicking Next. When you click Next, the Post-Data Entry plug-in is invoked, which validates the data you entered.

  4. The final step in the wizard enables you to review application attributes and values. Click Finish. After you click Finish, the Provisioning Console creates or updates the user information in Oracle Internet Directory, and then invokes the Data Access Java plug-in for applications that are provisioned synchronously to create or update the application

Deleting Users with the Provisioning Console

Before a user is deleted, the Provisioning Console displays a read-only page listing the base user and the application attributes. After the user confirms the deletion, the Provisioning Console deletes the base user information and any application-specific information, or invokes the Data Access Java plug-in for applications that are provisioned synchronously. For asynchronous applications, a USER_DELETE event is propagated.

Viewing and Editing Provisioning Profiles Using Fusion Middleware Control

As of 11g Release 1 (11.1.1), you view and edit provisioning profiles using the Oracle Enterprise Manager Fusion Middleware Control by performing the following steps:

  1. Open a Web browser and enter the Oracle Enterprise Manager Fusion Middleware Control URL for your environment. The format of the Oracle Enterprise Manager Fusion Middleware Control URL is: https://host:port/em.

  2. Log in to Oracle Enterprise Manager Fusion Middleware Control.

  3. In the navigation panel on the left, click or expand the Identity and Access entry and then select the DIP component that contains the profile you want to view or edit.

  4. Select Administration and then Provisioning Profiles from the DIP Server menu. The Manage Provision Profiles screen appears displaying the existing provisioning profiles.

    To change which attributes of the provisioning profiles are displayed, click View, then Column, and select the attributes you want to display or hide. You can also reorder the columns of provision profiles by clicking View, and then Reorder Columns.

    To edit a provisioning profile, click the profile you want to edit and then click Edit. The attributes of the profile appear. Edit the settings as desired and click OK to save the changes. Table 12-3 lists and describes the provisioning profile fields:

    Table 12-3 Provisioning Profile Fields

    Field Name Description

    Profile Name

    The name of the profile you are editing. You cannot edit a profile name after it is created. This field is provided only to identify the profile you are editing.

    Application Name

    The name of the application the provisioning profile applies to.

    Profile Version

    The version of the provisioning profile.

    Application to OID

    Options to set the provisioning profile as Configured and Enabled in the Application to Oracle Internet Directory relationship.

    OID to Application

    Options to set the provisioning profile as Configured and Enabled in the Oracle Internet Directory to Application relationship.

    Scheduled Interval (HH:MM:SS)

    Specifies the number of hours, minutes, and seconds between provisioning attempts between a connected directory and Oracle Internet Directory.

    Last Execution

    Shows the status (Success/Failed) and execution time of the last provisioning attempt.


User Provisioning from an External Source

The majority of deployments are expected to provision users from an external source, such a third-party enterprise user repository. In these types of deployments, the third-party repository bootstraps Oracle Internet Directory. Oracle Directory Integration Platform will provide ongoing synchronization between Oracle Internet Directory and the third-party repository. Example of third-party user repositories include Oracle Human Resources and LDAP directories such as Microsoft Active Directory, Sun Java System Directory Server, Novell eDirectory, IBM Tivoli Directory Server, and OpenLDAP.

The Oracle Directory Synchronization Service will create the user entry in Oracle Internet Directory. Because the information coming from the external source may not be sufficient to provision the user in various applications, the application defaults will be used to create the application information. User creation by the Oracle Directory Synchronization Service occurs as follows:

  1. The Oracle Directory Synchronization Service evaluates the provisioning policies specified by the applications to determine whether the user should be provisioned in the application.

  2. The Oracle Directory Synchronization Service evaluates any other plug-ins that the application has registered.

  3. The Oracle Directory Integration Platform Service invokes the PL/SQL plug-in or the Data Access Java plug-in to deliver the user information to the application.

  4. The provisioning status of the user is returned by the application using the event interfaces.

  5. The Oracle Directory Integration Platform Service updates the provisioning status of the user for the application.

How Are Administrative Privileges Delegated?

Administrative rights in Oracle Delegated Administration Services vary according to the privileges delegated to each administrator. An administrator can be granted rights to manage and provision users, manage applications, or any combination of these privileges, as described in the following scenarios:


Note:

Oracle Directory Integration Platform 11g Release 1 (11.1.1) interoperates with and supports Oracle Delegated Administration Services release 10.1.4.3.0 and higher.

Provisioning Administration Model

The following types of provisioning information is managed in Oracle Internet Directory:

  • Base user information.

  • Application-specific information.

  • User provisioning status in each provisioning-integrated application; this information is stored in the base user entry but is administered separately.

Administrators and users each require the following types of privileges:

  • Administrators require privileges for managing base user attributes and application-specific information.

  • Users require privileges for managing their own base attributes and application-specific information.

User accounts with administrative privileges are represented by the group entry "cn=User Provisioning Admins,cn=Groups,cn=OracleContext". To manage application-specific information, the application must grant privileges to the "cn=User Provisioning Admins,cn=Groups,cn=OracleContext" group. If an application already defines a group with administrative privileges, then the application needs to add this group as a member of the group.

Oracle Delegated Administration Services Privileges

For administrators with privileges for Oracle Delegated Administration Services administration, Create, Delete, and Edit buttons are available in the Provisioning Console for performing user creation, deletion, and modification. When an administrator who only has administrative rights for Oracle Delegated Administration Services clicks one of these buttons, single-step procedures are used for performing the function.

Provisioning Administration Privileges

For administrators with provisioning privileges, Create, Delete, and Edit buttons are available in the Provisioning Console for performing user creation, deletion, and modification. However, unlike the single-step procedures that occur for administrators with Oracle Delegated Administration Services privileges, wizard-based procedures perform creation and modification for administrators with provisioning privileges. User deletion is performed with the same single-step procedure that is available with Oracle Delegated Administration Services privileges, as described in "Oracle Delegated Administration Services Privileges".

Application Administration Privileges

For administrators with application administration privileges, but not Oracle Delegated Administration Services privileges or provisioning privileges, Create and Delete buttons are not available in the Provisioning Console. However, there is an Edit button that launches the same wizard that is available with provisioning administration privileges, as described in "Provisioning Administration Privileges". If the application administrator does not have provisioning privileges, then the first page in the wizard, which is used for general user provisioning, is read-only. Yet, the application administrator can modify the application provisioning attributes that are available on other pages in the wizard.

Oracle Delegated Administration Services and Provisioning Administration Privileges

Administrators with Oracle Delegated Administration Services privileges and provisioning privileges have the same rights that are available with provisioning administration privileges, as described in "Provisioning Administration Privileges".

Application Administration and Oracle Delegated Administration Services Privileges

This section explains how privileges are delegated if an administrator is assigned various Oracle Delegated Administration Services privileges and also has administrative privileges.

Application Administration Privileges and Oracle Delegated Administration Services User Creation Privileges

For application administrators with user creation privileges in Oracle Delegated Administration Services, but not user editing or deletion privileges, the Create and Edit buttons are available in the Provisioning Console, but not the Delete button. User creation is performed with the same wizard-based procedure that is available with provisioning administration privileges, as described in "Provisioning Administration Privileges". User editing privileges are the same as those available with application administration privileges, as described in "Application Administration Privileges".

Application Administration Privileges and Oracle Delegated Administration Services User Editing Privileges

For application administrators with user editing privileges in Oracle Delegated Administration Services, but not user creation or deletion privileges, the Edit button is available in the Provisioning Console, but not the Create or Delete buttons. User editing is performed with the same wizard-based procedure that is available with provisioning administration privileges, as described in "Provisioning Administration Privileges".

Application Administration Privileges and Oracle Delegated Administration Services User Deletion Privileges

For application administrators with user deletion privileges in Oracle Delegated Administration Services, but not user creation or modification privileges, the Delete and Edit buttons are available in the Provisioning Console, but not the Create button. User deletion is performed with the same single-step procedure that is available with Oracle Delegated Administration Services privileges, as described in "Oracle Delegated Administration Services Privileges". User editing is performed with the same wizard-based procedure that is available with provisioning administration privileges, as described in "Provisioning Administration Privileges".

Provisioning and Application Administration Privileges

Administrators with provisioning privileges and application administration privileges have the same rights that are available with provisioning administration privileges, as described in "Provisioning Administration Privileges".

Oracle Delegated Administration Services, Provisioning, and Application Administration Privileges

Administrators with Oracle Delegated Administration Services privileges and application administration privileges have the same rights that are available with provisioning administration privileges, as described in "Application Administration Privileges".
