Sun B2B Suite eXchange Integrator User's Guide

Using Business Processes in a Connectivity Map

The connectivity map represents connection information in Java CAPS. The flow is represented at a higher level than in the Business Process . eXchange Integrator also uses the information in the connectivity map to establish and maintain connections to systems for the connect step in a Business Process .

ProcedureTo include a Business Process as a service on a connectivity map

  1. In the Connectivity Map Editor, drag a Business Process onto the canvas.

  2. Add and connect other components and external systems as needed.

    See Figure 6–3.

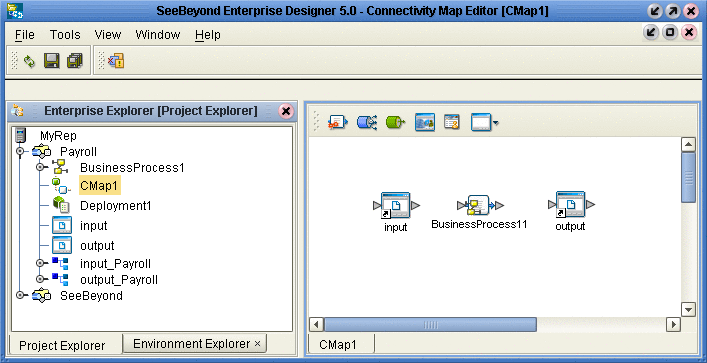

    Figure 6–3 Connectivity Map with Business Process

    Connectivity Map with Business Process

ProcedureTo connect the Business Process activities to the externals

  1. In the map, double-click the Business Process to open the Binding Dialog.

  2. Connect the appropriate activities to the corresponding external.

    Note that Receive activities appear in the left pane, and Invoke and Reply activities appear in the right pane. See Figure 6–4.

    Figure 6–4 Connectivity Map: B2B Protocol Binding

    Connectivity Map: B2B Protocol Binding
