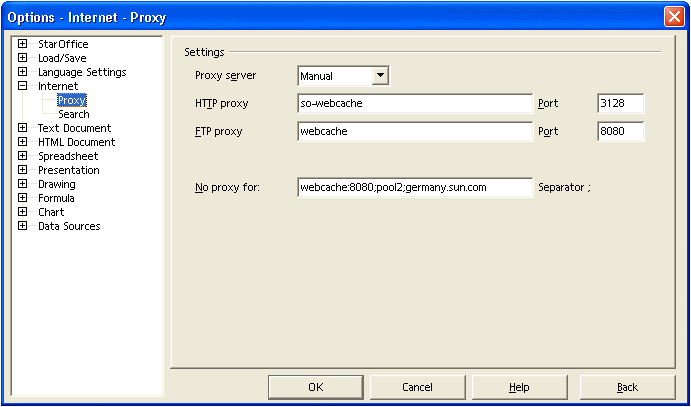

Assume that you want to make the proxy configuration settings of StarOffice available to the Desktop Manager.
The following template provides a first implementation of the GUI:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE apt:template SYSTEM "policytemplate.dtd"> <apt:template> <category apt:name="StarOffice" apt:label="StarOffice"> <category apt:name="Internet" apt:label="Internet"> <page apt:name="Proxy" apt:label="Proxy"> <section apt:name="Settings" apt:label="Settings"> <property apt:name="ProxyServer" apt:label="Proxy Server" apt:dataPath="org.openoffice.Inet/Settings/ooInetProxyType" oor:type="xs:int"> <visual apt:type="radioButtons"/> <constraints> <enumeration oor:value="0" apt:label="None"/> <enumeration oor:value="2" apt:label="Manual"/> </constraints> </property> <property apt:name="HTTPProxy" apt:label="HTTP Proxy" apt:dataPath="org.openoffice.Inet/Settings/ooInetHTTPProxyName" oor:type="xs:string"/> <property apt:name="HTTPPort" apt:label="HTTP Port" apt:dataPath="org.openoffice.Inet/Settings/ooInetHTTPProxyPort" oor:type="xs:int"/> <property apt:name="FTPProxy" apt:label="FTP Proxy" apt:dataPath="org.openoffice.Inet/Settings/ooInetFTPProxyName" oor:type="xs:string"/> <property apt:name="FTPPort" apt:label="FTP Port" apt:dataPath="org.openoffice.Inet/Settings/ooInetFTPProxyPort" oor:type="xs:int"/> <property apt:name="NoProxyFor" apt:label="No Proxy For" apt:dataPath="org.openoffice.Inet/Settings/ooInetNoProxy" oor:type="xs:string"/> </section> </page> </category> </category> </apt:template> |
The following steps are necessary to announce the new template to the Desktop Manager:
Login as root to the machine on which you installed the Desktop Manager.
Create a directory that is called HelloWorld/templates/StarOffice/Internet/Proxy under/usr/share/webconsole/apoc/packages.
Create a file called proxy.xml with the XML template content that was listed previously. Copy the file to the Proxy directory.
Grant the user “noaccess” read/execute permission to the Proxy directory.
Grant the user "noaccess" read access to the proxy.xml file.
Execute /usr/sbin/smreg add -a /usr/share/webconsole/apoc.
Restart the webserver with the /usr/sbin/smcwebserver restart command.
After you log in to the Desktop Manager, you should see a new top-level category that is called "StarOffice". Browsing down that category displays the "Proxy" page that you defined with the template that you created.
