Relocation entries describe how to alter instruction and data fields in the following figures. Bit numbers appear in the lower box corners.

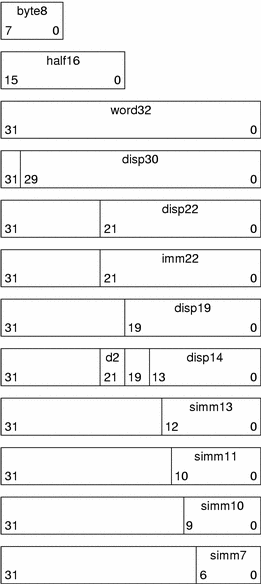

On the SPARC platform, relocation entries apply to bytes (byte8), half-words (half16), or words (the others).
On 64–bit SPARC, relocations also apply to extended-words (xword64):
On x86, relocation entries apply to words (word32):
word32 specifies a 32–bit field occupying 4 bytes with an arbitrary byte alignment. These values use the same byte order as other word values in the x86 architecture:
In all cases, the r_offset value designates the offset or virtual address of the first byte of the affected storage unit. The relocation type specifies which bits to change and how to calculate their values.
Calculations for the following relocation types assume the actions are transforming a relocatable file into either an executable or a shared object file. Conceptually, the link-editor merges one or more relocatable files to form the output. The link-editor first decides how to combine and locate the input files. Then it updates the symbol values. Finally the link-editor performs the relocation. Relocations applied to executable or shared object files are similar and accomplish the same result. Descriptions in the tables in this section use the following notation:
The addend used to compute the value of the relocatable field.
The base address at which a shared object is loaded into memory during execution. Generally, a shared object file is built with a 0 base virtual address, but the execution address is different. See Program Header.
The offset into the global offset table at which the address of the relocation entry's symbol resides during execution. See Global Offset Table (Processor-Specific).
The address of the global offset table. See Global Offset Table (Processor-Specific).
The section offset or address of the procedure linkage table entry for a symbol. See Procedure Linkage Table (Processor-Specific).
The section offset or address of the storage unit being relocated, computed using r_offset.
The value of the symbol whose index resides in the relocation entry.
Field names in the following table tell whether the relocation type checks for overflow. A calculated relocation value can be larger than the intended field, and a relocation type can verify (V) the value fits or truncate (T) the result. As an example, V-simm13 means that the computed value can not have significant, nonzero bits outside the simm13 field.
Table 7–27 SPARC: ELF Relocation Types
Name |
Value |
Field |
Calculation |
---|---|---|---|
R_SPARC_NONE |
0 |
None |
None |
R_SPARC_8 |
1 |
V-byte8 |
S + A |
R_SPARC_16 |
2 |
V-half16 |
S + A |
R_SPARC_32 |
3 |
V-word32 |
S + A |
R_SPARC_DISP8 |
4 |
V-byte8 |
S + A - P |
R_SPARC_DISP16 |
5 |
V-half16 |
S + A - P |
R_SPARC_DISP32 |
6 |
V-disp32 |
S + A - P |
R_SPARC_WDISP30 |
7 |
V-disp30 |
(S + A - P) >> 2 |
R_SPARC_WDISP22 |
8 |
V-disp22 |
(S + A - P) >> 2 |
R_SPARC_HI22 |
9 |
T-imm22 |
(S + A) >> 10 |
R_SPARC_22 |
10 |
V-imm22 |
S + A |
R_SPARC_13 |
11 |
V-simm13 |
S + A |
R_SPARC_LO10 |
12 |
T-simm13 |
(S + A) & 0x3ff |
R_SPARC_GOT10 |
13 |
T-simm13 |
G & 0x3ff |
R_SPARC_GOT13 |
14 |
V-simm13 |
G |
R_SPARC_GOT22 |
15 |
T-simm22 |
G >> 10 |
R_SPARC_PC10 |
16 |
T-simm13 |
(S + A - P) & 0x3ff |
R_SPARC_PC22 |
17 |
V-disp22 |
(S + A - P) >> 10 |
R_SPARC_WPLT30 |
18 |
V-disp30 |
(L + A - P) >> 2 |
R_SPARC_COPY |
19 |
None |
None |
R_SPARC_GLOB_DAT |
20 |
V-word32 |
S + A |
R_SPARC_JMP_SLOT |
21 |
None |
See R_SPARC_JMP_SLOT, |
R_SPARC_RELATIVE |
22 |
V-word32 |
B + A |
R_SPARC_UA32 |
23 |
V-word32 |
S + A |
R_SPARC_PLT32 |
24 |
V-word32 |
L + A |
R_SPARC_HIPLT22 |
25 |
T-imm22 |
(L + A) >> 10 |
R_SPARC_LOPLT10 |
26 |
T-simm13 |
(L + A) & 0x3ff |
R_SPARC_PCPLT32 |
27 |
V-word32 |
L + A - P |
R_SPARC_PCPLT22 |
28 |
V-disp22 |
(L + A - P) >> 10 |
R_SPARC_PCPLT10 |
29 |
V-simm13 |
(L + A - P) & 0x3ff |
R_SPARC_10 |
30 |
V-simm10 |
S + A |
R_SPARC_11 |
31 |
V-simm11 |
S + A |
R_SPARC_OLO10 |
33 |
V-simm13 |
((S + A) & 0x3ff) + O |
R_SPARC_HH22 |
34 |
V-imm22 |
(S + A) >> 42 |
R_SPARC_HM10 |
35 |
T-simm13 |
((S + A) >> 32) & 0x3ff |
R_SPARC_LM22 |
36 |
T-imm22 |
(S + A) >> 10 |
R_SPARC_PC_HH22 |
37 |
V-imm22 |
(S + A - P) >> 42 |
R_SPARC_PC_HM10 |
38 |
T-simm13 |
((S + A - P) >> 32) & 0x3ff |
R_SPARC_PC_LM22 |
39 |
T-imm22 |
(S + A - P) >> 10 |
R_SPARC_WDISP16 |
40 |
V-d2/disp14 |
(S + A - P) >> 2 |
R_SPARC_WDISP19 |
41 |
V-disp19 |
(S + A - P) >> 2 |
R_SPARC_7 |
43 |
V-imm7 |
S + A |
R_SPARC_5 |
44 |
V-imm5 |
S + A |
R_SPARC_6 |
45 |
V-imm6 |
S + A |
R_SPARC_HIX22 |
48 |
V-imm22 |
((S + A) ^ 0xffffffffffffffff) >> 10 |
R_SPARC_LOX10 |
49 |
T-simm13 |
((S + A) & 0x3ff) | 0x1c00 |
R_SPARC_H44 |
50 |
V-imm22 |
(S + A) >> 22 |
R_SPARC_M44 |
51 |
T-imm10 |
((S + A) >> 12) & 0x3ff |
R_SPARC_L44 |
52 |
T-imm13 |
(S + A) & 0xfff |
R_SPARC_REGISTER |
53 |
V-word32 |
S + A |
R_SPARC_UA16 |
55 |
V-half16 |
S + A |
Some relocation types have semantics beyond simple calculation:
Resembles R_SPARC_LO10, except that it refers to the address of the symbol's global offset table entry. Additionally, R_SPARC_GOT10 instructs the link-editor to create a global offset table.
Resembles R_SPARC_13, except that it refers to the address of the symbol's global offset table entry. Additionally, R_SPARC_GOT13 instructs the link-editor to create a global offset table.
Resembles R_SPARC_22, except that it refers to the address of the symbol's global offset table entry. Additionally, R_SPARC_GOT22 instructs the link-editor to create a global offset table.
Resembles R_SPARC_WDISP30, except that it refers to the address of the symbol's procedure linkage table entry. Additionally, R_SPARC_WPLT30 instructs the link-editor to create a procedure linkage table.
Created by the link-editor for dynamic executables to preserve a read-only text segment. Its offset member refers to a location in a writable segment. The symbol table index specifies a symbol that should exist both in the current object file and in a shared object. During execution, the runtime linker copies data associated with the shared object's symbol to the location specified by the offset. See Copy Relocations.
Resembles R_SPARC_32, except that it sets a global offset table entry to the address of the specified symbol. The special relocation type enables you to determine the correspondence between symbols and global offset table entries.
Created by the link-editor for dynamic objects to provide lazy binding. Its offset member gives the location of a procedure linkage table entry. The runtime linker modifies the procedure linkage table entry to transfer control to the designated symbol address.
Created by the link-editor for dynamic objects. Its offset member gives the location within a shared object that contains a value representing a relative address. The runtime linker computes the corresponding virtual address by adding the virtual address at which the shared object is loaded to the relative address. Relocation entries for this type must specify 0 for the symbol table index.
Resembles R_SPARC_32, except that it refers to an unaligned word. The word to be relocated must be treated as four separate bytes with arbitrary alignment, not as a word aligned according to the architecture requirements.
Resembles R_SPARC_LO10, except that an extra offset is added to make full use of the 13-bit signed immediate field.
Resembles R_SPARC_HI22, except that it truncates rather than validates.
Resembles R_SPARC_PC22, except that it truncates rather than validates.
Used with R_SPARC_LOX10 for executables that are confined to the uppermost 4 gigabytes of the 64–bit address space. Similar to R_SPARC_HI22, but supplies ones complement of linked value.
Used with R_SPARC_HIX22. Similar to R_SPARC_LO10, but always sets bits 10 through 12 of the linked value.
Used with the R_SPARC_H44 and R_SPARC_M44 relocation types to generate a 44-bit absolute addressing model.
Used to initialize a register symbol. Its offset member contains the register number to be initialized. There must be a corresponding register symbol for this register of type SHN_ABS.
The relocations listed in the following table extend, or alter, those define for 32–bit SPARC. See SPARC: Relocation Types.
Table 7–28 64-bit SPARC: ELF Relocation Types
Name |
Value |
Field |
Calculation |
---|---|---|---|
R_SPARC_HI22 |
9 |
V-imm22 |
(S + A) >> 10 |
R_SPARC_GLOB_DAT |
20 |
V-xword64 |
S + A |
R_SPARC_RELATIVE |
22 |
V-xword64 |
B + A |
R_SPARC_64 |
32 |
V-xword64 |
S + A |
R_SPARC_DISP64 |
46 |
V-xword64 |
S + A - P |
R_SPARC_PLT64 |
47 |
V-xword64 |
L + A |
R_SPARC_REGISTER |
53 |
V-xword64 |
S + A |
R_SPARC_UA64 |
54 |
V-xword64 |
S + A |
The relocations listed in the following table are defined for 32–bit x86.
Table 7–29 x86: ELF Relocation Types
Name |
Value |
Field |
Calculation |
---|---|---|---|
R_386_NONE |
0 |
none |
none |
R_386_32 |
1 |
word32 |
S + A |
R_386_PC32 |
2 |
word32 |
S + A - P |
R_386_GOT32 |
3 |
word32 |
G + A |
R_386_PLT32 |
4 |
word32 |
L + A - P |
R_386_COPY |
5 |
none |
none |
R_386_GLOB_DAT |
6 |
word32 |
S |
R_386_JMP_SLOT |
7 |
word32 |
S |
R_386_RELATIVE |
8 |
word32 |
B + A |
R_386_GOTOFF |
9 |
word32 |
S + A - GOT |
R_386_GOTPC |
10 |
word32 |
GOT + A - P |
R_386_32PLT |
11 |
word32 |
L + A |
Some relocation types have semantics beyond simple calculation:
Computes the distance from the base of the global offset table to the symbol's global offset table entry. It also instructs the link-editor to create a global offset table.
Computes the address of the symbol's procedure linkage table entry and instructs the link-editor to create a procedure linkage table.
Created by the link-editor for dynamic executables to preserve a read-only text segment. Its offset member refers to a location in a writable segment. The symbol table index specifies a symbol that should exist both in the current object file and in a shared object. During execution, the runtime linker copies data associated with the shared object's symbol to the location specified by the offset. See Copy Relocations.
Used to set a global offset table entry to the address of the specified symbol. The special relocation type enable you to determine the correspondence between symbols and global offset table entries.
Created by the link-editor for dynamic objects to provide lazy binding. Its offset member gives the location of a procedure linkage table entry. The runtime linker modifies the procedure linkage table entry to transfer control to the designated symbol address.
Created by the link-editor for dynamic objects. Its offset member gives the location within a shared object that contains a value representing a relative address. The runtime linker computes the corresponding virtual address by adding the virtual address at which the shared object is loaded to the relative address. Relocation entries for this type must specify 0 for the symbol table index.
Computes the difference between a symbol's value and the address of the global offset table. It also instructs the link-editor to create the global offset table.
Resembles R_386_PC32, except that it uses the address of the global offset table in its calculation. The symbol referenced in this relocation normally is _GLOBAL_OFFSET_TABLE_, which also instructs the link-editor to create the global offset table.
