This chapter illustrates the replacement parts and lists the parts and their
part numbers.
Table 6-1 lists the replacement parts and their part numbers.
Table 6-1 Multi-Disk Pack Replacement Part List
--------------------------------------------------------
Replacement Part Part Number --------------------------------------------------------
1.05 Gbyte, 3.5-inch disk drive F370-1546
Power supply 300-1080
SCSI cable, internal 530-2025
Power cable, internal 530-2024
I/O bracket assembly 540-2424
LED 150-1347
SCSI cable, external, 0.8 meter (standard) 530-1892
SCSI cable, external, 2.0 meter (optional) 530-1793
SCSI terminator, regulated 150-1785
SCSI connector clip 130-1539
--------------------------------------------------------
Figures 6-1 through 6-6 show the replacement parts. Refer to Table 6-1 for
part numbers.

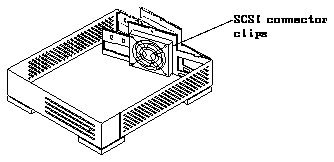

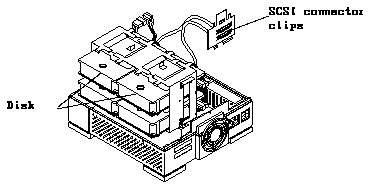

Figure 6-1 Disk Drives and SCSI Connector Clip
Figure 6-2 I/O Bracket Assembly

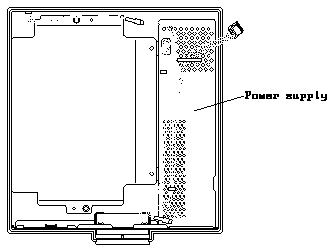

Figure 6-3 Power Supply

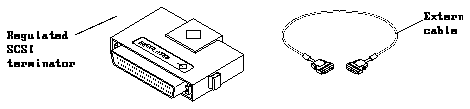

Figure 6-4 Regulated SCSI Terminator and External SCSI Cable

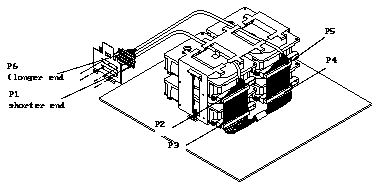

Figure 6-5 Internal SCSI Cable Routing

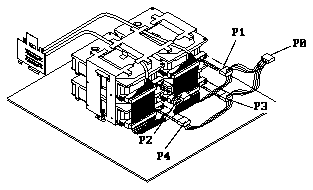

Figure 6-6 Internal Power Cable Routing
