C H A P T E R  17

Environmental Test (env6test)

env6test exercises and validates environmental subsytems. This test contains subtests to exercise a system's fans, keyswitch, LEDs, power supplies, and temperature sensors.

This test is not scalable.

---

env6test Options

To reach the dialog box below, right-click on the test name in the System Map and select Test Parameter Options. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system may not include the device appropriate to this test. Refer to the SunVTS User's Guide for more details.

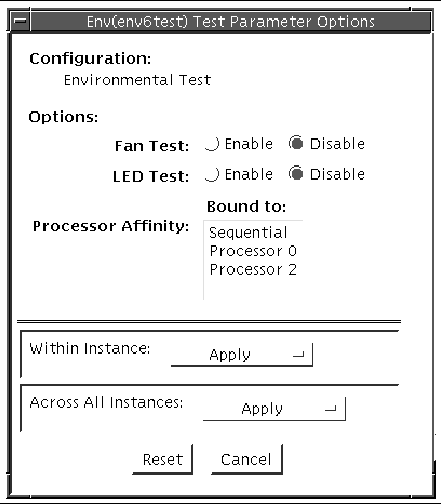

FIGURE 17-1 env6test Test Parameter Options Dialog Box

TABLE 17-1 env6test Options

env6test Options	Description
Fan Test	Checks the status, tolerance, and speed of the system's fans. Default is Disable.
LED Test	Checks overall status of system's LEDs by switching them ON and OFF. Default is Disable.

---

env6test Test Modes

TABLE 17-2 env6test Supported Test Modes

Test Mode	Description
Connection	Reports current state of devices.
Exclusive	Performs all tests including the Fan and LED subtests if they are enabled.

---

env6test Command-Line Syntax

/opt/SUNWvts/bin/env6test standard_arguments -o dev=raw_device_name,led=Enable|Disable,fan=Enable|Disable

TABLE 17-3 env6test Command-Line Syntax

Argument	Description
dev=raw_device_name	Specifies the name of the raw device to test. Default is /dev/env
led=Enable|Disable	Enables or disables the LEDS subtest. Default is Disable.
fan=Enable|Disable	Enables or disables the Fans subtest. Default is Disable.

---

Note - 64-bit tests are located in the sparcv9 subdirectory: /opt/SUNWvts/bin/sparcv9/testname, or the relative path to which you installed SunVTS. If a test is not present in this directory, then it might be available as a 32-bit test only. For more information, see 32-Bit and 64-Bit Tests.

---
