Oracle® Student Learning Learning Tool Customization Guide Release 3.1.3 Part Number E21430-04 |
|
|
PDF · Mobi · ePub |
This chapter describes the labels and icons that are shown in the student user interface.
After a student logs in, the LT shows the Home page. Every page contains the Global Menu. The Global Menu consists of Activities, Progress, and Observations areas.

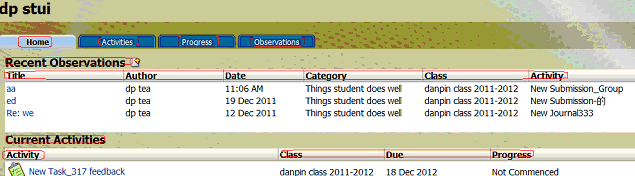

When a student navigates to the Home tab, the Home page is shown.
Table 6-2 Labels in the Home page
Label | Resource File | Attribute |
---|---|---|
Home |
LearnUIRes.properties |
INTERM.MENU.HOME |
Activities |
LearnUIRes.properties |
INTERM.MENU.ACTIVITIES |
Progress |
LearnUIRes.properties |
INTERM.MENU.PROGRESS |
Observations |
LearnUIRes.properties |
INTERM.MENU.OBSERVATIONS |
Recent Observations |
ReviewUIRes.properties |
INTERM.TITLE.RECENT.OBSERVATIONS |
Title |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.TITLE.VIEW |
Author |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.AUTHOR.INTERM |
Date |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.DATE.INTERMVIEW |
Category |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.CATEGORY.INTERM |
Class |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.CLASS |
Activity |
GlobalUIRes.properties |
OBSERVATION.TABLE.COLUMN.LEARNINGITEM.INTERM |
Current Activities |
ReviewUIRes.properties |
STUHOME.PARENTROLE.ACTIVITY.TABLE.HEAD |
Type |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.LI_TYPE_HOME |
Activity |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.ACTIVITES.HOME |
Class |
LearnUIRes.properties |
INTERM.COLUMN.CLASS.TITLE |
Due |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.DUE.HOME |
Progress |
LearnUIRes.properties |
STUHOME.ACTIVITY.TABLE.PROGRESS |

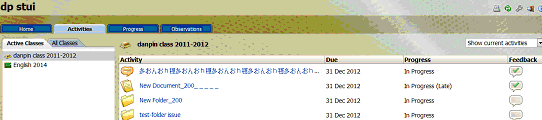

When a student navigates to the Activities tab, the Activities page is shown.
Table 6-3 Labels in the Activities page
Label | Resource File | Attribute |
---|---|---|
Active Classes |
GlobalUIRes.properties |
CLASS_SELECTOR.SHOW_DETAIL_ITEM.ACTIVE_CLASSES |
All Classes |
GlobalUIRes.properties |
CLASS_SELECTOR.SHOW_DETAIL_ITEM.ALL_CLASSES |
Overview |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.STUDENT_OVERVIEW_INTERM |
Type |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.LI_TYPE_INTERM |
Activity |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.ACTIVITES |
Due |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.DU |
Progress |
LearnUIRes.properties |
STUHOME.ACTIVITY.TABLE.PROGRESS.LESSON |
Feedback |
LearnUIRes.properties |
STULESSONPLANVIEW.TABLE.FEEDBACK.INTERM |
Table 6-5 Labels in the Discussion Item participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.DISCUSSION.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE.DISCUSSION.INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.DIS.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED.DIS.INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS.DIS.INTERM |
Every learning item has the same label, but every learning item has different attributes, as shown in the following tables:

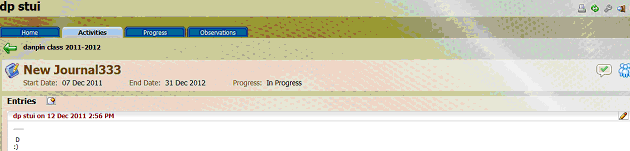

Table 6-6 Labels in the Journal Item participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.JOURNAL.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE. JOURNAL.INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.JOURNAL.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED. JOURNAL .INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS. JOURNAL .INTERM |
Table 6-7 Labels in the Submission Item participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.SUBMISSION.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE.SUBMISSION .INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.SUBMISSION.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED.SUBMISSION.INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS.SUBMISSION.INTERM |
Table 6-8 Labels in the Task Item participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.TASK.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE.TASK.INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.TASK.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED.TASK.INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS.TASK.INTERM |
Table 6-9 Labels in the Reference participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.REFERENCE.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE.TASK.REFERENCE.INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.REFERENCE.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED.REFERENCE.INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS.REFERENCE.INTERM |
Table 6-10 Labels in the Document participation page
Label | Resource File | Attribute |
---|---|---|
Start Date |
LearnUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.DOCUMENT.INTERM |
End date |
LearnUIRes.properties |
STUPARTICIPATE.LI.ENDDATE.TASK.DOCUMENT.INTERM |
Progress : |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.LABEL.DOCUMENT.INTERM.FINISHED |
Finished |
LearnUIRes.properties |
STUPARTICIPATE.LI.STATUS.FINISHED.DOCUMENT.INTERM |
Thread |
LearnUIRes.properties |
STUPARTICIPATE.LI.DISCUSSIONPOSTS.DOCUMENT.INTERM |
Table 6-11 Icons shown in the Discussion participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
DISPLAY_LIREFERENCE_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LIDISCUSSION_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |
Every learning item has different attributes, as shown below:
Table 6-12 Icons shown in the Journal Item participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
DISPLAY_LIJOURNAL_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LIJOURNAL_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |
Table 6-13 Icons shown in the Submission Item participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
DISPLAY_LISUBMISSION_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LISUBMISSION_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |
Table 6-14 Icons shown in the Task Item participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
'DISPLAY_LITASK_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LITASK_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |
Table 6-15 Icons shown in the Reference item participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
'DISPLAY_LITASK_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LIREFERENCE_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |
Table 6-16 Icons shown in the Document Item participation page
Icon | Resource File | Attribute |
---|---|---|
ImagesRes.properties |
'DISPLAY_LIDOCUMENT_INTERM.VIEWSTUDENT32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_NOTPROVIDED |
|
ImagesRes.properties |
DISPLAY_LIDOCUMENT_INTERM.RETURN32 |
|
ImagesRes.properties |
MEDIUM.FEEDBACK_PROVIDED |

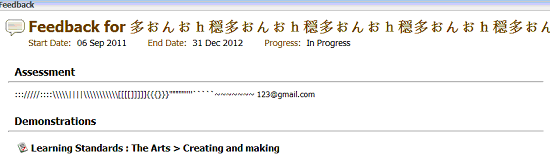

The Observations table in the Feedback page is located in the same region as the Home page. Table 6-17 list the attributes, which are not included in the Observations table of the Home page in Table 6-2.
Table 6-17 Labels in the Feedback page
Label | Resource File | Attribute |
---|---|---|
Feedback for |
GlobalUIRes.properties |
STUPARTICIPATE.LI.FEEDBACK_TITLE |
Start Date |
GlobalUIRes.properties |
STUPARTICIPATE.LI.STARTDATE.FEEDBACK.INTERM |
End Date |
GlobalUIRes.properties |
STUPARTICIPATE.LI.DUEDATE.FEEDBACK.INTERM |
Demonstrations |
GlobalUIRes.properties |
INTERM.FEEDBACK.DEMONSTRATIONS |
Assessment |
LearnUIRes.properties |
INTERM.FEEDBACK.ASSEMENT |

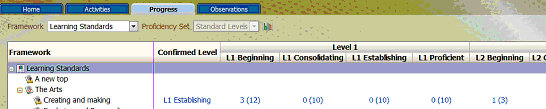

When a student navigates to the Progress tab, the Progress page is shown.
Table 6-20 Labels in the Progress page
Label | Resource File | Attribute |
---|---|---|
Framework |
ReviewUIRes.properties |
STUDENTREVIEWVIEW.TOOLBAR.CURRICULUM_FRAMEWORK_LABEL_INTERM |
Proficiency Set |
ReviewUIRes.properties |
STUDENTREVIEWVIEW.TOOLBAR.PROFICIENCY_SET_LABEL_INTERM |
From |
ReviewUIRes.properties |
STUDENTREVIEWVIEW.TOOLBAR.DATE.LABEL.INTERM |
Framework |
ReviewUIRes.properties |
STUDENTREVIEWVIEW.TREETABLE.CUR_FRAMEWORK_TITLE_INTERM |
Confirmed Level |
ReviewUIRes.properties |
STUDENTREVIEWVIEW,TREETABLE.CONFIRMED_LEVEL_TITLE_INTERM |

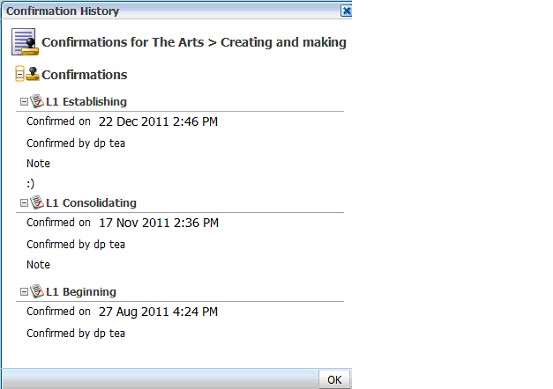

Table 6-22 Labels in the Confirmation History page
Label | Resource File | Attribute |
---|---|---|
Confirmation History |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION_DIALOG.TITLE |
Confirmations for |
ReviewUIRes.properties |
CONFIRMATIONVIEW.PANEL_HEADER.TITLE.INTERM |
Confirmations |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION.TITLE.INTERM |
Confirmations on |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION.CONFIRMED_ON_INTERM |
Confirmations by |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION.CONFIRMED_BY_INTERM |
Teacher's note |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION.INTERNAL_COMMENT_INTERM |
Comment |
ReviewUIRes.properties |
CONFIRMATIONVIEW.CONFIRMATION.EXTERNAL_COMMENT.INTERM |
When a student navigates to the Observations tab, the Observations page is shown.
Attributes for labels shown on the Observations page are same as the attributes described in Table 6-2, "Labels in the Home page".
