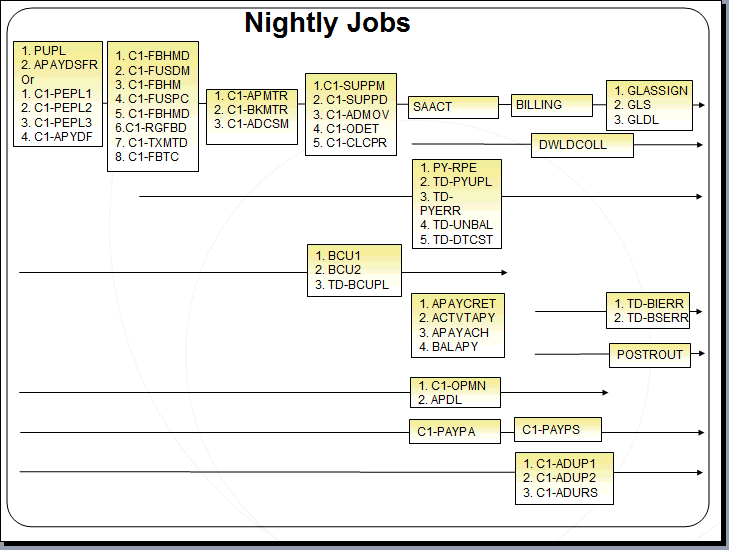

The following diagram illustrates the dependencies between the batch processes.
The mnemonics in the boxes refer to the individual batch processes described above. When a box contains multiple processes, these processes must be run sequentially. When multiple boxes exist on a timeline, all processes in an earlier box must execute before the subsequent box is executed. Those timelines that appear beneath the first job stream's timeline indicate when the timeline's respective processes can be executed in respect of the first job stream.
The following diagram illustrates the daily batch processes for which there are no dependencies.
The mnemonics in the boxes refer to the individual batch processes described above.
No dependencies exist. As you can see, there are no dependencies between the boxes (meaning they may be run in parallel).
