This section includes the following topics related to custom engine implementation:
Out of the box, Oracle Identity Federation integrates with several Identity and Access Management (IAM) products, including Oracle Access Manager, Oracle AS Single Sign-On, and others. See Section 5.15, "Configuring Authentication Engines" and Section 5.16, "Configuring SP Integration Modules" for details.
|
See Also: Section 1.2.2, "Architecture" for a discussion of Oracle Identity Federation and its relationship to other federation components. |
This section explains the components of the framework for custom IAM products, and shows you how to configure and integrate a custom IAM solution into the framework.
|
Note: Oracle strongly discourages users from deploying any applications on the Oracle WebLogic Managed Server other than the custom integration and authentication described in this section, because doing so introduces potential security risks. Extraneous applications deployed in the Oracle WebLogic Managed Server can potentially affect the security of the federation server by allowing rogue software to change the behavior of the server flows. |
At runtime, Oracle Identity Federation interacts with two types of external modules: a user data store, and an Identity and Access Management (IAM) system.
Oracle Identity Federation works with the user data store to:
locate a user after local authentication
locate a user after processing an incoming SAML assertion
retrieve attributes for a specific user
The Identity and Access Management (IAM) system provides access control for protected resources. Oracle Identity Federation, as the federation server, interacts with IAM to:
authenticate a user when the server needs to obtain a user's local identity. This operation might occur when the server acts as an IdP, or when the server, as an SP, needs to authenticate the user during initial account linking/federation creation.
create an authenticated session for a specific user when the server processes an incoming SAML assertion and asserts the user's identity to the IAM system
process logout flows; in this case, the federation server invokes IAM capabilities to log the user out of the system

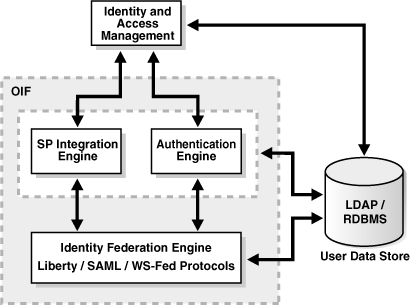

Figure 3–1 depicts the different external and internal modules of an Oracle Identity Federation deployment, and how they interact at runtime:
For the sake of this discussion, Oracle Identity Federation is depicted as three internal modules:
the Identity Federation engine, which is responsible for creating and processing SAML messages such as AuthnRequest, assertion, and logout messages.
This module:
works with the user data store when processing SAML messages;
interacts with the authentication engine when it is necessary for a user to be locally identified; and
interacts with the SP integration engines when the user is redirected to the IAM component after processing an assertion.
the authentication engines, which are responsible for processing requests from the federation engine to authenticate users. This module interacts with the IAM component and the user data store to authenticate the user and retrieve the unique identifier Oracle Identity Federation uses to reference the user.
This module can be invoked in either IdP or SP mode when local authentication is required.
After authenticating the user, the authentication engine sends the authentication information, such as the user's identifier, the time of authentication, and other data to the federation engine.
After successfully processing an incoming SAML assertion and locating the user referenced by the assertion, the federation engine instructs the SP integration engine to create an authenticated session for that user in the IAM domain. It passes the necessary information (user's identifier, authentication time, and so on) to the SP integration engine, which interacts with the IAM server to create the session.
The authentication engine framework of Oracle Identity Federation is designed to authenticate a user, and includes several internal plug-ins that allow it to interact with the various IAM servers supported out of the box, such as:
Oracle Single Sign-On
Oracle Access Manager
Username/Password using an LDAP server
Username/Password using an RDBMS server
Username/Password using an RDBMS Table
InfoCard
Federation SSO Proxy
JAAS
Additionally, Oracle Identity Federation provides a framework so that the server can be integrated with third party authentication modules. Integrators have two approaches to customize Oracle Identity Federation to interact with other authentication platforms:
Design and implement an authentication module that will interact with Oracle Identity Federation using internal JavaEE Servlet forwards. The new module would also be linked to the third party authentication solution responsible of authenticating the user.
Leverage JAAS to use a specific Login module. Oracle Identity Federation includes an authentication engine, based on internal forwards, which uses the JAAS libraries to authenticate the user. This allows integrators to re-use any JAAS compliant login modules that already exist for use in Oracle Identity Federation server modules by configuring Oracle Identity Federation.
Here is a step-by-step description of how the authentication engine interacts with other components in a typical user flow (Oracle Identity Federation is also referred to as the federation server):
The user accesses Oracle Identity Federation for an SSO operation (in either SP or IdP mode).
An internal process in the server determines that the user needs to be identified using a specific authentication mechanism (either the default one from the configuration or one requested by a remote service provider).
The federation server determines which authentication engine to use to challenge/identify the user for the specified authentication mechanism.
The federation server then internally forwards the user's request to the Web Context and Login Relative Path of the authentication engine to challenge/identify the user, and it passes some information, specified via Java Objects stored as Attributes of the HttpServletRequest instance:
The authentication mechanism to use when challenging the user for identification
An identifier referencing the current action that is being performed
The ProviderID and the description of the remote service provider for which this local authentication is requested, if a Federation SSO operation is performed
The identifier referencing the engine used to authenticate the user
The identifier of the user
The Force Authentication flag, indicating whether the engine should challenge the user even if the user is already authenticated.
The Is Passive flag, indicating whether the engine is allowed to visually interact with the user.
Optionally, a map of attributes that need to be set by the engine: these attributes are required in order for Oracle Identity Federation/IdP to create correctly the assertion with the AttributeStatement, as specified by the configuration for that specific remote provider.
Optionally, a String containing the Oracle Identity Federation session identifier, if the user has already an active session. Oracle Identity Federation is passing the sessionID of the already existing user session (if one exists), to the authentication engine, so that the engine can persist state linked to the user, and it can reference that data by using the sessionID value. Later on, when the logout flow is being executed, Oracle Identity Federation passes the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session.
The authentication engine processes the incoming request, and it has access to the information stored as HttpServletRequest attributes.
The authentication engine interacts with the IAM component and may challenge the user for credentials. After successful authentication, it may set a cookie (for example, to maintain the authenticated session with the IAM server and/or the target application).
The authentication module sends the user back to Oracle Identity Federation using an internal forward (Web Context /fed and Login Relative Path /user/loginsso), and it passes the following information as HttpServletRequest attributes:
The identifier of the user
Authentication time
Expiration time of the authenticated session
The authentication mechanism used to identify the user
The identifier referencing the action that was being performed, from the request
The identifier referencing the engine used to authenticate the user
Optionally, a map of attributes that is stored in the user session.
Optionally, a String containing the Oracle Identity Federation session identifier that Oracle Identity Federation needs to use to reference the Oracle Identity Federation user session. This allows the engine and Oracle Identity Federation to share the same identifier to reference the user session. Later on, when the logout flow is being executed, Oracle Identity Federation passes the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session.
|
Note:
|
Oracle Identity Federation performs these actions:
processes the incoming request
retrieves the data embedded as attributes in the HttpServletRequest
locates the user in the user data store
creates a session for the user
sets a cookie, and
resumes the SSO operation.
The SP integration engine included with Oracle Identity Federation consists of a servlet that processes requests from the server to create a user authenticated session at the IAM server. The engine includes several internal plug-ins that allow it to interact with different IAM servers, such as:
Oracle Single Sign-On
Oracle Access Manager
Oracle Identity Federation Test Application
Additionally, Oracle Identity Federation provides a framework so that the server is able to be integrated with third party IAM frameworks: the customized SP integration Module interacts with Oracle Identity Federation using internal J2EE Servlet forwards, and it communicates with the third party IAM system to create the user authenticated session.
Here is a step-by-step description of how an SP integration engine interacts with the Oracle Identity Federation Framework in a typical user flow:
The user attempts to access a resource protected by the IAM solution, and configured to use Federation SSO to authenticate the user.
The IAM deployment redirects the user to the corresponding SP integration Module on Oracle Identity Federation.
The SP integration Module decodes the information sent by the IAM deployment and internally forward the user to the Oracle Identity Federation server with the following information set as HttpServletRequest attributes:
An optional authentication mechanism specifying to the SP which authentication mechanism to request the IdP to use during authentication.
|
Note: if set, this parameter is used to determine the IdP to use, disregarding the default parameter described next. |
An optional Provider ID referencing the IdP to use for the Federation SSO. If missing, Oracle Identity Federation uses the IdP mapped for the specified authentication mechanism. If no IdP could be found, Oracle Identity Federation uses the IdP configured as the Default SSO IdP
An optional federation ID referencing the affiliation to use to trigger the Federation SSO
The relay state. It can contain a small string, for example a reference to some data saved in a repository or a small URL pointing to the protected resource to redirect the user to after completion of the SSO operation
The identifier of the SP engine that started the SSO flow
An optional boolean indicating if the Oracle Identity Federation server should authenticate the user locally using the authentication engines or if a Federation SSO should be started by redirecting the user to an IdP for authentication
A Boolean object indicating whether to use the configuration stored in Oracle Identity Federation or to only start the SSO operation based on the information being passed by the SP engine, except for the IdP
A Boolean object indicating whether the SP should ask the IdP to challenge the user even if already authenticated
A Boolean object indicating whether the SP should allow the IdP to create a federation record if one does not yet exist, during the SSO operation
A Boolean object indicating whether the SP should ask the IdP not to interact with the user during the SSO operation
A String representing the binding to use when sending the AuthnRequest
A String representing the binding to use when sending the response with the assertion
An optional authentication mechanism comparison specifying to the SP which authentication context comparison to request the IdP to use during authentication
A String representing the NameID format the SP uses to ask the IdP for the SSO operation
Oracle Identity Federation initiates a Federation SSO operation with a remote IdP.
The IdP authenticates the user and, if necessary, redirects the user, with an assertion, to the federation server acting as an SP.
The server processes the assertion and locates the user in the user data store. The user is now authenticated at the federation server.
Oracle Identity Federation internally forwards the user back to the SP integration Module by using the Web Context and Login Relative Path of that module configured in Oracle Identity Federation. The server passes the following data as HttpServletRequest attributes:
A Boolean object indicating if the SSO operation was successful
The identifier of the user
Authentication time
Expiration time of the authenticated session
The authentication mechanism used to identify the user
The relay state
The contents of the assertion: the NameID, the Issuer of the assertion and the optional attributes. Note: the content of the assertion is not passed as XML Data, that is the original assertion will not be passed back to the module. The extra data is referenced as:
orafed-nameid-value containing the Name ID value
orafed-nameid-qualifier containing the Name ID qualifier
orafed-nameid-format containing the Name ID format
orafed-providerid containing the Peer ProviderID
The top status of the SAML Response
The low status of the SAML Response if any
The status message if any
The ProviderID that created the SSO assertion
The identifier of the SP engine to process the above information
A String containing the Oracle Identity Federation identifier of the user session. Oracle Identity Federation is passing the sessionID of the user session to the SP engine, so that it can persist state linked to the user, and it can reference that data by using the sessionID value. Later on, when the logout flow is being executed, Oracle Identity Federation passes the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session.
The SP integration engine interacts with the IAM server to create an authenticated session for the user. The session is based on the data received from Oracle Identity Federation.
The SP integration engine redirects the user to the final target URL.
When logging out, Oracle Identity Federation and the authentication/SP engines need to be logged out. This involves:
Logging out the user from the authentication engines
Logging out the user from the SP engines
Performing the SAML/WS-Fed Global Logout profiles
Logging the user out from Oracle Identity Federation
There are several ways to invoke the logout:
The user invokes the Oracle Identity Federation logout server, at /fed/user/logout by specifying an optional return URL. In this case, Oracle Identity Federation logs the user out from authentication/SP engines, the remote SAML providers and from Oracle Identity Federation itself, and Oracle Identity Federation redirects the user to the return URL, or display the logout result page.
The user is redirected from a remote SAML/WS-Fed provider to Oracle Identity Federation using the Global Logout protocol. In this case, Oracle Identity Federation logs the user out from authentication/SP engines, the remote SAML/WS-Fed providers (except the one that sent the logout message), from Oracle Identity Federation itself and redirect the user back to the remote SAML provider that sent the original message.
The user initiates logout from an environment integrated with an authentication/SP engine. In that case, that environment would invoke the authentication/SP engine for logout, and the engine would then send the user to Oracle Identity Federation for logout. From that point, Oracle Identity Federation would log out the user from the authentication/SP engines (except the engine that redirected the user to Oracle Identity Federation), from Oracle Identity Federation itself and redirect the user back to the authentication/SP engine that started the flow
|
Note: Internal forwards is used to send the user from Oracle Identity Federation to the authentication/SP engines and from the authentication/SP engines to Oracle Identity Federation. |
Oracle Identity Federation invokes Authn/SP Engine
When Oracle Identity Federation sends the user to the authentication/SP engine, it:
Performs an internal forward to the web context and relative logout path of the engine
Specifies the engine ID of the invoked engine for logout
Optionally specifies the identifier of the user session being logged out
When the authentication/SP engine logs the user out, the engine internally forwards the user back to Oracle Identity Federation, it:
Performs an internal forward to the /fed web context and /user/logoutretsso
Specifies the engine ID of the invoked engine
Authn/SP invokes Oracle Identity Federation
When an authentication/SP engine invokes Oracle Identity Federation for logout, it:
Performs an internal forward to the /fed web context and /user/logoutsso
Specifies the engine ID of the invoked engine for logout
Specifies a return URL where Oracle Identity Federation redirects the user after logout.
At the end of the logout flow, the user is logged out from Oracle Identity Federation and redirected to the return URL.
Oracle Identity Federation's design is consistent with certain requirements for authentication operations and SP integration (where a user session is created at the IAM server). Consequently, you must meet the following requirements when implementing a custom authentication engine or an SP integration engine:
The authentication engine, the SP integration engine, the Oracle Identity Federation engine and the IAM server must use the same user data store as the user repository. This store contains the user data used to look up and authenticate users.
The authentication engine and the SP integration engine must include a Java Servlet /JSP.
The data exchanges between Oracle Identity Federation and the authentication/SP integration engines are done via internal HTTP request forwarding. This is actually an internal API call between the modules that relies on the J2EE servlet framework via the HTTP protocol.
A logout service needs to be implemented and made available to the authentication engine and/or the SP integration engine. This logout service must be published as Servlet/JSP.
This section explains how to plan, develop, and implement a custom authentication engine.
Creating a customized authentication engine involves:
creating a service that will process incoming requests from Oracle Identity Federation
implementing a module to authenticate a user
creating a service that forwards the user to the federation server with the required information
deciding whether the authentication engine will set a cookie after authenticating a user. If yes, the authentication module must be integrated into the logout process (see Section 10.5, "Logout")
packaging the services and module into a web application, and deploying the application to the Oracle WebLogic Managed Server where Oracle Identity Federation is running
configuring Oracle Identity Federation to reference the new authentication engine.
ensuring that the user identifier returned by the authentication engine references the same user in the Oracle Identity Federation User Data Store
Several aspects of module development are explained here.
URLs
Communication between the federation engine and the authentication engine occurs through internal servlet forwards that are equivalent to API calls. These forwards use the following JavaEE API:
ServletContext.getContext(String contextPath)
.getRequestDispatcher(String relativePath)
.forward(HttpServletRequest request,
HttpServletResponse response)
where:
contextPath is the root context path of the web application. For example, the contextPath of Oracle Identity Federation is /fed.
relativePath is the service URL to which to forward the user; it is relative to the contextPath. For example, after authenticating a user, the authentication engine uses /user/loginsso as the relativePath when forwarding the user.
Oracle Identity Federation needs to be aware of the ID of the new authentication engine, and the contextPath and the relativePath. This is the URL that will process authentication requests issued by the federation server.
Adding or Modifying an Authentication Engine
To add an authentication engine or modify one:
Go to Fusion Middleware Control and locate the Oracle Identity Federation instance.
Navigate to Administration then Authentication Engines.
To add an authentication engine, click Add and enter a name for that authentication engine. Oracle Identity Federation generates an ID for that new engine.
|
Note: Fusion Middleware Control only uses the name for display purposes while the ID is used during communications between Oracle Identity Federation and the authentication engine. |
To modify an authentication engine, select it and:
Enable or disable the engine
Specify the contextPath of the authentication engine in the Web Context field
Specify the relative path of the login service of the authentication engine in the Login Relative Path field
Enable or disable logout
Specify the relative path of the logout service of the authentication engine in the Logout Relative Path field
Click Apply.
Implementing the Service
This section describes the roles that are played by the authentication engine, and the processing tasks that the service must be able to handle for a successful implementation.
The authentication engine needs to:
process requests from the federation engine
forward the user to the federation server after a successful authentication
When processing authentication requests from the server, the engine must process the following incoming data:
The authentication mechanism to use when challenging the user for identification as a String (identified by oracle.security.fed.authn.authnmech)
An identifier referencing the current action that is being performed as a String (identified by oracle.security.fed.authn.refid)
The ProviderID and the description of the remote service provider for which this local authentication is requested, if a Federation SSO operation is performed as a String (identified by oracle.security.fed.authn.providerid and oracle.security.fed.authn.providerdescription).
The identifier referencing the engine used to authenticate the user (identified by oracle.security.fed.authn.engineid)
The identifier of the user as a String, if set (identified by oracle.security.fed.authn.userid)
The Force Authentication flag, a Boolean object, indicating whether the engine should challenge the user even if the user is already authenticated. If missing, False is assumed. (identified by oracle.security.fed.authn.forceauthn)
The Is Passive flag, a Boolean object, indicating whether the engine is allowed to visually interact with the user. If missing, False is assumed. (identified by oracle.security.fed.authn.passive)
Optionally, a map of attributes that need to be set by the engine: these attributes are required for Oracle Identity Federation/IdP to correctly create the assertion with the AttributeStatement, as specified by the configuration for that specific remote provider. (identified by oracle.security.fed.authn.attributes)
When Oracle Identity Federation receives an SSO assertion, processes it and requests that the user be locally authenticated because the server was not able to map the assertion to a local user, the Map contains this data from the assertion:
orafed-nameid-value – the user's Name ID value
orafed-nameid-qualifier – the user's Name ID qualifier
orafed-nameid-format – the user's Name ID format
orafed-providerid – the IdP's ProviderID
orafed-assertionid - the ID of the assertion
orafed-xmlmessage - the optional XML message containing the assertion.
See Section 6.13.2, "Providing XML Message to SP Engine after SSO Completes" for details.
Optionally, a String containing the Oracle Identity Federation session identifier, if the user has already an active session. Oracle Identity Federation is passing the sessionID of the already existing user session (if one exists), to the authentication engine, so that the engine can persist state linked to the user, and it can reference that data by using the sessionID value. Later on, when the logout flow is being executed, Oracle Identity Federation will pass the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session. (identified by oracle.security.fed.sessionid).
After successful authentication, the engine must forward the user to the federation server with the rootContext of the federation engine being /fed, and the relativePath /user/loginsso.
Oracle Identity Federation expects this data when processing the internal forward:
The identifier of the user as a String (identified by oracle.security.fed.authn.userid)
Authentication time as a Date object (identified by oracle.security.fed.authn.authntime)
Expiration time of the authenticated session as a Date object (identified by oracle.security.fed.authn.expirationtime)
The authentication mechanism used to identify the user as a String (identified by oracle.security.fed.authn.authnmech)
The identifier referencing the action that was being performed, from the request (identified by oracle.security.fed.authn.refid)
The identifier referencing the engine used to authenticate the user (identified by oracle.security.fed.authn.engineid)
Optionally, a Map of attributes that is stored in the user session. This map will have String objects as the keys and a set of objects as the values (identified by oracle.security.fed.authn.attributes).
Optionally, a String containing the Oracle Identity Federation session identifier that Oracle Identity Federation will need to use to reference the Oracle Identity Federation user session. This allows the engine and Oracle Identity Federation to share the same identifier to reference the user session. Later on, when the logout flow is being executed, Oracle Identity Federation will pass the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session. (identified by oracle.security.fed.sessionid)
|
Notes:
|
Here are some additional implementation requirements:
If the service needs to set any cookies, perform this operation before forwarding the user to the federation server.
Set the cookie path value to "/". This is required because of the internal forwards between the Oracle Identity Federation web application and the authentication engine web application; the user's browser needs to send the cookies related to the authentication engine, even when it is accessing only the federation server. This way, at an internal forward from the federation server to the authentication engine, the cookies set by the engine are available in the HTTP Request.
This section describes how to integrate a custom authentication engine with OracleAS Single Sign-On.
Setup
In this example, the application server where Oracle Identity Federation is running has been integrated with the Oracle Single Sign-On server, and the SSO module statically protects the /engine/forward.jsp URL.
Additionally, the user data store configured for Oracle Identity Federation references the Oracle Internet Directory server used by Oracle Single Sign-On.
|
See Also: Section 3.2.2, "Deploying Oracle Identity Federation with Oracle Single Sign-On" for more information on SSO integration. |
Packaging
The authentication engine consists of a Web application with a root context set to /engine, and contains two JSP pages:
authentication.jsp which processes the incoming request from Oracle Identity Federation
forward.jsp which is protected by Oracle Single Sign-On, and which forwards the user back to the federation server with the required data.
Adding the Engine
To add the engine:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then Authentication Engines. Select the Authentication Engines - Custom tab.
To add an authentication engine, click Add and enter a name for that authentication engine. Oracle Identity Federation will generate an ID for that new engine: this ID is reference by TEST_ENGINE_ID for this test
Select the authentication engine to modify it:
Enable the engine.
Set "/engine" as the Web Context of the authentication engine
Set "/authentication.jsp" as the Login Relative Path of the authentication engine
Click Apply.
Implementation of authentication.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String authnMech = (String)request.getAttribute("oracle.security.fed.authn.authnmech");
String refid = (String)request.getAttribute("oracle.security.fed.authn.refid");
String redirectURL = "/engine/forward.jsp?refid=" +
(refid != null ? URLEncoder.encode(refid) : "");
response.sendRedirect(redirectURL);
%>
Implementation of forward.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.util.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String refid = request.getParameter("refid");
String userID = request.getRemoteUser();
String authnMethod = "oracle:fed:authentication:password-protected";
Date now = new Date();
request.setAttribute("oracle.security.fed.authn.engineid", TEST_ENGINE_ID);
request.setAttribute("oracle.security.fed.authn.userid", userID);
request.setAttribute("oracle.security.fed.authn.refid", refid);
request.setAttribute("oracle.security.fed.authn.authnmech", authnMethod);
request.setAttribute("oracle.security.fed.authn.authntime", now);
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher("/user/loginsso").forward(request, response);
%>
Since the Oracle Single Sign-On framework sets cookies in the user's browser, the authentication engine should be integrated into the logout flow; see Section 10.5, "Logout".
This section shows how to integrate a customized authentication engine with a standalone LDAP server.
Setup
The user data store configured in Fusion Middleware Control for Oracle Identity Federation references the LDAP server used by the authentication engine.
Packaging
The authentication engine consists of a Web application with a root context set to /engine, and contains two JSP pages:
loginpage.jsp, which processes the incoming request from the federation server, and displays the login page.
ldapforward.jsp, which authenticates the user's credentials against the LDAP server; upon success it forwards the user to the federation server.
Adding the Engine
To add the engine:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then Authentication Engines. Select the Authentication Engines - Custom tab.
To add an authentication engine, click Add and enter a name for that authentication engine. Oracle Identity Federation will generate an ID for that new engine: this ID is reference by TEST_ENGINE_ID for this test
Select the authentication engine to modify it:
Enable the engine
Set "/engine" as the Web Context of the authentication engine
Set "/loginpage.jsp" as the Login Relative Path of the authentication engine
Save the changes.
Implementation of loginpage.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String refid = request. getAttribute("oracle.security.fed.authn.refid");
String postURL = "/engine/ldapforward.jsp?refid=" +
(refid != null ? URLEncoder.encode(refid) : "");
String msg = request.getParameter("message");
%>
<HTML>
<BODY>
<FORM action="<%=postURL%>" method="POST">
<% if(msg != null && msg.length() > 0) { %> <%=msg%><BR/> <%}%>
Username: <INPUT type="text" name="username"/><BR/>
Password: <INPUT type="password" name="password"/><BR/>
<INPUT type="submit" value="Submit"/>
</FORM>
</BODY>
</HTML>
Implementation of forward.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.util.*, javax.naming.*, javax.naming.directory.*, java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String refid = request.getParameter("refid");
String authnMethod = "oracle:fed:authentication:password-protected";
String userID = request.getParameter("username");
String password = request.getParameter("password");
Date now = new Date();
Hashtable env = new Hashtable();
env.put(Context.INITIAL_CONTEXT_FACTORY, "com.sun.jndi.ldap.LdapCtxFactory");
env.put(Context.PROVIDER_URL, "ldap://mynode.us.mycorp.com:389");
env.put(Context.SECURITY_AUTHENTICATION, "simple");
env.put(Context.SECURITY_PRINCIPAL, "cn=" + userID + ",cn=users,dc=us,dc=oracle,dc=com");
env.put(Context.SECURITY_CREDENTIALS, password);
try {
DirContext ctx = new InitialDirContext(env);
} catch (NamingException ex) {
String redirectURL = "/engine/loginpage.jsp?refid=" +
(refid != null ? URLEncoder.encode(refid) : "") + "&message=" + URLEncoder.encode(ex.toString() + " for " + userID);
response.sendRedirect(redirectURL);
return;
}
request.setAttribute("oracle.security.fed.authn.engineid", TEST_ENGINE_ID);
request.setAttribute("oracle.security.fed.authn.userid", userID);
request.setAttribute("oracle.security.fed.authn.refid", refid);
request.setAttribute("oracle.security.fed.authn.authnmech", authnMethod);
request.setAttribute("oracle.security.fed.authn.authntime", now);
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher(“/user/loginsso”).forward(request, response);
%>
Logout
Since no cookies are set in this flow, the authentication engine is not required to integrate with the logout flow (described in Section 10.5, "Logout").
This section explains how to plan, develop, and implement a custom SP integration engine.
|
See Also:
|
The steps for developing a custom SP integration engine involve:
creating a service to process requests from Oracle Identity Federation in SP mode
implementing a module to create an authenticated session for a user at the IAM server
redirecting the user to the final target URL
deciding whether the SP integration engine will set a cookie after it creates an authenticated session at the IAM server. If so, the engine needs to be integrated into the logout process (Section 10.5, "Logout").
packaging these services and module into a web application, and deploying it to Oracle WebLogic Managed Server where the federation server is running
configuring Oracle Identity Federation to reference the new SP integration module.
if the SP integration engine accesses a user repository, ensuring that it is the same user data store configured in Fusion Middleware Control for use by Oracle Identity Federation
This section describes how to develop the integration module and how to implement it in the federation environment.
Communication between the Oracle Identity Federation engine and the SP integration engine requires internal servlet forwards that are equivalent to API calls. These forwards are achieved with the following JavaEE API:
ServletContext.getContext(String contextPath)
.getRequestDispatcher(String relativePath)
.forward(HttpServletRequest request,
HttpServletResponse response)
where
contextPath is the root context path of the web application. For example, the contextPath of Oracle Identity Federation is /fed.
relativePath is the service URL to which the uses is forwarded, and is relative to the contextPath. For example, when starting a Federation SSO flow, the SP integration engine uses /sp/startsso as the relativePath when forwarding the user.
Oracle Identity Federation needs to be aware of the ID and the contextPath and the relativePath of the new SP integration engine; This is the URL that will process the result of the Federation SSO operation after the federation server has processed the incoming assertion.
To add or modify the SP integration engine take these steps:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration then SP Integration Modules. Click the Custom SP Engine tab.
To add an SP integration engine, click Add and enter a name for that SP integration engine. Oracle Identity Federation will generate an ID for that new engine
|
Note: the name will only be used in Fusion Middleware Control for display purposes while the ID is used during communication between Oracle Identity Federation and the authentication engine |
To modify an SP integration engine, select it and:
Enable or disable the engine
Specify the contextPath of the SP integration engine in the Web Context field
Specify the relative path of the login service of the SP integration engine in the Login Relative Path field
Select the authentication mechanism to use if a local authentication procedure needs to occur during the assertion processing (this can happen when Federated Identities are used to map the assertion to a user record, if the Federation record does not exist: in this case, the user will need to be locally authenticated in order to perform the one time operation that will create the record)
Enable or disable logout
Specify the relative path of the logout service of the SP integration engine in the Logout Relative Path field
Save your changes.
Upon receiving a request from Oracle Identity Federation, the SP integration engine needs to:
create an authenticated session for the user
redirect the user to the final URL
Attributes Set by SP Integration Module
To initiate a Federation SSO operation, the SP integration module needs to forward the user to Oracle Identity Federation by specifying the following data as HttpServletRequest attributes:
An optional authentication mechanism specifying to the SP which authentication mechanism to request the IdP to use during authentication. (identified by oracle.security.fed.sp.authnmech). This parameter is ignored if usedefault is true or missing.
|
Note: if set, this parameter is used to determine the IdP to use, as described below, disregarding the usedefault parameter |
An optional Provider ID referencing the IdP to use for the Federation SSO. If missing, Oracle Identity Federation will use the IdP mapped for the specified authentication mechanism. If no IdP could be found, Oracle Identity Federation will use the IdP configured as the default SSO IdP. The value is a String (identified by oracle.security.fed.sp.providerid)
An optional federation ID referencing the affiliation to use to trigger the Federation SSO, as a String (identified by oracle.security.fed.sp.federationid)
The relay state. It can contain a small string, for example a reference to some data saved in a repository or a small URL pointing to the protected resource to redirect the user to after completion of the SSO operation. (identified by oracle.security.fed.sp.relaystate)
The identifier of the SP engine that started the SSO flow, as a String (identified by oracle.security.fed.sp.engineid)
An optional boolean indicating if Oracle Identity Federation should authenticate the user locally using the authentication engines or if a Federation SSO should be started by redirecting the user to an IdP for authentication, as a Boolean (identified by oracle.security.fed.sp.localauthn ; default is false)
A Boolean object indicating whether to use the configuration stored in Oracle Identity Federation or to only start the SSO based on the information being passed by the SP engine, except the IdP (identified by oracle.security.fed.sp.usedefault). If missing, true is assumed.
A Boolean object indicating whether the SP should ask the IdP to challenge the user even if he/she is already authenticated (identified by oracle.security.fed.sp.forceauthn). This parameter is ignored if usedefault is true or missing.
A Boolean object indicating whether the SP should allow the IdP to create a federation record if one does not yet exist, during the SSO operation (identified by oracle.security.fed.sp.allowfedcreation). This parameter is ignored if usedefault is true or missing.
A Boolean object indicating whether the SP should ask the IdP not to interact with the user during the SSO operation (identified by oracle.security.fed.sp.passive). This parameter is ignored if usedefault is true or missing.
A String representing the binding to use when sending the AuthnRequest (identified by oracle.security.fed.sp.requestbinding). This parameter is ignored if usedefault is true or missing. Acceptable values are httpredirect, httpost, httppostsimple depending on the protocol
A String representing the binding to use when sending the Response with the assertion (identified by oracle.security.fed.sp.responsebinding). This parameter is ignored if usedefault is true or missing. Acceptable values are artifact or httpost depending on the protocol.
An optional authentication mechanism comparison specifying to the SP which authentication context comparison to request the IdP to use during authentication. (identified by oracle.security.fed.sp.authnmechcomparison). This parameter is ignored if usedefault is true or missing.
A String representing the NameID format the SP will ask to the IdP for the SSO operation (identified by oracle.security.fed.sp.nameidformat). This parameter is ignored if usedefault is true or missing.
Optional attributes to be requested from the identity provider during the Federation SSO operation (for example when interacting with an OpenID IdP). The data is passed as a Map with Strings as keys and a set of objects as values, identified by oracle.security.fed.sp.attributes. The values is optional, while the keys contain the attribute names.
Oracle Identity Federation Assertion Processing
Oracle Identity Federation then performs a SAML/WS-Fed SSO operation with a remote IdP, processes the assertion, maps it optionally to a local user record and finally forwards the user back to the SP integration engine that initiated the operation by specifying the following information as HttpServletRequest attributes:
A Boolean object indicating if the SSO operation was successful (identified by oracle.security.fed.sp.authnresult)
The identifier of the user as a String (identified by oracle.security.fed.sp.userid)
Authentication time as a Date object (identified by oracle.security.fed.sp.authntime)
Expiration time of the authenticated session as a Date (identified by oracle.security.fed.sp.expirationtime)
The authentication mechanism used to identify the user as a String (identified by oracle.security.fed.sp.authnmech)
The relay state as a String (identified by oracle.security.fed.sp.relaystate)
The contents of the assertion: the NameID, the issuer of the assertion and the optional attributes. Note: the content of the assertion is not passed as XML Data, that is the original assertion will not be passed back to the module. The data is passed as a Map with Strings as keys and Set of Objects as values (identified by oracle.security.fed.sp.attributes). The extra data is referenced as:
orafed-nameid-value containing the Name ID value
orafed-nameid-qualifier containing the Name ID qualifier
orafed-nameid-format containing the Name ID format
orafed-providerid containing the Peer ProviderID
orafed-assertionid - the ID of the assertion
orafed-xmlmessage - the optional XML message containing the assertion
See Section 6.13.2, "Providing XML Message to SP Engine after SSO Completes" for details.
The top status of the SAML Response as a String (identified by oracle.security.fed.sp.topstatus)
The low status of the SAML Response if any, as a String (identified by oracle.security.fed.sp.lowstatus)
The status message if any as a String (identified by oracle.security.fed.sp.statusmessage)
The ProviderID that created the SSO assertion as a String (identified by oracle.security.fed.sp.providerid)
The identifier of the SP engine that will process the above information (identified by oracle.security.fed.sp.engineid)
A String containing the Oracle Identity Federation identifier of the user session. Oracle Identity Federation is passing the sessionID of the user session to the SP engine, so that it can persist state linked to the user, and it can reference that data by using the sessionID value. Later on, when the logout flow is being executed, Oracle Identity Federation passes the sessionID that is being logged out to the engine, so that the engine can delete the data that was used for this user session. (identified by oracle.security.fed.sessionid)
Authenticated Session Creation
Using this data, the SP integration engine creates an authenticated session and redirects the user to the final target URL.
If the service needs to set cookies, the cookie path must be set to "/". This is necessary because of the internal forwards between the Oracle Identity Federation and SP integration engine web applications; the user's browser needs to send the cookies related to the SP integration engine, even when accessing only the federation server. This way, when an internal forward occurs from the federation server to the SP integration engine, the cookie set by the latter is available in the HTTP Request.
The next two sections provide examples of implementing a custom authentication engine:
Sample Integration Module 1: Oracle WebLogic Server JavaEE Integration
Sample Integration Module 2: Customized Single Sign-On Integration
|
Note: Oracle strongly discourages users from deploying any applications on the Oracle WebLogic Managed Server other than the ones for custom integration and authentication described as sample integration modules 1 and 2 below, because doing so introduces potential security risks. Extraneous applications deployed in the Oracle WebLogic Managed Server can potentially affect the security of the federation server by allowing rogue software to change the behavior of the server flows. |
This section shows a simple SP integration engine that uses the javax.servlet.http.HttpSession to set an attribute. The presence of this attribute shows whether a user is authenticated.
|
Note: The example in this section is intended for illustration only and should not be used in a production environment. Indeed, it supposes that other applications deployed on the Oracle WebLogic Managed Server will consume data set by the SP integration engine, which is an approach strongly discouraged by Oracle. Furthermore, this example might not function properly in certain deployments, especially when propagatingHttpSession across J2EE applications. |
Setup
The SP integration engine will not interact with the user data store used by Oracle Identity Federation.
Packaging
The SP integration engine consists of a Web application with a root context set to /engine, and contains two JSP pages:
wlsintegration.jsp, which processes the request from the federation server and creates an HttpSession with a feduserid attribute containing the user's identifier
application.jsp, which serves as an application. It looks for the HttpSession's feduserid attribute, and triggers a Federation SSO if the attribute is not found
Adding or Modifying an SP Integration Engine
To add or modify the SP integration engine take these steps:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then SP Integration Modules. Click the Custom SP Engine tab.
To add an SP integration engine, click Add and enter a name for that SP integration engine. Oracle Identity Federation generates an ID for that new engine: this ID is reference by TEST_ENGINE_ID for this test
To modify an SP integration engine, select it and:
Enable the engine
Set "/engine" as the Web Context of the authentication engine
Set "/wlsintegration.jsp" as the Login Relative Path of the SP integration engine
Select the authentication mechanism to use if a local authentication procedure needs to occur during the assertion processing (this can happen when Federated Identities are used to map the assertion to a user record, if the Federation record does not exist: in this case, the user will need to be locally authenticated in order to perform the one time operation that will create the record)
Save your changes.
Implementation of application.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String userid = (String)request.getSession().getAttribute("feduserid");
if (userid == null || userid.length() == 0) {
request.setAttribute("oracle.security.fed.sp.engineid", TEST_ENGINE_ID);
request.setAttribute("oracle.security.fed.sp.usedefault", Boolean.TRUE);
request.setAttribute("oracle.security.fed.sp.relaystate", "/engine/application.jsp");
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher("/sp/startsso").forward(request, response);
return;
}
%>
Welcome <%=userid%>
Implementation of wlsintegration.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.util.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String userid = (String)request.getAttribute("oracle.security.fed.sp.userid");
String targetURL = (String)request.getAttribute("oracle.security.fed.sp.relaystate");
request.getSession().setAttribute("feduserid", userid);
response.sendRedirect(targetURL);
%>
Logout
Since this application sets up an HttpSession in the Oracle WebLogic Managed Server instance, the SP integration engine must be integrated in the logout flow (see Section 10.5, "Logout").
This section shows an SP integration engine that uses a simple Single Sign-On framework based on a cookie containing the username and the expiration time of the authenticated session.
|
Note: This example is intended for illustration only and should not be used in a production environment. For example, the cookies set in this example are not encrypted, allowing an attacker to impersonate a user by manually constructing such cookies. |
Setup
The SP integration engine will not interact with the user data store used by Oracle Identity Federation. The engine will set up a cookie, for the entire domain, containing the user's identifier as a String variable and the session timeout as a long.
Packaging
The SP integration engine consists of a Web application with a root context set to /engine, and contains two JSP pages:
domainintegration.jsp, which processes the request from the Oracle Identity Federation server and creates a cookie with the user ID and session timeout
domainapplication.jsp, which serves as an application. It looks for the cookie and triggers a federation SSO if the cookie is not found.
Adding or Modifying an SP Integration Engine
To add or modify the SP integration engine take these steps:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then SP Integration Modules. Click the Custom SP Engine tab.
To add an SP integration engine, click Add and enter a name for that SP integration engine. Oracle Identity Federation will generate an ID for that new engine: this ID is reference by TEST_ENGINE_ID for this test
To modify an SP integration engine, select it and:
Enable the engine
Set "/engine" as the Web Context of the authentication engine
Set "/domainintegration.jsp" as the Login Relative Path of the SP integration engine
Select the authentication mechanism to use if a local authentication procedure needs to occur during the assertion processing (this can happen when Federated Identities are used to map the assertion to a user record, if the Federation record does not exist: in this case, the user will need to be locally authenticated in order to perform the one-time operation that will create the record)
Save your changes.
Implementation of domainapplication.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*, java.util.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
Cookie[] cookies = request.getCookies();
String userid = null;
Date timeout = null;
for(int i = 0, size = (cookies != null ? cookies.length : 0); i < size; i++) {
String name = cookies[i].getName();
if ("spintegrationcookie".equals(name)){
String value = cookies[i].getValue();
StringTokenizer st = new StringTokenizer(value, "*");
userid = st.nextToken();
timeout = new Date(Long.parseLong(st.nextToken()));
break;
}
}
if (userid == null || userid.length() == 0) {
request.setAttribute("oracle.security.fed.sp.engineid", TEST_ENGINE_ID);
request.setAttribute("oracle.security.fed.sp.usedefault", Boolean.TRUE);
request.setAttribute("oracle.security.fed.sp.relaystate", "/engine/domainapplication.jsp");
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher("/sp/startsso").forward(request, response);
return;
}
%>
Welcome <%=userid%>. You are logged until <%=timeout%>
Implementation of domainintegration.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.util.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
String userid = (String)request.getAttribute("oracle.security.fed.sp.userid");
String targetURL = (String)request.getAttribute("oracle.security.fed.sp.relaystate");
Date expirationInst = (Date)request.getAttribute("oracle.security.fed.sp.expirationtime");
String cookieValue = userid + "*" + expirationInst.getTime();
Cookie cookie = new Cookie("spintegrationcookie", cookieValue);
cookie.setDomain(".us.oracle.com");
cookie.setPath("/");
response.addCookie(cookie);
response.sendRedirect(targetURL);
%>
Logout
Since this sample application sets up a domain cookie, the SP integration engine must be integrated into the logout flow (see Section 10.5, "Logout").
This section explains how to configure logout flows.
This section contains topics relevant to redirection during logout.
URLs
During the logout operations, the user is being redirected between the federation engine and the logout service of the authentication and SP integration engines.
Oracle Identity Federation needs to be aware of the location of the logout service in order to redirect the user to the servlet/jsp page for logout. This URL is defined in the logout location field of the authentication and SP integration engines. The URL can be defined as the union of the Web Context of the engine and the logout relative path.
Implementing the Logout Service
The operations that need to be performed by the logout service include:
processing requests from the federation engine, logging the user out of the IAM framework and sending the user back to Oracle Identity Federation
processing requests from the IAM framework, sending the user to Oracle Identity Federation for logout, receiving the user back from Oracle Identity Federation after logout and sending the user to the IAM framework
Oracle Identity Federation invokes Authn/SP Engine
When Oracle Identity Federation sends the user to the authentication/SP engine, it will:
Perform an internal forward to the web context and relative logout path of the engine
Specify the engine ID of the invoked engine on the HttpServletRequest the attribute referenced by oracle.security.fed.authn.engineid (if the engine is an authentication engine) or oracle.security.fed.sp.engineid (if the engine is an SP engine)
Optionally specify on the HttpServletRequest the attribute referenced by oracle.security.fed.sessionid that will hold the identifier of the user session being logged out (String object)
When the authentication/SP engine logs the user out, and internally forwards the user back to Oracle Identity Federation, it:
Performs an internal forward to the /fed web context and /user/logoutretsso
Specifies the engine ID of the invoked engine on the HttpServletRequest the attribute referenced by oracle.security.fed.authn.engineid (if the engine is an authentication engine) or oracle.security.fed.sp.engineid (if the engine is an SP engine), and that attribute value is the identifier of the engine that performed the logout operation
Authn/SP invokes Oracle Identity Federation
When an authentication/SP engine invokes Oracle Identity Federation for logout, it:
Performs an internal forward to the /fed web context and /user/logoutsso
Specifies the engine ID of the invoked engine on the HttpServletRequest the attribute referenced by oracle.security.fed.authn.engineid (if the engine is an authentication engine) or oracle.security.fed.sp.engineid (if the engine is an SP engine), and that attribute value is the identifier of the engine being invoked for logout
Specifies a return URL where Oracle Identity Federation redirects the user after logout. That URL is specified via HttpServletRequest attribute, referenced by oracle.security.fed.logout.returnurl.
At the end of the logout flow, the user is logged out from Oracle Identity Federation and redirected to the return URL.
In the next two sections, these scenarios of logout services are outlined:
Logout Service Example #1 describes a custom logout service when both the authentication and SP integration engines are customized
Logout Service Example #2 describes a custom logout service when only the SP integration engine is customized
This section describes how to integrate a custom logout service, assuming that both the authentication and SP integration engines have been customized, that is, the default engines are not used anymore.
Setup
In this example, the authentication engine is the LDAP engine described in Section 10.3, "Creating a Custom Authentication Engine", and the SP integration engine is the Oracle WebLogic Server integration engine described in Section 10.4.4, "Sample Integration Module 1: Oracle WebLogic Server JavaEE Container Integration".
Packaging
The logout service consists of a JSP page bundled with the authentication and SP integration engines:
logout.jsp, which processes the request from Oracle Identity Federation, remove the feduserid attribute from the HttpSession object, set in the wlsintegration.jsp page, and redirect the user to either Oracle Identity Federation or the doneURL parameter.
Updating the Engine
To update the engine:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then SP Integration Modules. Click the Custom SP Engine tab.
To modify an SP integration engine, select it and:
Enable logout engine
Set "/logout.jsp" as the Logout Relative Path of the SP integration engine
Save your changes.
Implementation of logout.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
request.getSession().removeAttribute("feduserid");
request.setAttribute("oracle.security.fed.sp.engineid", TEST_ENGINE_ID);
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher("/user/logoutretsso").forward(request, response);
%>
This section describes how to integrate a custom logout service, assuming that the SP integration engine has been customized.
Setup
In this example, the SP integration engine is the customized SSO integration engine described in Section 10.4.5, "Sample Integration Module 2: Customized Single Sign-On Integration".
Packaging
The logout service consists of a JSP page bundled with the authentication and SP integration engines:
domainlogout.jsp, which processes the request from Oracle Identity Federation, removes the cookie, and redirects the user to the /logoutretsso URL.
Updating the Engine
To update the engine:
Go to Fusion Middleware Control and navigate to the Oracle Identity Federation instance.
Navigate to Administration, then SP Integration Modules .
To modify the SP integration engine, select it and:
Enable logout engine
Set "/domainlogout.jsp" as the Logout Relative Path of the SP integration engine
Save your changes.
Implementation of domainlogout.jsp
<%@page buffer="5" autoFlush="true" session="false"%>
<%@page language="java" import="java.net.*"%>
<%
response.setHeader("Cache-Control", "no-cache");
response.setHeader("Pragma", "no-cache");
response.setHeader("Expires", "Thu, 29 Oct 1969 17:04:19 GMT");
Cookie cookie = new Cookie("spintegrationcookie", "");
cookie.setDomain(".us.oracle.com");
cookie.setPath("/");
cookie.setMaxAge(0);
response.addCookie(cookie);
request.setAttribute("oracle.security.fed.sp.engineid", TEST_ENGINE_ID);
request.getSession().getServletContext().getContext("/fed").getRequestDispatcher("/user/logoutretsso").forward(request, response);
%>
|
 Copyright © 2006, 2011, Oracle and/or its affiliates. All rights reserved. Legal Notices |
|
