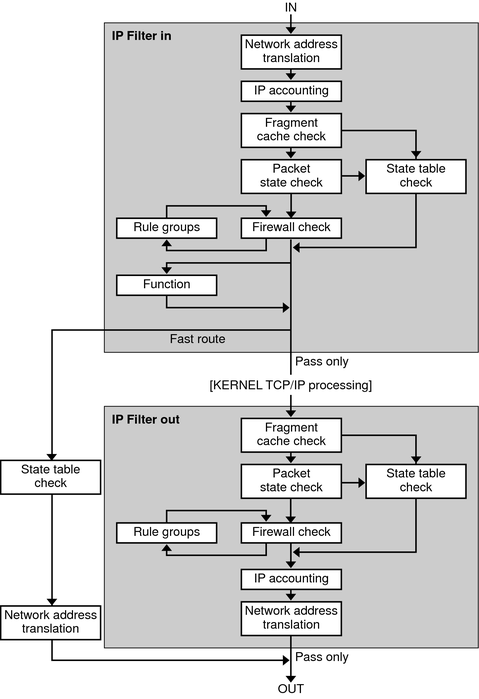

IP Filter executes a sequence of steps as a packet is processed. The following diagram illustrates the steps of packet processing and how filtering integrates with the TCP/IP protocol stack.
Figure 20-1 Packet Processing Sequence
The packet processing sequence includes the following:
Network Address Translation (NAT)
The translation of a private IP address to a different public address, or the aliasing of multiple private addresses to a single public one. NAT allows an organization to resolve the problem of IP address depletion when the organization has existing networks and needs to access the Internet.
IP Accounting
Input and output rules can be separately set up, recording the number of bytes that pass through. Each time a rule match occurs, the byte count of the packet is added to the rule and allows for collection of cascading statistics.
Fragment Cache Check
If the next packet in the current traffic is a fragment and the previous packet was allowed, the packet fragment is also allowed, bypassing state table and rule checking.
Packet State Check
If keep state is included in a rule, all packets in a specified session are passed or blocked automatically, depending on whether the rule says pass or block.
Firewall Check
Input and output rules can be separately set up, determining whether or not a packet will be allowed through IP Filter, into the kernel's TCP/IP routines, or out onto the network.
Groups
Groups allow you to write your rule set in a tree fashion.
Function
A function is the action to be taken. Possible functions include block, pass, literal, and send ICMP response.
Fast-route
Fast-route signals IP Filter to not pass the packet into the UNIX IP stack for routing, which results in a TTL decrement.
IP Authentication
Packets that are authenticated are only passed through the firewall loops once to prevent double-processing.
