This chapter provides an overview of the Oracle Order Management Integration Pack for Oracle Transportation Management (OTM), Oracle E-Business Suite (EBS), and Siebel Customer Relationship Management (CRM) and includes the following sections:
Oracle Order Management process integration pack (PIP) provides streamlined and end-to-end order management business process flows that enable faster time to process the transportation orders and market new products and services.
This PIP interacts with the applications, such as Siebel CRM, Oracle Transportation Management (OTM), and Oracle E-Business Suite to enable the integration process.
The Transportation Order Management PIP enables you to synchronize Siebel customer information to Oracle E-Business Suite and OTM. It also enables you to synchronize location and product information from Siebel to OTM. An order is rated in Siebel from OTM and subsequently synchronized in OTM upon submission, and any change in order status in OTM is synchronized back to Siebel.
The Transportation Order Management PIP provides these key benefits:
Customer is kept up to date in Siebel CRM, OTM, and Oracle E-Business Suite. By having a single view of the customer, they can be served better by providing the correct products and services, up-sell and cross-sell, and so on.
Order capturing (Siebel) and order fulfillment system (OTM) should have up-to-date, correct information about customers, locations, and products for order rating, capture, and execution.
No manual revision of order release or sell shipment is necessary in the fulfillment (OTM) system.
Improved customer service representative (CSR) productivity because CSR and sales representatives can execute a rating query from the order capture system (Siebel CRM) into the rating engine to provide the customer with various options about itineraries (rates and routing).
Increased operational efficiencies because data is not manually replicated.
Pre-integrated solution leads to lower cost and lower risk for implementation.
Faster time from order capture to shipment delivery and then to invoicing.
Improved customer service because real-time synchronization leads to better service to customers.
Enhanced customer visibility and accuracy.
Faster time-to-market with new products and services.
Oracle Order Management Integration Pack has been enhanced with Oracle Web Services Manager (OWSM), which enables attaching OWSM policies to services and passing the OTM password information through csf-keys.
For more information about security validation and csf-key, see Oracle Fusion Middleware Developer's Guide for Oracle Application Integration Architecture Foundation Pack, "Working with Security" and Oracle Fusion Middleware Installation Guide for Oracle Application Integration Architecture Foundation Pack.
This section provides an overview of the participating applications in the PIP.
Siebel applications maximize sales effectiveness in real time by accelerating the quote-to-cash process, aligning sales channels, increasing pipeline and win rates, and raising average transaction values.
Siebel Order Management enables employees such as salespeople and call center agents to create and manage orders through their entire life cycle.
You can closely integrate Siebel Order Management with back-office systems, which enables users to perform tasks such as confirming availability and monitoring the fulfillment process.
Create orders for new products and services.
Modify in-process orders that have been submitted for fulfillment.
For more information about Siebel CRM, see Siebel CRM product documentation.
OTM allows organizations to gain control of transportation and logistics operations while minimizing costs and eliminating inefficient and redundant procedures. It is a single, web-architected application for all the transportation needs that combines broad logistics capabilities with deep transportation-management functionality.
For more information about OTM, see Oracle Transportation Management product documentation
Oracle trading community architecture (TCA) enables you to manage complex information about the parties or customers who belong to your commercial community, including organizations and locations. The information is maintained in TCA is the single source of trading community information for Oracle E-Business Suite applications. These applications, and TCA itself, provide user interfaces and other features for you to view, create, and update customer information.
For more information about TCA, see Oracle E-Business Suite TCA documentation.
The Transportation Order Management PIP consists of these integration flows:
Synchronizing Customer
Synchronizing Location
Synchronizing Product
Querying Order Itinerary (Rates and Routes)
Synchronizing Order and Order Status
The main focus of this integration is to support the Transportation Order Management business flow that spans the three participating applications.
Figure 1-1 shows the customer process integration:
Figure 1-1 Transportation Customer Process Integration Flow

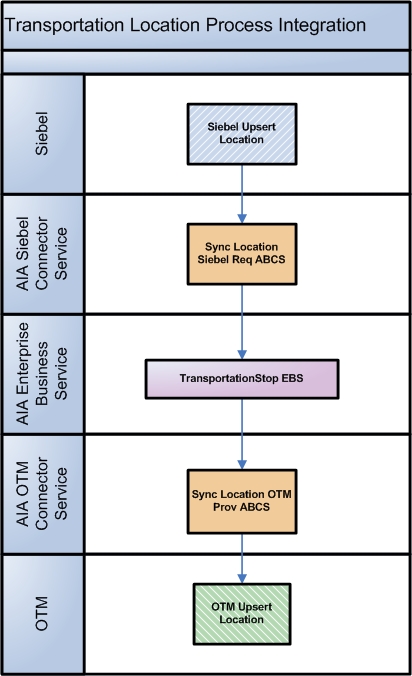

Figure 1-2 shows the location process integration:
Figure 1-2 Transportation Location Process Integration Flow

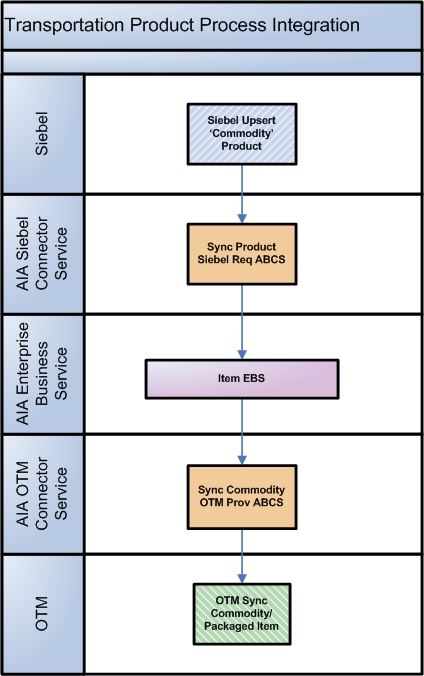

Figure 1-3 shows the product process integration:
Figure 1-3 Transportation Product Process Integration Flow

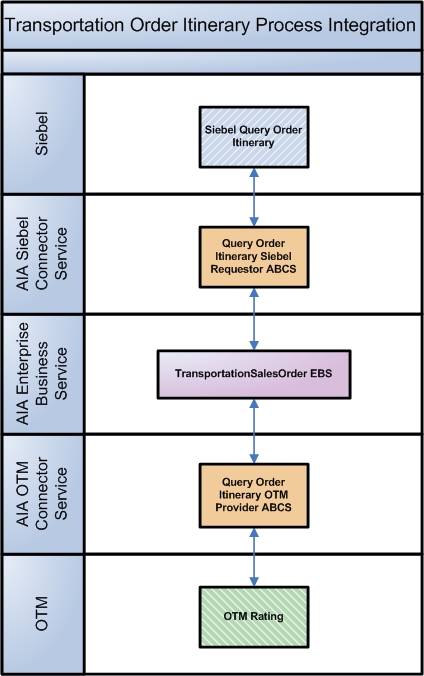

Figure 1-4 shows the query order itinerary process integration:
Figure 1-4 Transportation Order Itinerary Process Integration Flow

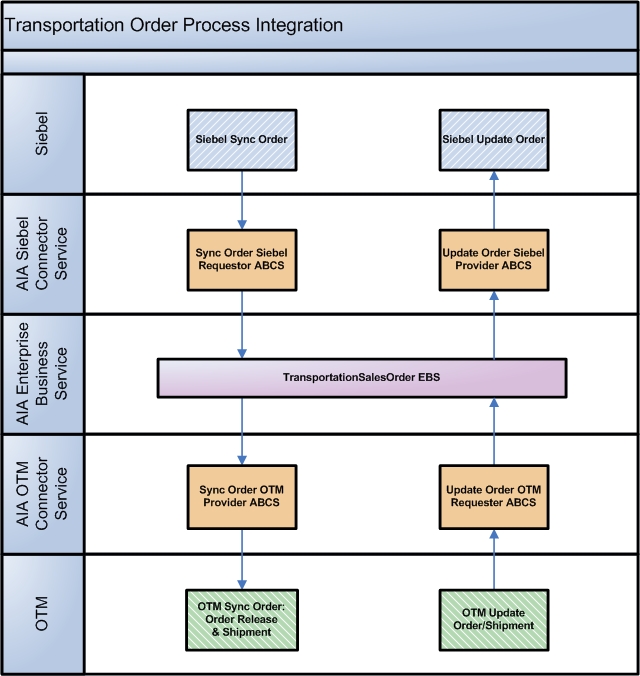

Figure 1-5 shows the order process integration:
Figure 1-5 Transportation Order Process Integration Flow
These are the assumptions and constraints for the Transportation Order Management PIP:
This integration supports the business-to-business Transportation Order Management flows, but not the business-to-customer scenarios.
The customer accounts in Siebel (tendering party, liable party, invoice to party) should be synchronized as part of customer synchronization. Customers must be synchronized before they can be used in order flow.
Siebel commodity products should be synchronized to commodity and packaged items of OTM before the order flow.
The locations in the source, destination, or any other stop should also be synchronized as part of the location flow. Locations must be set up and synchronized to OTM before they are used in order flow.
The accessorial and the special services (actions) setup are done manually.
No initial bulk load of any data exists between any applications.
Deleting an order in Siebel is not supported.
Delivered support is for Siebel SIA version only.
