Monitoring Configuration
Configuring Monitoring of Oracle E-Business Suite
You can change the configuration with which each Oracle E-Business Suite instance is monitored. You can do two things
-
Change monitoring schema
-
Change the availability definition of the Oracle E-Business Suite instance
To configure monitoring, go the System Management page and select the Oracle E-Business Suite instance and click Configure.
Changing the monitoring schema
After clicking the Configure button, you can change the details of the monitoring schema. You can either change the user name or password here and click Next or directly proceed to change the availability computation by clicking Next.
Changing the availability computation
The status of the Oracle E-Business Suite target is determined by the status of its member targets. The availability of the Oracle E-Business Suite system is calculated as described in the following table:
| Selected Targets’ Status | Oracle E-Business Suite System Status |
|---|---|
| All Up | Up |
| One or More Up | Partially Up |
| All Down | Down |
Customers can change this configuration by adding more targets or removing existing targets. Note that this will not change the members of the Oracle E-Business Suite target. This configuration is solely used in the Oracle E-Business Suite instance home page to show the availability of the instance.

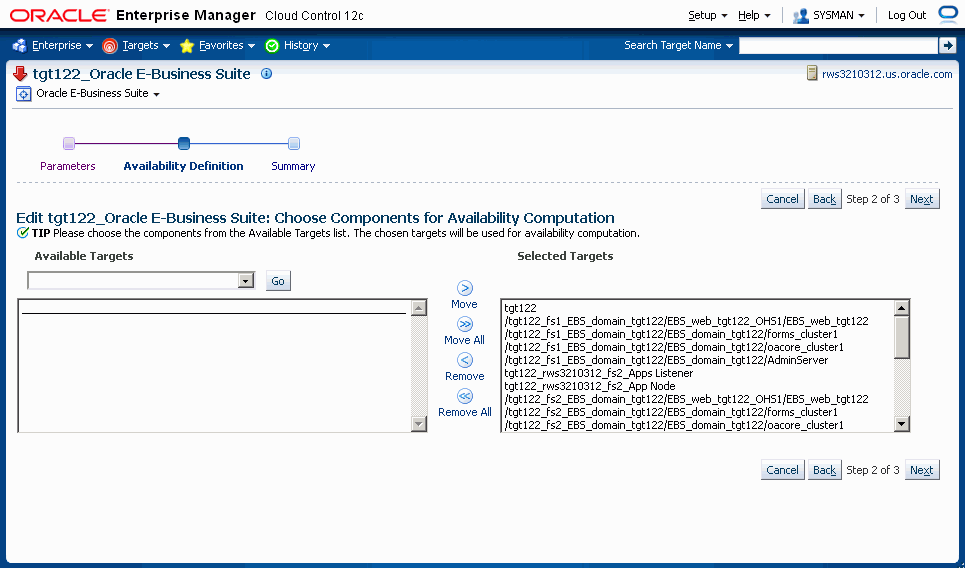

The Available Targets section allows you to search for targets and add them to the availability computation list. You can select target type from the drop down before clicking Go.
The Selected Targets section shows the targets which are already in the availability computation list. By default the availability computation list contains all the members of the Oracle E-Business Suite instance.
If the Oracle E-Business Suite instance features online patching, you must add targets from both file editions. At runtime the patch edition targets will be ignored while computing the status of the Oracle E-Business Suite instance.
Click Next once you are done with availability computation list.
Review the configurations
The last step in changing the monitoring of the Oracle E-Business Suite configuration is the page where you can review the entire configuration and submit the changes
