Updating Logical Table Sources

For each segment logical dimension, update the logical table sources

  To update the logical table sources:

  1. Update the new Transactional Business Intelligence logical table source generated by Import Metadata Wizard:

    1. On the General tab, set Priority Group to 5.

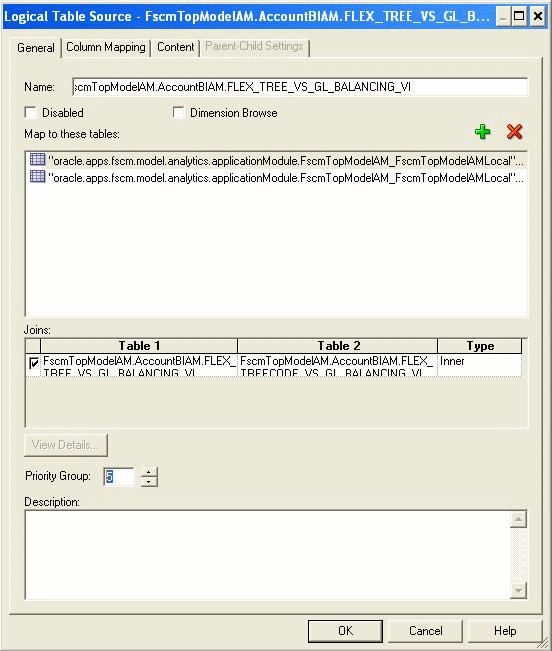

      Figure 24. Setting Priority Group for New OTBI LTS

      This screen shot shows the Logical Table Source.

    2. On the Column Mapping tab:

      1. If it is a Value Set Based Segment logical dimension, set the tree filter logical column to a constant string value; for example, Not Applicable.

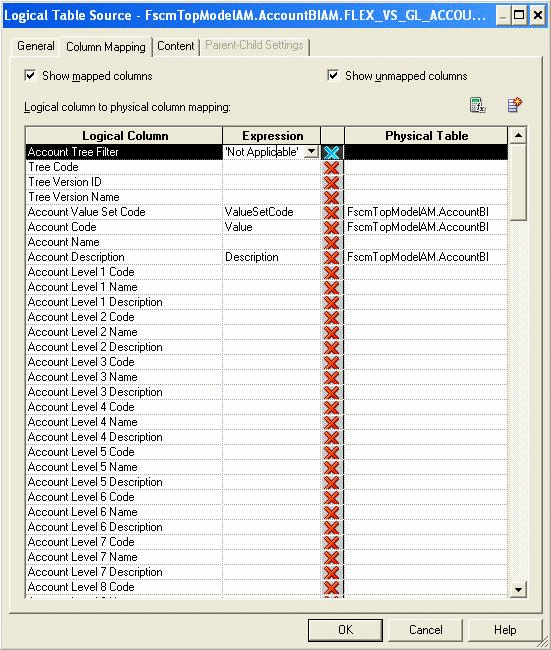

        Figure 25. Mapping the Tree Filter Logical Column

        This screen shot shows the Logical Column and the corresponding Physical Table for the Logical Table Sources.

      2. If it is a Tree Based Segment logical dimension, define it as a formula expression to concatenate the physical columns, TreeName and VersionName of the corresponding Tree Code view object, and put a dash ('-') between them. For example, the logical column, Balancing Segment Tree Filter, should be set as follows for the Balancing Segment logical dimension:

        CONCAT( CONCAT(
"oracle.apps.fscm.model.analytics.applicationModule.FscmTopModelAM_FscmTopModelAMLocal"."".""."FscmTopModelAM.AccountBIAM.FLEX_TREECODE_VS_GL_BALANCING_VI"."TreeName", '-'),"oracle.apps.fscm.model.analytics.applicationModule.FscmTopModelAM_FscmTopModelAMLocal"."".""."FscmTopModelAM.AccountBIAM.FLEX_TREECODE_VS_GL_BALANCING_VI"."VersionName")

        Map the Tree Filter Logical Column to a Formula Expression for Each New OTBI LTS of Tree Based Segment Logical Dimensions.

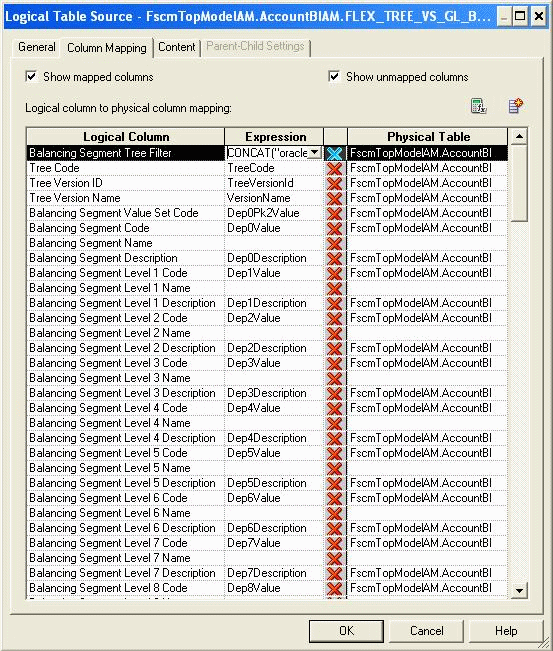

        Figure 26. Mapping the Tree Filter Logical Column

        This screen shot displays Logical Columns being mapped to Physical Tables.

    3. On the Content tab, set the Aggregation Content Logical Level to Detail.

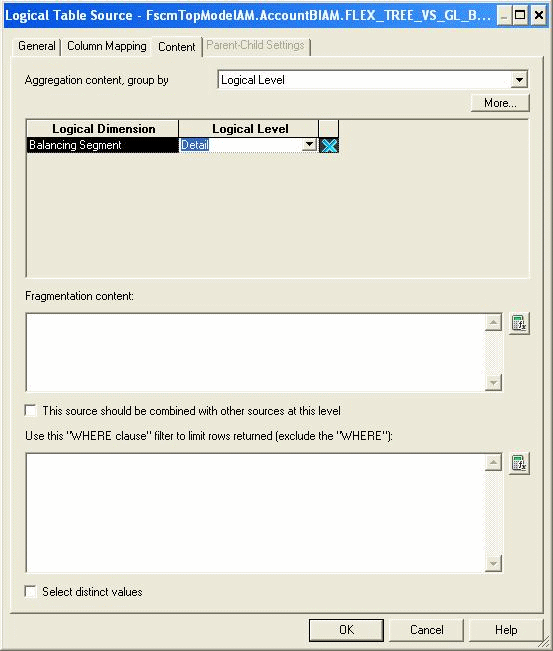

      Figure 27. Set the Aggregation Content Logical Level.

      This screen shot displays the Aggregation Content Logical Level.

  2. If it is a Qualified Segment logical dimension, disable its original Transactional Business Intelligence logical table source, SegmentValueHierarchyPVO.
