Manufacturing Operations Center can analyze data by five different hierarchies for time dimension roll-up out of the box. Any number of hierarchies can be built and analyzed. The following diagram illustrates the process flow for the time dimension hierarchy setup:
Complete the following tasks to set up the Manufacturing Operations Center time hierarchy:
Define the MOC Calendar roll-up from Day to Year, irrespective of site.
Populate the Workday Shift Calendar with shift information for the site and roll-up.
You can define any or all of the following calendars:
Gregorian
445/544
Custom Calendar
To generate a Gregorian calendar:
Run MTH: Populate MOC Gregorian Calendar
Specify the following parameters:
Start Year: Calendar Start Year.
Number of Years: Number of years for which calendar is required.
To generate a 445/544 calendar:
Run MTH: Populate 445/544 Calendar.
Specify the following parameters:
Start Year: Calendar Start Year.
Number of Years: Number of years for which the calendar is required.
Calendar Type: 445 or 544.
Start Month: Calendar Start Month.
Start Day of Week: Week Start Date.
Year End Type: 1 or 2.
To generate a custom calendar:
In the Microsoft Excel template, update the MTH_TIME_DIMENSION.csv with the custom calendar hierarchy.
Update the Hierarchy relationship for all Day, Week, Period, Quarter, and Year relationships.
Load the calendar into MOC by running the ODI Scenario MTH_PKG_TIME_DIMENSION_EXT.
You must set the Graveyard Shift option for shifts that span different dates. You can set this option to:
0: Shift Start Date
1: Shift End Date
For example, Shift C spans 8 PM 08/06/2008 to 6 AM 08/07/2008. You can stamp Shift C as 08/06/2008 or 08/07/2008. If you want to stamp Shift C on 08/06/2008, then you must select the Shift Start Date option. If you want to stamp Shift C on 08/07/2008, then you must select the Shift End Date option.
You can use the following methods to populate the Workday Shift calendar:
From EBS (if the organization selected for the plant already has a Bill of Materials calendar attached)
From Microsoft Excel
From the Entity Shift Setup page. This page is enabled only when the profile option MTH: Shifts Setup value is set to MOC. Refer to the Profile Options chapter for more information on the MTH: Shifts Setup profile option. Optionally, after using this page to define the shifts for the first time, schedule the ODI scenario MTH_PKG_SHIFTS_GEN_UI to create shifts on a periodic basis.
When you create shifts using one of the above options, ensure that you create shifts that do not overlap and are separated by a minimum time duration of one second.
To populate the Workday Shift calendar from EBS:
Load the Workday Shift from EBS by running MTH_PKG_WORKDAY_SHIFTS_SRC.
To populate the Workday Shift calendar from Microsoft Excel:
In the Microsoft Excel Template, update MTH_WORKDAY_SHIFTS.csv with the custom calendar hierarchy.
Run the ODI scenario MTH_PKG_WORKDAY_SHIFTS_EXT.
This table displays the structure of the Microsoft Excel template used for the workday shift setup:
Shift Workday PK | Shift Date | Source_org_code | System Code | From Date | To Date | Shift Num | Shift Name |
1-1/1/2007-p1 | 01/01/2007 | p1 | s1 | 1/1/07 0:00 | 1/1/07 9:00 | 1 | morning shift |
You can set up entity shifts using the Entity Shift Setup page.
To perform entity shift setup using the Entity Shift Setup page
Using the Manufacturing Operations Center Administrator responsibility, click Site Home.
Select the Entity Shift Setup tab.
Select the site for which you want to perform shift setup.

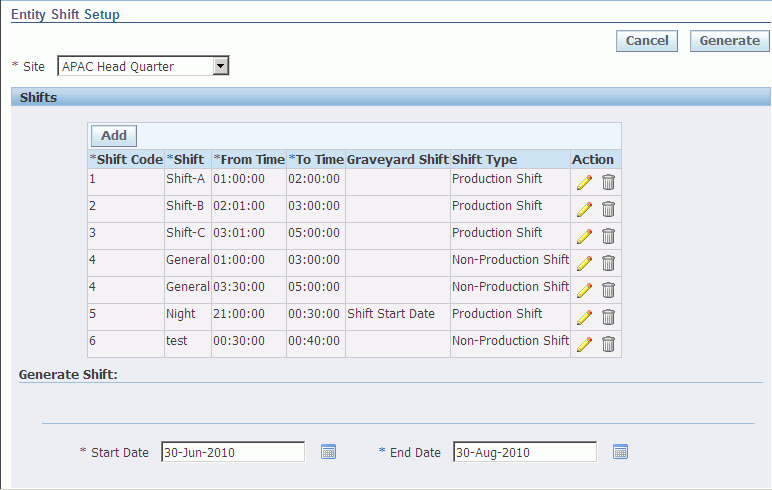

In the Shifts region, enter the Shift Code and Shift.
Enter the From Time and To Time for the shift.
Select the Graveyard Shift as Shift Start Date or Shift End Date.
Select the Shift Type as:
Production to inherit the shift to all production entities and organizations attached to the site
Non- Production to inherit the shift to all non-production entities and organizations attached to the site
Both to inherit the shift to all production and non-production entities and organizations attached to the site
In the Generate Shift region, enter the Start Date and End Date for the shift.
Click Generate. A message displays that the shift is created.
Click Ok.
When you click the Generate button, the shift is generated in initial mode and shifts are overwritten for the period between Shift Start Date and Shift End Date.
After you initially generate shifts using the Entity Shift Setup page, you can schedule the ODI scenario MTH_PKG_SHIFTS_GEN_UI to periodically run and generate future shift dates. MTH_PKG_SHIFTS_GEN_UI uses the following parameters:
Site
Start Date and End Date (the date range for the shift generation).
To view entity shifts
Navigate to the Entity Shift Setup page.
Select the Site for which you want to view the shifts. The Shifts region displays the shifts for the site.
To add a shift
In the Generate Shift region, enter the Start Date and End Date for the new shift.

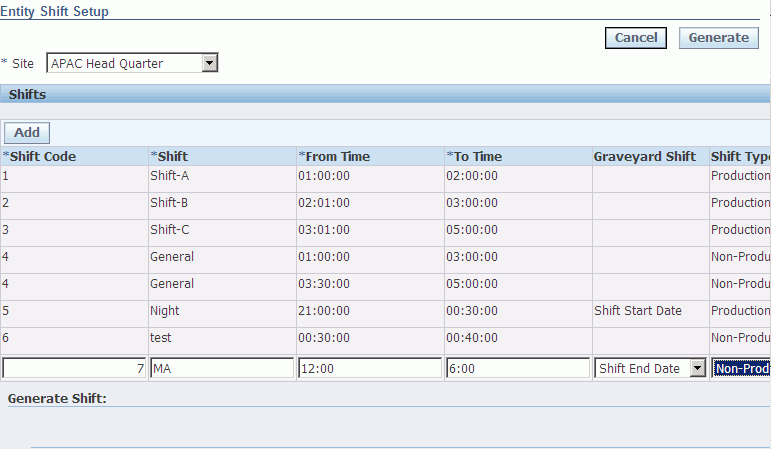

Click Add. A row in the Shifts region is enabled.
Enter the details for the shift.
Click Generate. A message displays that the shift is created.
Click Ok.
Note: When you click the Generate button, the shift is generated in initial mode and shifts are overwritten for the period between Shift Start Date and Shift End Date.
You can edit shifts for exceptions by using the Shift Exceptions page.
To edit shifts
Using the Manufacturing Operations Center User responsibility, navigate to the Shift Exceptions page.

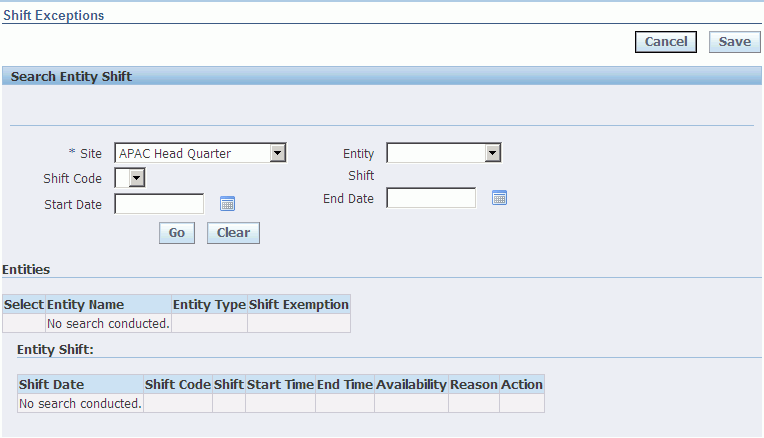

Enter any of the following search criteria to in the Search Entity Shift region to view entity shifts:
Site. Required.
Entity
Shift Code. If you select Shift Code, then the value in the Shift field displays by default.
Start Date
End Date
Click Go. If you search by Site, the Entities region displays all the entities of the site

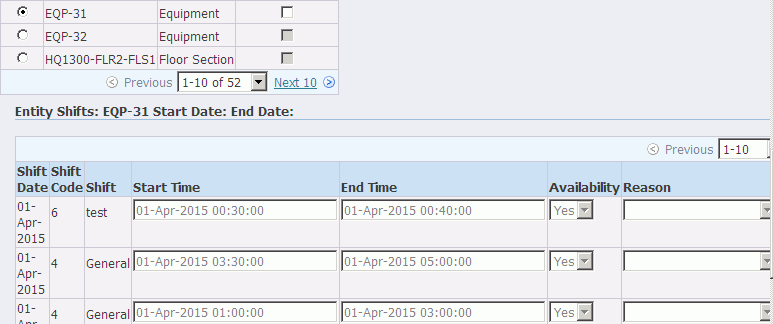

To view the shifts of an entity, select an entity. The Entity Shifts region displays the shifts of the selected entity and their Availability.

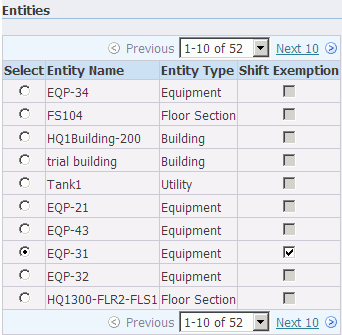

To exempt a shift, select an Entity Name in the Entities region.
Select the Shift Exemption check box to delete the shifts for the entity for the selected date range.
Click Save.
The following example shows a changed shift boundary:
Shift | Shift Name | From Time | To Time |
Initial Shift Definition | Shift A | 8:00 AM | 1:00 PM |
Initial Shift Definition | Shift A | 2:00 PM | 5:00 PM |
Redefined Shift Definition | Shift A | 9:00 AM | 5:00 PM |
When the EBS Bill of Materials Workday Calendar to Interface mapping is run after a shift is redefined, you can specify a Change Effective Date parameter.
If the selected Change Effective Date is in the past, the shift definitions for the past data are changed.
If the Change Effective Date is in the future, dates specified in the initial shift definition apply.
These items apply to data classification:
Data on or after the change effective date will be bucketed based on the Redefined Shift definition.
Data before the change effective date will be bucketed on the Initial Shift definition
The value Shift in the OBIEE list of values
Only one set of Shift A appears with back-end definition for the span calculated based on the Change Effective Date.
The following example shows a changed shift name:
Shift | Shift Name | From Time | To Time |
Initial Shift Definition | Shift A | 8:00 AM | 1:00 PM |
Initial Shift | Shift A | 2:00 PM | 5:00 PM |
Redefined Shift Definition | Morning Shift | 8:00 AM | 1:00 PM |
Redefined Shift | Morning Shift | 2:00 PM | 5:00 PM |
When the EBS Bill of Materials Workday Calendar to Interface mapping is run after the shift is redefined, you can specify a parameter to change the effective date. Based on the date provided, the changed definition will be applied from that date to the future.
Both the old and new definition appears in the list of values for the plant once the mappings EBS Bill of Materials Workday Calendar to Interface is run, irrespective of the Change Effective Date.
The following example shows the addition of a new shift:
Shift | Shift Name | From Time | To Time |
Initial Shift Definition | Shift A | 7:00 AM | 3:00 PM |
Initial Shift | Shift B | 3:00 PM | 11:00 PM |
Redefined Shift Definition | Shift A | 7:00 AM | 3:00 PM |
Redefined Shift | Shift B | 3:00 PM | 11:00 PM |
Redefined Shift | Shift C | 11:00 PM | 7:00 AM |
When the EBS Bill of Materials Workday Calendar to Interface mapping is run after a shift is redefined, you can specify a parameter for change effective date. The changed definition is applied from that date to the future, based on the date provided.
The newly added shift will appear in the list of values for the plant once the mapping EBS Bill of Materials Workday Calendar to Interface is run, irrespective of the Change Effective Date.
In the workday calendar, a Catch All Shift can be used for a shift that spans a length of time that is not covered by the shift in a workday. In the following example, the Catch All Shift spans from 12:00 AM to 7:00 AM and from 11:00 PM to 12:00 AM for the current workday:
Shift | Shift Name | From Time | To Time |
Initial Shift Definition | Shift A | 7:00 AM | 3:00 PM |
Initial Shift | Shift B | 3:00 PM | 11:00 PM |
The Hub Workday Shift calendar can be loaded incrementally.
Rows are moved to the error table because of dangling key issues for the following reasons:
Shift Date was not provided.
System reference was not provided.
