시스템에서 생성된 기본 요소가 포함되어 있는 프레임워크 구성을 보려면 다음을 입력합니다.
# pooladm system host string system.comment int system.version 1 boolean system.bind-default true int system.poold.pid 177916 string system.poold.objectives wt-load pool dev_pool int pool.sys_id 125 boolean pool.default false boolean pool.active true int pool.importance 1 string pool.comment string pool.scheduler IA pset dev_pset pool appserver_pool int pool.sys_id 124 boolean pool.default false boolean pool.active true int pool.importance 1 string pool.comment string pool.scheduler TS pset app_pset pool db_pool int pool.sys_id 123 boolean pool.default false boolean pool.active true int pool.importance 1 string pool.comment string pool.scheduler FSS pset db_pset pool tp_pool int pool.sys_id 122 boolean pool.default false boolean pool.active true int pool.importance 1 string pool.comment string pool.scheduler TS pset tp_pset pool pool_default int pool.sys_id 0 boolean pool.default true boolean pool.active true int pool.importance 1 string pool.comment string pool.scheduler TS pset pset_default pset dev_pset int pset.sys_id 4 string pset.units population boolean pset.default false uint pset.min 0 uint pset.max 2 string pset.comment boolean pset.escapable false uint pset.load 0 uint pset.size 0 string pset.poold.objectives locality tight; utilization < 80 pset tp_pset int pset.sys_id 3 string pset.units population boolean pset.default false uint pset.min 2 uint pset.max 8 string pset.comment boolean pset.escapable false uint pset.load 0 uint pset.size 0 string pset.poold.objectives locality tight; 2: utilization < 80 cpu int cpu.sys_id 1 string cpu.comment string cpu.status on-line cpu int cpu.sys_id 2 string cpu.comment string cpu.status on-line pset db_pset int pset.sys_id 2 string pset.units population boolean pset.default false uint pset.min 4 uint pset.max 6 string pset.comment boolean pset.escapable false uint pset.load 0 uint pset.size 0 string pset.poold.objectives locality tight; utilization < 80 cpu int cpu.sys_id 3 string cpu.comment string cpu.status on-line cpu int cpu.sys_id 4 string cpu.comment string cpu.status on-line cpu int cpu.sys_id 5 string cpu.comment string cpu.status on-line cpu int cpu.sys_id 6 string cpu.comment string cpu.status on-line pset app_pset int pset.sys_id 1 string pset.units population boolean pset.default false uint pset.min 1 uint pset.max 2 string pset.comment boolean pset.escapable false uint pset.load 0 uint pset.size 0 string pset.poold.objectives locality tight; utilization < 80 cpu int cpu.sys_id 7 string cpu.comment string cpu.status on-line pset pset_default int pset.sys_id -1 string pset.units population boolean pset.default true uint pset.min 1 uint pset.max 4294967295 string pset.comment boolean pset.escapable false uint pset.load 0 uint pset.size 0 cpu int cpu.sys_id 0 string cpu.comment string cpu.status on-line

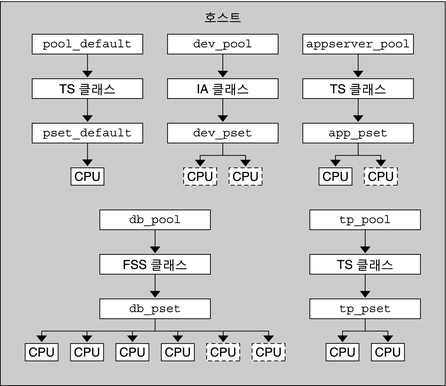

다음은 이 프레임워크를 그림으로 보여줍니다.
그림 14-1 서버 통합 구성
주 - db_pool 풀에서 독립형 데이터베이스 인스턴스에 CPU 리소스의 75%가 보장됩니다.
