Web Services Development: Starting Points for JAX-WS

This document describes the following starting points of developing JAX-WS-enabled Web services:

  1. Generating a Web Service from a WSDL File
    1. Customizing a Web Service
      1. Using the Customizations Editor
  2. Generating a Web Service from Java
    1. Starting from a Java Class
    2. Starting from Scratch
  3. Generating a WSDL File by Starting from a Java Class
  4. Related Information
    1. Contents of a WSDL File
    2. Imported WSDL Files
    3. Creating a new WSDL File
    4. Understanding Policy Stores
    5. Testing Web Services

1. Generating a Web Service From a WSDL File

Using OEPE, you can generate a Web service from a WSDL file. The resulting Web service class will contain the public endpoint interface described by the WSDL without the implementation. After the Web service has been generated, you have to fill in the Web service implementation details.

To generate a Web service from a WSDL, follow this procedure:

  1. Create a new WSDL file or import an existing WSDL file into your project.

  2. In the Project Explorer, right-click the WSDL file and select WebLogic Web Services > Generate Web Service.
    This opens the New Web Service from WSDL dialog that lets you specify many parameters for the generated Web service, including the port, the output locations, and Ant script generation options.

    Selecting Keep generated Ant Script saves an Ant file for modification and reuse of the generation process.

    In addition to the Web service implementation class, this will create a JAR file that contains a Web service interface class, as well as types referenced in the original WSDL file. The default location for the JAR file is the project's WEB-INF/lib directory. If you select a different location that is not on the class path, your Web service is unlikely to function properly.

You can test your Web service using the Test Client. For more information, see Testing Web Services.

You can also customize your Web service.

1.1 Customizing a Web Service

You can customize your Web Service using the JAX-WS bindings file that points to an appropriate WSDL file.

A JAX-WS bindings file lets you change the shape of the Java Web service artifacts generated through WSDLC. The bindings allow you to modify class and method names, method signatures (wrapper versus non-wrapper), add Javadoc, and attach handlers. Sources of information on the bindings file specifications with examples can be found in the references section.

To create a bindings file, use the JAX-WS Bindings File wizard as follows:

  1. Right-click in the Project Explorer and select New > Other from the drop-down menu. This opens the New dialog that lets you select a wizard to use.
  2. Select Oracle > WebLogic > Web Services > JAX-WS Bindings Customization, and then click Next. This opens the New JAX-WS Bindings File wizard.
  3. Specify the name and location for your bindings file, and click Next. This opens the New JAX-WS Bindings File > dialog. Select the file from the list of WSDL files available in the project in which the bindings file will be generated.
  4. Click Finish on the New JAX-WS Bindings File dialog to complete generation of the bindings file in the specified location.

Upon the completion, the new bindings open in the JAX-WS Bindings editorr. The contents of the file is a basic bindings file shell with a wsdlLocation element pointing to the identified WSDL file, as the following example shows:




Once created, you can customize the bindings file using the customizations editor.

1.1.1 Using the Customizations Editor

The customizations editor lets you define the contents of a JAX-WS external bindings file (not embedded in the WSLD file), while providing information on the possible XML elements within the file. Using the editor, you can specify a variety of customization options based on the shape of the generated Java code. Note that the editor allows you to define both server-side and client-side customization options.

The customizations editor shows which classes, methods, and parameters will be generated when you apply a particular bindings file's customizations.

You can use the customizations editor to modify the following types of files:

  • A single WSDL file: the editor supports having all WSDL information defined within a single WSDL file. The editor will not load a secondary WSDL file imported through WSDL import or include mechanisms.

  • External bindings files: even though you can define JAX-WS bindings elements either within a WSDL file, or in an external file, the customizations editor only supports external bindings files, ignoring the JAX-WS bindings elements within the WSDL file. Note that, although ignored by the editor, those elements will not be ignored by the artifact generation tooling. Also note that you can use the editor to modify only one external bindings file at one time.
    You can use the external bindings file to customize the shape of the generated Web service, customize specifics of the generated Web service client (for example, enable asynchronous clients), and add JAX-WS handlers.

  • Schema configurations: JAX-WS uses W3C Schema (XSD) elements to define the JAXB types that will be used by the generated Service Endpoint Interface-based Java Web service. You can include the schema information in the WSDL file either inline, or through different import or include mechanisms. The customization editor supports having WSDL type information defined through inline schemas, as well as external schemas imported using the schema import mechanism.

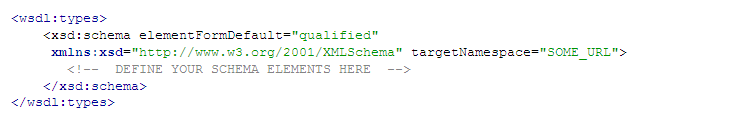

    This example shows how inline types define the JAXB type information in an embedded schema element in the types section of the WSDL file.

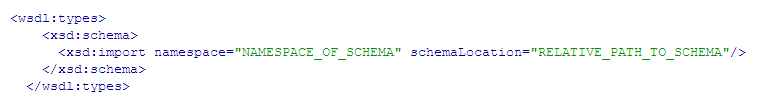

    This example demonstrates the case of imported schemas, where the customizations editor supports importing schemas directly from the WSDL file using the schema import mechanism. The import element must define a namespace and a schemaLocation attribute. Note that imports in the imported schemas will not be followed.



The customization editor consists of the following parts:

  • A tree control on the left - its nodes represent a combination of the WSDL and the Java artifacts that will be generated.

  • An edit page on the right - when you select a node in the tree, the editor will display an appropriate edit page where you can edit the properties (supported customization options), as follows:

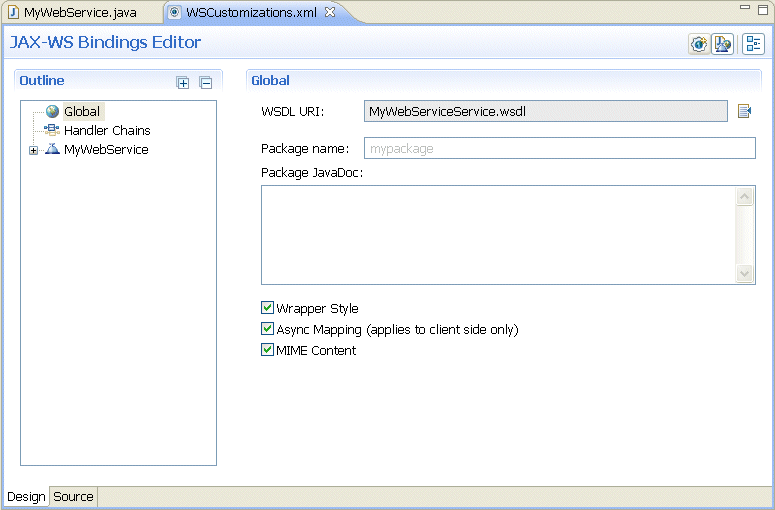

    • The Global node and the corresponding page, shown in the following figure, let you specify the following settings that apply to the editor in global scope (for example, to all generated Java artifacts):

      • WSDL URI - the URI to the WSDL file that this bindings file customizes. Note that, even though the JAX-WS 2.1 specification states that the URI can specify a local WSDL or a remote WSDL file, this editor supports only local WSDL files.

      • Package name and JavaDoc - the package name for the generated Java artifacts. A light-gray value in the name setting means that the default package name will be used. This default value is determined by the WSDL file's target namespace. The JavaDoc can only be specified if a package name other than the defaul is specified:

      • Wrapper Style (enableWrapperStyle customization option) - the wrapper style setting for Java method generation. Accepting the default value of true will result in wrapper style method generation only if the rules are satisfied, as defined in section 2.3.1.2 of the JAX-WS 2.1 specification. This value applies to all endpoint interfaces and methods, however, each endpoint interface or method can override this setting.

      • Async Mapping (enableAsyncMapping customization option) - the async mapping setting for asynchronous method generation on the endpoint interfaces. The default value is true. The generated asynchronous methods can only be used on the client side. This value applies to all endpoint interfaces and methods, however, each endpoint interface or method can override this setting. For more information, see section 2.3.4.2 of the JAX-WS 2.1 specification.

      • MIME content (enableMIMEContent customizaition option) - the MIME content setting for the use of the mime:content information. The default value is true. The client- and server-side settings must match. This value applies to all endpoint interfaces and methods, however, each endpoint interface or method can override this setting. For more information, see section 2.6.3.1 of the JAX-WS 2.1 specification.

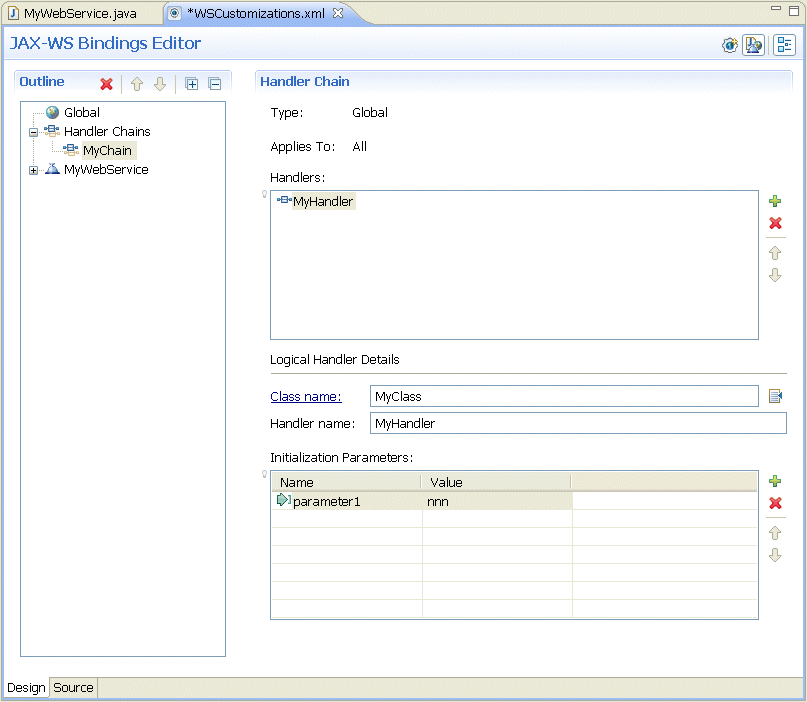

    • The Handler Chains node and the corresponding page, shown in the following figure, display existing, or let you define new handler chains consisting of either logical handlers, SOAP handlers, or a combination of both types. Note that Handler Chains sections on each page (if applicable) provide the same options. You can specify the following:

      • Type - A handler chain can apply to everything (Global), Services, Ports, or Protocol bindings. While this field is not editable in the editor design view, it can be changed in the source view, and the source changes will be reflected in the editor.

      • Applies To - the specific pattern (Services, Ports), bindings (Protocol), or global (All) to which this handler chain applies. While this field is not editable in the editor design view, you can modify it in the source view, and the source changes will be reflected in the editor.

      • Class name - Java class that implements LogicalHandler interface (for logical handlers), or SOAPHandler interface (for SOAP handlers).

      • Handler name - the name of the Handler that is unique within the module.

      • Initialization parameters for the Handler with editable names and values

      • Connection and/or binding setting

      • SOAP handler settings:
        • SOAP headers - information to identify which SOAP headers will be processed by the SOAP Handler.
        • SOAP roles - SOAP roles for the SOAP Handler. For more information, see section 10.1.1.1 of the JAX-WS 2.1 specification.

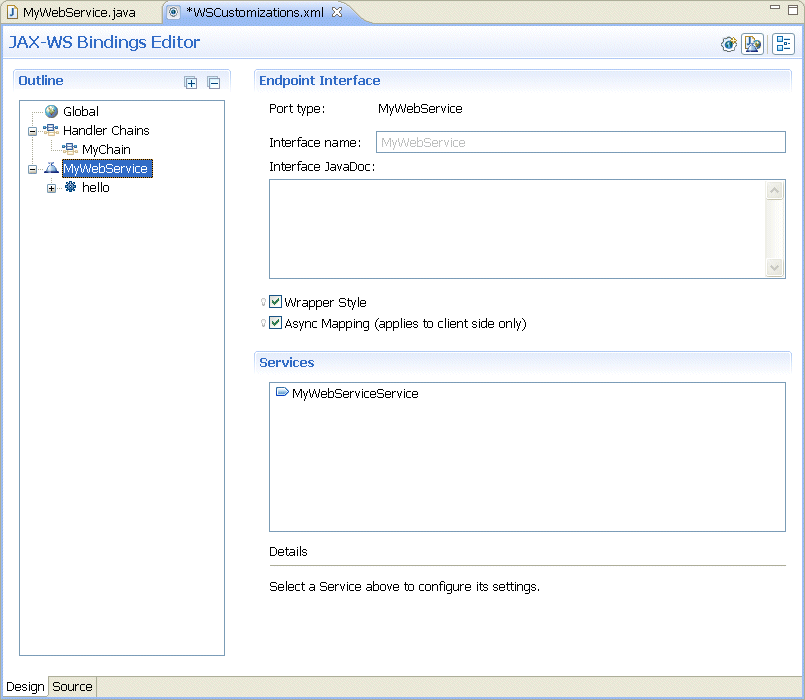

    • The Endpoint Interface node and the corresponding page, shown in the next figure, represent the endpoint interface that will be generated from a WSDL Port Type after running WSDLC. This node lets you specify:

      • Interface name and JavaDoc - the name for the generated Java interface. A light-gray value in the name setting means the default interface name is being used. This default value is determined by a WSDL Port Type. You can only specify the JavaDoc if the specified interface name is other than the default.

      • Wrapper Style (enableWrapperStyle customization option) - the wrapper style setting for Java method generation on a specific endpoint interface. The default value is determined by the Wrapper Style setting on the Global node. This value applies to a particular endpoint interface and its methods, however, each method can override this setting.

      • Async Mapping (enableAsyncMapping customization option) - the async mapping setting for asynchronous method generation on a specific endpoint interfaces. The default value is determined by the Async Mapping setting on the Global node. This value applies to a particular endpoint interface and its methods, however, each method can override this setting.

      • Services - represents the implementing class that will be generated from a WSDL Port after running WSDLC:
        • Service class name and JavaDoc - the name for the generated Java class. A light-gray value in the name setting means the default class name is being used. This default value is determined by a WSDL Port Type. You can only specify the JavaDoc if the specified interface name is other thatn the default.
        • MIME content (enableMIMEContent customizaition option) - the MIME content setting for the use of the mime:content information on the specific Service. The default value is determined by the MIME Content setting on the Global node. The value in the editor screen applies to the particular Service only.

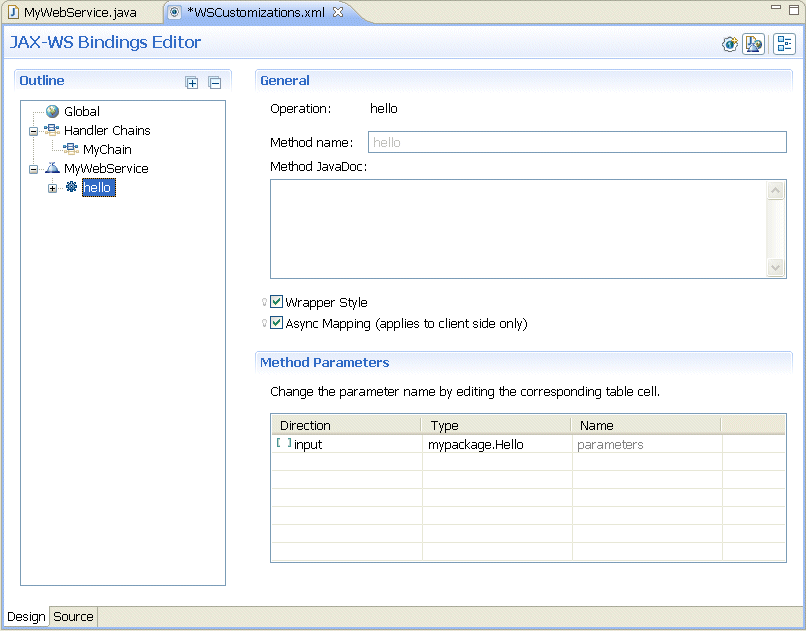

      The Method node and the corresponding page, shown in the next figure, represent the method that will be generated from a WSDL operation after running WSDLC. This node lets you specify:

      • Method name and JavaDoc - the name for the generated Java method. A light-gray value in the name setting means the default method name is being used. This default value is determined by a WSDL operation. You can only specify the JavaDoc if the specified method name is other than the default.

      • Wrapper Style (enableWrapperStyle customization option) - the wrapper style setting for Java method generation on a specific method. The default value is determined by the Wrapper Style setting on a parent Endpoint Interface node. This value applies to a particular method only.

      • Async Mapping (enableAsyncMapping customization option) - the async mapping setting for asynchronous method generation on a specific method. The default value is determined by the Async Mapping setting on a parent Endpoint Interface node. This value applies to a particular method only.

      • Method parameters - represents the method's parameters and the customization that will apply on the parameter name. Only the name is editable.
    • The Faults node and the corresponding page will only appear if there are Faults on the WSDL operation. This node serves as a grouping node to show a list of all the defined Faults.This node lets you specify:

      • Fault Class name and JavaDoc - the name for the generated Java class. A light-gray value in the name setting means the default class name is being used. This default value is determined by a WSDL fault. You can only specify the JavaDoc if the specified class name is other than the default.


Notice that the editor pages open with default values already specified.

2. Generating a Web Service From Java

OEPE lets you generate Web services from Java using the following starting points:


2.1 Starting From a Java Class

You can develop a JAX-WS-enabled Web service as a Java class, with methods becoming Web service operations, and method parameters and return types being Java beans. To indicate what methods should be exposed and to set other properties for the service, you use annotations.

To create a Web service from a Java class, do the following:

  1. Right-click the class file, and select WebLogic Web Services > Generate Web Service. This opens the Generate Web Service from Existing Java Class wizard.
  2. On the New JAX-WS Web Service page, enter the Web Service Name (corresponding to the @WebService "serviceName" attribute), the Port Name (corresponding to the @WebService "portName" attribute), and select Add SEI to optionally generate the endpoint interface.
  3. On the Message Format page, select the SOAP Binding (default: 1.1), the SOAP Message Format (default: Document/Literal/Wrapped), and select Enable MTOM to optionally implement MTOM binary encoding.
  4. On the Methods page, select methods for the web service to expose.
  5. On the Selection WebLogic Web Service Policies page, select either No Policies, OWSM Web Service Policies, or WebLogic Service Policies. Note that you cannot mix OWSM and WebLogic Policies. The Description section provides information about the currently selected policy. As you select available policies, they are validated against each other for compatibility. If incompatible policies are selected, a validation error is displayed. If you click on the error marker, text describing the validation error is displayed. Then click Finish.

    See Understanding Policy Stores for more information on configuring policy stores.

    See WebLogic Web Services Annotations View for information on adding and removing OWSM Web Service Policies and WebLogic Service Policies.

    6. policy selection

Having followed the preceding procedure, you created a Web service from a Java class. The resulting generated code has imports added, and the class annotated corresponding to wizard choices. You can run it by right-clicking the new class, and then selecting Run As > Run on Server from the drop-down menu.

Web services without security policies can be tested using the Test Client. For more information, see Testing Web Services.

2.2. Starting From Scratch

Using OEPE, you can create a JAX-WS-enabled Web service for your Java project without taking any prior steps.

To create a Web service from scratch using Java, do the following:

  1. Create a new Web service project.
  2. Right-click the project name in the Project Explorer and select New > Other from the drop-down menu. This will open the New wizard. Select Oracle > WebLogic > Web Services > WebLogic Web Service, and then click Next to open the New Web Service wizard.
  3. On the Web Service page, provide a Package name and enter a Name for your new Web service. Optionally, click Enable MTOM to implement binary encoding. Optionally, click Generate Service Endpoint Interface to generate an endpoint interface. Click Next.
  4. On the Selection WebLogic Web Service Policies page, select either No Policies, OWSM Web Service Policies, or WebLogic Service Policies. Note that you cannot mix OWSM and WebLogic Policies. The Description section provides information about the currently selected policy. As you select available policies, they are validated against each other for compatibility. If incompatible policies are selected, a validation error is displayed. If you click on the error marker, text describing the validation error is displayed. Then click Finish.

    See Understanding Policy Stores for more information on configuring policy stores.

3. Starting From a Java Class and Generating a WSDL File

Using OEPE, you can generate a WSDL file from a Java class for your project by following this procedure:
  1. Create new or use an existing Web service project.

  2. Right-click a Java class in your Web service project in the Project Explorer, and select WebLogic Web Services > Generate WSDL from the drop-down menu.
This generates a WSDL file in the same package as the Java class that you used as a starting point.



4. Related Information

W3C WSDL Specification

"Ant Task Reference" in Oracle Fusion Middleware WebLogic Web Services Reference for Oracle WebLogic Server

JAX-WS Users Guide

4.1 Contents of a WSDL File

Files with the WSDL extension contain Web service interfaces expressed in the Web Service Description Language (WSDL). WSDL is a standard XML document type specified by the World Wide Web Consortium (W3C). For more information, see http://www.w3.org/TR/wsdl

WSDL files communicate interface information between Web service producers and consumers. A WSDL description allows a client to utilize a Web service's capabilities without knowledge of the implementation details of the Web service.

A WSDL file contains the following information necessary for a client to invoke the methods of a Web service:

  • The data types used as method parameters or return values.

  • The individual methods names and signatures (WSDL refers to methods as operations).

  • The protocols and message formats allowed for each method.

  • The URLs used to access the Web service.


4.2 Imported WSDL Files

When you want to use an external Web service from within Eclipse, you should first obtain the WSDL file for the service you want to use, as follows:
  • For public Web services, the WSDL file will typically be available on the Web site of the organization that publishes the Web service.

  • For private Web services, contact the organization that supports the Web service to obtain the WSDL file.

WSDL files can also be found through both public and private UDDI registries. For more information about UDDI, see http://uddi.xml.org/

Once you have the WSDL file, you may use Eclipse to create a Web service.

Some Web service tools produce WSDL files that do not contain an XML declaration. The XML declaration is just the first line of an XML file of the following form:

<?xml version="1.0" encoding="utf-8" ?>

If you receive a WSDL file that does not contain an XML declaration, you must add a declaration to the file using a text editor before you can use the WSDL file in Eclipse.

Note that the encoding attribute is not required. If an encoding attribute is not present, the default encoding is utf-8.



4.3 Creating a New WSDL File

To create a WSDL file to use in your project, follow this procedure:
  1. Right-click the project in the Project Explorer and select New > Other from the drop-down menu. This will open the New dialog.

  2. In the New dialog, select Web Services > WSDL, and then click Next. The New WSDL File dialog opens.
  3. On the New WSDL File dialog, provide a name for the WSDL file, click Next, and then click Finish. This creates a WSDL file for your project.
Note that for a JAX-WS Web service project, you enable the Standard Annotated Web Services project facet option by right-clicking the project in the Project Explorer, selecting Properties from the drop-down menu, and then selecting Project Facets > Oracle WebLogic Web Services.




4.4 Understanding Policy Stores

Use to specify the policy store location for the WS Policy Store, which is where the Oracle Web Services Manager (Oracle WSM) policies are defined.

Policies, which are used to provide management and security functionality, are created and managed centrally in an organization by the web service policy manager or security architect, who provisions a set of policies using Oracle WSM. Policies can be updated without needing to modify the web services that use the policies.

OEPE comes with a default file-based policy store, which is part of Oracle WebLogic Server, which means that you can use policies out of the box. You apply policies in the Create Web Services wizards.

To configure the policy store in OEPE:

  1. From the main menu, select Window > Preferences to open the Preferences dialog.
  2. In the Preferences dialog, select WebLogic > WS Policy Store.
  3. On the WS Policy Store page:
    • Click a Runtime to configure its corresponding policy store.
    • File Store: Click to use the default file-based policy store.
    • Override: Click to enter or browse to the fully-qualified path to the location of the policy store to be used in place of the default policy store, in the Override Location field.
    • Remote WebLogic: Click to enter the remote location of the WebLogic Server instance that contains the policy store.

Fore more information on policies in other contexts, see the Oracle Fusion Middleware Security and Administrator's Guide for Web Services.

4.5 Testing Web Services

As you develop a Web service, you can test it directly by using the test client. The test client provides a user interface through which you can test Web service operations with parameter values you choose.

Using the test client, you can do the following:

  • Test a Web service from the project tree: When you test Web services with Eclipse, consider the following steps that launch the test client with a visual interface for invoking the Web service's operations:

    1. Expand the project tree to display the Web service source file.

    2. Right-click the source file, then click Run > Run on Server.

    3. When the test client is displayed, choose the operation you want to test by clicking the button labeled with the operation's name. If the operation has parameters, the test client provides boxes for you to enter the values to test with. If an operation includes complex types as parameters, the test client will display an XML template with placeholders for your test values.

    4. Examine the result of the test by looking at generated messages. When you execute an operation, the test client refreshes to display information about the message exchanged by the operation. The user interface provides a summary of message values, as well as the message XML itself. When an exception occurs, a fault message is displayed.

    5. Use the Message Log list to view the results of multiple tests.

    6. Click Show Operations to begin another test.


  • View the WSDL file for the Web service you are currently testing by clicking the WSDL URL provided at the top of the test client window.

  • Choose another Web service to test: You can test another Web service without closing the test client by clicking the Choose Another WSDL link at the top of the test client window. The test client will display a page with a box where you enter the WSDL URL, then click Test to display the test form for that Web service.


Alternatively, you can launch the test client without using Eclipse IDE by launching the client through a Web browser, as follows:

  1. With the Oracle WebLogic Server running, open a browser window and navigate to http://localhost:7001/wls_utc to start the test client.

  2. In the Enter WSDL URL box, enter the URL for the WSDL of the Web service you want to test, and then click Test.
