Appeal

Appeal Data Model

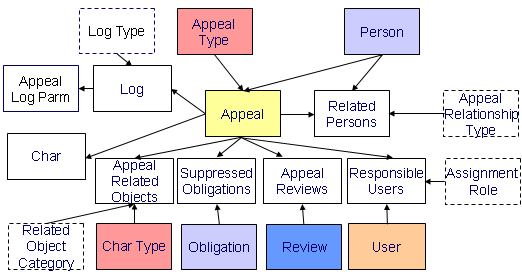

The following data model illustrates the Appeal object.

Appeal Data Model

Appeal Table Names

*Data Model Name*	*Table Name*	*Generated Keys*	*Object Validation Batch Control*	*Referential Integrity Validation Batch Control*	*Key Assignment Batch Control*	*Insertion Batch Control*
Appeal	C1_APPEAL	Yes. C1_APPEAL_K	VAL-APPL	CIPVAPPV	CIPVAPPK	CIPVAPPI
Appeal Related Person	C1_APPEAL_PER	No. The key is Appeal ID, Relationship Type, and Person ID.		CIPVAPEV		CIPVAPEI
Appeal Related Object	C1_APPEAL_REL_OBJ	No. The key is Appeal ID, Characteristic Type, and Person ID.		CIPVAPOV		CIPVAPOI
Appeal Suppressed Obligation	C1_APPEAL_SUPP_SA	No. The key is Appeal ID and Obligation ID.		CIPVAPSV		CIPVAPSI
Appeal Review	C1_APPEAL_REVIEW	No. The key is Appeal ID and Review ID.		CIPVAREV		CIPVAREI
Appeal Responsible User	C1_APPEAL_RESP_USER	No. The key is Appeal ID, Assignment Role Flag, and User ID.		CIPVARUV		CIPVARUI
Appeal Characteristic	C1_APPEAL_CHAR	No. The key is Appeal ID, Characteristic Type, and Sequence.		CIPVAPHV		CIPVAPHI
Appeal Log	C1_APPEAL_LOG	No. The key is Appeal ID and Sequence.		CIPVAPLV		CIPVAPLI
Appeal Log Parameter	C1_APPEAL_LOG_PARM	No. The key is Appeal ID, Sequence, and Message Parameter Sequence.		CIPVALPV		CIPVALPI

Appeal Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.
