Case

Case Data Model

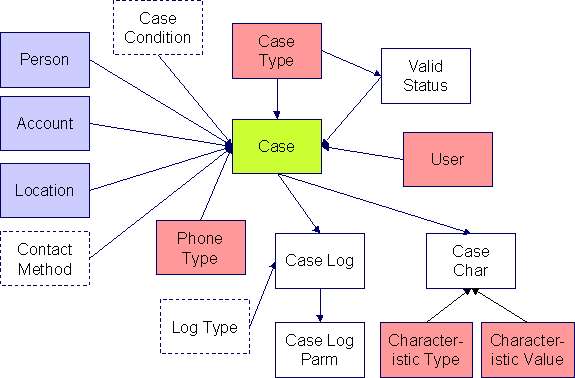

The following data model illustrates the Case object.

Case Data Model

Case Table Names

*Data Model Name*	*Table Name*	*Generated Keys*	*Object Validation Batch Control*	*Referential Integrity Validation Batch Control*	*Key Assignment Batch Control*	*Insertion Batch Control*
Case	CI_CASE	Yes. CI_CASE_K	VAL-CASE		CIPVCSEK	CIPVCSEI
Case Characteristic	CI_CASE_CHAR	No. The key is case id, char type code and a sequence number		CIPVCCHV		CIPVCCHI
Case Log	CI_CASE_LOG	No. The key is case id and a log sequence number		CIPVCLGV		CIPVCLGI
Case Log Parameter	CI_CASE_LOG_PARM	No. The key is case id, log sequence number and a parameter sequence number		CIPVCPAV		CIPVCPAI

Case Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.
