Location

Location Data Model

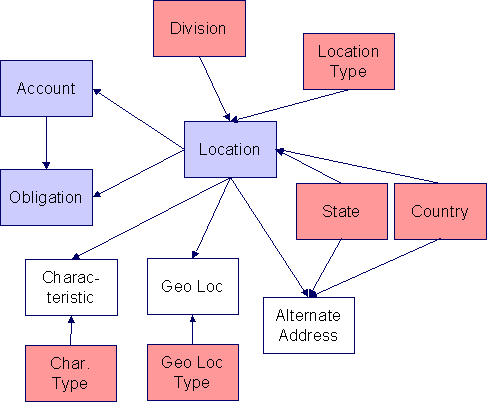

The following data model illustrates the location object.

Location Data Model

Location Table Names

*Data Model Name*	*Table Name*	*Generated Keys*	*Object Validation Batch Control*	*Referential Integrity Validation Batch Control*	*Key Assignment Batch Control*	*Insertion Batch Control*
Location	CI_PREM	Yes CI_PREM_K	VAL-PREM		CIPVPRMK Has dependencies	CIPVPRMI
Characteristic	CI_PREM_CHAR	No. The key is PREM_ID plus an edate and a char type.		CIPVPCHV		CIPVPCHI
Geo Loc	CI_PREM_GEO	No. The key is PREM_ID plus geo loc type.		CIPVPGOV		CIPVPGOI
Alternate Address	CI_PRM_ALT_ADDR	Yes CI_PRM_ALT_ADDR_K		CIPVAPAV	CIPVAPAK Has dependencies	CIPVAPAI

Location Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.
