Obligation

Obligation Data Model

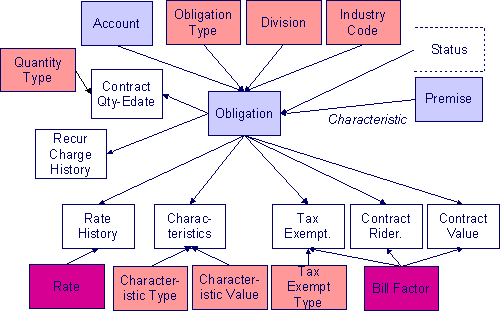

The following data model illustrates the obligation object.

Obligation Data Model

Obligation Table Names

Data Model Name

Table Name

Generated Keys

Object Validation Batch Control

Referential Integrity Validation Batch Control

Key Assignment Batch Control

Insertion Batch Control

Obligation

CI_SA

Yes CI_SA_K

VAL-OBLG

CIPVSVAK

Has dependencies

CIPVSVAI

See Optional FK Note below.

Characteristic

CI_SA_CHAR

No. The key is obligation ID plus an edate and a char type.

CIPVSACV

CIPVSACI

Contract Quantity Edate

CI_SA_CONT_QTY

No. The key is obligation ID plus quantity type plus edate.

CIPVSAQV

CIPVSAQI

Message

CI_SA_MSG

No. The key is obligation ID plus Bill message code.

CIPVSMGV

CIPVSMGI

Recurring Charge

CI_SA_RCHG_HIST

No. The key is obligation ID plus edate.

CIPVSARV

CIPVSARI

Rate History

CI_SA_RS_HIST

No. The key is obligation ID plus edate.

CIPVSAHV

CIPVSAHI

Tax Exempt

CI_SA_CONTERM - this table is also used for the next 2 entities, the key contains CONTERM_TYPE_FLG that controls the entity

No. This key is obligation ID plus CONTERM_TYPE_FLG plus BF_CD plus START_DT

CIPVSAOV

CIPVSAOI

Contract Rider

CI_SA_CONTERM - this table is also used for the previous and next entities, the key contains CONTERM_TYPE_FLG that controls the entity

No. This key is obligation ID plus CONTERM_TYPE_FLG plus BF_CD plus START_DT

CIPVSAOV

CIPVSAOI

Contract Value

CI_SA_CONTERM - this table is also used for the previous 2 entities, the key contains CONTERM_TYPE_FLG that controls the entity

No. This key is obligation ID plus CONTERM_TYPE_FLG plus BF_CD plus START_DT

CIPVSAOV

CIPVSAOI

Obligation Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.

Optional FK Note

Account has an optional foreign key CHAR_PREM_ID to the Location (CI_PREM) table and an optional foreign key TAX_ROLE_ID to the Tax Role (CI_TAX_ROLE) table. If your implementation is planning to convert obligations, but not locations or tax roles, the key generation programs for Location and Tax Role must still be run. Refer to The Big Picture of Key Assignment for more information.
