Overpayment Process

Overpayment Process Data Model

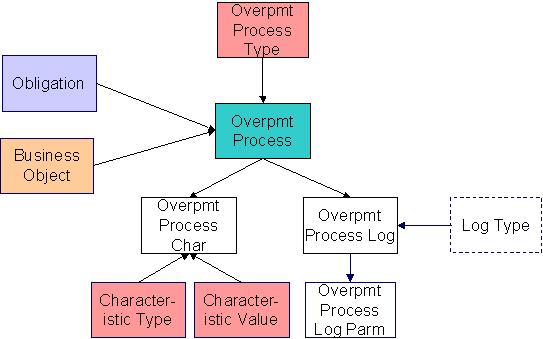

The following data model illustrates the Overpayment Process object.

Overpayment Process Data Model

Overpayment Process Table Names

*Data Model Name*	*Table Name*	*Generated Keys*	*Object Validation Batch Control*	*Referential Integrity Validation Batch Control*	*Key Assignment Batch Control*	*Insertion Batch Control*
Overpayment Process	CI_OP_PROC	Yes. CI_OP_PROC_K	VAL-OVPY	CIPVOPPV	CIPVOPPK	CIPVOPPI
Overpayment Process Character	CI_OP_PROC_CHAR	No. The key is Overpayment Process ID, Characteristic Type, and Sequence.		CIPVOPCV		CIPVOPCI
Overpayment Process Log	CI_OP_PROC_LOG	No. The key is Overpayment Process ID and Sequence.		CIPVOPLV		CIPVOPLI
Overpayment Process Log Parameter	CI_OP_PROC_LOG_PARM	No. The key is Overpayment Process ID, Sequence, and Message Parameter Sequence.		CIPVOPMI		CIPVOPMI

Overpayment Process Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.
