Payment Plan

Payment Plan Data Model

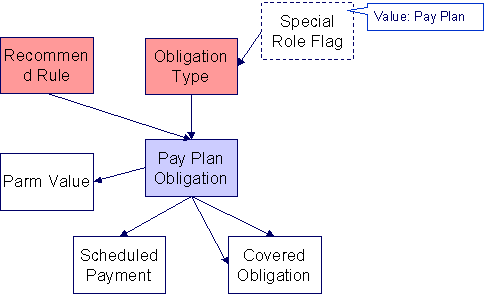

The following data model illustrates the Payment Plan objects.

Pay Plan Data Model

Payment Plan Table Names

*Data Model Name*	*Table Name*	*Generated Keys*	*Referential Integrity Validation Batch Control*	*Key Assignment Batch Control*	*Insertion Batch Control*
Covered Obligation	CI_NB_SA	No. The key is SA_ID plus CVRD_SA_ID	CIPVNBSV		CIPVNBSI
Scheduled Payments	CI_NB_SCHED_PAY	Yes CI_NB_SCHED_PAY_K	CIPVNSPV	CIPVNSPK Has dependencies	CIPVNSPI
Pay Plan Parameters	CI_SA_NB_PARM	No. The key is SA_ID plus Sequence Number.	CIPVNPMV		CIPVNPMI

Payment Plan Suggestions

This maintenance object includes a character large object field that your organization may be using to capture implementation specific data as defined by your business objects. For records of this type, the process to insert the records to the staging table is responsible for populating the data in this CLOB as per the record's business object schema.
