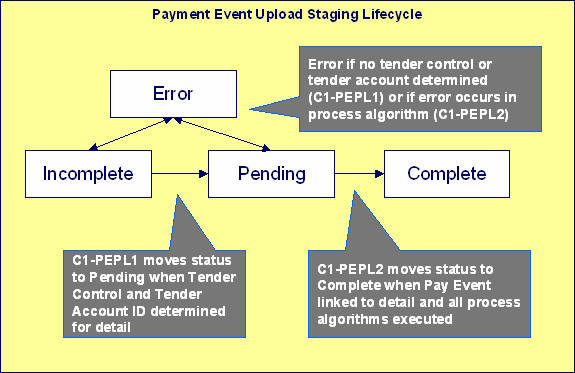

The following diagram shows the possible lifecycle of a payment event upload staging record.
-
Incomplete. A payment event staging record is initially created in incomplete state. The C1-PEPL1 process sets it to pending once it links it to a tender control and determines its tender account.
-
Pending. The C1-PEPL2 process sets a pending record to complete once all processing logic is executed and a payment event is linked to it.
-
Complete. When processing of the staging record is complete the record is in the complete state. This is a final state.
-
Error. A payment event staging record may be set to Error from Incomplete or Pending states by the C1-PEPL1 and C1-PEPL2 processes respectively.
Refer to ToDo Entries Instead of Exceptions for more information on how ToDo entries are used to capture processing errors.
