This appendix contains screenshots and descriptions for all of the EDQ configuration and installation screens.
This chapter contains the following sections:
This section contains screenshots and descriptions for all of the EDQ RCU screens.
The Welcome screen is displayed each time you start the installer. You can skip this screen in future by selecting the Skip this Page Next Time check box.
Specify to create a new schema or drop a schema in your database.
Specify the details to connect to your Oracle database.
Review the prerequisites that were verified.
Specify which EDQ components you want to install by selecting or clearing the Oracle Enterprise Data Quality check boxes.
Review the repository prerequisites that were verified.

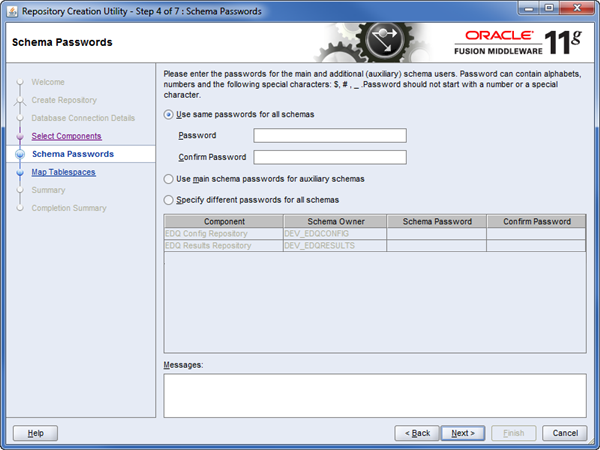

Specify the passwords to use for all of the schemas in your database using the default option.
This screen allows you to create tablespaces or modify existing tablespaces; the EDQ default tablespaces are automatically specified.
Review the tablespace confirmation.

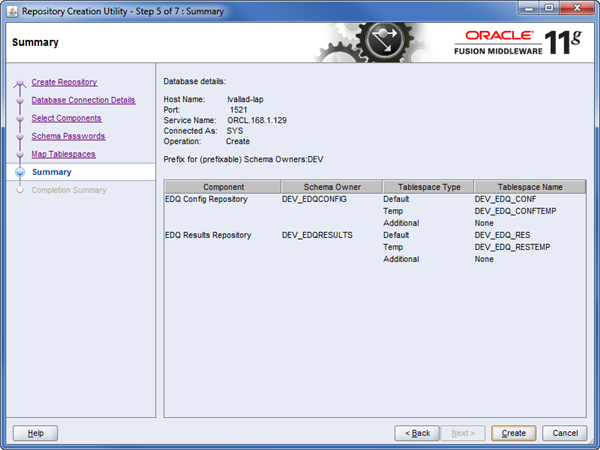

This screen displays your database details and schemas for you to review prior to creating the new EDQ schemas.

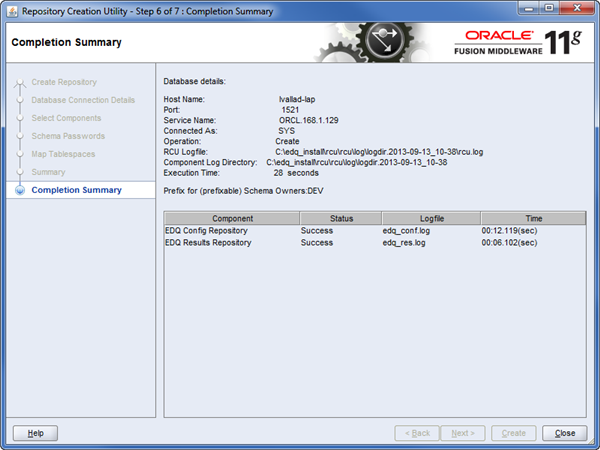

This screen displays your database details and new EDQ schemas status with the location of the creation log files.
This screen displays the completion details.
This section contains screenshots and descriptions for all of the EDQ installation screens.
The Welcome screen is displayed each time you start the installer.
This screen helps to quickly and easily search for the latest software updates, including important security updates, using your My Oracle Support account.

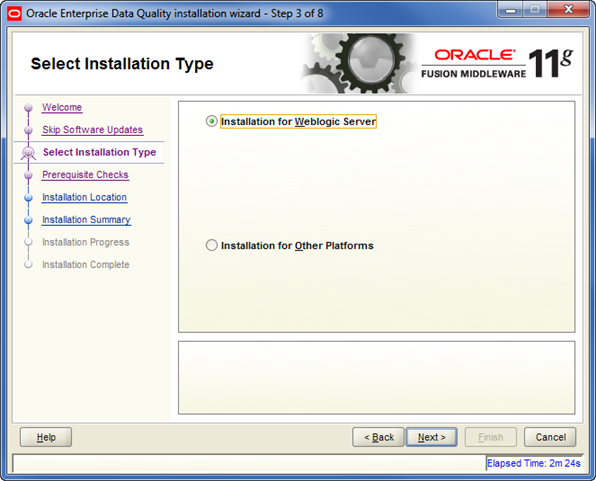

Use the default Installation for WebLogic Server if this is your installed application server or select Installation for Other Platforms if your application server is Tomcat or WebSphere.
This screen displays a tree view of the operating system and physical memory checks and the status for each.
Specify the MW_HOME
directory and the EDQ home directory. You must already have a Middleware home directory on your system, see Section 2.1.1, "Choosing a Fusion Middleware Home Directory" and Section 2.1.2, "Choosing the EDQ Installation Directory."
This screen displays a list of directory details, disk space (required and available), and the product components to be installed.
This screen shows the progress of the installation. When the progress bar reaches 100%, the installation is complete.
This screen shows the results of the completed installation. You can click Save to save the displayed details to a text file.
This section contains screenshots and descriptions for all of the WebLogic Configuration Wizard screens.
The Welcome screen is displayed each time you start the configuration wizard.
By default, the Basic WebLogic Server Domain - 10.3.6.0 [wlserver_10_3] option is always selected.
Select Oracle Enterprise Data Quality -11.1.1.7.# [Oracle_EDQ1] check box. The Oracle JRF - 11.1.1.0 [oracle_common] check box is automatically selected.
Specify your domain name and location. Oracle recommends that you use edqdomain as your domain name.
Specify your WebLogic administration user credentials.
Select the Development Mode for your domain startup operation mode and the JDK release you want to use. Oracle recommends that you use the most current 64-bit JDK.
Specify the JDBC data source details.
Select the JDBC data sources you want to test, then click Test Connections. If your data sources fail, use the Previous button to return to the previous screen to correct the configuration.
No selections are necessary though Oracle recommends the use of Managed Servers, Clusters, and Machines and Deployments and Services.
This section contains screenshots and descriptions for all of the EDQ Configuration Application screens.
Specify a directory to store your EDQ configuration files.
Select the Function and Interface configurations using the check boxes.
Specify your Config database repository details.
Specify your Results database repository details.
This screen shows you a summary of your selections.
Select Restart or Close to exit the configuration application.
