Install RACF/SSP on the WebLogic Console

▼	Install RACF/SSP on the WebLogic Console

To install RACF on the WebLogic Console:

1.	Point your browser to the WebLogic console login screen.

http://yourHostName:7001/console/

https://yourHostName:7002/console/

Note – Use the HTTP or HTTPS port number you selected during STA installation.

2.	Log in using the WebLogic Admin Console username and password you defined during STA installation.

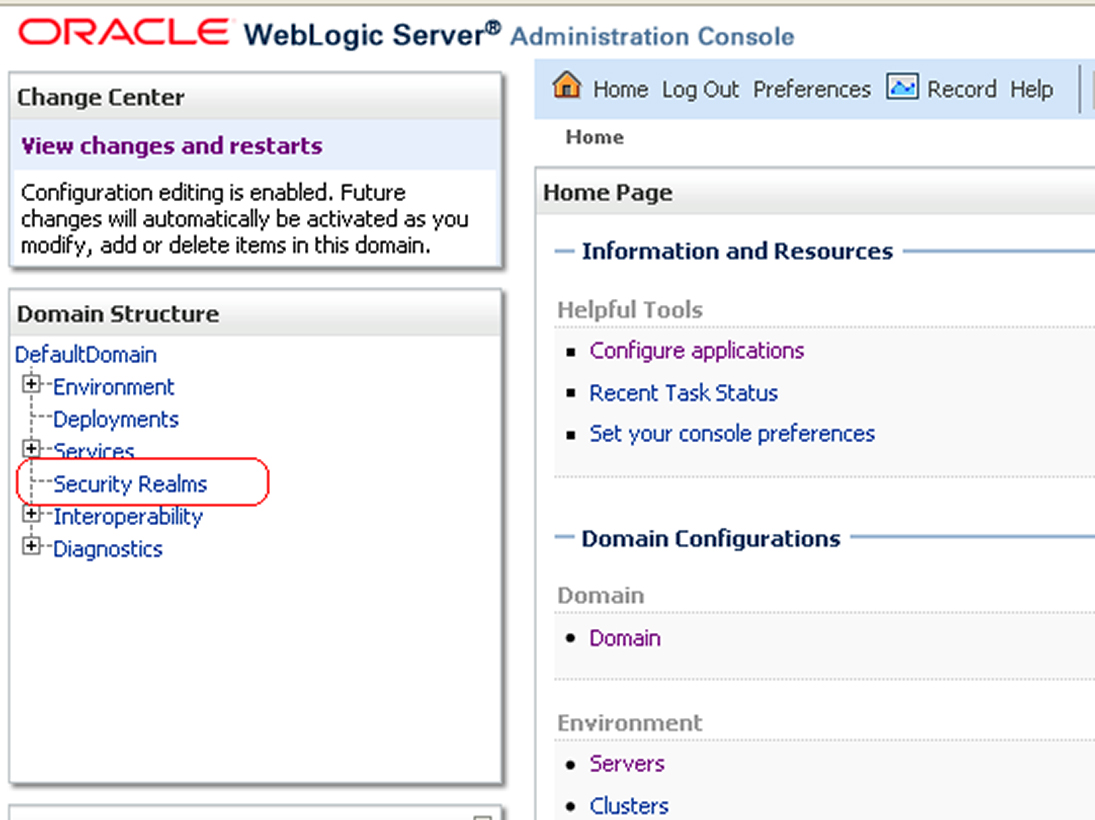

3.	Click Security Realms.

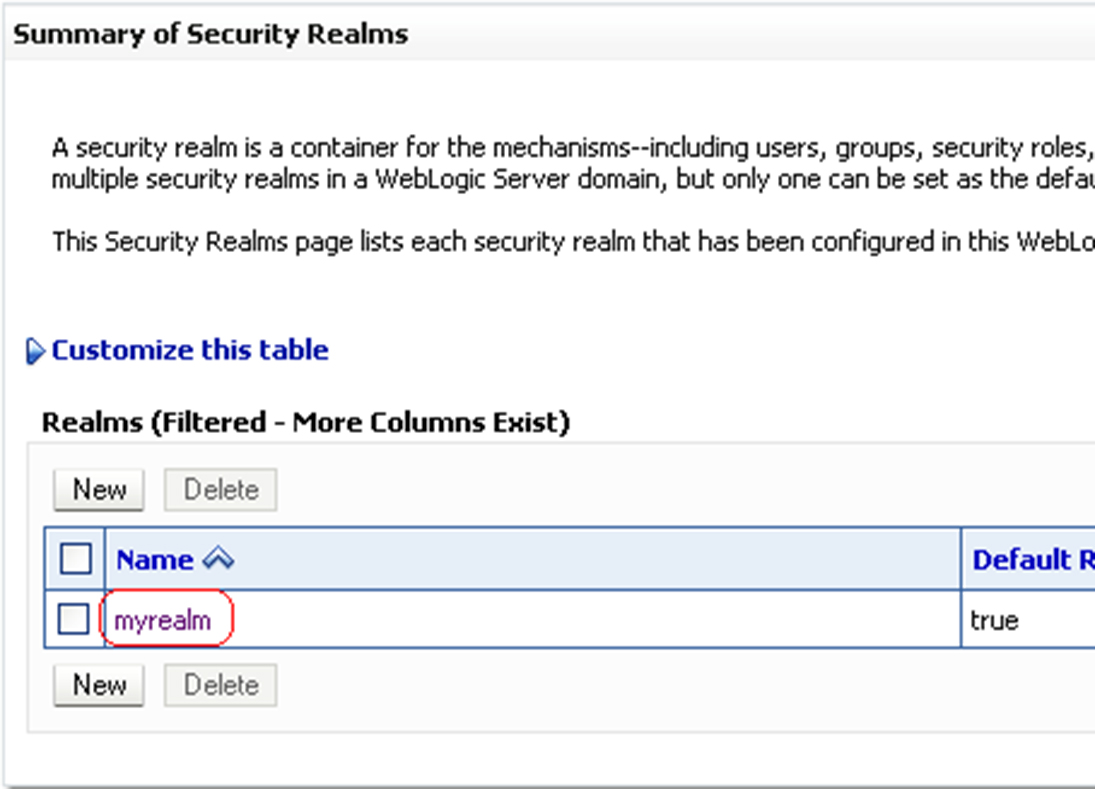

4.	Click myrealm (select the name itself, you cannot check the box).

5.	Click Lock & Edit.

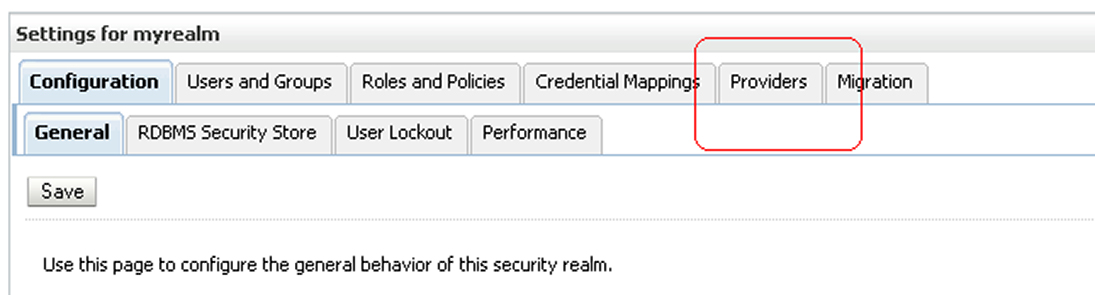

6.	Select the Providers tab.

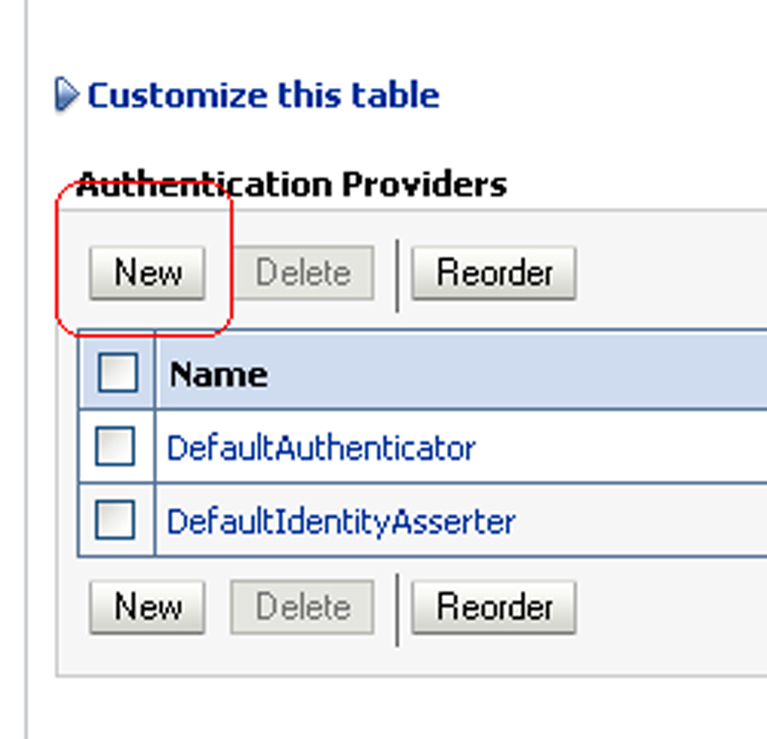

7.	Click New.

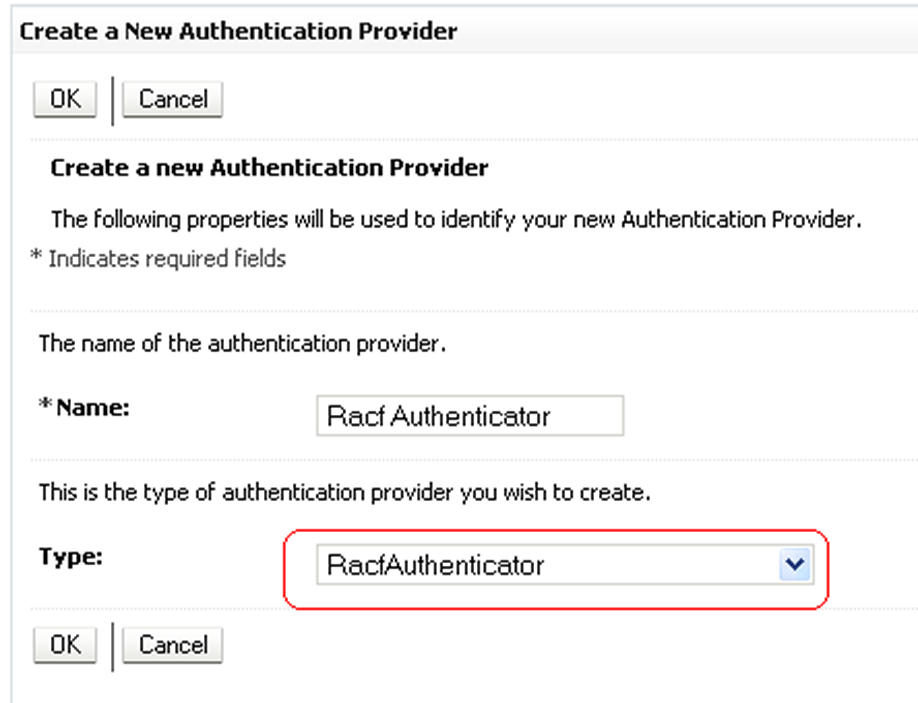

8.	Enter the name of the authentication provider and select RacfAuthenticator in the Type list. Click OK.

In the Type list, the RACF jar file should be listed. If it is not, stop and restart STA. See the “STA Command” section within the StorageTek Tape Analytics Administration Reference Guide.

Make sure the RACF provider is last in the list. The DefaultAuthenticator and DefaultIdentityAsserter must always be the first two items in this list.

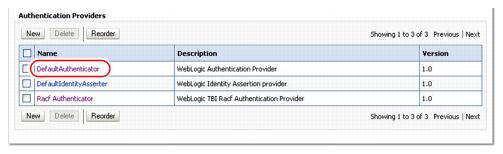

9.	Click DefaultAthenticator (select the name itself, you cannot check the box).

10.

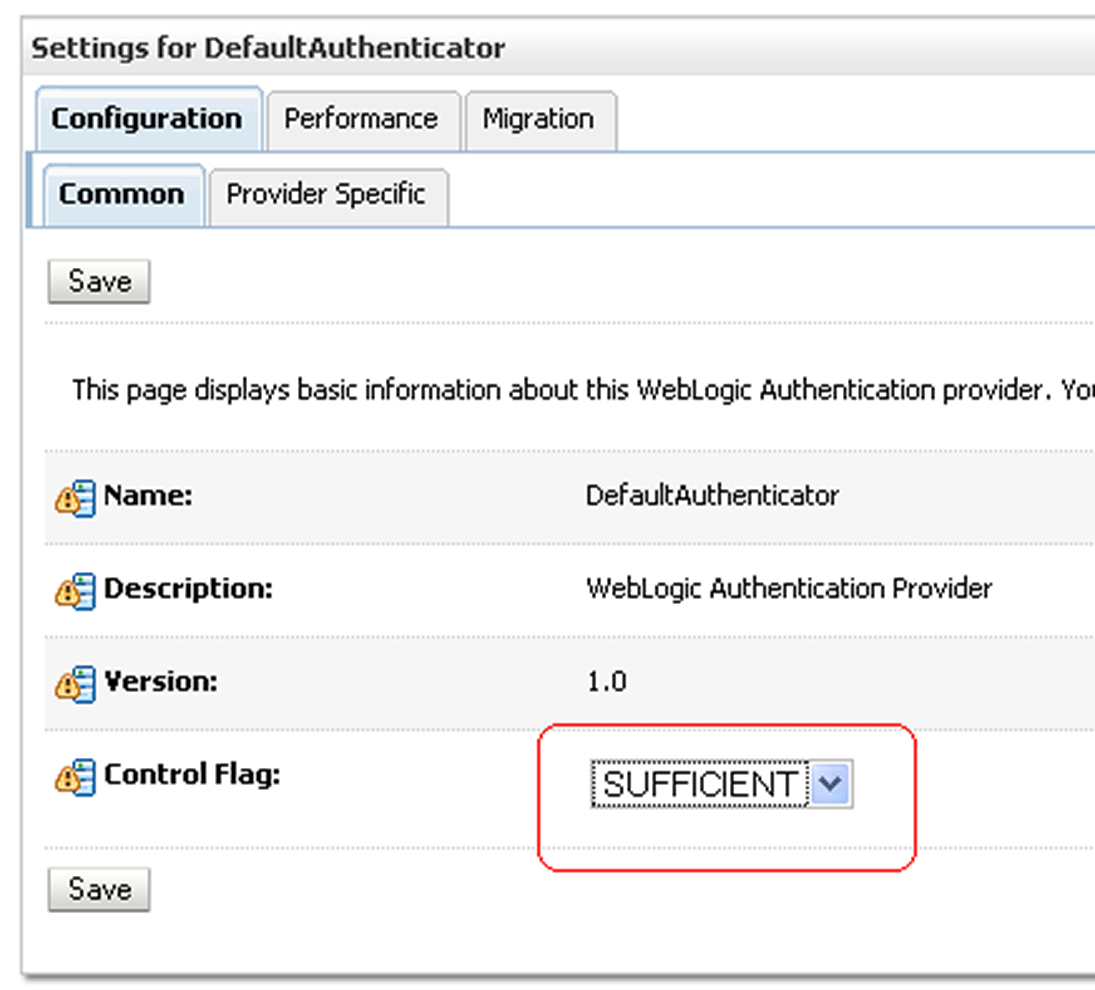

Change the Control Flag to Sufficient and click Save.

11.

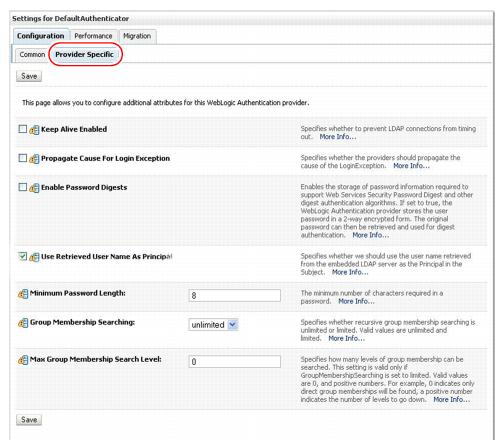

Select the Provider Specific tab for the DefaultAuthenticator. Click Save.

12.

Click the Providers link to return to the Providers -> Authentication screen.

13.

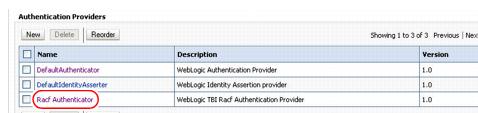

Click RacfAthenticator (select the name itself, you cannot check the box).

14.

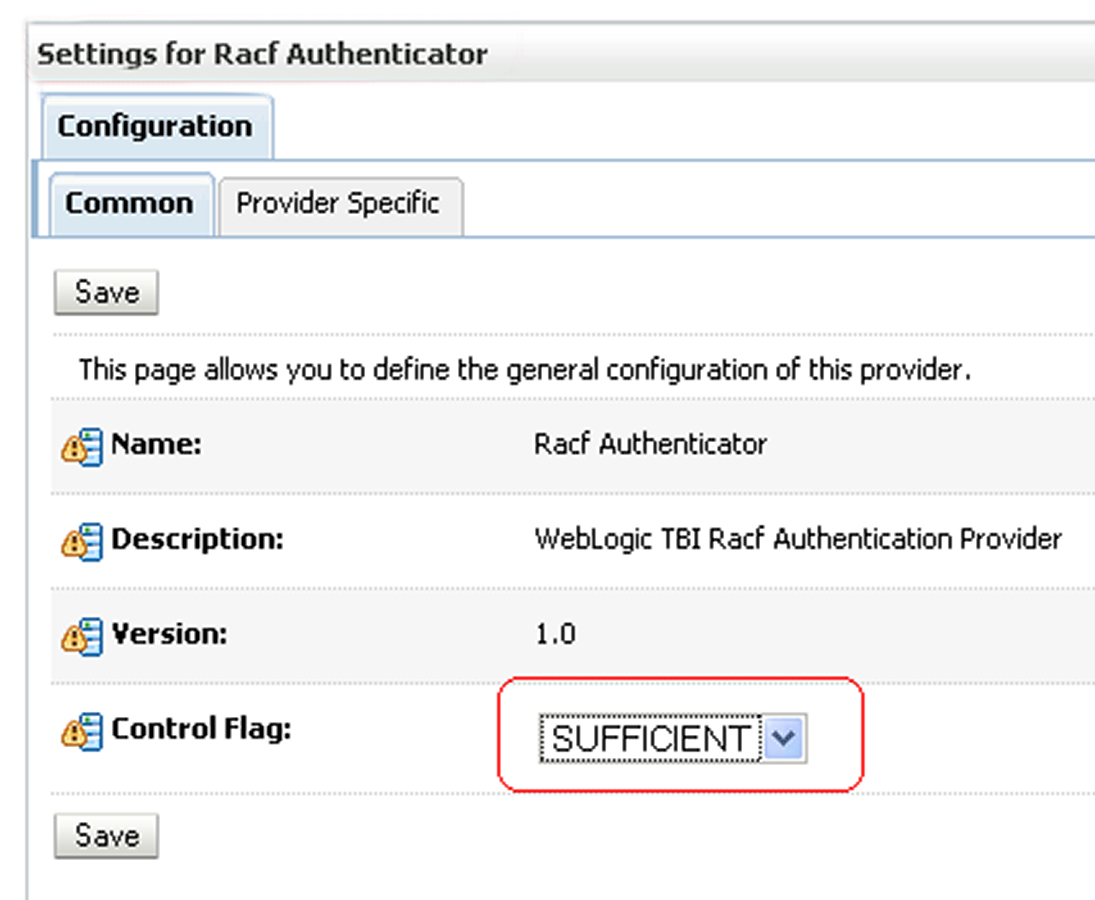

Change the Control Flag to Sufficient and click Save.

15.

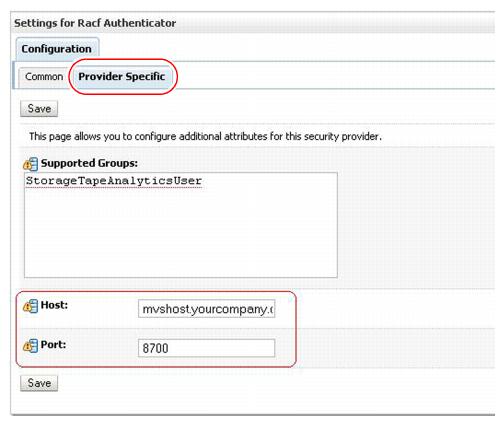

Select the Provider Specific tab for the RacfAuthenticator. Enter the host name and port number where the MVS system is running. Click Save.

16.

Click Activate Changes.

17.

Log out of WebLogic.

18.

From the Linux command line, stop and restart STA.


# STA stop Stopping the WebLogic staServer.... Successfully stopped the WebLogic staServer Stopping the WebLogic Administration Server.... Successfully stopped the WebLogic Administration Server Stopping the STA Database Server Backup Service (staservd).... Successfully stopped the STA Database Server Backup Service Stopping the STA database Server.... Successfully stopped the STA Database Server


# STA start Starting STA Database.... Successfully started the STA Database Starting STA Database Backup Service (staservd).... Successfully started the STA Database Backup Service Starting WebLogic Administration Server.... Successfully started the WebLogic Administration Server Starting WebLogic staServer.... Successfully started the WebLogic staServer

▼
