Apply a Filter From the Dashboard

Use this procedure to apply a filter by clicking a section of a bar or pie chart on the Dashboard. You are taken to the corresponding Overview screen, and the filter intrinsic to the bar or pie chart section is applied. This procedure allows you to display detail about data displayed on the Dashboard.

1.

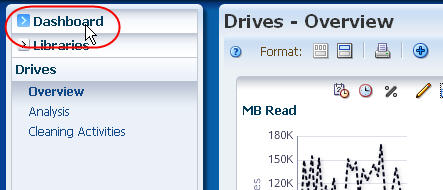

Use the Navigation Bar to bring up the Dashboard.

2.

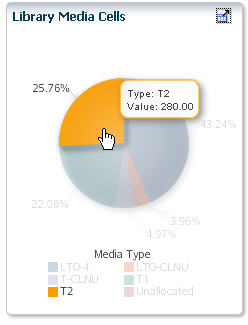

Click a section in a Dashboard bar or pie chart.

You are taken to the corresponding Overview screen (Media – Overview in this example), and the following updates are made to the list view table:

•
The table displays only the records included in the selected Dashboard section.
•
The Applied Filter area indicates the filter criteria from the selected section.
•
The Table status line indicates the number of records displayed; this number is the same as the Value for the selected Dashboard section.

3.
Use the Navigation Bar to select the “partner” Analysis screen, if applicable.

Note – This step applies to Drive and Media Overview screens only.

The filter remains active; therefore, the Analysis screen displays only the records that meet the selection criteria intrinsic to the selected bar or pie chart section.
