STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


Graph Displays : Data Graphing Tasks : ▼ Change the Graphed Attribute

▼

Change the Graphed Attribute

Note – This procedure applies to Overview screens only.

Use this procedure to change the resource attribute that is displayed in a graph pane.

1.

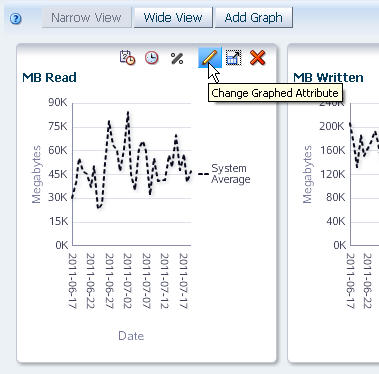

Click the Change Graphed Attribute icon in the Graph Pane Toolbar.

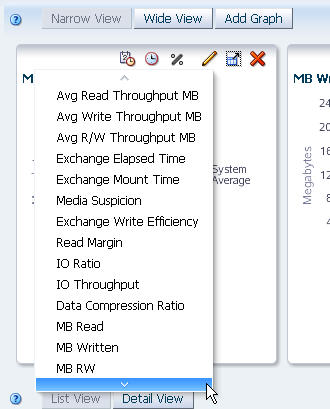

A menu appears, displaying all available attributes for this resource type. Only 14 attributes are visible at a time. A scroll button at the bottom of the menu allows you to scroll down through the entire list.

2.

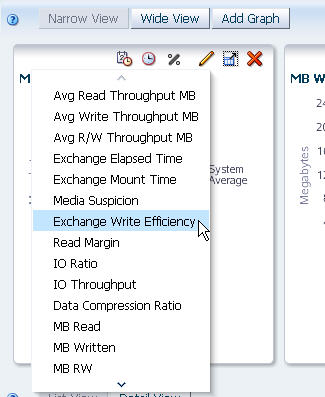

Select the attribute you want the graph to display.

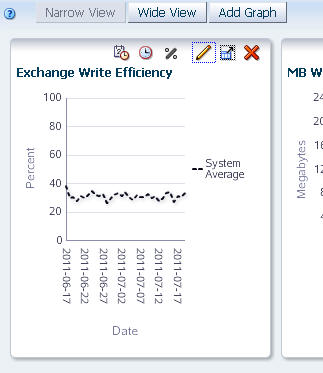

The graph is updated according to your selection.
