STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


Table Displays : List View Table Display Tasks : ▼ Display a Specific Table Page

▼

Display a Specific Table Page

Use this procedure to go directly to a specific page on Libraries – Exchanges, Drives – Cleaning Activities, or Notifications – Overview screens.

Because a large number of exchanges and notifications can be generated in a short time, these screens can display many records. The records are therefore grouped into “pages”; each page consists of 1,000 records sorted as follows:

•
Libraries – Exchanges and Drives – Cleaning Activities screens — Reverse order of “Exchange Start” time (most recent exchanges first)
•
Notifications – Overview screen — Reverse order of “Date SNMP Trap Received” time (most recent traps first)

Note – This activity can be done only by mouse, not by menu.

1.

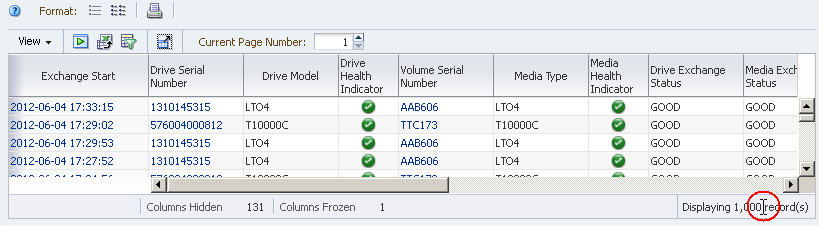

Move the cursor over the record count area on the right side of the Table Status line.

The cursor changes from the default pointer to a text pointer.

2.
Click anywhere within the record count area.

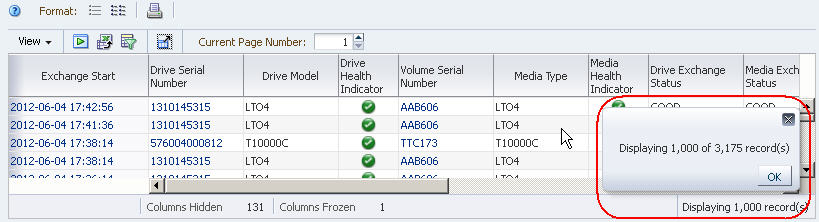

A message appears indicating the total number of records in the table.

3.

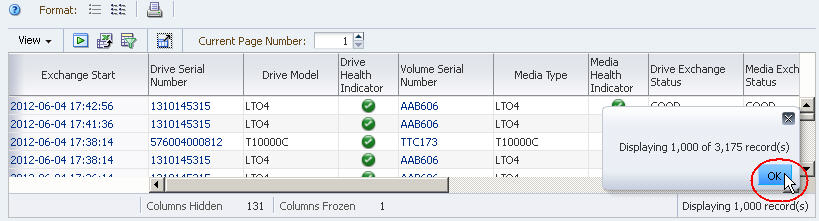

Click OK to dismiss the message.

4.
In the Current Page Number field in the Table Toolbar, enter the page number you want to display and then press Enter.

The specified table page is displayed.

Note – Each page but the last contains 1,000 records. Therefore, each page but the last indicates “Displaying 1,000 records” in the record count area of the Table Status Line. The examples below show pages 3 and 4 of a table containing 3,185 total records.
