Pre-defined Template Summaries

Following are short descriptions of the pre-defined templates for each Overview and Analysis screen.

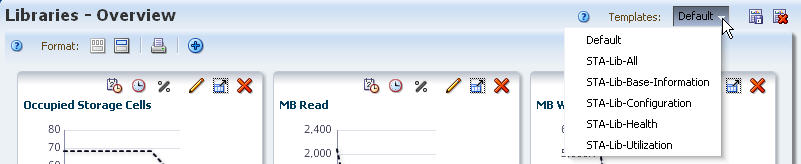

Libraries – Overview

Default	Displays library properties and configuration information.
STA-Lib-All	Displays all library table attributes.
STA-Lib-Base-Information	Displays the base library configuration and relatively static data; useful for library description and inventory listings.
STA-Lib-Configuration	Displays library configuration and connection information; useful for troubleshooting connection issues.
STA-Lib-Health	Displays information about library health, firmware, and SNMP connection with STA.
STA-Lib-Utilization	Displays summary information about the amount and rates of library activity and drive utilization.

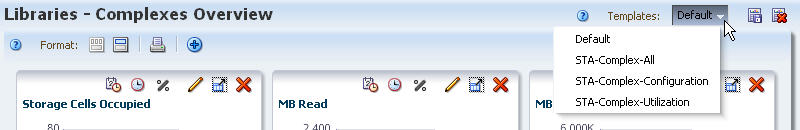

Libraries – Complexes Overview

Default	Displays library complex configuration.
STA-Complex-All	Displays all library complex graphs and table attributes.
STA-Complex-Configuration	Displays library complex configuration information.
STA-Complex-Utilization	Displays information about the amount and rates of library complex activity and drive utilization.

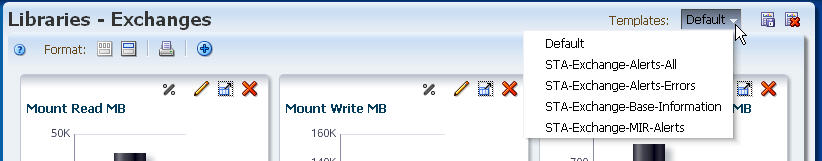

Libraries – Exchanges

Default	Displays identification and status information for the drive, media, and library involved in each exchange.
STA-Exchange-Alerts-All	Displays information about alerts that occurred during exchanges; exchanges that have not generated an alert are not included.
STA-Exchange-Alerts-Errors	Displays all exchanges that resulted in error-type alerts; alerts that are not errors, such as cleaning alerts, are not included. Your Oracle support representative may ask you to use this template prior to submitting error log information.
STA-Exchange-Base Information	Displays base information for all exchanges, such as drive and volume serial number, drive and media health, drive and media exchange status, MB read and written, and times.
STA-Exchange-MIR-Alerts	Displays all exchanges that resulted in alerts related to the media information record (MIR). Your Oracle support representative may ask you to use this template prior to submitting error log information.

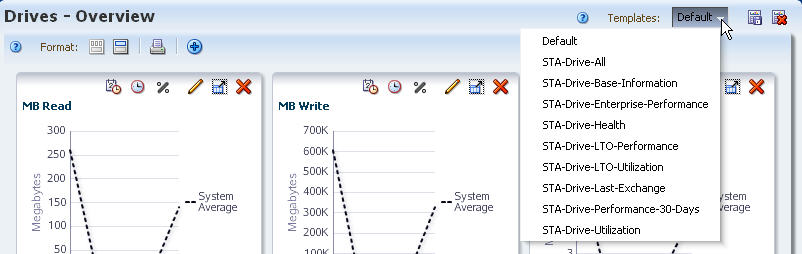

Drives – Overview

Default	Displays drive configuration information and the status of the most recent exchange that occurred on the drive.
STA-Drive-All	Displays all drive graphs and table attributes.
STA-Drive-Base-Information	Displays the base drive configuration and relatively static data; useful for drive description and inventory listings.
STA-Drive-Enterprise-Performance	Displays summary performance data for enterprise drives only.
STA-Drive-Health	Displays current and summary health and activity information for all drives.
STA-Drive-LTO-Performance	Displays performance data for LTO drives only.
STA-Drive-LTO-Utilization	Displays utilization statistics for LTO drives only.
STA-Drive-Last-Exchange	Displays information for the last exchange that occurred on each drive.
STA-Drive-Performance-30-Days	Displays summary performance data for all drives over the last 30 days.
STA-Drive-Utilization	Displays utilization statistics for all drives.

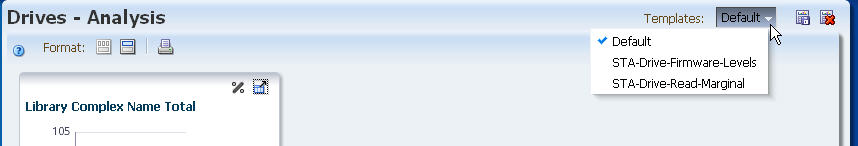

Drives – Analysis

Default	Summarizes current drive health by library complex.
STA-Drive-Firmware-Levels	Summarizes current drive firmware levels by drive type.
STA-Drive-Read-Marginal	Summarizes the “Exchange Read Marginal” status for applicable drives, by library complex name. Applicable to StorageTek T10000A and above drives only.

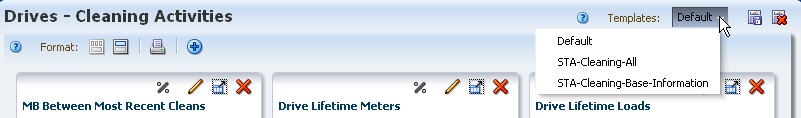

Drives – Cleaning Activities

Default	Displays identification and status information for the drive, media, and library involved in each cleaning exchange.
STA-Cleaning-All	Displays all cleaning exchange attributes.
STA-Cleaning-Base-Information	Displays base information for all cleaning exchanges, such as drive and volume serial number, drive lifetime cleans, and current and maximum cleaning uses.

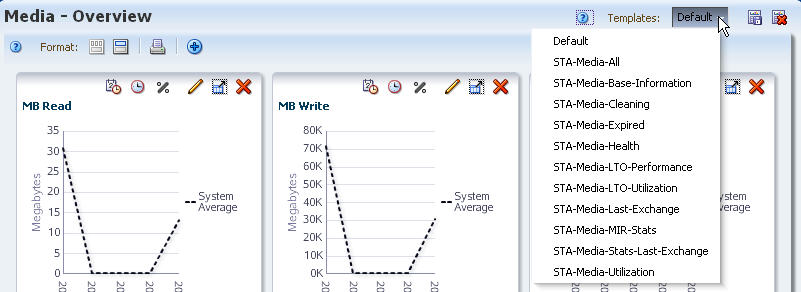

Media – Overview

Default	Displays base information about the media, its most recent exchange, and the drive involved.
STA-Media-All	Displays all media graphs and table attributes.
STA- Media-Base-Information	Displays the base media information and relatively static data; useful for media description and inventory listing.
STA-Media-Cleaning	Displays base information about cleaning cartridges only. Also displays the status of the cleaning media’s most recent exchange and the drive involved.
STA-Media-Expired	Displays information about expired media. Your Oracle support representative may ask you to use this template prior to submitting error log information.
STA-Media-Health	Displays current and summary health and activity information for all media.
STA-Media-LTO-Performance	Displays summary performance information for LTO media only.
STA-Media-LTO-Utilization	Displays summary utilization information for LTO media only.
STA-Media-Last-Exchange	Displays information about the last exchange for each piece of media.
STA-Media-MIR-Stats	Displays data from the media information record (MIR).
STA-Media-Stats-Last-Exchange	Displays throughput and efficiency information for the last exchange for each piece of media. Your Oracle support representative may ask you to use this template prior to submitting error log information.
STA-Media-Utilization	Displays summary utilization information for all media.

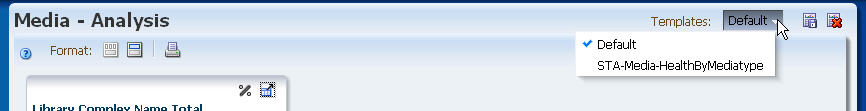

Media – Analysis

Default	Summarizes current media health by library complex.
STA-Media-HealthByMediaType	Summarizes current media health by media type.

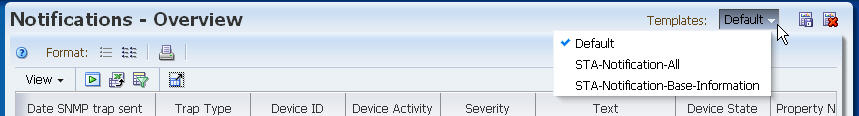

Notifications – Overview

Default	Displays SNMP traps, including detail about the library and device involved.
STA-Notification-All	Displays all attributes available for SNMP traps (no graphs are available for this screen).
STA- Notification-Base-Information	Displays base data for SNMP traps; useful for an overview, description, and listing of notifications.

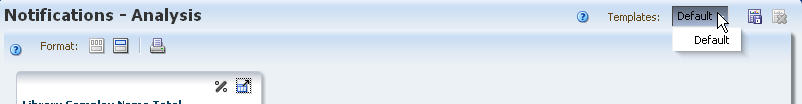

Notifications – Analysis

Default

Summarizes notification severity levels by library complex.
