Screen Display Features

Cursor Shapes

The cursor changes shape as you move the mouse over different areas of the STA screen. Understanding the meaning of the different cursors assists you in using the STA user interface.

Cursor	Name	Description
	Pointer	This is the default cursor. Click to select active buttons or data table rows.
	Text pointer	Appears when you move the mouse over a text area that is not an active link, such as the Screen Title.
	Link select	Appears when you move the mouse over a text area that is an active link, such as a screen name in the Navigation Bar or an aggregate count in a pivot table. Click to select the link.
	Resize object	Double-headed arrow which can be vertical, horizontal, or diagonal, depending on the axis that will be resized. Displays when you move the mouse over the edge of a resizable screen area or graph. Click and drag to resize the object.
	Move object	Appears when you move the mouse over a table column heading or top border of a graph. Click and drag to move the object to a different location within the table or pane. In pivot tables, click and drag, to move the pivot table layer.
	Hourglass	Appears when the STA screen is loading or fetching data.
The following cursors appear in tables only.
	Select row	Appears when you move the mouse over a row heading. Click to select the row.
	Select column	Appears when you move the mouse over a column heading. Click to select the column.
	Select fixed column	Appears when you move the mouse over the heading of a fixed column. Click to select the column.
	Resize row	Appears when you move the mouse over the border between rows. Click and drag to resize the row.
	Resize column	Appears when you move the mouse over the border between columns. Click and drag to resize the column.

Tooltips

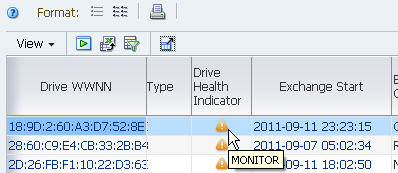

A tooltip is a small popup window that displays descriptive text. Tooltips are available for most STA screen icons, buttons, graphic images, and text items. Move the mouse over an item to display the tooltip.

Object Selection

You can select most STA objects—items in dialog box lists, table columns, and table rows, for example. In addition, the STA interface supports multi-select for many object types. The STA documentation identifies when multi-select is supported and when it is not.

The following examples use the Reorder Columns dialog box, which appears when you select View > Reorder Columns from the List Table Toolbar.

Multi-select

Deselect

Time Zone Adjustments

Dates and times of events displayed by the STA user interface are automatically adjusted to the user’s local time zone. For example, an exchange with a start time of 02:43 on a library in San Francisco will show a start time of 08:43 for an STA user in Brasilia, and 17:43 for a user in Jakarta.
