STA User Interface Guide, v1.0.2
E28380-03
Table of Contents Previous Next Index


User Interface Basics : Screen Arrangement Tasks : ▼ Collapse and Restore the Graphics Area

▼

Collapse and Restore the Graphics Area

Use this procedure to hide the Graphics Area and then restore it. Collapsing the Graphics Area provides more space in the Main Window for you to view table data.

1.

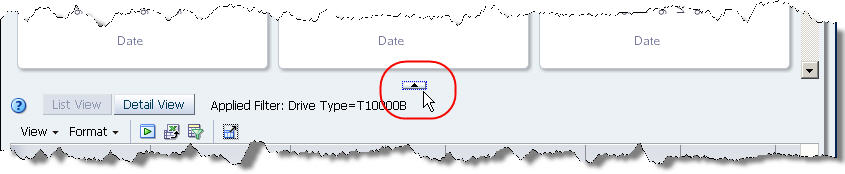

Click the Collapse Pane icon in the space between the Graphics and Table Areas.

The Graphics Area is hidden, and the Table Area expands vertically over the entire Main Window.

2.

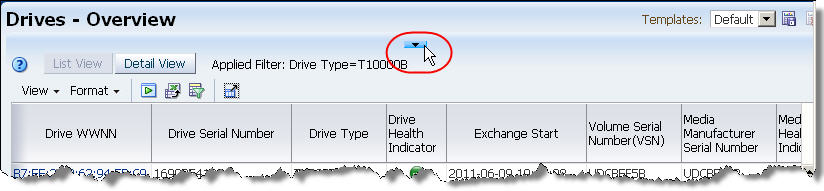

To restore the Graphics Area to its original size, click the Restore Pane icon at the top of the Main Window.
