Managing Library SNMP Connections : Library Connection Status Information

Library Connection Status Information

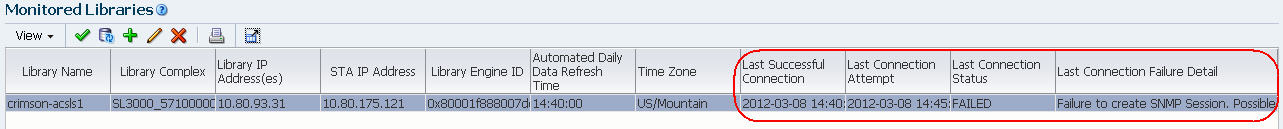

The connection status fields in the Monitored Libraries table of the Settings – SNMP Connections screen display the status of the most recent library connection test or data collection — scheduled, triggered, or manual. Following is a sample screen.

TABLE 2‑1 describes the connection status fields.

TABLE 2‑1 Connection Status Fields in the Monitored Libraries Table

Field

Description

Last Successful Connection

Date and time of the most recent successful connection test or data collection.

Last Connection Attempt

Date and time when the most recent connection test or data collection was attempted. If the attempt failed, then this date and time are more recent than the “Last Successful Connection”.

Last Connection Status

Status of the most recent connection test or data collection. In a data collection, the status is updated throughout the process, according to the screen refresh rate defined for your STA username (for example, if your screen refresh rate is set to the default 480 seconds, then the status is updated every 480 seconds). Possible statuses are as follows:

•
In progress – A data collection is underway.
•
Success – The connection test or data collection completed successfully.
•
Failed – The connection test or data collection failed; possible reasons are listed in the “Last Connection Failure Detail” field.
•
Rejected – The data collection request was rejected, possibly because the library is busy or unavailable.
•
Duplicate – The data collection request was rejected because another one is already is progress.

Last Connection Failure Detail

If the connection test or data collection failed or was rejected, possible causes are listed in this field.
