Format of the precedence rules input file

The input configuration file should contain five configuration properties and a corresponding set of value data.

The first line (the header row) of a precedence rules input file should have these header properties:

Key|TriggerAttribute|TriggerValue|TargetAttribute|isLeafTrigger

The actual names of the header properties in your input file can be different from the names used here (for example, you can use RuleName instead of Key). The properties are delimited (for example, by the comma in a CSV file or the pipe character in a text file).

The header properties map to the precedenceRule attributes as follows:

Input Header Property	Maps to precedenceRule attribute	Description
`Key`	`key`	Name of the precedence rule.
`TriggerAttribute`	`triggerAttributeKey`	Name of the standard or managed attribute trigger.
`TriggerValue`	`triggerAttributeValue`	Standard or managed attribute value for the trigger. Optional, so the value in the input file can be blank.
`TargetAttribute`	`targetAttributeKey`	Name of the standard or managed attribute target.
`isLeafTrigger`	`isLeafTrigger`	For managed attributes, specifies if the trigger attribute is a leaf.

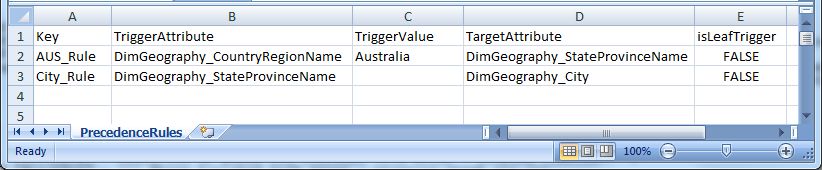

After the header row, the second and following rows in the input file contain configuration data for the precedence rules. The following image shows a CSV configuration file for two precedence rules:

Note that the TriggerValue for the second precedence rule is blank, which means that any value in the DimGeography_StateProvinceName attribute will trigger the rule.
