Administrative components

The administrative components, available from the Control Panel, are primarily used by administrators for higher-level configuration and monitoring of Latitude Studio.

Attribute Settings

Used to configure the attributes and attribute groups within each data source.

Attribute Settings component

Using the Attribute Settings component, power users can:
  • Create and remove attribute groups
  • Add attributes to attribute groups
  • Remove attributes from attribute groups
  • Configure attribute display names
  • Configure the attribute value sorting and selection options for the Guided Navigation component

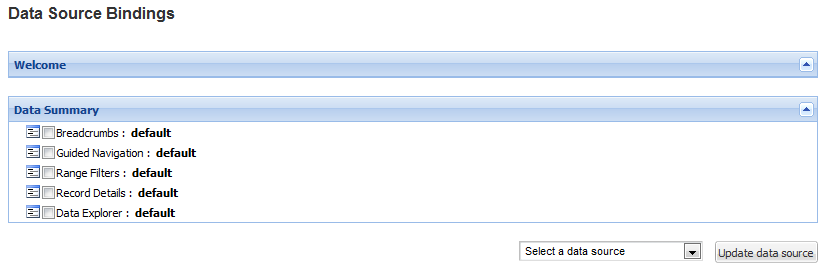

Data Source Bindings

Used to assign a data source to one or more of the components on the Latitude Studio application pages.

Data Source Bindings component

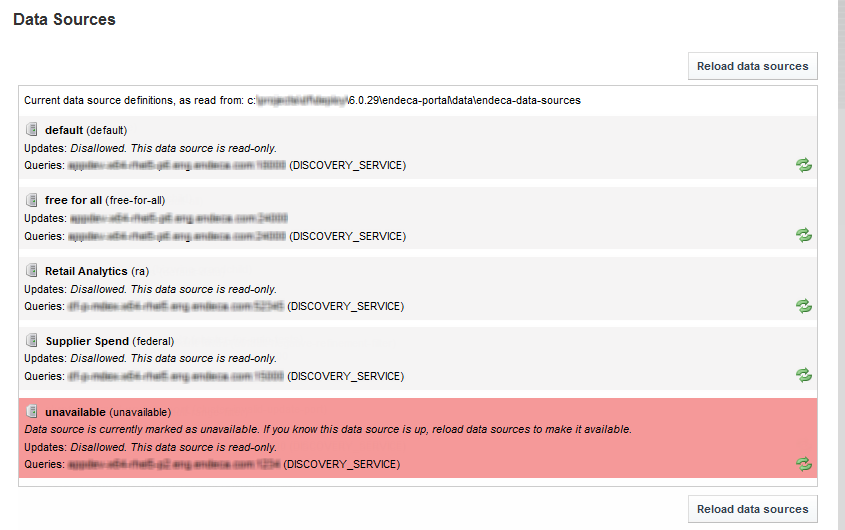

Data Sources

Contains the current list of data sources, including the update information and whether the data source is available. Used to test and reload the configured data sources for Latitude Studio.

Data Sources component

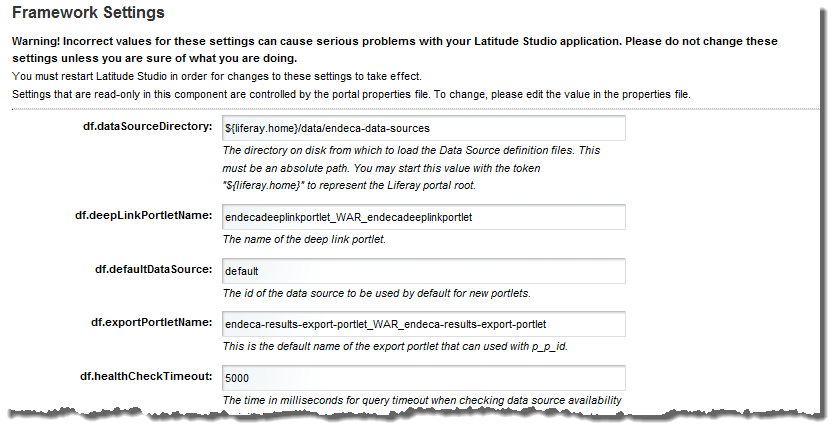

Framework Settings

Provides access to several configuration settings for the Latitude Studio application, including state and security options.

Framework Settings component

Performance Metrics

Provides insight into the number of queries performed by Latitude Studio, and the time taken to complete those queries. Contains data from the LatitudeStudio-metrics.log file. The component can be configured to include information for:
  • MDEX Engine queries
  • Portlet server executions
  • Portlet client executions

At the top of the component is a table summarizing the query information.

Performance Metrics component - table

The table is followed by a set of pie charts to provide a visual summary of the performance information.

Performance Metrics component - chart

About Latitude Studio

Provides version and build information for the Latitude Studio application.

About Latitude Studio
