The Multi Sub-records setting (on the Record Assembler editor Record Join tab) changes the behavior of a left join if a record from the left source has multiple values for the join key. It is used only used with left joins. Enabling this option forces Forge to create multiple keys for such records.
For example, if the join key is Id, a record with the values Id=1, Id=2, Id=3 produces three independent keys, one for each value. The right sources are searched for each of these keys. That is, each right source is queried for a match to the join key Id=1, a match to Id=2, and finally a match to Id=3. All records that match any of the keys are combined with the record from the left source, producing the joined record.
Multi sub-records can be extrapolated to join keys with multiple key components by considering the values corresponding to each key component as a set. Performing a Cartesian product of these sets provides the key combinations. For example, given the key components idA and idB and a record from the left source with the values idA=1, idA=2, idB=11, idB=12, the keys produced by the Cartesian product are [{idA=1, idB=11}, {idA=1, idB=12}, {idA=2, idB=11}, {idA=2, idB=12}]. Again, the right sources are searched for each of these keys.
Multi sub-records

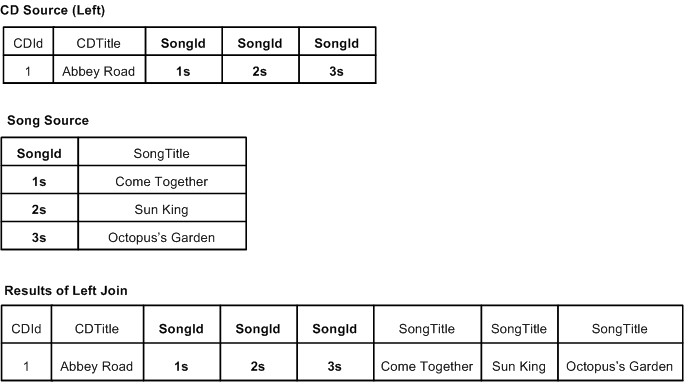

A good example that illustrates the use of multi sub-records is one where you have a left table that consists of a CD and the songs on it, and a right table with song details.
In this example, you would perform the join on the SongId, so that each song in the left table is joined appropriately with its counterpart in the right table. Note that in this example, SongId is the join key for all sources.
