4 Extract Transform Load Programs

This chapter contains the following topics:

• ETL Architecture

• Executing the ETL Execution Plans

• Customizing an ETL Execution Plan

• Creating an ETL Execution Plan

• Modifying an ETL Execution Plan

• Scheduling an ETL Execution Plan

• Customizable User Exits in OPVA ETLs

To load data from the source systems to the data warehouse, OPVA uses Extract Transform and Load (ETL) programs that

• Identify and read desired data from different data source systems,

• Clean and format data uniformly, and

• Write it to the target data warehouse.

In OPVA, Oracle Argus Safety is the source system for which Oracle provides pre-defined ETL.

4.1 ETL Architecture

Figure 5-1 displays the ETL process delivered with OPVA.

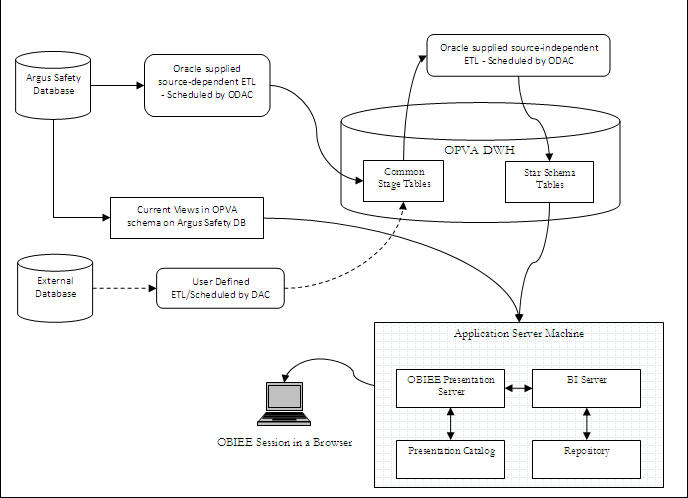

Figure 4-1 The OPVA ETL Architecture

Set up as a recurring job in DAC, the Extraction, Transformation, and Load process (ETL) is designed to periodically capture targeted metrics (dimension and fact data) from multiple Safety databases, transform and organize them for efficient query, and populate the star-schema tables.

While the OPVA data model supports data extraction from multiple sources, OPVA only includes source-dependent extract (SDE) mappings for the Oracle Argus Safety database. However, you can also define SDE mappings from additional external sources that write to the appropriate staging tables. Note that you are responsible for resolving any duplicate records that may be created as a consequence.

The SDE programs map the transactional data to staging tables, in which the data must conform to a standardized format, effectively merging the data from multiple, disparate database sources. This is the architectural feature that accommodates external database sourcing.

The staged data is transformed using the source-independent loads (SILs) to star-schema tables, where such data are organized for efficient query by the Oracle BI Server.

There is one SDE mapping for each target table, which extracts data from the source system and loads it to the staging tables. SDEs have the following features:

• Incremental submission mode: OPVA-supplied ETL uses timestamps and journal tables in the source transactional system to optimize periodic loads.

• Bulk and normal load: Bulk load uses block transfers to expedite loading of large data volume. It is intended for use during initial data warehouse population. Bulk load is faster, if data volume is sufficiently large. However, if load is interrupted (for example, disk space is exhausted, power failure), load cannot be restarted in the middle; you must restart the load.

  Normal load writes one record at a time. It is intended to be used for updates to the data warehouse, once population has been completed. Normal load is faster, if data volume is sufficiently small. You can also restart load if the load is interrupted.

  Setting Bulk or Normal load option should be done at Workflow session in Informatica. Perform the following steps to set the load option:

  1. Navigate to Session in a workflow and edit the task properties.

  2. Navigate to the Mappings subtab and select 'Bulk/Normal' under Target Load type.

  3. Save the workflow.

There is one SIL mapping for each target table. The SIL extracts the normalized data from the staging table and inserts it into the data warehouse star-schema target table. SILs have the following attributes:

• Concerning changes to dimension values over time, OPVA overwrites old values with new ones. This strategy is termed as Slowly Changing Dimension approach 1.

• OPVA's data model includes aggregate tables and a number of indexes, designed to minimize query time.

• By default, bulk load is disabled for all SILs.

• The results of each ETL execution is logged by Informatica. The logs hold information about errors encountered, during execution.

  Informatica provides the following four error tables:

  • PMERR_DATA

  • PMERR_MSG

  • PMERR_SESS

  • PMERR_TRANS

  During ETL execution, records which fail to be inserted in the target table (for example, some records violate a constraint) are placed in the Informatica PowerCenter error tables. You can review which records did not make it into the data warehouse, and decide on appropriate action with respect to them.

4.1.1 Oracle Health Sciences Pharmacovigilance Operational Analytics Hierarchy

Figure 5-2 displays the OPVA hierarchy:

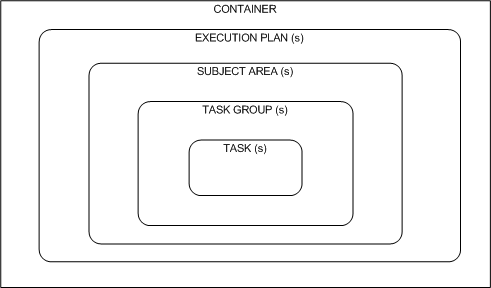

Figure 4-2 OPVA Hierarchy

Description of "Figure 4-2 OPVA Hierarchy"

Following is the OPVA hierarchy:

• CONTAINER (OPVA_Datawarehouse) - A single container that holds all objects used for OPVA.

• EXECUTION PLAN (OPVA Data Warehouse Load) - A data transformation plan defined on subject areas that needs to be transformed at certain frequencies of time. An execution plan is defined based on business requirements for when the data warehouse needs to be loaded. Single Execution Plan to Load Complete Warehouse.

• SUBJECT AREAS - A logical grouping of tables related to a particular subject or application context. It also includes the tasks that are associated with the tables, as well as the tasks required to load the tables. Subject areas are assigned to execution plans, which can be scheduled for full or incremental loads.

• TASK GROUPS - This is a group of tasks that should be run in a given order.

• TASKS - A unit of work for loading one or more tables. A task comprises the following: source and target tables, phase, execution type, truncate properties, and commands for full or incremental loads. A single Informatica workflow.

4.2 Executing the ETL Execution Plans

To load data from the source to their target tables in the data warehouse, run the Execution Plan packaged with OPVA. Perform the following tasks in DAC:

1. Navigate to the Execute view.

2. Select OPVA Warehouse execution plan.

3. Set the parameter values under the Parameter tab.

4. Build the execution plan.

5. Click Run.

   Note:

   The p_last_extract_date parameter provides information about the last time the ETL was performed.

4.3 Customizing an ETL Execution Plan

When you customize an ETL Execution Plan, it is your responsibility to maintain version control over changes to ETL mappings.

Oracle recommends that you carefully track the changes you make to Oracle-supplied ETL so that you can re-apply these changes in subsequent releases.

4.4 Creating an ETL Execution Plan

Though OPVA includes ETL Execution Plans for extracting data from Oracle Argus Safety to OPVA data warehouse, you may want to create your own ETL to extract data from other data sources.

Note:

The value of DATASOURCE_NUM_ID is set to 1 for Oracle Argus Safety. If you want to add your own data sources, set this value to a number greater than 100.

See Also:

• Informatica PowerCenter Online Help

To add one or more tables or columns along with the associated ETL Execution Plans to populate data into these table, perform the following tasks:

1. Create the new source and target table metadata inside Informatica.

2. Work in Informatica PowerCenter and create the ETL components (transformation or workflow) for this program.

3. Create the required workflow for this mapping.

4. Connect to DAC and create a new task for this new mapping.

5. Synchronize the task.

6. Add the task to subject area.

7. Build the Execution Plan (OPVA Data Warehouse Load).

4.5 Modifying an ETL Execution Plan

You may also want to modify an existing ETL to meet your reporting requirements.

See Also:

• Informatica PowerCenter Online Help

To modify an ETL without any changes to the associated tables or columns, perform the following tasks:

1. Identify the Execution Plan that needs to be modified in Informatica repository.

2. Open and Modify the ETLs (transformation and/or workflow).

3. Test and save the changes in repository.

4. Connect to DAC and navigate to the corresponding task.

5. Right-click the task and synchronize it.

6. Navigate to the execution plan and execute ETL to verify the changes.

Note:

The ETL Execution Plans that extract data for the warehouse fact tables assume that the dimensions to which each fact is related are up-to-date at the time the fact ETL Execution Plans are executed. This assumption is the basis for certain fact calculations that would provide erroneous results if the assumption were not true.

As shipped, OPVA ETL workflows ensure this interlock by executing the ETL for related dimensions immediately before running the ETL for a fact. This is standard warehouse management practice, but especially important given the interdependence of the dimensions and the fact. The need to execute dimension ETL immediately before corresponding fact ETL, and the danger of not doing it, is emphasized here because it is possible (though discouraged) to modify these shipped workflows.

To modify one or more tables or columns without any changes to the associated ETL programs (typically to widen a column):

1. Change the table properties as needed.

2. Save the mapping and refresh the workflow.

3. Connect to DAC and navigate to corresponding task and refresh it.

Note:

If the changes to the tables or columns are not compatible with the table that is installed in the data warehouse schema, you will get a warning while making the change. For example, if you are reducing the length of a number column from 15 to 10, the change is not compatible with the data existing in the table.

4.6 Scheduling an ETL Execution Plan

When you submit a Execution Plan for execution in DAC, you can schedule it execute at regular intervals. To schedule a Execution Plan, perform the following tasks:

1. Navigate to the Scheduler tab within the Execute view.

2. Create a new schedule plan.

3. Enter the required details and click Save.

4.7 Customizable User Exits in OPVA ETLs

The opvaUtilCustomisableValues package can be used to customize some of the attribute values used in OPVA per the organizations requirement. It is called during the ETL executions for the Case Version Fact table present in the Retrospective Metrics and also in the source code for the view Pending Cases Fact present in the Current Metrics of OPVA.

It is available in the OPVA_SRC schema created on the Argus Safety DB Instance specified during OPVA Installation.

The package contains two functions:

1. fgetDefaultSeriousTgtDayValues

   This function, by default installation of OPVA, will return a value of 10 days for a SERIOUS case and 30 days if the case is not, per enterprise present. It can be modified as per the needs of the organization accordingly.

   Table 4-1 OPVA Presentation Catalog Attributes Affected - Lock Target Days

   ID	Fact	Column
   M-CVH01	Case Version	Lock Target Days
   M-PC04	Pending Cases	Lock Target Days




   Note:

   Refer to the Facts in OPVA Presentation Catalog for the other attributes that are dependent on the attributes mentioned in the above table.

2. fgetDefaultDueSoonValue

   This function, by default installation of OPVA, will return a value of 2 days for the attributes mentioned below, per enterprise present. It can be modified as per the needs of the organization accordingly.

   Table 4-2 OPVA Presentation Catalog Attributes Affected - Due Soon Days

   ID	Fact	Column
   M-PC06		Lock Due Soon Date
   M-PC02	Pending Cases	Earliest Exp Report Due Soon Date
   M-PC06	Pending Cases	Lock Due Soon Date
   M-PC09	Pending Cases	State Due Soon Date - I
   M-PC12	Pending Cases	State Due Soon Date - II
   M-PC16	Pending Cases	# Unlocked Cases w Expedited Report Due Soon
   M-PC19	Pending Cases	# Unlocked Cases Due Soon
   M-PC22	Pending Cases	# Unlocked Cases w State Due Soon - I
   M-PC25	Pending Cases	# Unlocked Cases w State Due Soon - II




   Note:

   Refer to the Facts in OPVA Presentation Catalog for the other attributes that are dependent on the attributes mentioned in the above table.
