Oracle® Health Sciences Pharmacovigilance Operational Analytics Installation Guide Release 1.0 E23555-01 |
|
|
PDF · Mobi · ePub |
Note:
This installation assumes that assumes the typical hardware configuration with an Oracle database server, an Informatica PowerCenter server, and a Windows 2008 SP1 32 bit server with OBIEE Server & Admin Tool, DAC Server & Client, Informatica PowerCenter Client, and an Oracle Database Client.All installation and configuration actions must be performed as an administrator or root user.
This section describes the detailed OPVA installation process. It also describes the pre and post OPVA installation tasks that you must complete for different environments. This section includes the following topics:
Prior to running the OPVA Installer, the following tasks must be completed:
Configuring the Database server:
The TNS Names entry for the Argus Safety Source Database should be available in the database server where datamart is configured.
The TNS entries for the Datawarehouse Schema should be present in the OBIEE 11g home in the path:
<OracleBI Home>\Oracle_BI1\network\admin\tnsnames.ora
Configuring the Informatica client:
The Informatica client should be configured to connect to the Informatica server. There should be an entry for the Informatica Domain in the domains.infa file.
Setting up the Informatica environmental parameters.
INFA_DOMAINS_FILE: Full filename with the path to the domains file present in the Informatica Client Home.
Path: Add the first entry in the path as the path to the PowerCenter Client Bin and then for the commandlineUtilities bin folder as shown in the following example: D:\Informatica\9.0.1\clients\PowerCenterClient\client\bin;;D:\Informatica\9.0.1\clients\PowerCenterClient\CommandLineUtilities\PC\server\bin;…
Configuring the oracle client:
The TNS names entry for both datamart and the Argus Safety Source system should be configured here.
Setting up the DAC client:
The DAC client should be configured to connect to the DAC server.
Setting up the Oracle client home in the PATH variable.
Setting up the SYSTEM user:
The SYSTEM user to be given grants to create view over the V_$SESSION view in order to run the installer.
Connect as “sys” on both the Argus Safety DB instance and the Datamart DB instance and execute this script:
grant select on v_$session to system with grant option;
Note:
This grant can be revoked at a later time from the user system, once the installation is complete.Setting up the tablespaces:
The installer creates new schemas in the datamart and prompts for the tablespaces to be used. It is recommended to create one default tablespace and a temporary tablespace to be used for the new schemas.
The basic OPVA components are installed using the Oracle Universal Installer. The installer gathers all the information about the database connectivity, datamart, Informatica repository by presenting a sequence of prompt screens and then installs the components accordingly. This installer needs to be executed in the OPVA server where Oracle client and Informatica client are installed.
Note:
Make sure that PERL is present in the system path before running the installer.Launch the Universal Installer
Extract the contents of the media pack into a temporary directory (For example, C:\opva_temp).
Navigate to the \install directory under the extracted temporary folder.
Double-click the setup.exe file to launch the Oracle Universal Installer with the Welcome screen.
Complete Running the OPVA Installer
The installer will take you through a series of prompts. Attend to the Installer's prompts. The following sections describe each Installer screen, and the required action.
OPVA Home Path
The OPVA Home path is the location where all the staged files from the Installer will get copied to the local machine. This is also the location from where Installer would execute the database and Informatica scripts.
Example Name: OPVAHome1
Path: C:\OPVA
Click Next
Argus Safety Database Details
This screen collects all information about the source Argus Safety database. Supply the values for Argus Safety database connect string, Argus Safety schema, password, Argus Safety database's system user password, VPD schema name, OPVA source schema and password.
Note:
OPVA Source schema is the new schema which would get created to store the views for all Argus Source tables that are needed for the ETL and reporting process.Example:
AS Database Connect String: argus_src
AS Schema: argus_app
AS Password: <argus app user's password>
AS System Password: <system user's password>
VPD Schema: vpd_admin
OPVA Source Schema: opva_source
OPVA Source Password: <opva_source password>
Click Next
OPVA Datawarehouse Details
This screen collects all the information regarding the OPVA data warehouse details. Details of the data warehouse connect string, data warehouse system user password, the dw schema, password, rpd schema and rpd schema password, and the dw and temp table spaces.
Note:
DW schema is the new schema that would be created by the installer to store the ETL data. OPVA RPD schema is the schema which would contain the synonyms of all the datamart tables and used by OBIEE reports.Tablespaces that are going to be specified here should have got created during the pre-installation steps.
Example:
DW Database Connect String: opva_mart
DW System password: <system user's password of data warehouse database>
OPVA DW Schema: OPVA
OPVA DW Password: <password for OPVA schema>
OPVA RPD Schema: OPVA_RPD
OPVA Rpd Password: <password for RPD schema>
DW Default table space: DW_DFLT_TS
DW Temporary tablespace: DW_TEMP_TS
Click Next
Informatica PowerCenter Details
This screen collects all information to connect to the Informatica server.
Example:
PowerCenter Repository: OPVA_ PowerCenter_Reposiroty
PowerCenter Domain: Domain_opva
PowerCenter Admin user id: Administrator
PowerCenter Admin password: <administrator password>
OPVA Import folder: OPVA
Click Next
Informatica PowerCenter Client Home Details
The Informatica PowerCenter client home path is required for the installer to run successfully.
Example:
D:\Informatica\9.0.1\clients\PowerCenterClient\client
Click Next
Summary Screen
Verify setting => details provided in the summary screen and click Install.
The installer will stage the required components into the OPVA home and would create the datamart schemas, rpd schemas.
At the completion of the install, install log could be found at:
<opva home>\install\opva_install.log and pvadriverscript<timestamp>.log
Note:
This section assumes that the DAC client is present in the same machine where the OPVA installer is run. If not, copy the <opva_home>\DAC\opva.zip file into the machine where the DAC client is installed.Execute the following steps that must be implemented after logging into the machine where DAC client is present and after unzipping the contents of the <opva_home>\DAC\opva.zip file to an appropriate folder:
Create a new DAC repository, or connect to an existing DAC repository, as Administrator.
Import the OPVA Warehouse Application metadata.
Start the Data Warehouse Administration Console (DAC) client.
From the Tools menu select DAC Repository Management, and then select Import.
Click Change import/export folder to navigate to <DRIVE>:\OPVA_HOME\DAC folder that holds the DAC Repository for OPVA ETL.
Click OK to display the Import dialog box.
Select the following categories of metadata you want to import: Logical, Overwrite log file, and User Data.
Select OPVA application in the ApplicationList.
Click OK.
Click OK in the secondary window that is displayed after the import.
You can inspect the import log in ${DAC_ INSTALL_DIR }\log\import.log to verify if import is successful.
Configure Informatica Repository Service in DAC.
Navigate to the Setup view, then select the Informatica Servers tab.
Click New to display the Edit tab below or select an existing Informatica server from the list.
If you are configuring a new installation, the Informatica Servers tab will have some default values there for information. If you are upgrading an existing installation, the Informatica Servers tab might contain existing Informatica servers.
Enter values in the following fields:
Name — Enter the Logical name for the Informatica server (for example, INFO_REP_SERVER).
Type — Select Repository
.
Server Hostname — Enter the host machine name where Informatica Server is installed.
Server Port — Enter the port number Informatica Server or Informatica Repository Server use to listen to requests.
Login — Enter the Informatica user login.
Password — Enter the Informatica Repository password.
Repository Name —Enter the Informatica Repository Name.
Test the connection to verify the settings.
Click Save to save the details.
Configure Informatica Integration Service in DAC.
Note:
Make sure that you use the same Login and Password that you have used in setting up Informatica.Click New to display the Edit tab below or select an existing Informatica server from the list.
If you are configuring a new installation, the Informatica Servers tab will have some default values there for information. If you are upgrading an existing installation, the Informatica Servers tab might contain existing Informatica servers.
Enter/edit values in the following fields:
Name — Enter the Logical name for the Informatica server (for example, INFO_SERVER).
Type — Select Informatica.
Domain — Enter the Informatica domain name.
Service — Enter the Informatica Service Name.
Login — Enter the Informatica Repository user login.
Password — Enter the Informatica Repository password.
Repository Name — Enter the Informatica Repository Name.
Test the connection to verify the settings.
Click Save to save the details.
In this step, you configure source databases (Argus Safety) and the target database (the OPVA warehouse). For each database with which DAC will interact for OPVA, perform the following steps:
Navigate to the Setup view, then select the Physical Data Sources tab.
Select the opva_dwh entry to display the Edit tab below.
Enter values in the following fields:
Name — Keep the Logical name as opva_dwh for the database connection.
Type — Select Source
when you create the database connection for a transactional (OLTP) database. Select Warehouse
when you create the database connection for a data warehouse (OLAP) database.
Connection Type — Select a connection type for the database connection.
Instance or TNS Name — Enter the Data Mart database instance name.
Table Owner — Enter the Data Mart schema name.
Table Owner Password — Enter the Data Mart schema password.
DB Host — Enter the Data Mart host name.
Port — Enter the Data Mart host port.
Data Sure Number – Enter the number 0.
Test the connection to verify the settings.
Click Save to save the details.
Repeat the same steps after selecting the opva_src database connection.
Enter values for the following fields:
Name — Keep the Logical name as opva_src for the database connection.
Type — Select Source as the Type.
Connection Type — Select a connection type for the database connection.
Instance or TNS Name — Enter the - Enter the Argus Safety database instance name.
Table Owner — Enter the Data Source schema name given when installing the OPVA schema in the Argus Safety DB Instance.
Table Owner Password — Enter the OPVA schema password.
DB Host — Enter the Argus Safety Database host name.
Port — Enter the Argus Safety Database host port.
Data Source Number – Enter the number 1.
Perform the following steps in the DAC to run the OPVA - DATAWAREHOUSE Execution Plan.
Navigate to the Execute view, then select the Execution Plans tab.
Select OPVA - Data Warehouse Load from the list.
Display the Parameters tab, and click Generate.
Enter 1
as value for number of copies of parameters, and click Generate.
On the Execution Plans tab, click Build.
On the Execution Plans tab, click Run Now to execute the ETLs.
Following is the list of DAC configurable parameters:
Table 2-1 DAC Configurable Parameters
Parameter | Description |
---|---|
$$p_last_extract_date |
This is last refresh time of the source tables minus prune days. |
$$p_config_days |
Number of days offset to the Current Execution Plan's actual start time adjusted to source database timezone minus prune days. |
$$p_datasource_num_id |
The ID associated with every source system. The default ID is 1 for Argus Safety. |
$$p_enterprise_id |
The ID associated for every Enterprise. The default value is 0. Not in use in any of the ETLs at this time. |
$$p_rekey_fact |
The default value is 0 and set it to 1, if match and merge changes requires a rerun of the Fact rekeying process. |
$$p_etl_proc_id |
The process ID for the execution plan run. |
Note:
If the version of Argus Safety Instance used with OPVA is version 6.0.2, then execute the following steps: 1. Open the PowerCenter Workflow Manager and connect to the repository where the OPVA Informatica folder is imported. 2. Navigate to the Connections -> Relational menu to open the Relational Connection Browser. 3. Click on opva_src and click on 'Edit'. 4. Remove the contents (call opvaUtilSecPkg.psetcontext();)in the Attribute - Connection Environment SQL. 5. Click OK to save the changes.Ensure OBIEE 11g (11.1.1.1.5.0) is installed and the Administrator Console and the Enterprise Manager (Fusion Middleware Control) is running by checking the following URLs:
http://<machinename>.<port>/em
Note:
Port 7001 is the default Weblogic port. It may change based upon the system configuration. Please check with your Oracle Weblogic administrator for the correct port number if the above port does not work as expected.Log in to the Administrator Console (http://<machinename>.<port> /console
) and navigate to Environment -> Servers. You can see the status of BI Server like below:
Now log in to EM URL http://<machinename>.<port>/em
using the same username/password used for the Admin Console URL above.
Create an encrypted key entry in the EM for the OPVA RPD
Expand the tree node Weblogic Domain and click on the bifoundation_domain (the domain created for OBIEE) and invoke the menu Weblogic Domain -> Security -> Credentials to give the screen as shown here:
Click on Create Key and enter details as given here for the OPVA rpd file:
Select Map: oracle.bi.enterprise
Key: repository.opva
Type: password
User Name: Administrator
Password: password of choice
Click OK to create the security key

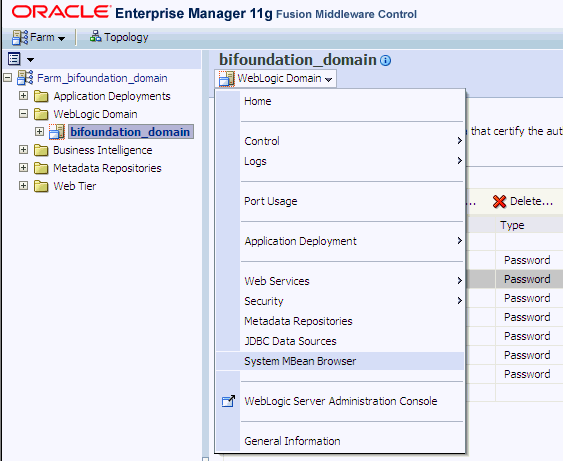

Invoke the System MBean Browser as shown here:

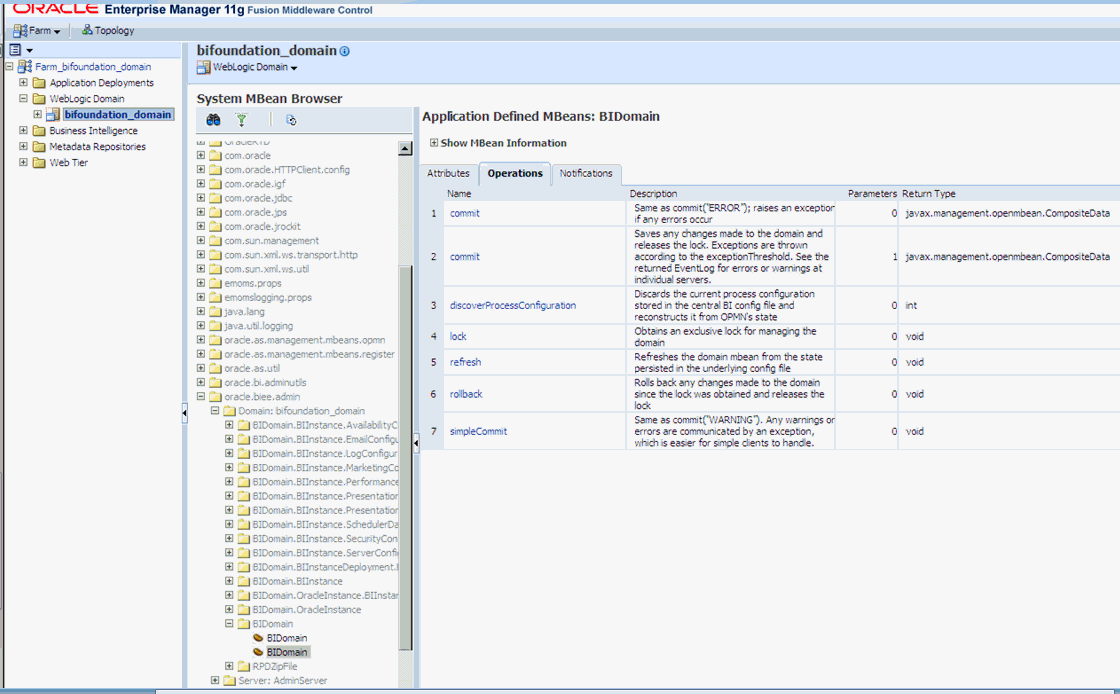

Navigate to the MBean Application Defined MBeans -> oracle.biee.admin -> Domain: bifoundation_domain -> BIDomain -> BIDomain as shown below
Navigate to the Operations Tab and click on lock, and then click on the Invoke button to lock the domain.

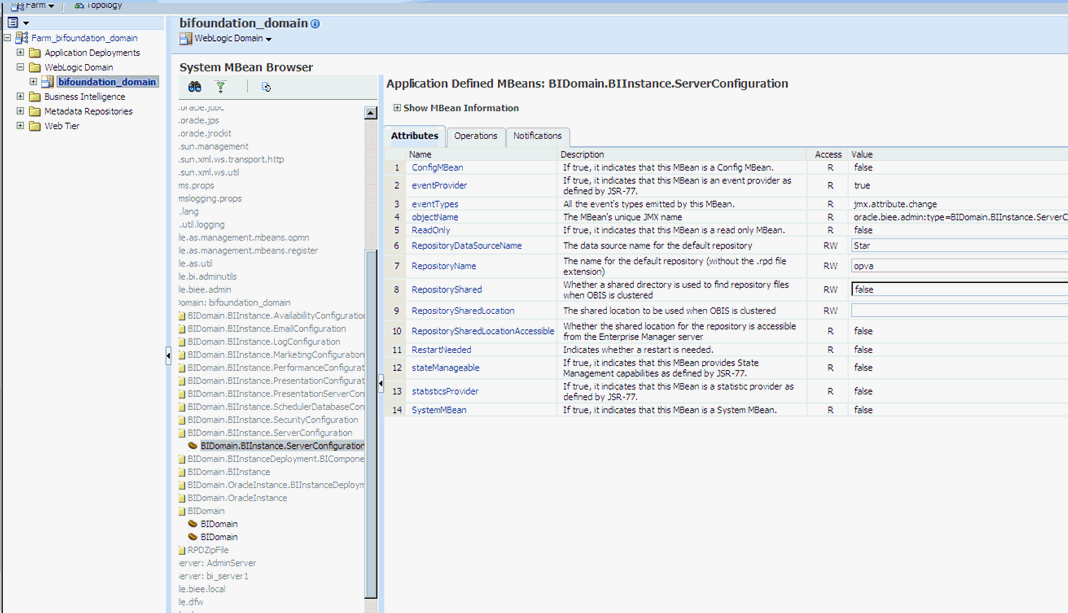

In the same window navigate to the Domain: bifoundation_domain -> BIDomain.BIInstance.ServerConfiguration - BIDomain.BIInstance.ServerConfiguration as shown below and in the Attributes tab change the attribute RepositoryName as "opva" as shown below and click on Apply.
Next Navigate to Domain: bifoundation_domain -> BIDomain.BIInstance.PresentationServerConfiguration -> BIDomain.BIInstance.PresentationServerConfiguration and in the Attributes tab change the attribute WebCatalogSharedLocation as $ORACLE_INSTANCE/bifoundation/OracleBIPresentationServicesComponent/$COMPONENT_NAME/catalog/OPVA and click on Apply.
Navigate back to the MBean Application Defined MBeans -> oracle.biee.admin -> Domain: bifoundation_domain -> BIDomain -> BIDomain and in the Operations tab invoke the commit operation pass the parameter as ERROR.

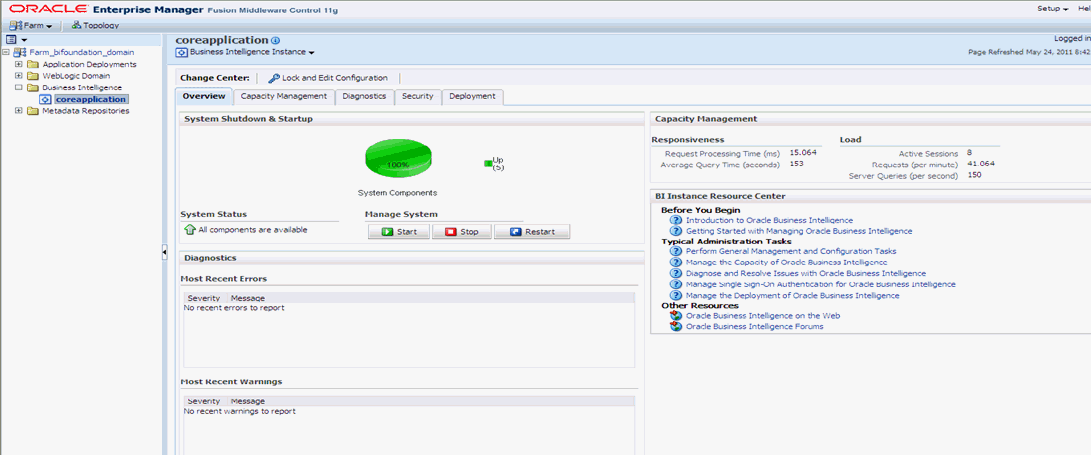

Navigate through the tree control (Business Intelligence -> coreapplication) to invoke the coreapplication screen for OBIEE and click on the Deployment tab.
Click on Lock and Edit Configuration and click on the Repository sub tab to invoke the screen as shown below. Add the information as given here:
Repository file: Upload the OPVA.rpd from <OPVA_Home>\report\opva.rpd of OPVA.
Repository Password: opva123
Note:
If the OBIEE Server is not the same machine as the install machine, then copy the catalog file from <opva_home>\report\catalog\opva.zip into the machine where OBIEE server is installed.Confirm the catalog location as $ORACLE_INSTANCE/bifoundation/OracleBIPresentationServicesComponent/$COMPONENT_NAME/catalog/opva
Copy the Catalog from the opva installed directory to the location mentioned above in point c ex: installed location: d:\opva\report\catalog\opva.zip to the location in WLS: <MIDDLEWARE_HOME>\instances\instance1\bifoundation\OracleBIPresentationServicesComponent\coreapplication_obips1\catalog and extract the zip file to the same location
Click on Apply and then Activate Changes
Restart the OBIEE Services
Open the OPVA RPD in the Administration Tool in online mode and change the connection pool settings for both OPVA_CP and OPVA_CP_InitBlocks to point to the DWH RPD Schema created during installation:
Repository Password: opva123
User: weblogic or BISystemUser
Password: Password for the user mentioned above
Note:
If the version of the Argus Safety instance configured for OPVA application is 6.0.2, then navigate to the Connection Scripts tab in the Connection Pool settings of 'OPVA_CP' and remove the PLSQL call 'call opvaUtilSecPkg.pSetContext();' and save the changes.Note:
If the OBIEE Server is not the same machine where the installer is run, then copy the zip file <opva_home>\help\opva_help.zip into the machine where OBIEE server is installed.Navigate to the following path in your Weblogic Server:
<MIDDLEWARE_HOME>\fmw\instances\instance1\bifoundation\OracleBIPresentationServicesComponent\coreapplication_obips1\analyticsRes\
Extract the contents of the help.zip file into the path listed above.
Log in to Console (Log in to the Weblogic Server).
Navigate to Deployments.
Click on 'Lock & Edit' in the left pane to enable the 'Install' button.
Click on Install and navigate to '<MIDDLEWARE_HOME>\instances\instance1\bifoundation\OracleBIPresentationServicesComponent\coreapplication_obips1'.
Select 'analyticsRes' and click 'Next'.

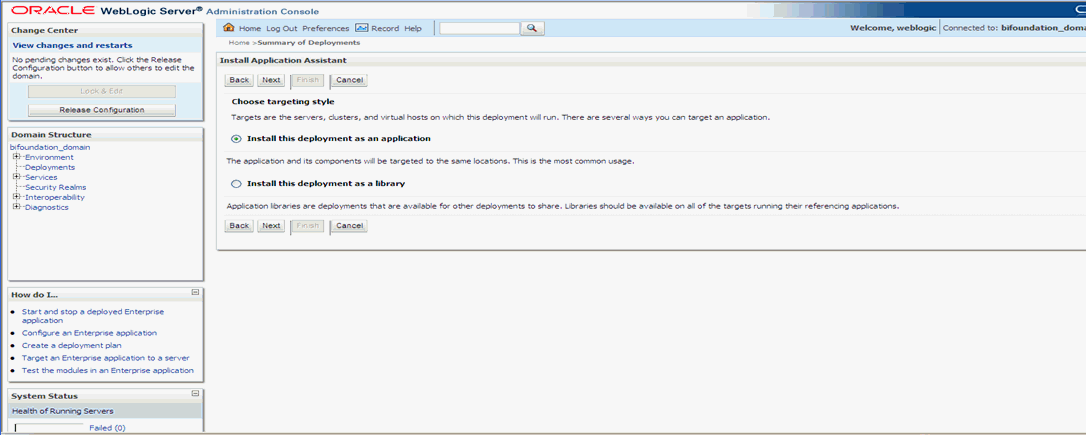

Select 'Install this deployment as an application' (default) and click 'Next'.
Select 'Deployment targets', choose 'bi_server1', and click 'Next'.
Under 'Source accessibility:'
Select 'I will make the deployment accessible from the following location'
'<MIDDLEWARE_HOME>\instances\instance1\bifoundation\OracleBIPresentationServicesComponent\coreapplication_obips1\analyticsRes'
Click Finish.
The 'analyticsRes' should appear under Deployments.
Click on Active Changes, select 'analyticsRes', and click the Start button on the screen.
Start Application Assistant, and click Yes.
The 'analyticsRes State' should be active after starting the above. Logout from the Console.
Log in to EM (Enterprise Manager) and restart the BI Components.
Once the BI components have been restarted successfully, log in to Analytics, and check the Brand Name and help links provided in the Dashboards.
Note:
This section is only applicable if OAM is used.This section describes how to configure SSO in the Oracle Access Manager (OAM).
The following are the pre-requisites for this configuration:
There should be an OAM installation (Identity server, Access server, WebPass, Policy Manager).
User profiles should exist in the LDAP server as well as in Argus Safety with the same credentials.
Oracle Web Tier 11.1.1.3 should be installed on the same server where the OBIEE server is installed and configured with the Weblogic Server hosting OBIEE.
Perform the following steps to install SSO on the OAM:
Navigate to the Access System console of OAM and click the Access System Configuration tab. Click Host Identifiers on the left panel and provide the Fully Qualified Domain Name (FQDN), IP Address and both entries along with port numbers of the OPVA Web Tier machine. Click Save.
For example:
hsdevwv0044.us.oracle.com
hsdevwv0044.us.oracle.com:7777
10.149.56.48
10.149.56.48:7777
In the Access System console of OAM, click Access System Configuration.
Click Add New Access Gate link on the left panel.

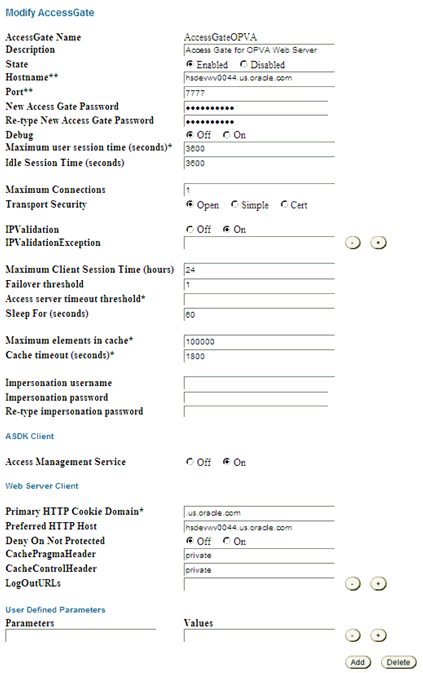

Provide details like access gate name, port, and password. Also, enter the following details:
Hostname: Provide the FQDN of the OPVA Web Tier Server where you will install the webgate
Access Management Service: Set this radio button as 'On'
Primary HTTP Cookie Domain: Provide FQDN of the machine where you will install the webgate, prefixed by a period. For example, .idc.oracle.com and please ensure the '.' before the FQDN
Preferred HTTP Host: Provide the same value as the Hostname
CachePragmaHeader: Enter value as 'private'
CacheControlHeader: Enter value as 'private'
Once you have entered all the above details, click Save to add the webgate.
You will see the message "Please associate an Access Server or Access Server Cluster with this AccessGate."
Click List Access Servers.
In the following screen, click Add. Select an access server from the drop-down and click Add to associate the webgate with the access server.
Note:
The access servers in this list will appear based on the access servers installed in the OAM image or installation that you have. Do not attempt adding Access Servers from OAM Console.In the Access System Configuration Tab, click on Authentication Management and ensure that there is at least one schema for LDAP Authentication. If no schema exists, follow these steps:
Click on Add and enter the information as show here:

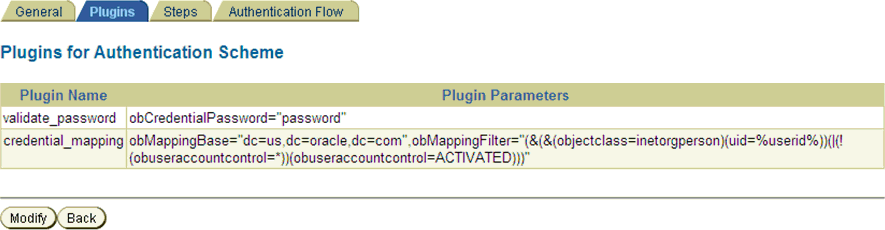

Click on Save, click the Plugins Tab, and add the following:
Plugin Name: validate_password
Plugin Parameters: obCredentialPassword="password"
Plugin Name: credential_mapping
Plugin Parameters: obMappingBase="dc=us,dc=oracle,dc=com",obMappingFilter="(&(&(objectclass=inetorgperson)(uid=%userid%))(|(!(obuseraccountcontrol=*))(obuseraccountcontrol=ACTIVATED)))"
Click on Save.
Choose the Steps Tab next and add a new step 'Default_Step'. Add the 'Available Plugins' to the Active Plugins in the order:
credential_mapping
validate_password
Note:
The order of Plugins added is important.Click on Save.
Choose the Authentication Flow Tab and configure as shown below:
Click on Policy Manager to setup the rules for protecting the OPVA Application URL as follows:
Click on Create Policy Domain.
Enter the details as given below:
Click on Save, and then choose 'Modify' set enabled to Yes.
Navigate to the 'Resources' tab and click on Add and enter details as shown here and click on Save:
Navigate to Authorization Rules and click on Add and enter details as given here and save the details:
Navigate to the Actions sub tab and click on add. Enter the details as shown here and click on Save:
After saving these details click on the Allow Access sub tab and click Add, enter the following details and click on Save:

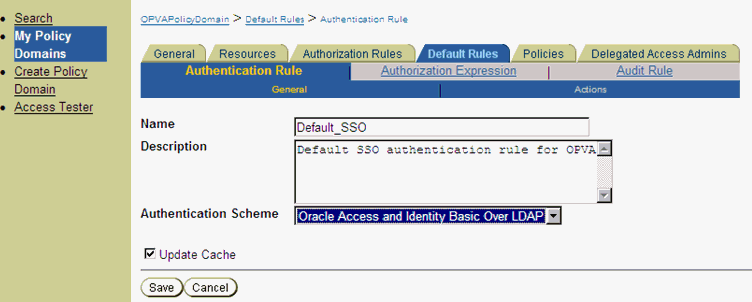

Now click on Default Rules tab and add a new Authentication Rule by clicking on Add and entering information as given here in the General sub tab:
Save the details in the General sub tab, and choose the Actions sub-tab.
Click on Add and enter the details as shown here and save the details:

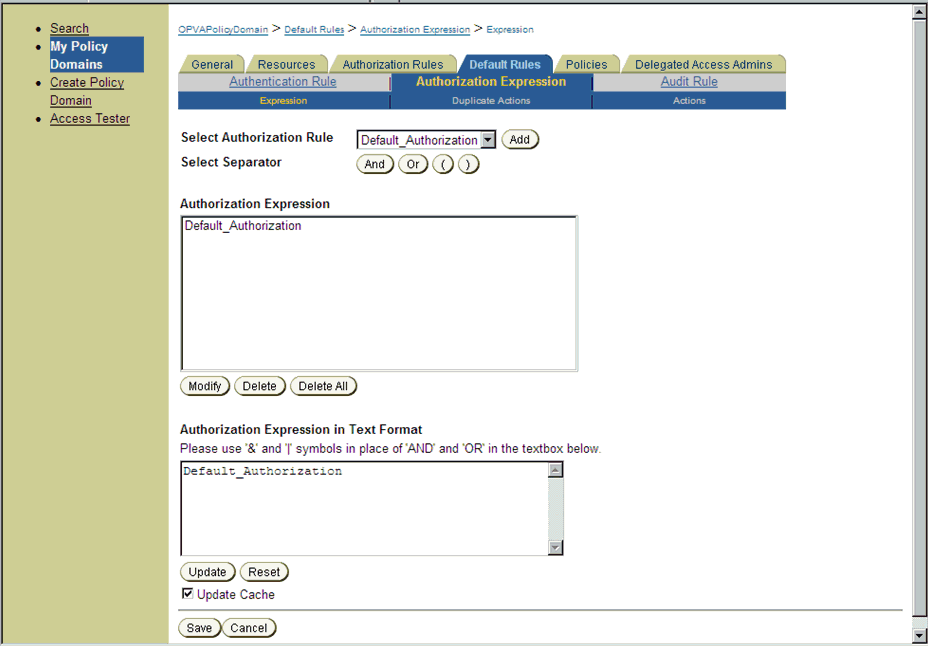

Choose Authorization Expression tab and click on Add to add an entry per the details given here in the Expression sub tab:
Click on Save.
Select the Actions sub tab and click on Add, enter the details as given here:
Click on Save.

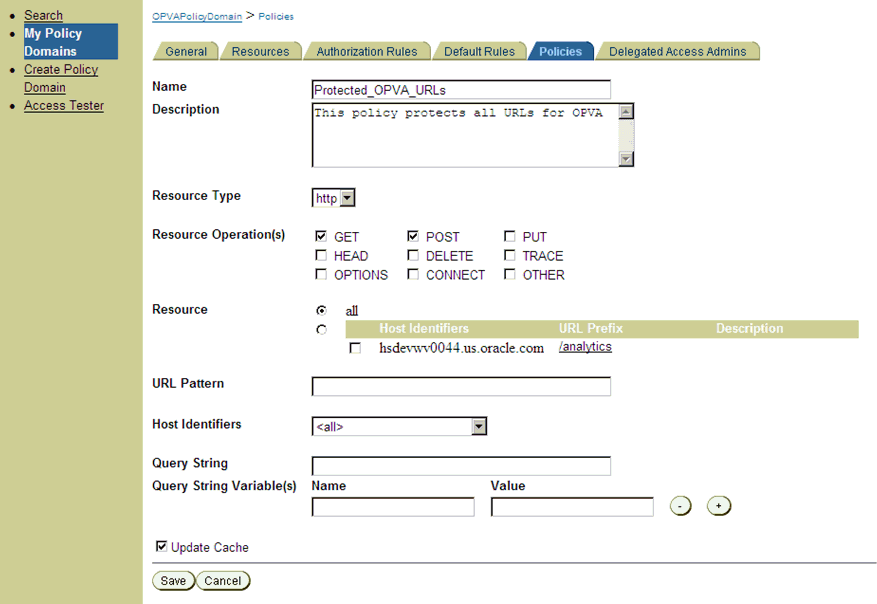

Click on the Policies tab and choose the Add button, enter details as given here:
Navigate to the OPVA Web Tier Machine, which is the machine where you have installed OPVA OBIEE Server and run the installer for Webgate (OFM Webgate 11g for OAM 10.1.4.3.0).
Once the installer launches, click Next on the initial two information screens
Choose the install directory for the webgate and click Next for the information on the installation.
Click Next to begin the installation of webgate, once completed it starts the configuration, where in enter the details as given here below:
Click Next to continue the configuration and enter details as shown here:
WebGate ID: AccessGateOPVA
Password: Password as given during creation of the access gate in OAM
Access Server ID: Access_svr_idm_vm
Hostname: Server name where OAM Access Server is installed
Port: 8000 (Port number on the which the Access Server is listening to)
Click 'Next' and in the next screen choose the radio button 'Yes' and select 'Next' to continue configuring the httpd.conf file
Select the location for the httpd.conf file, typically it will be at OracleWebTierHome/instances/instance2/config/OHS/ohs1/httpd.conf and then click OK to continue with configuration
Restart the Web Server to complete the installation
Verify the installation of the webgate by checking the URL:
http://<machinename>.<port> /access/oblix/apps/webgate/bin/webgate.cgi?progid=1
Configure the HTTP Server as a reverse proxy for the WebLogic Server
Modify the file mod_wl_ohs.conf present in the location to reflect as shown below: Location: OracleWebTierHome\instances\instance2\config\OHS\ohs1
Note:
This is a template to configure mod_weblogic.LoadModule weblogic_module "${ORACLE_HOME}/ohs/modules/mod_wl_ohs.so"
# This empty block is needed to save mod_wl related configuration from EM to this file when changes are made at the Base Virtual Host Level
<IfModule weblogic_module>
# WebLogicHost <WEBLOGIC_HOST>
# WebLogicPort <WEBLOGIC_PORT>
# Debug ON
# WLLogFile /tmp/weblogic.log
# MatchExpression *.jsp
WebLogicHost hsdevwv0044.us.oracle.com
WLTempDir <MIDDLEWARE_HOME>\Oracle_WT1\error_Logs
WLLogFile <MIDDLEWARE_HOME>\Oracle_WT1\error_Logs\ohs1_error.log
Debug ON
DynamicServerList Off
WebLogicPort 7001
<Location /analytics>
SetHandler weblogic-handler
WebLogicHost hsdevwv0044.us.oracle.com
WebLogicPort 9704
</Location>
</IfModule>
# <Location /weblogic>
# SetHandler weblogic-handler
# PathTrim /weblogic
# ErrorPage http:/WEBLOGIC_HOME:WEBLOGIC_PORT/
# </Location>
Restart the Web Tier Instance in WebLogic EM
Configure a new Authenticator for Oracle WebLogic Server
Log in to the WebLogic Server Administrator Console and navigate the Security Realms-> myrealm and click on the Providers tab
Click on Lock & Edit in the right-hand corner of the web page, highlighted as Change Center
Click New to create a new Authentication Provider and add the details as given here:
Name: OPVAOIDAuthenticator, or a name of your choosing
Type: OracleInternetDirectoryAuthenticator
After saving the details, click on the new Authenticator created and enter details as given here:
In the Common sub tab change the Control Flag as SUFFICIENT
Click on Save
Click the Provider Specific tab and enter the following required settings using values for your environment:
Host: Your LDAP host.
For example: hsdevlv0016.us.oracle.com
Port: Your LDAP host listening port.
For example: 389
Principal: LDAP administrative user.
For example: cn=orcladmin,cn=Users,dc=us,dc=oracle,dc=com
Credential: LDAP administrative user password
User Base DN: Same searchbase as in Oracle Access Manager.
For example: cn=Users,dc=us,dc=oracle,dc=com
All Users Filter:
For example: (&(uid=*) (objectclass=person))
User Name Attribute: Set as the default attribute for username in the directory server.
For example: uid
Group Base DN: The group searchbase
For example: cn=Groups,dc=us,dc=oracle,dc=com
Leave the other defaults as is
GUID Attribute: the GUID attribute defined in the OID LDAP Server
For example: uid
Click Save.
Configuring a new Identity asserter for WebLogic Server
In Oracle WebLogic Server Administration Console, select Security Realms from the left pane and click the realm you are configuring. For example, myrealm. Select Providers.
Click New. Complete the fields as follows:
Name: OPVAOAMIdentityAsserter, or a name of your choosing
Type: OAMIdentityAsserter
Click OK
Click on the newly created Asserter and set the Control Flag to REQUIRED
Click Save
Navigate the Provider Specific tab and enter details as given here:
Transport Security: open
Application Domain: OPVAPolicyDOmain, as set in the OAM Policy Manager
Access Gate Password: the password for the access gate
Access Gate Name: AccessGateOPVA, as specified in the OAM Access Console
Primary Access Server: hsdevlv0016.us.oracle.com:8000, OAM server with port
Click on Save
In the Providers tab, perform the following steps to reorder Providers:
Click Reorder
On the Reorder Authentication Providers page, select a provider name and use the arrows beside the list to order the providers as follows:
OPVAOAMIdentityAsserter
OPVAOIDAuthenticator
DefaultAuthenticator
DefaultIdentityAsserter
Click OK to save your changes
Activate Changes: In the Change Center, click Activate Changes
Restart Oracle WebLogic Server
The "BISystemUser" present in the default embedded LDAP should be deleted (via Security Realms in the Administration Console Link of the WebLogic Server) and the same/another user should be added in the newly added OID. This then needs to be added to the BI Application Roles as mentioned here:
Navigate to the Administration Console->Security Realms -> myrealm -> Users and Groups -> Users select the checkbox against BISystemUser (from Provider: Default Authenticator) and click on delete
Navigate to Security Realms -> myrealm -> Roles and Policies -> Realm Roles -> In the tree structure Expand Global Roles node and select the Roles link
In the subsequent screen Click on Admin role link
Click the button Add Conditions and in the next screen select the Predicate List as User and click Next
In the User Argument Name type in BISystemUser and click ADD and then click on the button Finish
In the Role Conditions screen ensure that the set operator is set to 'Or'
Save the configuration
Navigate to the Enterprise Manager of OBIEE or the Fusion Middleware Control page and navigate in the tree structure to the node Business Intelligence -> coreapplication and in the menu Business Intelligence Menu drop down select Security -> Application Roles
In the Roles displayed select BISystem and in the next screen remove the old BISystemUser (from the Default Provider) and add the newly created BISystemUser user in OID
Next add the trusted user's credentials to the oracle.bi.system credential map
From Fusion Middleware Control target navigation pane, expand the farm, then expand WebLogic Domain, and select bifoundation_domain
From the WebLogic Domain menu, select Security, then Credentials
Open the oracle.bi.system credential map, select system.user and click Edit
In the Edit Key dialog, enter BISystemUser (or name you selected) in the User Name field. In the Password field, enter the trusted user's password that is contained in Oracle Internet Directory
Click OK
Restart the Managed Servers
Enabling SSO Authentication in the Weblogic Server for OBIEE:
Log in to Fusion Middleware Control (EM) of the WebLogic Server.
Navigate to the Business Intelligence Overview page.
Navigate to the Security page.
Click Lock and Edit Configuration.
Check Enable SSO this makes the SSO provider list becomes active.
Select the configured SSO provider from the list.
Click Apply, then Activate Changes.
Manually edit each instanceconfig.xml file for every Oracle BI Presentation Services process to configure the login and logout information. Inside the <Authentication> section, add the following:
<SchemaExtensions>
<Schema name="SSO" logonURL="{your SSO logon URL}" logoffURL="{your logoff
URL}/>
</SchemaExtensions>
For e.g.-
<SchemaExtensions>
<Schema name="SSO" logonURL="http://<machinename>.<port> /analytics/saw.dll?bieehome&startPage=1" logoffURL="http://<machinename>.<port> /access/oblix/lang/en-us/logout.html"/>
</SchemaExtensions>
Restart the Oracle Business Intelligence components using Fusion Middleware Control
Note:
The following steps are applicable for creating users and groups if the embedded LDAP is used for maintaining the authentication for OPVA. If not using the embedded LDAP then these groups should be created in the external LDAP provider.Open a new browser window for the WebLogic Administration Console.
Navigate to Security Realms -> myrealm -> Users and Groups tab.

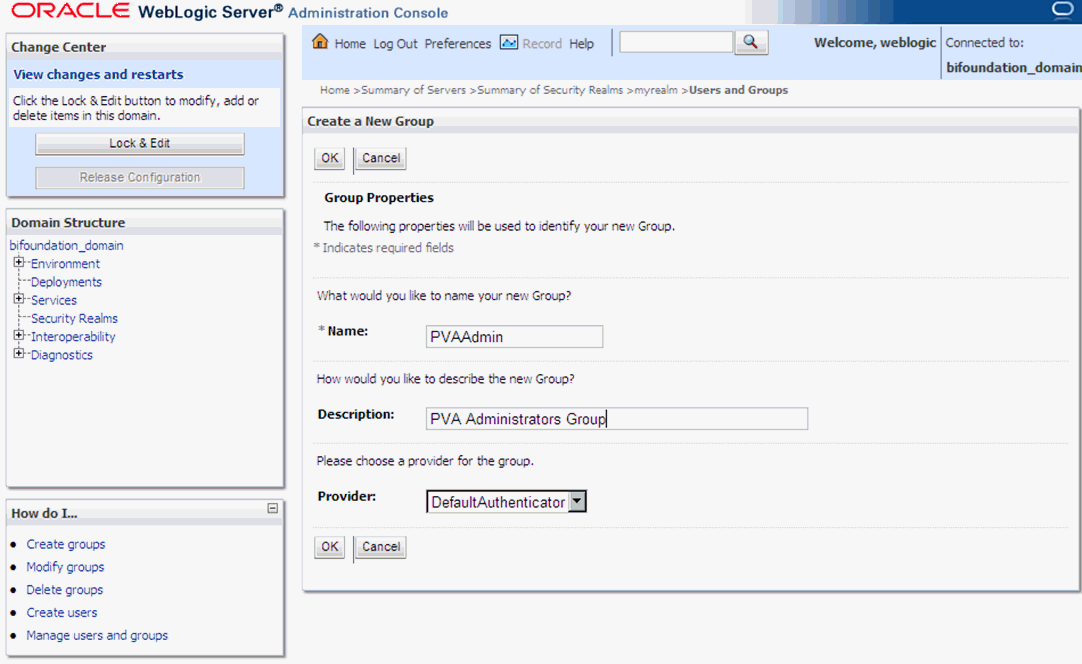

Select the Groups Tab and click on New.
Enter the group name as 'PVAAdmin' and click OK.
Follow the above process to create the groups 'PVASafetyGroup' and 'PVASafetyConsumersGroup'.
Note:
The below steps are applicable for the groups created in either the embedded LDAP or an external LDAP e.g. OID.Start a new browser window for the Enterprise Manager for Fusion Middleware Control and navigate to the Business Intelligence -> coreapplication overview page as shown here:

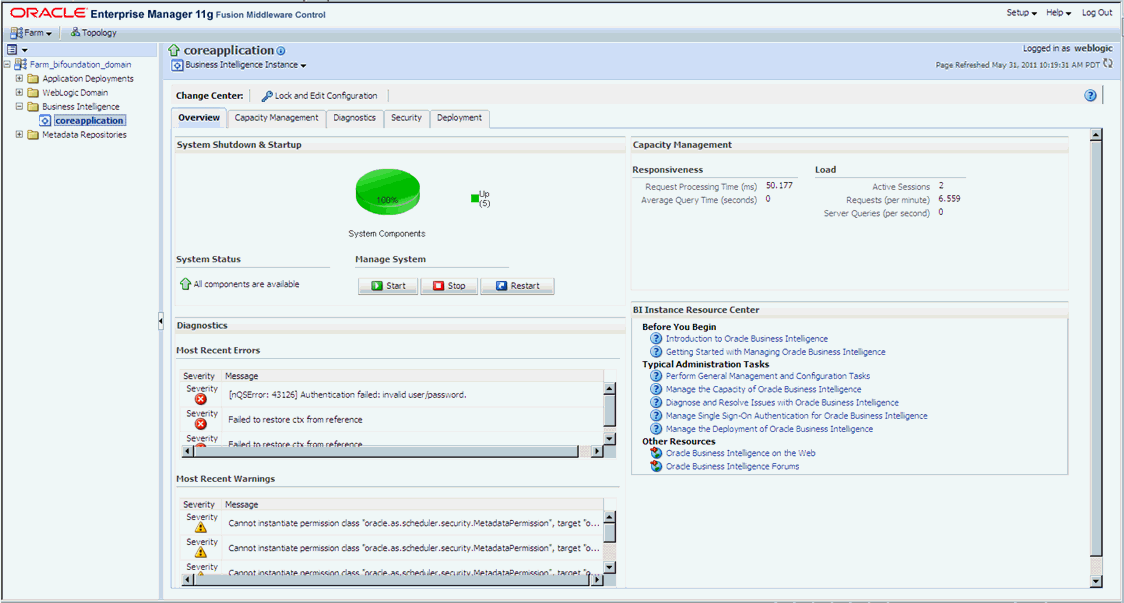

Invoke the Application Roles by choosing from the menu drop down at Business Intelligence Instance -> Security -> Application Roles

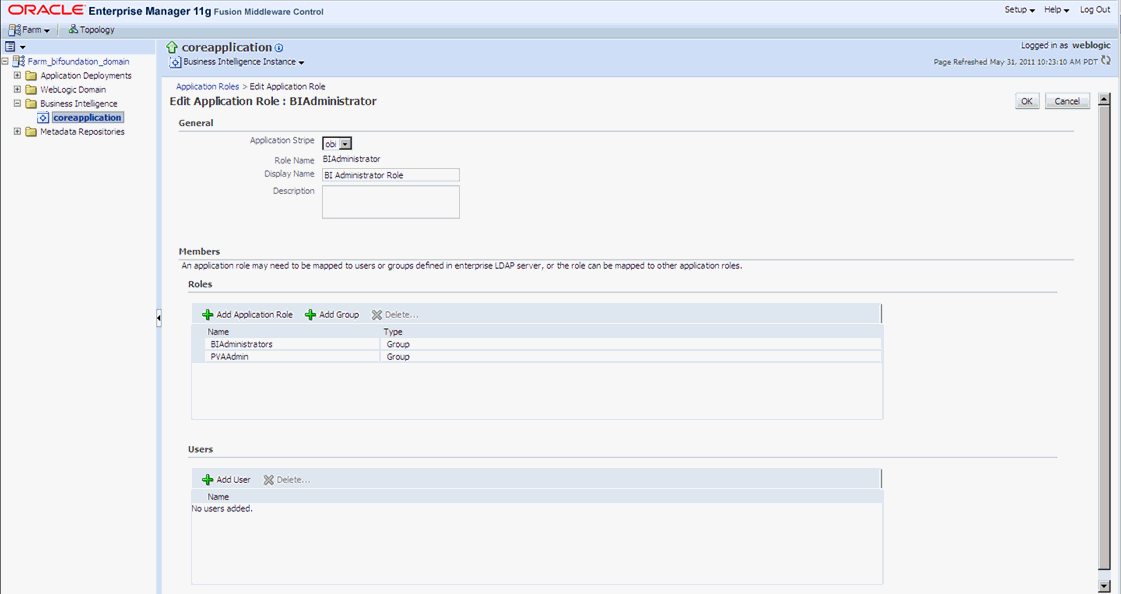

Click on BIAdministrator application role and add the group PVAAdmin.
Click OK.
Repeat the above steps to add the groups created as per the table given here:
Application Role | PVA Groups to be added |
---|---|
BIAdministrator | PVAAdmin |
BIAuthor | PVAAdmin, PVASafetyGroup |
BIConsumer | PVAAdmin, PVASafetyGroup, PVASafetyConsumersGroup |
Note:
Refer to Appendix 2, "OBIEE Default Application Roles" for a list of privileges present as per the BIApplication Role specified above.Note:
The below steps are applicable for creating users and groups if the embedded LDAP is used for maintaining the authentication for OPVA. It is recommended to create at least one user to be added in the PVAAdmin group created above, to be used as a PVA Application administrator.Start a new browser window for the WebLogic Administration Console.
Navigate to Security Realms -> myrealm -> Users and Groups tab.
Select the Users Tab and click on New.
Enter the User Name and Password details.
Click OK to save the User in the embedded LDAP.

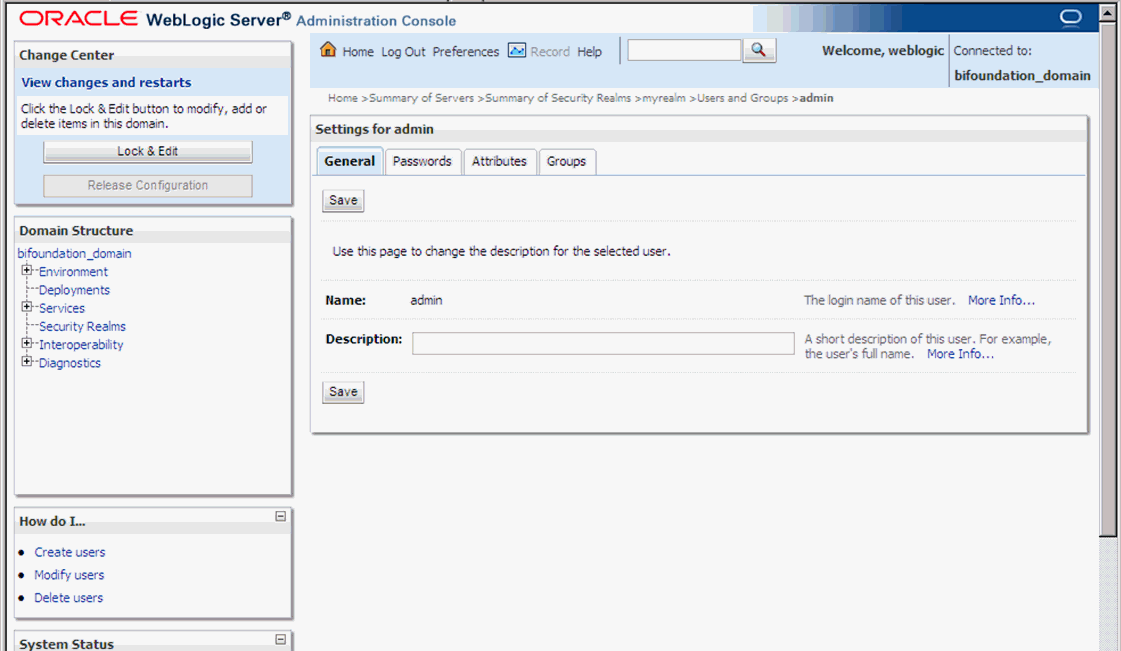

This takes you back to the Users table display. Click on the User that you newly created to display the page as shown here:
Click on Groups tab and select the appropriate PVA Group you want the user to be added to and save the details.
Repeat the above steps to add users to the three groups (as created in the previous step).
Log in to the DAC Client as Administrator.
Click on the menu File -> User Management.
In the popped up window enter the following details.
Name: Login Name for the user being created for DAC.
Password: Password to authenticate the user being created.
Roles: Select one of the these roles:
Administrator
Operator
Developer
The following table lists the permissions available to each specific role.
Table 2-2 Creating Users for DAC
Role | Permissions |
---|---|
Administrator |
Read and write permission on all DAC tabs and dialog boxes. |
Developer |
Read and write permission on the following: - All Design view tabs - All Execute view tabs - Export dialog box - New Source System Container dialog box - Rename Source System Container dialog box - Delete Source System Container dialog box - Purge Run Details - All functionality in the Seed Data menu |
Operator |
Read and write permission on all Execute view tabs |
Click on Save.
Note:
It is recommended to create at least one user to be added with the Administrator Role in DAC to manage the DAC PVA metadata.To enable the default SSL configuration in OBIEE use the following steps:
Open the WLS Administrator console for OBIEE.
Navigate to Environment -> Servers in the tree view displayed on the left side.
Click the Lock & Edit button to change the configuration.

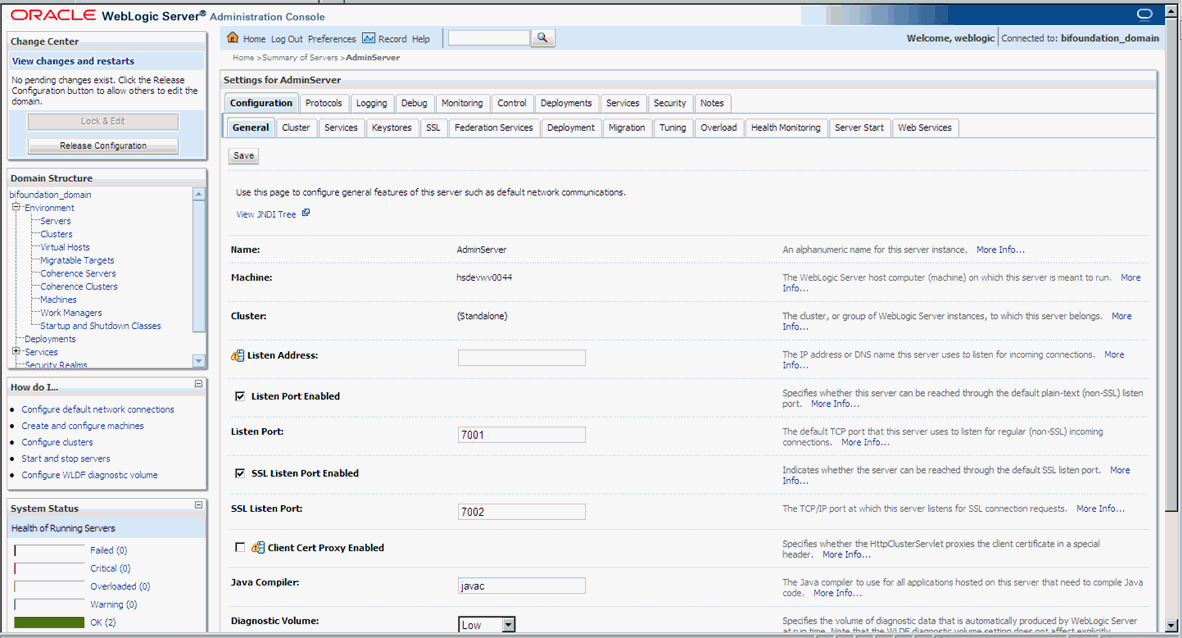

Click the AdminServer(admin) link and in the General Tab, enable the SSL listen port, as displayed below:
Click Save.
In the Servers window, click bi_server1 (or the link for the OBIEE server configured).
Enable the SSL Listen Port for the OBIEE server as well.
Click on Save.
Edit the startWebLogic.cmd file present in the location
<OracleBIHome>\user_projects\domains\bifoundation_domain\ and add the below entry to the file before the “call” statement.
set JAVA_OPTIONS=%JAVA_OPTIONS% -Djavax.net.ssl.trustStore="D:/Oracle/Middleware/wlserver_10.3/server/lib/DemoTrust.jks" -Djavax.net.ssl.trustStorePassword=""
Note:
Please edit the Path names according to your installation directories.Restart all the Managed BI Servers.
Note:
For more detailed information on configuring SSL certificates in OBIEE 11g, please refer to the guide - Oracle® Fusion Middleware Security Guide for Oracle Business Intelligence Enterprise Edition 11g Release 1 (11.1.1) section - SSL Configuration in Oracle Business Intelligence.Component | Privilege | Description | Default Role Granted |
---|---|---|---|
Access | Access to Dashboards | Allows users to view dashboards. | BIConsumer |
Access | Access to Answers | Allows users to access the basic features of the Analysis editor. | BIAuthor |
Access | Access to Delivers | Allows users to create and edit agents. | BIAuthor |
Access | Access to Briefing Books | Allows users to view and download briefing books. | BIConsumer |
Access | Access to Administration | Allows users to access the Administration pages in Presentation Services, | BIAdministrator |
Access | Access to Segments | Allows users to access segments in Oracle's Siebel Marketing. | BIConsumer |
Access | Access to Segment Trees | Allows users to access segment trees in Oracle's Siebel Marketing. | BIAuthor |
Access | Access to List Formats | Allows users to access list formats in Oracle's Siebel Marketing. | BIAuthor |
Access | Access to Metadata Dictionary | Allows users to access the metadata dictionary information for subject areas, folders, columns, and levels. | BIAdministrator |
Access | Access to Oracle BI for Microsoft Office | See Section C.2.3.3.2, "Access to Oracle BI for Microsoft Office Privilege." | BIConsumer |
Access | Access to Conditions | Allows users to create conditions. | BIAuthor |
Access | Access to KPI Builder | Allows users to create KPIs. | BIAuthor |
Access | Access to Scorecard | Allows users access to Oracle BI Scorecard. | BIConsumer |
Actions | Create Navigate Actions | See Section C.2.3.3.1, "Access to Oracle BI Enterprise Edition Actions." | BIAuthor |
Actions | Create Invoke Actions | See Section C.2.3.3.1, "Access to Oracle BI Enterprise Edition Actions." | BIAuthor |
Actions | Save Actions Containing Embedded HTML | See Section C.2.3.3.1, "Access to Oracle BI Enterprise Edition Actions." | BIAdministrator |
Admin: Catalog | Change Permissions | Allows users to modify permissions for catalog objects. | BIAuthor |
Admin: Catalog | Toggle Maintenance Mode | Shows the Toggle Maintenance Mode link on the Presentation Services Administration page, which allows users to turn maintenance mode on and off. In maintenance mode, the catalog is read-only; no one can write to it. | BIAdministrator |
Admin: General | Manage Sessions | Shows the Manage Sessions link on the Presentation Services Administration page, which displays the Manage Sessions page in which users manage sessions. | BIAdministrator |
Admin: General | Manage Dashboards | Allows users to create and edit dashboards, including editing their properties. | BIAdministrator |
Admin: General | See Session IDs | Allows users to see session IDs on the Manage Sessions page. | BIAdministrator |
Admin: General | Issue SQL Directly | Shows the Issue SQL link on the Presentation Services Administration page, which displays the Issue SQL page in which users enter SQL statements. | BIAdministrator |
Admin: General | View System Information | Allows users to view information about the system at the top of the Administration page in Presentation Services. | BIAdministrator |
Admin: General | Performance Monitor | Allows users to monitor performance. | BIAdministrator |
Admin: General | Manage Agent Sessions | Shows the Manage Agent Sessions link on the Presentation Services Administration page, which displays the Manage Agent Sessions page in which users manage agent sessions. | BIAdministrator |
Admin: General | Manage Device Types | Shows the Manage Device Types link on the Presentation Services Administration page, which displays the Manage Device Types page in which users manage device types for agents. | BIAdministrator |
Admin: General | Manage Map Data | Shows the Manage Map Data link on the Presentation Services Administration page, which displays the Manage Map Data page in which users edit layers, background maps, and images for map views. | BIAdministrator |
Admin: General | See Privileged Errors | Allows users to see privileged error messages. Users can see detailed error messages about database connections or other details when lower level components fail. | BIAdministrator |
Admin: General | See SQL Issued in Errors | Allows users to see SQL statements that are returned by the BI Server in error messages. | BIConsumer |
Admin: General | Manage Marketing Jobs | Shows the Manage Marketing Jobs link on the Presentation Services Administration page, which displays the Marketing Job Management page in which users manage marketing jobs. | BIAuthor |
Admin: General | Manage Marketing Defaults | Shows the Manage Marketing Defaults link on the Presentation Services Administration page, which displays the Manage Marketing Defaults page in which users manage defaults for Oracle's Siebel Marketing application. | BIAdministrator |
Admin: Security | Manage Catalog Groups | Shows the Manage Catalog Groups link on the Presentation Services Administration page, which displays the Manage Catalog Groups page in which users edit Catalog groups. | BIAdministrator |
Admin: Security | Manage Privileges | Shows the Manage Privileges link on the Presentation Services Administration page, which displays the Manage Privileges page in which users manage the privileges that are described in this table. | BIAdministrator |
Admin: Security | Set Ownership of Catalog Objects | Allows users to edit the ownership of objects in the catalog on the Catalog page. | BIAdministrator |
Admin: Security | User Population - Can List Users | Allows users to see the list of users for which they can perform tasks such as assigning privileges and permissions. | BIConsumer, BISystem |
Admin: Security | User Population - Can List Groups | Allows users to see the list of groups for which they can perform tasks such as assigning privileges and permissions. | BIConsumer, BISystem |
Briefing Book | Add To or Edit a Briefing Book | Allows users to see the Add to Briefing Book link on dashboard pages and analyses and the Edit link in briefing books. | BIAuthor |
Briefing Book | Download Briefing Book | Allows users to download briefing books. | BIConsumer |
Catalog | Personal Storage | Allows users to have write access to their own My Folders folders and can create content there. If users do not have this privilege, then they can receive email alerts but cannot receive dashboard alerts. | BIConsumer |
Catalog | Reload Metadata | Allows users to click the Reload Server Metadata link from the Refresh menu in the toolbar of the Subject Areas pane. | BIAdministrator |
Catalog | See Hidden Items | Allows users to see hidden items in catalog folders. Users can also select the Show Hidden Items box on the Catalog page. | BIAuthor |
Catalog | Create Folders | Allows users to create folders in the catalog. | BIAuthor |
Catalog | Archive Catalog | Allows users to archive the folders and objects in the catalog. | BIAdministrator |
Catalog | Unarchive Catalog | Allows users to unarchive catalog objects that have been archived previously. | BIAdministrator |
Catalog | Upload Files | Allows users to upload files into an existing catalog. | BIAdministrator |
Conditions | Create Conditions | Allows users to create or edit named conditions. | BIAuthor |
Dashboards | Save Customizations | See Section 19.5, "Controlling Access to Saved Customization Options in Dashboards." | BIConsumer |
Dashboards | Assign Default Customizations | See Section 19.5, "Controlling Access to Saved Customization Options in Dashboards." | BIAuthor |
Formatting | Save SystemWide Column Formats | Allows users to save systemwide defaults when specifying formats for columns. | BIAdministrator |
My Account | Access to My Account | Allows users to access the My Account dialog. | BIConsumer |
My Account | Change Preferences | Allows users to access the Preferences tab of the My Account dialog. | BIConsumer |
My Account | Change Delivery Options | Allows users to access the Delivery Options tab of the My Account dialog. | BIConsumer |
Answers | Create Views | Allows users to create views. | BIAuthor |
Answers | Create Prompts | Allows users to create prompts. | BIAuthor |
Answers | Access Advanced Tab | Allows users to access the Advanced tab in the Analysis editor. | BIAuthor |
Answers | Edit Column Formulas | Allows users to edit column formulas. | BIAuthor |
Answers | Save Content with HTML Markup | Allows users to save objects such as views and actions that contain HTML code. | BIAdministrator |
Answers | Enter XML and Logical SQL | Allows users to use the Advanced SQL tab. | BIAuthor |
Answers | Edit Direct Database Analysis | Allows users to create and edit requests that are sent directly to the back-end data source. | BIAdministrator |
Answers | Create Analysis from Simple SQL | Allows users to select the Create Analysis from Simple SQL option in the Select Subject Area list. | BIAdministrator |
Answers | Create Advanced Filters and Set Operations | Allows users to click the Combine results based on union, intersection, and difference operations button from the Criteria tab in the Analysis editor. | BIAuthor |
Answers | Save Filters | Allows users to save filters | BIAuthor |
Answers | Execute Direct Database Analysis | Allows users to issue requests directly to the back-end data source. | BIAdministrator |
Delivers | Create Agents | Allows users to create agents. | BIAuthor |
Delivers | Publish Agents for Subscription | Allows users to publish agents for subscription. | BIAuthor |
Delivers | Deliver Agents to Specific or Dynamically Determined Users | Allows users to deliver agents to other users. | BIAdministrator |
Delivers | Chain Agents | Allows users to chain agents. | BIAuthor |
Delivers | Modify Current Subscriptions for Agents | Allows users to modify the current subscriptions for agents, including unsubscribing users. | BIAdministrator |
Proxy | Act As Proxy | Allows users to act as proxy users for other users, as described in Section C.5, "Enabling Users to Act for Others." | Denied: BIConsumer |
RSS Feeds | Access to RSS Feeds | Allows users to subscribe to and receive RSS feeds with alerts and contents of folders.
If Presentation Services uses the HTTPS protocol, then the RSS Reader that you use must also support the HTTPS protocol. |
BIAuthor |
Scorecard | Create/Edit Scorecards | Allows users to create and edit scorecards. | BIAuthor |
Scorecard | View Scorecards | Allows users to view scorecards. | BIConsumer |
Scorecard | Create/Edit Objectives | Allows users to create and edit objectives. | BIAuthor |
Scorecard | Create/Edit Initiatives | Allows users to create and edit initiatives. | BIAuthor |
Scorecard | Create Views | Allows users to create and edit scorecard views, such as strategy trees. | BIAuthor |
Scorecard | Create/Edit Causes and Effects Linkages | Allows users to create and edit cause and effect relationships. | BIAuthor |
Scorecard | Create/Edit Perspectives | Allows users to create and edit perspectives. | BIAdministrator |
Scorecard | Add Annotations | Allows users to add comments to KPIs and scorecard components. | BIConsumer |
Scorecard | Override Status | Allows users to override statuses of KPIs and scorecard components. | BIConsumer |
Scorecard | Create/Edit KPIs | Allows users to create and edit KPIs. | BIAuthor |
Scorecard | Add Scorecard Views to Dashboards | Allows users to add scorecard views (such as strategy trees) to dashboards. | BIConsumer |
List Formats | Create List Formats | Allows users to create list formats in Oracle's Siebel Marketing. | BIAuthor |
List Formats | Create Headers and Footers | Allows users to create headers and footers for list formats in Oracle's Siebel Marketing. | BIAuthor |
List Formats | Access Options Tab | Allows users to access the Options tab for list formats in Oracle's Siebel Marketing. | BIAuthor |
List Formats | Add/Remove List Format Columns | Allows users to add and remove columns for list formats in Oracle's Siebel Marketing. | BIAdministrator |
Segmentation | Create Segments | Allows users to create segments in Oracle's Siebel Marketing. | BIAuthor |
Segmentation | Create Segment Trees | Allows users to create segment trees in Oracle's Siebel Marketing. | BIAuthor |
Segmentation | Create/Purge Saved Result Sets | Allows users to create and purge saved result sets in Oracle's Siebel Marketing. | BIAdministrator |
Segmentation | Access Segment Advanced Options Tab | Allows users to access the Segment Advanced Options tab in Oracle's Siebel Marketing. | BIAdministrator |
Segmentation | Access Segment Tree Advanced Options Tab | Allows users to access the Segment Tree Advanced Options tab in Oracle's Siebel Marketing. | BIAdministrator |
Segmentation | Change Target Levels within Segment Designer | Allows users to change target levels within the Segment Designer in Oracle's Siebel Marketing. | BIAdministrator |
SOAP | Access SOAP | Allows users to access various web services. | BIConsumer, BISystem |
SOAP | Impersonate as System User | Allows users to impersonate a system user using a web service. | BISystem |
SOAP | Access MetadataService | Allows users to access the MetadataService web service. | BIConsumer, BISystem |
SOAP | Access AnalysisExportViewsService | Allows users to access the ReportingEditingService web service. | BIConsumer |
SOAP | Access ReportingEditingService | Allows users to access the ReportingEditingService web service. | BIConsumer, BISystem |
SOAP | Access ConditionEvaluationService | Allows users to access the ConditionEvaluationService web service. | BIConsumer, BISystem |
SOAP | Access ReplicationService | Allows users to access the ReplicationService web service to replicate the Oracle BI Presentation Catalog. | BISystem |
SOAP | Access CatalogIndexingService | Allows users to access the CatalogIndexingService web service to index the Oracle BI Presentation Catalog for use with full-text search. | BISystem |
SOAP | Access DashboardService | Allows users to access the DashboardService web service. | BIConsumer, BISystem |
SOAP | Access SecurityService | Allows users to access the SecurityService web service. | BIConsumer, BISystem |
SOAP | Access ScorecardMetadataService | Allows users to access the ScorecardMetadataService web service. | BIConsumer, BISystem |
SOAP | Access ScorecardAssessmentService | Allows users to access the ScorecardAssessmentService web service. | BIConsumer, BISystem |
SOAP | Access HtmlViewService | Allows users to access the HtmlViewServiceService web service. | BIConsumer, BISystem |
SOAP | Access CatalogService | Allows users to access the CatalogService web service. | BIConsumer, BISystem |
SOAP | Access IBotService | Allows users to access the IBotService web service. | BIConsumer, BISystem |
SOAP | Access XmlGenerationService | Allows users to access the XmlGenerationService web service. | BIConsumer, BISystem |
SOAP | Access JobManagementService Service | Allows users to access the JobManagementService web service. | BIConsumer, BISystem |
SOAP | Access KPIAssessmentService | Allows users to access the JKPIAssessmentService web service. | BIConsumer, BISystem |
Subject Area (by its name) | Access within Oracle BI Answers | Allows users to access the specified subject area within the Answers editor. | BIAuthor |
View Analyzer | Add/Edit AnalyzerView | Allows users to access the Analyzer view. | BIAdministrator |
View Column Selector | Add/Edit Column SelectorView | Allows users to create and edit column selector views. | BIAuthor |
View Compound | Add/Edit CompoundView | Allows users to create and edit compound layouts. | BIAuthor |
View Graph | Add/Edit GraphView | Allows users to create and edit graph views. | BIAdministrator |
View Funnel | Add/Edit FunnelView | Allows users to create and edit funnel graph views. | BIAuthor |
View Gauge | Add/Edit GaugeView | Allows users to create and edit gauge views. | BIAuthor |
View Filters | Add/Edit FiltersView | Allows users to create and edit filters. | BIAuthor |
View Dashboard Prompt | Add/Edit Dashboard PromptView | Allows users to create and edit dashboard prompts. | BIAuthor |
View Static Text | Add/Edit Static TextView | Allows users to create and edit static text views. | BIAuthor |
View Legend | Add/Edit Legend View | Allows users to create and edit legend views. | BIAuthor |
View Map | Add/Edit MapView | Allows users to create and edit map views. | BIAuthor |
View Narrative | Add/Edit NarrativeView | Allows users to create and edit narrative views. | BIAuthor |
View Nested Request | Add/Edit Nested RequestView | Allows users to create and edit nested analyses. | BIAuthor |
View No Results | Add/Edit No ResultsView | Allows users to create and edit no result views. | BIAuthor |
View Pivot Table | Add/Edit Pivot TableView | Allows users to create and edit pivot table views. | BIAuthor |
View Report Prompt | Add/Edit Report PromptView | Allows users to create and edit prompts. | BIAuthor |
View Create Segment | Add/Edit Create SegmentView | Allows users to create and edit segment views. | BIAuthor |
View Logical SQL | Add/Edit Logical SQLView | Allows users to create and edit logical SQL views. | BIAuthor |
View Table | Add/Edit TableView | Allows users to create and edit table views. | BIAuthor |
View Create Target List | Add/Edit Create Target ListView | Allows users to create and edit target list views. | BIAuthor |
View Ticker | Add/Edit TickerView | Allows users to create and edit ticker views. | BIAuthor |
View Title | Add/Edit TitleView | Allows users to create and edit title views. | BIAuthor |
View View Selector | Add/Edit View SelectorView | Allows users to create and edit view selector views. | BIAuthor |
Write Back | Write Back to Database | Grants the right to write data into the data source. | Denied: BIConsumer |
Write Back | Manage Write Back | Grants the right to manage write back requests. | BIAdministrator |
