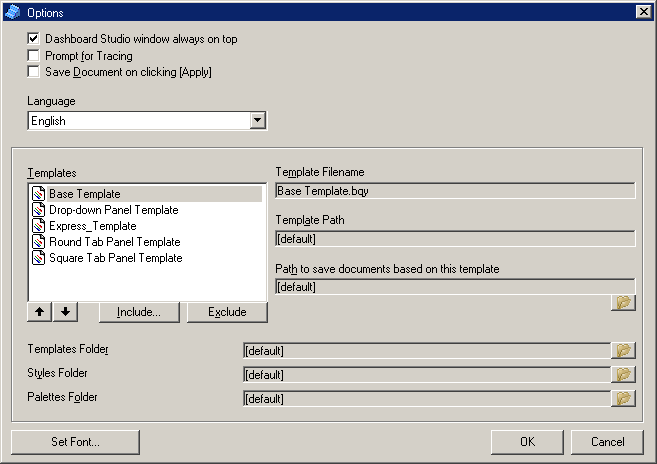

Options Window

Click Properties button on Select a Framework Template to open the Options window, and change the settings and environment of Dashboard Studio.

These elements are available in Options:

Dashboard Studio window always on top—Determines whether Dashboard Studio is on top of other application windows, and is selected by default
Prompt for Tracing—Enables Dashboard Studio and the dashboard to record JavaScript tracing information in the Console window and the Diagnostics frame (The feature should be set only if you are trying to resolve a problem with Dashboard Studio or a dashboard)
Save Document on Clicking [Apply]—Causes Interactive Reporting Studio to save the dashboard every time selections are applied
Language—Enables the language option of the Dashboard Studio wizard-interface to be set (A necessary option for localized or Unicode releases, as different languages display characters differently)
Templates—Contains a list of aliases that represent the configured templates available to users of Dashboard Studio (Add templates to the list by clicking Include and selecting a template from the Templates folder. Remove a template from the list by selecting the template, and clicking Exclude. Reorder the displayed templates in Select a Framework Template by selecting a template from Templates, and clicking or )
Note:
A template alias can be renamed. By default, a template uses the file name that it represents. A template may be included multiple times with multiple save paths.
Template Filename—Displays the file name of the template associated with the template alias
Note:
Default paths (folders such as templates, documents, styles, palettes) reside in the Dashboard Studio location.
Template Path—Displays the path location of the configured templates
Path to save documents based on this template—Displays the path where dashboards derived from the template are saved (To change the path, click , and navigate to another location. A template may be included multiple times with multiple save paths)
Templates Folder—Displays the path location of the folder of configured templates (To change the path, click , and navigate to another folder)
Styles Folder—Displays the path location of the Styles folder (Click to change the path)
Palettes Folder—Displays the path location of the Palettes folder (Click to change the path)
Set Font—Launches a Font dialog box to enable the font style to be configured for the Dashboard Studio wizard-interface (A necessary option for localized or Unicode releases, as different fonts display characters differently. Users must select an appropriately sized font that suits the UI, otherwise characters may be too large and cut off)
