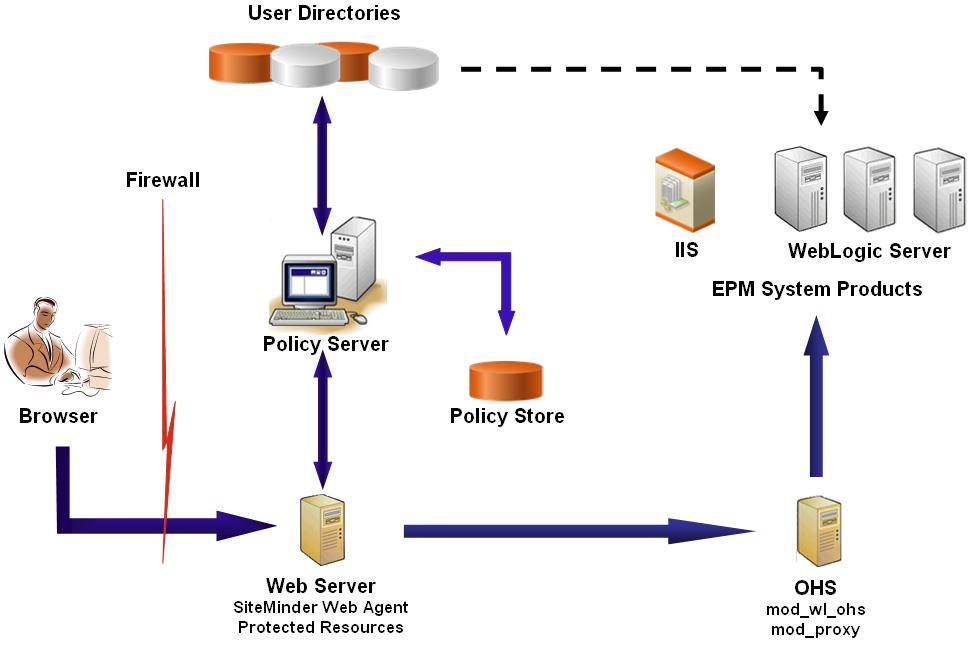

Illustrated overview of SiteMinder-enabled SSO:
The SiteMinder SSO process:
Users try to access a SiteMinder protected EPM System resource. They use a URL that connects them to the web server that front-ends the SiteMinder policy server; for example, http://WebAgent_Web_Server_Name:WebAgent_Web_ServerPort/interop/index.jsp.
The web server redirects users to the policy server, which challenges users for credentials. After verifying credentials against configured user directories, the policy server passes the credentials to the web server that hosts the SiteMinder Web Agent.
The web server that hosts the SiteMinder Web Agent redirects the request to the Oracle HTTP Server that front-ends EPM System. Oracle HTTP Server redirects users to the requested application deployed on WebLogic Server or IIS Server.
The EPM System component checks provisioning information and serves up content. For this process to work, the user directories that SiteMinder uses to authenticate users must be configured as external user directories in the EPM System. These directories must be configured as trusted.
